The MS-6340 Micro-ATXVA mainboard is a high-performance
computer mainboard based on VIA®KT133 chipset. The MS-6340 is
designed for the AMD®Socket processor for inexpensive business/
personal desktop markets.
The KT133 chipset consists of the VT8363 system controller (552
pin BGA) and the VT82C686A PCI to ISA bridge (352 pin BGA). The system
controller provides superior performance between the CPU, DRAM, AGP
bus, and PCI bus with pipelined burst, and concurrent operation.
The VT82C686A integrates all system control functions such as
ACPI (Advances Configuration and Power Interface). The ACPI provides
more Energy Saving Features for the OSPM (OS Direct Power Management)
function. The VT82C686A chipset also improves the IDE transfer rate by
supporting Ultra DMA-33/66 IDE that transfers data at the rate 33/66MB sec.
This mainboard which supports KT133 chipset coupled with
VT8363and VT82C686A is ideal for high performance, high quality, high
energy efficient and high integration desktop AGP/PCI/ISA computer
systems.

CHAPTER 1INTRODUCTION
1-2
1.1 Mainboard Features
CPU
lSocket A for AMD®PGA Duron/Athlon processor.
lSupport 550-1000MHz
Chipset
lVIA®KT133VT8363chipset.(552BGA)
-FSB@200MHz
- AGP 4x and PCI Advanced high performance memory controller
- Support PC100/133 SDRAM, & VCM technology
lVIA®VT82C686Achipset.(352BGA)
- Enhanced Power Management Features
- Integrated Super I/O (FDC, LPT,COM 1/2, and IR)
- Dual bus Master IDE Ultra DMA33/66/100
- Integrated Hardware Sound Blaster
- Direct Sound AC97 Audio
-ACPI
ClockGenerator
l100Mhz clocks are supported. (200MHz Internal System Bus)
MainMemory
lSupport four memory banks using two 168-pin unbuffered DIMM.
lSupporta maximum memorysize of 1GB(32M x8).
lSupport3.3v SDRAM DIMM.
Slots
lOne AGP(Accelerated Graphics Port) slot.
-AGP specificationcompliant
-SupportAGP2.01x/2x/4x
lOneCNR(Communication NetworkRiser) slot.
lThree 32-bit Master PCI Bus slots.
lSupports 3.3v/5v PCI bus Interface.

CHAPTER 1INTRODUCTION
1-3
On-BoardIDE
lAn IDE controller on the VIA®VT82C686A Chipset provides IDE HDD/
CD-ROM with PIO, Bus Master and Ultra DMA 33/66 operation modes.
lCan connect up to four IDE devices.
On-BoardPeripherals
lOn-Board Peripherals include:
- 1 floppy port supports 2 FDD with , 720K and 1.44M
- 2 serial ports (COMA + COM B) or 1 serial port with 1 VGA port.
-1 parallelport supports SPP/EPP/ECPmode
- 4 USB ports (2 Rear Connectors/USB Front Pin Header)
-1 IrDA connectorfor SIR/CIR/FIR/ASKIR/HPSIR.
- 1 Audio/Game port
Audio
lChip Integrated
-Direct Sound AC97 Audio.

CHAPTER 1INTRODUCTION
1-4
BIOS
lThe mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
lThe mainboard provides a Desktop Management Interface(DMI) function
which records your mainboard specifications.
Dimension
lMicroATXFormFactor: 20.8cm x 24.3cm.
Mounting
l6 mounting holes.

CHAPTER 1INTRODUCTION
1-5

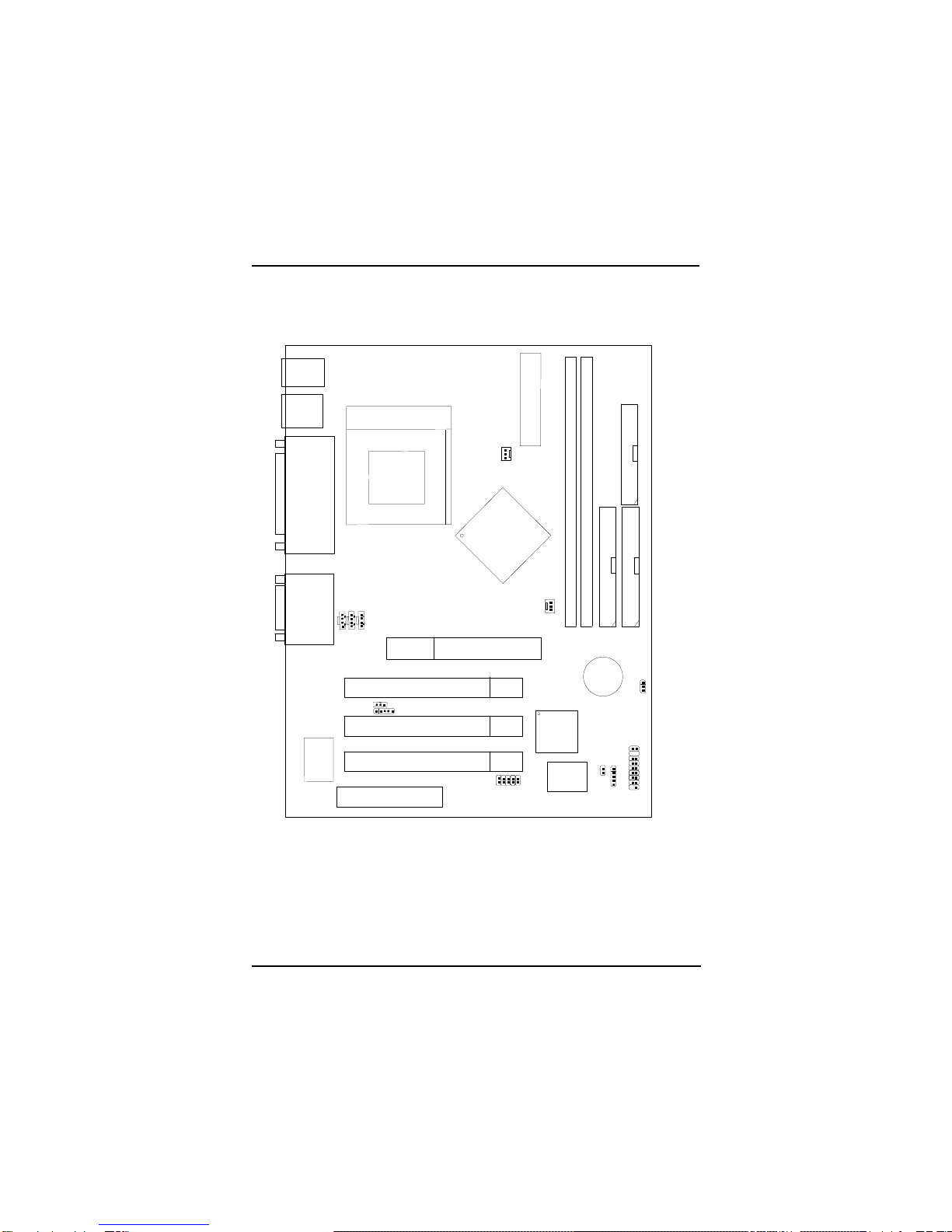

1.2 Mainboard Layout
PCI SLOT 2
PCI SLOT 1
ATX
Power Supply
VIA
KT133
Socket 462
DIMM 1
Top: mouse
Bottom:
keyboard
Top:Port1
USB
IDE1
Bottom:
Port 2
IDE2 FDD1
VT82C686A
JBAT1
JAUX1 J_PHN1
C_FAN1
JGS1
Top:LPT
Bottom:
COM A
COM B
Top: Midi/
Game Port
Bottom:
Line-Out
Line-In
Mic
MS-6340 Micro-ATX VA Mainboard
JCD1
J4
BIOS
AGP Slot
BATT
+
DIMM 2
CNR
S_FAN1
PCI SLOT 3
JFP1
Creative
CT5880
USB2
JMDM1
JWOL1

CHAPTER 2HARDWARE INSTALLATION
2-1
CPU
CPU
Chapter 2
HARDWARE INSTALLATION
2.1 Central Processing Unit: CPU
The mainboard operates with AMD®DuronTM/Athlon processor. The
mainboard uses a CPU socket called Socket 462 for easy CPU installation.
The CPU should always have a Heat Sink and a cooling fan attached to
prevent overheating.

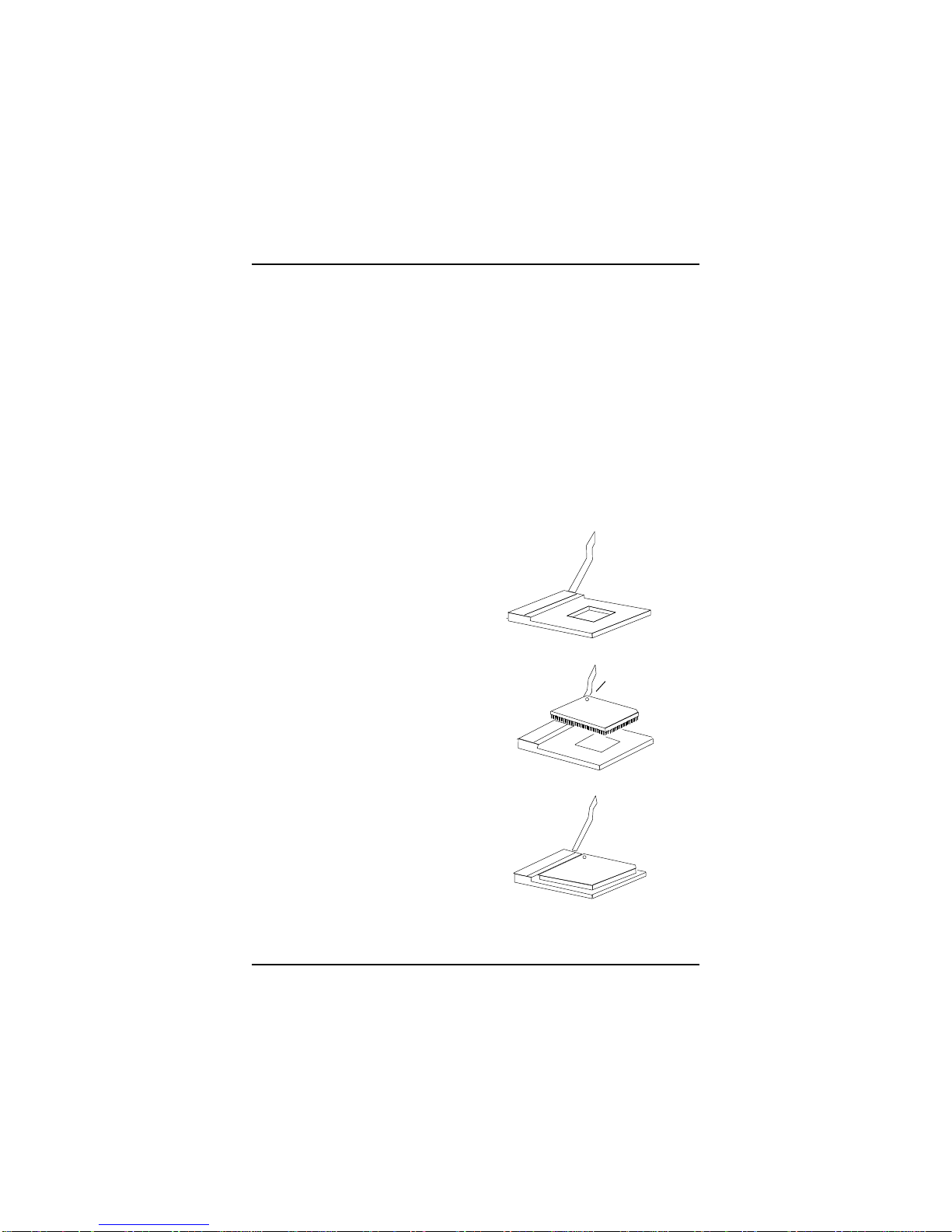

3. Press the lever down to
complete the installation.
2. Locate Pin 1 in the socket
and look for the white dot or
cut edge in the CPU. Match
Pin 1 with the white dot/cut
edge. Then, insert the CPU.
It should insert easily.
Open Lever
Sliding
Plate
White dot/
Cut edge
Close
Lever
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.
2.1-1 CPU Installation Procedures

CHAPTER 2HARDWARE INSTALLATION
2-2
The mainboard CPU Bus Frequency can be set through BIOS setup.
If CPUClock = 100MHz
Core/Bus ratio = 7
then CPU core speed = Host Clock xCore/Bus ratio
= 700MHz
2.1-2 CPU Core Speed Derivation Procedure

CHAPTER 2HARDWARE INSTALLATION
2-3
2.1-3 Fan Power Connectors: C_FAN1/S_FAN1
These connectors support system cooling fan with + 12V. It supports three
pin head connector. When connecting the wire to the connector, always
take note that the red wire is the positive and should be connected to the
+12V, the black wire is Ground and should be connected to GND. If your
mainboard has System Hardware Monitor chipset on-board, you must use a
specially designed fan with speed sensor to take advantage of this function.
For fans with fan speed sensor, every rotation of the fan will send out 2
pulses. System Hardware Monitor will count and report the fan rotation
speed.
Note: Always consult vendor for proper CPU cooling fan.
C_FAN1
C_FAN1: Processor Fan
S_FAN1: SystemFan
+12V
GND
SENSOR
S_FAN1
+12V
SENSOR
GND

CHAPTER 2HARDWARE INSTALLATION
2-4

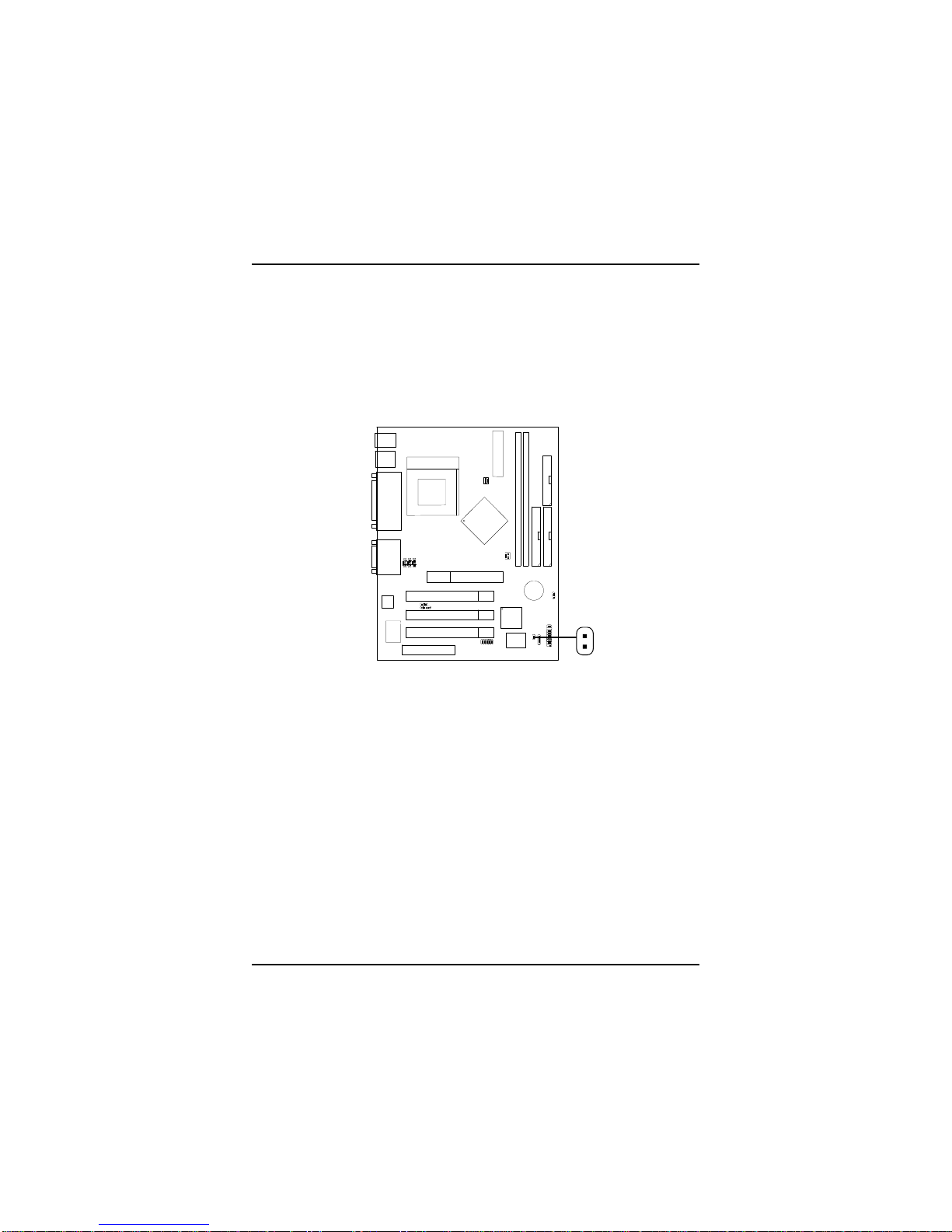

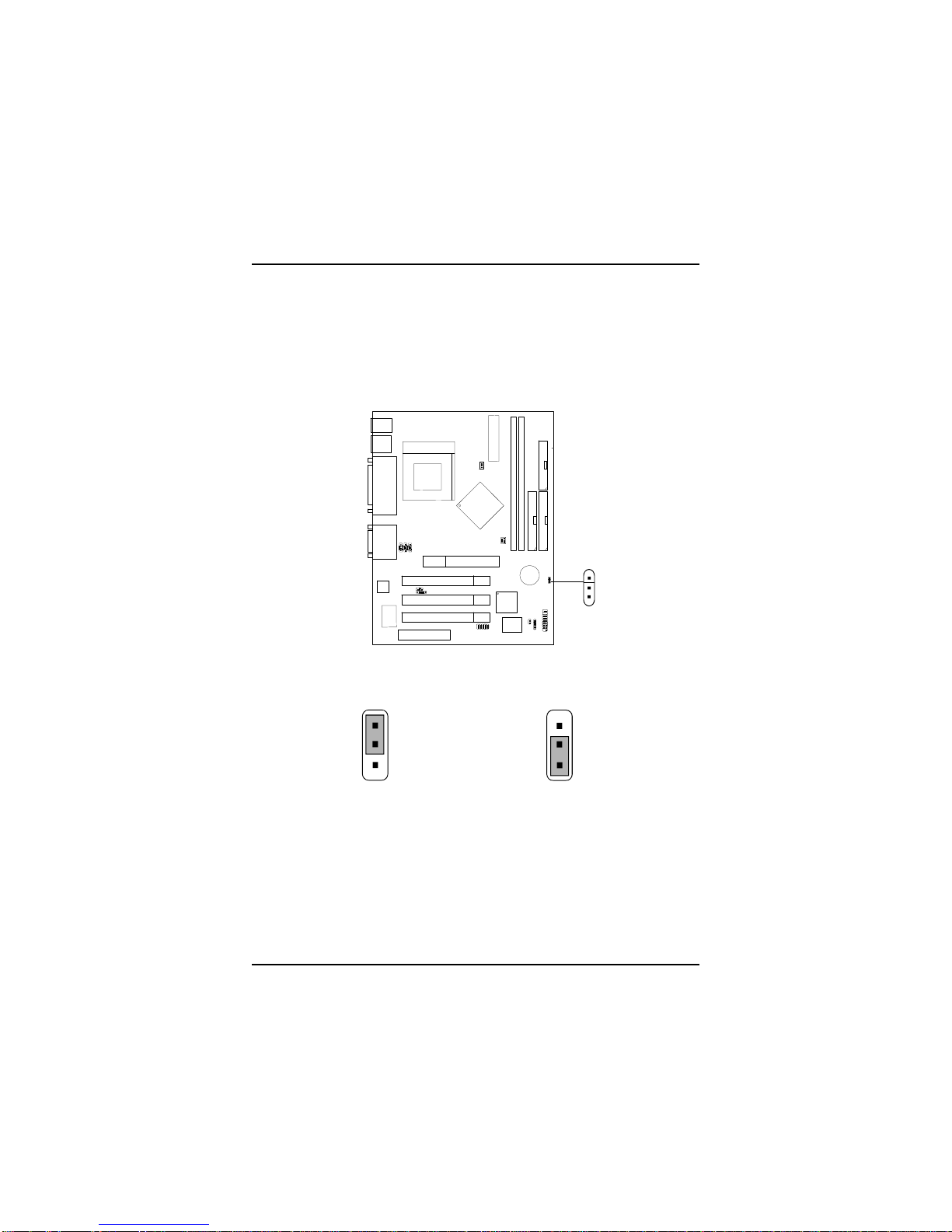

2.2 Clear CMOS Jumper: JBAT1
A battery must be used to retain the mainboard configuration in CMOS
RAM. Short 1-2 pins of JBAT1 to store the CMOS data.
Keep Data Clear Data
11
3
3
Note: You can clear CMOS by shorting 2-3 pin, while the system is off.
Then, return to 1-2 pin position. Avoid clearing the CMOS while
the system is on, it will damage the mainboard. Always unplug
the power cord from the wall socket.
22
1
3
JBAT1

CHAPTER 2HARDWARE INSTALLATION
2-5
2.3 Memory Installation

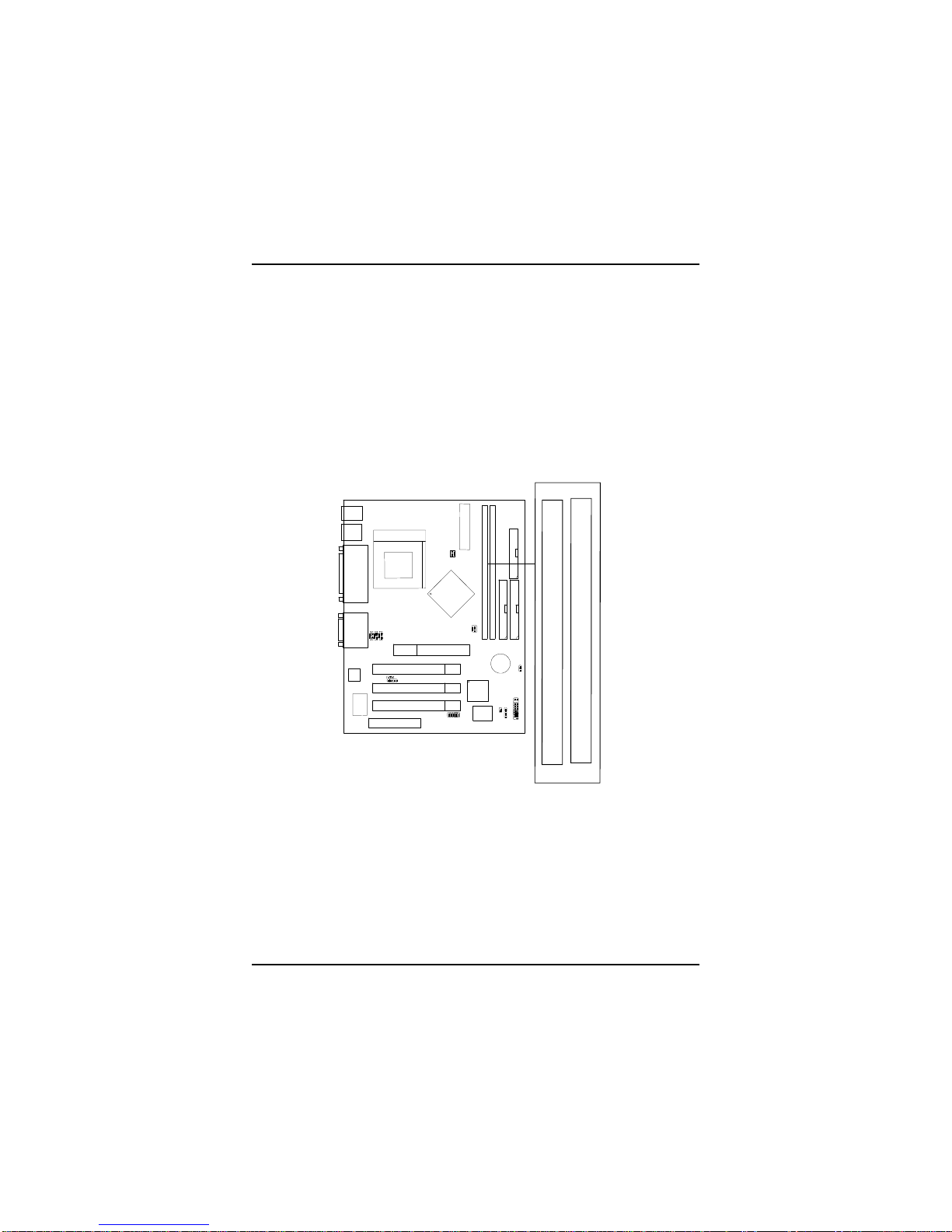

2.3-1 Memory Bank Configuration
The mainboard supports a maximum memory size of 512 MB. It provides
two 168-pinunbuffered DIMMs (Double In-Line Memory Module) sockets.
It supports 8 MB to 512 Mbytes DIMM memory module.
DIMM1(Bank0+Bank1) DIMM2(Bank2+Bank3)

CHAPTER 2HARDWARE INSTALLATION
2-6
A. HowtoinstallaDIMMModule
1. The DIMM slot has 2 Notch Keys “VOLT and DRAM”, so the
DIMM memory module can only fit in one direction.
2. Insert the DIMM memory module vertically into the DIMM slot.
Then push it in.
3. The plastic clip at the side of the DIMM slot will automatically
close.

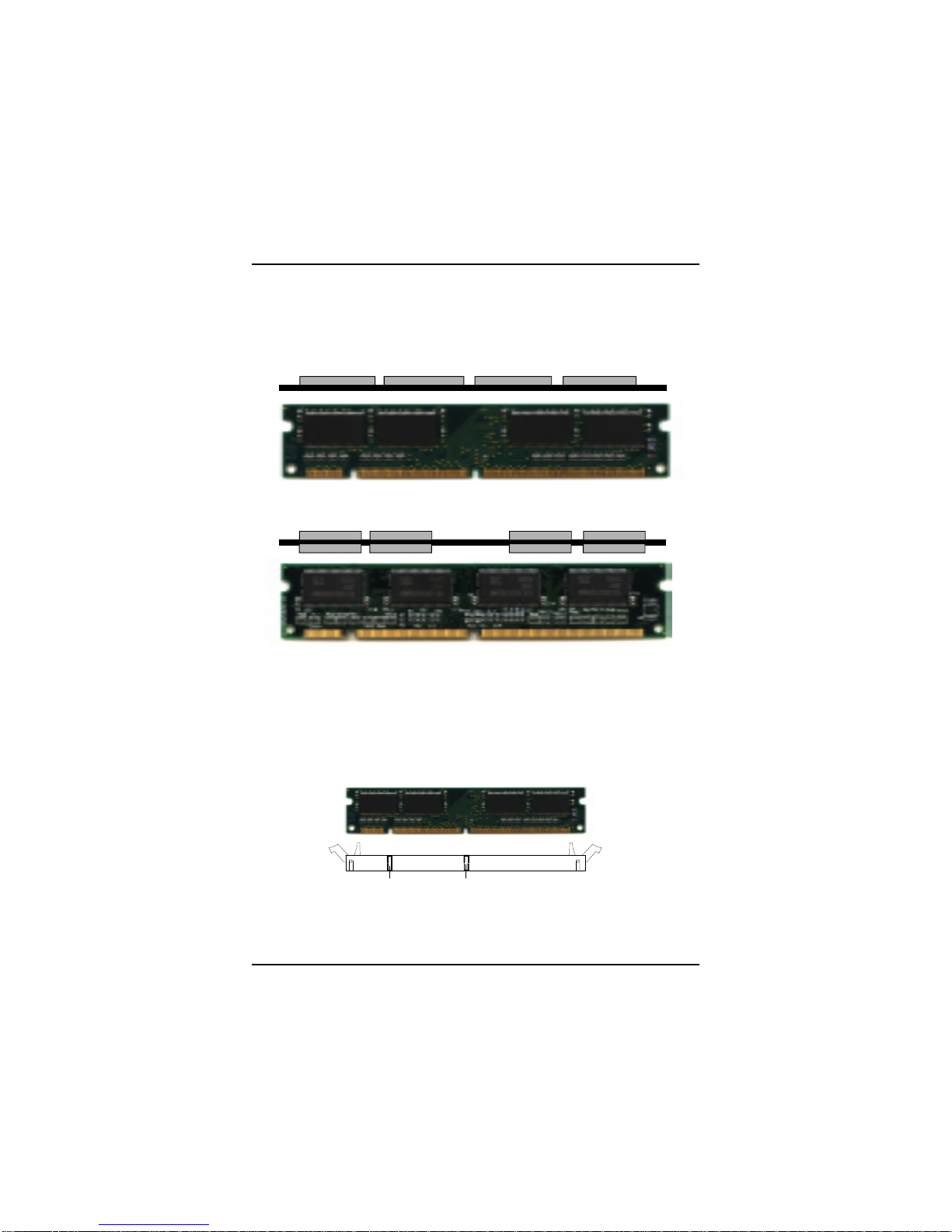

Single Sided DIMM
Double Sided DIMM
VOLTDRAM
2.3-2 Memory Installation Procedures

CHAPTER 2HARDWARE INSTALLATION
2-7
1. Supports only SDRAM DIMM.
2. To operate properly, at least one 168-pin DIMM module must be in-
stalled.
3. This mainboard supports Table Free memory, so memory can be installed
on DIMM 1 or DIMM 2 in any order.
4. Supports 3.3 volt DIMM.
5. The DRAM addressing and the size supported by the mainboard is
shown below:
2.3-3 Memory Population Rules
16M 1Mx16 ASYM 11 88MBx4 16MBx8
2Mx8 ASYM 11 916MBx8 32MBx16
4Mx4 ASYM 11 10 32MB 64MB
64M 2Mx32 ASYM 11 932MBx2 64MBx4
2Mx32 ASYM 12 816MBx2 32MBx4
4Mx16 ASYM 11 10 32MB 64MB
4Mx16 ASYM 13 832MB 64MB
8Mx8 ASYM 13 964MB 128MB
16Mx4 ASYM 13 10 128MB 256MB
64M 2Mx32 ASYM 12 816MB 32MB
4Mx16 ASYM 13 832MB 64MB
8Mx8 ASYM 13 964MB 128MB
16Mx4 ASYM 13 10 128MB 256MB
256M 32Mx8 ASYM 14 9256MB 512MB
DRAM
Tech.
DRAM
Density &
Width
DRAM
Addressing Address Size MB/DIMM
Row Column Single
Side(S) Double
Side(D)
no.
pcs. no. pcs.
Table 2.3-1 SDRAM Memory Addressing

CHAPTER 2HARDWARE INSTALLATION
2-8

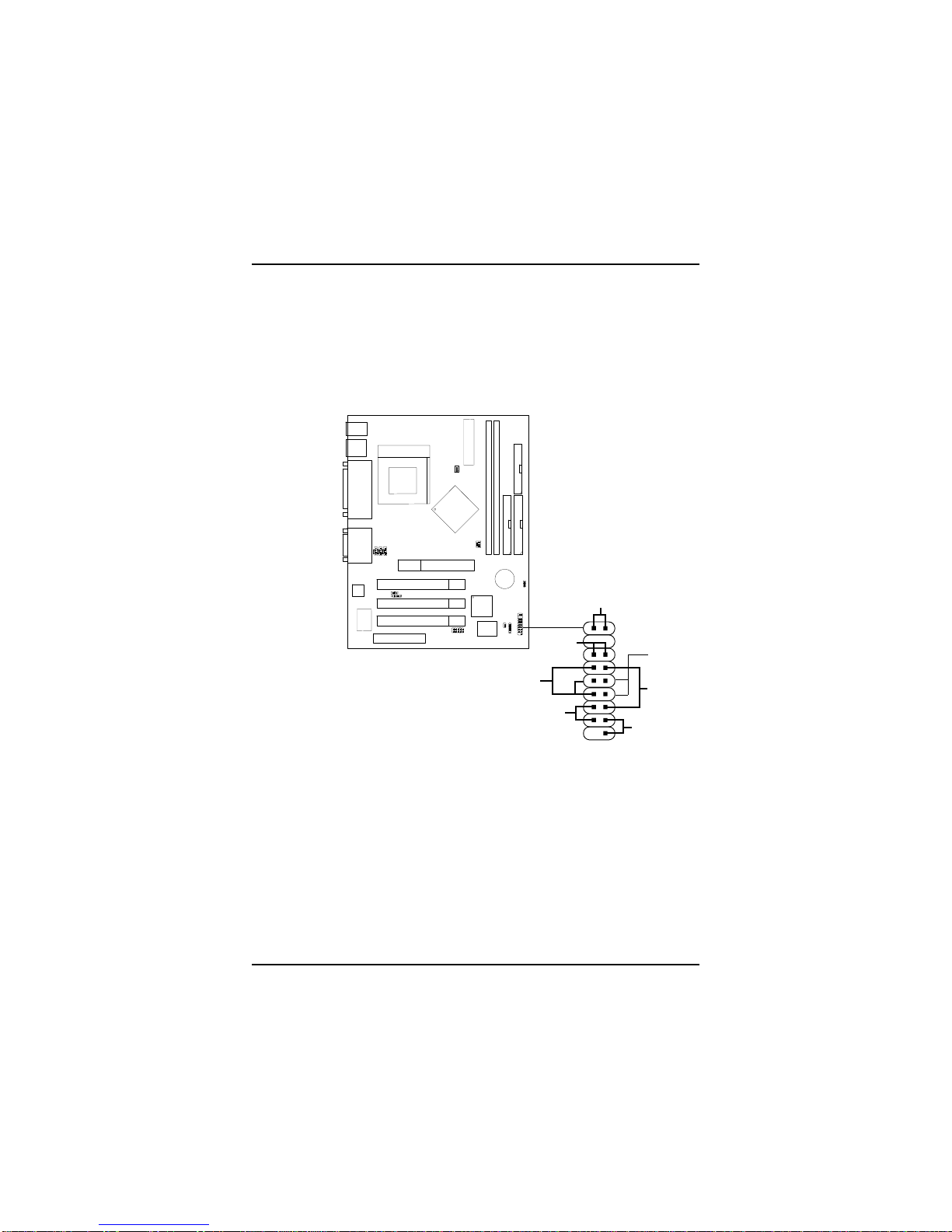

2.4 Case Connector: JFP1
The Keylock (reserved), Power Switch, Reset Switch, Power LED, Speaker,
and HDD LED are all connected to the JFP1 connector block.
JFP1
Power
Switch
Power LED
+
Reset
Switch
HDD
LED
+
Speaker
Buzzer
(short
pin)
14
15
Keylock (Reserved)
Dual
Color
LED
Single
Color
LED

CHAPTER 2HARDWARE INSTALLATION
2-9
2.4-1 Power Switch
Connect to a 2-pin push button switch.
2.4-2 Reset Switch
Reset switch is used to reboot the system rather than turning the power ON/
OFF. Avoid rebooting while the HDD LED is lit. You can connect the Reset
switch from the system case to this pin.
2.4-3 Power LED
The Power LED is lit while the system power is on. Connect the Power LED
from the system case to this pin.
3 pin single color LED connect to pin 4, 5, & 6. This LED will lit
when the system is on.
2.4-4 Speaker
Speaker from the system case is connected to this pin.
2.4-5 HDD LED
HDD LED shows the activity of a hard disk drive. Avoid turning the power
off while the HDD led is lit. You can connect the HDD LED from the system
case to this pin.

CHAPTER 2HARDWARE INSTALLATION
2-10
2.5 Floppy Disk Connector: FDD1
The mainboard also provides a standard floppy disk connector FDD1 which
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This
connector supports the provided floppy drive ribbon cables.
FDD1
1

CHAPTER 2HARDWARE INSTALLATION
2-11

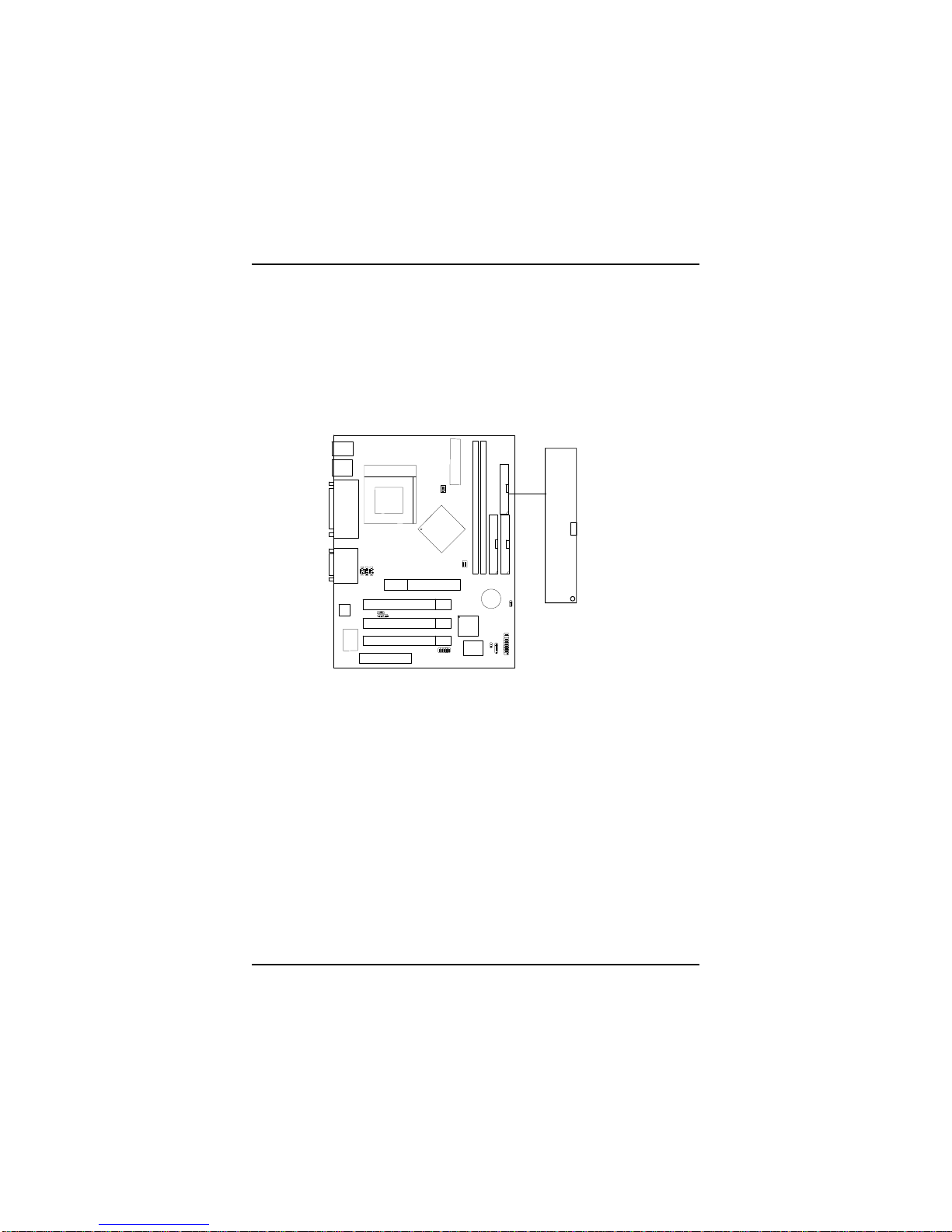

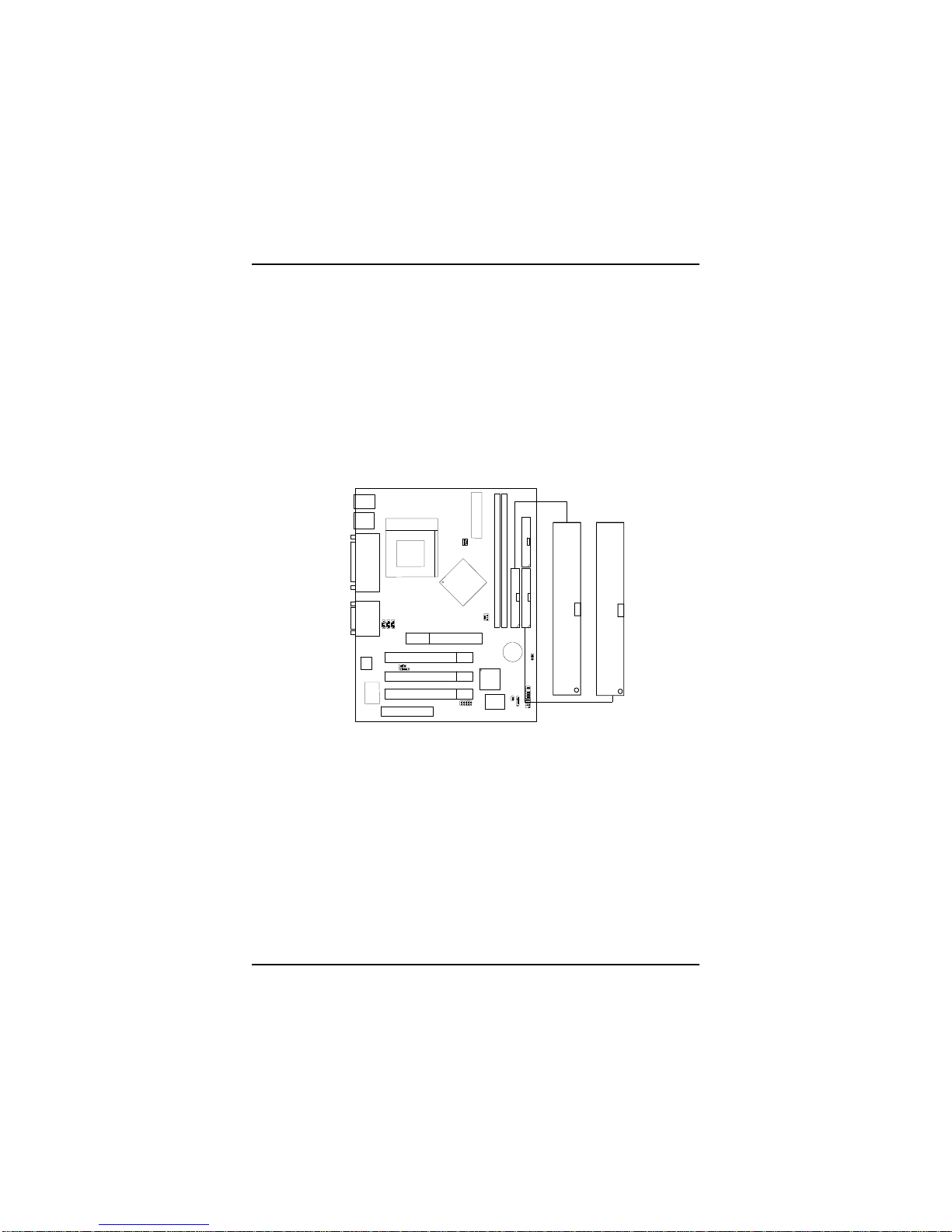

2.6 Hard Disk Connectors: IDE1 & IDE2
The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA/66 Controller
that provides PIO mode 0~4, Bus Master, and Ultra DMA/33/66 function. It
has two HDD connectors IDE1 (primary) and IDE2 (secondary). You can
connect up to four hard disk drives, CD-ROM, 120MB Floppy (reserved for
future BIOS) and other devices to IDE1 and IDE2. These connectors
support the provided IDE hard disk cable.
IDE1(PrimaryIDE Connector)
The first hard drive should always be connected to IDE1. IDE1 can
connect a Master and a Slave drive. You must configure second hard
drive to Slave mode by setting the jumper accordingly.
IDE2(SecondaryIDE Connector)
IDE2 can also connect a Master and a Slave drive.
Secondary IDE Connector
Primary IDE Connector
11

CHAPTER 2HARDWARE INSTALLATION
2-12
2.7 Power Supply

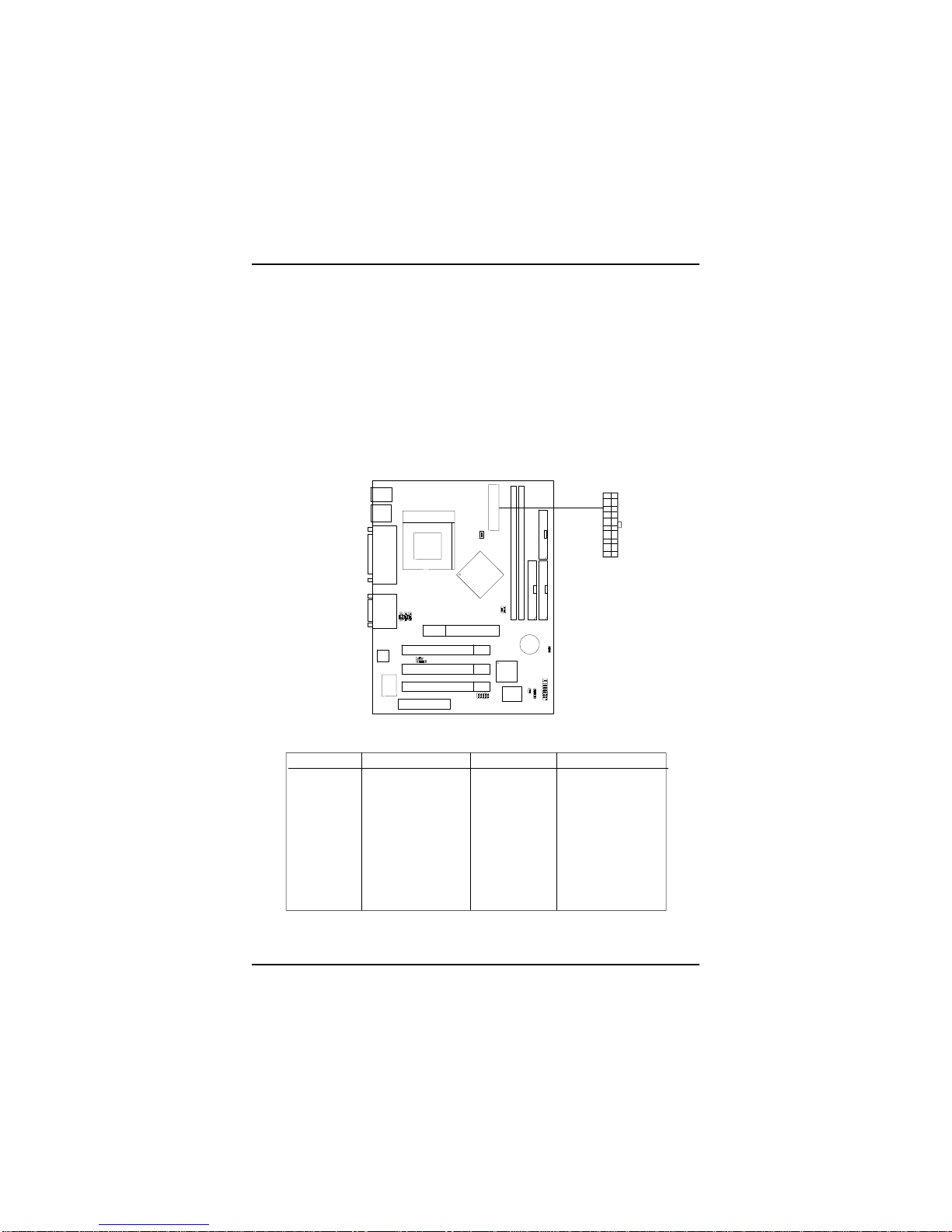

2.7-1 ATX 20-pin Power Connector: JWR1
This connector supports the power button on-board. Using the ATX power
supply, functions such as Modem Ring Wake-Up and Soft Power Off are
supported by this mainboard. This power connector supports instant power
on function which means that system will boot up instantly when the power
connector is inserted on the board.
PIN SIGNAL
11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5V
20 5V
PIN SIGNAL
13.3V
23.3V
3GND
45V
5GND
65V
7GND
8PW_OK
95V_SB
10 12V
PINDEFINITION
Warning: Since the mainboard has the instant power on function, make
sure that all components are installed properly before inserting the power
connector to ensure that no damage will be done.
ATX
Power Connector
11
2010
1

CHAPTER 2HARDWARE INSTALLATION
2-13
2.8 IrDA Infrared Module Connector: J4
The mainboard provides one infrared (J4) connector for IR modules. This
connector is for optional wireless transmitting and receiving infrared module.
You must configure the setting through the BIOS setup to use the IR
function.
VCC
NC
IRRX
GND
IRTX
1
J4

CHAPTER 2HARDWARE INSTALLATION
2-14

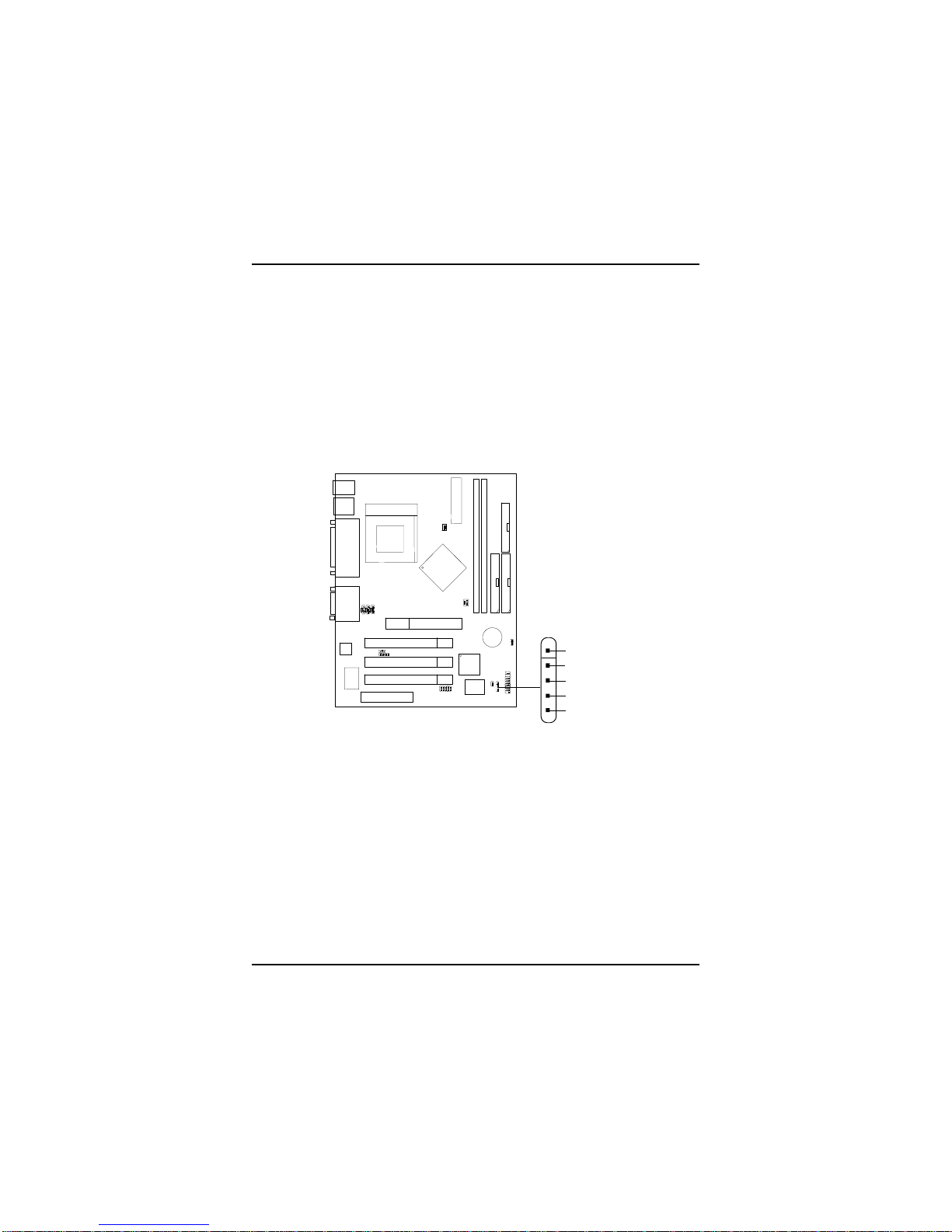

2.9 Power Saving Switch Connector: JGS1(option)
Attach a power saving switch to JGS1. When the switch is pressed the
system immediately goes into suspend mode. Press any key and the system
wakes up.
JGS1
