MSI MS-9803 User manual

i
MS-9803 (V1.X) Mainboard
G52-98031X3
FuzzyGM965/GME965

ii
CopyrightNotice
Thematerialin thisdocumentisthe intellectualpropertyof MICRO-STAR
INTERNATIONAL.Wetakeeverycareinthepreparation ofthisdocument, butno
guarantee isgiven astothecorrectnessof itscontents.Ourproductsareunder
continualimprovementand we reservetheright tomakechangeswithout notice.
Trademarks
Alltrademarksarethe propertiesoftheirrespectiveowners.
Intel and Pentium areregisteredtrademarks of IntelCorporation.
AMD, Athlon™,Athlon™XP, Thoroughbred™,andDuron™areregisteredtrade-
marks ofAMDCorporation.
NVIDIA,the NVIDIAlogo,DualNet, andnForceareregistered trademarksortrade-
marks ofNVIDIACorporationintheUnitedStatesand/orothercountries.
PS/2and OS /2areregisteredtrademarks ofInternational Business Machines
Corporation.
Windows 95/98/2000/NT/XPareregistered trademarks ofMicrosoft Corporation.
Netware isaregistered trademark ofNovell,Inc.
Award isaregisteredtrademarkofPhoenixTechnologiesLtd.
AMI isaregistered trademark ofAmericanMegatrendsInc.
Revision History
Revision RevisionHistory Date
V1.2 Marking theCFslotasanoption November2007
TechnicalSupport
If aproblemariseswithyoursystemand nosolution canbeobtainedfromtheuser’s
manual,pleasecontactyourplaceofpurchaseorlocaldistributor. Alternatively,
pleasetrythe followinghelpresourcesforfurtherguidance.
VisittheMSIwebsiteat http://global.msi.com.tw/index.php?
func=faqIndex forFAQ,technical guide,BIOSupdates,driverupdates,
andotherinformation.
Contactourtechnical staff at http://support.msi.com.tw/.

iii
SafetyInstructions
1. Alwaysreadthe safetyinstructionscarefully.
2. KeepthisUser’sManualforfuturereference.
3. Keep thisequipmentawayfromhumidity.
4. Laythisequipmenton areliableflatsurfacebeforesettingitup.
5. Theopeningsontheenclosureareforairconvectionhenceprotectstheequip-
mentfromoverheating.DONOTCOVERTHEOPENINGS.
6. Makesurethevoltage ofthepowersourceandadjustproperly110/220Vbe-
foreconnecting theequipmenttothepowerinlet.
7. Placethepowercordsuchawaythatpeoplecannotstep on it.Donotplace
anythingoverthe powercord.
8. AlwaysUnplugthePowerCordbeforeinserting anyadd-oncardormodule.
9. Allcautionsandwarningson the equipment should benoted.
10.Neverpouranyliquidintothe openingthatcoulddamageorcauseelectrical
shock.
11. Ifanyofthefollowingsituationsarises,get theequipmentchecked byservice
personnel:
Thepowercordorplugisdamaged.
Liquidhaspenetratedintotheequipment.
The equipmenthasbeenexposed tomoisture.
The equipment doesnot work welloryoucannot getit work accordingto
User’sManual.
Theequipmenthasdroppedand damaged.
The equipmenthasobvioussign of breakage.
12.DONOTLEAVETHISEQUIPMENTINANENVIRONMENTUNCONDITIONED,STOR-
AGETEMPERATUREABOVE600 C(1400F), ITMAYDAMAGETHEEQUIPMENT.
CAUTION: Dangerofexplosionifbatteryisincorrectlyreplaced.
Replaceonlywiththesameorequivalenttyperecommendedbythe
manufacturer.

iv
FCC-BRadioFrequencyInterferenceStatement
Thisequipmenthasbeen
testedandfoundtocomply
withthe limitsforaClass B
digitaldevice,pursuanttoPart
15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection
againstharmfulinterferenceinaresidentialinstallation. Thisequipmentgenerates,
usesandcanradiateradio frequency energyand, ifnot installedand usedin accor-
dancewiththeinstructions,maycauseharmful interferencetoradio communications.
However,thereisnoguaranteethatinterferencewill notoccurinaparticular
installation.Ifthisequipmentdoescauseharmful interferencetoradio ortelevision
reception, whichcanbedeterminedbyturning theequipmentoff and on, theuseris
encouraged totrytocorrect theinterferencebyoneormoreofthe measureslisted
below. Reorientorrelocatethereceivingantenna.
Increasetheseparationbetween theequipmentandreceiver.
Connectthe equipmentintoanoutletonacircuit differentfromthatto
whichthereceiverisconnected.
Consultthedealeroranexperienced radio/televisiontechnicianforhelp.
Notice1
Thechangesormodificationsnotexpresslyapprovedbythe partyresponsible for
compliancecouldvoidtheuser’sauthoritytooperatetheequipment.
Notice2
ShieldedinterfacecablesandA.C.powercord,if any,must beused in orderto
complywiththeemissionlimits.
VOIRLANOTICED’ INSTALLATIONAVANTDERACCORDERAURESEAU.
Micro-StarInternational
MS-9803
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubject tothe
followingtwo conditions:
(1)thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethat
maycauseundesiredoperation.

v
WEEE (WasteElectricaland ElectronicEquipment) Statement

vi

vii

viii
CONTENTS
CopyrightNotice....................................................................................................ii
Trademarks............................................................................................................ii
Revision History....................................................................................................ii
TechnicalSupport.................................................................................................ii
SafetyInstructions................................................................................................iii
FCC-BRadioFrequency InterferenceStatement...................................................iv
WEEE (WasteElectricaland ElectronicEquipment)Statement................................v
Chapter 1ProductOverview..........................................................................1-1
MainboardSpecifications.............................................................................1-2
BlockDiagram...............................................................................................1-4
MainboardLayout........................................................................................1-5
BoardDimension..........................................................................................1-6
Back Panel&I/OShieldDrawing..................................................................1-7
PowerConsumption....................................................................................1-8
SafetyCompliance&MTBF..........................................................................1-9
Chapter 2HardwareSetup.............................................................................2-1
QuickComponentsGuide.............................................................................2-2
CPU(CentralProcessing Unit)......................................................................2-3
Memory.......................................................................................................2-6
PowerSupply..............................................................................................2-7
BackPanel...................................................................................................2-8
Connector..................................................................................................2-10
Jumper......................................................................................................2-18
Slot............................................................................................................2-19
Chapter3BIOSSetup......................................................................................3-1
EnteringSetup.............................................................................................3-2
TheMenu Bar..............................................................................................3-4
Main.............................................................................................................3-5
Advanced....................................................................................................3-6
Boot...........................................................................................................3-17
Security.....................................................................................................3-21
Chipset......................................................................................................3-22
Exit............................................................................................................3-26
Chapter 4SystemResources.......................................................................4-1
WatchDogTimerSetting..............................................................................4-2
AMIPOSTCode...........................................................................................4-3
ResourceList..............................................................................................4-7

1-1
ProductOverview
Chapter1
ProductOverview
ThankyouforchoosingtheFuzzy GM965/GME965(MS-
9803v1.X)MiniITXmainboardfromMSI.
Basedontheinnovative Intel GM965/GME965 &
ICH8M controllersforoptimalsystemefficiency,the
Fuzzy GM965/GME965 accommodatesthelatest Intel
Core2Duo/CoreDuo/CeleronM processorsin
SocketPand supportstwo240-pin533/667MHzDDR2
DIMMslotstoprovidethemaximumof4GBmemory
capacity.
Intheentry-levelandmid-rangemarketsegment, the
Fuzzy GM965/GME965canprovideahigh-performance
solutionfortoday’sfront-endand generalpurpose
workstation,aswellasinthefuture.

MS-9803Mainboard
1-2
Mainboard Specifications
Processor
-IntelCore2Duo/CoreDuo/CeleronMCPUinSocketP
-Supports3-pinCPUfanpin-headerwithFanSpeed Control
-SupportsIntelDualCoreTechnologyto533/667/800MHzandup
SupportedFSB
-533/667/800MHz
Chipset
-NorthBridge:IntelGM965/GME965 chipset
-SouthBridge:IntelICH8Mchipset
Memory
-DDR2533/667SDRAM(4GBMax)
-2DDR2DIMMslots(240pin/1.8V)
LAN
-Supports2GbEthernet byIntel82573L &82566DC
Audio
-HDACodecbyRealtek ALC888 7.1channel
-CompliantwithAzalia1.0specs
-6watt amplifier
IDE
-1IDEportbyICH8M
-SupportsUltraDMA66/100 mode
-SupportsPIO, BusMasteroperationmode
SATA
-SATAIIportsbyICH8M
-SupportstwoSATAIIdevices
-Supportsstorageanddatatransfersatupto300MB/s
Connectors
Back Panel
-2RJ-45LANjacks
-4USB2.0ports
-1D-SubVGAconnector
-1serialport

1-3
ProductOverview
-1PS2keyboard/mouseport
-6audiojacks
OnboardConnectors
-2USB2.0connectors(4ports)
-1parallelportconnector
-1SPDIFconnector
-1LVDSconnector
-1TV-outconnector
-1digitalI/O connector(16GPIO)
-1serialportconnector
-1frontpanelconnector
-1amplifierconnector(4-pin)
Slots
-1PCIExpressx16 slot
-1MiniPCI-Eslot
-132-bit/33MHzPCIslot
-1CFsocket(optional)
FormFactor
-MiniITX:170mmx170mm
Mounting
-4mountingholes
Environmental
StorageTemperature
-Temperature:-20oC~80oC
-Humidity:0%RH~95%RH
Operation Temperature
-Temperature:0oC~55oC
-Humidity:0%RH~85%RH

MS-9803Mainboard
1-4

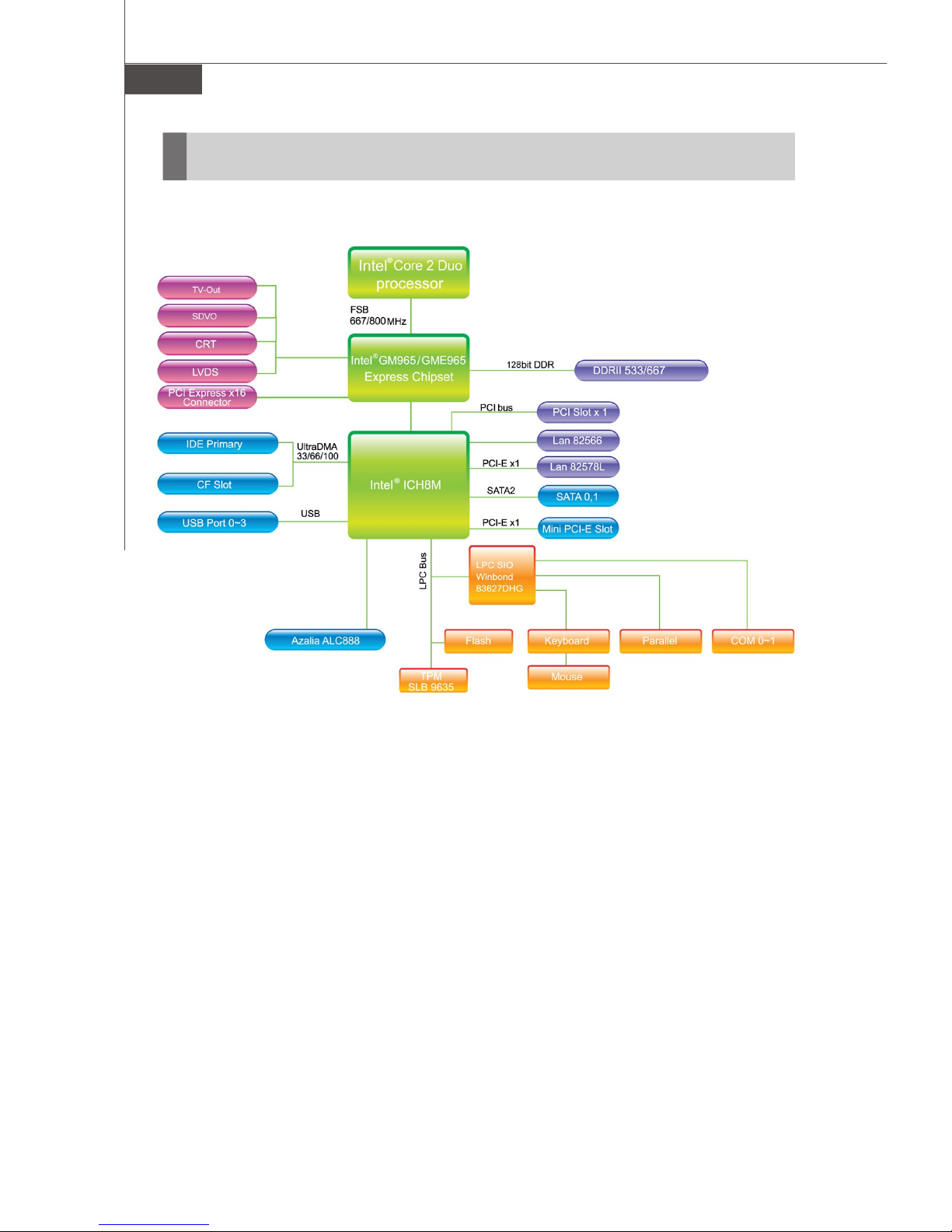

Block Diagram

1-5
ProductOverview
FuzzyGM965/GME965 (MS-9803 v1.X)Mini ITXMainboard
MainboardLayout
CF1
(Optional)
JLVDS1
DIMM1
DIMM2
JTV2
JBAT1
CPUFAN1
SYSFAN1
F_USB1
F_USB2
CON1
PCI1
J4
J7
J6
J5
JSPI2
JSPD1
ALC888
Intel
82573L
Intel
82566DC
JLPC1
JFP1
COM2
JLPT1
IDE1
SATA2
SATA1
ATX1
JAMP1
PCI-E1
BATT
+
Top:
Mouse
Bottom:
Keyboard
Top: LANJack
Bottom:USBPorts
Top:LANJack
Bottom:USBPorts
Top:COMPort
Bottom: VGAPort
T:
M:
B:
Line-In
Line-Out
Mic
T:RS-Out
M:CS
B:SPDIFOut
-Out
Intel
ICH8M
Intel
GM965/GME965
JCASE1
JCF_SEL1
(Optional)

MS-9803Mainboard
1-6
Board Dimension

1-7
ProductOverview

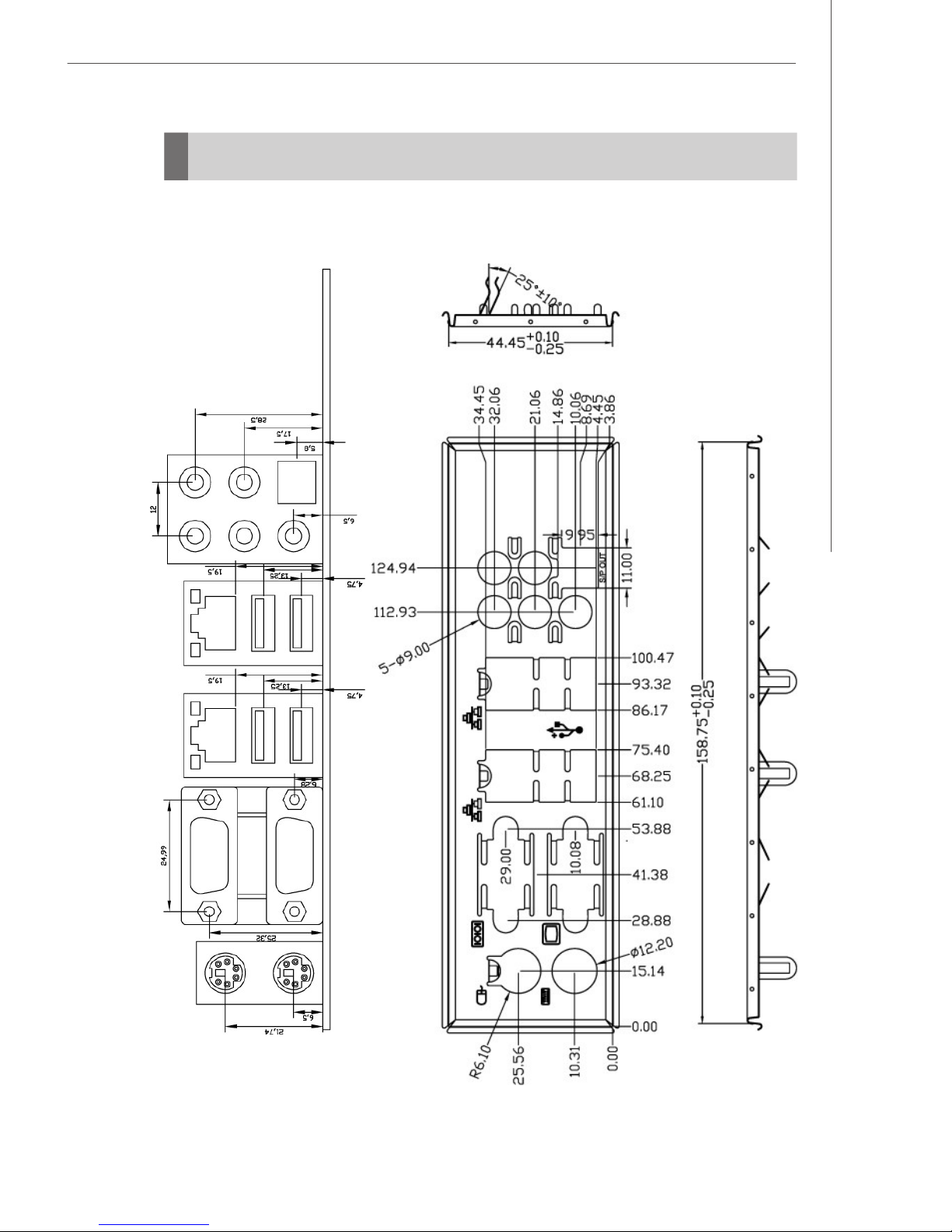

Back Panel& I/O Shield Drawing

MS-9803Mainboard
1-8
PowerConsumption
Current(A)Current(A)Current(A)Current(A)Current(A)Current(A)
Enter DOS(Stable) 2.45 2.75 2.97 0 0.05 0.02
Enter BIOS(Stable) 2.42 2.74 2.97 0 0.05 0.02
Idle 1.64 2.37 1.92 0 0.05 0.01
CPU Stress 100% 1.66 2.7 3.5 0 0.05 0.02
Windows stress(3dMARK2006) 1.66 3.22 4.5 0 0.05 0.02
Windows Desktop Standby S1
with/without two LANs connected
(stable)
1.08/1.07 1.78/1.76 1.58/1.56 00.08/0.080 0.02
Windows Desktop Standby S3
with/without two LANs connected
(stable)
0 0 0 0 0.45/0.44 0
Windows Desktop Hibernate S4
with/without two LANs connected
(stable)
0 0 0 0 0.25/0.24 0
Windows Desktop Soft OffS5
with/without two LANs connected
(stable)
0 0 0 0 0.25/0.24 0
(-)12V5V Standby
12V Main
Connector
MS-9803 3.3V 5V 12V
Component
CPU
Memory
Add-OnVGA
HardDisk
Operating system
Seagate500GSATA27200rpmHDDx1
Microsoft WindowsXP ProfessionalSP2
Description
IntelCore2Duo T7100 processor
Kingston 2GDDR2-667x2
Nvidia FX1400 PCI-ExpressVGACardx1

1-9
ProductOverview
MTBF-ReliabilityPrediction
CalculationModel Operation
temperature( )
Operating
Environment DutyCycle MTBF(hr.)
Telcordia Issue1 35 GF,GU -
GroundFixed,
Uncontrolled 10,867.351095
92,019
MIL-HDBK-217FN2 55 GF,GU -
GroundFixed,
Uncontrolled 117.312341 8,524
Safety Compliance &MTBF
Certification Titleof standard
EN55022:1998+A1:2000+A2:2003Class BProductfamilystandard
EN6100-3-2:2000ClassD
Limitsforharmoniccurrent
emission
EN6100-3-3:1995+A1:2001
Limitationofvoltage
fluctuationand flickerinlow-
voltagesupplysystem
ImmunityEN55024:1998+A1:2001+A2:2003 Productfamilystandard
BSMI
C-Tick
CE RFI
VCCI VCCIV-3:2004, ClassB
VCCIV-4:2004, ClassB
Standardnumber
FCC
AS/NZSCISPR22:2004
CNS13438 類(1997年版)
FCC CFRTitle47 Part 15SubpartB:2005ClassB
CISPR22: 2005

MS-9803Mainboard
1-10

2-1
HardwareSetup
Chapter2
HardwareSetup
Thischapterprovidesyouwiththeinformationabout
hardwaresetup procedures.Whiledoing theinstallation,
becarefulinholdingthe componentsandfollowthe
installationprocedures.Forsomecomponents, if you
install inthewrong orientation,thecomponentswill not
workproperly.
Useagrounded wriststrapbeforehandlingcomputer
components.Staticelectricitymaydamagethe
components.

2-2
MS-9803Mainboard
Quick ComponentsGuide
SYSFAN1,
p.2-13
CPU, p.2-3
DIMM Slots, p.2-6
IDE1, p.2-10
JCF_SEL1,p.2-20
JCASE1,p.2-10
JBAT1,
p.2-18
BackPanel
I/O, p.2-8
CPUFAN1, p.2-13
JFP1,p.2-13
PCISlot,p.2-19
F_USB1/2, p.2-16
PCI-ESlot,
p.2-19
JLVDS1, p.2-15
SATA1/2, p.2-11
ATX1,p.2-7
JAMP1, p.2-12
JLPT1,p.2-17
COM2,p.2-17
JSPI2, p.2-12
JSPD1, p.2-12
J4, p.2-11
JTV2, p.2-14
J7,p.2-18
J6,p.2-18
J5,p.2-18
