MSI 845GEM Series User manual

i
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in
which case the user will be required to correct the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits.
VOIR LANOTICE D’NSTALLATIONAVANT DE RACCORDER AU RESEAU.
Micro-Star International
MS-7057
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation
G52-M7057X2

ii
Copyright Notice
The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in
the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are
under continual improvement and we reserve the right to make changes without notice.
Trademarks
All trademarks are the properties of their respective owners.
AMD, Athlon™ Athlon™XP, Thoroughbred™ and Duron™ are registered trademarks of AMD Corporation.
Intel® and Pentium® are registered trademarks of Intel Corporation.
PS/2 and OS® 2 are registered trademarks of International Business Machines Corporation.
Microsoft® is a registered trademark of Microsoft Corporation. Windows® 98/2000/NT/XP are registered trademarks
of Microsoft Corporation.
NVIDIA, the NVIDIA logo, DualNet, and nForce are registered trademarks or trademarks of NVIDIA Corporation in the
United States and/or other countries.
Netware® is a registered trademark of Novell, Inc.
Award® is a registered trademark of Phoenix Technologies Ltd.
AMI® is a registered trademark of American Megatrends Inc.
Kensington and MicroSaver are registered trademarks of the Kensington Technology Group.
PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International Association.
Revision History
Revision Revision History Date
V1.0 First released for PCB 1.x March 2004
V1.1 Add Dutch version April 2004

iii
Safety Instructions
1. Always read the safety instructions carefully.
2. Keep this User Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the equipment from overheating. Do not
cover the openings.
6. Make sure the voltage of the power source and adjust properly 110/220V before connecting the equipment to the
power inlet.
7. Place the power cord such a way that people can not step on it. Do not place anything over the power cord.
8. Always Unplug the Power Cord before inserting any add-on card or module.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause electrical shock.
11. If any of the following situations arises, get the equipment checked by a service personnel:
- The power cord or plug is damaged.
- Liquid has penetrated into the equipment.
- The equipment has been exposed to moisture.
- The equipment does not work well or you can not get it work according to User Manual.
- The equipment has dropped and damaged.
- The equipment has obvious sign of breakage.
12. Do not leave this equipment in an environment unconditioned, storage temperature above 600 C (1400F), it may
damage the equipment.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer.

iv
Table of Content
English.....................................................................1
Deutsch....................................................................15
Français...................................................................29
简体中文...................................................................43
繁體中文...................................................................55
Nederlands..............................................................69

1
Introduction
Thank you for purchasing 845GEM-V/845GVM-V Series (MS-7057) v1.X Micro ATX mainboard. The
845GEM-V/845GVM-V Series is based on Intel ® 845GE/GV & Intel ® ICH4 chipsets and provides 6
USB 2.0 ports for high-speed data transmission. With all these special designs, the
845GEM-V/845GVM-V Series delivers a high performance and professional desktop platform solution.

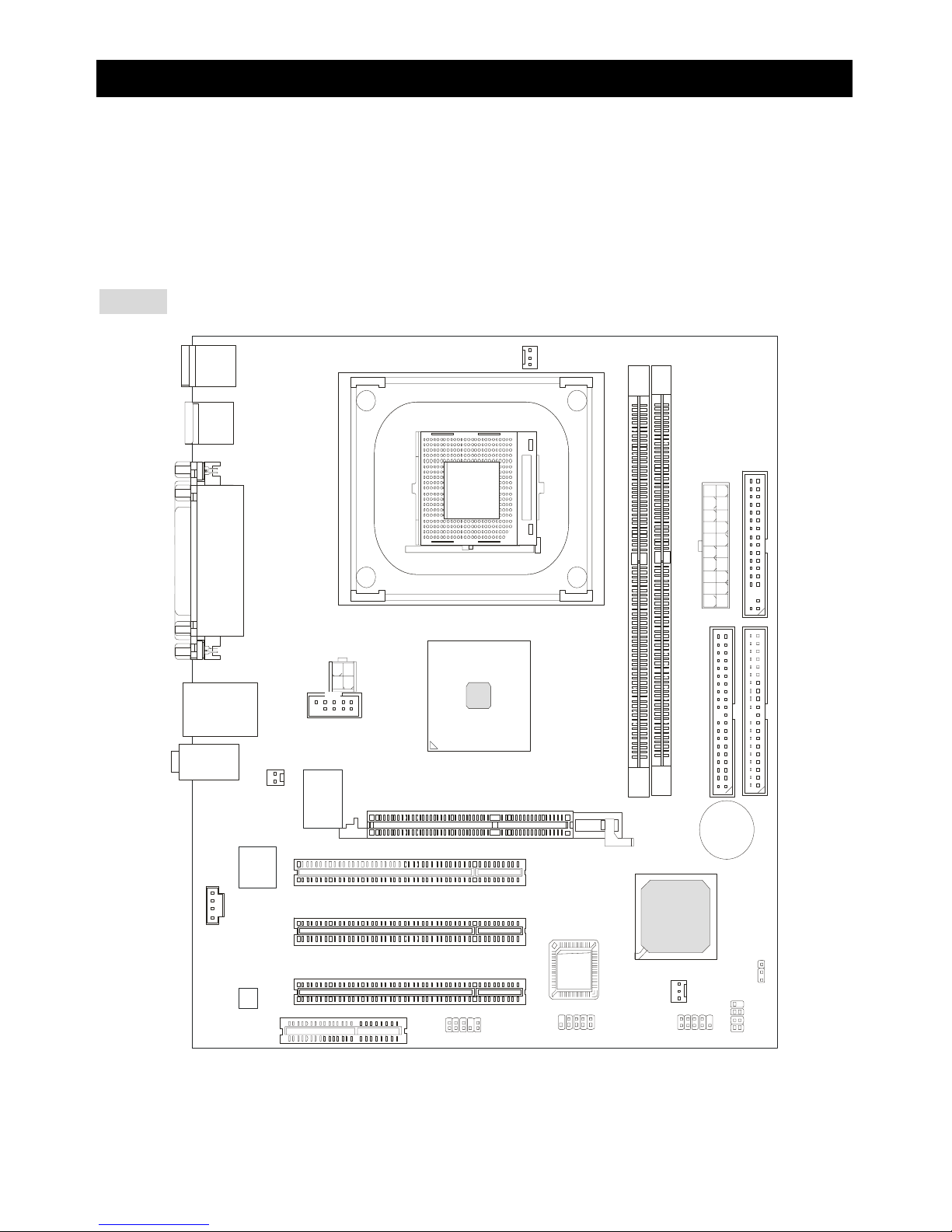

Layout
BATT
+
ICH4
DDR 1
DDR 2
JAUDIO1
CD _IN1
JUSB1 JFP 1 JF P2
AT X
Power Su pply
CP UFA N1
SYSFAN1
JBAT1
PCI Slot 3
PCI Slot 2
PCI Slot 1
IDE 1
IDE 2
Top: Parallel Por t
Bo ttom :
CO MA
VGAport
Top : mouse
Bottom: keyboard
Top: LANJack
Bottom: USB
ports
US B
ports
Co dec
RTL
8101L
JPW1
T: L i n e - In
M:Lin e-Out
B:Mic
FDD 1
SOCKET 478
JCOM2
JCASE1
Winbond
W83 627 HF -AW
Intel
845GV/GE
BIOS
CNR
AGPSlot(for845GEM-V)

2
Specifications
CPU
zSocket 478 for P4 processors (Northwood/Prescott Celeron) at 400 MHz/533 MHz
zSupports up to 3.06GHz or faster.
(For the latest information about CPU, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )
Chipset
zIntel ® 845GE/GV
- Supports FSB 400MHz /533MHz.
- Integrated 3D/2D graphic core.
- Supports PC2700 (DDR333) technology.
zIntel ® ICH4
- AC97 Controller Integrated.
- 6 ports Hi-Speed USB 2.0 controller, 480Mb/sec.
- Supports both ACPI and legacy APM power management.
- Legacy free support.
Main Memory
zSupports 4 memory banks using 2 184-pin unbuffered DDR 200/266/333 DIMMs.
zSupports up to 2GB memory size without ECC.
(For the updated supporting memory modules, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )
Slots
zOne optional AGP (Accelerated Graphics Port) slot (for 845GEM-V only) that supports AGP 2.0
4X/2X.
zThree PCI 2.2 32-bit Master PCI Bus slots (support 3.3V/5V PCI bus interface).
zOne CNR slot.
On-Board IDE
zDual IDE controllers integrated in Intel ® ICH4.
zSupports Bus Master, Ultra DMA 33/66/100 operation modes.
zCan connect up to four IDE devices.
On-Board Peripherals
zOn-Board Peripherals includes:

3
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88 Mbytes.
- 1 serial port (COMA) and 1 VGA port
- 1 parallel port supports SPP/EPP/ECP mode
- 6 USB 2.0/1.1 ports (Rear * 4 / Front * 2)
- 1 Line-In/Line-Out/Mic-In port
- 1 RJ-45 LAN connector
Audio
zAC97 link controller integrated in Intel ® ICH4.
z6 channels S/W audio codec Realtek ALC655 codec
- Compliance withAC97 2.2 Spec
- Meets PC2001 audio performance requirement
LAN
zRealtek 8101L PCI2.2 LAN
- Supports 10Mb/s and 100Mb/s auto-negotiation operations.
- Compliance with PCI 2.2 and PC99 standard.
BIOS
z4MB Award BIOS with PNP BIOS, ACPI, SMBIOS 2.3, Green and Boot Block.
zProvides DMI 2.0, WFM 2.0, WOL, chassis intrusion, and SMBus for system management.
Dimension
zMicro-ATX Form Factor: 24.4 cm (L) x 21.4 cm (W).
Mounting
z6 mounting holes.

4
Rear Panel
The back panel provides the following connectors:
Keyboard
USBPorts
Mouse
COMport VGAport
ParallelPort LineIn
LineOut
Mic In
LAN
USB Ports
Hardware Setup
This chapter tells you how to install the CPU, memory modules, and expansion cards, as well as how to
setup the jumpers on the mainboard. It also provides the instructions on connecting the peripheral
devices, such as the mouse, keyboard, etc. While doing the installation, be careful in holding the
components and follow the installation procedures.
Central Processing Unit: CPU
The mainboard supports Intel Pentium 4 Northwood & Prescott Celeron processor in the 478 pin
package. The mainboard uses a CPU socket called PGA478 for easy CPU installation. When you are
installing the CPU, make sure the CPU has a heat sink and a cooling fan attached on the top to prevent
overheating. If you do not find the heat sink and cooling fan, contact your dealer to purchase and install
them before turning on the computer. (For the latest information about CPU, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )
Example of CPU Core Speed Derivation Procedure
If CPU Clock = 133MHz
Core/Bus ratio = 23
then CPU core speed = Host Clock x Core/Bus ratio
= 133MHz x 23
=3.06GHz

5
Memory Speed/CPU FSB Support Matrix
Memory
FSB DDR 200 DDR 266 DDR 333
400 MHz OK OK Down to 266
533 MHz OK OK OK
MSI Reminds You...
Overheating…
Overheating will seriously damage the CPU and system, always make sure the cooling fan can work
properly to protect the CPU from overheating.
Replacing the CPU…
While replacing the CPU, always turn off the ATX power supply or unplug the power supply’s power
cord from grounded outlet first to ensure the safety of CPU.
CPU Installation Procedures for Socket 478
1. Please turn off the power and unplug the power cord before installing the CPU.
2. Pull the lever sideways away from the socket. Make sure to raise the lever up to a 90-degree
angle.
3. Look for the gold arrow. The gold arrow should point towards the lever pivot. The CPU can only
fit in the correct orientation.
4. If the CPU is correctly installed, the pins should be completely embedded into the socket and
can not be seen. Please note that any violation of the correct installation procedures may cause
permanent damages to your mainboard.
5. Press the CPU down firmly into the socket and close the lever. As the CPU is likely to move
while the lever is being closed, always close the lever with your fingers pressing tightly on top of
the CPU to make sure the CPU is properly and completely embedded into the socket.

6
Installing the CPU Fan
As processor technology pushes to faster speeds and higher performance, thermal management
becomes increasingly important. To dissipate heat, you need to attach the CPU cooling fan and
heatsink on top of the CPU. Follow the instructions below to install the Heatsink/Fan:
1. Locate the CPU and its retention mechanism on the motherboard.
2. Position the heatsink onto the retention mechanism.
3. Mount the fan on top of the heatsink. Press down the fan until its four clips get wedged in the
holes of the retention mechanism.
4. Press the two levers down to fasten the fan. Each lever can be pressed down in only ONE
direction.
5. Connect the fan power cable from the mounted fan to the 3-pin fan power connector on the
board.
Memory
The mainboard provides two 184-pin unbuffered DDR200/DDR266/DDR333 SDRAM, and supports the
memory size up to 2GB. To operate properly, at least one DIMM module must be installed. (For the
updated supporting memory modules, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )
Install at least one DIMM module on the slots. Memory modules can be installed on the slots in any
order. You can install either single- or double-sided modules to meet your own needs.

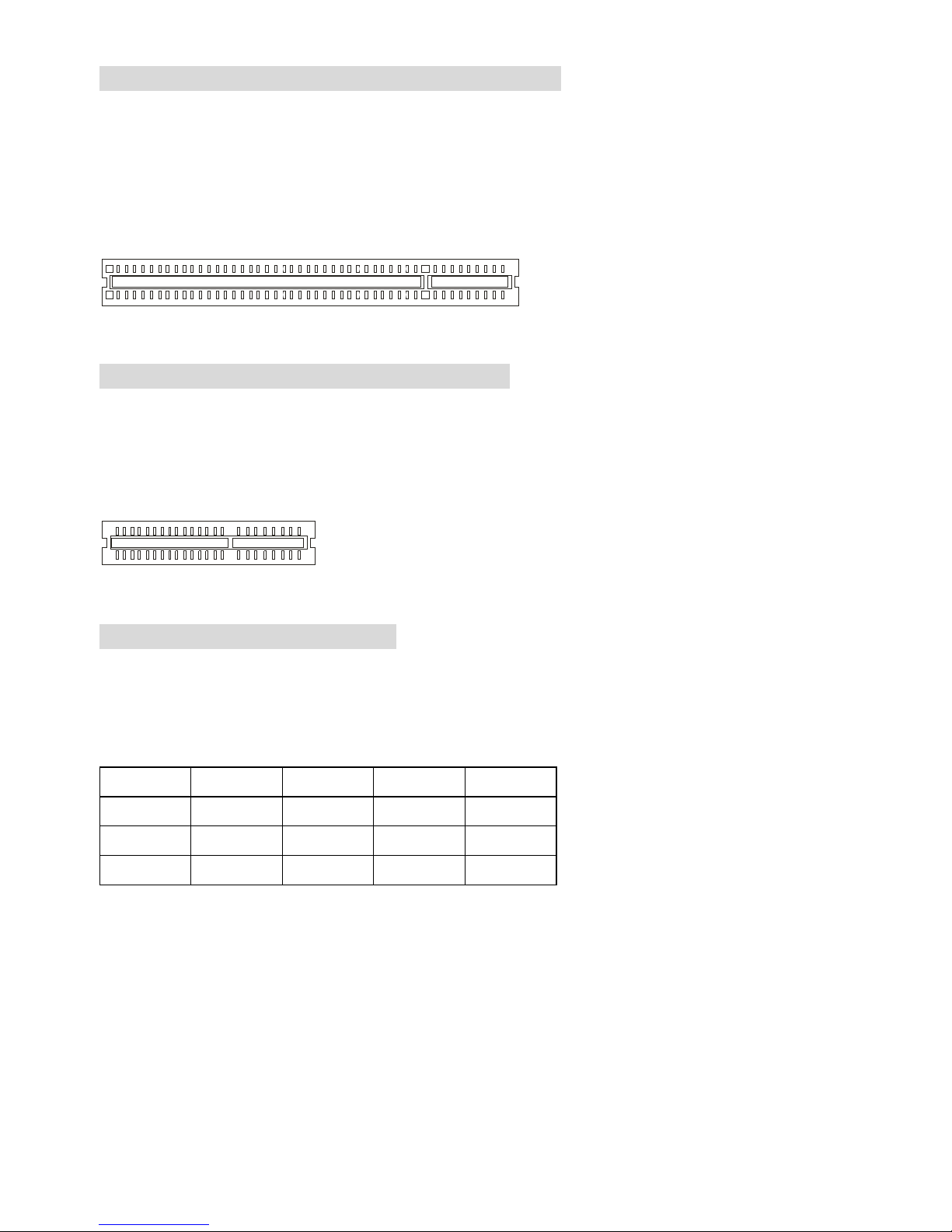

Installing DDR Modules
1. The DDR DIMM has only one notch on the center of module. The module will only fit in the right
orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in until the golden
finger on the memory module is deeply inserted in the socket.
3. The plastic clip at each side of the DIMM slot will automatically close.

7
NotchVolt
Power Supply
The mainboard supports ATX power supply for the power system. Before inserting the power supply
connector, always make sure that all components are installed properly to ensure that no damage will
be caused. A300W or above power supply is suggested.
ATX 20-Pin Power Connector: CONN1
This connector allows you to connect to anATX power supply. To connect to the ATX power supply,
make sure the plug of the power supply is inserted in the proper orientation and the pins are aligned.
Then push down the power supply firmly into the connector.
1
11
3.3V
3.3V
3.3V
-12V
GND
GND
GN D
GND
GND
GN D
GND
PW_OK
-5V
5V_SB
5V
5V
12V 5V
PS _O N
5V
10
20
ATX 12V Power Connector: JPW1
This 12V power connector is used to provide power to the CPU.
1
3
2
4
GND
GND
12V 12V
Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive connector that supports 360K, 720K, 1.2M, 1.44M
and 2.88M floppy disk types.

8
Chassis Intrusion Switch Connector: JCASE1
This connector is connected to 2-pin connector chassis switch. If the Chassis is open, the switch will be
short. The system will record this status. To clear the warning, you must enter the BIOS setting and
clear the status.
GN D
CI NTRU
CD-In Connector: CD_IN1
The connector is for CD-ROM audio connector.
GND
L
R
Fan Power Connectors: CPUFAN1/SYSFAN1
The CPUFAN1 (processor fan) and SYSFAN1 (system fan) support system cooling fan with +12V. They
support three-pin head connector. When connecting the wire to the connectors, always take note that
the red wire is the positive and should be connected to the +12V, the black wire is Ground and should
be connected to GND. If the mainboard has a System Hardware Monitor chipset on-board, you must
use a specially designed fan with speed sensor to take advantage of the CPU fan control.
+12V
GN D SENSOR
MSI Reminds You...
1. Always consult the vendors for proper CPU cooling fan.
2. CPUFAN1 supports the fan control. You can install the PC Alert utility that will automatically control
the CPU fan speed according to the actual CPU temperature.

9
IDE Connectors: IDE1 & IDE2
The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/66/100/133 controller that provides
PIO mode 0~4, Bus Master, and Ultra DMA 33/66/100/133 function. You can connect up to four hard
disk drives, CD-ROM, 120MB Floppy and other devices.
The first hard drive should always be connected to IDE1. IDE1 can connect a Master and a Slave drive.
You must configure second hard drive to Slave mode by setting the jumper accordingly. IDE2 can also
connect a Master and a Slave drive.
MSI Reminds You...
If you install two hard disks on cable, you must configure the second drive to Slave mode by setting its
jumper. Refer to the hard disk documentation supplied by hard disk vendors for jumper setting
instructions.
Front Panel Connectors: JFP1 & JFP2
The mainboard provides two front panel connectors for electrical connection to the front panel switches
and LEDs. JFP1 is compliant with Intel Front Panel I/O Connectivity Design Guide.
HDD
LED
Powe r
LED
Power
LED
Spe ak er
Reset
Switch
Power
Switch
117
9
228
10
JFP1 JFP2
Front Panel Audio Connector: JAUD1
The JAUD1 front panel audio connector allows you to connect to the front panel audio and is compliant
with Intel ® Front Panel I/O Connectivity Design Guide.

10
1
29
10
AU D _M I C
AUD_MIC_BIAS
AU D _G N D
AUD_VCC
AUD_FPOUT_R
AUD_RET_L
AUD_FPOUT_ L
AUD_RET_R
HP_ON
KE Y
MSI Reminds You...
If you do not want to connect to the front audio header, pins 5 & 6, 9 & 10 have to be jumpered in order
to have signal output directed to the rear audio ports. Otherwise, the Line-Out connector on the back
panel will not function.
1
29
10
Front USB Connector: JUSB1
The mainboard provides one standard USB 2.0 pin header JUSB1. USB 2.0 technology increases data
transfer rate up to a maximum throughput of 480Mbps, which is 40 times faster than USB 1.1, and is
ideal for connecting high-speed USB interface peripherals such as USB HDD, digital cameras, MP3
players, printers, modems and the like.
19
210
GNDUS BO C
KEY
GND
VC C
VC C
US B0 -
US B1 -
USB0+
US B 1 +

11
Serial Port Connector: JCOM2
The mainboard offers one optional serial port JCOM2. It is a 16550Ahigh speed communication port
that sends/receives 16 bytes FIFOs. You can attach a serial device directly to it.
2
10 1
9
SO UT
DCD
SIN
DTR
RI
CTS
RTS
DSR
GND
Clear CMOS Jumper: JBAT1
There is a CMOS RAM on board that has a power supply from external battery to keep the data of
system configuration. With the CMOS RAM, the system can automatically boot OS every time it is
turned on. If you want to clear the system configuration, use the JBAT1 (Clear CMOS Jumper) to clear
data. Follow the instructions below to clear the data:
11
3
Keep Data ClearData
1
3
MSI Reminds You...
You can clear CMOS by shorting 2-3 pin while the system is off. Then return to 1-2 pin position. Avoid
clearing the CMOS while the system is on; it will damage the mainboard.
AGP (Accelerated Graphics Port) Slot (for 845GEM-V only)
The AGP slot allows you to insert the AGP graphics card. AGP is an interface specification designed for
the throughput demands of 3D graphics. It introduces a 66MHz, 32-bit channel for the graphics
controller to directly access main memory. The mainboard supports 4x/8x 1.5V AGP card.

12
PCI (Peripheral Component Interconnect) Slots
The PCI slots allow you to insert the expansion cards to meet your needs. When adding or removing
expansion cards, make sure that you unplug the power supply first. Meanwhile, read the documentation
for the expansion card to make any necessary hardware or software settings for the expansion card,
such as jumpers, switches or BIOS configuration.
CNR (Communication Network Riser) Slot
The CNR slot allows you to insert the CNR expansion cards. CNR is a specially designed network,
audio, or modem riser card for ATX family motherboards. Its main processing is done through software
and controlled by the motherboard chipset.
PCI Interrupt Request Routing
The IRQ, abbreviation of interrupt request line and pronounced I-R-Q, are hardware lines over which
devices can send interrupt signals to the microprocessor. The PCI IRQ pins are typically connected to
the PCI bus INTA# ~ INT D# pins as follows:
Order1 Order2 Order3 Order4
PCI Slot 1 INTA# INT B# INT C# INT D#
PCI Slot 2 INT B# INT C# INT D# INTA#
PCI Slot 3 INT C# INT D# INTA# INT B#

13
BIOS Setup
Power on the computer and the system will start POST (Power On Self Test) process. When the
message below appears on the screen, press <DEL> key to enter Setup.
DEL: Setup F11: Boot Menu F12: Network boot TAB: Logo
If the message disappears before you respond and you still wish to enter Setup, restart the system by
turning it OFF and On or pressing the RESET button. You may also restart the system by
simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys.
For the complete BIOS introduction and setup, please visit MSI website at http://www.msi.com.tw.

14

15
Einleitung
Vielen Dank für den Kauf des 845GEM-V/845GVM-V Serie (MS-7057) v1.X Micro ATX Mainboard. Die
845GEM-V/845GVM-V Serie basiert auf dem Intel ® 845GE/GV & Intel ® ICH4 Chipsatz und bietet 6
USB 2.0 Anschlüsse für schnellen Datentransfer. Nit diesem speziellen Design stellt die
845GEM-V/845GVM-V Serie eine proffessionelle High Performance Desktop-PC Lösung dar.
Layout
BATT
+
ICH4
DDR 1
DDR 2
JAUDIO1
CD _ IN1
JUSB1 JFP 1 JF P2
AT X
Power Supply
CP UFA N1
SYSFAN1
JBAT1
PCI Slot 3
PCI Slot 2
PCI Slot 1
IDE 1
IDE 2
Top : P ara l lel Por t
Bo ttom :
CO MA
VGA po rt
Top : mouse
Bottom: keyboard
Top: LANJack
Bottom: USB
ports
US B
ports
Co dec
RTL
8101L
JPW1
T: L i n e - I n
M:Lin e-Out
B:Mic
FDD 1
SOCKET 478
JCOM2
JCASE1
Winbond
W83627HF-AW
Intel
845GV/GE
BIOS
CNR
AGPSlot(for845GEM-V)

16
Spezifikationen
CPU
zSockel 478 für P4 Prozessoren (Northwood/Prescott Celeron) mit 400 MHz/533 MHz FSB
zUnterstützt bis 3.06GHz oder mehr.
(Für die neuesten CPU-Kompatiblitäts-Informationen besuchen Sie bitte die folgende Webseite:
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )
Chipsatz
zIntel ® 845GE/GV
- Unterstützt FSB 400MHz /533MHz.
- Integrierte 3D/2D Grafikkarte.
- Unterstützt PC2700 (DDR333) Speichertechnologie.
zIntel ® ICH4
- Integrierte AC97 Soundkarte.
- 6 Hochgeschwindigkeits-USB 2.0 Controller, 480Mb/sec.
- Unterstützt ACPI und APM Energie-Management.
- Legacy Free Unterstützung.
Hauptspeicher
zUnterstützt 4 Speicherbänke mit 2x 184-Pin ungepufferten DDR 200/266/333 DIMMs.
zUnterstützt bis zu 2GB Speichergröße ohne ECC.
(Für die neuesten Speicher-Kompatiblitäts-Informationen besuchen Sie bitte die folgende Webseite:
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )
Steckplätze
zEin optionaler AGP (Accelerated Graphics Port) Steckplatz (nur bei 845GEM-V), welcher
AGP-Karten der SpezifikationAGP 2.0 mit 4X/2X Geschwindigkeit unterstützt.
zDrei PCI 2.2 32-bit Master PCI Bus Steckplätze (Für PCI-Karten mit 3.3V/5V PCI Schnittstelle).
zEin CNR Steckplatz.
On-Board IDE
zDual IDE Controller in Intel ® ICH4 integriert.
zUnterstützt Bus Master, Ultra DMA 33/66/100 Betriebsmodus.
zEs können bis zu 4 IDE-Laufwerke angeschlossen werden.
