MSI Z170A PC MATE User manual

1
Unpacking
Unpacking

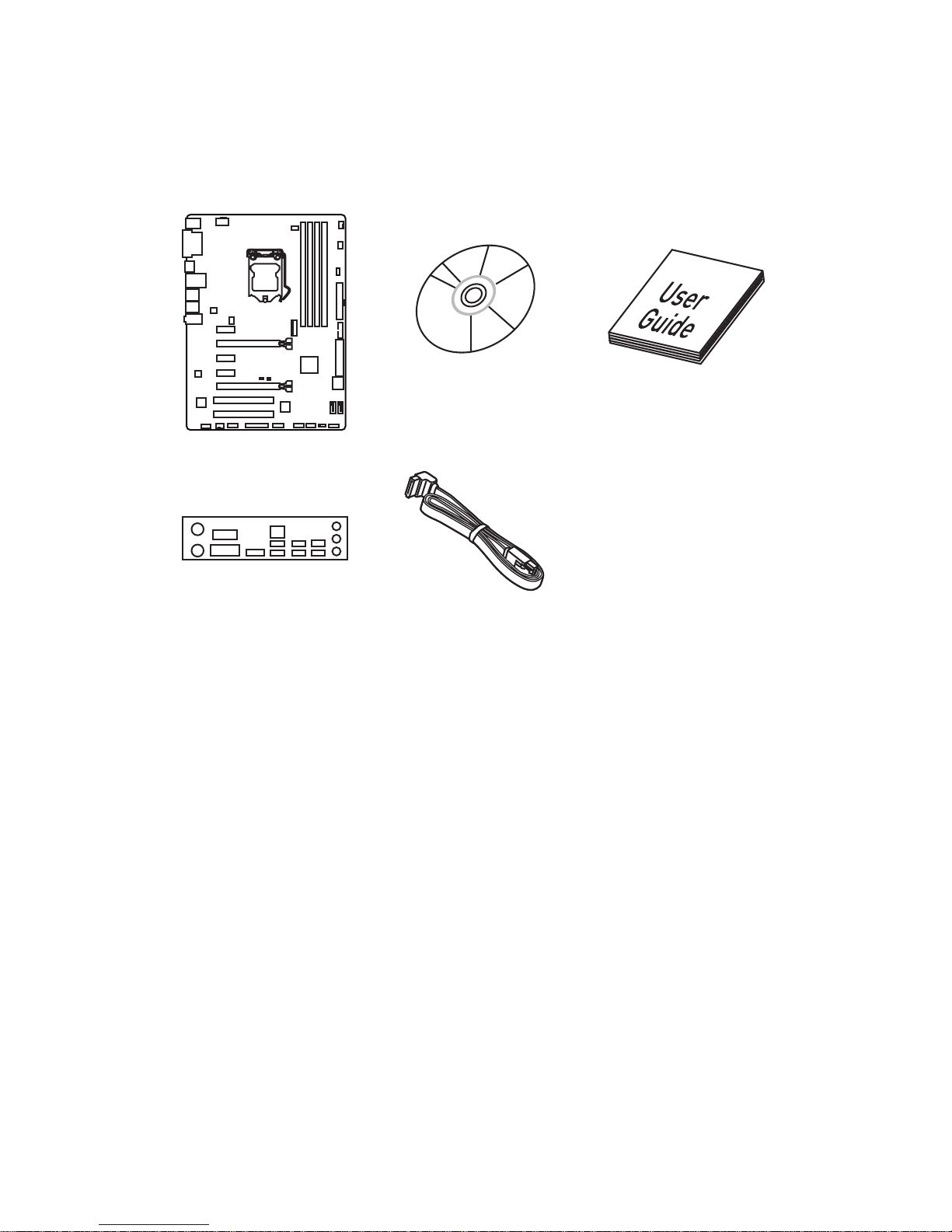

Thank you for buying the MSI®Z170A PC MATE motherboard. Check to make sure
your motherboard box contains the following items. If something is missing, contact
your dealer as soon as possible.
SATA Cable x2
Drivers & Utilities
Disc
Motherboard User
Guide
I/O Shield
Motherboard

2Safety Information
Safety Information
●The components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
●Ensure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
●Hold the motherboard by the edges to avoid touching sensitive components.
●It is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is
not available, discharge yourself of static electricity by touching another metal object
before handling the motherboard.
●Store the motherboard in an electrostatic shielding container or on an anti-static pad
whenever the motherboard is not installed.
●Before turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
●Do not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
●If you need help during any installation step, please consult a certified computer
technician.
●Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
●Keep this user guide for future reference.
●Keep this motherboard away from humidity.
●Make sure that your electrical outlet provides the same voltage as is indicated on
the PSU, before connecting the PSU to the electrical outlet.
●Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.
●All cautions and warnings on the motherboard should be noted.
●If any of the following situations arises, get the motherboard checked by service
personnel:
▶Liquid has penetrated into the computer.
▶The motherboard has been exposed to moisture.
▶The motherboard does not work well or you can not get it work according to user
guide.
▶The motherboard has been dropped and damaged.
▶The motherboard has obvious sign of breakage.
●Do not leave this motherboard in an environment above 60°C (140°F), it may
damage the motherboard.

3
Quick Start
Intel®LGA 1151 CPU
DDR4 Memory
Graphics Card
SATA Hard Disk Drive
SATA DVD Drive
A Package of Screws
Phillips Screwdriver
Chassis
Power Supply Unit
CPU Fan Thermal Paste
Quick Start
Preparing Tools and Components

4Quick Start
http://youtu.be/bf5La099urI
Installing a Processor
1
2
3
6
45
7
8
9

5
Quick Start
1
1
2
2
3
3

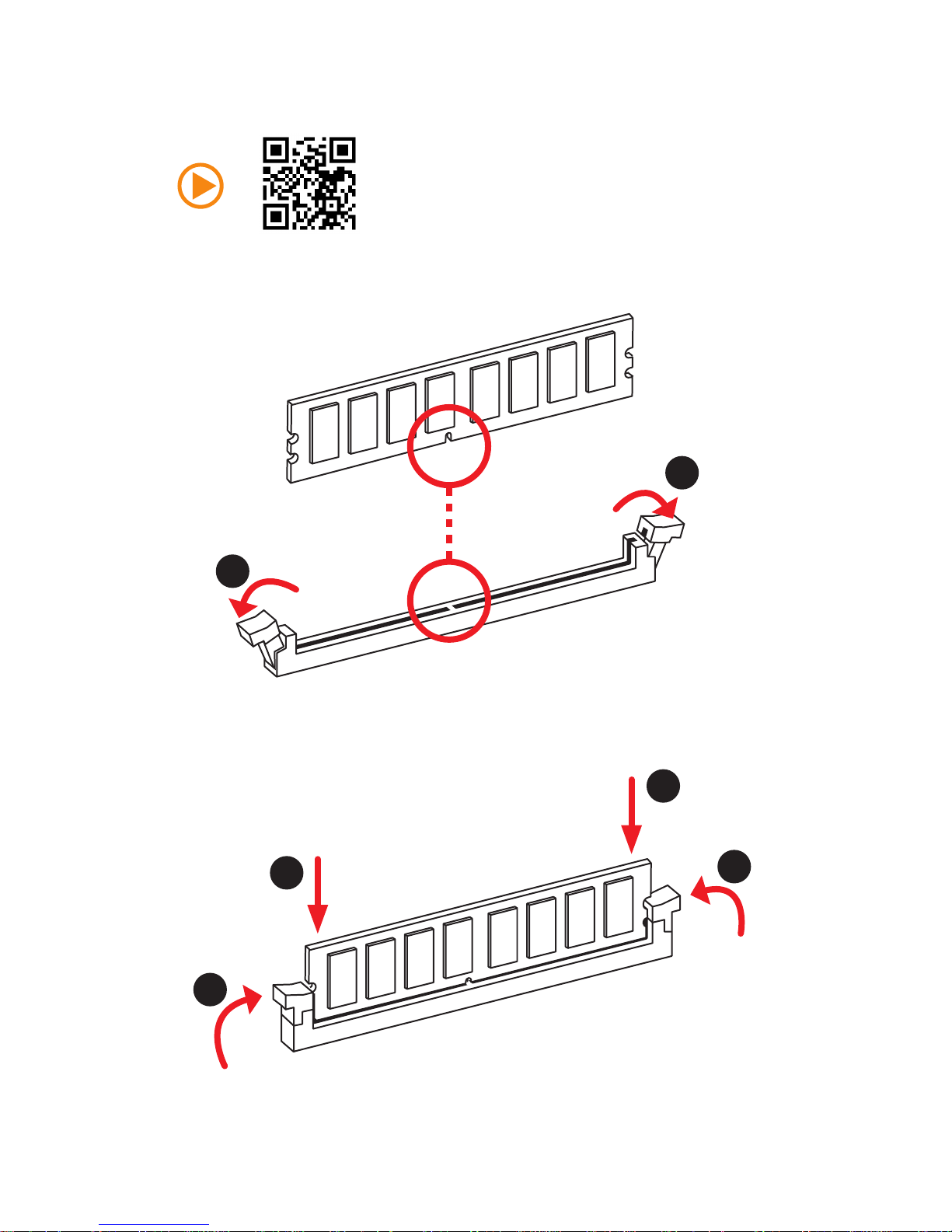

Installing DDR4 memory
http://youtu.be/T03aDrJPyQs

6Quick Start
Connecting the Front Panel Header
http://youtu.be/DPELIdVNZUI
1
2 10
9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
HDD LED
RESET SW
JFP1
HDD LED HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED

7
Quick Start
Installing the Motherboard
1
2

8Quick Start
Installing SATA Drives
http://youtu.be/RZsMpqxythc 1
23
4
5

9
Quick Start
1
4
5
Installing a Graphics Card
http://youtu.be/mG0GZpr9w_A
2
3

10 Quick Start

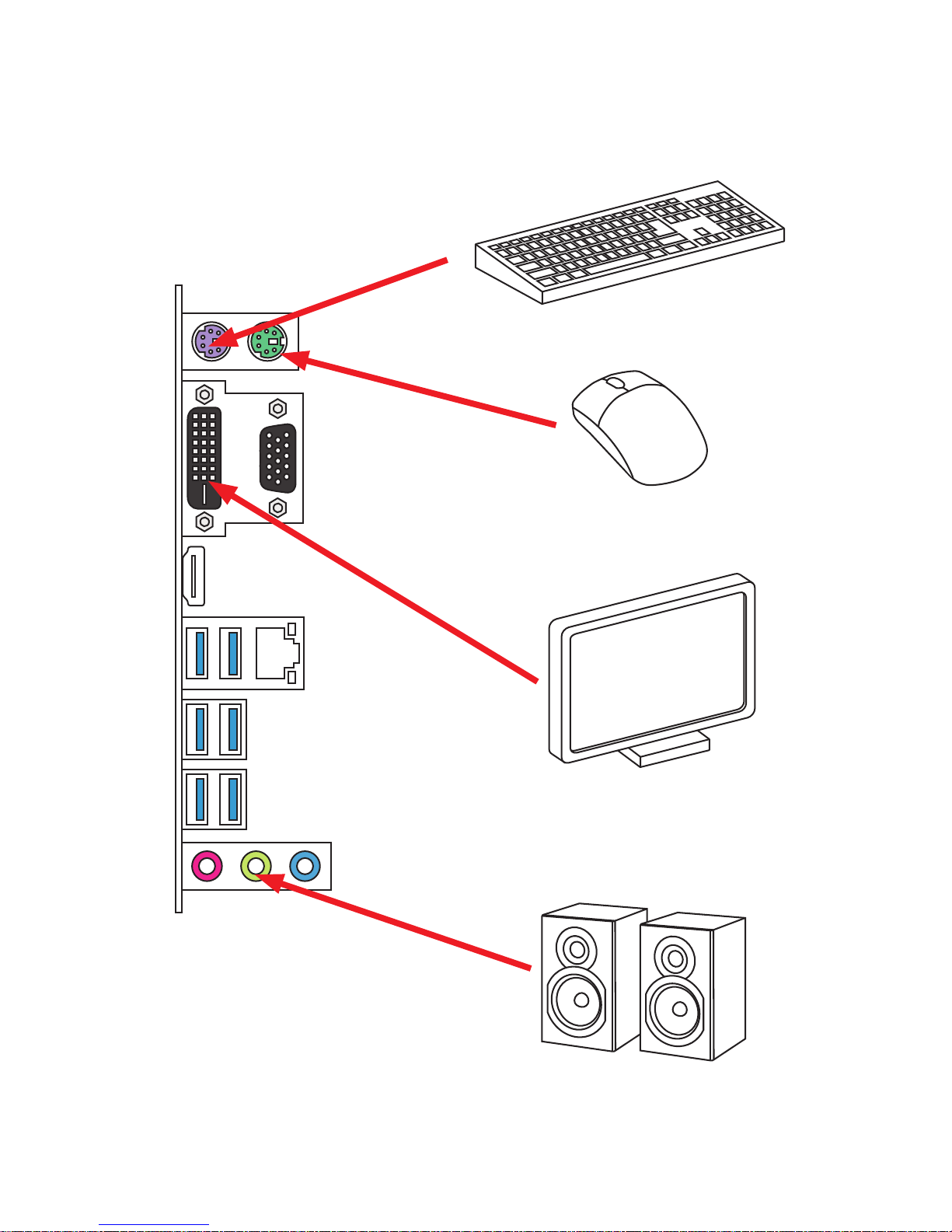

Connecting Peripheral Devices

11
Quick Start
Connecting the Power Connectors
JPWR1 JPWR2
http://youtu.be/gkDYyR_83I4

12 Quick Start

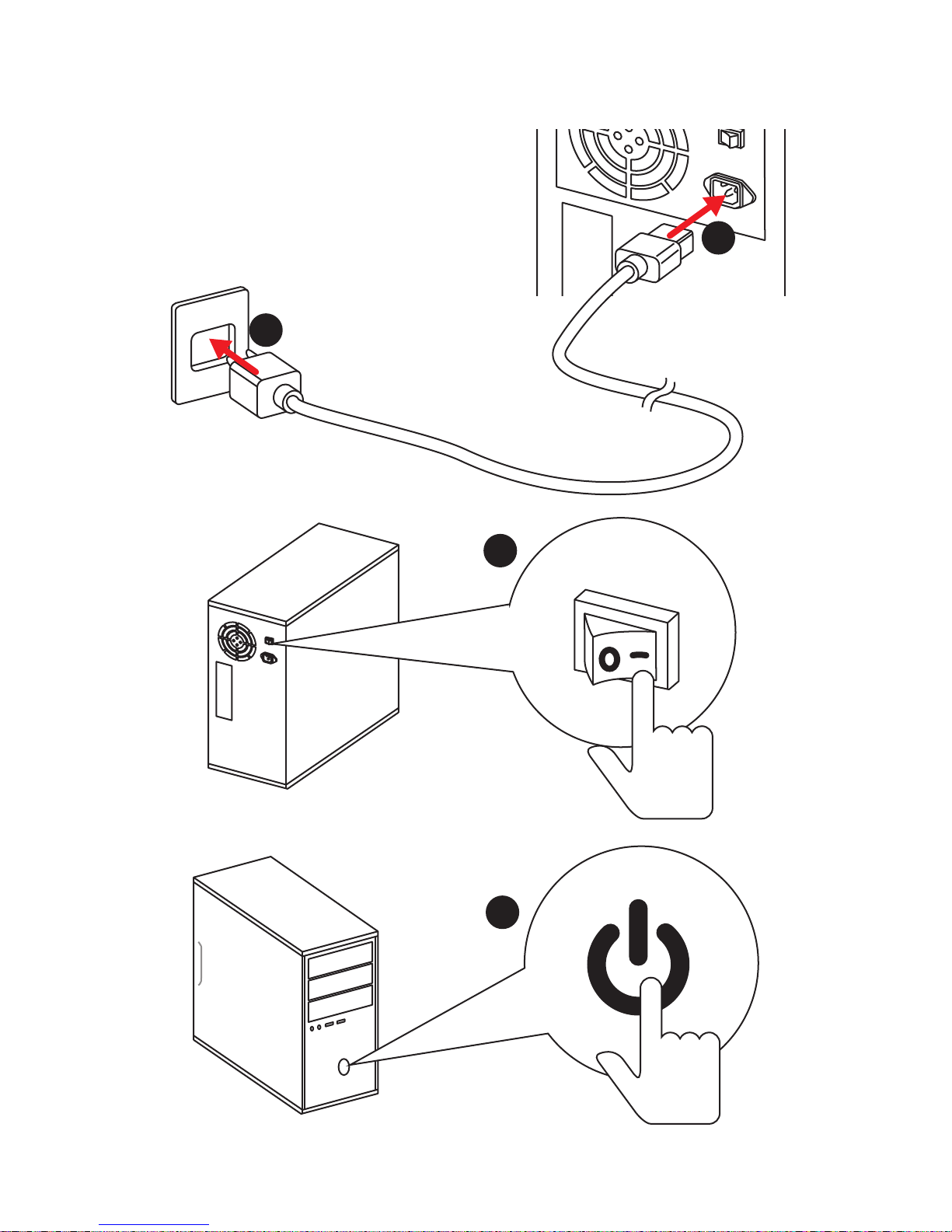

Power On
1
4
2
3

13
Contents
Contents
Unpacking ................................................................................................................1
Safety Information...................................................................................................2
Quick Start................................................................................................................3
Preparing Tools and Components....................................................................... 3
Installing a Processor .......................................................................................... 4
Installing DDR4 memory...................................................................................... 5
Connecting the Front Panel Header.................................................................... 6
Installing the Motherboard................................................................................... 7
Installing SATA Drives......................................................................................... 8
Installing a Graphics Card ................................................................................... 9
Connecting Peripheral Devices ......................................................................... 10
Connecting the Power Connectors.................................................................... 11
Power On........................................................................................................... 12
Specifications ........................................................................................................15
Block Diagram ......................................................................................................19
Rear I/O Panel ........................................................................................................20
LAN Port LED Status Table............................................................................... 20
Realtek HD Audio Manager............................................................................... 20
Overview of Components ....................................................................................22
CPU Socket ....................................................................................................... 24
DIMM Slots ........................................................................................................ 25
PCI_E1~5, PCI1~2: PCIe/ PCI Expansion Slots ............................................... 26
SATA1~6: SATA 6Gb/s Connectors.................................................................. 27
SE1_21: SATAe Connector............................................................................... 27
M2_1: M.2 Slot................................................................................................... 28
JFP1, JFP2: Front Panel Connectors................................................................ 29
JPWR1~2: Power Connectors........................................................................... 30
JUSB3: USB 3.1 Gen1 Connector..................................................................... 31
JUSB1~2: USB 2.0 Connectors......................................................................... 31
JAUD1: Front Audio Connector......................................................................... 32
JTPM1: TPM Module Connector ....................................................................... 32
JCOM1: Serial Port Connector.......................................................................... 32
CPUFAN1~2,SYSFAN1~3: Fan Connectors..................................................... 33
JLPT1: Parallel Port Connector......................................................................... 34
JBAT1: Clear CMOS (Reset BIOS) Jumper ...................................................... 34
JCI1: Chassis Intrusion Connector.................................................................... 35

14 Contents
EZ Debug LED: Debug LED indicators ............................................................ 35
BIOS Setup.............................................................................................................36
Entering BIOS Setup ......................................................................................... 36
Resetting BIOS.................................................................................................. 37
Updating BIOS................................................................................................... 37
EZ Mode ............................................................................................................ 38
Advanced Mode ................................................................................................ 40
SETTINGS......................................................................................................... 41
Advanced........................................................................................................... 41
Boot ................................................................................................................... 47
Security.............................................................................................................. 48
Save & Exit........................................................................................................ 49
OC ..................................................................................................................... 50
M-FLASH........................................................................................................... 56
OC PROFILE..................................................................................................... 57
HARDWARE MONITOR.................................................................................... 58
Software Description............................................................................................59
Installing Windows®7/ 8.1/ 10 ........................................................................... 59
Installing Drivers ................................................................................................ 59
Installing Utilities................................................................................................ 59
COMMAND CENTER........................................................................................ 60
LIVE UPDATE 6 ................................................................................................ 64
M-CLOUD.......................................................................................................... 66
RAMDISK .......................................................................................................... 69
NETWORK GENIE ............................................................................................ 70
Intel®Extreme Tuning Utility .............................................................................. 72
RAID Configuration...............................................................................................73
Using Intel®Rapid Storage Technology Option ROM ....................................... 73
Degraded RAID Array........................................................................................ 76
Troubleshooting ...................................................................................................78
Regulatory Notices ...............................................................................................79

15
Speci󰄈cations
Specifications
CPU Supports 6th Gen Intel®Core™i3/i5/i7 processors, and Intel®
Pentium®and Celeron®processors for Socket LGA1151
Chipset Intel® Z170 Express Chipset
Memory
●4x DDR4 memory slots, support up to 64GB
▶Supports DDR4 3200(OC)/ 3000(OC)/ 2800(OC)/
2600(OC)/ 2400/ 2133 MHz
●Dual channel memory architecture
●Supports ECC, un-buffered memory
●Supports Intel®Extreme Memory Profile (XMP)
Expansion Slots
●2x PCIe 3.0 x16 slots (support x16, x16/ x4 modes)
●3x PCIe 3.0 x1 slots
●2x PCI slots
Onboard Graphics
●1x HDMI™ports, support a maximum resolution of
4096x2160@24Hz
●1x DVI-D port, support a maximum resolution of
1920x1200@60Hz
●1x VGA port, support a maximum resolution of
1920x1200@60Hz
Multi-GPU ●Supports 2-Way AMD®CrossFire™Technology
Storage
Intel®Z170 Express Chipset
●6x SATA 6Gb/s ports* (2 ports reserved for SATA Express
port)
●1x M.2 slot*
▶Supports PCIe 3.0 x4 and SATA 6Gb/s standards,
4.2cm/ 6cm/ 8cm length M.2 SSD cards
▶Supports PCIe 3.0 x4 NVMe Mini-SAS SSD with Turbo
U.2 Host Card**
●1x SATAe port (PCIe 3.0 x2)***
●Support RAID 0, RAID1, RAID 5 and RAID 10 for SATA
storage devices.
●Supports Intel®Smart Response Technology for Intel
Core™ processors.
* SATA1~2 ports will be unavailable when installing the M.2 SATA interface
module in M.2 slot. SATA3~4 ports will be unavailable when installing the
M.2 PCIe interface module in M.2 slot.
** The Turbo U.2 Host Card is not included, please purchase separately.
*** SATAe port is backward compatible with SATA.
Continued on next page

16 Speci󰄈cations
Continued from previous page
USB
●ASMedia®ASM1142 Chipset
▶2x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports on
the back panel
●Intel®Z170 Express Chipset
▶6x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on
the back panel, 2 ports available through the internal
USB 3.1 Gen1 connector)
▶4x USB 2.0 (High-speed USB) ports available through
the internal USB 2.0 connectors)
Audio ●Realtek®ALC887 Codec
●7.1-Channel High Definition Audio
LAN 1x Realtek®RTL8111H Gigabit LAN controller
Back Panel
Connectors
●1x PS/2 mouse port
●1x PS/2 keyboard port
●1x VGA port
●1x DVI-D port
●1x HDMI™port
●1x LAN (RJ45) port
●4x USB 3.1 Gen1 ports
●2x USB 3.1 Gen2 ports
●3x audio jacks
Continued on next page

17
Speci󰄈cations
Continued from previous page
Internal Connectors
●1x 24-pin ATX main power connector
●1x 8-pin ATX 12V power connector
●6x SATA 6Gb/s connectors
●1x SATAe connector (is compatible with SATA1~2)
●2x USB 2.0 connectors (support additional 4 USB 2.0
ports)
●1x USB 3.1 Gen1 connector (supports additional 2 USB
3.1 Gen1 ports)
●2x 4-pin CPU fan connectors
●3x 4-pin system fan connectors
●1x Front panel audio connector
●2x Front panel connectors
●1x TPM module connector
●1x Chassis Intrusion connector
●1x Serial port connector
●1x Parallel port connector
●1x Clear CMOS jumper
I/O Controller NUVOTON NCT6793 Controller Chip
Hardware Monitor
●CPU/System temperature detection
●CPU/System fan speed detection
●CPU/System fan speed control
Form Factor ●ATX Form Factor
●12 in. x 8.9 in. (30.4 cm x 22.5 cm)
BIOS Features
●1x 128 Mb flash
●UEFI AMI BIOS
●ACPI 5.0, PnP 1.0a, SM BIOS 2.8
●Multi-language
Continued on next page

18 Speci󰄈cations
Continued from previous page
Software
●Drivers
●COMMAND CENTER
●LIVE UPDATE 6
●FAST BOOT
●SUPER CHARGER
●M-CLOUD
●RAMDISK
●NETWORK GENIE
●Intel®Extreme Tuning Utility
●Norton™ Internet Security Solution
●Google Chrome™ ,Google Toolbar, Google Drive
MSI Exclusive
Features
●CLICK BIOS 5
▶EZ Mode & Advanced Mode Switching
▶Board Explorer
▶Hardware Monitor
●COMMAND CENTER
▶System Monitor
▶Smart Fan Control
●RAMDISK
●LIVE UPDATE 6
●M-CLOUD
Specification
Highlights
●DDR4 Boost Support
▶Dual-Channel DDR4 Memory Support
▶Isolated DDR4 Circuit Design
▶DDR4 XMP Ready
●PCI Express 3.0 Support
▶2-Way AMD CrossFireTM Support
●USB 3.1 Gen2 Ready
▶USB 3.1 Gen2 (10 Gb/s) Type-A Ready
●SATA Express Support
●EZ Debug LED

19
Block Diagram
Block Diagram
LPC Bus
2 x USB 3.1 Gen2
(10 Gbps)
Dual Channel DDR4 Memory
6 x USB 3.1 Gen1
(5 Gbps)
4 x SATA 6Gb/s
4 x USB 2.0
PCI Express Bus
PCI Express Bus
PCI Express Bus
P/S2 Mouse / Keyboard Audio Jacks
DMI 3.0
Z170
CPU
NV6793
Super I/O
Realtek
ALC887
ASMEDIA
ASM1142
x1
x1
x4
x2
x2
PCI Express Bus
HDMI VGA DVI-D
x1
PCIe x1
PCIe x1
PCIe x1
PCIe x4
x4
1 x SATA Express
(2 x SATA 6Gb/s)
1 x M.2
PCI Bus PCI x2

20 Rear I/O Panel
Realtek HD Audio Manager
After installing the Realtek HD Audio driver, the Realtek HD Audio Manager icon will
appear in the system tray. Double click on this icon to launch.
Jack Status
Device
Selection
Connector
Strings
Profiles
Main Volume
Application
Enhancement
Advanced
Settings
Rear I/O Panel
PS/2 Mouse LAN
USB 3.1 Gen2
USB 3.1 Gen1
PS/2 Keyboard
VGA Port
DVI-D Port
Line-in
Line-out
Mic-in
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
