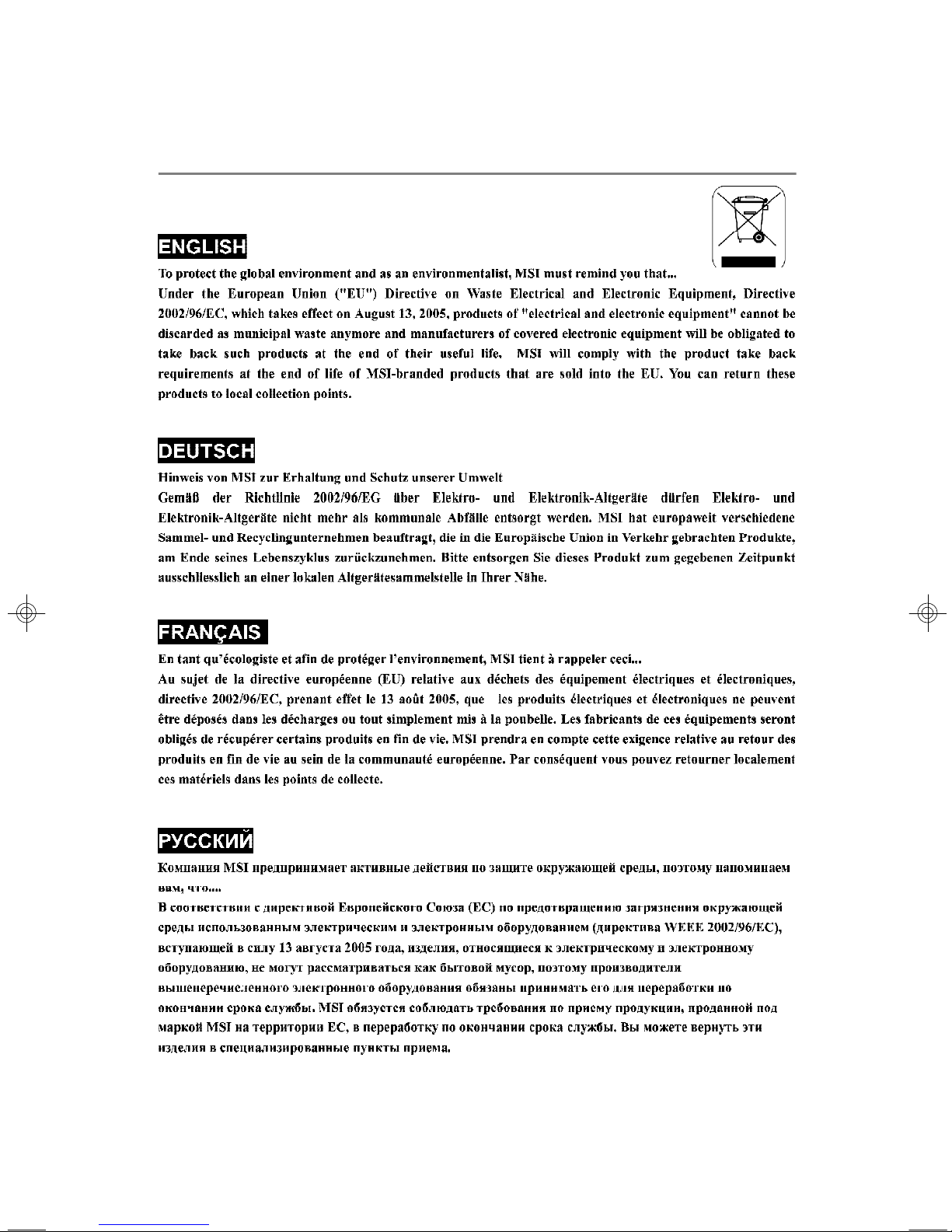

WEEE Statement
命名-3 2006/3/13, 下午 05:555

vi
命名-3 2006/3/13, 下午 05:556

vii
命名-3 2006/3/13, 下午 05:557

viii
CONTENTS
Chapter1.Getting Started.....................................................................................1-1
PackingCheklist...................................................................................................1-2
SystemOverview...............................................................................................1-3
TopView......................................................................................................1-3
FrontView...................................................................................................1-4
RearView....................................................................................................1-5
SystemSpecifications........................................................................................1-9
MainboardLayout..............................................................................................1-12
MSISpecialFeatures.........................................................................................1-13
PCAlert™III................................................................................................1-13
Chapter2.SystemHardware................................................................................2-1
SystemAssemblyFlowchart..............................................................................2-2
SystemAssembly................................................................................................2-4
RemovingtheChassisCover......................................................................2-4
RestoringtheChassisCover.......................................................................2-5
CPU,Heatsink,and FanDuct.......................................................................2-6
MemoryPopulation Rules............................................................................2-8
DDR Memory.................................................................................................2-8
PCI ExpansionCard......................................................................................2-9
PCI RiserCard(Optional)............................................................................2-11
SerialATA/SCSI HardDiskDrives(Optional).............................................2-12
RackMounting....................................................................................................2-14
OSInstallationGuide.........................................................................................2-17
Chapter3.MainboardHardware..........................................................................3-1
QuickComponentsGuide....................................................................................3-2
CentralProcessing Unit: CPU...............................................................................3-3
CPUInstallation ProceduresforSocket 940...............................................3-4
Memory.................................................................................................................3-5
DIMM ModuleCombination............................................................................3-5
InstallingDDRModules.................................................................................3-6
PowerSupply......................................................................................................3-7
18-PinMainPowerSupplyConnector: J8..................................................3-7
14-PinStandbyandStatusControl Connector: J6.....................................3-7
24-PinSCSIPowerandI2CConnector:J9.................................................3-7
4-Pin CD-ROMPowerConnector:J11........................................................3-7
6-Pin FrontPlaneUSB Connector: J10.......................................................3-7
SMCard3rdI2CBusConnector: JSMB1...........................................................3-9
命名-3 2006/3/13, 下午 05:558

ix
HardDiskConnector: IDE.....................................................................................3-9
FrontPanel Connector:J1.................................................................................3-10
SerialPortConnector:COM2............................................................................3-10
SerialATAConnectors:JSATA1, JSATA2(Optional)........................................3-11
FanPowerConnectors:SFAN1/SFAN2/SFAN3/SFAN4/SFAN5......................3-12
RearStatusLED:J20.........................................................................................3-12
Ultra320SCSI Connector:SCSI 1(Optional)....................................................3-13
Slots....................................................................................................................3-15
SODIMM (SmallOutlineDIMM):J15...........................................................3-15
PCI(PeripheralComponentInterconnect)Slots........................................3-16
Chapter4.BIOSSetup.............................................................................................4-1
EnteringSetup......................................................................................................4-2
ControlKeys.................................................................................................4-2
Getting Help..................................................................................................4-3
GeneralHelp<F1>.......................................................................................4-3
TheMenuBar.......................................................................................................4-4
TheMain Menu.....................................................................................................4-5
TheAdvancedMenu............................................................................................4-8
The SecurityMenu.............................................................................................4-15
The PowerMenu................................................................................................4-16
TheBootMenu...................................................................................................4-17
TheExit Menu.....................................................................................................4-18
命名-3 2006/3/13, 下午 05:559

1-1
GettingStarted
Chapter1.Getting
Started
Getting Started
The MS-92661URackmountServerisahigh-performance
barebonesystempoweredbydualAMD®OpteronTM processors,
BCM5780,BCM5785PCI-XBridges, andNSPC87417/ADM1027.With
highscalability,reliability,easeofuse,and overallvalue,theMS-
9266 makesanidealchoiceforvalueconsciouscustomers.
命名-2 2006/3/13, 下午 05:551

1-2
MS-92661URackmountServer
Unpackthepackageand checkifall itemslistedbelowarepresent. If anyitem
containedin thepackageisdamagedormissing,pleasecontactyourlocaldealerfor
replacement. Inaddition,keeptheboxand packingmaterialsforpossiblefutureuse.
YourMS-92661URackmountServerBarebone package shouldcontainthe
followingitems:
PackingChecklist
*MS-9266 1U RackmountServer x 1
(includinganMS-9166mainboard,anMS-9549BMCcard,
aPowerSupplyandaFan Duct)
*Heatsink x2
*6”32 x5screw x 8
*HDD tray set(2in aset,IDEmodel) x2
*Rail Kit x1
(includingtworailsandcableties)
*User sGuide x1
*InstallationFloppyDisk x 1
*Server Driver CD x 1
*iConsoleSuiteCD(optional) x1
命名-2 2006/3/13, 下午 05:552

1-3
GettingStarted
SystemOverview
ThissectionshowstheconfigurationoftheMS-9266fromdifferentangles,
and theconnectorsandbuttonsonthefrontandbackpanel.

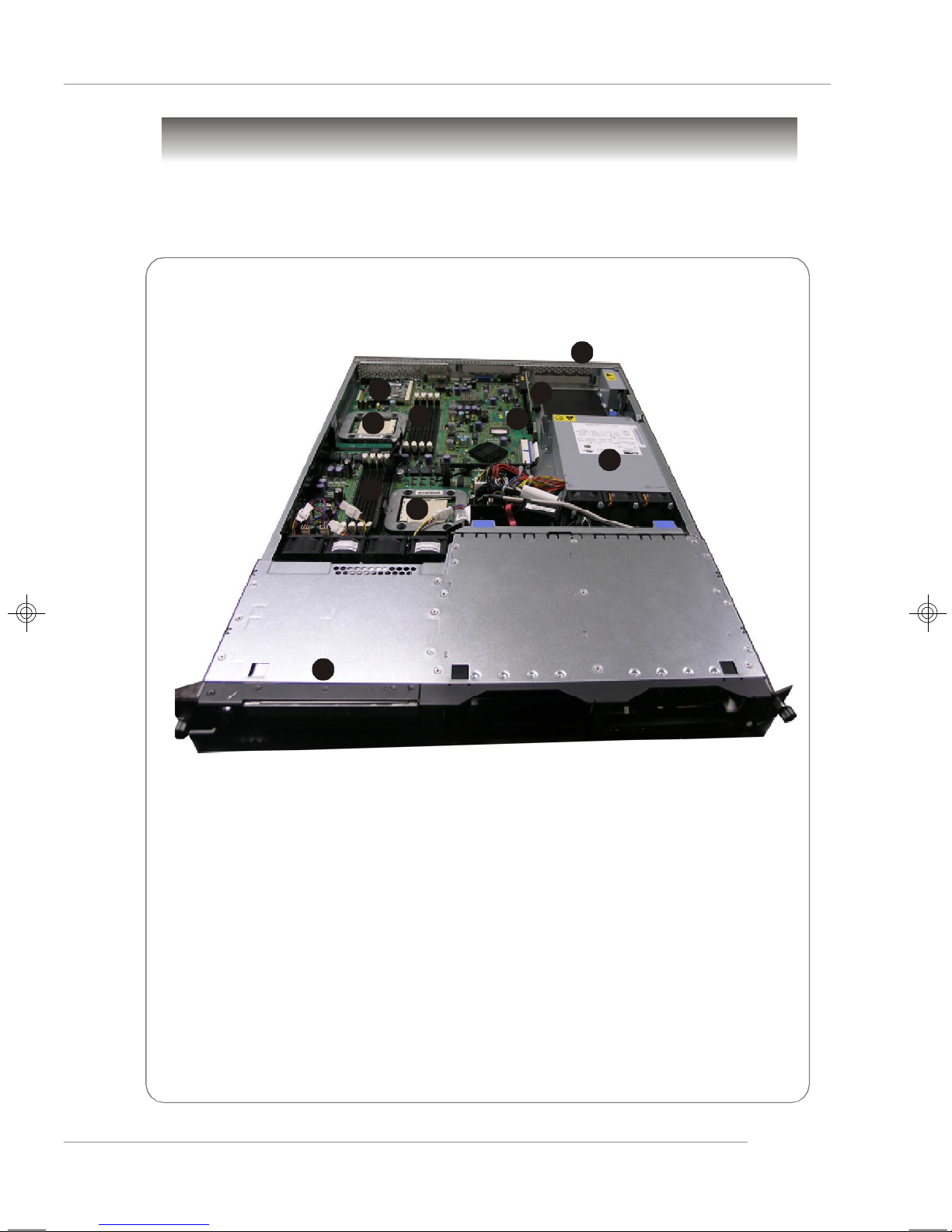

TopView
1. ProprietaryPowerSupply
2. SlimCD-ROMDrive
3. DIMMSlots
4. PCISlots
5. Heatsinks
6. Fan Duct
7. ACPowerConnector
6
2
1
3
3
4
4
5
5
7
命名-2 2006/3/13, 下午 05:553

1-4
MS-92661URackmountServer

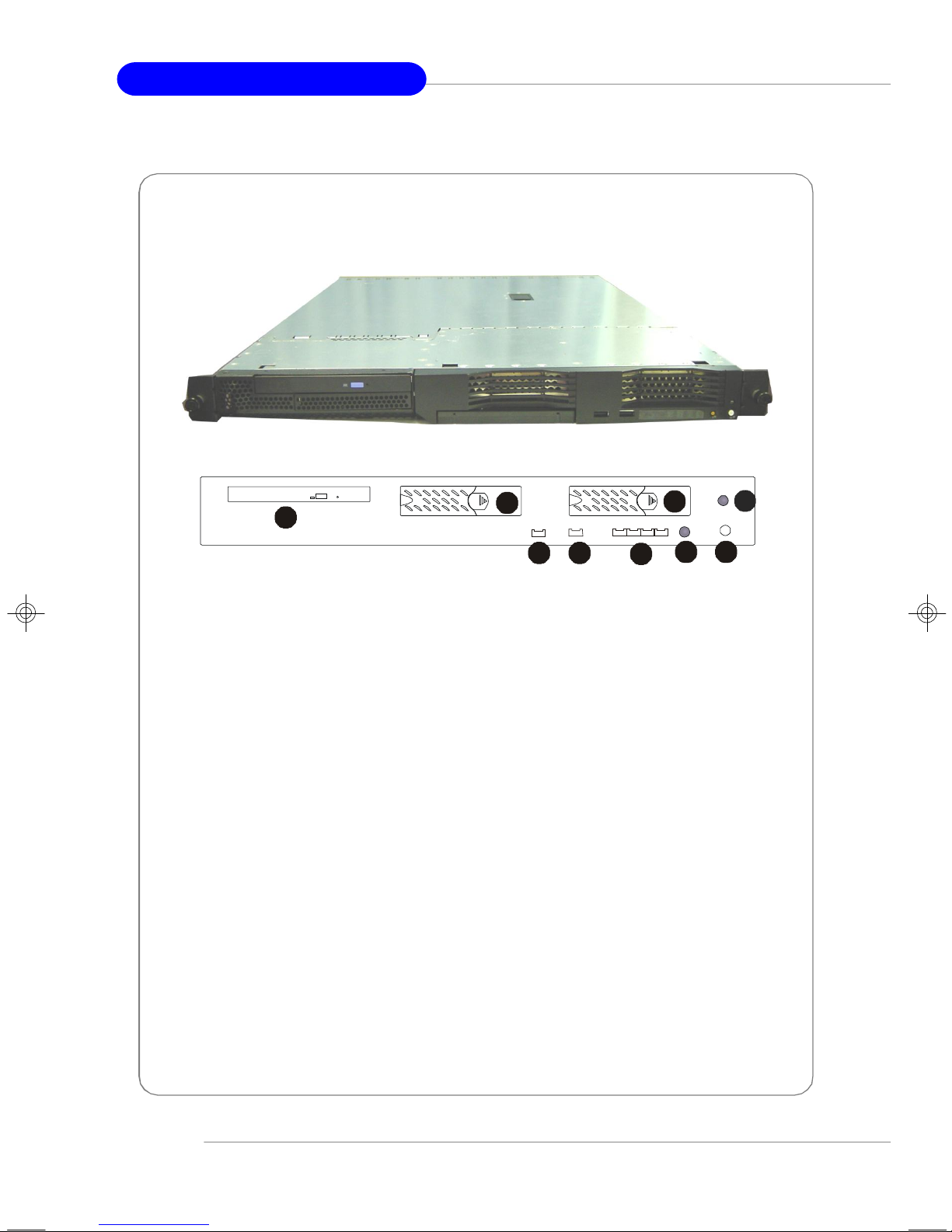

FrontView
1
2
5
3
4
6
7
8
9
1.SlimCD-ROM(optional)
2.Hot SwapSCSI (orS-ATA) HDD: HDD 1(ID0)
3.Hot SwapSCSI (orS-ATA) HDD: HDD 2(ID1)
4.USB Port 1
5.USB Port 2
6.(fromleft toright)IDEHDD ActivityLED, Location LED, InfoLED&
ErrorLED**
7.ResetButton
8.PowerButton
9.PowerLED*
命名-2 2006/3/13, 下午 05:554

1-5
GettingStarted
RearView
1. ACPowerConnector
2. HalfLengthPCISlot 2
3. Full LengthPCI Slot 1
4. SerialPort
5. VGAPort
6. (fromlefttoright)USBPort3&USB Port 4
7. (fromlefttoright)GbitPort2&Gbit Port 1
8. PowerLED*
9. NMISwitch
10.ErrorLED**
1
2
5
3
4
6
7
8
9
10
MSIRemindsYou...
*PleaserefertoTable 1.MS-9266FrontBezel&RearI/OLEDs
Definitionsformoreinformation onPowerLED.
**PleaserefertoTable2.MS-9266SystemErrorandDiagnostic
LEDsDefinitionsformoreinformation on ErrorLED.
命名-2 2006/3/13, 下午 05:555

1-6
MS-92661URackmountServer
Table1.MS-9266 FrontBezel&Rear I/O LEDs Definitions
LED Color StateDescription
ON SystemoperatingGreen
Blink Systemmainpoweroffand
standbypoweron
Power
OFF OFF ACpowerremoved
Green Randomblink IDEHDD access activityIDEHDD Activity
OFF OFF Nodiskactivity
Amber ON Somecomponent error/failureError
OFF OFF Systemnormal operation
Blue ON IdentifyactiveviaiConsole
command
Location
(ControlledbyMSI
iConsoleAPonly)OFF OFF Noidentification
Information Amber ReservedfornewBIOSfunction
upgrade
Green Randomblink HDD accessactivitySwappableSCSI
HDD Access OFF OFF Nodiskactivity
命名-2 2006/3/13, 下午 05:556

1-7
GettingStarted
Table2.MS-9266SystemErrorandDiagnosticLEDs Definitions
DiagnosticLEDs
DiagnosticLEDsusesignaldisplaytohelp usersunderstand theirsystem.WhenPOST
orServiceProcessordetectsanerror,thecorrespondingLEDslightup toalertthe user
totheconditionand help servicepersonnelidentifythefailingcomponent. Asystem
errorsingleLEDonthefrontpanelandintherearofthe systemfirstalterstheusers
thatanerrorhasoccurred.Servicepersonnelnextcheckinsidethesystemtodeter-
minewhichsubsystemhasanerrorLEDlit.Thisinformationhelpsthe serviceperson-
nel tolocatethefailingcomponent forreplacement.Thefull failingpathremianslit until
POSTnolongerexistsortheerrorisfixed.
ItemErrorLED DiagnosticLED Description/Symptoms
1OFF OFF Normal operation
2ON CPUErrorLEDON Processorrelatedproblems
3ON SCSIErrorLEDON SCSIharddriveError/failure
4ON FAN ErrorLEDON Fanfailure
5ON MemoryErrorLEDON Memoryerror/failure
6ON N/A Powersupplyerror/failure
命名-2 2006/3/13, 下午 05:557

1-8
MS-92661URackmountServer
SerialPort PIN SIGNAL
1DCD
2SIN
3SOUT
4DTR
5GND
6DSR
7RTS
8CTS
9RI
12 345
67 89
Pin Description Pin Description
1+DB(12) 35 -DB(12)
2+DB(13) 36 -DB(13)
3+DB(14) 37 -DB(14)
4+DB(15) 38 -DB(15)
5+DB(P1) 39 -DB(P1)
6+DB(0) 40 -DB(0)
7+DB(1) 41 -DB(1)
8+DB(2) 42 -DB(2)
9+DB(3) 43 -DB(3)
10 +DB(4) 44 -DB(4)
11 +DB(5) 45 -DB(5)
12 +DB(6) 46 -DB(6)
13 +DB(7) 47 -DB(7)
14 +DB(P) 48 -DB(P)
15 GROUND 49 GROUND
16 DIFFSENS 50 GROUND
17 TERMPWR 51 TERMPWR
18 TERMPWR 52 TERMPWR
19 RESERVED 53 RESERVED
20 GROUND 54 GROUND
21 +ATN 55 -ATN
22 GROUND 56 GROUND
23 +BSY 57 -BSY
24 +ACK 58 -ACK
25 +RST 59 -RST
26 +MSG 60 -MST
27 +SEL 61 -SEL
28 +C/D 62 -C/D
29 +REQ 63 -REQ
30 +I/O 64 -I/O
31 +DB(8) 65 -DB(8)
32 +DB(9) 66 -DB(9)
33 +DB(10) 67 -DB(10)
34 +DB(11) 68 -DB(11)
68-PinUltra320SCSIConnector
1
35
34
68
USBPort
123 4 PINSIGNAL
1VCC
2 -Data
3 +Data
4 GND
SCSIConnector
GigabitLAN Jack
PIN SIGNAL DESCRIPTION
1D0P DifferentialPair0+
2D0N DifferentialPair0-
3D1P DifferentialPair1+
4D2P DifferentialPair2+
5D2N DifferentialPair2-
6D1N DifferentialPair1-
7D3P DifferentialPair3+
8D3N DifferentialPair3-
LinkIndicator
81
ActivityIndicator
VGAPort PIN SIGNAL
1 RED
2 GREEN
3 BLUE
4 N/C
5 GND
6 GND
7 GND
8 GND
9 +5V
10 GND
11 N/C
12 SDA
13 HorizontalSync
14 VerticalSync
15 SCL
1
5
11
15
COM2
PIN DESCRIPTION PIN DESCRIPTION
1DataCarrierDetect 2 ReceiveData
3TransmitData 4 DataTerminalReady
5Ground 6 DataSetReady
7RequesttoSend 8 CleartoSend
9RingIndicator 10 Ground
COM2PinDefinition
8642
97531
命名-2 2006/3/13, 下午 05:558

1-9
GettingStarted
SystemSpecifications
Mainboard
uMS-9166serverboard
CPU
uDual AMD®OpteronTM processorsin 940-pin package
HyperTransport
uThree 16-bitlinkseachsupports1,600 mega-transfers(MT)persecond or3.2
GB/sin eachdirection.
Chipset
uBCM5780
uBCM5785
uSuperI/Ocontroller(NSPC87417)+ADM1027(HWMonitor)
PCI-XBridge
uOneBCM5780Chipset
uOneBCM5785Chipset
Memory
uSupportseight144-bit DDRat200/266/333/400 MHzcompliantregisteredECC
DIMMs.
uSupportsup to16GBmemorysize
Drive Bays
u2hot-swapSCSI (or2hot-swapSerialATA)HDDs
u1slimCD-ROMDrive
FrontBezelI/O
u2USBports
RearBezelI/O
u2USBports
u1VGAport
u1serialport
u2RJ-45 LANjacks
SCSIInterface (OptionforK2-102S2M)
uSingle channelSCSI Ultra320 (LSI1020)
Serial ATAInterface (Option forK2-102A2M)
uSiliconImageSiI3512single-chipPCIto2-portSerialATAhost controller
命名-2 2006/3/13, 下午 05:559

1-10
MS-92661URackmountServer
LAN
uIntegratedinBCM5780controller(Dualports)
IDE
u1IDEconnector,supportingupto2ATA-100/133compatible devices
MSIServerManagementIPMI1.5(optional)
uMSI-9549BMCcard(withQLogicZirconULBMC)andMSIiConsoleAPsupport
IPMI 1.5(optional)
FAN
u4pcs, 40x28mmsystemfan
u1pc, 40x20mmI/Ofan
u3pcs integratedintopowersupply
PowerSupply
u411Wmax.
uActivePFC
uFullrange100~240VAC
Dimension(WxDxH)
u440(W)x660(D)x43(H)mm
Others
uHigh PerformanceThermal Solution
命名-2 2006/3/13, 下午 05:5510

1-11
GettingStarted
MSIServerManagementIPMI1.5(optional)
uMSI-9549 BMCcard(withQLogicZirconULBMC)and MSIiConsoleAPsupport
IPMI1.5(option)
MS-9549 BMC Card Specification
BMCChip
-QlogicZircon UL(ARM7TDMI 32-bit/40MHzRISC), 128-pinPQFP
-Hosthardwareinterface:LPCinterface
-Hostsoftwareinterface:KCSinterface
MemorySize
-256X16BitsSRAM
-4MBitsFlash
FormFactor
-Add-on Cardon CN7SO-DIMM(144pin,Keypositionin50)
OnboardI2Cmux
-9545
OnboardConnector/Header
-JTAGheader(14 pin)fordebugging
KeyFeatures
-IPMI1.5Compliant
-Out-of-band LANbasedmanagement using RMCP
-FRU/SELaccess
-Remoteout-of-band alerts
-Eventlog
-Support forCLI(commandlineinterface)overSerial orsharedNIC(RMCP)
-Abilitytoupdatefirmwareinband unattended
-Remoteaccess security(MD5)
-Out-of-bandenvironmentalmonitoringand alerting
-Secureremotepowercontroland systemresetoverSerialorsharedNIC
(RMCP)
-SupportMicrosoftEMS
-SupportonboardI2CADT7463,Winbond83791toextend Hardwaremonitor
feature
-SupportASR(AutomaticServerRe-start)
SystemManagement
TwoSMBus2.0(I2C)
-One SMBusforIntel 82546GB
-OneSMBusforADT7463, Winbond 83791,SEEPROMaccess,CPUthermal
sensor
CPUFanspeedcontroldependentonSystemTemperature
SystemFanspeedcontroldependentonSystemTemperature
SensorManagement
Monitored Voltage:+5V,+3.3V,Vcore
Thermalprotection(CPU/Systemoverheatshutdownthrough BMC)
NoChassisIntrusion
LEDx3(ID_LED, BMCHeartbeat, StatusLED)
命名-2 2006/3/13, 下午 05:5511
