Chapter 1
Overview
Wind Box DE200/ DC200 is integrated in design, selecting a styl-
ish appearance with a metal frame, which displays the simplicity
of modern individualism and the comfort of home. Furthermore,
it is accompanied with the best computer features, such as in-
stant message, low acoustics, energy saving and 802.11 b/g/n
wireless internet capability so you may roam freely in the realm
of cyberspace.
1-2
Overview
▍

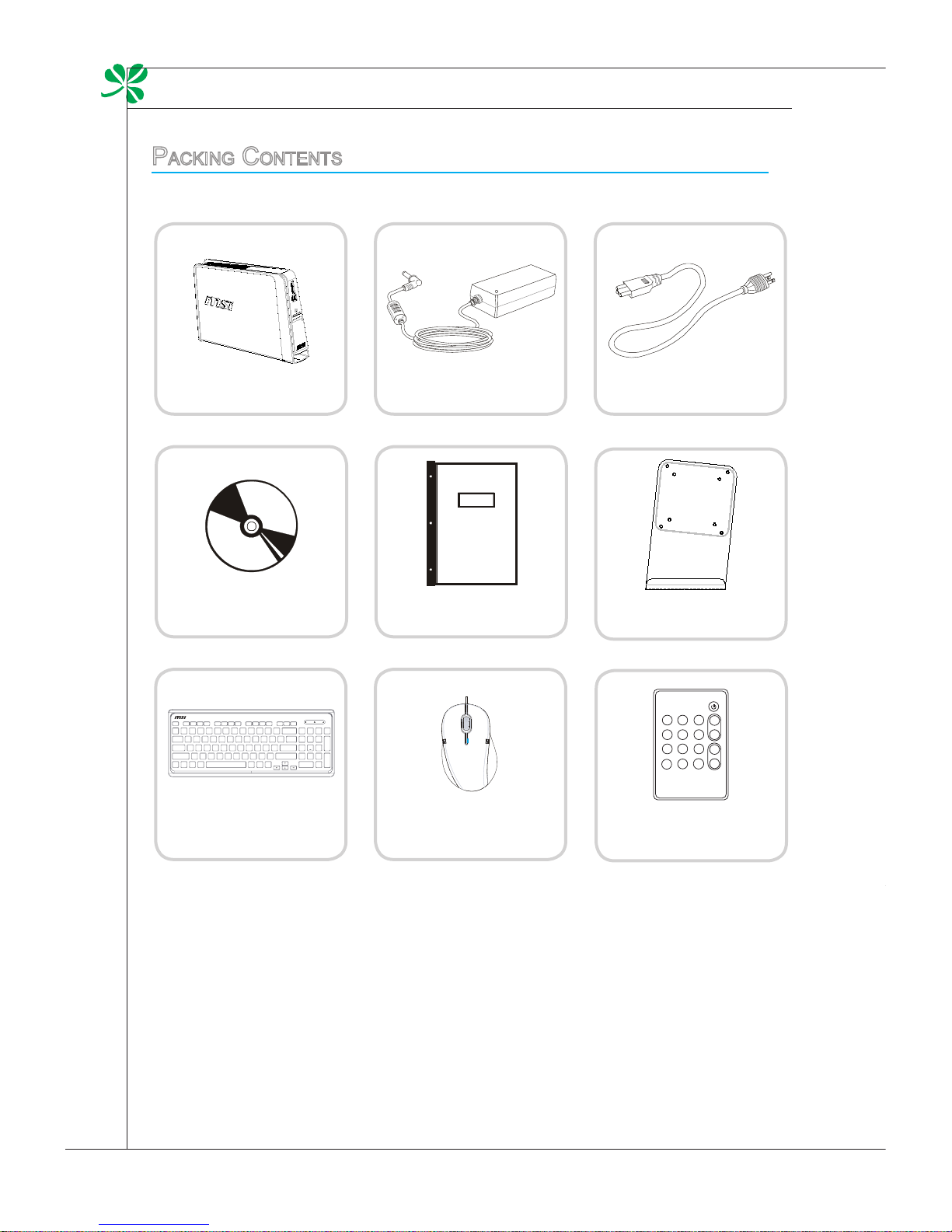

Packing contents system overview
* Please contact us immediately if any of the items is damaged or missing.
* The picture is for your reference only and your packing contents may slightly vary
depending on the model you purchased.

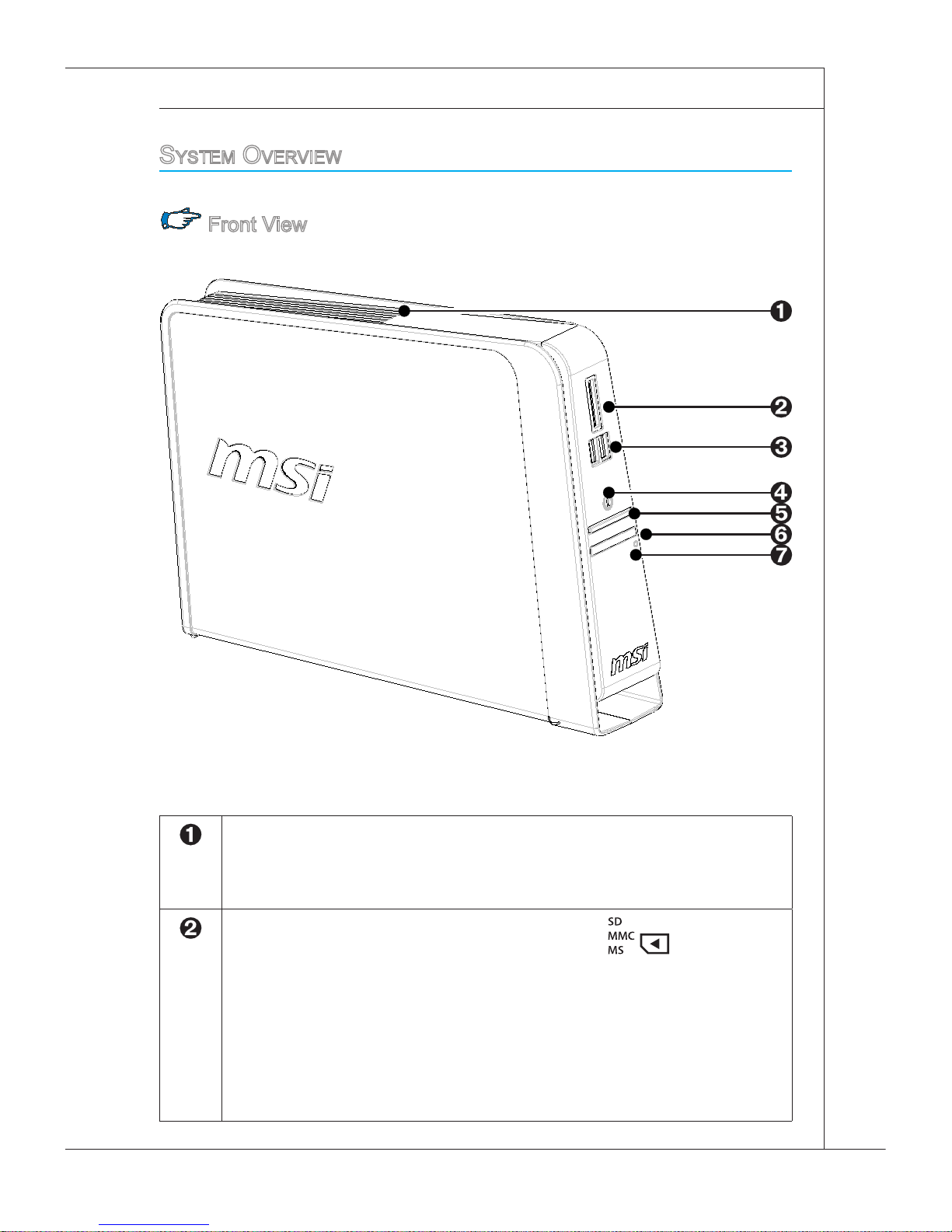

Front View
Wind Box Series AC/ DC Adapter AC Power Cord
User Manual &
Quick Guide
Driver/ Utility Disk
Mouse (Optional)
Keyboard (Optional)
Wall Mount Kit
(Optional)
IR Remote
Controller (Optional) Ventilator
The ventilator on the enclosure is used for air convection and to prevent the
equipment from overheating. Do not cover the ventilator.
Card Reader Drive (SD/ MMC/ MS/ XD)
The built-in card reader may support various types of memory card, such
as XD (eXtreme Digital), SD (Secure Digital), SDHC (SD High Capacity),
MS (Memory Stick), MS Pro (Memory Stick Pro) or MMC (Multi-Media
Card) cards that usually used in devices like digital cameras, MP3 players,
mobile phones and PDAs. Contact the local dealer for further information
and please be noted that the supported memory cards may vary without
notice.
1-3
MS-6667
Packing contents system overview
* Please contact us immediately if any of the items is damaged or missing.
* The picture is for your reference only and your packing contents may slightly vary
depending on the model you purchased.
Front View
Wind Box Series AC/ DC Adapter AC Power Cord
User Manual &
Quick Guide
Driver/ Utility Disk
Mouse (Optional)
Keyboard (Optional)
Wall Mount Kit
(Optional)
IR Remote
Controller (Optional) Ventilator
The ventilator on the enclosure is used for air convection and to prevent the
equipment from overheating. Do not cover the ventilator.
Card Reader Drive (SD/ MMC/ MS/ XD)
The built-in card reader may support various types of memory card, such
as XD (eXtreme Digital), SD (Secure Digital), SDHC (SD High Capacity),
MS (Memory Stick), MS Pro (Memory Stick Pro) or MMC (Multi-Media
Card) cards that usually used in devices like digital cameras, MP3 players,
mobile phones and PDAs. Contact the local dealer for further information
and please be noted that the supported memory cards may vary without
notice.
1-4
Overview
▍
Rear View
Important
We suggest that you connect the AC/ DC adapter to your system rst and then connect
the AC power cord to the socket-outlet for safety concerns.
USB Port
The USB (Universal Serial Bus) port is provided for attaching USB devices
such as mouse, keyboard, modem, printer, scanner, camera, PDA or other
USB-compatible devices.
Power LED
The blue power LED is on when you turn on the system; the blue power
LED is off when you turn off the system.
Power Button
Press the power button to turn the system on and off.
IR Receiver
This infrared receiver is provided for remote controller.
HDD LED
The blue HDD LED is on when data is read from or written to the hard disk
drive.
Ventilator
The ventilator on the enclosure is used for air convection and to prevent the
equipment from overheating. Do not cover the ventilator.
Microphone Jack
This is a jack for microphone.
Headphone/ Speaker Jack (with S/PDIF-Out via adapter)
This is a jack for headphones or speakers.
1-5
MS-6667
Rear View
Important
We suggest that you connect the AC/ DC adapter to your system rst and then connect
the AC power cord to the socket-outlet for safety concerns.
USB Port
The USB (Universal Serial Bus) port is provided for attaching USB devices
such as mouse, keyboard, modem, printer, scanner, camera, PDA or other
USB-compatible devices.
Power LED
The blue power LED is on when you turn on the system; the blue power
LED is off when you turn off the system.
Power Button
Press the power button to turn the system on and off.
IR Receiver
This infrared receiver is provided for remote controller.
HDD LED
The blue HDD LED is on when data is read from or written to the hard disk
drive.
Ventilator
The ventilator on the enclosure is used for air convection and to prevent the
equipment from overheating. Do not cover the ventilator.
Microphone Jack
This is a jack for microphone.
Headphone/ Speaker Jack (with S/PDIF-Out via adapter)
This is a jack for headphones or speakers.
1-6
Overview
▍
mainboard sPecifications
Processor
Intel® AtomTM Single/ Dual-Core processor 230/ 330 (Optional)
Chipset
North Bridge: Intel® 945GC chipset
South Bridge: Intel® ICH7 chipset
Memory
1 DDR2 533 SO-DIMM slot (200 pins / 1.8V)
Supports the maximum of 2GB
LAN
Gigabit Fast Ethernet by Realtek® RTL8111DL GbE controller
Audio
Chip integrated by Realtek® ALC888
Compliant with Azalia 1.0 spec
Form Factor
275mm x 170mm
■
■
■
■
■
■
■
■
■
USB Port
The USB (Universal Serial Bus) port is provided for attaching USB devices
such as mouse, keyboard, modem, printer, scanner, camera, PDA or other
USB-compatible devices.
HDMI Port (Optional)
The High-Denition Multimedia Interface (HDMI) is an all-digital audio/
video interface capable of transmitting uncompressed streams. HDMI sup-
ports all TV format, including standard, enhanced or high-denition video,
plus multi-channel digital audio on a single cable.
VGA Port
The 15-pin-D-sub VGA port allows you to connect an external monitor or
other standard VGA-compatible device (such as a projector) for a great
view of the computer display.
Power Jack
The power adapter converts AC power to DC power for this jack. Power
supplied through this jack supplies power to the PC. To prevent damage to
the PC, always use the supplied power adapter.
LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local Area
Network (LAN). You can connect a network cable to it.
Green/ OrangeYellow
LED Color LED State Condition
Left Yellow O LAN link is not established.
On (steady state) LAN link is established.
On (brighter & pulsing) The computer is communicating with
another computer on the LAN.
Right Green O 10 Mbit/sec data rate is selected.
On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
1-7
MS-6667
mainboard sPecifications
Processor
Intel® AtomTM Single/ Dual-Core processor 230/ 330 (Optional)
Chipset
North Bridge: Intel® 945GC chipset
South Bridge: Intel® ICH7 chipset
Memory
1 DDR2 533 SO-DIMM slot (200 pins / 1.8V)
Supports the maximum of 2GB
LAN
Gigabit Fast Ethernet by Realtek® RTL8111DL GbE controller
Audio
Chip integrated by Realtek® ALC888
Compliant with Azalia 1.0 spec
Form Factor
275mm x 170mm
■
■
■
■
■
■
■
■
■
USB Port
The USB (Universal Serial Bus) port is provided for attaching USB devices
such as mouse, keyboard, modem, printer, scanner, camera, PDA or other
USB-compatible devices.
HDMI Port (Optional)
The High-Denition Multimedia Interface (HDMI) is an all-digital audio/
video interface capable of transmitting uncompressed streams. HDMI sup-
ports all TV format, including standard, enhanced or high-denition video,
plus multi-channel digital audio on a single cable.
VGA Port
The 15-pin-D-sub VGA port allows you to connect an external monitor or
other standard VGA-compatible device (such as a projector) for a great
view of the computer display.
Power Jack
The power adapter converts AC power to DC power for this jack. Power
supplied through this jack supplies power to the PC. To prevent damage to
the PC, always use the supplied power adapter.
LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local Area
Network (LAN). You can connect a network cable to it.
Green/ OrangeYellow
LED Color LED State Condition
Left Yellow O LAN link is not established.
On (steady state) LAN link is established.
On (brighter & pulsing) The computer is communicating with
another computer on the LAN.
Right Green O 10 Mbit/sec data rate is selected.
On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
1-8
Overview
▍
system sPecifications
Input / Output (I/O)
1 DC power jack
1 VGA-Out port
4 USB ports
1 RJ-45 LAN jack
1 HDMI port (Optional)
1 microphone jack
1 headphone/ speaker jack (with S/PDIF-Out via adapter)
Power Supply
65 watt AC/ DC adapter with active PFC
Input: 100-240V~, 50-60Hz, 1.5A
Output: 19V 3.42A
Built-In Card
1 wireless LAN card
Built-In Drive
1 card reader drive
1 hard disk drive (3.5” regular type)
Dimension
297 mm (W) X 223 mm (H) X 60.2 mm (D)
■
■
■
■
■
■
■
■
■
■
■
■
■
■
comPonent rePlacement & UPgrade
Please note that certain components preinstalled in the product may be up-
gradable or replaceable by user’s request depending on the models users pur-
chased.
1
Memory
2
Hard Disk Drive
1
2
3
This manual suits for next models
1
Table of contents
