The classic lines of the McDonald's Ray Kroc built in

Des Plaines, Illinois, in 1955 bring an authentic

American look to any layout, from the mid-50s to

today. With its sturdy ABS construction and easy-to-

wire interior lighting, this timeless restaurant will find a

TM

permanent home in RailTown , just as it has in every

American town.

ELECTRIC TRAINS, INC.

®

McDonald’s

Original

WIRING INSTRUCTIONS

RailKing Original McDonald’s® Operating Instructions 2

The lighting in the Original McDonald's® can be powered via either track

power or by a 9v battery. To set up the building's power, gently turn the

restaurant upside down and prop it carefully on a soft surface, so you do not

damage the decorated shell. Caution: Because there are different light bulbs

for track and battery power, you should choose which method you will use

and not try to switch between the two. The 18v bulb has a white socket, and

the 9v bulb has a grey socket.

A.C.

Ground

A.C.

9V BATTERY

LIGHT BULB REPLACE

To Transformer

Figure 1. Underside of McDonald’s

Figure 2. Switch Located on Rear Right Corner of Building

To wire for track power:

With the transformer turned off, connect the

AC hot and AC ground wires from the

transformer to the two connection ports

indicated on the bottom of the base.

The restaurant will be delivered with an 18v

bulb (with a white socket) installed, which is

the appropriate bulb for track powered

lighting. DO NOT ATTEMPT TO RUN

FROM TRACK POWER IF THE 9v BULB

(WITH A GREY SOCKET) IS INSTALLED.

Note: there is an on-off switch on the back

side of the restaurant itself. Keep the switch

pushed to the right/on position when you

operate from track power.

To run lights from a battery:

The restaurant will be delivered with an 18v

bulb installed, which is the appropriate bulb

for track powered lighting but will be

underpowered if used with battery power.

Replace the 18v bulb (as described on the

next page) with the 9v bulb (with a grey

socket) included in the packaging.

Remove the cover from the battery box and

install a 9v battery as indicated.

If you power the lights with a battery, you

will need to turn them on and off manually

when you enjoy your layout. Flip the switch

to the left for the on position and to the right

for off.

A.C. Hot A.C. Ground

14-v

(-)

(+)

CAUTION: Do not mix old and new

batteries. Do not mix alkaline,

standard (carbon-zinc), or

rechargeable (nickel-cadnium)

batteries.

3

A.C.

Ground

A.C.

9V BATTERY

LIGHT BULB REPLACEMENT

Remove the cover from the battery

box and install a 9v battery as shown.

Replace the 18v bulb with the 9v

bulb (with a grey socket) included in

the packaging.

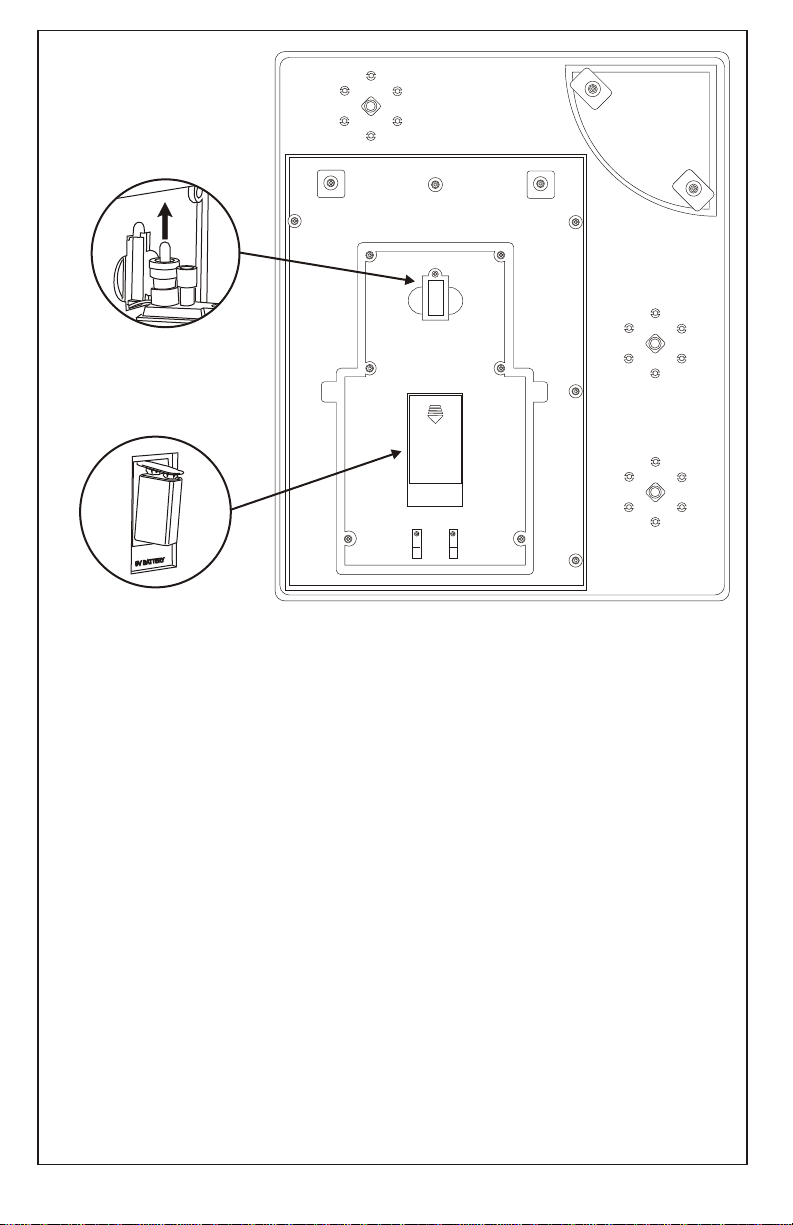

Figure 3. Locations of Battery Door and Light Replacement Door

To replace the light bulb:

1. Unscrew the single small Philips screw located in the plate marked "Light Bulb

Replacement."

2. Gently pull the plate straight out from the base, until the bulb has cleared the

opening.

3. Gently pull the bulb out of its housing and pop the new bulb into place. 18v bulbs

have a white socket; 9v bulbs have a grey socket.

4. Replace the plate and bulb and screw it back into place to secure it.

You can obtain replacement bulbs directly from the M.T.H. parts department (phone:

410-381-2580; e-mail: [email protected]; mail: 7020 Columbia Gateway Drive,

Columbia MD 21046-1532).

RailKing Original McDonald’s® Operating Instructions

4

CAUTION: ELECTRICALLY OPERATED PRODUCT:

Not recommended for children under 10 years of age without adult supervision.

As with all electric products, precautions should be observed during handling

and use to reduce the risk of electric shock.

WARNING: When using electrical products, basic safety precautions should be

followed including the following:

• Read this manual thoroughly before using this device.

• M.T.H. recommends that all users and persons supervising use examine the

unit periodically for conditions that may result in the risk of fire, electric shock,

or injury to persons, such as damage to the primary cord, plug blades, housing,

output jacks or other parts. In the event such conditions exist, the unit should

not be used until properly repaired.

• This unit is intended for indoor use. Do not use if water is present. Serious

injury or fatality may result.

• Do not operate with damaged wires or clips.

• Do not use this unit for other than its intended purpose. This unit was

designed to operate with any AC or DC output toy train transformer. See the

transformer's operating instructions for more operating and safety information.

RailKing Original McDonald’s® Operating Instructions

5

Notes:______________________________________________

___________________________________________________

RailKing Original McDonald’s® Operating Instructions

6

Notes:______________________________________________

___________________________________________________

RailKing Original McDonald’s® Operating Instructions

7

Notes:______________________________________________

___________________________________________________

RailKing Original McDonald’s® Operating Instructions

How to Get Service Under the Terms of the Limited One-Year Warranty

For warranty repair, do not return your product to the place of purchase. Instead, follow the instructions

below to obtain warranty service, as our dealer network is not prepared to service the product under the

terms of this warranty.

1. First, write, call or FAX M.T.H. Electric Trains, 7020 Columbia Gateway Drive, Columbia, MD 21046,

(Tel: 410-381-2580; FAX : 410-423-0009; e-mail: [email protected]), stating when it was

purchased and what seems to be the problem. You will be given a return authorization number to assure that

your merchandise will be properly handled upon its receipt.

2. CAUTION: Make sure the product is packed in its original factory packaging including its foam and

plastic wrapping material so as to prevent damage to the merchandise. The shipment must be prepaid and

we recommend that it be insured. A cover letter including your name, address, daytime phone number, e-

mail address (if available), Return Authorization number, a copy of your sales receipt and a full

description of the problem must be included to facilitate the repairs. Please include the description

regardless of whether you discussed the problem with one of our service technicians when contacting

M.T.H. for your ReturnAuthorization number.

3. Please make sure you have followed the instructions carefully before returning any merchandise for

service.

Limited One-Year Warranty

All M.T.H. products purchased from an Authorized M.T.H. Train Merchant are covered

by this warranty.

See our website at or call 1-888-640-3700 to identify an Authorized

M.T.H. Train Merchant near you.

M.T.H. products are warrantied for one year from the date of purchase against defects in

material or workmanship, excluding light bulbs and traction tires. We will repair or replace (at

our option) the defective part without charge for the parts or labor, if the item is returned to

M.T.H. Electric Trains within one year of the original date of purchase. This warranty does not

cover damages caused by improper care, handling, or use. Transportation costs incurred by the

customer are not covered under this warranty.

Items sent for repair must be accompanied by a return authorization number, a description of the

problem, and the original sales receipt from an Authorized M.T.H. Train Merchant, which

gives the date of purchase. Call 410-381-2580, fax 410-423-0009, or e-mail the Service

Department at to obtain a return authorization number.

This warranty gives you specific legal rights, and you may have other rights that vary from state

to state.

Service Department

M.T.H. Electric Trains

7020 Columbia Gateway Drive

Columbia MD 21046-1532
