The RailKing SD45 is a model of a 3600HP Mainline Freight Locomotive. It has an ABS
body and stamped metal floor and runs on O-31 track. This RailKing Diesel Engine
contains state-of-the-art electronics with many built-in automatic features for incredibly
realistic operation. Despite these advanced features, the locomotive is easy to operate
with any compatible standard AC transformer (see the compatibility chart on page 18),
and is completely compatible with most other 3-rail locomotives, rolling stock, and
accessories.
This locomotive is equipped with Proto-Sound 2.0 with Digital Command System
(DCS). This new system will allow you to operate your locomotive in Command mode
(when used with the DCS Remote Control System, sold separately) or Conventional
mode. Conventional operating features are described in the following pages, while the
DCS operating features are covered in the set of operating instructions that
accompanies the DCS equipment. Conventional Mode operation of this locomotive is
much simpler than operation of original Proto-Sound engines. For your own safety and
that of your equipment, please read the instructions before you operate this engine.

2
RailKing SD45 Diesel Engine
Table of Contents
InitialLubrication 3
Basic Operation 3
Throttle 3
Operation Buttons 3
Volume Control 4
Proto-Sound 2.0 Operation 5
Activating Proto-Sound 2.0 Conventional Mode Features 5
Freight Yard Sounds (FYS) 6
Tips on Using FYS 7
Proto-Coupler®Operation 8
Speed Control 8
Lock into a Direction State 9
Reset to Factory Defaults 9
Automatic Sounds 9
Maintenance 10
Lubrication and Greasing Instructions 10
Cleaning the Wheels, Tires and Track 12
Locomotive Traction Tire Replacement 12
Locomotive Light Bulb Replacement 13
Self-Charging Battery Back-Up 14
Troubleshooting 15
Compatibility 17
TransformerCompatibilityChart 18
Additional Features with DCS Remote Control System 19
SafetyPrecautions 21
Service and Warranty Information 24

3
RailKing SD45 Diesel Engine
Initial Lubrication
Although the engine was lubricated at the factory, it is important that you
lubricate the chassis before operation. Lightly grease the outside idler and
drive gears (marked “G” in Fig. 3 on pg. 10) to prevent them from squeaking.
Use light household oil and follow the lubrication points (marked “L” in Fig. 2
on pg. 10). Do not over-oil. Use only a drop or two on each pivot point.
At this point, you are ready to put your engine on the track and begin running
it.
Basic Operation
Throttle – Throttle up the power to your track. Give about 10-12 volts or
enough power so that the engine’s headlight shines brightly. Then put the
engine into motion by either firmly pressing the Direction button on your
transformer or remote once or dropping and advancing the throttle to put the
engine in forward.
Operation Buttons
Use the operation buttons on your transformer or remote as described below.
Horn/Whistle - To sound the horn, firmly press the Horn/Whistle button. The
horn will sound for as long as you continue to depress the button. It will stop
when you release the button. The horn has four different endings, depending
on whether you hold the button for less than three seconds, three seconds, four
seconds, or five seconds or longer.
Bell- To sound the bell, firmly press and release the Bell button. To turn the
bell off, press and release the Bell button again. The bell will continue to ring
from the time you turn it on until you press and release the button again to turn
it off.
Direction – Your train is programmed to start in neutral. The first direction
after neutral upon start-up is forward. Firmly press and release the Direction
button to allow the engine to move forward. Just as you must stop your
automobile between forward and reverse, this engine will not go directly from
forward to reverse; it goes into neutral between directions. If the train has been
moving forward, the first press of the Direction button will put the train from
forward into neutral, the second press into reverse, the third press back into
neutral, and the fourth back into forward. To prevent accidental high-speed
start-ups, this engine is programmed to restart in neutral each time the track
voltage is turned off for 25 seconds or more.

4
RailKing SD45 Diesel Engine
Manual Volume Control –To adjust the volume of all sounds made by
this engine, turn the master volume control knob located under the engine
clockwise to increase the volume and counter-clockwise to decrease the
volume (see Fig. 1).
Proto-Sound 2.0
Volume Adjustment Knob
Figure 1. Location of the Proto-Sound 2.0 Volume Adjustment Knob

5
RailKing SD45 Diesel Engine
Proto-Sound 2.0 Operating Instructions
This manual contains the operating instructions for Proto-Sound 2.0 in
conventional mode only. Instructions for accessing DCS command mode
features accompany the DCS Remote Control System equipment.
Because Proto-Sound 2.0 is an all-new system developed by M.T.H.’s own
research and development team, it operates differently from original
Proto-Sound. Most Proto-Sound 2.0 features are automatically enabled, and the
reset state has been eliminated, so there is no need to program features as with
original Proto-Sound. Although the new system is easier to operate than
original Proto-Sound, you should read these instructions thoroughly before
using Proto-Sound 2.0 features in order to prevent harm to yourself or your
equipment.
Activating Proto-Sound 2.0 Conventional Mode Features:
Proto-Sound 2.0 features are activated by sequences of Bell and Whistle button
pushes described below. Please read the full descriptions of each feature
before using it. To use these buttons to activate features rather than to blow
the whistle or ring the bell, you should press the buttons for a shorter time (1/2
second); you may need to practice your timing to make this work smoothly.
Feature to Be Activated:
Freight Yard Sounds
Fire the Rear Coupler
Fire the Front Coupler
Speed Control On/Off
Lock into a Direction/Unlock
Reset to Factory Defaults
Button Code:
1 Bell, 2 Whistles
1 Bell, 3 Whistles
1 Bell, 4 Whistles
1Whistle,2Bells
1 Whistle, 3 Bells
1 Whistle, 5 Bells (From Neutral Only)
(From Neutral Only)

6
RailKing SD45 Diesel Engine
Freight Yard Sounds (FYS):
Your engine is equipped with a sound package of freight yard sounds that you
can play when you pull into a yard. Each sequence described below will
play as long as it is left on, randomly generating sounds, but be sure to
allow approximately 30 seconds between the button pushes described
below to allow the FYS sufficient time to run through each sequence.
1. To cue the sound system to play the FYS, quickly but firmly press the Bell
button once followed by 2 quick presses of the Whistle button while the
engine is moving.
2. Press the Direction button or drop and advance the throttle once to stop the
engine. This will trigger the first sequence of FYS. The reverse unit is
temporarily disabled so that the train will not move as you use the Direction
button to trigger the sounds, and Proto-Sound 2.0 has disabled operator control
over the Whistle and Bell buttons until the full FYS sequence is complete.
3. After waiting about 30 seconds for that sequence to run, press the Direction
button again to trigger the second sequence of FYS.
4. After about 30 seconds, press the Direction button again to trigger the third
FYS sequence.
5. Again, after allowing about 30 seconds for that sequence to run, press the
Direction button one more time to trigger the fourth and final FYS sequence.
The FYS will continue, and within a few seconds, the engine will start and
move out on its own at the current throttle setting, in the same direction it was
traveling when you began the sequence. Once the bell turns off, the operator
regains control of the transformer’s bell and whistle buttons and can ring the
bell or blow the whistle as usual.

7
RailKing SD45 Diesel Engine
Tips on Using FYS
• You can terminate FYS at anytime by turning off power to the
track for 15 seconds.
• You do not have to be in Forward to use FYS. At the
conclusion of the full sequence, the train will pull away from
the station in whatever direction you were going when you
activated the feature.
• You can use FYS even if you are double-heading with another
engine. If the second engine is not equipped with FYS at all,
you must remember not to leave the throttle at a high voltage
level once you have stopped the engine to run the FYS.
Otherwise, the engine without FYS will begin vibrating on the
track as its motors strain to move the train, since they cannot be
automatically disabled during the FYS cycle. If the second
engine is an original Proto-Sound engine equipped with FYS,
you may choose to disable it when used in double-heading
operations, so you will not experience competing FYS sounds.
To disable FYS in an original Proto-Sound engine, see the
operating instructions for that engine.
• FYS can be triggered from Neutral. It will operate the same as
if triggered while in motion except that, at the conclusion of the
FYS, the engine will depart in the next direction of travel, as
opposed to the direction it was traveling before entering
Neutral.

8
RailKing SD45 Diesel Engine
Proto-Coupler®Operation
This locomotive is equipped with two coil-wound Proto-Couplers for remote
uncoupling action. Because the Proto-Coupler is controlled through the
Proto-Sound 2.0 microprocessor, it does not require an uncoupling track
section or modification to your layout to function. You can fire the coupler(s)
from neutral or while in motion. Use the codes shown below (and in the chart
on p. 5) to fire the coupler(s).
Rear Coupler:
To fire the rear coupler, press the Bell button once followed immediately by
three pushes of the Whistle button. The sound of the liftbar and air line
depletion will play, and the knuckle will be released.
Front Coupler:
To fire the front coupler, press the Bell button once followed immediately by
four pushes of the Whistle button. The sound of the liftbar and air line
depletion will play, and the knuckle will be released.
Speed Control:
M.T.H. engines equipped with Proto-Sound 2.0 have speed control capabilities
that allow the engine to maintain a constant speed up and down grades and
around curves, much like an automobile cruise control. You can add or drop
cars on the run, and the engine will maintain the speed you set.
While the engine is programmed to start with the speed control feature
activated, you can opt to turn it off. This means the engine’s speed will fall as
it labors up a hill and increase as it travels downward. It is also affected by the
addition or releasing of cars while on the run.
To turn speed control on and off, put the engine in neutral, then press the
transformer’s Whistle button one time then immediately press the Bell button
two times. Two horn blasts will indicate that the engine has made the change.
Repeat the 1 whistle, 2 bells code to return it to the other state. You will want
to do this during the initial neutral upon start-up if you ever couple this
engine to another engine that is not equipped with speed control to avoid
damaging the motors in either engine. Each time you shut down the engine
completely, it will automatically turn speed control on.

9
RailKing SD45 Diesel Engine
Lock into a Directional State:
You can lock your engine into a directional state (forward, neutral, or reverse)
so that it will not change directions. To do this, put the engine into the
direction you want or into neutral, to lock it into neutral, run it at a very slow
crawl (as slowly as it will move without halting), and quickly but firmly press
your remote’s Horn button once followed immediately by three presses of the
Bell button. Two horn blasts will indicate that the engine has made the change.
The engine will not change direction (including going into neutral) until you
repeat the 1 horn, 3 bells code to return the engine to its normal state, even if
the engine is kept without power for extended periods of time.
Reset to Factory Defaults:
To override the settings you currently have assigned to the engine and reset it
to its factory defaults, while in Neutral press the Whistle button once, followed
immediately by five quick pushes of the Bell button. Two horn blasts will
indicate that the engine has made the change.
Automatic Sounds:
Certain Proto-Sound 2.0 sound effects automatically play in programmed
conventional mode conditions:
• Squealing Brakes play any time the engine’s speed decreases rapidly.
• Cab Chatter plays at random intervals when the engine idles in neutral.
• Engine Start-up and Shut-down sounds play when the engine is initially
powered on or is powered off for five seconds or more.

10
RailKing SD45 Diesel Engine
Maintenance:
Lubrication and Greasing Instructions
The engine should be oiled and greased in order to run properly.
You should regularly lubricate all outside idler gears and pickup rollers to
prevent them from squeaking. Use light household oil and follow the
lubrication points marked “L” in Fig. 2. Do not over oil. Use only a drop or
two on each pivot point.
The locomotive’s internal gearing was greased at the factory and should not
need additional grease until after 50 hours of operation or one year, whichever
comes first. Use lithium based grease and follow the greasing instructions
below. Note that in some tightly packed engines you may need to move
internal components temporarily in order to access the gears.
Lubricate Pick Up Rollers (L)
Lubricate Wheel Axles (L)

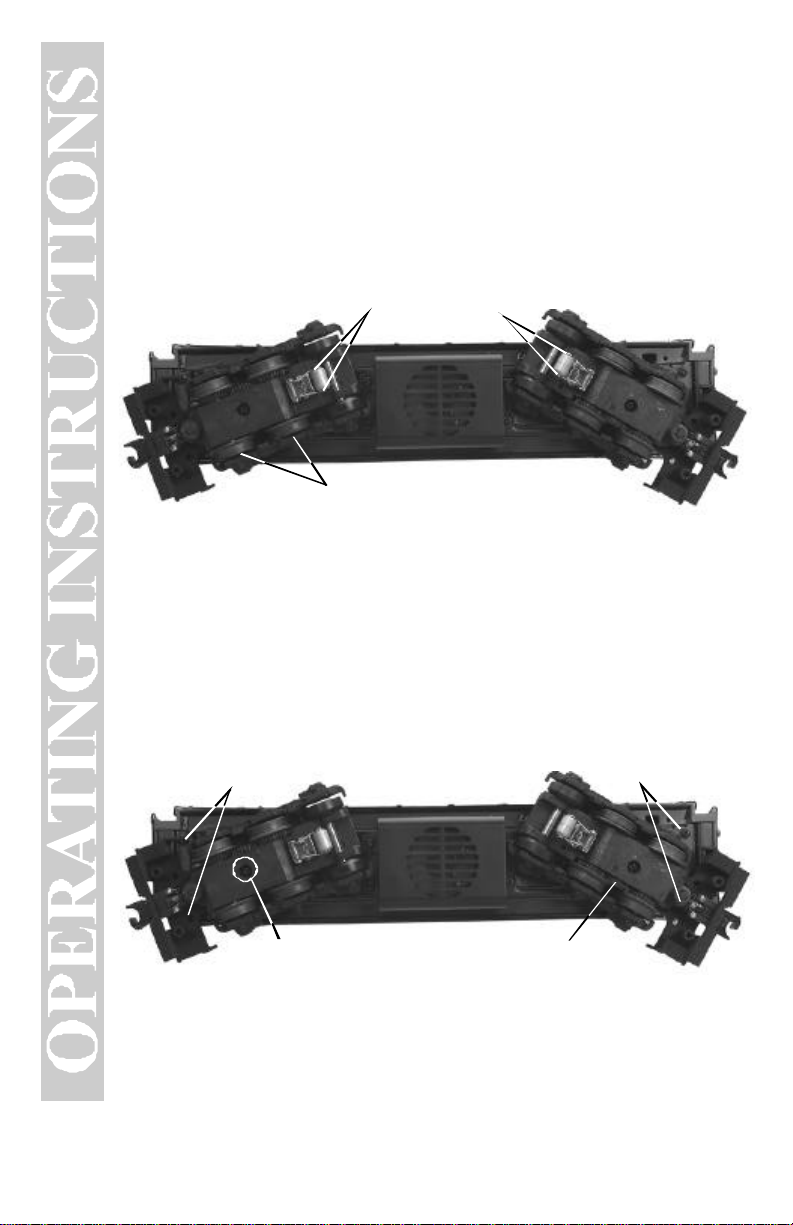

Figure 2. Lubrication Points on the Engine
Body Mount Screws
Motor Mount Screw Idler Drive Gear (G)
Body Mount Screws
Figure 3. Body Mount Screws and Greasing Points.

11
RailKing SD45 Diesel Engine
Cleaning the Wheels, Tires and Track
Periodically check the locomotive wheels and pickups for dirt and buildup,
which can cause poor electrical contact and traction as well as prematurely
wear out the neoprene traction tires. Wheels and tires can be cleaned using
denatured alcohol (not rubbing alcohol), which can be found in home
improvement stores, applied with a cotton swab.
Occasional cleaning of the track will also help to ensure good electrical
contact and to prolong the life of your engine’s tires. To clean the track, use a
clean rag and denatured alcohol (not rubbing alcohol). Unplug the
transformer and wipe the rails of the track, turning the rag frequently to ensure
that you are using clean cloth on the rails.
1. Remove the Phillips screws from the chassis, as seen in Figure 3, then lift
the body away from the chassis.
2. Remove the truck blocks from the chassis by unscrewing the black Phillips
motor mount screw on the bottom of each truck block, as shown in Figure 3.
3. Once the motor mount screw has been removed, pull the motor away from
the truck block and lightly coat the motor worm gear and bronze drive gear (in
the truck block) with grease.
4. Reassemble the truck and motor, being careful not to pinch any wires
between the truck block and motor mount.
5. Repeat the procedure for the other motor and truck
6. Reassemble the chassis and body, being careful that the wires are not caught
between the body and chassis, as this can lead to a short that may damage the
electronics beyond repair.
It is also a good idea to lubricate the outside truck block idler and drive gears
with grease occasionally. Add grease to the points marked with “G” in Figure
3.

12
RailKing SD45 Diesel Engine
Traction Tire Replacement Instructions
Your locomotive is equipped with two neoprene rubber traction tires on each
powered truck block. While these tires are extremely durable, you may need to
replace them at some point.
First, remove the truck sides from the truck
block. To do this, turn your engine upside
down. If there are visible Phillips screw
heads between the truck frame and truck
block (see Fig. 4), go to step A. If not, go to
step B.
A. Remove the two Phillips screws that
attach the truck sides to the truck block.
B. Remove the trucks from the chassis and
the truck sides from the trucks in order to
slip the new tire over the grooved drive
wheel. See Fig. 4 for which screws you
must remove to do this.
Once the truck sides have been removed:
1. Make sure the old tire has been completely removed from the groove in the
drive wheel, using a razor blade or small flathead screwdriver to pry away any
remains.
2. Slip the new tire onto the wheel. You may find it useful to use two small
flathead screwdrivers to stretch the tire over the wheel.
3. If you twist the tire while stretching it over the wheel, you will need to
remove and reinstall the tire. Otherwise your engine will wobble while
operating.
4. Make sure the tire is fully seated inside the groove. Use a razor blade to
trim away any excess tire that doesn’t seat itself inside the groove properly.
5. Reassemble in reverse order.
One set of replacement tires is packaged with the model. Additional tires are
available directly from the M.T.H. Parts Department (phone: [phone];
fax: [phone]; e-mail: [email protected]; mail: 7020 Columbia
Gateway Drive, Columbia MD 21046-1532).

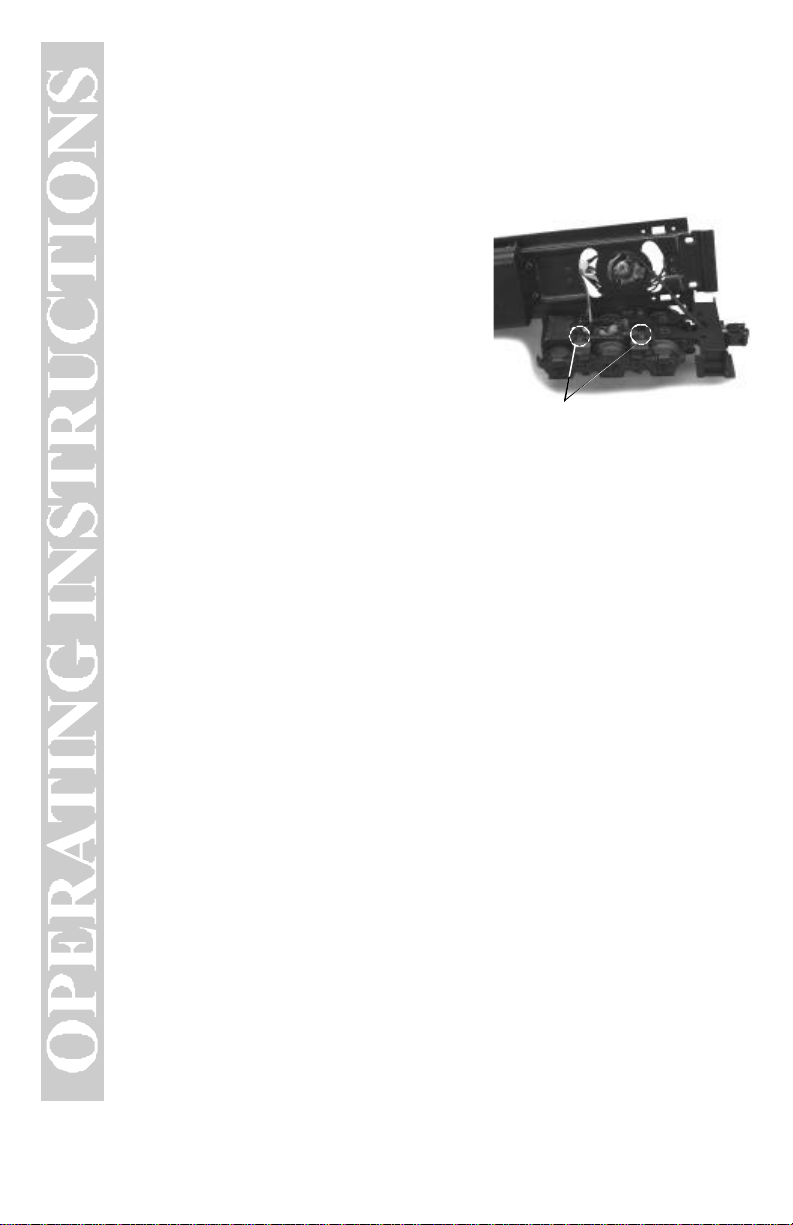

Truckside removal screws
Figure 4. Screws to Remove to
Access the Traction Tires

13
RailKing SD45 Diesel Engine
Locomotive Light Bulb Replacement
To replace the light bulb in the locomotive, follow these instructions:
Follow the cab removal instructions found in the “Lubrication and Greasing”
section of this booklet. Once the body has been removed, remove the lightbulb
as shown in Fig. 5 and replace it.
Un plug wire from
spring contact bracket.

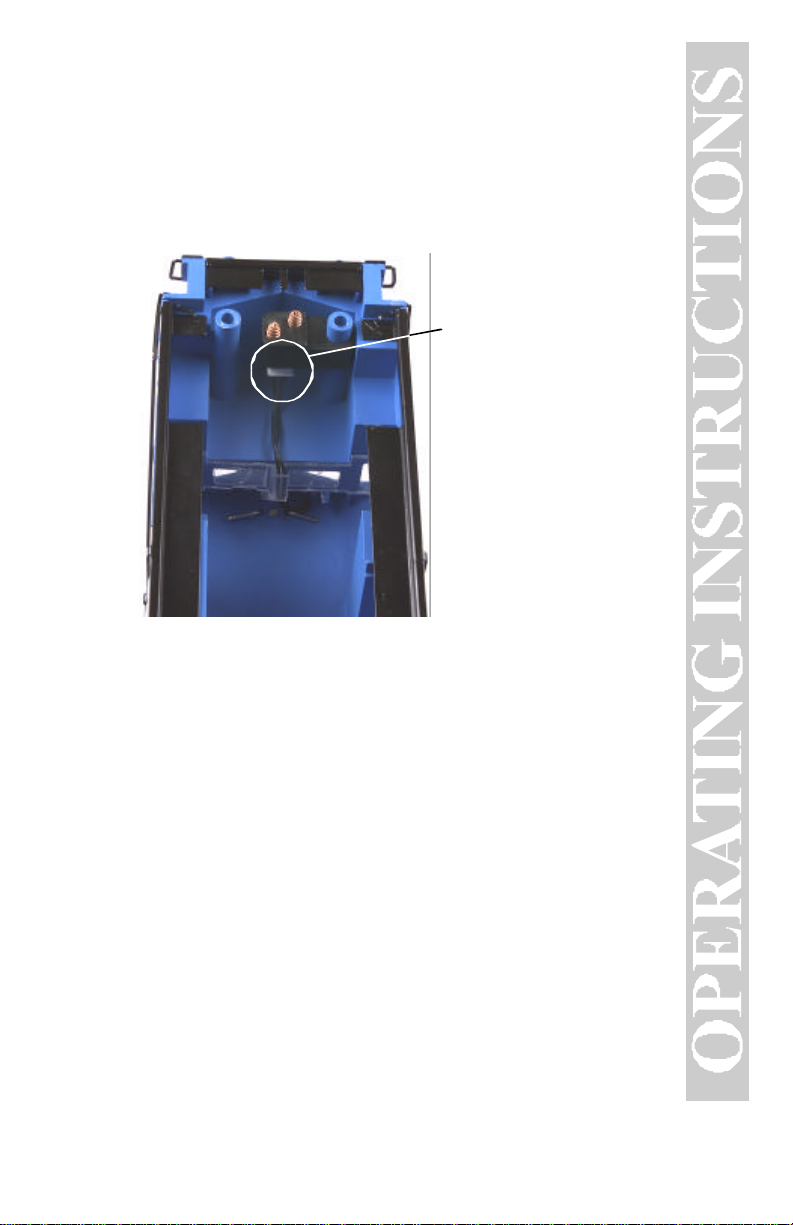

Figure 5. Location of the headlamp in the Engine.

14
RailKing SD45 Diesel Engine
Self-Charging Battery Back-Up
The special NiCad 7-cell 8.4v self-charging battery in this engine improves
performance at any speed. It ensures that power to the sound system will
remain on during directional changes, or when travelling over dirty track or
switches. The self-charging battery system is automatically turned on or off
whenever track power is turned on or off.
Track power (when applied) recharges the battery, which should last for up to
five years, and the special NiCad battery is a dry battery that should not leak or
cause any damage to your engine. However, even this special battery will
eventually wear down and need to be replaced. When you notice that your
engine sounds seem distorted or garbled at low voltages or become silent when
power from the transformer is turned off, test the battery to determine whether
it should be recharged or replaced.
• Put the engine in neutral and leave the track voltage at 12 volts for 15
minutes
• If the garbled or distorted sounds are reduced, the battery charge has run
down and can be recharged. Do this by leaving the engine in neutral with track
voltage at 12 volts for 6-7 hours so the battery can fully recharge (if your
engine has a smoke unit, be sure it is turned off). Or you can remove the
battery (as described below)and charge it in any standard slow charge battery
recharger, following the recharger’s directions.
• If the sounds are not improved at the end of the 15 minute test charge, it is
time to replace the battery (see directions below). Contact the M.T.H. Parts
Department (phone: [phone]; e-mail: [email protected]; mail:
7020 Columbia Gateway Drive, Columbia MD 21046-1532) for a replacement
battery. A standard 9v alkaline battery can be substituted until your
replacement arrives, but since alkaline batteries cannot be recharged, it will
eventually wear down. Do NOT use a 6-cell 7.2v battery like those found in
most convenience stores.
Unhook Wires, Remove
andReplaceBattery
Figure 6. Removing and Replacing the Battery

15
RailKing SD45 Diesel Engine
Troubleshooting Proto-Sound®2.0 Problems
Although Proto-Sound 2.0 has been designed and engineered for ease of use,
you may have some questions during initial operation. The following table
should answer most questions. If your problem cannot be resolved with this
table, contact M.T.H. for assistance (telephone: [phone]; fax:
410-423-0009; email: [email protected]; mail: 7020 Columbia
Gateway Drive, Columbia MD 21046-1532).
Starting Up
Horn
Bell
Coupler
Remedy
Remedy
Remedy
Remedy
Remedy
When I first turn the power on, the
engine will not begin to run. I have to
turn the throttle off and then on again
to get the engine to operate.
When I press the whistle button, the
bell comes on instead.
I can’t get the horn to blow when I
press the whistle button.
I can’t get the bell to ring when I press
the bell button.
The bell won’t work on a separate bell
button.
When I try to fire the coupler, FYS
starts.
The Proto-Coupler won’t let the engine
uncouple on the fly.
The coupler does not fire or stay
coupled.
When I press the whistle button, the
bell sounds.
Reverse the transformer leads.
You may be pressing the button too
quickly. Try pressing the whistle button
more slowly, taking approximately one
full second to fully depress the button.
You may be pressing the button too
quickly. Try pressing the bell button
more slowly, taking approximately one
full second to fully depress the button.
Reverse the transformer leads.
Check the wiring of the separate
button.
You are waiting too long between
whistle button presses.
Try lubricating the coupler knuckle
with a dry graphite lubricant. Do NOT
useoil.
The coupler needs to be cleaned.
Wipe with denatured alcohol (not
rubbing alcohol) and let dry.
This is normal behavior. To prevent
accidental high-speed start-ups, Proto-
Sound 2.0 is programmed to start up
in neutral anytime track power has
beenturnedoffforseveralseconds.
See the "Basic Operation" section for
more details.

16
RailKing SD45 Diesel Engine
Cab Chatter
Lock-out
Volume
Battery
FYS
Remedy
Remedy
Remedy
Remedy
Remedy
Sometimes the Cab Chatter sounds
don’t play.
I can’t get the engine to run after I
power up the transformer. It sits still
with the engine sounds running.
The engine won’t lock into forward,
neutral, or reverse.
The sounds seem distorted, especially
when the whistle or bell is activated.
The engine will not leave the initial
neutral setting.
The FYS sounds occasionally repeat
themselves.
I get no sounds when the engine shifts
between directions.
After I turn off my transformer, my
engine continues to make sounds
before quitting.
Cab Chatter plays only in neutral at
random intervals.
The engine is locked into the neutral
position. Follow the procedure in the
“Lock into a Direction” section.
Engine speed must be below 10 scale
mph (approx. 10 volts or less in
conventional mode).
Proto-Sound 2.0 volume is set too
high. Turn the volume control knob on
the bottom of the chassis counter-
clockwise to reduce the volume.
Check to be sure the battery is
installed and fully charged. See the
“Self-Charging Battery Back-Up”
section.
The battery may be dead or need to
be charged. See the “Self-Charging
Battery Back-Up” section.
Proto-Sound 2.0 is designed to
continue to sound for a few seconds
after power to the track has been shut
off.
Proto-Sound 2.0 has a built-in random
number generator that randomly
selects each sound clip to play.
Because there are a limited number of
sound clips available in each FYS
sequence, it is probable that some of
these sound clips will be repeated
from time to time.

17
RailKing SD45 Diesel Engine
FYS Remedy
Once in FYS, the engine doesn’t go
into reverse.
When the FYS enters its last
sequence the bell automatically
comes on.
When FYS is enabled, pressing the
whistle and bell buttons has no effect.
I push the direction button but the next
sound clip in the sequence does not
play or the engine does not come out
of FYS after fourth press of the
direction button.
So that FYS effects can be as realistic
as possible,Proto-Sound 2.0
disables the reversing unit
whenever FYS is enabled. This
way the engine remains still at its
stop as the operator cycles
through the FYS sequences.
FYS is programmed to start
ringing the bell at that point. After
approximately 12 rings of the bell,
it will automatically turn off.
Because FYS must control various
effects in each sequence, Proto-
Sound 2.0 takes control of these
sound effects until you exit FYS.
Each FYS clip must play for approx.
30 seconds before FYS will advance
to the next step in the FYS cycle.
Wait at least 30 seconds in each FYS
sound clip before pressing the
direction button.
Compatibility
This engine will operate on any traditional O-31 or larger O Gauge track
system, including M.T.H.’s RealTrax®or ScaleTrax™or traditional tubular
track. It is also compatible with most standard AC transformers. (See page 18
for a complete list of compatible transformers and wiring instructions.)

18
RailKing SD45 Diesel Engine
Transformer Compatibility and Wiring Chart
Note that many of the operational commands described in these instructions
require a bell button, so if your transformer does not have its own bell button,
you should consider adding one to get the full benefit of the system.
Transformer
Model Center Rail Outside Rail Min/Max. Voltage Power Rating Transformer Type
Lionel 1032 U A 5-16v 90-Watt Standard
Lionel 1032M U A 5-16v 90-Watt Standard
Lionel 1033 U A 5-16v 90-Watt Standard
Lionel 1043 U A 5-16v 90-Watt Standard
Lionel 1043M U A 5-16v 90-Watt Standard
Lionel 1044 U A 5-16v 90-Watt Standard
Lionel 1053 U A 8-17v 60-Watt Standard
Lionel 1063 U A 8-17v 60-Watt Standard
All-Trol Left Terminal Right Terminal 0-24v 300-Watt Electronic
Dallee Hostler Left Terminal Right Terminal Electronic
Lionel LW A U 8-18v 75-Watt Standard
Lionel KW A or B U6-20v 190-Watt Standard
Lionel MW Outside Track
Terminal Inside Track Terminal 5-16v 50V.A. Electronic
Lionel RS-1 Red Terminal Black Terminal 0-18v 50V.A. Electronic
Electronic
Lionel RW U A 9-19v 110-Watt Standard
Lionel SW U A Unknown 130-Watt Standard
Lionel TW U A 8-18v 175-Watt Standard
Lionel ZW
Lionel Post-War
Celebration
Series ZW
A,B,C or D
A,B,C or D
U
Common
8-20v
0-20v
275-Watt
135/190 Watt
Standard
MTH Z-500 Red Terminal Black Terminal 0-18v 50-Watt Electronic
MTH Z-750 Red Terminal Black Terminal 0-21v 75-Watt Electronic
MTH Z-4000 Red Terminal Black Terminal 0-22v 390-Watt Electronic
* Conventional Mode Only

19
RailKing SD45 Diesel Engine
Additional Features Accessible with the DCS Remote
Control System:
While conventional mode operation of a Proto-Sound 2.0 engine yields
wonderfully realistic sound and several train control features, command mode
operation allows the user to access a world of command functions never before
accessible to O Gauge railroaders. With the addition of the DCS Remote
Control System (including a DCS remote handheld and Track Interface Unit)
users gain many advanced features, including:
•DCS Proto-Speed Control-Establishes desired locomotive speed in scale
miles per hour increments via a thumbwheel control and allows operator to set
maximum speed and acceleration/deceleration rates
•ProtoSmoke®Variable Output Control-Controls how much smoke each
engine outputs and matches smoke to locomotive speed
•Locomotive Lighting Control-Independently controls locomotive headlights,
marker and interior lights, and ditch lights
•Emergency Stop-Single button push deactivates all layout operation
•One Touch Global Mute/UnMute-Single button mutes or unmutes all
DCS-controlled locomotives’ user-defined actions, including sound, lights, and
smoke
•Proto-Dispatch Operation-Public Address-like feature allows users to speak
through locomotive speaker during operation
• Proto-Cast-Allows users to play audio recordings through locomotive speaker
during operation
•Proto-Doppler Sound Effects Set Up-Users can configure locomotive for
Doppler Operation, including setting distance points for Doppler start, repeat,
and stop modes
•Independent Volume Control of Engine Sounds, Bell, Horn & Whistle for
each Locomotive
•Control up to 50 different DCS-Equipped Locomotives at one time with
multiple TIUs

20
RailKing SD45 Diesel Engine
• Proto-Effects™ Set Up-User can select individual Proto-Effects™ operations
to be active or inactive, including cab chatter, train wreck sounds, coupler
sounds, and wheel clickety-clack sounds
• Direction Control Set Up-User can set initial individual start-up direction
(start in forward or reverse) for double-heading operations
• Locomotive Consist Set-up-User can determine locomotive values for consist
make-ups, allowing multiple locomotives belonging to a consist to operate
together
• Query Locomotive Information-User can query locomotive programming to
learn locomotive address and engine data information, including scale miles
traveled
• User Can Query, Set and Operate Track and Accessory Interface Units for
Programming Digital Command Operations for up to 250 Accessories and 250
Individual Switches
• User Can Script, Record and Playback Train Routes
Operating instructions for all DCS Command features will accompany the
DCSremote control equipment.
