MTS Systems MTS7205 User manual
VACUUM CLEANER
OWNERS GUIDE
2
English ( Original instructions)
3
Product standard:
GB4706.1 | GB4706.7 | GB4343.1 | GB17625.1
(IEC60335-1 | IEC60335-2-2 | EN62233 | EN61000)
• MTS7205 30L Vacuum Wet & Dry Stainless Steel Drum
• MTS7210 70L Vacuum Wet & Dry Plastic Drum
• MTS7215 70L Vacuum Wet & Dry Stainless Steel
• MTS7225 80L Vacuum Wet & Dry Stainless Steel Drum
• MTS7220 90L Vacuum Wet & Dry Plastic Drum
MTS7205
30L Vacuum Wet & Dry
Stainless Steel Drum
MTS7225
80L Vacuum Wet & Dry
Stainless Steel Drum
MTS7220
90L Vacuum Wet & Dry
Plastic Drum
MTS7210
70L Vacuum Wet & Dry
Plastic Drum
MTS7215
70L Vacuum Wet & Dry
Stainless
4
WARNINGS
DEFINITIONS: SAFETY ALERT
SYMBOLS AND WORDS
This instruction manual uses the following
safety alert symbols and words to alert
people to hazardous situations and
the risk of personal injury or property
damage.
DANGER: Indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING: Indicates a potentially
hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION: Indicates a potentially
hazardous situation which, if not avoided,
may result in minor or moderate injury.
NOTICE: Indicates a practice not related
to personal injury which, if not avoided,
may result in property damage.
WARNING: Read all safety warnings
and all instructions. Failure to follow the
warnings and instructions may result in
electric shock, re and/or serious injury.
WARNING: To reduce the risk of injury,
read the instruction manual.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: When using electrical
appliances, always follow basic safety
precautions to reduce the risk of re,
electric shock and personal injury,
including the following:
BEFORE USING THIS APPLIANCE,
READ AND FOLLOW ALL
INSTRUCTIONS.
WARNING: To reduce the risk of electric
shock. Do not expose to rain. Store
indoors.
• Do not leave the appliance when
it is connected to a power source.
Unplug it from outlet when not in
use and before servicing.
• Do not allow the appliance to be
used as a toy Pay close attention
when the appliance is used by or
near children.
• Use this appliance ONLY as
described in the manual. Use
only STANLEY recommended
attachments.
• Do not use this appliance with
a damaged cord o plug. If the
appliance is not working correctly,
or if it has been dropped, damaged,
left outdoors, or dropped in water,
return it to a service center.
• Do not pull or carry this appliance by
the cord, use the cord as a handle,
close a door on the cord, or pull the
cord around sharp edges or corners.
Do not run the appliance over the
cord. Keep cord away from heated
surfaces.
• Do not unplug this appliance by
pulling on the cord. To unplug, grasp
the plug, not the cord.
• Do not handle the plug or appliance
with wet hands
• Do not put object into the openings
of the appliance. Do not use the
appliance with any opening blocked;
keep free of dust, lint, hair and
anything else that may reduce air
ow.
5
• Keep hair, loose clothing, ngers,
and all bod parts away from the
openings and moving parts.
• Turn off all controls before
unplugging appliance
• Take extra care when cleaning on
stairs
• Do not use the appliance to pick up
ammable o combustible liquids,
such as gasoline, or use in areas
where ammable or combustible
liquids are present.
• Static shocks are possible in dry
areas or when the relative humidity
of the air is low. This is only
temporary and does not affect the
use of the
• vacuum. To reduce the frequency of
static shocks, add moisture to the air
with a console, installed humidier
or use anti-static hose
• (standard on some models).
• To avoid spontaneous combustion,
empty the dus tank after each use.
WARNING
• Do not pick up anything that
is burning o smoking, such as
cigarettes, matches, or hot ashes.
• Do not use to vacuum combustible
explosive materials, such as coal,
grain, or other nely divided
combustible materials.
• Do not use to vacuum hazardous,
toxic o carcinogenic materials, such
as asbestos or pesticide.
• Never pick up explosive liquids (e.g.
gasoline diesel fuel, heating oil,
paint thinner, etc.), acids or solvents.
• Do not use vacuum without lters in
place
• Some wood contains preservatives
whic can be toxic. Take extra care
to prevent inhalation and skin
contact when working with these
materials. Request and follow any
safety information available from the
material supplier.
• Do not use vacuum as a step ladder
• Do not place heavy objects on
vacuum
WARNING: This product is NOT to
be used for ltering of pathogens, for
example COVID-19. Follow all local, state
and federal guidance on general cleaning
practices.
WARNING: Always wear proper personal
hearing protection during use. Under
some conditions and duration of use,
noise from this product may contribute to
hearing loss.
WARNING: Always use safety goggles.
Everyday eyeglasses are NOT safety
goggles. Also use face or dust mask
if area of operation is dusty. ALWAYS
WEAR CERTIFIED SAFETY EQUIPMENT.
To reduce the exposure to these
chemicals, wear approved safety
equipment such as dust mask that are
specially designed to lter out microscopic
particles.
WARNING
If the supply cord is damaged, it must
be replaced by the manufacturer or its
service agent or a similarly qualied
person in order to avoid a hazard.
6
IMPORTANT:
Remove the plug from the socket before
performing maintenance. Before using
the machine make sure that the frequency
and voltage shown on the rating plate
correspond with the mains voltage.
Specications and details are subject
to change without prior notice. The
accessories shown in the pictures may
vary from model to model.
GROUNDING INSTRUCTIONS
This appliance must be grounded. If
it should malfunction or breakdown,
grounding provides a path of least
resistance for electric current to reduce
the risk of electric shock. This appliance is
equipped with a cord having an
equipment-grounding conductor and
grounding plug. The plug must be
inserted into an appropriate outlet that
is properly installed and grounded in
accordance with all local codes and
ordinances.
WARNING:
IMPROPER CONNECTION OF
THE EQUIPMENT-GROUNDING
CONDUCTOR CAN
RESULT IN A RISK OF ELECTRIC SHOCK.
CHECK WITH A QUALIFIED ELECTRICIAN
OR SERVICE PERSON IF YOU ARE IN
DOUBT AS TO WHETHER THE OUTLET
IS PROPERLY GROUNDED. DO NOT
MODIFY THE PLUG PROVIDED WITH
THE APPLIANCE – IF IT WILL NOT
FIT THE OUTLET HAVE A PROPER
OUTLET INSTALLED BY A QUALIFIED
ELECTRICIAN.
This appliance is for use on a nominal
120-volt circuit, and has a grounded
plug that looks like the plug illustrated in
sketch A. A temporary adaptor that looks
like the adaptor illustrated in sketches B
and C may be used to connect this plug
to a 2-pole receptacle as shown in sketch
B if a properly grounded outlet is not
available. The temporary adaptor should
be used only until a properly grounded
outlet (sketch A) can be installed by a
qualied electrician. The green colored
rigid ear, plug or the like extending from
the adaptor must be connected to a
permanent ground such as a properly
grounded outlet box cover. Whenever the
adaptor is used, it must be held in place
by a metal screw.
WARNING:
IF THE CORD IS DAMAGED, IT MUST BE
REPLACED BY A SPECIAL CORD OR
SERVICE AGENT.
IMPORTANT SAFEGUARDS
The symbol on the product or packaging
indicates that the product must not be
treated as domestic refuse. Instead,
it should be handed in to a collection
point for the recycling of electrical and
electronic components. By ensuring the
product is treated in the correct manner,
you will help prevent any negative impact
on the environment and health that might
GROUNDING METHODS
7
WARNING: To reduce the risk of re or
explosion, do not operate this vacuum in
areas with ammable gases, vapors or
explosive dust in the air. Flammable gases
or vapors include but are not limited to:
lighter uid, solvent-type cleaners, oil-
based paints, gasoline, alcohol or aerosol
sprays. Explosive dusts include but are not
limited to: coal, magnesium, aluminum,
and grain or gun powder. Do not vacuum
explosive dust, ammable or combustible
liquids or hot ashes. Do not use this
vacuum as a sprayer for arise were the
product to be discarded as ordinary
refuse. For further information about
recycling, you should contact your local
authorities, refuse collection service or the
sales outlet where you bought the goods.
WARNING: TO REDUCE THE RISK
OF INJURY, USERS MUST READ
INSTRUCTION MANUAL. DO NOT
RUN UNATTENDED. DO NOT PICK UP
FLAMMABLE, COMBUSTIBLE OR HOT
MATERIALS. DO NOT USE AROUND
EXPLOSIVE DUST, LIQUIDS OR VAPORS.
ELECTRICAL DEVICES PRODUCE ARCS
OR SPARKS WHICH CAN CAUSE FIRE
OR EXPLOSION. DO NOT USE AT
FILLING STATIONS OR ANYWHERE
GASOLINE IS STORED OR DISPENSED.
DO NOT VACUUM TOXIC OR
CARCINOGENIC MATERIALS OR OTHER
HEALTH ENDANGERING MATERIALS
SUCH AS ASBESTOS OR PESTICIDES.
ALWAYS USE PROPER EYE AND
RESPIRATORY PROTECTION. TO REDUCE
THE RISK OF ELECTRICAL SHOCK,
DO NOT EXPOSE TO RAIN. STORE
INDOORS. WHEN SERVICING, USE
ONLY IDENTICAL REPLACEMENT PARTS.
DO NOT TO BE USED AS A STEP
STOOL.
any ammable or combustible liquid. To
reduce the risk of health hazards from
vapors or dusts, do not vacuum toxic
materials.
WARNING: The operation of any utility
vacuum can result in foreign objects being
blown into the eyes, which can result
in severe eye injury. Always wear safety
goggles before starting operation.
CAUTION: To reduce risk of
damage, wear ear protectors when using
the vacuum for extended hours or when
using it in a noisy area.
DRY PICK-UP
The cartridge can be used for wet or dry
pick up; installation is the same for both.
When picking up large quantities of liquid
please refer to the wet pick up operation
section in this manual. Use the cartridge
lter in position over the lter cage for
most general dry material pick.
WET PICK-UP
This cleaner requires only a minimum of
conversion when going from dry to wet
pickup. Remove disposable lter bag. The
cartridge lter must be positioned over the
lter cage while vacuuming liquids. When
picking up several tanks full of liquid, the
cartridge lter will become saturated and
misting may appear in the exhaust air.
At this time you should try or replace the
cartridge lter to eliminate the misting
and possible dripping of liquid around
the lid. After completing a wet pickup job,
raise the hose
8
to drain any excess liquid into the tank
before shutting off. The interior of the tank
should be periodically cleaned.
EMPTYING THE TANK
To reduce the risk of injury from
accidental starting, unplug power cord
before emptying the dust tank.
1. Remove the power head assembly
of the wet/dry vacuum by pulling
outward on the lid latch located on
each side of the vacuum. Lift off the
power head assembly.
2. Dump the tank contents into the
proper waste disposal container.
3. Liquids can be emptied through the
tank drain. To empty, turn the unit off
and remove the plug from the wall
outlet. Remove the drain cap and
deposit the liquid waste contents in
a suitable drain. After tank is empty,
return the drain cap to its original
position. To continue use, plug the
cord into the wall outlet and turn the
unit on.
BLOWING OPERATION
WARNING: Always wear safety eyewear
when using as a blower.
WARNING: To avoid injury to bystanders,
keep them clear of blowing debris.
CAUTION: Wear a dust mask if blowing
creates dust which might be inhaled.
CAUTION: To reduce the risk of hearing
loss, wear ear protectors when using
the vacuum/blower for extended hours
or when using it in a noisy area. The
vacuum contains a blowing feature. It
has the capability to blow sawdust and
other debris. It can be used to blow dust
and debris out of garages or off patios and
driveways. Follow the
1. Locate blowing port on the vacuum.
2. Insert one end of the 1-7/8 in. x 6 ft.
(4.8cm × 1.8m) hose into the blowing
port.
3. Turn vacuum “ON”.
WARNING: Do not remove lter cage and
oat. The oat prevents water from entering
the impeller and damaging the motor. The
cage prevents ngers from touching the
moving impeller.
CAUTION: To avoid damage to the
impeller and motor, always reinstall the
cartridge lter before using the vacuum for
dry pickups and wet pickups.
CAUTION: After cleaning, check the lter
for tears or small holes. Do not use a lter
with holes or tears in it. Even a small hole
can cause dust to come out of the vacuum.
Replace it immediately.
CAUTION: Clean the lter in an open
area.
CLEANING
To keep the wet/dry vacuum looking its
best, use a cloth dampened only with water
and mild soap to clean its surface.
To clean the tank:
1. Dump out debris.
2. Wash tank thoroughly with a cloth
dampened only with water and mild
soap.
3. Wipe with dry cloth.
9
STORAGE
Before storing the vacuum, the dust tank
should be emptied and cleaned. The cord
should be wrapped and hung on the unit
and the accessories should be kept in the
accessory holder. The vacuum should be
stored indoors.
TROUBLESHOOTING
Minor problems often can be xed without
calling customer service.
WARNING: lf any of the power head
assembly parts should become detached
or broken, exposing motor or any other
electrical components, operation should
be discontinued immediately to avoid
personal injury or further damage to
the vacuum. This vacuum has no user
serviceable parts, except the lter.
PROBLEM POSSIBLE
CAUSE
CORRECTIVE
ACTION
Vacuum does
not run No electricity
Make sure
electrical
outlet has
voltage (A
qualied
electrician
may
need to be
contacted)
Loss of
suction, wet
pick-up
1. Full tank
2. Clogged
hose
3. Clogged
lter
1. Drain and
clean tank
2. Remove
hose and
clean debris
3. Clean or
replace lter
Loss of
suction, dry
pick-up
1. Full tank
2. Clogged
hose
3. Clogged
lter
1. Drain and
clean tank
2. Remove
hose and
clean debris
3. Clean or
replace lter
10
1 Year Limited Warranty on Manufacturer Defects
This warranty covers any defects in materials or workmanship of the
enclosed product. A selected repair agent will repair or replace any
defective materials due to craftsmanship of the product. This warranty
does not cover any problem caused by misuse, abuse, accidents
or acts of God, such as oods or hurricanes. Consequential and
incidental damages are not covered under this warranty. Coverage
terminates if you sell or otherwise transfer the ownership. If you feel
you have a defective product, please submit a copy of your receipt
to the original purchase
store for instructions prior returning this item to the store or sending
back.
Product will be inspected and contact you within 72 hours to give
you the results of our inspection. We reserve the right to repair or
replace the product at our discretion. However, we may replace the
product with one of similar but not exact features.
Parts and Service available.
This warranty gives you specic legal rights.
WARRANTY
11
BF57SB / MTS7205
12
MTS7205 / BF57SB
30L Vacuum Wet & Dry Stainless Steel
Drum
BF575/575B/576A Circuit Diagram
Technical Parameters
Accessories in the box
TYPE MTS7205
Power 1200W
Cooling system Recycle
Vacuum 2000mmH2 O
Capacity 30L
Height 75cm/72cm
Diameter 34.5cm
Air ow 53L/s
Accessory 40
Function Wet/Dry
Voltage 220V 50/60Hz
240v 50/60Hz
Length of cable 7.2m
Noise level 75dB
1 Suction hose
2 Short connector
3 Long connector
4Plastic/metal tube
5Dry oor nozzle
6Wet oor nozzle
7 Crevice tool
8 Dust brush
1
2
3
4
4
5
6
7
8
13

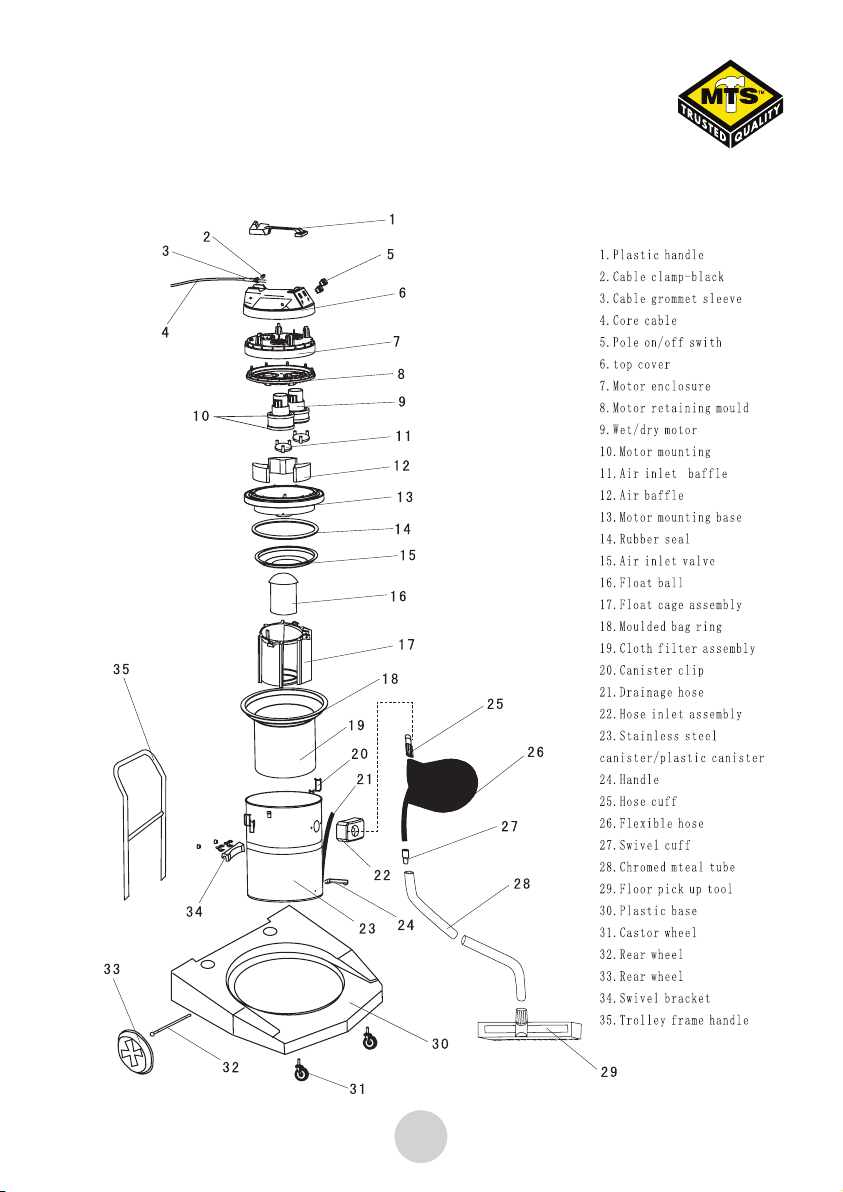

BFS81A / BFS80 - MTS7210 / MTS7215
14
MTS7210
70L Vacuum Wet & Dry Plastic Drum
MTS7215
70L Vacuum Wet & Dry Stainless Steel
MTS7210/BF580 MTS7210/BF581A
BF580/581A Circuit Diagram
Accessories in the box
TYPE BF580/581A
Power 2000W
Cooling system Recycle
Vacuum 2000mmH2O
Capacity 70L
Height 98cm/95cm
Diameter 44cm
Air ow 106L/s
Accessory θ40
Function Wet/Dry
Voltage 220V 50/60Hz
240V 50/60Hz
Length of cable 7.2m
Noise level 78dB
1 Suction hose
2 Short connector
3 Long connector
4Plastic/metal tube
5Dry oor nozzle
6Wet oor nozzle
7 Crevice tool
8 Dust brush
1
2
3
4
4
5
6
7
8
Technical Parameters
15
BFS85-3 / MTS7225
16
MTS7225
80L Vacuum Wet & Dry Stainless
Steel Drum
MTS7225/BF585 - 3
MTS7225/BF585 - 3 Circuit Diagram
Accessories in the box
TYPE BF580/581A
Power 3000W
Cooling system Recycle
Vacuum 3000mmH2 O
Capacity 80L/70L
Height 109cm/95cm
Diameter 44cm
Air ow 120L/s
Accessory θ40
Function Wet/Dry
Voltage 220V 50/60Hz
240V 50/60Hz
Length of cable 7.2m
Noise level 82dB
1 Suction hose
2 Short connector
3 Long connector
4Plastic/metal tube
5Dry oor nozzle
6Wet oor nozzle
7 Crevice tool
8 Dust brush
1
2
3
4
4
5
6
7
8
Technical Parameters
17
BF85-3/586A/MTS7220
18
BF583A / MTS7220
90L Vacuum Wet & Dry Plastic Drum
BF583A / MTS7220 - Circuit Diagram
Accessories in the box
TYPE BF583A
Power 2000W
Cooling system Recycle
Vacuum 2000mmH2 O
Capacity 90L
Height 95cm
Diameter 44cm
Air ow 106L/s
Accessory θ40
Function Wet/Dry
Voltage 220V 50/60Hz
240V 50/60Hz
Length of cable 7.2m
Noise level 78dB
1 Suction hose
2 Short connector
3 Long connector
4Plastic/metal tube
5Dry oor nozzle
6Wet oor nozzle
7 Crevice tool
8 Dust brush
1
2
3
4
4
5
6
7
8
Technical Parameters
BF583A
19
VACUUM CLEANER
OWNERS GUIDE
This manual suits for next models
4
