Vax RAPID POWER 2 User manual

DEEP CLEANING RESULTS
WITH 5 SPINSCRUB BRUSHES
LET’S GET STARTED.
CDCW-RPXL
CDCW-RPXLR

2
SAFETY GUIDE
BASIC SAFETY PRECAUTIONS
This machine is intended for household use only and NOT for commercial or
industrial use.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE AND USE ONLY AS
INSTRUCTED IN THIS GUIDE.
• This machine is intended for indoor cleaning and vehicle interiors during dry
weather conditions.
• Keep fingers, hair and loose clothing away from moving parts and openings
whilst using the machine.
• Before using the machine test your carpets/rugs/upholstery for colourfastness
and pile distortion.
• This machine is not intended to be used or cleaned by persons with reduced
physical, sensory or mental capabilities, or lack of experience or knowledge,
unless they have been given instructions concerning the safe use of the appliance
by a person legally responsible for their safety. They should be supervised whilst
using the appliance. Children shall not use, clean or play with this appliance,
which when not in use should be secured out of their reach.
• Only VAX recommended tools and solution should be used with this machine.
Using other solutions may invalidate the guarantee.
DON’TS
• Don’t leave the machine plugged in when unattended.
• Don’t use the machine if it has been dropped, damaged or left outdoors.
• Don’t run over the power cord or use the machine if the power cord or plug is
damaged. If the power cord is damaged, it must be replaced by a qualified person
in order to avoid a hazard.
• Don’t use the machine to pick up any flammable or combustible materials
(lighter fluid, petrol, kerosene etc.) or use the machine in an area with explosive
vapours or liquid.
• Don’t handle the plug or use the machine with wet hands.
• Don’t pull or carry the machine by the power cord.
• Don’t use the machine to pick up hot coals, cigarette butts, matches or smoking
hot burning items or use in an area where there may be harmful fluids
(chlorine, bleach and ammonia drain cleaner).
• Don’t use the power cord as a handle, pull the power cord around corners or
sharp edges, or close a door over the power cord.
• Don’t unplug the machine by pulling on the power cord.
• Don’t carry the machine while it’s switched on.

3
• Don’t attempt to remove blockages with sharp objects as this may cause
damage to the machine. Remove blockages only as instructed in this guide.
• Don’t use the machine with incorrect voltage as this may result in damage or
injury to the user. The correct voltage is listed on the ratings label.
• Don't over saturate your flooring. Always finish on a dry stroke.
• Don’t use on a surface that is damaged, uneven or incorrectly fitted.
DO'S
• Check with the manufacturer of your flooring prior to using the machine.
• Always vacuum your flooring thoroughly before using the machine.
• Test all carpets/rugs/upholstery before full usage. Run the machine over a small
hidden area. If no damage or pile distortion occurs continue cleaning.
• The clean water tank should be filled with warm water (max 40°C) only.
Filling the clean water tank with hot or boiling water will damage the machine
and invalidate the guarantee.
• Always replace the fuse in the plug with a British 13amp fuse.
• Always unplug the machine before carrying out any maintenance and before
connecting or disconnecting the hose/accessories.
• Always check the machine, tools and accessories are free from damage,
dirt/debris before using.
• Take extra care when cleaning on the stairs.
• Always protect the power cord from heated surfaces or near open flames.
• Turn off all controls on the machine before disconnecting or connecting the
power cord. After use always wrap the power cord around the cord clips
provided.
• Always keep the power cord away from the brushes whilst using the machine.
• Use only CE approved 13amp extension cords, non-approved extension cords
may overheat. Care should be taken to arrange the extension cord as it can be
a trip hazard.
• Always use the machine with all water tanks and filters in place.
• Keep all openings clear and free from debris as this may affect the airflow/
suction/water pick up.
• Always use the machine in an upright position. To prevent motor damage from
dirty water, never hold the machine upside down or on its side.
• Store the machine in a cool, dry area. Before storing the machine please ensure
all water/solutions tanks are empty and filters are thoroughly clean and dry.

4
WARRANTY & TECHNICAL
VAX Ltd, Artillery House, Heritage Way, Droitwich, WR9 8YB, UK.
WARRANTY
If a VAX machine is used in the way it is intended and it breaks down within the
guarantee period, it’s our responsibility to repair or replace it.
Here’s what isn’t covered:
• Functional parts, tools and accessories after 12 months that may suffer
premature failure due to every day wear and tear.
• Consumables after 3 months such as belts, filters, brushbars, fuses etc.
• Accidental damage.
• Cosmetic damage that does not affect the functioning of the product.
• Damage as a result of use not in accordance with the user guide.
• Damage caused by not carrying out regular maintenance.
• Damage to the cord.
• Blockages; please refer to the user guide.
• Poor product performance caused by:
- Negligent use, misuse or careless operation of the machine.
- Failure to clean or maintain the product in accordance with the user guide.
- Use of the machine which is not in accordance with the user guide.
- Use of a VAX product for anything other than normal domestic household
purposes in the country in which it was purchased.
- Use of parts, accessories and consumables, which are not genuine VAX
components.
- Faulty installation or repairs - unless carried out by a qualified electrician or
engineer.
TECHNICAL
Statement of Compliance: Manufacturer/EU importer: VAX Limited, hereby on our
own responsibility, declare that the VAX Rapid Power 2 and VAX Rapid Power 2
Reach are manufactured in compliance with the following Directives:
Safety: 2014/35/EU Low Voltage Directive/Electrical Equipment (Safety)
Regulations 2016. EMC: 2014/30/EU Electromagnetic Compatibility Directive/
Electromagnetic Compatibility Regulations 2016.
Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your Local
Authority or retailer for recycling advice.
VAX is a trade mark of Techtronic Cordless GP.
© 2021 Techtronic Cordless GP. All rights reserved.

5
CONTENTS
Safety guide 2 - 3
Warranty & technical 4
Getting in touch 6
Getting to know your machine 7
Getting started 8
Using your machine 9 - 13
Maintenance & cleaning 14 - 16
Accessories 17
What to do if it goes wrong 18
VAX Ltd, Artillery House, Heritage Way, Droitwich, WR9 8YB, UK.
Standard tools included with your machine
2.5m Hose
3.5m Hose
SpinScrub
hand tool
Accessory Bag x1 250ml
Platinum Antibacterial
Solution
Crevice Tool
Rapid Power 2 Reach
All standard tools, plus
Rapid Power 2
All standard tools, plus
Nozzle
cleaning tool
Upholstery
wash tool
Pet tool

GETTING IN TOUCH
Thank you for buying this VAX Rapid Power 2.
Taking care of your carpets
The Rapid Power 2 is designed to make washing carpets regularly, as effective and efficient as
possible and this user guide will help you get the most out of your machine.
Maintaining your carpets will ensure they keep their appearance for longer and smell fresh and
clean. You’ve chosen carpets for your home for a reason and VAX will help you take good care
of them.
Taking care of your Rapid Power 2
Also inside this guide are instructions on maintaining your new machine, so that it’s always ready
when you are to tackle your carpets.
Receive your FREE 2 year guarantee†
Register your product online:
vax.co.uk/registration
We’re here if you need us
Visit our online support:
support.vax.co.uk
Still need to get in touch?
Our UK based Customer Care Team are here to support you.
For help with assembly, operational or performance problems, or buying and fitting new accessories,
you can find all our contact details at vax.co.uk/contact
This user guide can be found online at support.vax.co.uk
† Registration required. Terms and conditions apply, see vax.co.uk for details.

1Handle
2Water/Solution trigger (hidden)
3Clean water tank release handle
4Clean water tank cap
5Clean water tank
6Dirty water tank release handle
7Dirty water tank
8Hose connection port cover
9Nozzle
10 Spinscrub brushes
11 Quick release cord hook
12 Solution tank
13 Cord hook
14 Quick/Deep clean mode dial
15 Carry handle
16 On/Off pedal
17 Recline handle release pedal
Subject to technical change without notice. Images are illustrative only.
To purchase accessories and consumables visit: vax.co.uk
TECHNICAL SPECIFICATION
Name VAX Rapid Power 2
Code CDCW-RPXL
Cord length 8m
Weight 8.94kg
Wattage: See rating label on machine for details.
Voltage: 220-240V.
VAX Rapid Power 2 Reach
CDCW-RPXLR
9m
9.08kg
See rating label on machine for details.
220-240V.
GETTING TO KNOW YOUR MACHINE
16
11
7
17
12
13
14 15
1
2
5
3
6
9
7
10
4
8

8
IMPORTANT: Carpets should be dry vacuumed thoroughly before washing.
• Test for colourfastness - Wet a white absorbent cloth with the solution. In a small hidden area of your carpet/rugs/
upholstery, gently rub with the dampened cloth. Wait ten minutes and check for colour removal or bleed with a white
paper towel or cloth. Check all carpets/rugs/upholstery material before first use and if your carpet has more than one
colour, check all colours.
• Test all flooring/carpets/rugs before first usage. Run the machine over a small hidden area. If no damage or pile
distortion occurs continue cleaning.
• When using the machine, basic safety precautions should always be observed. Do not over saturate your carpets and
continue using dry strokes until little water is visibly passing through the nozzle. When using the hose and tools always
finish on a dry stroke.
• When cleaning an entire room, move furniture out of the area to be cleaned. If the furniture cannot be moved, place
aluminium foil or wax paper under the legs. This will prevent wood finishes from staining your carpet. Pin up furniture
skirts and curtains.
• Only use VAX carpet solution. Using other solutions may cause excess foaming and will invalidate the guarantee.
• For heavily soiled areas, it may be necessary to repeat the cleaning process. Make criss-crossing strokes across the
original pattern and overlap with each pass.
• The clean water tank should only be filled with warm water (max 40�C). Filling the clean water tank with hot/boiling
water will damage your machine and invalidate the guarantee.
• Empty and rinse out clean and dirty water tanks and leave to air dry before storage. Do not leave solution stored in the
tanks between uses.
• This is a powerful machine, before plugging in make sure all controls are turned off and hold the machine firmly when
starting and during use.
PLEASE READ THE SAFETY PRECAUTIONS ON PAGES 2 & 3 BEFORE USE.
GETTING STARTED
Assembly
Stand the base of the
machine on the floor in the
upright position.
Align the clean water
tank with the body of the
machine. Slide it down and
press firmly into place.
Slide and push the solution
tank firmly into the machine.
Push the handle onto the
extension pole until it clicks
into place. Slide the handle
into the main body, it will
click when correctly fitted.

9
USING YOUR MACHINE
Filling the solution tank
Fill the solution tank with the
Vax carpet cleaning solution.
Pull up the solution tank
and lift to remove.
Twist the clean water
tank cap anti clockwise
and remove.
Pull and lift to remove the
clean water tank.
IMPORTANT: Screw the solution tank cap tightly when refitting. Do not leave the solution stored in the tanks between uses.
Unused solution can be poured back into the bottle.
Filling the clean water tank
Fill the clean water tank
with warm water (max
40�C). Replace the cap and
twist clockwise to tighten.
To replace the clean water
tank, align the back of the
clean water tank with the
body of the machine. Slide
it down and press firmly
into place.
Twist the solution tank cap
anti clockwise and remove.
Twist the solution tank cap
clockwise until tight.
To replace, slide and push
the solution tank firmly
into the machine.
40°C
MAX

10
USING YOUR MACHINE
Operation
Plug into the mains and
press the On/Off pedal to
switch on.
Press the handle release
pedal and pull the handle
backwards to recline
the machine.
Choose the cleaning mode by turning the dial.
1. Quick Clean Mode:
Best for a quick, surface clean - carpets dry in less
than an hour.
2. Deep Clean Mode:
Best overall results for a thorough, deep clean.
Clip the cord into the
cord hook so that the
cord does not get pulled,
caught or tangled under
the machine.
Squeeze the trigger to
release the solution and
water mix.
IMPORTANT: Carpets should be dry vacuumed thoroughly before washing. For heavily soiled areas, it may be necessary to
repeat the cleaning process. Make criss-crossing strokes across the original pattern and overlap with each pass. Do not over
saturate the carpet. Always finish with dry strokes (trigger released) and continue using dry strokes (trigger released) until
little water is visibly passing through the tool/nozzle.
For best results apply
water/solution on the
forward stroke and
release the trigger on the
backward stroke to pick
up water/solution. For a
dryer finish, follow with an
additional dry stoke with
no trigger pressed.
CAUTION: The brushbars constantly spin when switched on and the machine is reclined. Never use on one spot for an
extended period of time as the brushbars may damage the floor surface.
1 2

11
IMPORTANT: Optional step. To extract any remaining solution from your carpet, rinse your carpets with water only.
Do not over saturate your carpet.
USING YOUR MACHINE
Rinsing the carpet
To rinse, pull up the
solution tank and lift to
remove.
For best results apply
water on the forward
stroke and release the
trigger to pick up water
on the backward stroke.
Follow with a slow
additional dry stroke
without the trigger
pressed for a dryer finish.
Twist the clean water
tank cap anti clockwise
and remove.
Pull and lift to remove the
clean water tank.
Fill the clean water tank
with warm water (max
40�C). Replace the cap and
twist clockwise to tighten.
To replace the clean water
tank, align the back of the
clean water tank with the
body of the machine. Slide
it down and press firmly
into place.
40°C
MAX

12
USING YOUR MACHINE
Using the hose and tools
IMPORTANT: The machine should be in the upright position when using the hose and tools; this will de-activate the brushes.
Do not over saturate the carpet/surface. Always finish with dry strokes (trigger released) and continue using dry strokes
(trigger released) until little water is visibly passing through the tool/nozzle.
SpinScrub Hand Tool
For targeting stains and
stubborn marks.
Upholstery Wash Tool
For use on upholstery and
carpeted stairs.
Pet Tool
For cleaning up after pets.
Crevice Tool
For use in tight spots,
hard to reach areas and
edge cleaning such as
against skirting boards.
Press the trigger on the
forward stroke to release
water/solution.
Release the trigger on the
backward stroke to pick up
water/solution. For a dryer
finish continue using dry
strokes (trigger released)
until little water is visibly
passing through the tool.
Plug the machine into the
mains and press the
On/Off pedal to switch on.
Firmly push the hose end
into the hose connection
port.
Lift the hose connection
port cover.
Select a tool. Slide the tool over the tab at the end of the
hose until it clicks into place.

13
USING YOUR MACHINE
Removing the hose and tools
Always close the hose
connection port cover
after using the hose. The
machine may lose suction
if it is not closed properly.
To remove the hose
press the button on the
underneath of the hose
and pull to remove.
To remove the SpinScrub tool or
Crevice tool, lift the clear plastic clip up
over the button on the end of the hose.
To remove the Pet tool or Upholstery tool,
press the button on the top of the tool and
pull to remove.

14
MAINTENANCE & CLEANING
IMPORTANT: The motor is equipped with a thermal cut-out. If for any reason the machine should overheat, the thermostat will
automatically turn the machine off. Switch off and unplug the machine. Check the machine for blockages and clean the dirty
water tank filter.
CAUTION: Always switch off and unplug the machine before performing any maintenance/troubleshooting checks.
The dirty water tank is fitted with a float. When the dirty water tank is full or the floorhead is not in contact with the carpet,
the float will activate by shutting off the suction on the machine. This will be noticeable as the motor noise on the machine
will increase. If the float has been activated empty the dirty water tank if it is full. If the dirty water tank is not full turn off the
machine at the power switch and wait for the float to settle before restarting your machine.
Empty and rinse out the clean and dirty water tanks and leave to air dry before replacing.
Do not leave solution stored in the tanks between uses.
To remove the lid, pull to
release the latch and push
down to unhook the clip
from the tank.
Lift the lid to remove.Hold the dirty water tank
handle and pull to remove.
Emptying and cleaning the dirty water tank
Empty the dirty water
tank over the sink or toilet.
Rinse under warm water
(max 40°C) to remove
dirt/debris.
To replace the lid, fit the
tab on the front of the lid
into the front of the dirty
water tank.
Close the lid. Hook the
bottom of the latch on the
tank and push the top of
the latch up and inwards
until it clicks into place.
To replace the dirty water
tank, push the tank into the
machine until it clicks into
place.

15
MAINTENANCE & CLEANING
Removing and cleaning the nozzle
Pull to release the nozzle
and unhook the nozzle
tabs from underneath the
machine to remove
Rinse the nozzle under
warm water (max 40�C)
to remove dirt/debris.
Remove both tanks and tilt
the machine back.
To replace the nozzle,
hook the tabs on the base
of the nozzle under the
tabs on the base of the
machine. Lower the nozzle
backwards and push until
it clicks into place.
Insert the cleaning tool
into the nozzle. Slide to
the edges and corners to
remove any stubborn dirt
and debris.
IMPORTANT: Carpets should be dry vacuumed thoroughly before washing. This will prevent excessive build up of
dirt/debris in the nozzle. If the nozzle is fitted incorrectly, this will cause poor dirty water pick up.
40°C
MAX

16
MAINTENANCE & CLEANING

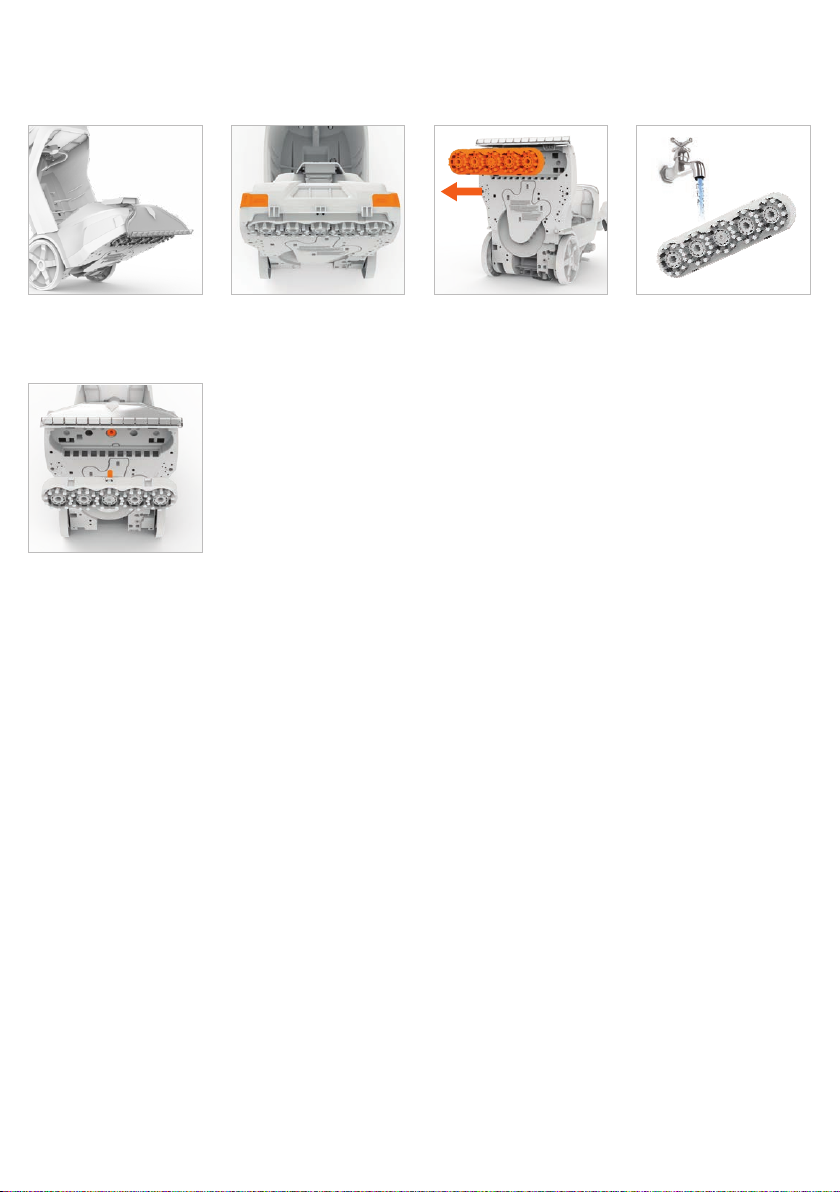

Removing and cleaning the brushes
Push the two brushbar
release buttons backwards
to unlock the brushbar.
Pull the brushbar to
remove.
Remove both tanks and tilt
the machine back.
Clear of any debris/threads
or hair and rinse under
water to remove debris.
To replace Line up spindle
and tabs on back of spin
scrub brush with the
machine and push firmly
until it clicks into place.
40°C
MAX

17
Don’t forget your solution!
Order at: www.vax.co.uk/spares-and-solutions
ACCESSORIES
Platinum Antibacterial (1.5l)
1-9-142404
Platinum Antibacterial (4l)
1-9-142405
Platinum Antibacterial Carpet Cleaning Solution deep cleans carpets,
removes stubborn stains and kills 99.99% of bacteria.
Safe to use on wool carpets - Woolsafe approved.

18
IMPORTANT: Always unplug the machine before performing any maintenance/troubleshooting checks.
Why won't the machine turn on?
• The plug may not be fully pushed into the electrical socket.
• The fuse in the plug may need replacing. Always replace with a British 13amp fuse.
• The motor thermostat may have tripped. If this has happened, unplug the machine and check the machine for blockages.
There is an accessory missing
• Check the contents on the box to make sure the part is definitely included with your machine.
Why won’t the solution/clean water dispense?
• Make sure the solution and clean water tanks are fitted securely. See Filling the solution tank/Filling the clean water tank
page 9.
• The trigger on the handle may not be depressed. See operation page 10.
• The solution or clean water tank valve may be stuck. Hold the tank over the sink and press the valve underneath to release.
• The solution or clean water tank is empty. Refill the tank. See Filling the solution tank/Filling the clean water tank page 9.
Why won’t the solution/clean water dispense when using the hose?
• Make sure the solution and clean water tank is fitted securely. See Filling the solution tank/Filling the clean water tank
page 9.
• The trigger on the hose may not be depressed. See Using the hose and tools page 12.
• The solution or clean water tank valve may be stuck. Hold the tank over the sink and press the valve underneath to release.
• The solution or clean water tank is empty. Refill the tank. See Filling the solution tank/Filling the clean water tank page 9.
Why won't the machine pick up?
• The float in the dirty water tank may have been activated. Empty the dirty water tank and wait for the float to settle before
restarting your machine. See Emptying and cleaning the dirty water tank page 14.
• Check the brushbars for blockages and clear. See Removing and cleaning the brushes page 16.
• The dirty water tank and/or lid may not be fitted correctly. See Emptying and cleaning the dirty water tank page 14.
• Check the nozzle for blockages and clear. See Removing and cleaning the nozzle page 15.
• Check the nozzle is correctly fitted. See Removing and cleaning the nozzle page 15.
• The hose connector port cover may be open, close and retry. See Removing the hose and tools page 13.
Why is the machine leaking solution?
• The solution tank may not be correctly fitted. Slide and push the solution tank firmly into the machine. See Filling the
solution tank page 9.
• The solution may have overflowed into the reservoir underneath the solution tank. Remove the solution tank and dry any
solution from underneath.
Why won't the brushes spin?
• The brushes will only spin when the machine is reclined.
• Check the brushes are correctly fitted. See Removing and cleaning the brushes page 16.
• Check the brushes for blockages and clear. See Removing and cleaning the brushes page 16.
• Check for damage to the brushes.
WHAT TO DO IF IT GOES WRONG

19

GET IN TOUCH
[email protected] vax.co.uk
