Product Overview
The Muirhead®Fire System Status panel, part number 5884, is a unique product that incorporates the following
features:

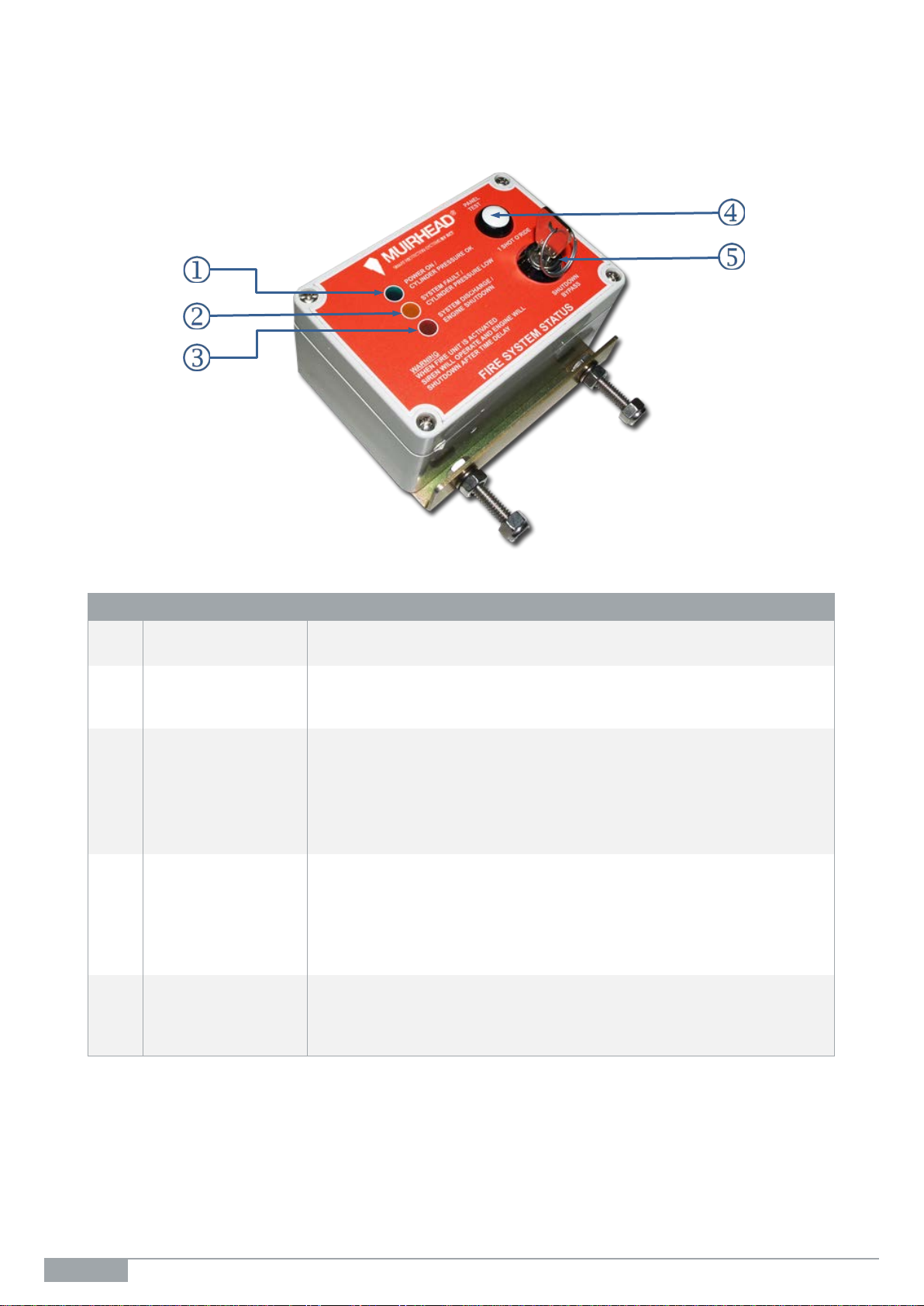

Figure 1Muirhead®Fire System Status panel, part number 5884
No. Function Description
1. Cylinder Pressure
Correct The alert indicator is green when the cylinder pressure is correct, above 1200 kPa.
2. Cylinder Pressure
Low The alert indicator is amber and will flash when the cylinder pressure is below 1200 but above 900 kPa (the audible alarm will pulse on for one
second every 30 seconds).
3. System Fault The alert indicator
is red when the cylinder is discharged or the
pressure is below 900 kPa. (On initial discharge, the audible alarm will
be on constantly before a two-second pre-shutdown warning period
indicated by the alarm switching from continuous to pulsing.)
The ETR output deactivates whilst the auxiliary output activates.
The red alert indicator flashes when the override is activated.
4. Panel Test / 1 Shot
Override When the cylinder pressure is correct, the panel test button acts as a test button. When the button is pressed, the system will simulate that
the fire system has been set off.
When the cylinder pressure is discharged, the button
acts as an
extension to the six-second delay. When the button is pressed, the
delay will increase by 20 seconds (only once).
5. Key Override
Shutdown Bypass The key switch override will bypass the control unit to allow for machine operation. This switch is to be used in situations where the control unit
requires bypassing, e.g. to move the machine after the fire system has
discharged or when the fire system is empty.
Functions and Features
■Supply voltage 12 to 24 volts dc
■Compact and robust design
■Environmentally sealed – IP65
■Audio and visual indication on reader
■Modular design

M0030.docx | Rev 1.8 | Modified on 14/06/2019 | © Remote Control Technologies Pty Ltd
7| 16
Operation and Use
The control unit does not operate while the ignition is not active.
After ignition is applied, the unit pulses the alert indicators and alarm twice to show that they are operating.
The control unit state is displayed by the alert indicators as follows:
■If the cylinder pressure is correct (input 1 closed) and not low (input 2 closed), the green alert indicator
illuminates.
■If the cylinder pressure is okay (input 2 closed) but the low pressure is active (input 1 open), the amber
alert indicator illuminates.
■If the cylinder pressure is discharged (input 2 open), the red alert indicator illuminates. It will then remain
active until the battery power (pin 8) is cycled—cycling power to the ignition input (pin 4) does NOT clear
the red alert indicator.
If the control unit detects that the cylinder pressure is discharged (input 2 open), a timing cycle is initiated. At
the end of the time period (default setting of six seconds), the alarm pulses for two seconds and then the
ignition ETR output is turned off.
The shutdown delay may be adjusted to 15 or 20 seconds.
■If the panel test button is pressed during the six-second cycle, the time delay period is extended by 20
seconds.
■The red alert indicator flashes for this extended period and then the ignition output is turned off.
■This extension can only be applied once.
■If the control unit is shut down after the six-second cycle, the 20-second extension is still available once
only.
The panel test button then has no further effect except that the amber alert indicator illuminates for up to two
seconds to confirm operation.
Note
The test only can be initiated when there is no fault and will illuminate the amber alert indicator for two seconds.
Then, perform a normal shutdown sequence after the programmed time period—the ignition and the green
alert indicator are restored when the panel test button is released.

8| 16
M0030.docx | Rev 1.8 | Modified on 14/06/2019 | © Remote Control Technologies Pty Ltd
Installation Guide
1 Install the control unit in a suitable location near the operator.
2 Refer to the wiring table below and the wiring diagram/s in this manual to connect the control unit. It is
recommended that the wiring is installed alongside the OEM wiring ensuring that it is secured at regular
intervals; this will provide protection from heat and abrasion, and any other excess damage that may occur
with extended vehicle operation. When securing the wiring to the OEM wiring, ensure that the loom is away
from moving vehicle parts which could lead to loom damage.
Wiring Connections
No. Colour Function Description
1 Black Earth 0 V
2 Grey Input 1 Cylinder pressure okay (normally closed; the circuit opens when
pressure is low). Amber alert indicator illuminates
when input
opens.
3 White Input 2 Cylinder pressure discharge (normally closed; the circuit opens
when the cylinder loses pressure, indicating cylinder pressure
discharge) red alert indicator.
4 Orange Input 3 Ignition input.
5 Purple Output 2 Aux output (operates opposite to ignition output). 1 A continuous.
6 Green Output 3 Fault alarm. 1 A continuous.
7 Yellow/Blue Output 1 ETR ignition output for run solenoid. 5 A continuous.
8 Red Battery +VE Power (8 to 35 V).
When upgrading from the old 7650 control unit, refer to the wiring table below as a guide to interface the 7650
wiring to the new 5884 control unit.
Part No. 7650
12-Pin Plug Part No. 5884 8-Pin Plug Description
1 Black 1 Black Earth
2 Yellow/Blue 7 Yellow/Blue Run solenoid, 5 A continuous.
3 Red 8 Red Switch via 15 A circuit breaker.
4 4 Orange Ignition supply via fire pressure switch.
5 5 Purple Operates opposite to ignition output. 1 A continuous.
6 Sonar ground not supplied from 5884 fire panel.
7 6 Green Sonar positive.
8 Not used in new 5884 fire panel.
9 Not used in new 5884 fire panel.
10 3 White Input 2 cylinder pressure discharge (active open from high). Red
alert indicator.
11 Not used.
12 Not used.
2 Grey Input 1 cylinder pressure okay (active closed to high). Amber alert
indicator when input opens.

M0030.docx | Rev 1.8 | Modified on 14/06/2019 | © Remote Control Technologies Pty Ltd
9| 16
Diagrams
External Wiring Diagram (300o)

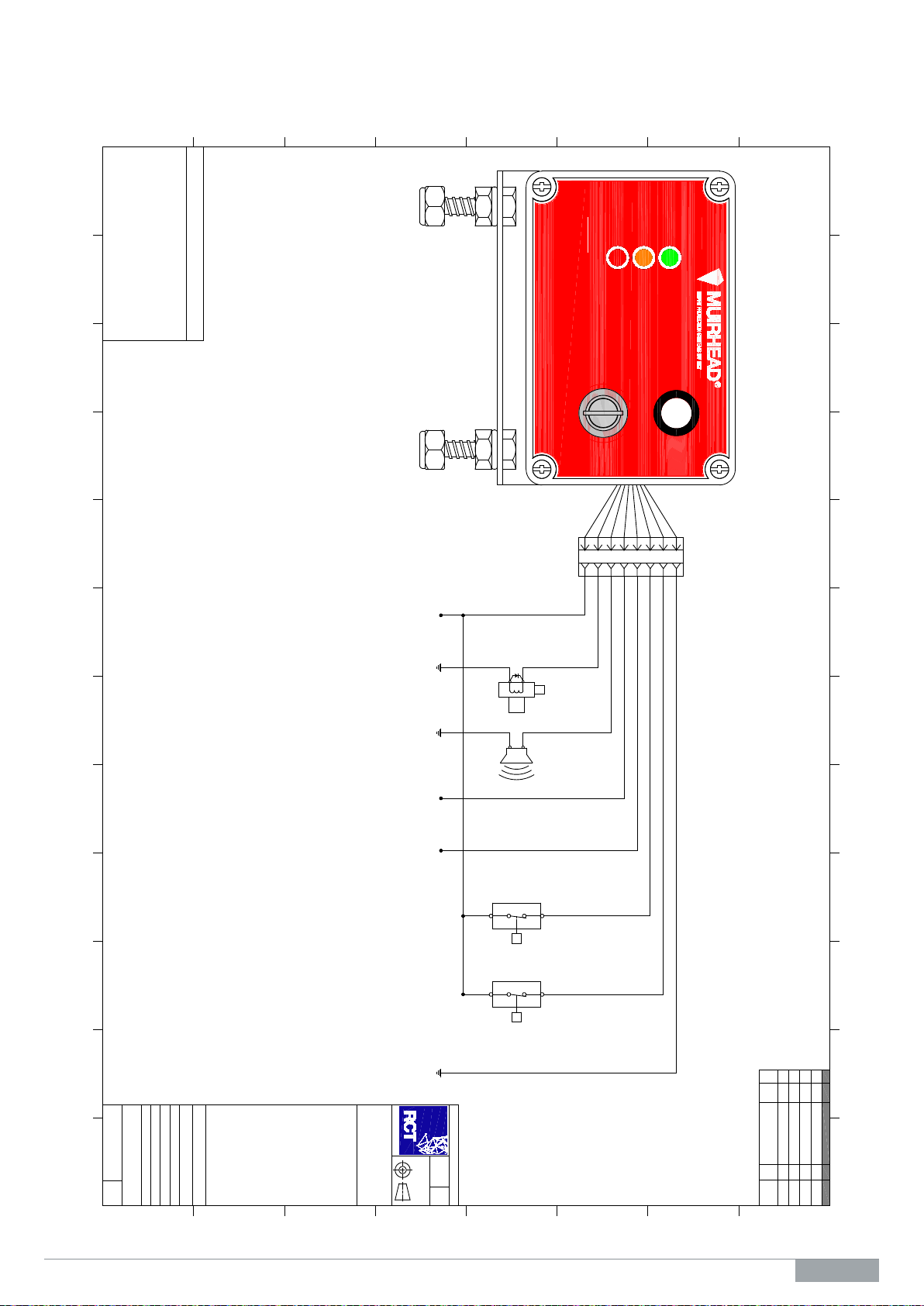

Figure 2Drawing 300o – External wiring diagram
GY
WH
OR
SYSTEM
FAULT
ALARM
OUTPUT
OPTIONAL
1 AMP
-0V
EARTH
IGNITION
OUTPUT
TO RUN
SOLENOID
5 AMPS
+7V - 35VDC
PROTECTED
SWITCH IGN +
SUPPLY
YL/BU
GN
BK
+
-
+
-
CYLINDER
DISCHARGE
PRESSURE
SWITCH
900KPa
CYLINDER
LOW
PRESSURE
SWITCH
1200KPa
P
STAGE 2
STAGE 1
CYLINDER PRESSURE LOW
PU
AUXILLIARY
OUTPUT
CONTROL
REFER TO
WIRING
INSTRUCTION
1 AMP
NO
RD
7V - 35V
BATTERY+
FROM
PROTECTED
SUPPLY
NOTE: BOTH PRESSURE SWITCHES DRAWN WITH THE FIRE
CYLINDER FULLY PRESSURISED
INPUT 1INPUT 2
1
2
3
4
5
6
7 8
P
NO
SYSTEM OVERRIDE
TEST SWITCH
1 SHOT O'RIDE
SHUTDOWN
BYPASS
POWER ON /
CYLINDER PRESSURE OK SYSTEM FAULT / CYLINDER PRESSURE LOW SYSTEM DISCHARGE /
ENGINE SHUTDOWN
WARNING WHEN FIRE UNIT IS ACTIVATED
SIREN WILL OPERATE AND ENGINE WILL SHUT DOWN AFTER TIME DELAY
PANEL
TEST
FIRE STATUS PANEL
1 2 3 4 5 6 7 8 9 10 11 12
B
A
C
D
E
F
G
H
B
A
C
D E F
G
H
1 2 345 6 78 9 10 11 12
A4
COPYRIGHT - ALL RIGHTS RESERVED
This drawing is the property of REMOTE
CONTROL TECHNOLOGIES PTY LTD (RCT),
and is not to be copied or used in whole or in
part for any purpose without the express
authority of RCT. The drawing is to be returned
to RCT, on demand.
FIRE SYSTEM
STATUS PANEL
EXTERNAL WIRING
www.rct.net.au
UNCONTROLLED DOCUMENT
REV
5
DWG No 300o
STATUS
NTS
SCALE
Released
SHEET 1 of 1
BY
BT
DRN
RH
DATE
21/06/07
APPD
BT
DATE
----
STOCK CODE
MH-FC-AS5062-P
PART NO
5884
3rd ANGLE
PROJECTION
ALL DIMENSIONS IN MILLIMETERS
NOTE: FIRE PRESSURE SWITCHES ARE WIRED
TO BATTERY AND ARE WIRED IN A FAIL
SAFE MANNER. eg WHEN THEY BECOME
OPEN CIRCUIT THE INPUT IS ACTIVATED.
WIRE LEGEND
BK - BLACK PK - PINK BU - BLUE PU - PURPLE BN - BROWN RD - RED
GN - GREEN WH -WHITE GY - GREY YL - YELLOW
OR - ORANGE
REV ZONE DESCRIPTION BY DATE
1'IGNITION' CHANGED
TO 'BATTERY' SF 10/11/08
2ADDED PROTECTED
SWITCH IGN SUPPLY SD 06/08/09
3SWAPPED WIRES
COLOURS ON 4 AND 8 SD 06/04/11
4update titleblock and label GT 30/07/15
5E6 connected pressure
switches to battery not
ignition JB 20/08/15

10 | 16
M0030.docx | Rev 1.8 | Modified on 14/06/2019 | © Remote Control Technologies Pty Ltd
ETR External Wiring Diagram (478i)
If the control unit is installed on a machine that has an EPS control unit or if an 11450 idle timer control unit is
already installed, then follow the ETR circuit wiring as specified below:
Figure 3Drawing 478i – ETR external wiring diagram
RD-4
OR-4
PU-4
BK-4
BK-4
YL/BU-4
PU-4
OR-4
EPS
(3565)(3747)
(9200)(9301)
FIRE CONTROL
(5884)
1
2
3
4
5
6
7
8
9
10
11
12
AUX CONTROL
1 2
1 2
OR-4YL/BU-4
OR
BR
PU
YL
1
2
3
4
1
2
3
4
YL/BU-4
R
C
S
B
PU-4 PU-4
RD-4 RD-4
IDLE TIMER CONTROLLER
(11450)
1
2
3
4
5
6
7
8
9
10
11
12
IDLE TIMER
11450
AUX CONTROL PU-4
YL/BU-4
OR-4
RD-4
BK-4 1
2
3
4
5
6
7
8
!

www.rct.net.au
N12596
1 SHOT O'RIDE
SHUTDOWN
BYPASS
POWER ON /
CYLINDER PRESSURE OK
SYSTEM FAULT /
CYLINDER PRESSURE LOW
SYSTEM DISCHARGE /
ENGINE SHUTDOWN
WARNING
WHEN FIRE UNIT IS ACTIVATED
SIREN WILL OPERATE AND ENGINE WILL
SHUT DOWN AFTER TIME DELAY
PANEL
TEST
FIRE STATUS PANEL
SYSTEM
TEST
WARNING
Machine may return to idle
or shutdown on fault
PROTECTION SY STEMS
COOLANT LEVEL
OIL PRESSURE
ENGINE TEMP
OIL LEVEL
AUX OUTPUT
SEE NOTE 1
OR-4YL/BU-4
OR
BR
PU
YL
TO MACHINE
1
2
3
4
1
2
3
4
R
C
S
B
PU-4
RD-4 RD-4
8
7
654
3
21
A
B
C
D
E
F
G
H
I
J
K
L
A
B
C
D
E
F
G
H
I
J
K
L
8
7
65
4321
A4
COPYRIGHT - ALL RIGHTS RESERVED
This drawing is the property of REMOTE
CONTROL TECHNOLOGIES PTY LTD (RCT),
and is not to be copied or used in whole or in
part for any purpose without the express
authority of RCT. The drawing is to be returned
to RCT, on demand.
ENERGISED TO RUN
(ETR) IDLE TIMER
(11450)/EPS/FIRE
CONTROLLER
CIRCUIT TO SUIT
CATERPILLAR
MACHINES
EXTERNAL WIRING
www.rct.net.au
UNCONTROLLED DOCUMENT
REV
1
DWG No
478i
STATUS
NTS
SCALE
Released
SHEET
1of 1
BY
EY
DRN
CW
DATE
21/05/13
APPD
DAS
DATE
21/05/13
STOCK
CODE
----
PART
NO
----
3rd ANGLE
PROJECTION
ALL DIMENSIONS IN MILLIMETERS
NOTE 1. FOR OFF HIGHWAY TRUCKS (OHT) AND OTHER MACHINES
THAT USE THE C TERMINAL OF THE IGNITION SWITCH;
ENSURE THAT BOTH "AUX CONTROL" WIRES FROM THE
CONTROLLERS ARE CONNECTED AS SHOWN. NOTE THAT THE
C TERMINAL IS DISCONNECTED FROM THE KEY SWITCH
WHEN AUX CONTROL WIRE IS USED AS SHOWN BELOW.
NOTE 2. WHERE THE YELLOW / BLUE AND ORANGE WIRES JOIN,
USE A 2 PIN DEUTSCH PLUG TO MAKE THIS CONNECTION.
NOTE 3. THE IGNITION SWITCH CONNECTIONS ARE MADE BY USING
DEUTSCH PLUGS TO INTERFACE DIRECTLY INTO THE
CATERPILLAR IGNITION SWITCH CONNECTOR PLUG.
NOTE 4. THE IDLE TIMER, EPS AND FIRE CONTROLLER MUST BE
CONNECTED IN THE ORDER AS SHOWN, TO FACILITATE
CORRECT SHUTDOWN PRIORITY SEQUENCE.
NOTE 5. A DIODE IS INSTALLED AS INDICATED WHEN AN EPS
SYSTEM IS INSTALLED.
THE FIRE CONTROLLER RED WIRE CAN BE CONNECTED TO THE
ORANGE WIRE OF THE PRESSURE SWITCH TERMINAL TO AVOID THE
FIRE CONTROLLER TIMING OUT AFTER SIX (6) SECONDS WHEN THE
IGNITION IS SWITCHED OFF.
REV ZONE DESCRIPTION BY DATE
1L1-J7,
H5
Reordered wires,
removed glands and
wiring from EPS and
replaced 7650 with 5884, MT 16/12/14

M0030.docx | Rev 1.8 | Modified on 14/06/2019 | © Remote Control Technologies Pty Ltd
11 | 16
Calibration
Calibration (CAL) Mode
1 To enter CAL mode, press and hold the panel test button and apply power to the control unit. After six
seconds, all the alert indicators will flash.
2 Release the panel test button.
3 All alert indicators will be off, except for the one displaying the current shutdown delay period. The alert
indicators display the delay period as outlined below:
a) Green – delay is 6 seconds
b) Amber – delay is 15 seconds
c) Red – delay is 25 seconds
4 Activate and release the panel test button to change the periods required. Turn off the power to the control
unit when complete to save settings.
Note
The alarm will activate while in CAL mode and whenever the panel test button is pressed.
Special Note
1. When the 6-second delay to shut down is selected, the override operates for 20 seconds.
2. When the 15-second delay to shut down is selected, the override operates for 15 seconds.
3. When the 25-second delay to shut down is selected, the override operates for 10 seconds.
No Extension Mode
The 5884 can also be configured for no extension on shutdown. The process for setting this function is below.
1 Press and hold the control unit panel test push button once in calibration mode for more than 10 seconds
and then release it. You should now be in NO EXTEND mode (denoted by the flashing alert indicator):
a) Green – Flashing: 6 seconds + no extend
b) Amber – Flashing: 15 seconds + no extend
c) Red – Flashing: 20 seconds + no extend
2 Activate and release the panel test button to change the periods required. Turn off the power to the control
unit when complete to save settings.
Note
Select the red flashing calibration setting, 20 seconds + no extend (Thiess specification).
Service Information
Service Schedule
The manufacturer recommends that the following service procedure should be performed at each machine’s
scheduled service interval.
Service Procedure
1. Perform a visual inspection; include the following:
a) Control unit
b) Wiring connections and looms
c) Fire suppression tank pressure switch (low)
d) Fire suppression tank pressure switch (discharge)
2. Perform a system test as per the following:
a) Turn the ignition key to the on position and with the cylinder pressure correct, the alert indicator will
illuminate green. The output to the ETR circuit will be activated.
b) Turn the ignition key to the off position and with the cylinder pressure correct, the green alert indicator
and ETR output will turn off. The auxiliary output will turn on.
c) Push and hold the panel test button. The green alert indicator will turn off and the amber alert indicator
will turn on for two seconds. The red alert indicator will switch on after the preset period. The ETR

12 | 16
M0030.docx | Rev 1.8 | Modified on 14/06/2019 | © Remote Control Technologies Pty Ltd
output will turn off and the auxiliary output will turn on. The alarm will be active in this state. When the
panel test button is released, the system will revert back to the run state.
d) To check the low cylinder pressure circuit, open circuit the wire at input 1 pressure switch (1200 kPa).
When open, the green alert indicator will switch off, the amber alert indicator will switch on and the
alarm will pulse on and then off. In this state, the alarm will pulse every 30 seconds.
e) To check the cylinder discharged circuit, open circuit the wire at input 2 cylinder discharged pressure
switch. The red alert indicator will switch on and the alarm will be active and pulse for last two seconds
prior to shutdown. Once the shutdown has occurred, the alarm will stay active.
f) Repeat part (e), but push the panel test button during the six-second cycle. This will extend the
shutdown for 20 seconds. During this override period, the alarm will stay active. The delay extension
will only operate once.
g) Once part (f) is performed, insert the key into the key switch and turn to activate it. This will override
the ETR circuit only. The alarm will stay active.
Note
1. Once the system test has been completed, turn the key switch off and ensure all wiring is reconnected to
the original position. Refer to the external wiring diagram in this manual.
2. Once the following has been completed;
a. system has been discharged, or
b. a discharged test has been carried out, AND the ETR output has switched off (shutting down the
machine), then,
the battery power to the unit must be cycled to reset the system.
Turning the ignition on and off WILL NOT RESET the system.
Parts List
Part No.
Description
5884 Fire system status panel
0475
Tank pressure switch low warning 1200 kPa (not supplied with unit)
2348
Tank pressure switch discharge 900 kPa (not supplied with unit)
Technical Specifications
Dimensions, control unit only:
Length: 120 mm | Width: 80 mm | Height/Depth: 55 mm
Dimensions, boxed for freight:
Length: 235 mm | Width: 130 mm | Height/Depth: 127 mm
Weight, control unit only:
0.5 kg
Weight, including harness /
packaging for freight:
0.7 kg
Input nominal voltage:
12/24 Vdc
Operating temperate range:
−40 to
+80 °C
Connection types:
8-pin Deutsch receptacle
Inputs:
Earth, ignition, battery
Min & max input voltage:
7 to 35 Vdc
Current draw (device only):
12 V – Fire system Idle: 14 mA
– Fire system faulting: 21 mA
24 V – Fire system Idle: 22 mA
– Fire system faulting: 31 mA
Output current rating:
8 A continuous
Enclosure type:
ABS
Environmental protection IP rating:
IP65
Programming/Adjustment:
Yes
Compliance and Standards
TBA

M0030.docx | Rev 1.8 | Modified on 14/06/2019 | © Remote Control Technologies Pty Ltd
13 | 16
Troubleshooting
Figure 4Flowchart FC0025 – Troubleshooting flowchart

14 | 16
M0030.docx | Rev 1.8 | Modified on 14/06/2019 | © Remote Control Technologies Pty Ltd
Glossary
A Amp (Ampere) MIN Minimum
ac alternating current mm millimetres
AMS Advanced Management System mW Milliwatts
Aux Auxiliary Output N/A Not Applicable
CAN Controller Area Network N/C Normally Closed
CMIO Control Master Input Output PCB N/O Normally Open
CMR Control Master Receiver OEM Original Equipment Manufacturer
CMT Control Master Transmitter O/P Outputs
CM2200 Control Master 2200 Remote Set Out Output
COMMS
Communications
PB
Push Button
CPU Central Processor Unit PC Personal Computer
dc direct current PCB Printed Circuit Board
E.G. For example PIN Personal Identification Number
ETR Energised To Run PLC Programmable Logic Controller
ETS Energised To Stop POT Potentiometer
ESD Engine Shutdown PPM Pulses Per Metre
FET
Field Effect Transistor
PWM
Pulse Width Modulation
GND Ground PWR Power
H Hours Rev Revision
HEX Hexadecimal Numbering System RF Radio Frequency
ID Identity RH Relative Humidity
i.e That is rpm Revolutions per minute
In Input RX Receiver
IP Ingress Protection RS232 Recommended Standard (number
232) for serial data transfer
kg Kilogram Source The output can supply/drive current
out
Km/h Kilometres Per Hour SYS System
LCD Liquid Crystal Display TOV Text On Video
LED Light Emitting Diode TX Transmitter
LK Link V Volts
M Minutes °C Degrees Centigrade
mA Milliamps # Number
MAX Maximum < Less Than
MCU Multi-Control Unit > Greater Than
MFU Multi-Function Unit % Percentage
MHz Mega Hertz (million(s) cycles per
second)
Warranty
Please see the RCT standard warranty, available on our website - www.rct-global.com.

M0030.docx | Rev 1.8 | Modified on 14/06/2019 | © Remote Control Technologies Pty Ltd
15 | 16
Revision History
Rev
Date
By
Details of change
1.0 01/07/2007 BT/DH Initial document draft and approval
1.1 04/07/2011 SD Updated drawing 300o. Updated Parts List
1.2 11/09/2013 DAS Updated Operation and Use section
1.3 05/05/2014 DH Updated Installation Instructions section
1.4 06/01/2015 MT Updated Parts List section
1.5
25/09/2015
CamB
Revised manual and updated to new format
1.6 12/10/2015 DH Updated terminology throughout:
- Control unit replaced controller, panel, and fire unit
- Panel test button replaced test switch, shutdown test/delay extension,
and delay extension
1.7 19/06/2018 JB Updated Technical Specifications table
1.8 14/06/2019 JB Updated Wiring Connections tables and updated drawing 300o.

Discover more: www.rct-global.com
[e-mail]
AUSTRALIA: [phone]
AFRICA: [phone]
CANADA: [phone]
RUSSIA / CIS: [phone]
SOUTH AMERICA: [phone]
USA: [phone]
