MultiTable Manual ModTable User manual

Page | ModTable | vs 4.11
Manual ModTable
Assembly Instructions
vs 5.0

Page 2 | ModTable | vs 5.0
Assembly Manual Contents
1.0 GENERAL INFORMATION ..........................................................................3
1.1 Intended Use .....................................................................................3
1.2 Improper Use.....................................................................................3
1.3 Warranty ...........................................................................................3
2.0 SAFETY INFORMATION .............................................................................4
2.1 Transport and Assembly ....................................................................4
2.2 Use of the ModTable Base ..................................................................4
2.3 Table Top Limitations ........................................................................4
2.4 Specific Dangers ................................................................................4
2.5 Maintenance and Upkeep ...................................................................4
3.0 BOX CONTENTS ........................................................................................5
3.1 IMPORTANT! Read All Before Assembling ..........................................6
3.2 Verify Package Contents ....................................................................6
3.3 IMPORTANT! Assembly Information ..................................................6
3.4 Assembly of the ModTable .................................................................6
3.4.1 Attaching the Adjustable Feet ............................................................. 6
3.4.2 Mounting the Feet ............................................................................. 7
3.4.3 Mounting the Drive Shaft.................................................................... 8
3.4.4 Mounting the Center Crossbars ........................................................... 9
3.4.4 Mounting the Center Crossbars ......................................................... 10

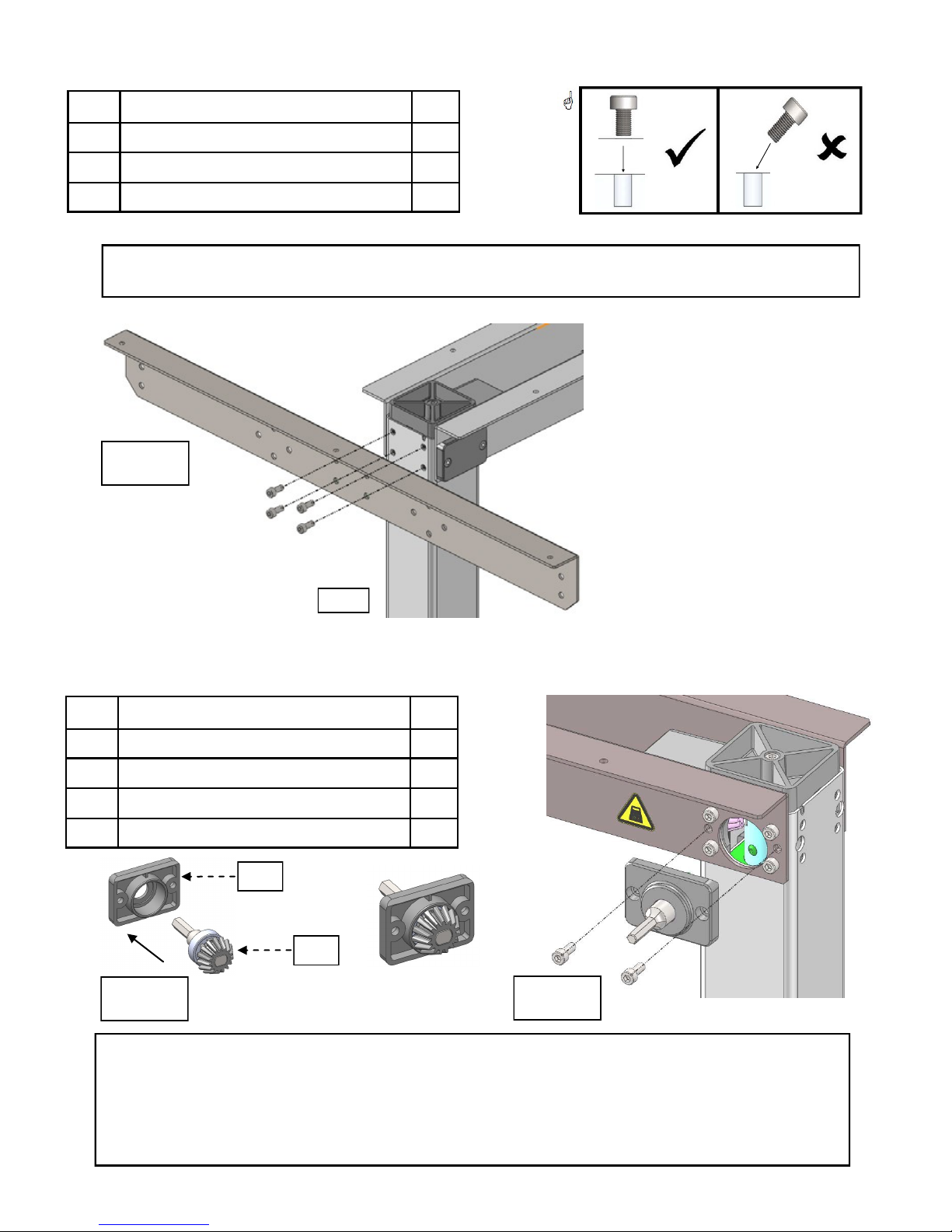

3.4.5 Mounting the Left Top Support .......................................................... 11
3.4.6 Mounting the HC Gear to Right Leg .................................................... 11

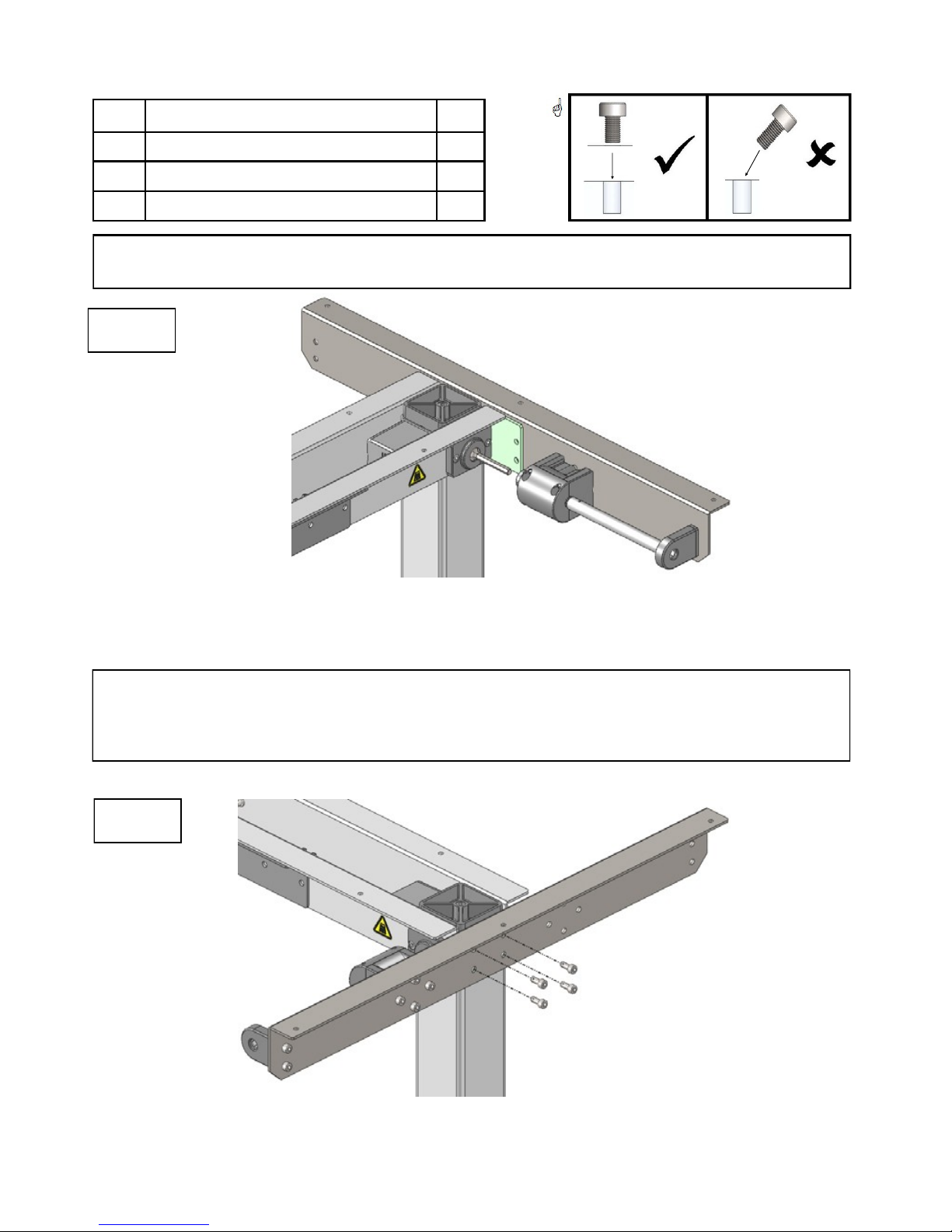

3.4.7 Mounting the Right Top Support ........................................................ 12
3.4.8 Assembling & Mounting the Handle .................................................... 13

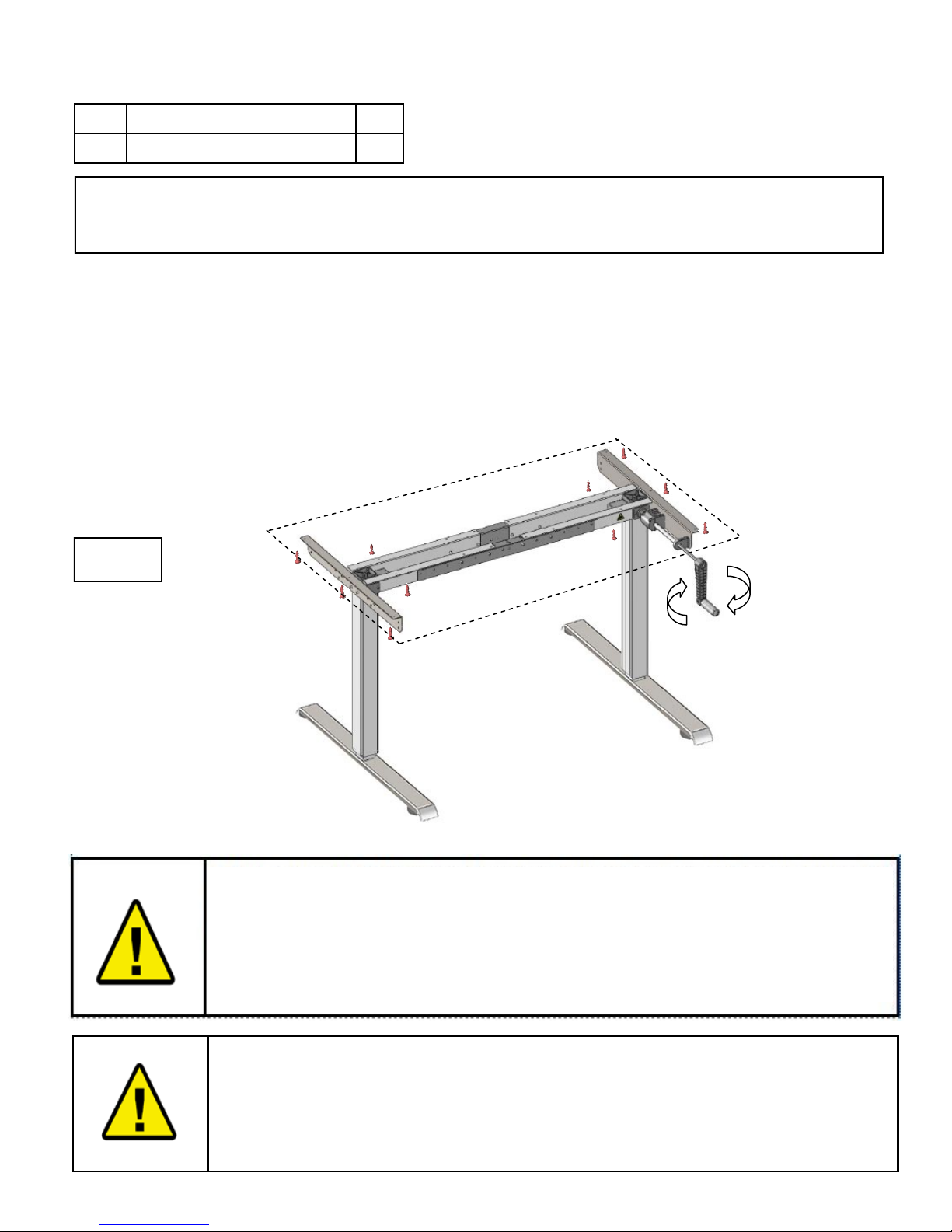

3.4.9 Table Top Assembly ......................................................................... 14
3.4.10 Base Test ....................................................................................... 14
4.0 CUSTOMER SERVICE ...............................................................................15

Page 3 | ModTable | vs 5.0
1.0 General Information
1.1 Intended Use
Thank you for choosing MultiTable's Manual ModTable! We hope you enjoy your new purchase!
Your safety is important to us. Please follow these assembly instructions carefully and thoroughly.
Only use your ModTable indoors. Never use the base or top with any other product. The ModTable
should only be used for its intended purpose. Varying from these instructions negates your
warranty. MultiTable cannot be held liable for any injury or damage from improper use.
1.2 Improper Use
Never use the ModTable Base to lift people or loads that exceed 130 lbs (when adjusting
the Base up and down), and 250 lbs (when stationary).
The weight of the table top, along with other items that will be placed on top of the
ModTable Base must not exceed the weight capacity.
WARNING:
Do not exceed the maximum permitted load on the height adjustable
base. Overloading could lead to serious injury and damage to your
ModTable as a consequence. 60 KG = 130 lbs.
1.3 Warranty
All ModTable Bases come with a two year warranty on moving parts, and a five year
warranty on the steel.
WARNING:
Any changes or modifications to the ModTable, not expressly
approved by the manufacturer, may void the user warranty.
Exceeding the weight capacity may void the user warranty.

Page 4 | ModTable | vs 5.0
2.0 Safety Information
2.1 Transport and Assembly
To ensure your safety and protect your ModTable it must be moved by at least two people.
Do not drag or pull the ModTable Base across the floor.
Use the tools supplied to assemble the ModTable.
2.2 Use of the ModTable Base
Do not allow children under the age of 16 to use or assemble the ModTable Base
unsupervised.
Do not use the ModTable Base on an uneven surface.
The ModTable is made for stationary use only, unless you have purchased the Wheel Kit.
2.3 Table Top Limitations
Below are the minimum and maximum table top dimensions allowed for the ModTable Base:
Without Wheel Kit:
Minimum Table Top Dimensions: W 24” x L 40”
Maximum Table Top Dimensions: W 36” x L 72”
With Wheel Kit:
Minimum Table Top Dimensions: W 24” x L 40”
Maximum Table Top Dimensions: W 30” x L 60”
2.4 Specific Dangers
When assembling your ModTable Base, ensure that you have plenty of room around the base
to avoid collisions.
2.5 Maintenance and Upkeep
Your new ModTable Base and its components are low maintenance items, but still require
regular maintenance. We recommend checking and tightening the bolts and set screws every
6 months to ensure your table raises and lowers correctly.
Should your base or other components require repairs, please contact us. Any repairs or
alterations should only completed using approved replacement parts from MultiTable.
Replacement parts are available for both in and outside of the warranty time frame.
To clean your ModTable Base and Top, use a clean damp cloth and a mild household cleaning
solution.
IMPORTANT!
Stop using the ModTable at once if you notice anything unusual.
Contact MultiTable customer service at 602.773.6911, or [e-mail].

Page 5 | ModTable | vs 5.0
# Parts Qty
01 Left (L) leg 1
02 Right (R) leg 1
03 Foot 2
04 Left top support 1
05 Right top support—with brake box 1
06 Front Center crossbar - with
measurements
1
07 Back Center crossbar 1
08 Drive shaft 1
09 Adjustable feet 4
10 HC (handle) cover 1
11 HC (handle) gear 1
12 Handle 1
13 Long drive rod 1
14 Short drive rod 1
3.0 Box Content
03 04 05 06 07 08
# Hardware Kit Content Qty
15 Small plastic dot 1
16 Bolts 18
17
Table top screws
8
18
Set screws (located in drive shaft,
part # 08) 4
19
Small set screw (located on brake
box, part #05) 1
20
Large Allen wrench 1
21
Medium Allen wrench 122
Small Allen wrench 1
09 10 11 12 13
14 15 16 1819 20 21 22 23
01 02
23
17
10
Spacer bolts

Page 6 | ModTable | vs 5.0
3.1 IMPORTANT! READ ALL BEFORE ASSEMBLING
3.2 Verify Package Contents
Gently remove contents from packaging.
Check the contents for transit damage.
Ensure all parts are in the box.
In case of any damage or missing/incorrect parts, contact customer service at
602.773.6911 or at [e-mail]
Do not attempt to assemble the ModTable Base if there is any damage or are any
missing/incorrect parts.
3.3 IMPORTANT! Assembly Information
Only assemble the ModTable Base with the tools supplied. (Allen wrenches)
You will need a screw driver to attach the table top to the Base.
The legs MUST be at the lowest position at all times during assembly.
Before assembly, read safety information in Section 2.0.
1
# Description Qty
03 Foot 2
09 Adjustable feet 4
In Photo 1:
Screw adjustable
feet into foot caps.
3.4.1 Attaching the Adjustable Feet
Important!
All bolts MUST BE FULLY TIGHTENED. After you initially tightening each bolt, you will
need to go back and double check the bolts to ensure the bolts are fully tightened.
3.4 Assembly of the ModTable
In Photo 1a:
Foot assembly
complete.
1a

Page 7 | ModTable | vs 5.0
# Description Qty
01 Left (L) leg 1
02 Right (R) leg—with gear shaft 1
03 Foot 2
17Spacer Bolts 8
20 Large Allen wrench 1

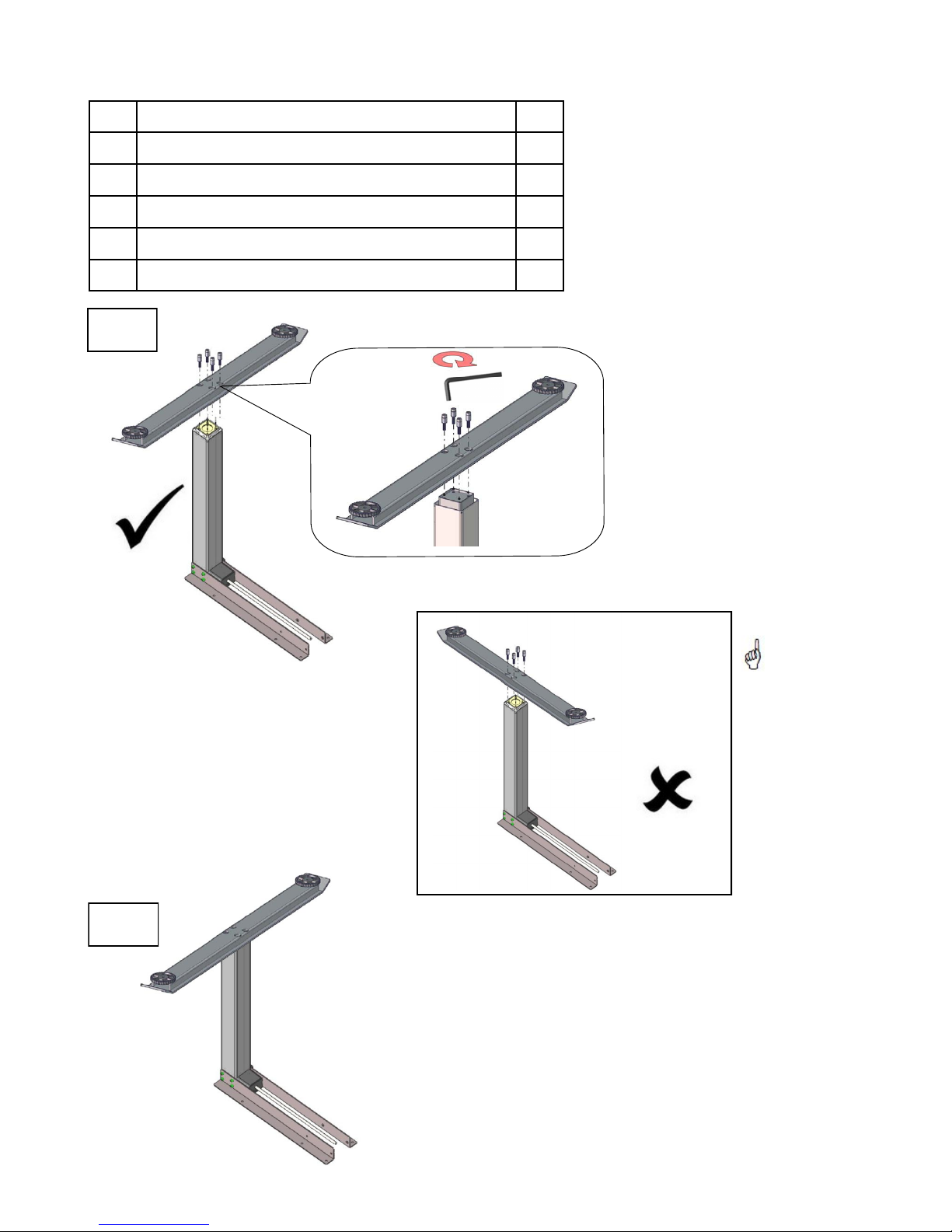

In Photo 2:
Place the right foot on top of
the right (R)leg.
The foot should be
perpendicular to the
crossbars (see Photo 3).
Screw the bolts into the foot.
Repeat this process with
the left (L) leg and left foot.
3.4.2 Mounting the Feet
2
In Photo 3:
Finished photo of the left
and right legs.
3
Important!
Be sure to
attach foot in
the correct
position.
•
•
•
•

Page 8 | ModTable | vs 5.0

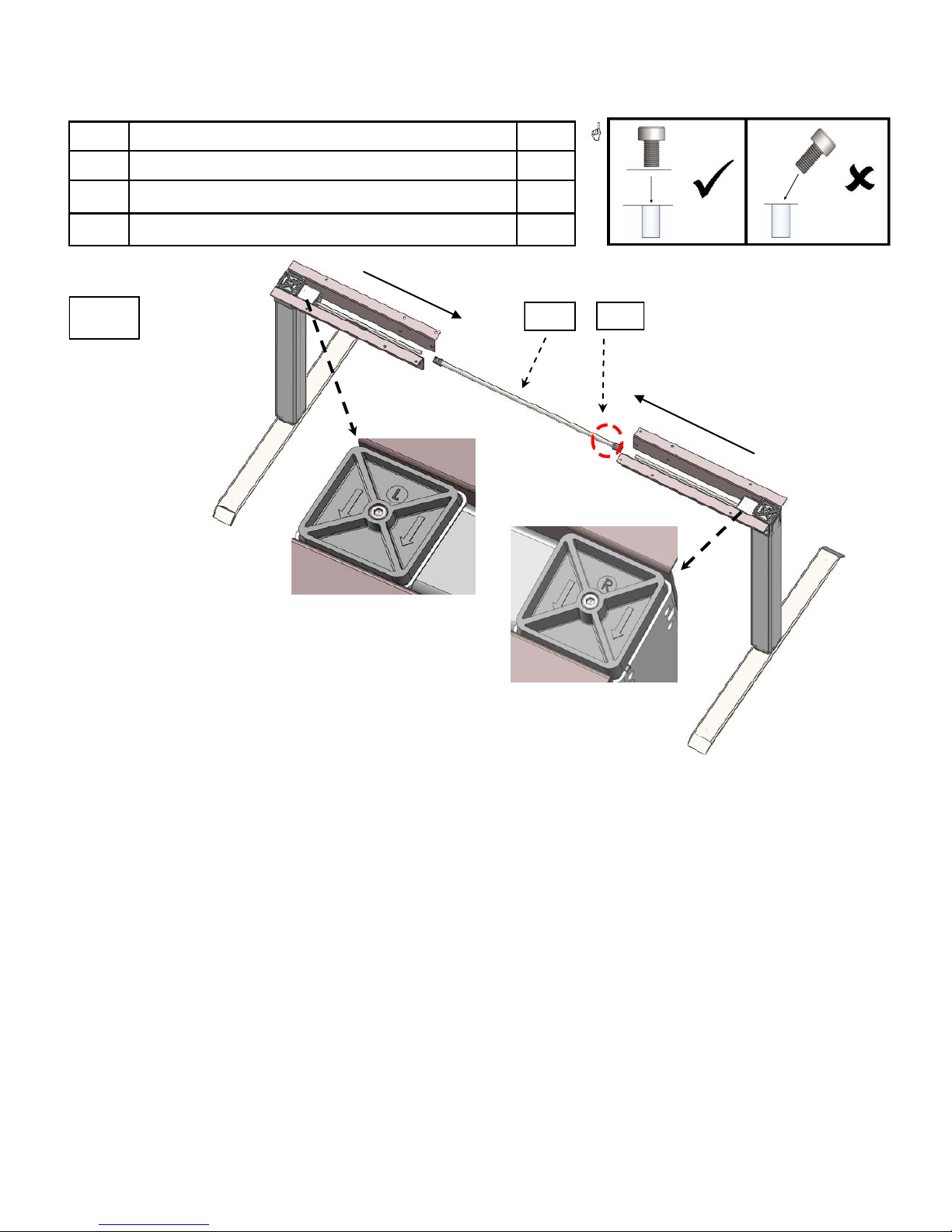

3.4.3 Mounting the Drive Shaft
# Description Qty
08 Drive shaft 1
18 Set screws 4
21 Medium Allen wrench 1
4
In Photo 4:
Place left (L) leg in upright position.
Slide the drive shaft over the round metal rod that extends out of the left leg. If the drive shaft
will not slide over the metal rod, slightly unscrew set screws, to allow the drive shaft to slide
over metal rod.
Take right (R) leg, slide the drive shaft over the round metal rod in the right leg.
Make sure drive shaft is centered between the metal gear connectors, and is covering the metal
rods on both sides.
DO NOT tighten set screws, yet. Proceed to section 3.4.4.
#08 #18

Page 9 | ModTable | vs 5.0
5
3.4.4 Mounting the Center Crossbars
# Description Qty
06 Front Center crossbar—with measurements 1
07 Back Center crossbar 1
16 Bolts 8
20 Large Allen wrench 1
#06
#07
Crossbar Base Top
Measurement Width Size
1.0 39.5” 24”x40” (Small)
1.1 43.5” 24”x48” (Medium)
1.3 51.5” 29”x57” (Large)
1.4 55.5” 29”x72” (Extra Large)
1.0-1.4 39.5”-55.5” See section 2.3, page #4
Recommended Base Width Without Wheel Kit
Recommended Base Width With Wheel Kit
Crossbar Base Top
Measurement Width Size
1.0 39.5” 24”x40” (Small)
1.1 43.5” 24”x48” (Medium)
1.1 43.5” 29”x57” (Large)
N/A N/A 29”x72” (Extra Large)
1.0-1.1 39.5”-43.5” See section 2.3, page #4
In Photo 5:
Set Base to desired width.
Attach front and back
center crossbars with
bolts.

Page 10 | ModTable | vs 5.0
6
LR
#18
# Description Qty
18 Set screws 4
21 Medium Allen wrench 1
3.4.4 Mounting the Center Crossbars Continued
Important! Photo 6:
Fully tighten the set screws in the drive shaft using the Medium Allen wrench. Tighten
set screws three times on each side to ensure screws are completely tightened. Set screws
MUST be tightened completely for the Base to function properly.
