Multitech CommPlete 4000 User manual

MultiTech Model IPC-551
Single Board Computer
for CommPlete 4000 Server
User Guide

COMMPlete 4000 Single Board Computer (IPC-551)
User Guide
82098951 Revision B
All rights reserved. This publication may not be reproduced, in whole or in part,
without prior expressed written permission from Multi-Tech Systems, Inc. All
rights reserved.
opyright © 2000 by Multi-Tech Systems, Inc.
Multi-Tech Systems, Inc. makes no representation or warranties with respect to the
contents hereof and specifically disclaims any implied warranties of merchantability
or fitness for any particular purpose. Furthermore, Multi-Tech Systems, Inc.
reserves the right to revise this publication and to make changes from time to time in
the content hereof without obligation of Multi-Tech Systems, Inc., to notify any
person or organization of such revisions or changes.
Record of Revisions
Revision Description
A Manual released (11/10/99).
B Phone numbers updated.
Patents
This product is covered by one or more of the following U.S. Patent Numbers:
5.301.274, 5.309.562, 5.355.365, 5.355.653, 5.452.289, 5.453.986. Other patents
Pending.
Trademarks
The Multi-Tech logo is a registered trademark of Multi-Tech Systems, Inc.
NetWare is a registered trademark of Novell, Inc.
Pentium is a registered trademark of Intel orporation.
S O is a registered trademark of Santa ruz Operation, Inc.
UNIX is a registered trademark of X/Open ompany, Ltd.
Windows 95 and Windows NT are registered trademarks of Microsoft.
Multi-Tech Systems, Inc.
2205 Woodale Drive
Mounds View, Minnesota 55112
[phone] or [phone]
Fax [phone]
Tech Support [phone]
Internet Address: http://www.multitech.com

CommPlete 4000 Server SBC, Model IPC-551 3
Table of Contents
Contents
Chapter 1: Introduction
Introduction ....................................................................................... 5
About This Manual ............................................................................ 5
System Specifications .......................................................................
Safety Precautions .......................................................................... 10
Chapter 2: Installation -Hardware Configuration
List of Jumpers and Connectors ...................................................... 11
Component Locations ..................................................................... 12
How to Set Jumpers ........................................................................ 12
CPU Type and Clock Selection ....................................................... 14
RS-232/422/485 (COM2) Selection .................................................. 1
AT Keyboard / PS2 Mouse Selection .............................................. 18
Memory Map for Solid State Disk .................................................... 18
COM1 Connector ............................................................................ 20
COM2 Connector ............................................................................ 20
Keyboard Connector ........................................................................ 21
External Keyboard Connector .......................................................... 21
Reset Connector ............................................................................. 22
Floppy Disk Drive Connector ........................................................... 22
Hard Disk Drive Connector .............................................................. 23
Hard Disk Drive LED Connector ....................................................... 24
Power LED and Keylock Connector ................................................ 25
VGA CRT Connector ....................................................................... 25
Power Connector ............................................................................. 2
Printer Connector ............................................................................ 2
External Speaker Connector ............................................................ 27
Solid State Disk Socket .................................................................. 28
Memory Installation ......................................................................... 28
Chapter 3: Software Configuration
VGA Drive Utilities ........................................................................... 31
Flash BIOS Update ......................................................................... 3
Watchdog Timer Configuration ......................................................... 3

4 CommPlete 4000 Server SBC, Model IPC-551
Table of Contents
Chapter 4: Green PC Function
Power Saving Block Diagram .......................................................... 39
CPU Doze Mode ............................................................................. 40
System Standby Mode .................................................................... 40
System Suspend Mode ................................................................... 40
Chapter : Award BIOS Setup
Introduction ..................................................................................... 41
Entering Setup ................................................................................ 42
Standard CMOS Setup Menu .......................................................... 44
BIOS Features Setup Menu ............................................................ 50
Chipset Features Setup .................................................................. 5
Power Management Setup .............................................................. 59
PnP/PCI Configuration ..................................................................... 2
Load BIOS Defaults ......................................................................... 3
Load Setup Defaults ........................................................................ 3
Integrated Peripherals ..................................................................... 4
Password Setting ............................................................................ 4
IDE HDD Auto Detection ................................................................. 5
HDD Low-Level Format .................................................................... 9
Save and Exit Setup ........................................................................ 70
Appendix A: Expansion Slots
PC-104 Pin Assignments ............................................................... 73
ISA Pin Assignments ...................................................................... 74
PCI Pin Assignments ...................................................................... 75
Appendix B: Technical Summary
....................................................................................................... 77
Appendix C: Troubleshooting
Introduction ................................................................................... 81
Troubleshooting with Error Codes ............................................... 81

CommPlete 4000 Server SBC, Model IPC-551 5
Introduction
Chapter 1
Introduction
This chapter introduces the IPC-551 single-board computer and
outlines the s stem specifications. Sections include:
About This Manual
S stem Specifications
Safet Precautions
1-1. About This Manual
Thank ou for purchasing the IPC-551 embedded CPU card This
single-board computer is PC/AT compatible and produces VGA video.
The IPC-551 features CPU speeds as high as 366 MHz, up to 256
MB tes of DRAM working memor , and supports a disk-on-chip
memor device (in an SSD flash socket, a Solid State Disk). This
manual will assist ou in installing and setting up the s stem. The
manual contains five chapters and three appendices.
Chapter 1 Introduction
Presents an overview of this manual and presents s stem
specifications and cautionar information to protect both the product
and personnel.
Chapter 2 Hardware Configuration
Outlines the components locations and their functions. Describes
how to set jumpers and how to configure this PC card to meet our
own needs.

6 CommPlete 4000 Server SBC, Model IPC-551
Introduction
Chapter 3 Software Utilities
Describes proper installation of the VGA , Flash BIOS, and the
watchdog-timer function.
Chapter 4 Green PC Function
Describes Green PC functions, which allow the computer to work at
a decreased power level after a period of idleness.
Chapter 5 ward BIOS Setup
Shows how to set up BIOS configurations.
ppendix Expansion Bus
Describes the expansion bus with slots for PCI and ISA cards and an
on-board PC-104 receptacle (an ISA-t pe connection t picall used for
testing).
ppendix B Technical Summary
Describes mapping of interrupts, RAM, hard-drive memor and other
parameters.
ppendix C Troubleshooting
Outlines error messages and presents solutions for associated
problems.
1-2. System Specifications
CPU:
Intel 54C/55C; AMD K5/K6; C rix M1/M2.
320/321 pin PGA socket.
75 - 366MHz clock generator.
2.8V - 3.5V voltage regulator.
Memory:
Up to 256MB, EDO/FPM DRAM
Four 72-pin SIMM sockets on board.

CommPlete 4000 Server SBC, Model IPC-551 7
Introduction
Cache:
L1 Cache: (depends on CPU t pe).
L2 Cache on board:512K.
Real-Time Clock/Calendar:
CMOS data back up from BIOS setting or BIOS default.
Dallas DS 12887 Real Time Clock.
BIOS:
Award Flash BIOS with plug & pla functionalit .
Easil updated 128/256KB flash EEPROM.
Supports Green power-saving function .
Supports S stem IO Setup.
Keyboard Connector:
PC/AT t pe miniature DIN connector.
Supports PC/AT, PS/2 Ke board or PS/2 Mouse; determined b jumper
selection.
Bus Support and Speed:
External ISA bus at 8 MHz.
External PCI bus at 33 MHz.
Internal PCI bus, for VGA & IDE at 33 MHz.
PC-104 bus at 8 MHz.
Display:
Supports SVGA for CRT.
Supports 32-bit PCI Local Bus.
VGA BIOS combines 128/256KB flash ROM with s stem BIOS.
Supports 15 pin connector 1024 x 768 resolution (256 colors) on SVGA

8 CommPlete 4000 Server SBC, Model IPC-551
Introduction
Monitor.
Supports 2 MB video memor .
Watchdog Timer:
The watchdog timer is controlled b software. Once enabled, the
s stem will reboot, unless the timer is re-enabled before the specified
timeout duration expires. Timeout durations range from zero to 30
seconds in two-second increments (+/- 25%).
To enable watchdog: use I / O port 0443H
To disable watchdog: use I / O port 0441H
IDE Interface:
Two IDE ports. Supports up to four Enhanced IDE devices.
Floppy Disk Driver Interface:
Supports up to two flopp disk drives: 3.5" and 5.25" (360K / 720K /
1.2M / 1.44M / 2.88M).
Disk-on-Chips Socket:
Supports up to 72MB.
Serial Port:
Two high-speed 16550-compatible UARTs with Send / Receive
16-b te FIFOs.
MIDI Compatible.
Programmable Band Rate Generator.
Parallel Port:
SPP, ECP, EPP Function.
Bi-directional parallel port.
Green Power-Saving Function:
Software support determined b BIOS setup.

CommPlete 4000 Server SBC, Model IPC-551 9
Introduction
LED Indicators
S stem power (at jumper KBL1 on board).
Hard Disk access (at jumper HDL1 on board).
DM Controller:
82C37 x 2
DM Channels:
7
Interrupt Controllers:
82C59 x 2
15 levels
Operating Temperature:
0 to 60°C;
32 to 140°F.
System Power Requirements :
DC Voltage: +5V; minimum +4.75V, maximum 5.25V.
DC Ampere: 15A.
Board Dimensions:
338.5mm x 122mm (13.33in. x 4.80in.)
Board Net Weight:
0.4 Kg.
14.1 oz.

10 CommPlete 4000 Server SBC, Model IPC-551
Introduction
1-3. Safety Precautions
Follow the practices below to prevent electrical damage to personnel
and to the computer:
1. Emplo standard ESD precautions when working with this product
and its components. Static electricit can damage semiconductor
devices.
2. Take precautions against electric shock. Do not touch an
components of this card when the card is on. Disconnect the power
cord when the s stem is not in use.
3. Disconnect the power cord when ou change an hardware devices.
For instance, when ou connect a jumper or install an cards, a surge
of power ma damage electronic components that affect the whole
s stem.

CommPlete 4000 Server SBC, Model IPC-551 11
Hardware Configuration
Chapter 2
Installation: Hardware Configuration
2-1 List of Jumpers an Connectors
CPU T pe & Clock Selection ................................JP2, JP4
CPU Voltage Selection ..........................................JP8, JP9
RS232/422/485 (COM2) Selection .....................JP7
AT Ke board / PS/2 Mouse Selection ..................JP6
SSD Memor Map ................................................ JP12
COM1 Connector ................................................. COM1
COM2 Connector ...................................................COM2
Ke board Connector ............................................. .DIN
External Ke board Connector ............................. ..EXKB
Reset Connector ................................................... JP10
Flopp Disk Drive Connector ................................FDD
Hard Disk Drive Connector ................................... IDE1, IDE2
Hard Disk Drive LED Connector .......................... HDL
Power LED & Ke Lock Connector ....................... KBL
LCD Panel Connector ............................................ LCD
VGA CRT Connector ............................................ VGA
Power Connector ................................................... PWR
Printer Connector .................................................. PRT
External Speaker Connector .................................. SPK
Memor Installation: SIMM1,SIMM2, SIMM3, SIMM4
Disk-on-chip Socket .............................................. SSD

12 CommPlete 4000 Server SBC, Model IPC-551
Hardware Configuration
2-2 Component Locations
Figure 2-1 displa s component locations.
SIMM 1
SIMM 2
SIMM 3
SIMM 4
6xx86
CPU
JP1
JP
8
JP
9
JP2 JP
3
Chipset
Chipset
JP4
IDE 1
IDE 2
FDD PRT
COM
2
VGA
COM 1
PWR
KB
Mouse
JP11
Panel
JP12
JP14
RST JP7 KBL JP6 EXKB
Flash
Disk
SIO
KB
BIOS
Flash
BIOS
GND
VRAM
VRAM
PC-104
Real Time
Clock
USB
HDL
SPK
JP10
JP13
Figure 2-1: Connector, Jumper and Component Locations
on the Single-Board Computer
2-3 How to Set Jumpers
Jumpers and Caps. Your PC is configured b the positions of jumpers
on the circuit board. A jumper consists of two or more metal pins with
a plastic base mounted on the card. A small plastic cap(with a metal
contact inside) is used to connect the pins. For two-pin jumpers, the

CommPlete 4000 Server SBC, Model IPC-551 13
Hardware Configuration
active value for user-changeable parameters depends on jumper pins
being closed (electricall connected b a cap) or open (not electricall
connected). For parameters having more than two values, groups of
jumpers (or jumper blocks) are used to determine the active value.
For example, if a jumper has three pins labeled PIN1, PIN2, and PIN3,
ou can use a jumper cap to connect PIN1 & PIN2 to activate one
value for the parameter. Connecting PIN2 and PIN3 would activate
another value.
This manual contains man illustrations of jumper configurations.
Jumper caps are depicted as shaded boxes connecting pairs of pins on
jumper blocks
Jumper Settings
The IPC-551 comes equipped with one of five CPUs of differing
operating speeds: 233 MHz, 266 MHz, 300 MHz, 333 MHz, or 366 MHz.
UPC
epyT
eroC
UPC
egatloV
UPC
kcolC
repmuJ
2PJ
repmuJ
4PJ
repmuJrepmuJ
9J8PJ
erocUPCtesot(
)egatlov
DMA
662-2-6K
)zHM662(
V2.2zHM66 3-1
6-4
4-2
5-3 4-3 6-5 8-7
DMA
003-2-6K
)zHM003(
V2.2zHM66 5-3
6-4
4-2
5-3 4-3 6-5 8-7
DMA
333-2-6K
)zHM333(
V2.2zHM66 3-1
4-2
4-2
5-34-3 6-5
8-7
DMA
663-2-6K
)zHM663(
V2.2zHM66 3-1
4-2
4-2
5-3 4-3 6-5 8-7
muitnePletnI
XMM
zHM332
V8.2zHM66 3-1
4-2
4-2
5-3 8-7 6-5 8-7

14 CommPlete 4000 Server SBC, Model IPC-551
Hardware Configuration
2-4 CPU TYPE & CLOCK SELECTION
JP2 : Bus Frequenc Ratio Selection
JP4 : CPU Clock Selection
JP8, JP9 : CPU Voltage Selection
The jumper settings for each of the five CPU t pes are shown in a
separate figure below :
12
56
JP2 JP4
12
56
1
2
7
8
1
2
7
8
JP8
JP9
Figure 2-2: CPU & Cloc Jumpers for AMD K6-2-266
12
56
JP2 JP4
12
56
1
2
7
8
1
2
7
8
JP8
JP9
Figure 2-3: CPU & Cloc Jumpers for AMD K6-2-300

CommPlete 4000 Server SBC, Model IPC-551 15
Hardware Configuration
12
56
JP2 JP4
12
56
1
2
7
8
1
2
7
8
JP8
JP9
Figure 2-4: CPU & Cloc Jumpers for AMD K6-2-333
12
56
JP2 JP4
12
56
1
2
7
8
1
2
7
8
JP8
JP9
Figure 2-5: CPU & Cloc Jumpers for AMD K6-2-366
12
56
JP2 JP4
12
56
1
2
7
8
1
2
7
8
JP8
JP9
Figure 2-6: CPU & Cloc Jumpers for Intel Pentium MMX 233 MHz

16 CommPlete 4000 Server SBC, Model IPC-551
Hardware Configuration
2-5 RS232/422/485 (COM2) Selection
JP7 : RS-232/422/485 selection
COM1 supports RS-232 functionalit onl . (The COM1 port has a
receptacle at the edge of the IPC-551 board.)
COM2 is selectable forRS-232, RS-422,or RS- 485 functionalit . (A
COM2 connector is available on the IPC-551 board. To use COM2,
ou must attach a cable to this connector. This attached cable must
terminate to a receptacle that can be mounted on the backplane of the
CommPlete 4000 chassis.)
The jumper settings are as follows:
12
23
JP7
24
Figure 2-7: RS-232 at COM2

CommPlete 4000 Server SBC, Model IPC-551 17
Hardware Configuration
12
23
JP7
24
Figure 2-8: RS-422 at COM2
12
23
JP7
24
Figure 2-9: RS-485 at COM2
*** Factor default  RS-232.

18 CommPlete 4000 Server SBC, Model IPC-551
Hardware Configuration

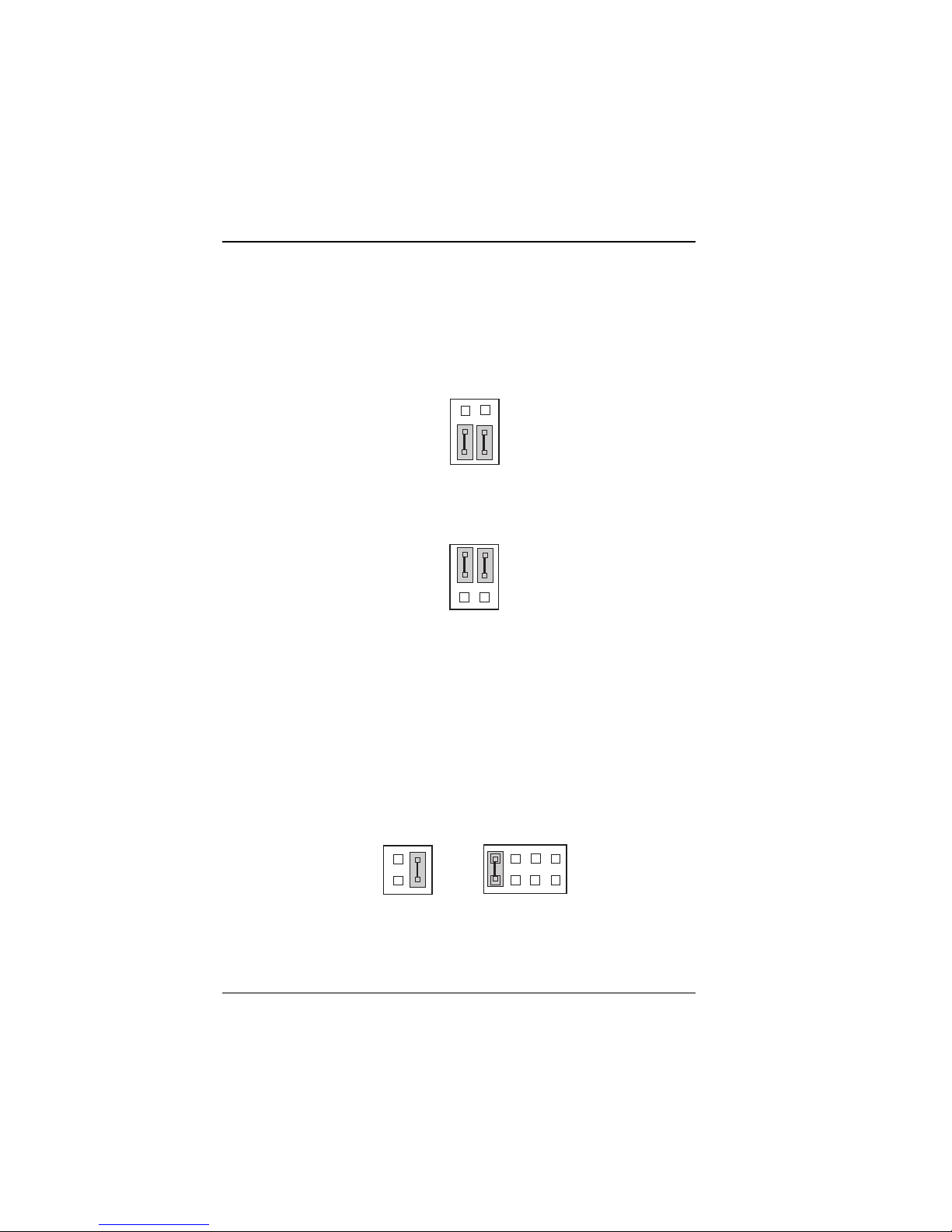

2-6 AT Keyboar / PS2 Mouse Selection
JP6 : AT ke board / PS2 mouse selection
The jumper settings are as follows:
12
56
JP6
Figure 2-10: AT Keyboard Jumper (Default)
12
56
JP6
Figure 2-11: PS2 Mouse Jumper
2-7 Memory Map for SSD (Soli State Disk)
JP12, JP14 : SSD Memor Mapping Selection.
This 32-pin disk-on-chip socket supports an SSD up to 72MB. This
plug-and-pla flash ROM SSD can be installed as though it were a
hard disk. If mapped as Drive C, it can be used to boot up the
computer with MS-DOS installed.
JP14 JP12
1
2
7
8
1
2
3
4
Figure 2-12: SSD Memory Map -- CC000h-CDFFFh

CommPlete 4000 Server SBC, Model IPC-551 19
Hardware Configuration
JP14 JP12
1
2
7
8
1
2
3
4
Figure 2-13: SSD Memory Map -- D0000h-D1FFFh
JP14 JP12
1
2
7
8
1
2
3
4
Figure 2-14: SSD Memory Map -- D4000h-D5FFFh
JP14 JP12
1
2
7
8
1
2
3
4
Figure 2-15: SSD Memory Map -- D8000h-D9FFFh
JP14 JP12
1
2
7
8
1
2
3
4
Figure 2-16: SSD Memory Map -- DC000h-DDFFFh
JP14 JP12
1
2
7
8
1
2
3
4
Figure 2-17: SSD Memory Map -- E0000h-E1FFFh
***Factor default  CC000h-CDFFFh

20 CommPlete 4000 Server SBC, Model IPC-551
Hardware Configuration
2-8 COM1 Connector
COM1 : connector t pe is DB9 male and has pinout as follows:
15
69
COM1
Figure 2-18: COM1 Connector
PIN SIGNAL FUNCTION
1 DCD
2RX
3TX
4DTR
5 GND
6 DSR
7RTS
8 CTS
9RI
2-9 COM2 Connector
COM2 : COM2 Connector
1
5
6
COM2
10
Figure 2-19: COM2 Connector
The COM2 Connector assignments are as follows:
PIN SIGNAL FUNCTION
RS-232 RS-422 RS-485
1 DCD TX- DATA-
2 RX TX+ DATA+
3 T X RX+ NC
4 DTR RX- NC
5 GND GND GND
6 DSR RTS- NC
7RTS RTS+NC
8 CTS CTS+ NC
9 RI CTS- NC
10 NC NC NC
