CommPlete 4000 Single Board Computer (IPC-623C)
User Guide
S000277A Revision A
All rights reserved. This publication may not be reproduced, in whole or in part,
without prior expressed written permission from Multi-Tech Systems, Inc. All rights
reserved.
Copyright © 2002 by Multi-Tech Systems, Inc.
Multi-Tech Systems, Inc. makes no representation or warranties with respect to the
contents hereof and specifically disclaims any implied warranties of merchantability
or fitness for any particular purpose. Furthermore, Multi-Tech Systems, Inc.
reserves the right to revise this publication and to make changes from time to time
in the content hereof without obligation of Multi-Tech Systems, Inc., to notify any
person or organization of such revisions or changes.
Record of Revisions
Revision Description
AManual released (08/12/02).
Patents
This product is covered by one or more of the following U.S. Patent Numbers:
5.301.274, 5.309.562, 5.355.365, 5.355.653, 5.452.289, 5.453.986. Other patents
Pending.
Trademarks
The Multi-Tech logo is a registered trademark of Multi-Tech Systems, Inc.
NetWare is a registered trademark of Novell, Inc.
Pentium is a registered trademark of Intel Corporation.
SCO is a registered trademark of Santa Cruz Operation, Inc.
UNIX is a registered trademark of X/Open Company, Ltd.
Windows 95 and Windows NT are registered trademarks of Microsoft.
Multi-Tech Systems, Inc.
2205 Woodale Drive
Mounds View, Minnesota 55112
[phone] or [phone]
Fax [phone]
Tech Support [phone]
Internet Address: http://www.multitech.com

CommPlete 4000 Server SBC, Model IPC-623C 3
Table of Contents
Contents
Chapter 1 - Introduction ................................................................ 5
1-1 About This Manual ..............................................................................5
1-2 System Specifications .........................................................................7
1-3 Safety Precautions ............................................................................10
Chapter 2 - Hardware Configuration ...........................................11
2-1 List of Jumpers and Connectors .......................................................11
2-2 Component Locations .......................................................................12
2-3 How to Set Jumpers..........................................................................13
2-4 COM Port Connector.........................................................................15
2-5 RS232/422/485 (COM2) Selection ...................................................16
2-6 IRQ12 Release Selection..................................................................18
2-7 ATX Power Signal Connector............................................................18
2-8 ATX Power Button .............................................................................19
2-9 AT/ATX Power Selection ...................................................................19
2-10 Universal Serial Bus Connector ......................................................20
2-11 Solid-State Disk Socket ...................................................................21
2-12 SSD Memory Map Selection ...........................................................22
2-13 Keyboard / PS2 Mouse Selection ...................................................23
2-14 Keyboard / PS2 Mouse Connector .................................................23
2-15 External Keyboard Connector.........................................................24
2-16 Reset Connector .............................................................................24
2-17 Hard Disk Drive LED Connector .....................................................25
2-18 CPU Fan Connector........................................................................25
2-19 System Fan Connector ...................................................................26
2-20 External Speaker Connector...........................................................26
2-21 Floppy Disk Drive Connector ..........................................................27
2-22 Hard Disk Drive Connector .............................................................28
2-23 VGA CRT Connector .......................................................................30
2-24 LCD Panel Connector .....................................................................31
2-25 LCD VDD Selection.........................................................................32
2-26 Panel Power Connector ..................................................................32
2-27 Printer Connector ............................................................................33
2-28 Power LED & Keylock Connector ...................................................34
2-29 LAN Connector................................................................................34
2-30 LAN LED Indicators.........................................................................35
2-31 Green Function Connector..............................................................35
2-32. Memory Installation ........................................................................36
Chapter 3 - Software Configuration ........................................... 37
3-1. Introduction ......................................................................................37

4 CommPlete 4000 Server SBC, Model IPC-623C
Table of Contents
3-2. VGA Driver Utility .............................................................................38
3-3. Flash BIOS Update ..........................................................................41
3-4. LAN Driver Utility..............................................................................43
3-5. Watchdog Timer Configuration.........................................................45
Chapter 4 - Green PC Function .................................................. 46
4-1. Power Saving Block Diagram ..........................................................46
4-2. CPU Doze Mode ..............................................................................47
4-3. System Standby Mode .....................................................................47
4-4 System Suspend Mode .....................................................................47
Chapter 5 - Award BIOS Setup ................................................... 48
5.1 Introduction........................................................................................48
5-2 Entering Setup ..................................................................................49
5-3 Standard CMOS Setup Menu ...........................................................51
5-4 BIOS Features Setup Menu ..............................................................56
5-5 Chipset Features Setup ....................................................................60
5-6 Power Management Setup ...............................................................64
5-7 PnP/PCI Configuration ......................................................................67
5-8 Load BIOS Defaults ..........................................................................69
5-9 Load Setup Defaults .........................................................................69
5-10 Integrated Peripherals.....................................................................70
5-11 Password Setting ............................................................................73
5-12 IDE HDD Auto Detection .................................................................74
Appendices .................................................................................. 78
PC-104 Connector Pin Assignment.........................................................78
ISA Bus Pin Assignments ........................................................................79
PCI Bus Pin Assignments........................................................................80
C-1 Introduction.......................................................................................85
C-2 Troubleshooting with Error Messages ..............................................85

CommPlete 4000 Server SBC, Model IPC-623C 5
Introduction
Chapter 1 - Introduction
This chapter introduces the IPC-623C single-board computer
and outlines the system specifications. Sections include:
About This Manual
System Specifications
Safety Precautions
1-1 About This Manual
Thank you for purchasing the IPC-623C Socket 370 embedded
CPU card with VGA/LAN. This single-board computer is PC/AT
compatible and produces VGA video. The IPC-623C provides
faster processing speed, greater expandability and can handle
more tasks than before. This manual will assist you in installing
and setting up the system. The manual contains five chapters
and three appendices.
Chapter 1 Introduction
Presents an overview of this manual, system specifications, and
cautionary information to protect both the product and
personnel.
Chapter 2 Hardware Configuration
Outlines the components’ locations and their functions.
Describes how to set jumpers and how to configure this PC card
to meet your own needs.
Chapter 3 Software Utilities
Describes proper installation of your VGA and LAN drivers,
Flash BIOS update, and configuration of your watchdog-timer.

6 CommPlete 4000 Server SBC, Model IPC-623C
Introduction
Chapter 4 Green PC Function
Describes “Green” PC functions, which allow the computer to
work at a decreased power level after a period of idleness.
Chapter 5 Award BIOS Setup
Shows how to set up BIOS configurations.
Appendix A Expansion Bus
Describes the expansion bus with slots for PCI and ISA cards
and an on-board PC-104 receptacle (an ISA-type connection
typically used for testing).
Appendix B Technical Summary
Describes mapping of interrupts, RAM, hard-drive memory and
other parameters.
Appendix C Troubleshooting
Outlines error messages and presents solutions for associated
problems.

CommPlete 4000 Server SBC, Model IPC-623C 7
Introduction
1-2 System Specifications
CPU:
Intel® Celeron™ processor in 370-pin socket. Default 600 MHz.
300A/333/366/400/433/466/500/533/566/600MHzclockgenerator.
Intel® Pentium®III processor in 370-pin socket
500E/550E/600E/650E/700E/750E/800E/850EMHzgenerator.
Auto detect voltage regulator.
Memory:
Up to 512MB SDRAM. 128 MB default
Two 168-pin DIMM sockets on board.
Cache:
Depend on CPU (128KB/256KB Cache).
Real-Time Clock/Calendar:
CMOS data back up from BIOS setting or BIOS default.
Dallas DS 12887 Real Time Clock.
BIOS:
Award Flash BIOS with plug & play functionality.
Easily updated 128/256KB flash EEPROM.
Supports “Green” power-saving function .
Supports System IO Setup.
Keyboard Connector:
PC/AT type miniature DIN connector.
Supports PC/AT, PS/2 Keyboard or PS/2 Mouse; determined by
jumper selection.
5-pin External keyboard connector.
Bus Support and Speed:
External ISA/PCI bus (PICMG Spec.).
Internal PCI bus for VGA, IDE, and LAN.
PC-104 bus.

8 CommPlete 4000 Server SBC, Model IPC-623C
Introduction
Display:
Supports simultaneous display for CRT & Panel.
Supports 32-bit PCI Local Bus.
VGA BIOS combines 128/256KB flash ROM with system BIOS.
Supports 15 pin connector 1024 x 768 resolution (256 colors) on
SVGAMonitor.
Supports 2 MB video memory (4 MB optional).
Supports 51-pin connector 640 x 480, 800 x 600 resolution on
LCD Panel.
Panel support Color STN and TFT modes.
Watchdog Timer:
The watchdog timer is controlled by software. Once enabled, the
system will reboot, unless the timer is re-enabled before the
specified timeout duration expires. Timeout durations range from
zero to 120 seconds in eight-second increments (+/- 25%).
IDE Interface:
Two Enhanced IDE ports. Supports up to four Enhanced IDE
devices.
Supports Ultra DMA-33.
Floppy Disk Driver Interface:
Supports up to two floppy disk drives: 3.5" and 5.25" (360K /
720K / 1.2M / 1.44M / 2.88M / LS-120).
Disk-on-Chips Socket:
32-pin SSD socket on board, supports up to 144MB disk-on-chip.
USB Connector:
Universal Serial Bus Connector on board, supports up to two
USB ports.
LAN Adapter:
Realtek RTL8139 Fast Ethernet.
10/100 Base-T PCI-Bus.
Wake on LAN support.

CommPlete 4000 Server SBC, Model IPC-623C 9
Introduction
Serial Port:
Two high-speed 16550-compatible UARTs with Send / Receive
16-byte FIFOs. COM1=RS-232; COM2=RS-232/422/485
MIDICompatible.
Programmable Band Rate Generator.
Parallel Port:
SPP, ECP, EPP Function.
Bi-directional parallel port.
“Green” Power-Saving Function:
Software support determined by BIOS setup.
Hardware support by switch control.
Hardware Monitoring Function:
Supports monitoring function for voltage, CPU temperature, and
cooling fan.
LED Indicators
System power,
Hardware Disk access,
Turbo mode,
LAN Led indicator.
DMA Controller:
82C37 x 2
DMA Channels:
7
Interrupt Controllers:
82C59 x 2
15 levels
Operating Temperature:
0 to 60°C
32 to 140°F.

10 CommPlete 4000 Server SBC, Model IPC-623C
Introduction
System Power Requirements :
DC Voltage:+5V; minimum +4.75V, maximum 5.25V.
DCAmpere: 15A.
DC Voltage: +12; minimum +11.4V, maximum +12.6V
DCAmpere: 500mA
Board Dimensions:
338.5mm x 122mm (13.33in. x 4.80in.)
Board Net Weight:
0.4 Kg.
14.1 oz.
1-3 Safety Precautions
Follow the practices below to prevent electrical damage to
personnel and to the computer:
1.Employ standard ESD precautions when working with this
product and its components. Static electricity can damage
semiconductor devices.
2.Take precautions against electric shock. Do not touch any
components of this card when the card is on. Disconnect the
power cord when the system is not in use.
3.Disconnect the power cord when you change any hardware
devices. For instance, when you connect a jumper or install
any cards, a surge of power may damage electronic
components that affect the whole system.

CommPlete 4000 Server SBC, Model IPC-623C 11
Hardware Configuration
Chapter 2 - Hardware
Configuration
2-1 List of Jumpers and Connectors
COM Port Connector........................................ COM1,COM2
RS232/422/485 (COM2) Selection...................................JP6
AT Keyboard / PS/2 Mouse Selection ..............................JP9
IRQ 12 Release Selection ..............................................JP10
ATX Power Signal Connector.........................................JP14
ATX Power Button.......................................................... JP12
AT/ATX Power Selection ..................................JP1,JP2,JP13
Universal Serial Bus Connector ......................................USB
SSD Memory Mapping Selection ..............................JP7,JP8
Keyboard or PS/2 Mouse Connector................................ DIN
External Keyboard Connector ...................................... EXKB
CPU Fan Connector.................................................CPUFAN
System Fan Connector ............................................SYSFAN
Panel VCC Selection........................................................JP4
Panel Power Connector ...................................................JP5
LAN Connector ............................................................... LAN
LAN LED Indicator .................................... LED1,LED2,LED3
Green Function Connector ............................................. GRN
Reset Connector ............................................................. RST
Floppy Disk Drive Connector ..........................................FDD
Hard Disk Drive Connector .................................. IDE1, IDE2
Hard Disk Drive LED Connector...................................... HDL
Power LED & KeyLock Connector .................................. KBL
LCD Panel Connector .................................................... LCD
VGACRT Connector...................................................... VGA
Printer Connector ............................................................ PRT
External Speaker Connector .......................................... SPK
MemoryInstallation:....................................... DIMM1,DIMM2
Disk-on-chip Socket ........................................................SSD
Reserved Pin .................................................JP3,JP15,JP11

12 CommPlete 4000 Server SBC, Model IPC-623C
Hardware Configuration
2-2 Component Locations

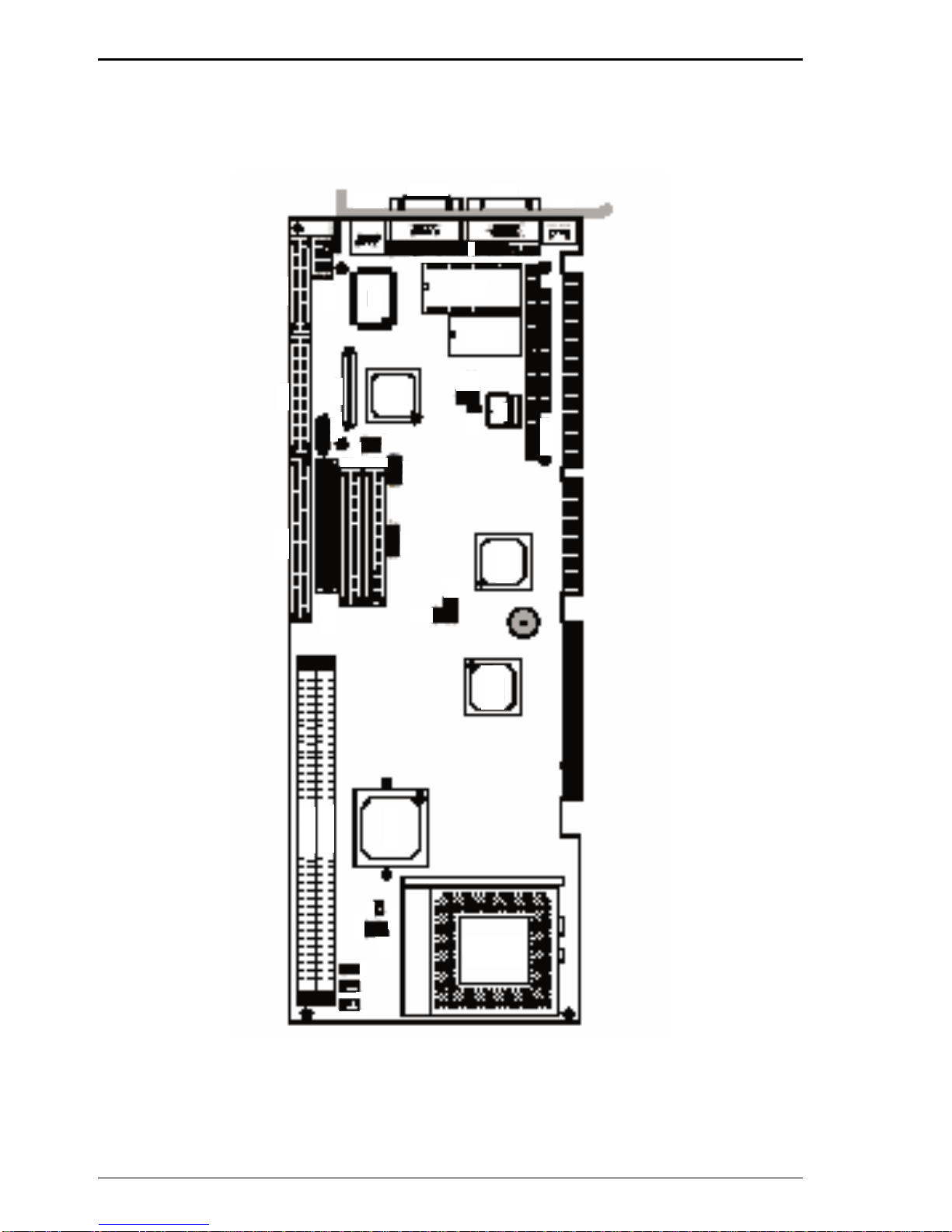

Figure 2-1 displays component locations.
LAN
COM1 VGA DIN
PRTFDD
LCD COM2
USB
IDE1 IDE2
JP3 JP15
JP5
JP4
JP6 JP7 JP9 EXKB
JP8
SIO
SSD
12887
C&T 69000
LED1 LED2 LED3
JP10
KB Controller
PC104
440BX
ADAPTEC 7890
Socket 370
CPU
440BX
DIMM1 DIMM2
HDL SPK
GRN
RST
JP1 JP2
JP11
JP12
JP13
JP14
CPUFAN1
SYSFAN1
Figure 2-1: Connector, Jumper and Component Locations

CommPlete 4000 Server SBC, Model IPC-623C 13
Hardware Configuration
2-3 How to Set Jumpers
You can configure your board by setting the jumpers. Jumper
consists of two or three metal pins with a plastic base mounted
on the card, and by using a small plastic “cap”, Also known as
the jumper cap (with a metal contact inside), you are able to
connect the pins. So you can set-up your hardware
configuration by “opening” or “closing” the pins.
The jumper can be combined into sets called jumper blocks.
When the jumpers are all in the block, you have to put them
together to set up the hardware configuration. The figure below
shows what this looks like.

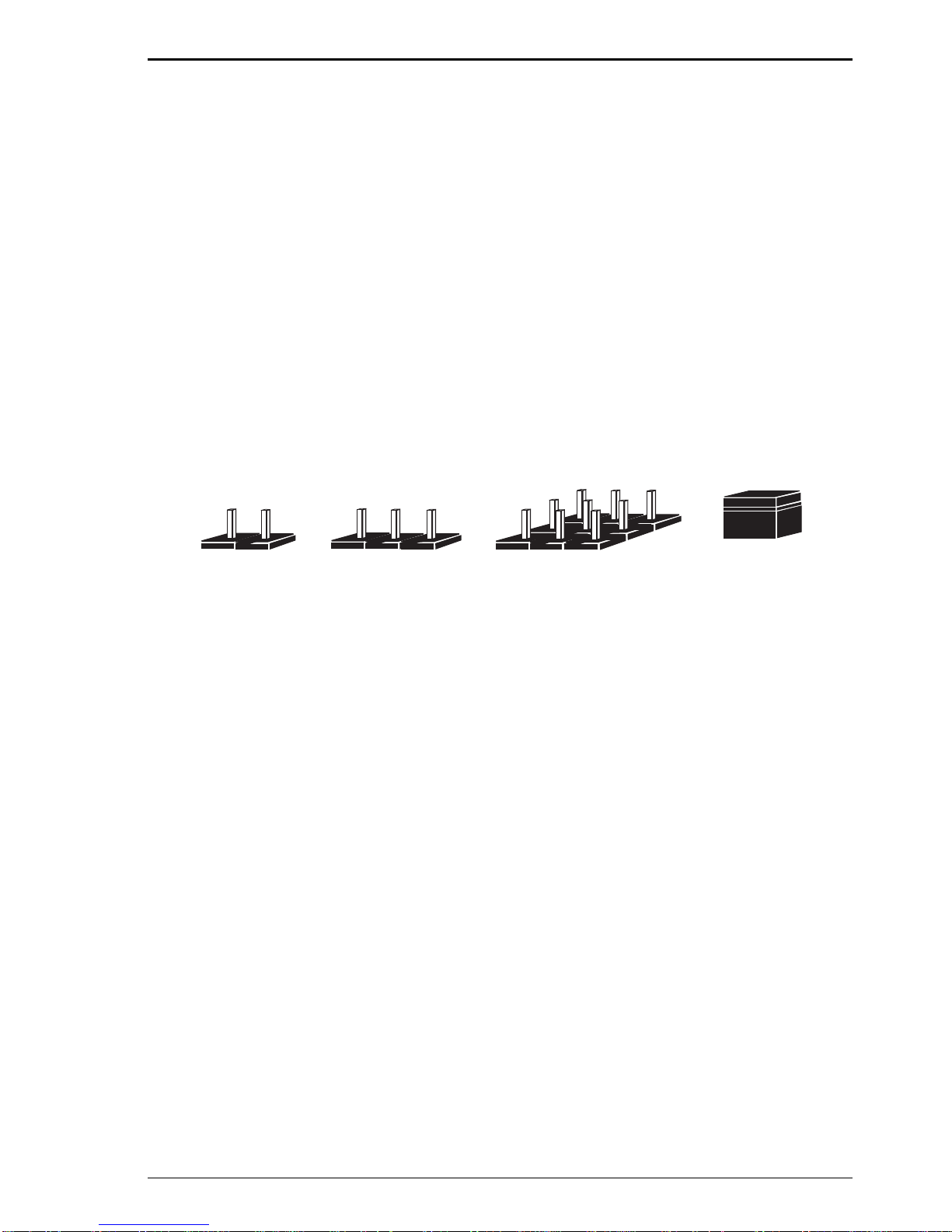

JUMPERS AND CAPS
2
Pin Jumper 3 Pin Jumper Jumper Block Jumper Cap
If a jumper has three pins (for example, labelled PIN1, PIN2,
and PIN3), You can connect PIN1 & PIN2 to create one setting
and shorting. You can connect PIN2 & PIN3 to create another
setting. The same jumper diagrams are applied all through this
manual. The figures on the next page will show you what the
manual diagrams look like and what they represent.

14 CommPlete 4000 Server SBC, Model IPC-623C
Hardware Configuration

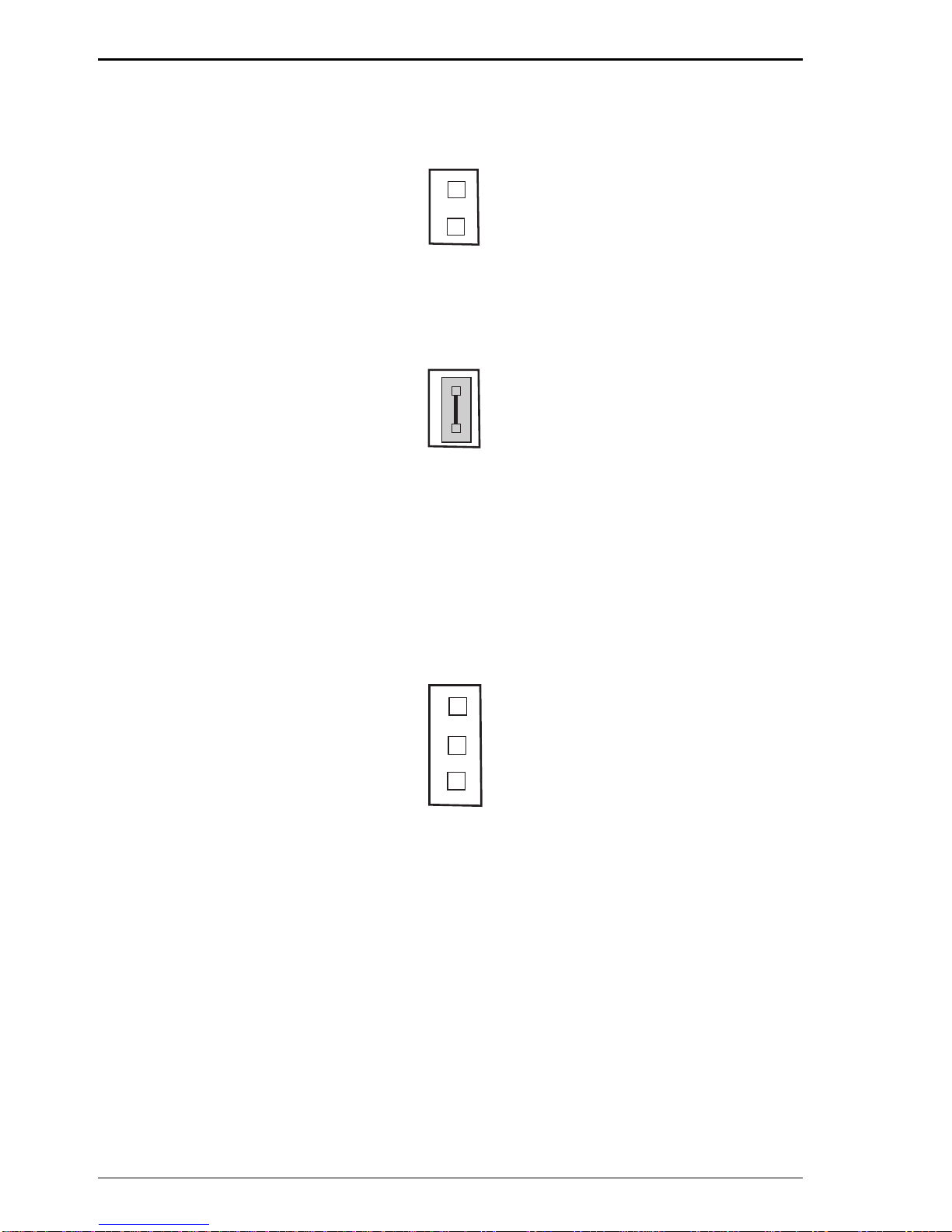

Jumper Diagrams
Jumper cap looks like this
2 pin jumper looks like this
3 pin jumper looks like this
Jumper block looks like this
Jumper Settings
2 pin jumper closed (enabled)
looks like this
3 pin jumper
2-3 pin closed (enabled)
looks like this
Jumper Block
1-2 pin closed (enabled)
looks like this
1
1
12
1
1
12

CommPlete 4000 Server SBC, Model IPC-623C 15
Hardware Configuration
2-4 COM Port Connector

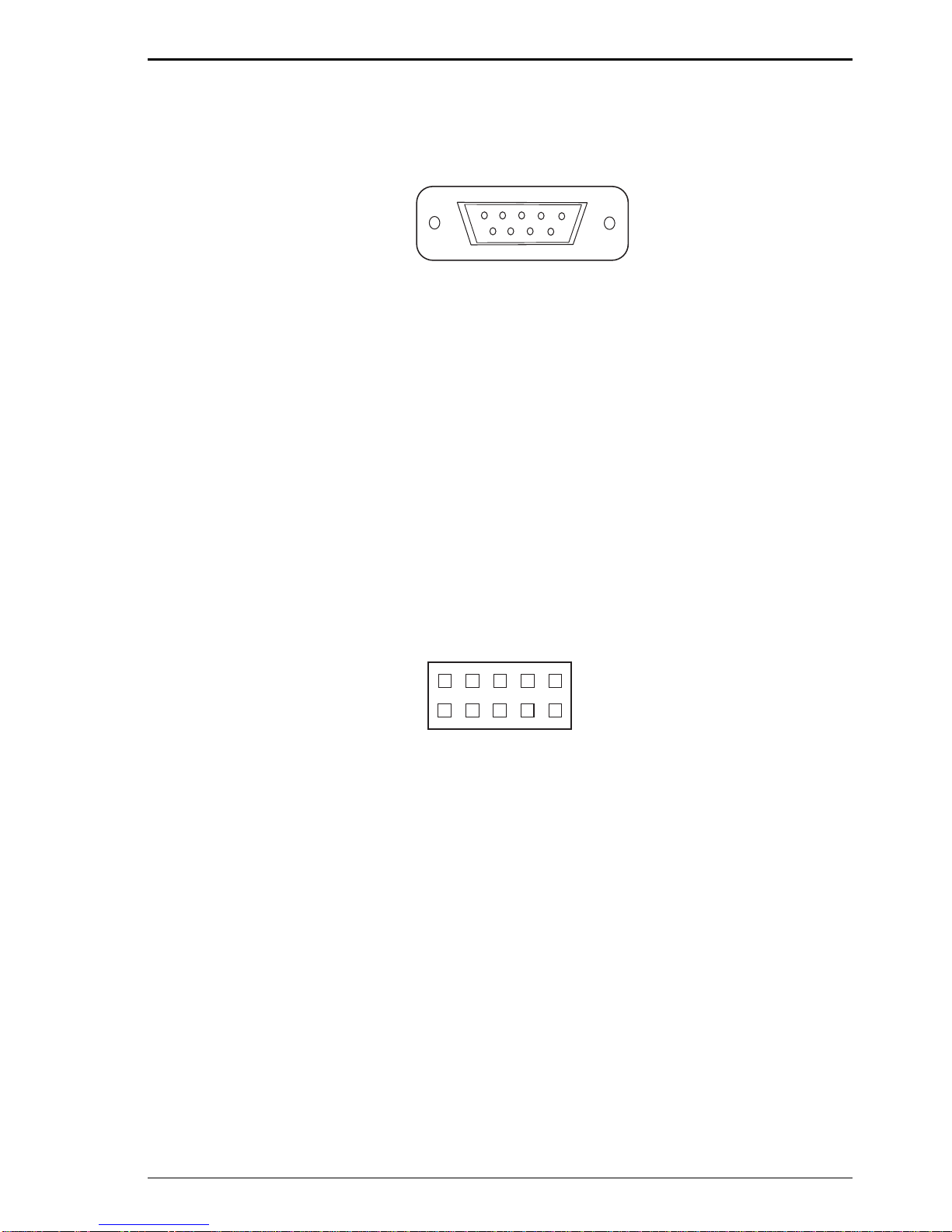

COM1 : connector type is DB9 male and has pinout as follows:
15
69
COM1
Figure 2-2: COM1 Connector
PIN SIGNAL FUNCTION
1 DCD
2RX
3TX
4 DTR
5 GND
6 DSR
7RTS
8 CTS
9RI
COM2 : COM2 Connector
1
5
6
COM2
10
Figure 2-3: COM2 Connector
The COM2 Connector assignments are as follows:
PIN SIGNAL FUNCTION
RS-232 RS-422 RS-485
1 DCD TX- TX-
2 RX TX+ TX+
3 TX RX+ RX+
4 DTR RX- RX-
5 GND GND GND
6 DSR RTS- NC
7 RTS RTS+ NC
8 CTS CTS+ NC
9 RI CTS- NC
10 NC NC NC

16 CommPlete 4000 Server SBC, Model IPC-623C
Hardware Configuration
2-5 RS232/422/485 (COM2) Selection
JP6 : RS-232/422/485 selection
COM1 supports RS-232 functionality only. (The COM1 port has
a receptacle at the edge of the IPC-623C board.)
COM2 is selectable for RS-232, RS-422, or RS- 485
functionality. (A COM2 connector is available on the IPC-623C
board. To use COM2, you must attach a cable to this
connector. This attached cable must terminate to a receptacle
that can be mounted on the backplane of the CommPlete 4000
chassis.)
The jumper settings are as follows:

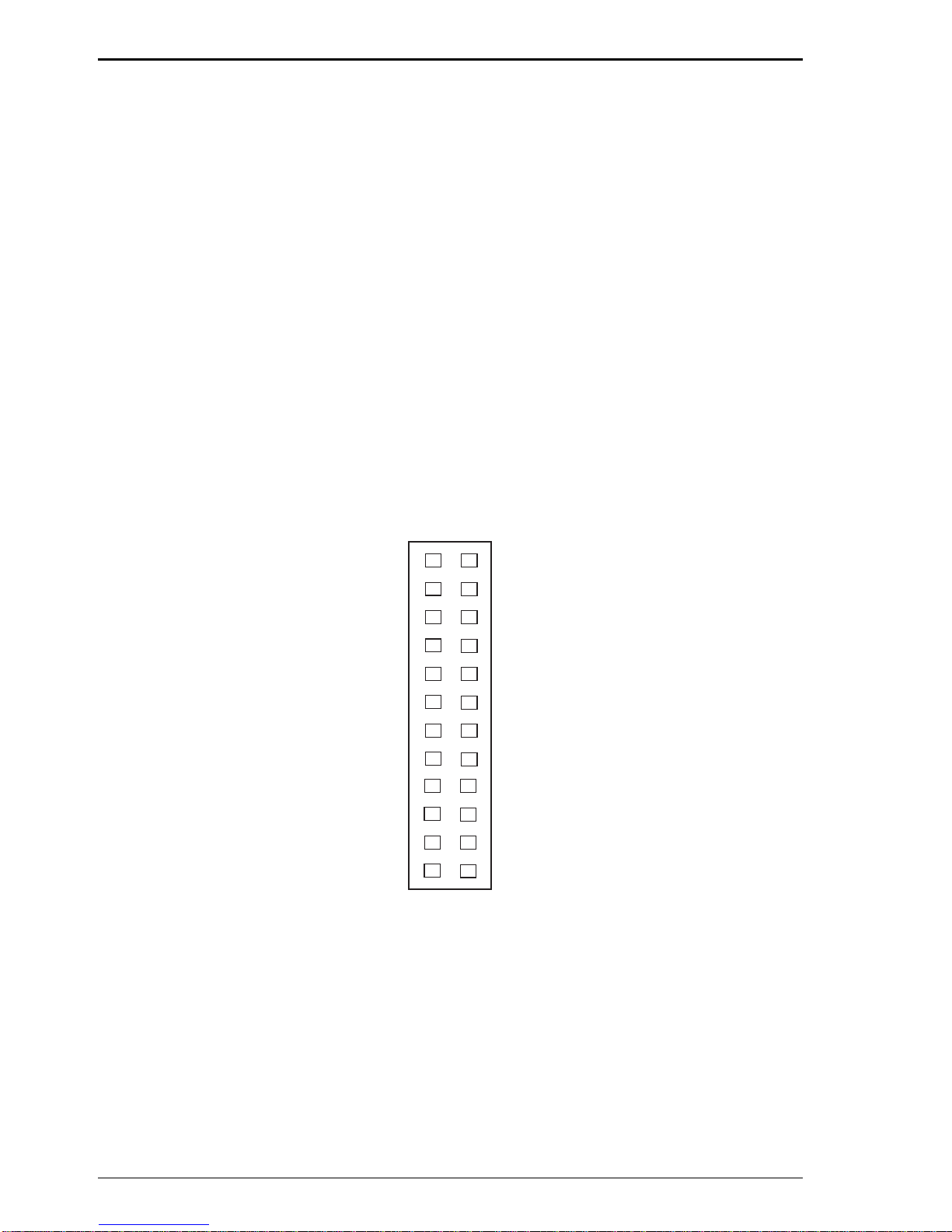

12
19
JP6
20
Figure 2-4: RS-232 at COM2

CommPlete 4000 Server SBC, Model IPC-623C 17
Hardware Configuration
12
19
JP6
20
Figure 2-5: RS-422 at COM2
12
19
JP6
20
Figure 2-6: RS-485 at COM2
*** Factory default — RS-232.

18 CommPlete 4000 Server SBC, Model IPC-623C
Hardware Configuration
2-6 IRQ12 Release Selection
JP10: IRQ12 Release/PS2 Mouse Selection
1
JP10
Figure 2-7: IRQ12 Release Selection
1
JP10
Figure 2-8: PS2 Mouse Selection (Default)
2-7 ATX Power Signal Connector
J14: ATX Power Signal Connector
1
JP14
Figure 2-9: ATX Power Signal Connector
The pin assignments are as follows:
PIN SIGNAL FUNCTION
1 Power ON
2 Ground
3 5V SB

CommPlete 4000 Server SBC, Model IPC-623C 19
Hardware Configuration
2-8 ATX Power Button
J12: ATX Power Button
1
JP12
Figure 2-10: ATX Power Button
The pin assignments are as follows:
PIN SIGNAL FUNCTION
1 Pull Low
2 PWR BTN Switch
2-9 AT/ATX Power Selection
JP1,JP2, JP13: AT/ATX Power Selection
The selections are as follows:
Power
Selection Jumper Settings
(Pin Closed)
JP1 JP2 JP13 Jumper
Illustration
ATX
AT
ON OFF ON
ON ON ON
JP1
11
JP2 JP13
1
JP1
1
JP13
1
JP2
1
*** Manufacturing Default: ATX

20 CommPlete 4000 Server SBC, Model IPC-623C
Hardware Configuration
2-10 Universal Serial Bus Connector
USB: Universal Serial Bus Connector
USB connector supports two USB ports.
1
5
6
USB
10
Figure 2-11: USB Connector
The pin assignments are as follows:
PIN SIGNAL FUNCTION
1 VCC
2 DATA0-
3 DATA0+
4 GND
5 CGND
6 VCC
7 DATA1-
8 DATA1+
9 GND
10 CGND
