Multitech MVP-2410, MVP-3010 User manual

MultiVOIP®MVP
Voice/Fax over IP Networks
MultiVOIP®Digital Models
MVP 2410
MVP 3010
Cabling Guide

2 Multi-Tech Systems, Inc.
Cabling Guide
82100355L, Revision A
Digital MultiVOIP Units (Models MVP2410 and MVP3010)
Upgrade units: (Models MVP24-48 and MVP30-60)
This publication may not be reproduced, in whole or in part, without prior expressed
written permission from Multi-Tech Systems, Inc. All rights reserved.
Copyright © 2008 by Multi-Tech Systems, Inc.
Multi-Tech Systems, Inc. makes no representations or warranties with respect to
the contents hereof and specifically disclaims any implied warranties of
merchantability or fitness for any particular purpose. Furthermore, Multi-Tech
Systems, Inc. reserves the right to revise this publication and to make changes from
time to time in the content hereof without obligation of Multi-Tech Systems, Inc. to
notify any person or organization of such revisions or changes.
Revision Date Description
A 01/16/08 New design as a Cabling Guide.
Patents
This Product is covered by one or more of the following U.S. Patent Numbers:
5.301.274; 5.309.562; 5.355.365; 5.355.653; 5.452.289; 5.453.986. Other Patents
Pending.
Trademark
Trademark of Multi-Tech Systems, Inc. is the Multi-Tech logo. Windows and
NetMeeting are registered trademarks of Microsoft.
GENERAL
CONTACT TECHNICAL SUPPORT
Country By E-mail By Phone
Europe,
Middle East,
Africa [e-mail] ([phone]
Multi-Tech
Systems, Inc.
2205 Woodale Drive
Mounds View,
Minnesota
55112, USA
[phone]
[phone]
Fax: [phone]
www.multitech.com
U.S.,
Canada,
All Others [e-mail]
[phone];
[phone]

Cabling Guide
Multi-Tech Systems, Inc. 3
Introduction
This guide shows you how to make the cable connections to set up your
MultiVOIPP
®Digital unit. See your MultiVOIP User Guide included on the MultiVOIP
CD for more information.
Safety Warnings
Lithium Battery Caution
A lithium battery on the voice/fax channel board provides backup power for the
timekeeping capability. The battery has an estimated life expectancy of ten
years.
When the battery starts to weaken, the date and time may be incorrect. If the
battery fails, the board must be sent back to Multi-Tech Systems for battery
replacement.
Warning: There is danger of explosion if the battery is incorrectly
replaced.
Ethernet Ports Caution
Caution: The Ethernet ports and command ports are not designed to
be connected to a Public Telecommunication network.
Safety Warnings Telecom
•Use this product only with UL- and CUL-listed computers (US).
•Never install phone wiring during a lightning storm.
•Never install a phone jack in a wet location unless the jack is specifically
designed for wet locations.
•Never touch uninsulated phone wires or terminals unless the phone line has
been disconnected at the network interface.
•Use caution when installing or modifying phone lines.
•Avoid using a phone during an electrical storm; there is a risk of electrical
shock from lightning.
•Do not use a phone in the vicinity of a gas leak.
•To reduce the risk of fire, use only 26 AWG or larger telephone line cord.
•This product must be disconnected from power source and telephone
network interface when servicing.

Cabling Guide
4 Multi-Tech Systems, Inc.
Safety Recommendations for Rack Mounting
•Ensure proper installation of the MultiVOIP in a closed or multi-unit
enclosure by following the recommended installation as defined by the
enclosure manufacturer. Do not place the MultiVOIP directly on top of other
equipment or place other equipment directly on top of the MultiVOIP.
•If installing the MultiVOIP in a closed or multi-unit enclosure, ensure
adequate airflow within the rack so that the maximum recommended
ambient temperature is not exceeded.
•Ensure that the MultiVOIP is properly connected to earth ground via a
grounded power cord. If a power strip is used, ensure that the power strip
provides adequate grounding of the attached apparatus.
•Ensure that the mains supply circuit is capable of handling the load of the
MultiVOIP. Refer to the power label on the equipment for load requirements.
•Maximum ambient temperature for the MultiVOIP is 60 degrees Celsius
(140°F) at 20-90%s non-condensing relative humidity.
•This equipment should only be installed by properly qualified service
personnel.
•Only connect like circuits. In other words, connect SELV (Secondary Extra
Low Voltage) circuits to SELV circuits and TN (Telecommunications
Network) circuits to TN circuits.
•To reduce the risk of shock, all access doors should be closed during
normal operation of the equipment.
Package Contents: MVP-2410/3010 Models
•One port MultiVOIP Digital unit
•One power cord
•One Command Cable
•Two rack mount brackets and four mounting screws
•One printed Cabling Guide
•One MultiVOIP CD containing software and user documentation.

Cabling Guide
Connections
Connectors for the MVP2410 & MVP3010
Multi-Tech Systems, Inc 5

Cabling Guide
Quick Hookup for MVP 2410 / 3010
6 Multi-Tech Systems, Inc.

Cabling Guide

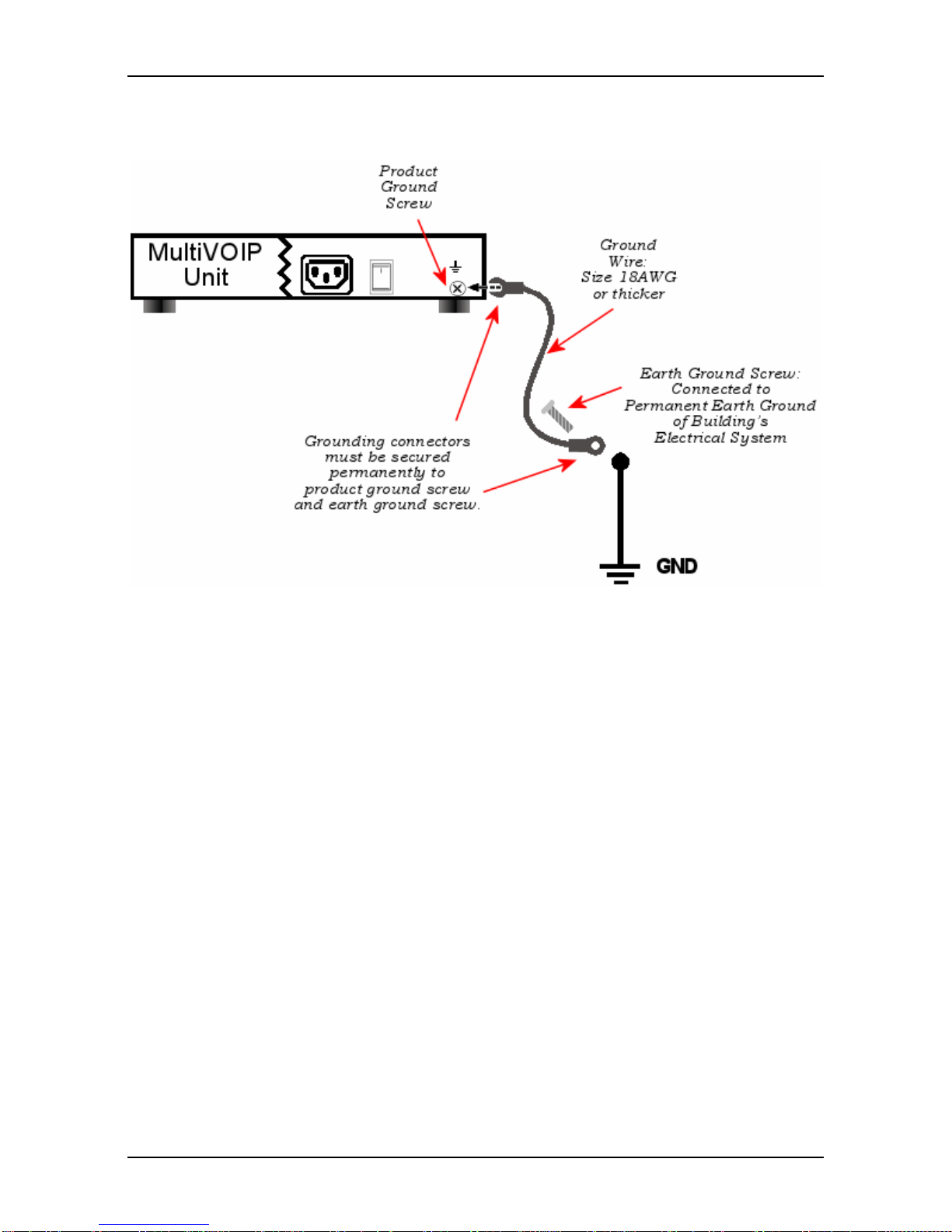

Grounding the MultiVOIP
Power-Up
Turn on power to the MultiVOIP by placing the ON/OFF switch on the back panel
to the ON position. Wait for the Boot LED on the MultiVOIP to go off before
proceeding. This will take a few moments.
VOIP Configuration
When the cabling connections above have been made, go to the installation
chapter of the User Guide (on your MultiVOIP CD) for detailed instructions about
configuration.
Multi-Tech Systems, Inc 7

82100355L
