MUNBYN IPDA030 User manual

Handheld Terminal (PDA)
Quick Guide

Overview
Data light
Power Button
Scan
HOME
Speaker
Microphone
Menu
Delete
Receiver
Volume+/-
Scan
Scan key
Enter
Return
Power light
Scan window
Card reading area
Buckles for
battery cover
Battery cover
Camera
Flash lamp
Hot button / Custom button:
1.Screen capture : "power" + "Volume -"
2.Custom button : Setting →Feature →Custom Key
3.Hide virtual keyboard : Setting →Language & input →
Physical keyboard →Display virtual keyboard(off)

STRAP INSTALLATION
Buckle
( As Pic 1)
Follow the direction of the arrow in Pic 1, pull out the buckle.

Open the battery cover
1. Please turn the knob down to open the back cover.
2. Open the battery compartment cover.
3. As the picture shown, insert the battery into the jack in the battery
compartment, then press down the top of the battery.
Please remove the positive and negative insulation, a yellow sticker on the
battery before turning on the device.

(Warm tips: The handheld terminal only supports Micro SIM card,
standard SIM card slot is for PSAM card)
Install TF/SIM card
PSAM slot ×2
TF slot
Micro SIM slot
1.Please insert the SIM card into the corresponding slots as shown below

Equipment charging
DEVICE CHARGING:
1.Pull out the waterproof USB plug insert the Type - C USB cable.
Type - C interface
1. The battery can be fully charged after 4 hours of charging,and the standby
time is over 48 hours.
2. Cradle can charge 1 battery and 1 device together.
3. The left indicator light is the battery charging indicator, when the battery is
charging, it's red. It becomes green once fully charged.
4. The right indicator light is the power-on indicator. It's green when power is
on, and it is off when power is off.
* To prevent the battery from being over-consumed, please charge the device
when the battery power is less than 20%.If the battery has been in a
over-comsumption state, please charge the device for 20-30 minutes. Then
it will display a normal charging status.
2.Use cradle to charge.(Cradle should be purchased separately)

Reset scan
Settings
Scan (optional)
Scan window
Append prefix /
suffix
Function setting:
Enter / Tab
About
If your PDA with scan function, you can configure and test in our “scanner”
app:
1.Please find the “scanner” app, and open it. ( As Pic 1)
2.In the ‘Content’ of app, you can press scan button to test the barcoding.
3.In the ‘Setting’, you can set up the scanning functions
Clear the
contents
Scan key
( As Pic 1)

Scanner App
Output Mode:
Broadcast mode：For obtaining value in the developed app；
Editbox mode：Scan at any cursor；
Keyboard mode：Enter data in the form of a simulated keyboard；
Single mode：Support to clear previous scan

Advanced configuration：
You can get the barcode Advanced configuration in the ‘Barcode setting’,
to set up the check digit, system digit and add-on code etc.
Scanner App

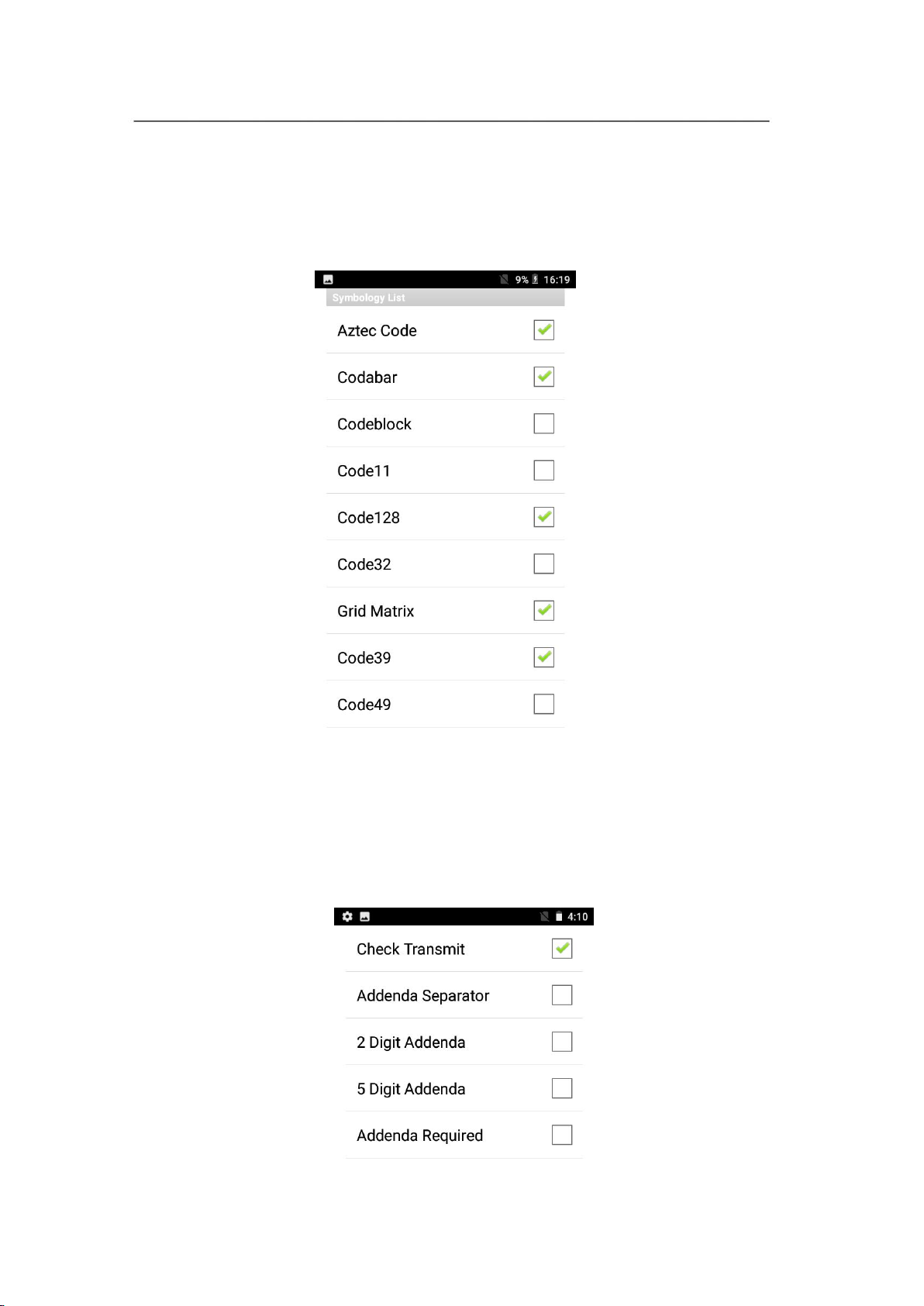

Symbology config：
You can get the ‘Symbology config’in the ‘Barcode setting’, then
enable/disable the code type.

Scanner App

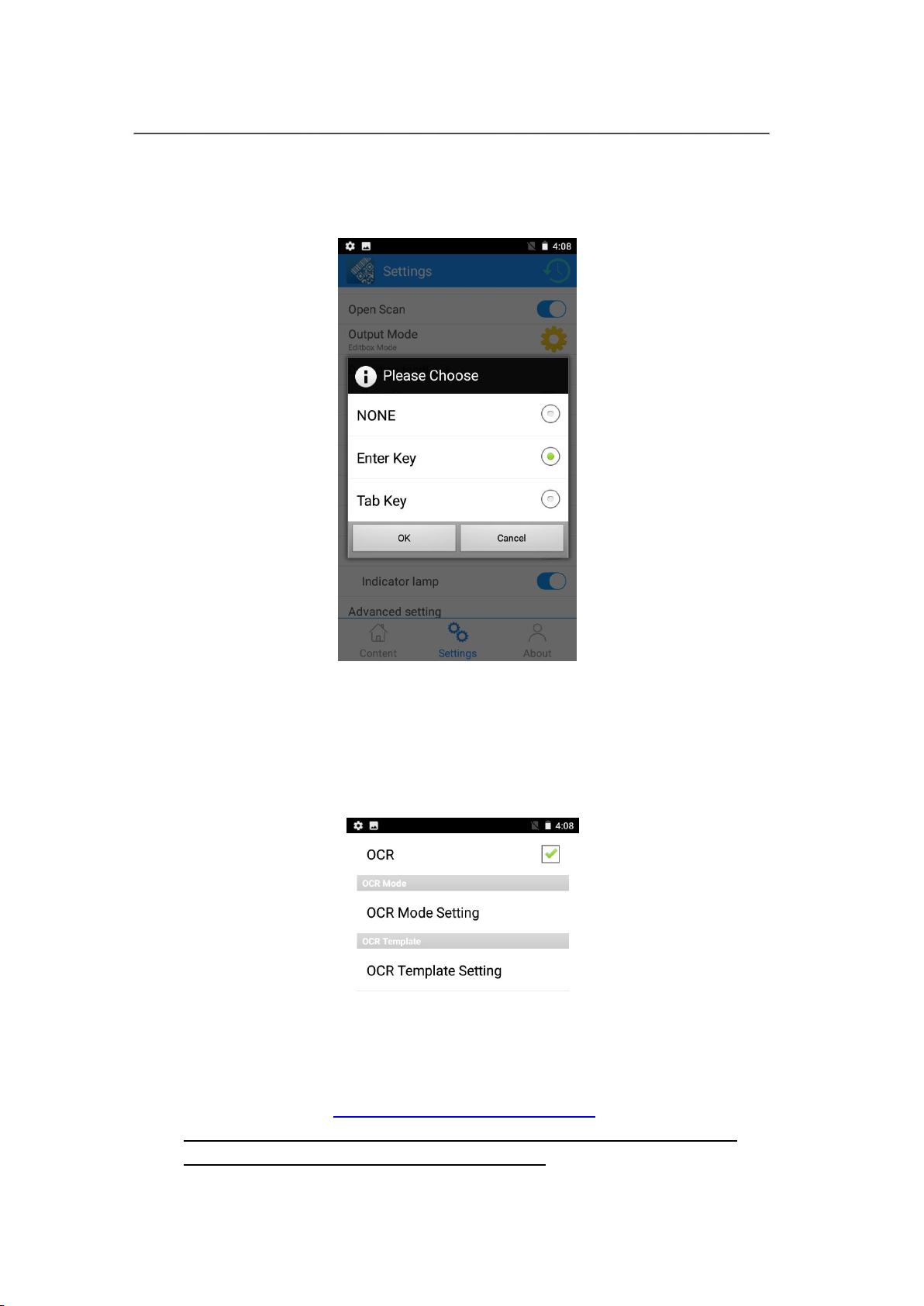

Additional content
You can change the default terminator in this settings, CR and Tab
OCR function (Only for IPDA030/035 2D-N6603 version)：
You can get the ‘OCR’in the ‘Barcode setting’. It can identify the
number on the document, such as the passport information
*If you purchased the 1D version, the ‘Symbology config’ and ‘Advanced
configuration’ will not be included in the ‘scanner’ App, you can kindly
download the honeywell documents via the link below to set the decoding.
Link for 1D version: http://bit.ly/honeywell-N431X-doc
*Please ONLY refer and scan the codes in chapter 6 to set the decoding,
other settings might causes abnormal scanning

NFC (optional)
NFC reading
Warm tips: NFC is optional function, before using this function, you should
make sure your PDA with NFC function
If your PDA have NFC function, you can test the NFC with our demo app:
1.Please find the “NFC”app, and open it. ( As Pic 1)
2.In the home page of the app, you can read the NFC tags on NFC reading
area.

( As Pic 1)
LF 125K (optional)
LF reading area
( As Pic2)
Warm tips: LF is optional function. Please make sure the PDA is equipped with
LF function before using it.
If your PDA have LF function, please operate it as below:
1.Please find the “LF EXAMPLE”app, and open it. ( As Pic 1)
2.In the home page of the app, you can read the LF tags on LF reading area.

UHF (optional)
UHF RFID reading area
Step2:Power on
Warm tips: UHF RFID is optional function. Please make sure the PDA is
equipped with UHF RFID function before using it.
Step1:Connect MCU
Step3:Start Inventory
If your PDA is equipped with the function of UHF RFID, you can test the NHF
with our demo app:
1.Please open the APP of UHF.( As Pic 1)
2.In the Interface of UHF, please read the card in UHF reading area.
( As Pic 1)

If your PDA is equipped with the function of FINGERPRINT IDENTIFICATION, you can
test it with our demo app:
1.Please open the APP of fingerprint.( As Pic 1)
2.Please collect and identify the fingerprint in the fingerprint test
interface.
( As Pic 1)
FINGERPRINT(optional)
Fingerprint identification area
( As Pic2)
Warm tips: Fingerprint identification is optional function. Please make sure the PDA is
equipped with fingerprint identification function before using it.

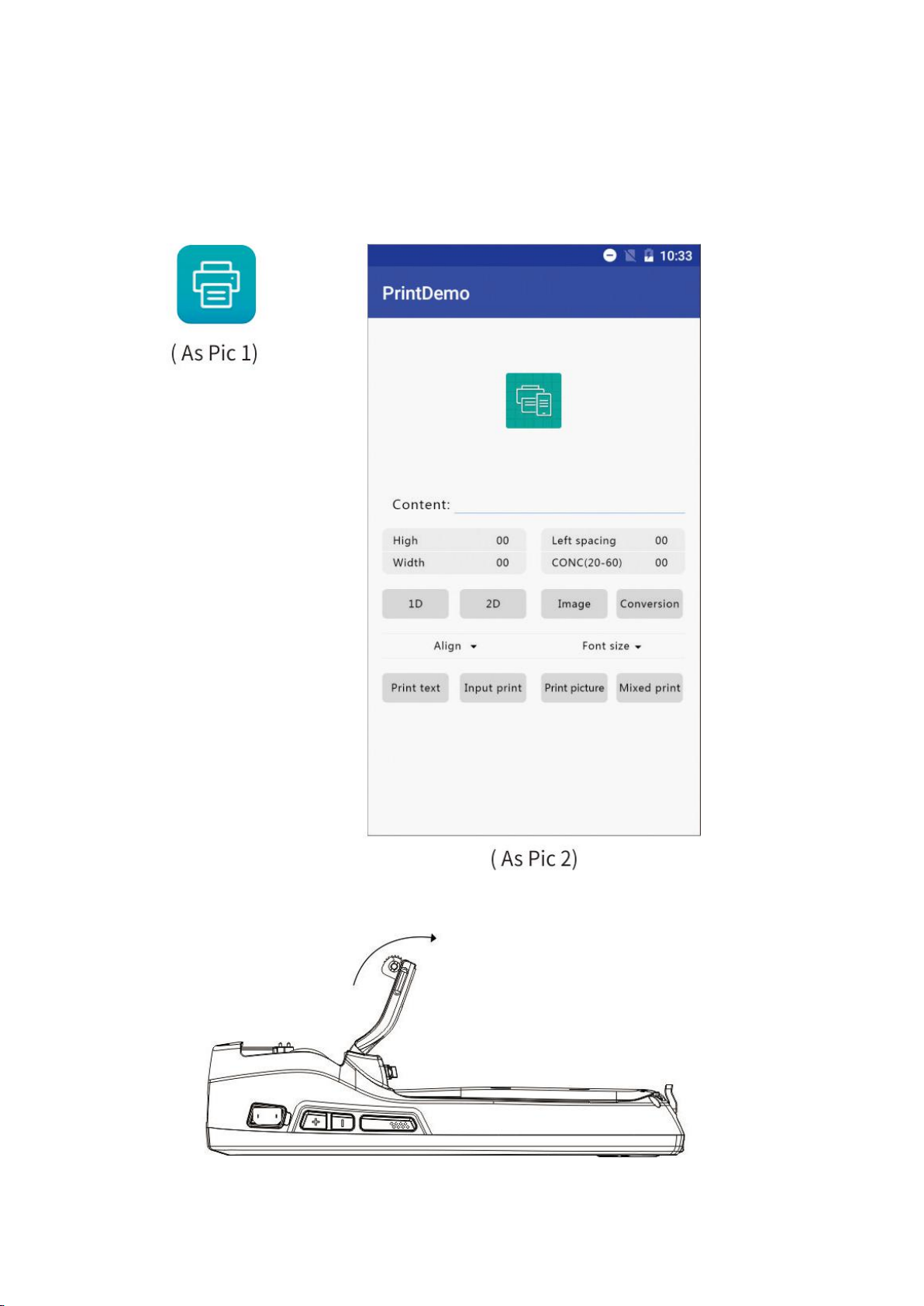

PRINT(optional)
Open the paper cover
Warm tips: Printer is optional function.
Please make sure the PDA is equipped with printer function before using it.
If your PDA is equipped with the function of Thermal printing , please
operate it as below:
1.Please open the APP of Thermal printing.( As Pic 1)
2.Press the print icon to test printer operation.

Our PDA support OTA (update online) function, you can update the latest
firmware by OTA, operate it as below:
1.Please enter into ”Settings” —About phone.
2.Press ”System update” and enter into the updating firmware interface.
3.Press “Check now” to update the OS.
* Currently our devices doesn’t support Android system upgrade
( As Pic2)
OTA(update online)
( As Pic 1)

1. How to restore factory settings?
Select“Setting”→“Backup&reset”→“Factory date reset”
2. Why can not power up the PDA?
(1) If the new device does not turn on, please make sure the
insulation sticker on battery has been removed.
(2) It needs about 4s to press and hold the power button to turn on ,
so please hold the power button until the screen showing contents .
(3) Please check the if the battery are in low power, and charge the
PDA for 30mins, then restart it.
(4) If you have other battery, please try to change the battery. And also
check if there are stain on the contact point between the battery and
the device that block the powering.
3. When use scanner , there is no data but scan-light on,Why?
(1) Go to “scanner” app --- setting , and adjust the ‘output mode’.
(2) Reset the “scanner” app for twice , and switch on ‘Open scan’
4. The device cannot scan the code.
(1) Check each scan button can be used normally.
(2) Check the scan engine supports the bar code.
(3) Check the scanning lens and bar code is clear and unobstructed.
(4) Check the scan setting and reset .
5. The device cannot be charged.
(1) Check the device adapter and charging port are good.
(2) If the device is not used for a long time, please keep it charged for
30 minutes. Then check the device lights on or not.
(3) Replace the battery of the device that can be turned on normally,
check the problem on battery or device.
6. How to use the battery correctly?
The battery is Li-ion battery,If no power , please immediately charger it,
don's keep the battery with full power or no power for longtime, the
best way is keep 50% power of the battery to store it. And if you don't
use the PDA for longtime, it is better to pull out the battery from PDA.
*If the FAQs still not help, please contact us by email or whatsapp for
further solution
FAQ:
