mundoclima MUPO-11-RE Series User manual

Please read this manual carefully before operating the unit
Owners' manual
PORTABLE AIR CONDITIONER
MUPO-11-RESerie
CODE: CL 20 095

SUMMARY
1. SUMMARY ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．1
2. WORKING PRINCIPLE．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．1
4. SPECIFICATIONS ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．3
5. STRUCTURE．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．4
6. OPERATING METHODS ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．5 --12
7. ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE ．．．13-- 20
10. CARE AND MAINTENANCE ．．．．．．．．．．．．．．．．．．．．．．．．．．23 --24
11. TROUBLESHOOTING．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．25
12. USER NOTICES ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．26 -- 27
13. AFTER SALES SERVICE．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．27
※．USAGE NOTICE ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 5 -- 7
※．NAMES AND FUNCTIONS OF PARTS OF WIRELESS REMOTE CONTROL ．． 11--1 2
8. ACCESSORIES AND INSTALLATION OF DRAINAGE HOSE ．．．．．．．．． 21
※．FUNCTIONS OF DISPLAYER AND PANEL ．．．．．．．．．．．．．．．．． 8--1 0
14. CIRCUIT DIAGRAM ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 28
3. SAFETY LABELS OF THE UNIT．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．2
9. CHANGE METHOD OF WHEELS．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 22

－2－
SUMMARY
－1－
This MOBILE AIR CONDITIONER is a small, moveable air conditioner. It possessed the
functions of COOL, HEAT, DRY and the Separate Ventilation, and depends on different places, it
canbemovedaswill.Itisfitforhome andofficeuse,especiallyfitforthehousewithmanyrooms.
Withthecompactconfiguration,excellentworkmanship,elegantappearance,itlookslikeastanding
Benzcar. Itisconvenientformoving,energysaving,andwith lownoise.
Note:Pleasereadthismanualcarefullybeforeoperatingtheunit,themanualisusedforreference,
andthetechnicalparameters aresubjecttochangewithoutnotice.
WORKING PRINCIPLE
With the help of upper motor, the airflow of indoor pass through the evaporator becomes the
cooled wind, but with the help of lower motor, the airflow of indoor pass through the condenser
becomes the heated wind. There is two duct systems designed in its structure.The heated wind is discharged
bytherearoutlet,thecooled windisdischargedbythefrontoutlet,flow-guidedbythelouver,andit
brings the gentle cooling airflow, and the low temperature environment is maintained.
The Working Principle
Cooled wind
Uppermotor
Lowermotor
Evaporator
Airflow 1
Airflow 2
Capillary
Heated wind
Condenser

－2－
You can be killed or seriously injured if
you don't immediately follow instructions.
You can be killed or seriously injured if
you don't follow instructions .
All safety messages will tell you what the potential hazard is, how to reduce the chance of injury, and
what will happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
This is the safety alert symbol.
This symbol warns you to the potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER"
or "WARNING." These words mean:
SAFETY LABELS OF THE UNIT

－3－
SPECIFICATION
Models
Cooling capacity (BTU) Rated voltage Rated frequency Cooling rated current (A)
Max. cooling/Heating input current (A)
Cooling rated power (W) Max. imput power (W) Airflow (m3/h) Refrigerant and charge amount
Noise(soundpress)(coolairoutlet)(dB)
Weight (N.W.) Dimension(H×
W
×
D)(mm)
Package dimension (H×
W
×
D) (mm)
Heating rated power (W)
Heating capacity (W)
4. Noise is tested 1m in front of front air outlet vent under cool air state, it is sound press grade. 5. Please refer performance parameter on nameplate as standard. The design are subject to be 3. Max. input power is tested under cooling mode when indoor temp. dry bulb 35℃and wet bulb 24℃.
Note: 1. Cooling capacity is tested when indoor temp. dry bulb 27℃and wet bulb 19℃(indoor outside is the
2. Heating capacity is tected when indoor temp. dry bulb 20℃and wet bulb 12℃.
GPEN12A5NK3BA
12000
230V
50Hz
6.0
7.0/12.8
1380
1610
570
R410A 1050g
59
840
×
546
×
405
885
×
761
×
460
same) without air outlet pipe. changed without notice.
2450
2400
47kg

－4－

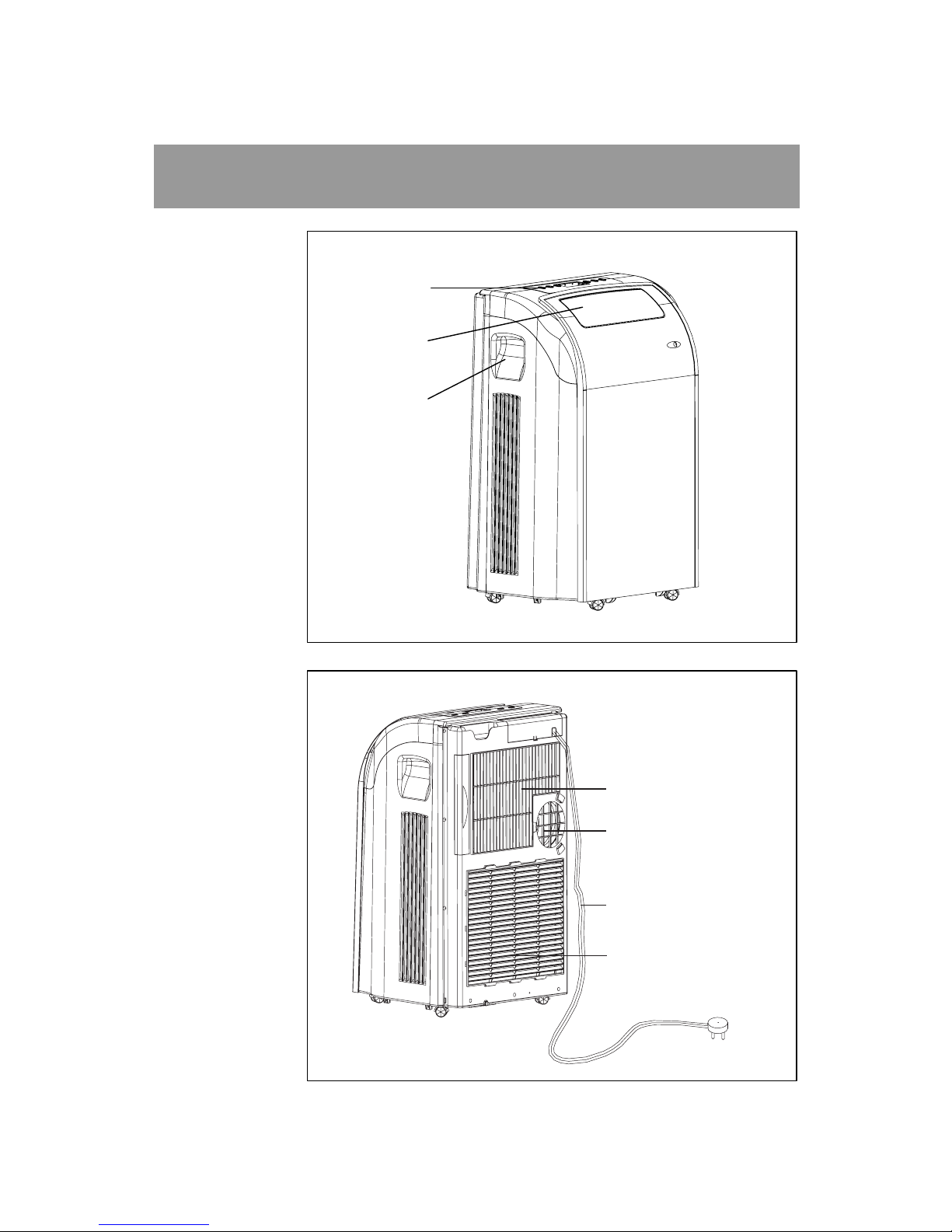

ＳＴＲＵＣＴＵＲＥ
Ｆｒｏｎｔ
Ｒｅａｒ
Control panel
Air outlet
Handle
Upper air inlet grille
Heat air exhaust vent
Power cord
Lower air inlet grille

The working range of COOL mode is 16℃－35℃．The working range of COOL
Place requirements:
OPERATING METHODS
－5－
※．Usage notice
Unpack the Air Conditioner
Remove packaging materials
Remove and properly dispose the packaging materials. Remove tape and glue residue from surfaces before
WARNING
Excessive Weight Hazard
Use two or more people to move and install the air conditioner.
Failure to do so can result in back or other injury.
turning on the air conditioner. Rub a small amount of liquid dish soap over the adhesive with your fingers.
Wipe with warm water and dry it.
Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue.
These products can damage the surface of your air conditioner.
•
•
•

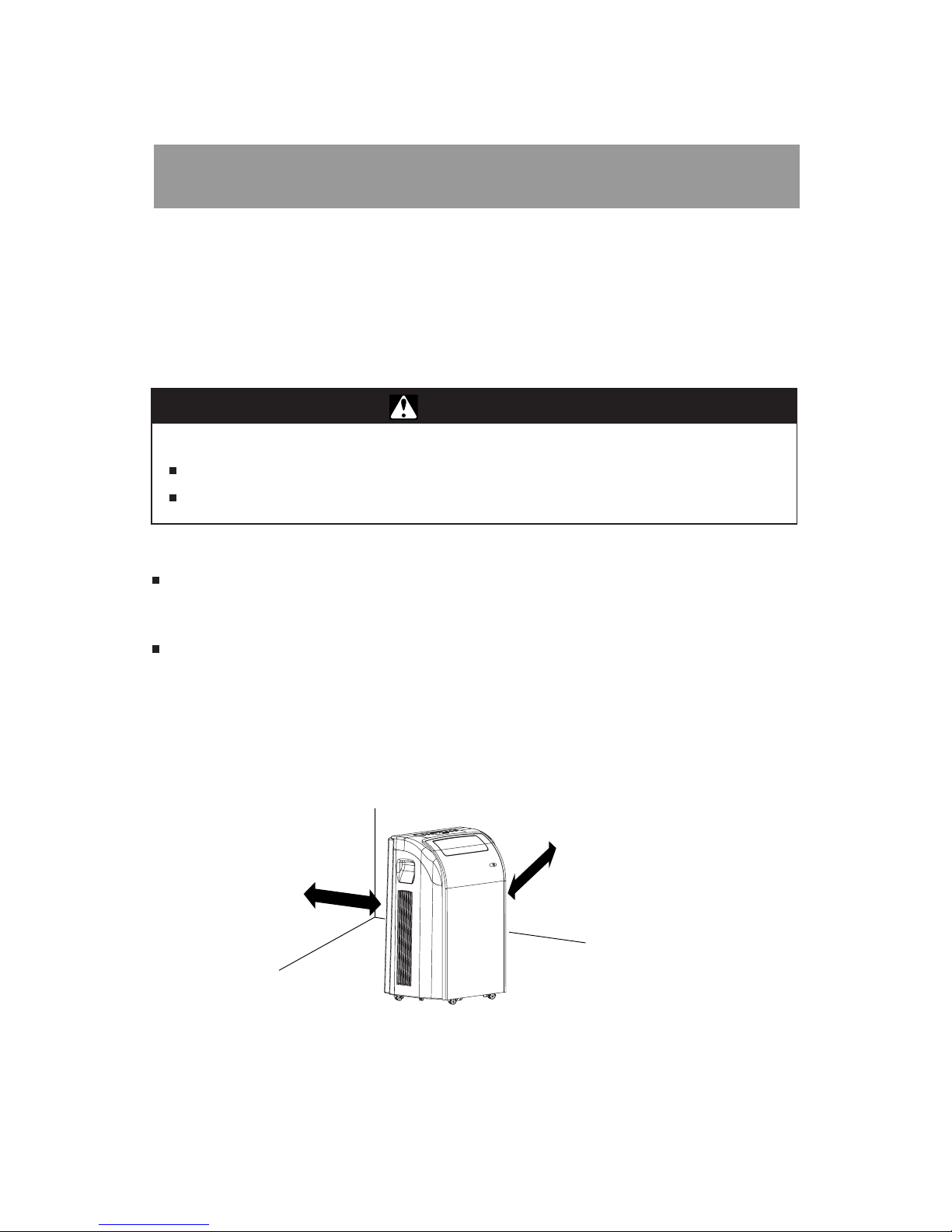

Place the air conditioner on a smooth level floor that strong enough to support the unit.
Allow at least 12 inches (50 cm) of air space on all sides of the unit for good air ventilation.
Place the unit in an area where the temperature will not fall below 18℃. The coils will be covered
with frost at temperatures below 18℃, and this may reduce performance.
NOTE: The portable air conditioner has wheels for easy movement, but it should only be rolled on smooth and
flat surfaces. Do not attempt to roll the portable air conditioner on carpet or over objects.
12″(50 cm)
min.
12″(50 cm)
min.
mode and DRY mode

Power must adopt the rated voltage and special circuit for AC. And diameter of power cord should be big enough.
OPERATING METHODS
－6－
Electrical Requirements
death, fire, or electrical shock.
WARNING
Electrical Shock Hazard
Plug into a grounded 3-prong outlet.
Failure to follow these instructions can result in
Do not use an extension cord.
Do not use an adapter.
Do not remove ground prong.
The portable air conditioner should be connected to a 230V 50Hz, 15 fused 3 prong grounded outlet.
Time-delay fuse or time-delay circuit breaker is recommended to be used.
All wiring must comply with local and national electrical codes and should be installed by a qualified electrician.
If you have any questions, contact a qualified electrician.
※．Usage notice

－7－
OPERATION METHOD
Earthing
There must be reliable earth
煤
气
管
Water pipe Gas pipe
※．Usage Notice
■The wiring must be operated by the professional personnel by
protect switch and magnetic and heat drop-off air switch that with
enough capacity in fixed circuit. Don't connect earth wire to water
pipe or gas pipe. When the air conditioner is not used, please pull
out the power plug or cut off power supply.
wire in the power supply
following the national regulation. There must be electric leakage

－8－
OPERATION METHOD

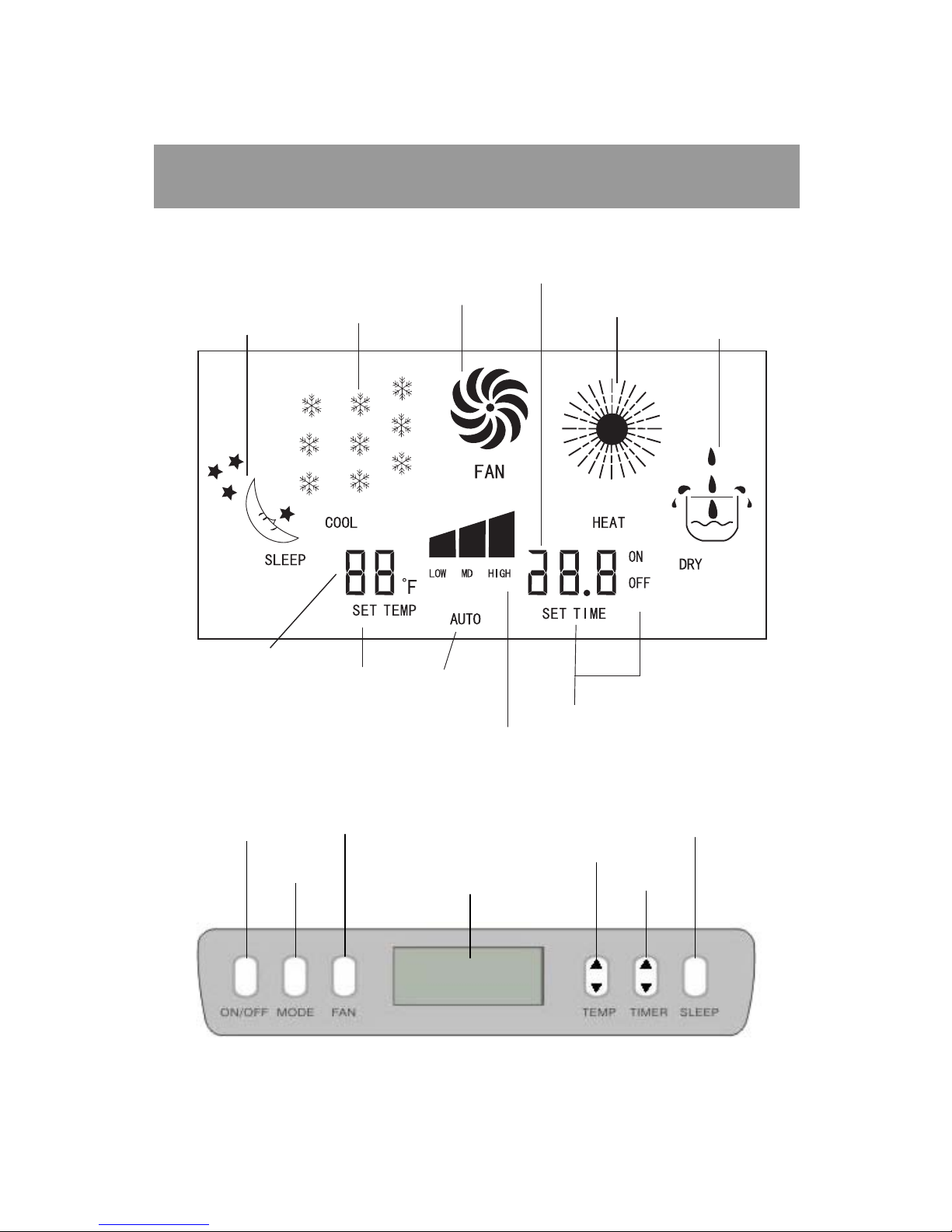

●LCD instruction (dynamic display)
●Functions for control panel and every button
Power (On/Off)
OPERATION
FAN SPEED
LCD screen
SET TEMP.
SET TIMER
SLEEP
SLEEP
TIMER TIME
HEAT DEHUMIDIFY
Set temp. display Temp. set
display
Fan spedd
Timer On/Off
COOL mode FAN mode
Automode
MODE

Turn on or off the unit (press once to turn on, and repress to turn off).
Functions of buttons on control panel:
It can make modes(functions) of this unit change in cycle for user to
select proper function. Function changes on this mode is: Auto→Cool→
3. Fan speed selection button--FAN
LOW→MID→HIGH.
2. MODE
4. Temperature setting button--TEMP
When turning on the unit, under cooling or heating mode, set temp.
value would be displayed on control panel. Press ＋and －to increase
or decrease set temp. value.
Press ＋and －to set timer time to enable the unit turn on and off in set
1. ON/OFF
Dry→Fan→Heat(only cooling and heating unit contains this function)
When unit is running in FAN, COOL, or HEAT, there are 3 speeds for
options. Press FAN serially can change fan speed in order of:
5. TIMER
6. SLEEP
time. Timer off time can be set when unit is running, and timer on time
range of 0.5-24 hours, and press ＋and －to adjust.
can be set when unit is off (but not power outage). Timer can be set in
When unit is running, press this button once to begin SLEEP, repress to
quit from SLEEP state. There is no SLEEP state under AUTO mode.
※．Functions of displayer and panel
－9－
OPERATION METHOD
This unit contains memory function. When power outage occur during
operation, the unit stops running. After electrified, the unit would still
operates with the operation mode before power outage.

－10－
When cooling, for improve cooling effect, please note:
①When there is sunshine from window, please draw curtain to shield.
②Try not to use other heat source in the room.
COOLING
AUTO
FAN
1). Press MODE to select COOL mode.
2). Press TEMP to set proper indoor temperature in range of 16℃-30℃.
3). Press FAN to set proper fan speed, HI / MD / LO.
Close windows and doors can get a better dehumidify effect:
Press MODE and select DRY, then unit runs in dehumifidy mode. At this
time, upper fan motor runs in low speed and is unadjustable.
1). Press MODE to select FAN mode.
2). Press FAN to select fan speed at HI, MD and LOW.
When the unit is used as dehumidifier, heat exhaust pipe is unnecessary.
Press MODE to select AUTO, then mode microcomputer would select FAN,
COOL,HEAT and DEHUMIDIFY automatically according to indoor ambient
DEHUMIFIDY
※．Functions of displayer and panel
OPERATION METHOD
Press MODE to select HEAT. At this time, compressor and lower fan stop
running with only electric heater works. Upper fan runs in set speed.
HEATING
to offer a temperature constanting effect in the room.

OPERATION METHOD
－11－

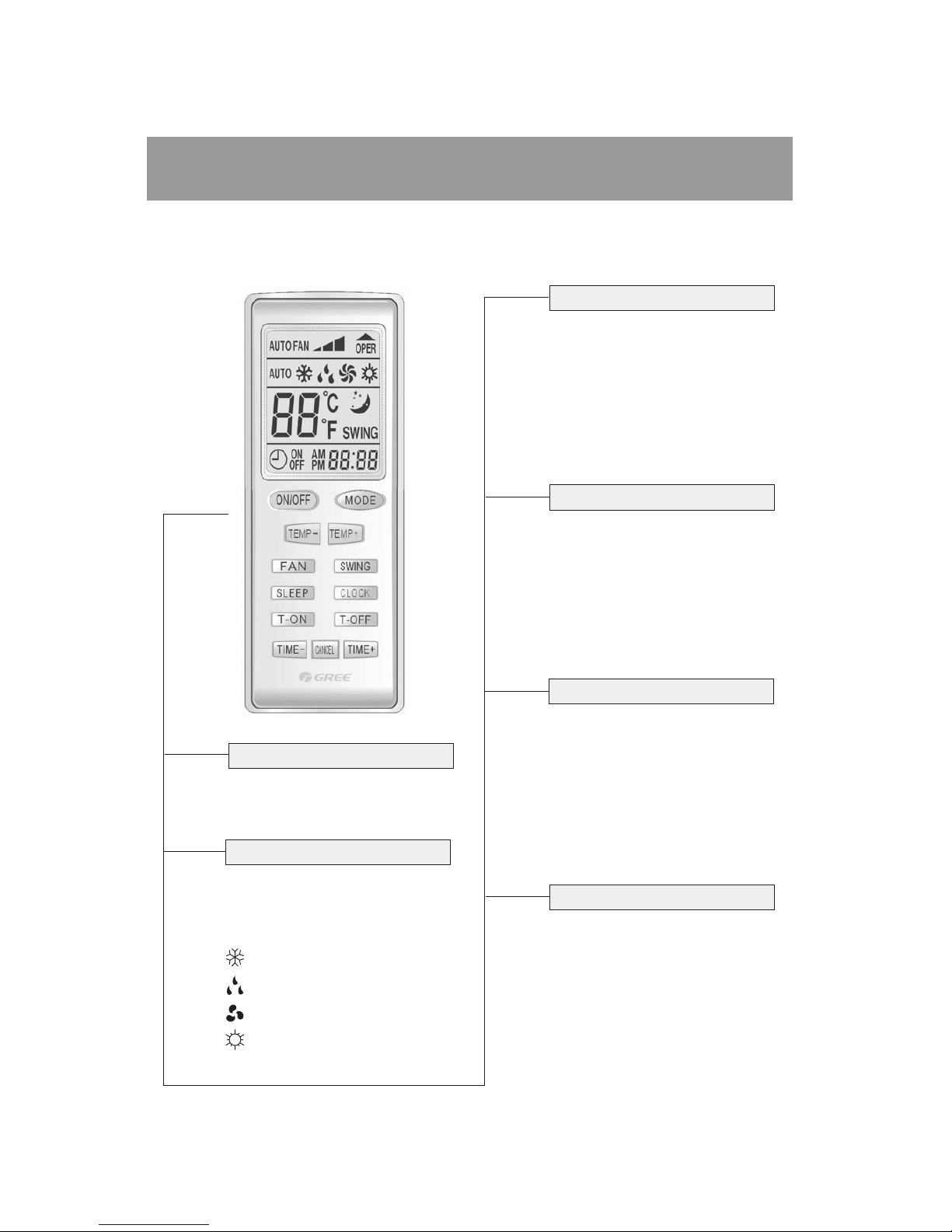

※．Names and functions of parts of wireless remote control
●Press this button once to turn on
the unit, repress to turn it off.
●Press this button when unit is on
canselectAUTO,COOL,DEHUMIDIFY
FAN, or HEAT.
Stands for COOL.
Stands for DEHUMIDIFY.
Stands for FAN.
Stands for HEAT (Note: Cooling
only unit cannot receive HEAT).
●When unit is on, press this button
in AUTO, COOL, FAN or HEAT
mode can select LO, MD, HI. Under
dehumidy mode the fan speed is LO.
Fan speed under every mode can be
●When unit is on, press this button
once to start swing, repress to quit.
●Press this button once under
COOL, DEHUMIDIFY and HEAT
to begin SLEEP, then press TIMER+
or TIME- can adjust timer off time
(from 1-7 hrs). Repress once to quit.
ＯＮ／ＯＦＦ ＯＮ／ＯＦＦ
ＭＯＤＥ ＭＯＤＥ
ＦＡＮ ＦＡＮ
ＳＷＩＮＧ ＳＷＩＮＧ
ＳＬＥＥＰ ＳＬＥＥＰ
Ｔ－ＯＮ Ｔ－ＯＮ
●Press this button once to begin Timer
On and the symbol of Timer On blinks
When unit is on, every press of TIMER+
Timer On time increase 0.5h, when the
value is larger than 8hs, increase 1h.
Press TIMER- to decrement 0.5/1h. The
remembered.
time cycles in 0-18 hours.
(Those models don't have the
fuction.)

OPERATION METHOD
－12－
※．Names and functions of parts of wireless remote control
●Every press of + set temp. increase
1℃, every press of - set temp.
●Press this button once, then clock
symbol blinks, unit enters clock adjust
state. Under clock adjust state, every
press of TIMER+, min digit at clock
increase 1; when pressing it consecutively
ＴＥＭＰ＋（－） ＴＥＭＰ＋（－）
ＣＬＯＣＫ ＣＬＯＣＫ
decrease 1℃． Temperature set
range is at 16~30℃.Temperature
for more than 1s, every half second value
at 2nd digit increase 1. Every press of TIMER-
value on min digit decrease 1; when pressing
it consecutively for more than 1s, every half
second value at 2nd digit decrease 1. After
Ｔ－ＯＦＦ Ｔ－ＯＦＦ
●This button is unavailable.
ＣＡＮＣＥＬ ＣＡＮＣＥＬ
●To cancel timer on setting.
adjustment, repress CLOCK to confirm.
can be memonry under every mode.

－13－

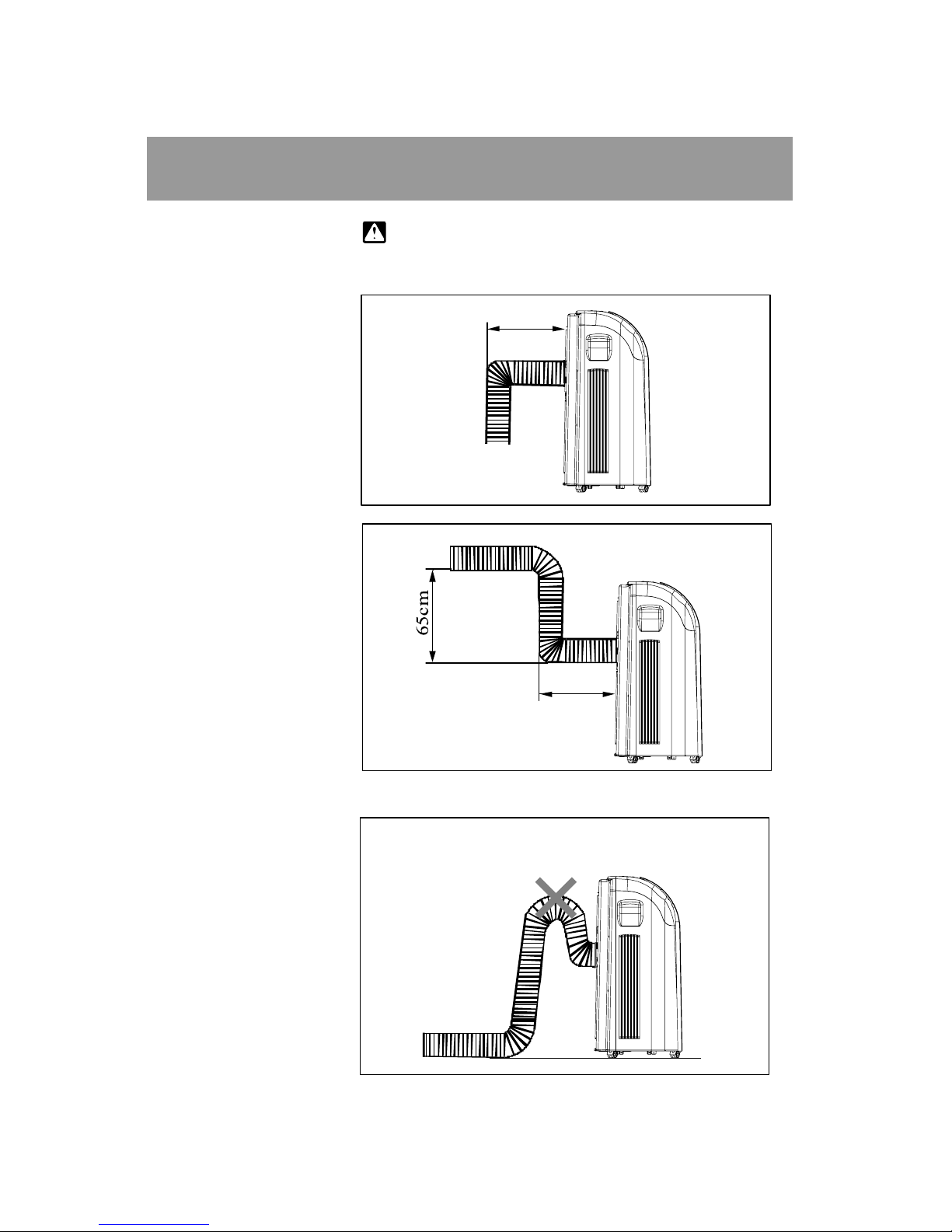

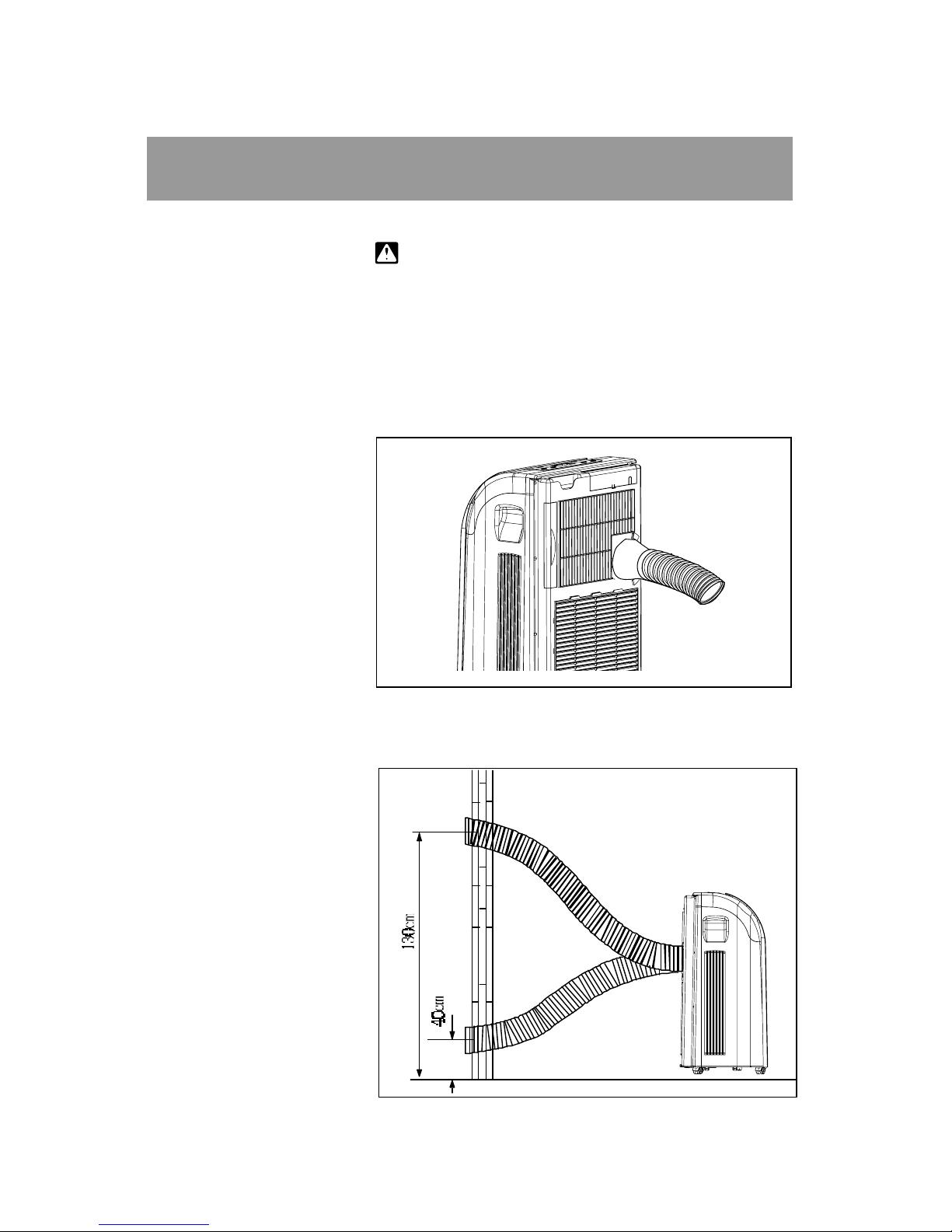

●Length range of exhaust pipe should be 500mm-2000mm.
It is recommended to use it with shortest length.
●When installing, exhaust pipe should be as flat as possible.
Don't prolong the pipe or connect it with other exhaust pipe, or
Correct installation is as shown in figure (When installing it on
wall, height of hall should be about 40cm-130cm from floor).
ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE
it would cause abnormal operation.

55cm
55cm
－14－
If the pipe are to be bent, please install it by considering
Wrong installation is shown in following figure (If the pipe is
ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE
following dimension.
bent too much, it would easily cause malfunction.)

－15－
ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE
PARTS INCLUDED
Window Exhaust Adapter
Window Locking Bracket (2)
Rear plastic pipe end
AdjustableWindowSlider(3)
Flexible Exhaust Hose
Front plastic pipe end
Gasket (4)
Bolt (4)
Nut (4)
Front grill
Spring Gasket(4)
Window Slider Bracket (2)
Rain Deflector
Bracket 2
Seal sponge(2)
Bracket 1

－16－
INSTALLATION PROCESS OF HEAT EXHAUST HOSE
To allow the window to close properly around
the adjustable window slider, attach a piece
of wood to the sill at the back of the window
stool.
WOOD PIECE WIDTH: 1∞¬
LENGTH: Long enough to fit inside the
window frame.
THICKNESS: To determine the thickness,
place a piece of wood on the sill behind
the window stool to make it the same
height as the stool.
Attach securely with nails or screws provided
by the installer.
Stool
A
Inside
Window stool seal
Window
sash seal
Inside
Cut the window sash seal (adhesive-
backed) to the window width and stick the
adhesive side to the bottom of the sash.
Cut the window stool seal (non-adhesive
backed) to the window width and place
on the window stool.
B
INSTALL RAIN DEFLECTOR
TO OUTSIDE OF ADJUSTABLE
WINDOW SLIDER
•Remove the appropriate plugs (save in a secure
place) from the window slider to prepare for either
a double hung window installation or a slider
window installation. Use the bolts, gaskets and
nuts to attach the rain deflector onto the bracket,
then attach the bracket onto the window slider.
C
DoubleHungWindow
Installation
SliderWindow
Installation
OutsideOutside
Leave these two plugs
in place for double hung
window installations
Leave these two
plugs in place for
sliding window
installations
Sill
Wood (same height as stool)
NOTE: If installing slider in a sliding window
or patio door, skip to step 1of F to Iand
INSTALL WINDOW SLIDER IN A
DOUBLE HUNG WINDOW
1
proceed.

－17－
INSTALLATION PROCESS OF HEAT EXHAUST HOSE
H
G
I
Inside
Inside
Wood
screw
Window stool
Third piece of slider
for extra wide windows
Window slider brackets
FIf the window slider is shorter than the width of the
window, pull the sliding arm out to the width of the
window.If the window slider is longer than the width
of the window, cut the slider arm to the width of the
E

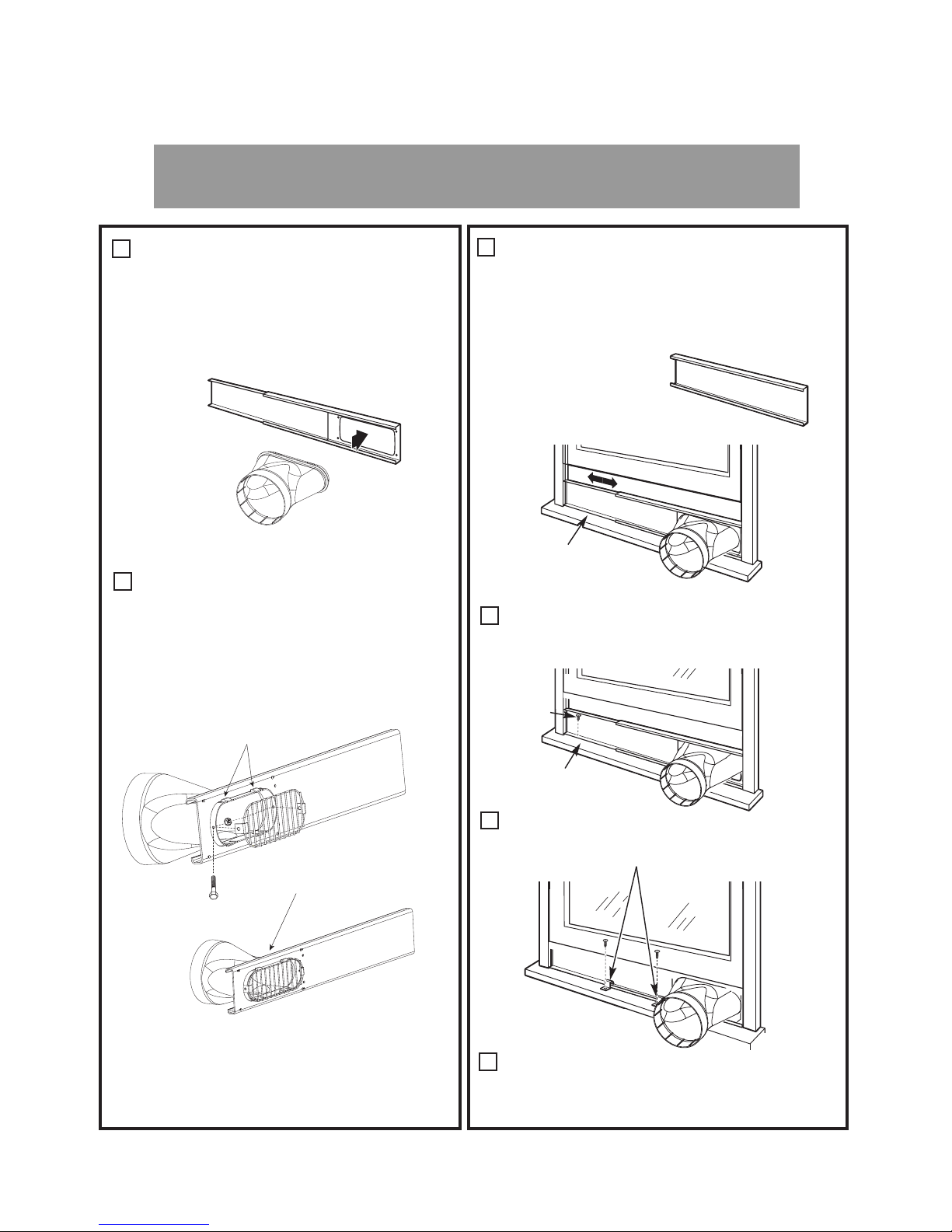

Install front grille
●Installing protect grille at exhaust pipe
is for preventing animals (rats) or plants
from going into the pipe and cause blockage.
●Installation method is as shown below:
As shown in the figure, clamp grille first
and fix both of its ends by bolts.
Complete installation is as shown below
ATTACH THE EXHAUST ADAPTER
TO THE WINDOW SLIDER INSIDE
OPENING
•Pull the exhaust adapter inside the end
of the slider and snap it into the opening.
D
window. If the two-piece window slider is too short
for the width of the window, attach and use the third
piece of the slider.
Attach the slider to the stool through
one of its holes using a wood screw
(not included).
Pull the window down against the top
of the window slider.
Hook the two window slider brackets over the
bottom edge of the window slider and attach
to the window stool using two screws.
Window stool

－18－
INSTALLATION PROCESS OF HEAT EXHAUST HOSE

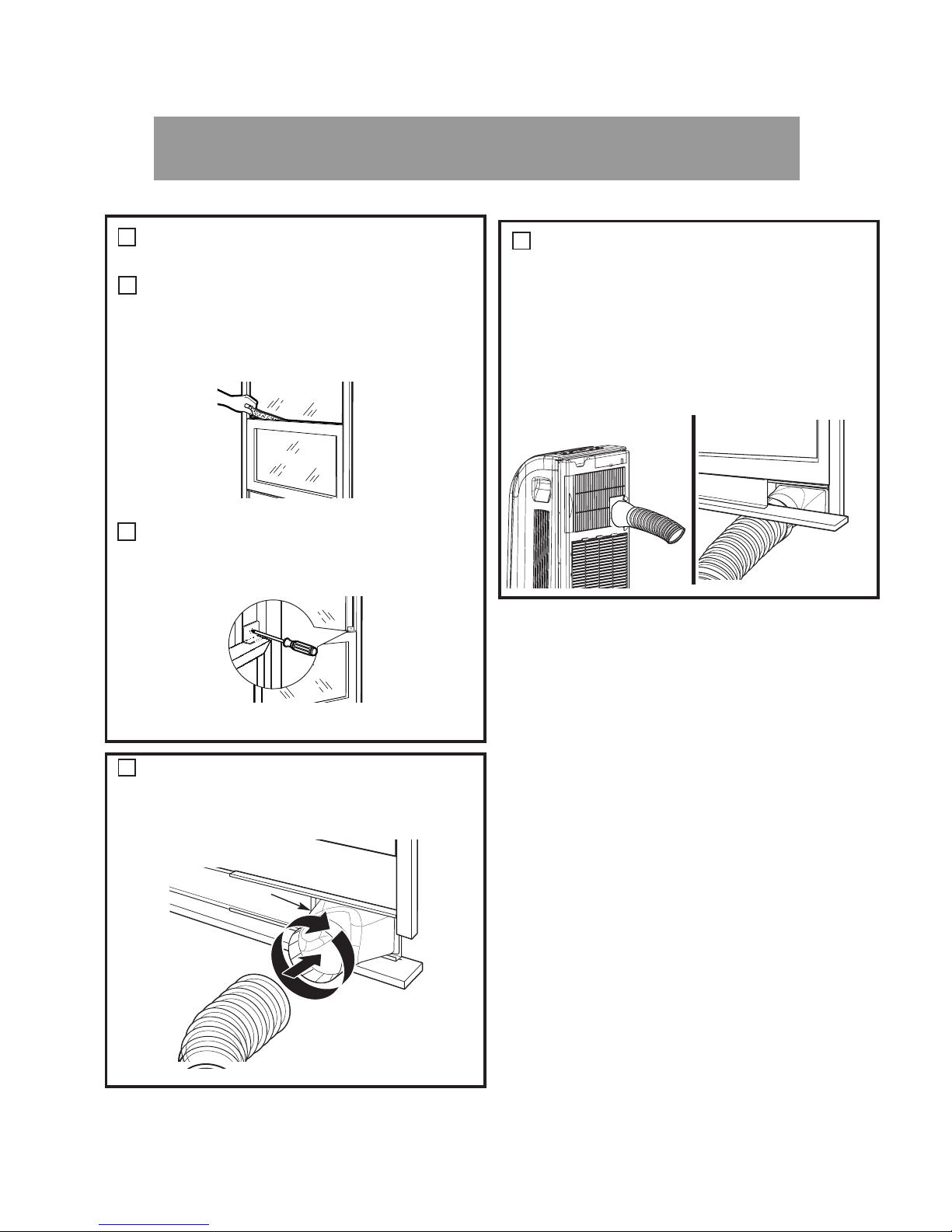

INSTALL TOP WINDOW GASKET
AND WINDOW LOCKING BRACKET
2
B
INSTALL EXHAUST HOSE TO UNIT
• The exhaust hose must be properly installed
to the back of the unit and to the adjustable
window slider, and exhausted to the outside
when using the unit in the COOL mode.
• Attach the unit end of the exhaust hose
to the back of the air conditioner by
pushing it into the exhaust outlet and
twisting to lock it in place.
4
Back of unit
ATTACH EXHAUST HOSE TO
WINDOW SLIDER
Insert the end of the hose into the adapter
and rotate it several turns to thread it
securely into the adapter.
3
Adapter
Attach the window locking bracket with
screw.
A
Cut the foam top window gasket to the
window width.
Stuff the foam between the glass and the
window to prevent air and insects from
getting into the room.
