Murideo MU-SIX-G-8K User manual

1
MU-SIX-G-8K
HDMI 2.1 40Gbps FRL
Test Pattern Generator
HDCP 2.3 Tester

INTRODUCTION .................................................................................. 4
FEATURES .......................................................................................... 4
WHAT’S IN THE BOX ............................................................................ 5
FRONT PANEL OVERVIEW ...................................................................... 7
CONNECTION OVERVIEW: ...................................................................... 7
VIDEO GENERATOR: TIMING & RESOLUTION ............................................. 8
VIDEO GENERATOR: 4K GEOMETRY 178 ................................................... 9
VIDEO GENERATOR: COLOR SPACE ......................................................... 9
VIDEO GENERATOR: BT. 2020 SETUP ...................................................... 10
VIDEO GENERATOR: DEEP COLOR DEPTH ................................................ 11
VIDEO GENERATOR: HDCP SETUP .......................................................... 12
VIDEO GENERATOR: HDCP 2.2 CONTENT TYPE ......................................... 12
VIDEO GENERATOR: HDMI /DVI SETUP ................................................... 13
VIDEO GENERATOR: HDR PATTERN ........................................................ 14
VIDEO GENERATOR: HDR SETUP ........................................................... 15
AUDIO GENERATOR: ............................................................................ 16
AUDIO GENERATOR: AUDIO SAMPLE RATE ............................................... 17
AUDIO GENERATOR: AUDIO SAMPLE SIZE ............................................... 17
AUDIO GENERATOR: AUDIO SOURCE ...................................................... 18
AUDIO GENERATOR: AUDIO CHANNELS ................................................... 18
AUDIO GENERATOR: AUDIO VOLUME ...................................................... 19
IRE WINDOW: .................................................................................... 20
RGB TRIPLET: .................................................................................... 21
CEC TEST: ........................................................................................ 22
SYNC & LATENCY TEST: ....................................................................... 23
AUTO POWER OFF: ............................................................................. 24
OUTPUT STANDBY: .............................................................................. 24
SAVE EDID: ....................................................................................... 25
SINK EDID INFO: ............................................................................... 26
23
BATTERY STATS: ................................................................................ 27

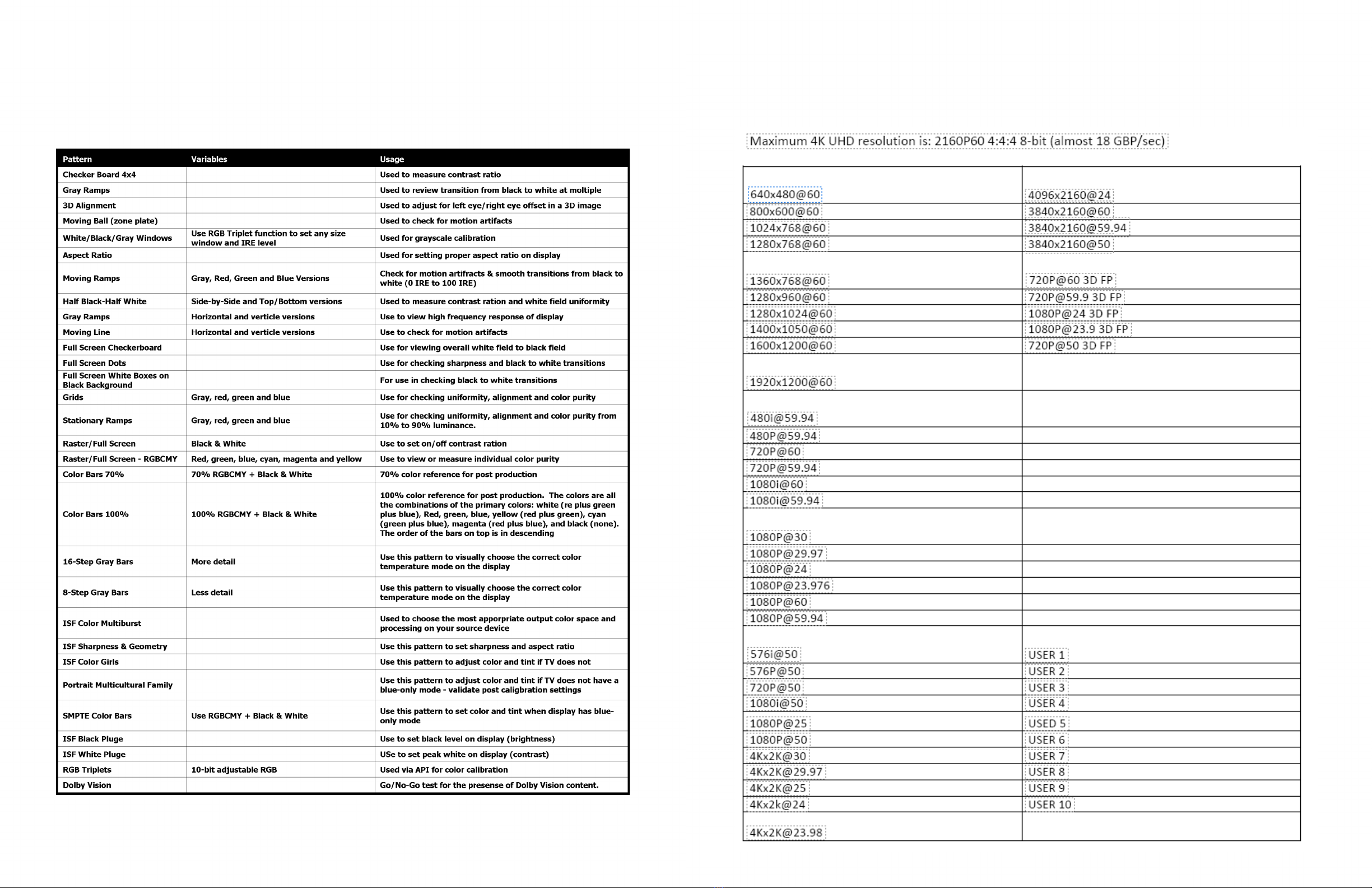

TEST PATTERNS: USAGE AND EXPLANATION ............................................ 28
LIST OF SUPPORTED RESOLUTIONS ........................................................ 29
WARRANTY AND GETTING HELP ............................................................. 30
OBTAINING THE WARRANTY SERVICE ...................................................... 31
DISCLAIMER OF WARRANTY .................................................................. 32
GETTING HELP ................................................................................... 33
LEGAL NOTICES ................................................................................. 33

4

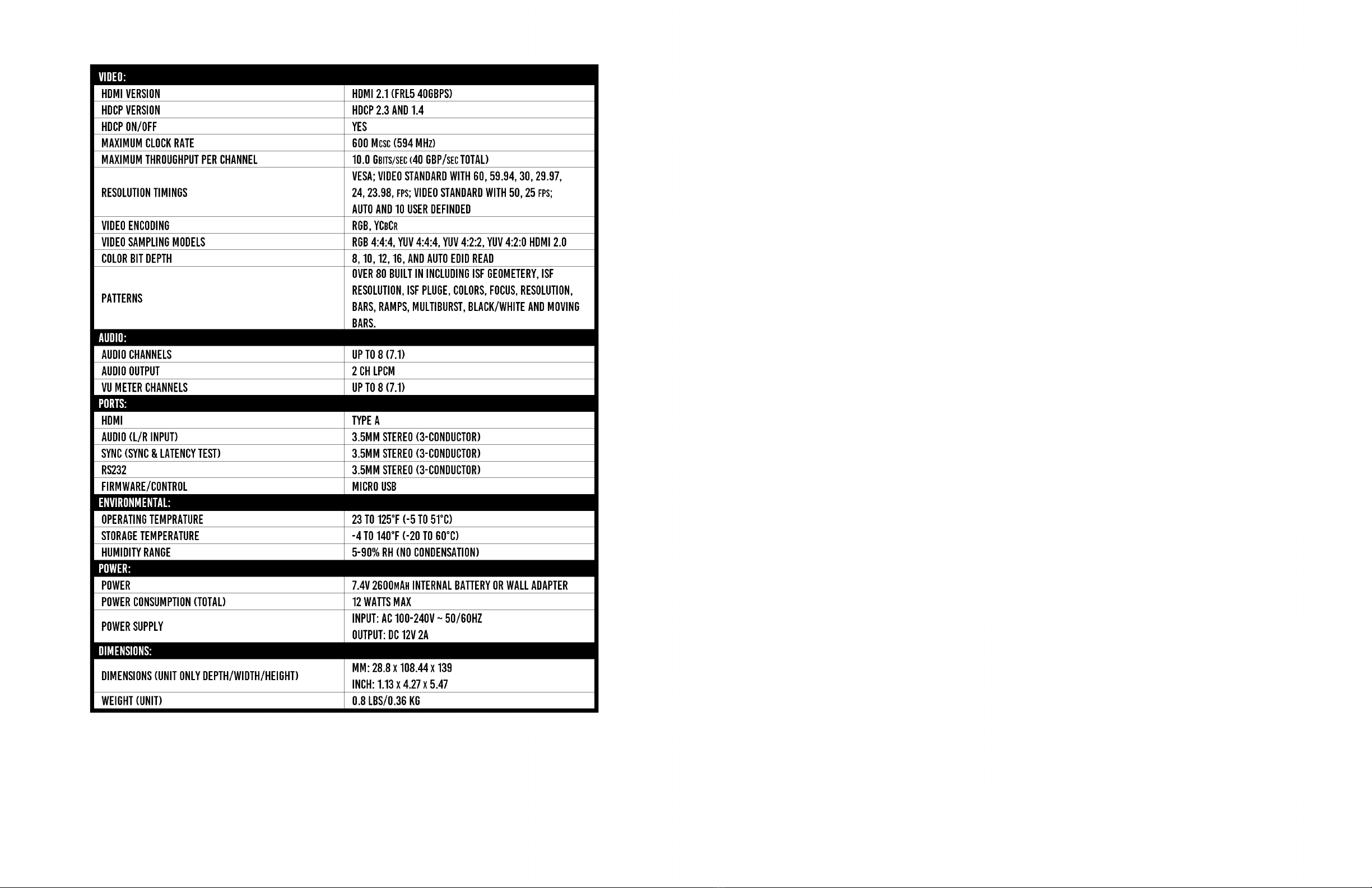

·HDMI 2.0(a) Support. 600 Mcsc - 3840x2160P@60Hz 4:4:4
·HDMI 2.1 40Gbps FRL 7680x4320@60Hz 4:2:0
· Color Space Selectable
◦RGB Full
◦RGB Limited
◦ YC444, 422, 420 (16-235)
◦ Auto Detect (read EDID - display preferred format)
· High Bit Depth - 8, 10, 12, and 16 bit per pixel support
·HDR (High Dynamic Range) Support
◦HDR10
◦HLG
◦Dolby Vision
◦Custom HDR Memory
◦4 Native HDR Test Patterns
◦ BT. 2020 (Wide Color Gamut WCG) Support
· HDCP Content Type Selectable
◦ Type 0 - Type 0 content can pass over any version of HDCP (1.x or 2.x)
◦Type 1 - Type 1 content requires mandatory HDCP 2.x
Introduction
The Murideo 8K SIX-G is an HDMI pattern generator intended for the AV integration market to
confirm HDMI 2.0(b) and HDCP 2.2 operation at the 40Gbps level. Additionally, the SIX-G is an
excellent field troubleshooting tool for distributed high bandwidth HDMI systems and a reference
source for video calibration. This device can create a signal that allows it to act as any modern
HDMI source.
The handheld device is portable thanks to a built-in battery and can generate over 100 different
test patterns for setup, calibration and troubleshooting. There’s a three-inch color display with
simplified menus as well as free PC control software. The 8K SIX-G also features Hot Plug Detect,
EDID read/write functionality and the ability to create custom resolutions. There’s the option for
either RS232 or USB control and support for CalMAN and Light Illusion calibration software. The
8K SIX-G is the only unit to carry the complete suite of ISF test patterns, select-able color output
level, RGB Triplets and Constant APL (Average Picture Level) all in one place, making it a
calibrators dream. The 8K SIX-G is ISF Labs and DPL Labs certified, the firmware is field
upgradable, and it even includes audio confidence tests.
Note: The SIX-G ships with a protective cover on the screen that you may remove, although this is not
required for operation.
NOTE: This document contains many technical terms and acronyms. If you are unsure of what these
mean we have a full GLOSSARY of Audio Video terms with definitions available at www.murideo.com
Features
5
· CEC Test - CEC Pass/Fail test. Connect to an HDMI INPUT/OUTPUT to validate CEC
functionality
· Sync & Latency Test. When using SIX-G-8K/SIX-A-8K Pair
·Full 10-Bit RGB Triplet Generator (0-1024 RGB)
·HDCP Selectable - Off, HDCP 2.x or HDCP 1.x
· Hot Plug Detect Indicator Light
·ISF Certified. Test Patterns including contrast, brightness, color, tint, sharpness and more.
·DLP Labs Certified
· EDID Read and Save functionality
◦x6 EDID Memory Slots
◦ Read and Display EDID (quick glance on device, detailed information using PC software)
◦Emulate any display
· USB/Serial Control
·Free PC software (Control, Custom Pattern Uploader) @ www.murideo.com
·API (Application Programming Interface) Available upon request @ www.murideo.com
·Reference Source for third party calibration software.
· Portable, Battery Operated
·3” LCD display with simple menu system
·Native 4K Geometry Pattern in multiple Timings (Frame Rates)
·Audio test tones for confidence testing
What’s in the box
· MU-SIX-G-8K Generator
·12V 2A DC/AC Power Supply / Charger (110-240 VAC)
with set of International plugs (US, UK, AU, EU)
·Rechargeable Battery Pack (Internal)
· x1 Micro USB to USB A cable
·x1 3.5mm to DB9 (F) serial cable adapter

FRONT PANEL OVERVIEW
76

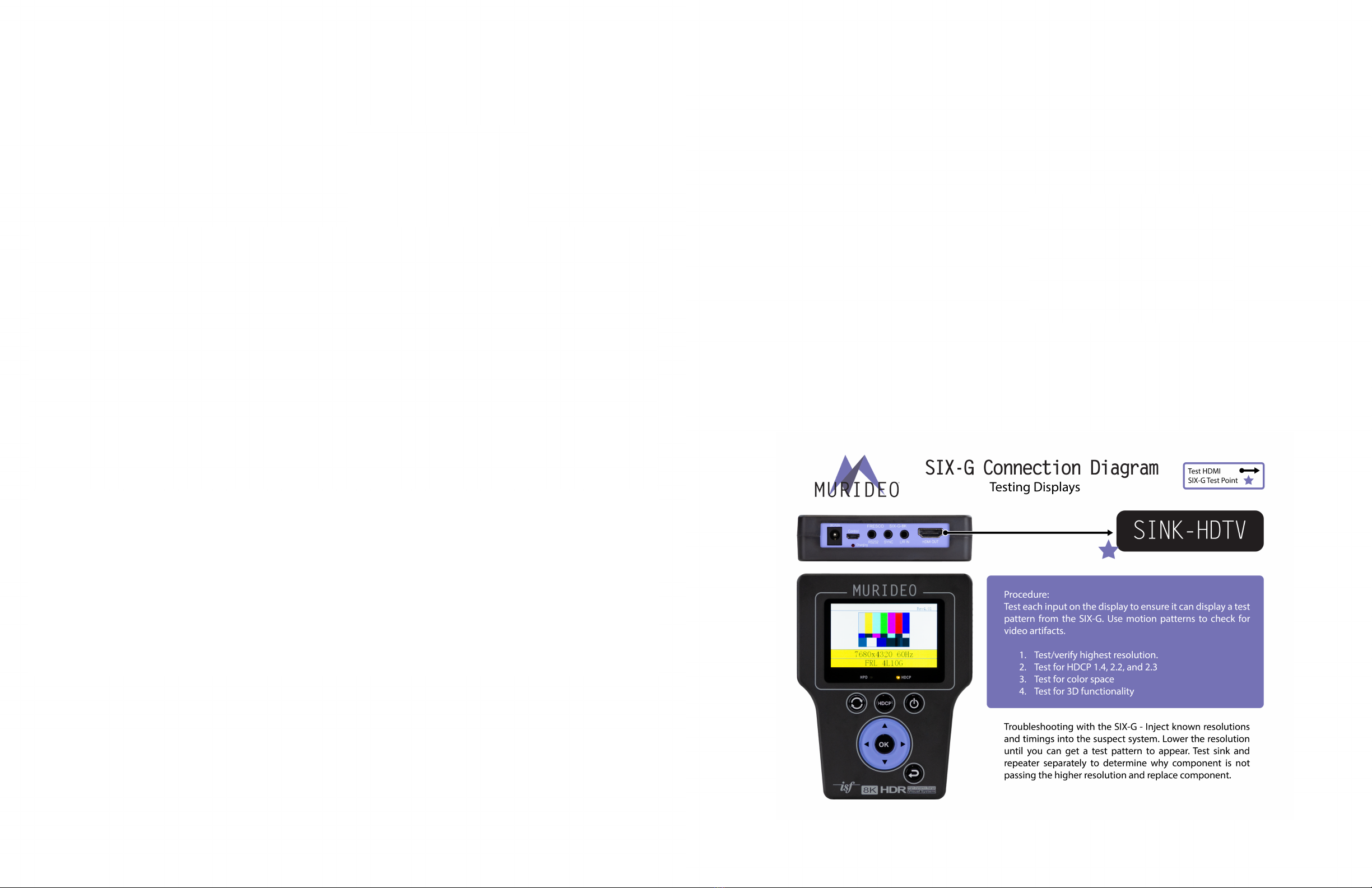

Connection Overview:

98
Video Generator: Timing & Resolution
Use this page to select the resolution and frame rate of the generated video signal.
It contains the following options:
Use the Timing Shortcut button to jump to 6 commonly used Timing & Resolutions. Press the UP/DOWN
arrow keys to choose, then the OK button to select.
The rst 6 slots can be accessed by pressing the Timing Shortcut button. If you would like a resolution
that is not listed under the Timing Shortcut button press the right arrow button to access the other 64
available timings & resolutions.
Video Generator: 4K Geometry 178
This menu contains one native 4k geometry pattern.
This pattern in available in multiple frame rates. These include the following options:
1. 3840x2160 30Hz
2. 3840x2160 29.97Hz
3. 3840x2160 25Hz
4. 3840x2160 24Hz
5. 3840x2160 23.98Hz
6. 3840x2160 60Hz
7. 3840x2160 59.94Hz
8. 3840x2160 50Hz
1. 1080P 60Hz
2. 4096x2160 24Hz
3. 3840x2160 30Hz
4. 3840x2160 60Hz
5. 7680x4320 30Hz
6. 7680x4320 60Hz
7. 1280x1024 60Hz
8. 1400x1050 60Hz
9. 1600x1200 60Hz
10.1920x1200 60Hz
11.480I 59.94Hz
12.480P 59.94Hz
13.720P 60Hz
14.720P 59.94Hz
15.1080I 60Hz
16.1080I 59.94Hz
17. 1080P 30Hz
18.1080P 29.97Hz
19.1080P 24Hz
20.1080P 23976Hz
21.1080P 60Hz
22.1080P 59.94Hz
23.576I 50Hz
24.576P 50Hz
25.720P 50Hz
26.1080I 50Hz
27. 1080P 25Hz
28.1080P 50Hz
29.3840X2160 30Hz
30.3840X2160 29.97Hz
31.3840X2160 25Hz
32.3840x2160 24Hz
33.3840x2160 23.98Hz
34.4096x2460 24Hz
35.3840x2160 60Hz
36.3840x2160 59.94Hz
37. 3840x2160 50Hz
38.720P 60Hz (3D-FP)
39.720P 59.94Hz (3D-FP)
40.1080P 24Hz (3D-FP)
41.1080P 23.976Hz (3D-FP)
42.720P 50Hz (3D-FP)
43.AUTO
44.USER1
45.USER2
46.USER3
47. USER4
48.USER5
49.USER6
50.USER7
51.USER8
52.USER9
53.USER10
54.4096x2160 30Hz
55.4096x2160 29.97Hz
56.4096x2160 25Hz
57. 4096x2160 23.976Hz
58.4096x2160 60Hz
59.4096x2160 59.94Hz
60.4096x2160 50Hz
61.7680x4320 30Hz
62.7680x4320 29.97Hz
63.7680x4320 25Hz
64.7680x4320 24Hz
65.7680x4320 23.98Hz
66.7680x4320 60Hz
67. 7680x4320 59.94Hz
68.7680x4320 50Hz
69.7680x4320 48Hz
70.7680x4320 47.95Hz
Video Generator: Color Space
Select the Color Space for the display or system you are testing.
These include the following options:
·RGB (0-255) – RGB Full is generally reserved for PC monitors since PCs use full range RGB.
·RGB (16-235) – RGB Limited - HDTV SMPTE Range – Movies and most video based content (TV Shows, streaming,
etc.) are viewed and produced within this range.
·YC444 (16-235)- YCbCr 4:4:4 - Full horizontal & vertical resolution – no chroma-subsampling is used.
·YC422 (16-235) – YCbCr 4:2:2 – ½ horizontal resolution, full vertical resolution.
·YC420 (16-235) – YCbCr 4:2:0 – ½ horizontal resolution, ½ vertical resolution.
·AUTO – The Generator will output the color space of the connected device based on that device’s EDID.
NOTE: The human eye is less sensitive on color data compared to luminance; color data for that rea-
son is ½ horizontal and vertical resolution. Generally YC422 is the setting for most consumer electronics
sources like Blu-ray players and cable/satellite boxes.

10
Video Generator: BT. 2020 SETUP
Enable/Disable BT2020 (Wide Color Gamut).
The options include:
· BT. 2020 Disable
· BT. 2020 Enable
NOTE: When BT. 2020 is Disabled the default color gamut is BT. 709
11
Video Generator: Deep Color Depth
Deep Color Depth - Also known as Color Depth/Bit Depth.
Allows selection of bit depth between 8 and 16-bits per pixel.
This menu contains the following options:
1. 8Bit
2. 10Bit
3. 12Bit
4. 16Bit
Note: Resolution/Timing, Color Space, and Bit Depth are interrelated and they all eect the total band-
width. If the bandwith exceeds the system’s capabilities, you may have to lower any of these parameters.
If not, you may experience no signal or no image on the display under test.

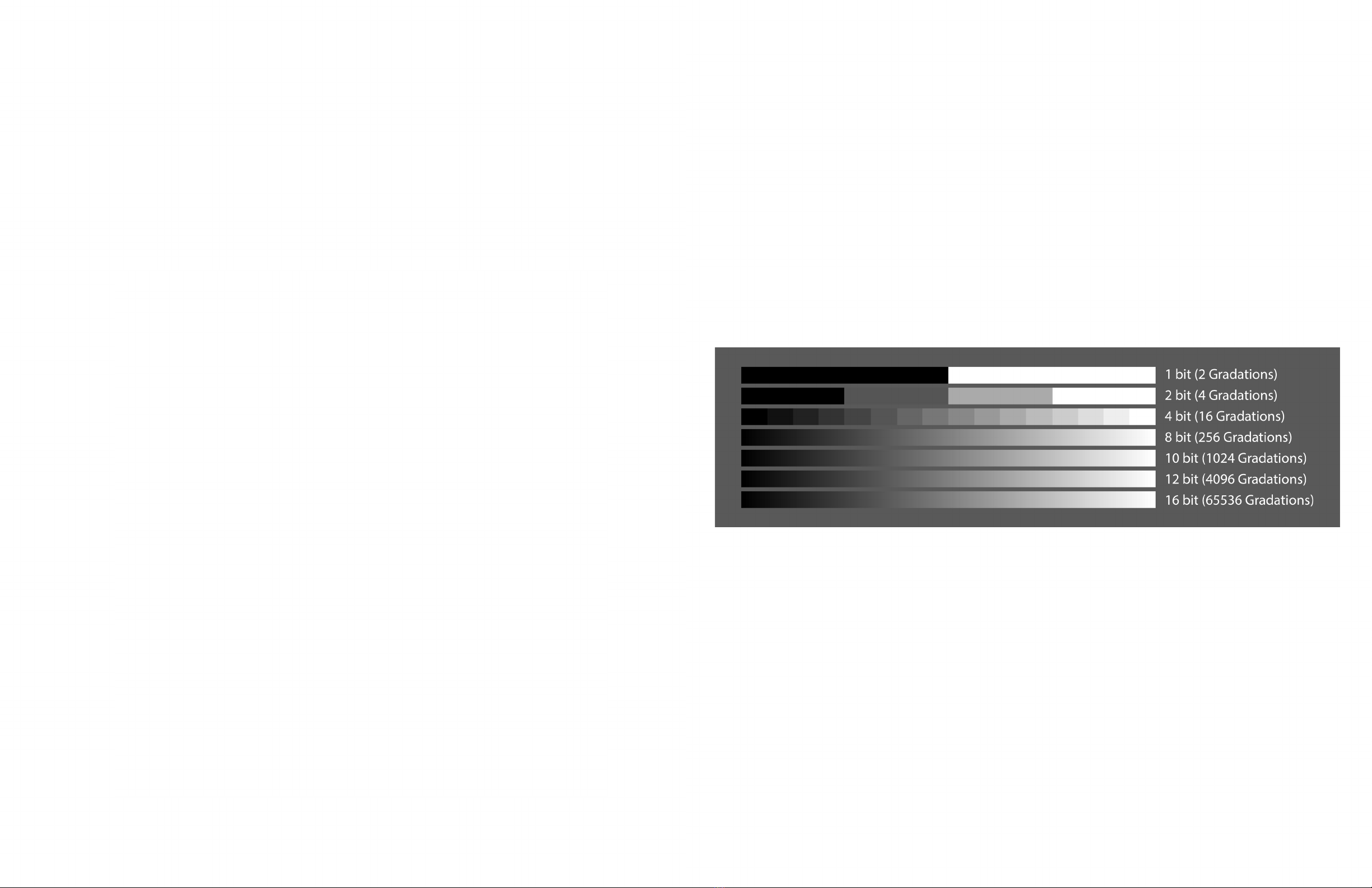

As the Bit Depth increases the image looks smoother, especially within solid colors in the image.

12
Video Generator: HDCP Setup
In this menu you can enable or disable HDCP. Disabling HDCP may be useful while troubleshooting.
These menu contains the following options:
1. HDCP OFF
2. HDCP1.4
3. HDCP2.3
13
Video Generator: HDMI /DVI Setup
This menu will allow you to select between HDMI and DVI as the SIX-G-8K’s output. Although the SIX-G-
8K’s physical output port is HDMI, if using an HDMI to DVI adaptor anywhere in the signal chain this may
result in no signal or no image on the display under test.
This menu contains the following options:
1. DVI
2. HDMI
3. AUTO
Note: Use the DVI option if there is an HDMI to DVI adaptor anywhere in the signal chain. Use the
HDMI option if all the cables in the signal chain are HDMI. The connection type is embeded in the EDID
(extended display identication data) data block. Using the AUTO setting the SIX-G-8K will automatically
select HDMI/DVI based on the EDID of the display under test.
Diagram #1 6G >> HDMI >> DISPLAY
Label “Use HDMI”/ “AUTO”
Diagram #2 6G >> HDMI DVI Adaptor >> DISPLAY
Label “Use DVI”/”AUTO”
Video Generator: HDCP 2.2 Content Type
Content Type 0, Content Type 1
·Content Type 0 - Does not require HDCP2.2 (will fall back to previous versions)
·Content Type 1 - Requires HDCP 2.2 (will not fall back to previous versions)

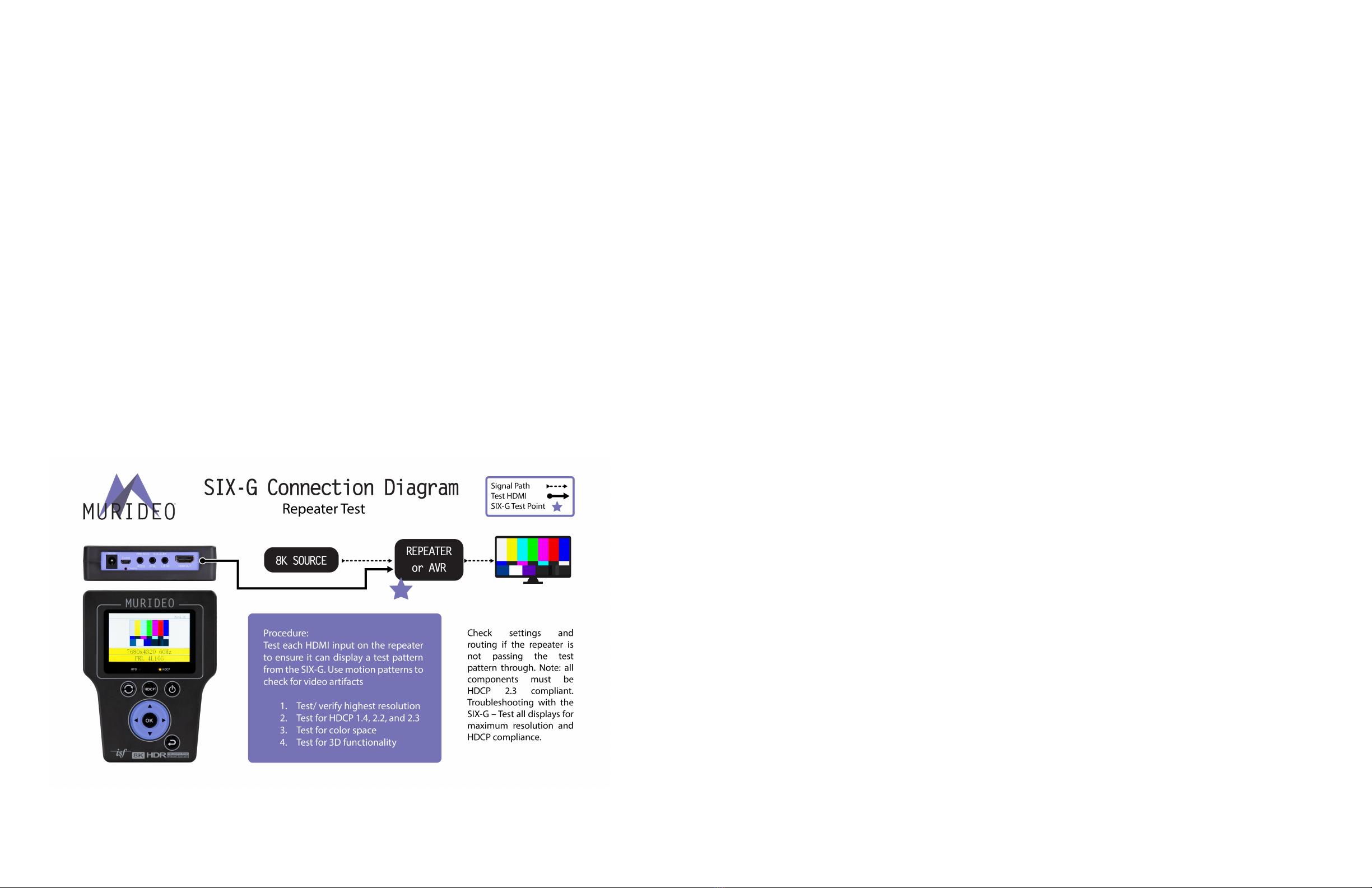

The above example the repeater/AVR cannot pass HDCP 2.x (resulting in “HDCP Snow”). Steps must
be taken to convert, bypass, or replace the non-compliant device.

14
Video Generator: HDR Pattern
The SIX-G-8K contains 3 HDR test patterns and 1 HDR reference image provided by DVS (www.diversi-
edvideosolutions.com). These test patterns/image are natively 1920x1080@60Hz 4:2:2 12Bit 1000nits.
Use the test patterns to verify black level, white level, and color saturations are set correctly on the dis-
play. Use the reference image for conrmation.
15
Video Generator: HDR SETUP
Choose from O, or from 8 customizable HDR Test Info-frame. The included HDR levels are some of the
most commonly used. If you would like to build a custom HDR Infoframe please use the SIX-G-8K’s PC
Control Software.
This menu contains the following options:
1. HDR OFF
2. HDR1 (10000nits)
3. HDR2 (600nits)
4. HDR3 (540nits)
5. HDR4 (4000nits)
6. HDR5 (1000nits)
7. HDR6 (250nits)
8. HDR7 (1000nits)
9. HDR8 (540nits)
Black Clipping - This test pattern shows black level from code value 64
up to code value 156. Code value 64 is REFERENCE BLACK. Ideally you
can see code value 68 and greater while still preserving code value 64 as
black.
NOTE: Some consumer displays cannot resolve some of the bars above
64. This is due to the display’s limited capabilities.
White Clipping - When viewing this pattern on a display you should be
able to see all of the white bars up to the display’s capabilities. For ex-
ample if you are viewing this on a display that is only capable of 800nits
the last several bars will be clipped (look the same). If the display is
capable of 1,400nits or more you should see all of the bars.
Color Clipping - When viewing this pattern on a display you should be
able to see a dierence in all of the gradients in white and the primary/
secondary colors. This is based on the display’s limited capabilites.
NOTE: This test pattern was mastered with a maximium luminance of
10,000nits. If the display you are testing is only capable of 1,000nits,
everything after that will be clipped (look the same).
Indian Market - This is an HDR reference test image. This can be used
as a condence test to ensure that the display under test is displaying
HDR correctly. If the display is calibrated you should be able to see de-
tails in her hair, her skin tone should look natural, the colors of the food/
spices should look natural, and the entire image should be free of arti-
facts and edge enhancement.

16
Audio Generator:
The SIX-G-8K is also capable of generating audio test tones for condence testing. If using the SIX-G-8K
for audio testing you can set the following:
· Audio Sampling Rate
·Audio Sampling Size
· Audio Source
· Audio Channels
· Audio Volume
Once you select the audio output parameters the SIX-G-8K will output a 1KHz test tone. If testing a dis-
play you should hear the test tone through the display’s speaker(s). If testing an audio system you can
assign the test tone to play through all of the speakers or select speakers (2CH up to 8CH). Once you
have selected the audio channels you can set the volume of the test tone.
NOTE: If you would like you can use an external audio source instead of the internally generated test
tone. See page 20 (AUDIO SOURCE) for more details.
17
Audio Generator: Audio Sample Rate
Allows audio sampling rates between 32K and 192K.
This menu contains the following options:
1. 32K
2. 44.1K
3. 48K
4. 88K
5. 96K
6. 176K
7. 192K
NOTE: There is no “one size ts all” setting for Audio Sample Rate. Choose the selection that you need
for your specic application.
Example image SIX>>HDMI>>AVR>>Speakers (speakers highlighted / 2CH example).
Audio Generator: Audio Sample Size
This menu contains the following options:
1. 16Bit
2. 20Bit
3. 24Bit
NOTE: There is no “one size ts all” setting for Audio Sample Size. Choose the selection that you need
for your specic application.

18
Audio Generator: Audio Source
This menu contains the following options:
1. INT. SineWaveTone (1K)
2. EXT. Stereo
If you would like to use an external audio source instead of the internal test tone generator select the
EXT (external) Stereo setting. Connect your audio source to the 3.5mm “L/R IN” port on the connections
panel.
NOTE: You must set your audio source to 2 Channel PCM for this to work properly.
19
Audio Generator: Audio Channels
In this menu you can select 32 speaker congurations from 2 channel up to 8 channel. The SIX-G-8K will
support up to 8 channels of audio with the highest resolution being 192KHz/24bit. While in this menu
to change speaker congurations use the UP/DOWN arrow buttons. Once you have chosen your desired
speaker conguration press the OK button to set.
This menu contains the following options:
·2CH (Front Left/Front Right)
·2.1CH (Front Left/Front Right/LFE [Low Frequency Eect])
·3CH (Front Left/Front Center/Front Right)
·3.1CH (Front Left/Front Center/Front Right/LFE)
·3CH (Front Left/Rear Center/Front Right)
·3.1CH (Front Left/Rear Center/Front Right/LFE)
·4CH (Front Left/Front Center/Front Right/Rear Center)
·4.1CH (Front Left/Front Center/Front Right/Rear Center/LFE)
·4CH (Front Left/Front Right/Rear Left/Rear Right)
·4.1CH (Front Left/Front Right/Rear Left/Rear Right/LFE)
·5CH (Front Left/Front Center/Front Right/Rear Left/Rear Right)
·5.1CH (Front Left/Front Center/Front Right/Rear Left/Rear Right/LFE)
·5CH (Front Left/Rear Center/Front Right/Rear Left/Rear Right)
·5.1CH(Front Left/Rear Center/Front Right/Rear Left/Rear Right/LFE)
·6CH (Front Left/Front Center/Front Right/Rear Left/Rear Center/Rear Right)
·6.1CH (Front Left/Front Left Center/Front Right Center/Front Right/Rear Left/Rear Right/LFE)
·6CH (Front Left/Front Left Center/Front Right/Front Right Center/Front Right/Rear Left/Rear Right)
·6.1CH (Front Left/Front Left Center/Front Right Center/Front Right/Rear Left/Rear Right/LFE)
·7CH (Front Left/Front Left Center/Front Right Center/Front Right/Rear Left/Rear Right)
·7.1CH (Front Left/Front Left Center/Front Right Center/Front Right/Rear Left/Rear Right/LFE)
·4CH (Front Left/Front Left Center/Front Right Center/Front Right)
·4.1CH (Front Left/Front Left Center/Front Right Center/Front Right/LFE)
·5CH (Front Left/Front Left Center/Front Center/Front Right Center/Front Right)
·5.1CH (Front Left/Front Left Center/Front Center/Front Right Center/Front Right/LFE)
·5CH (Front Left/Front Left Center/Front Right Center/Front Right/Rear Center)
·5.1CH (Front Left/Front Left Center/Front Right Center/Front Right/Rear Center/LFE)
·6CH (Front Left/Front Left Center/Front Center/Front Right Center/Front Right/Rear Center)
·6.1CH (Front Left/Front Left Center/Front Center/Front Right Center/Front Right/Rear Center/LFE)
·6CH (Front Left/Front Left Center/Front Right Center/Front Right/Rear Left/Rear Right)
·6.1CH (Front Left/Front Left Center/Front Right Center/Front Right/Rear Left/Rear Right/LFE)
·7CH (Front Left/Front Left Center/Front Center/Front Right Center/Front Rear/Rear Left/Rear Right)
·7.1CH (Front Left/Front Left Center/Front Center/Front Right Center/Front Rear/Rear Left/Rear Right/LFE)
NOTE: When changing channel selections each channel will be illuminated in green. Once you have
choosen the selection press the OK button to set. The channels and format will now be illuminated in red.
Audio Generator: Audio Volume
Use this menu to adjust the output volume level of the internaly generated test tone. To change volume
use the UP/DOWN arrow buttons. If you set the volume level to ZERO (00) the volume will be muted.
NOTE: The volume level control does not eect the 3.5mm L/R Input.

20
IRE Window:
Use this menu to change the size and level of the window test pattern. This may be helpful when work-
ing with dierent display types. Once in this menu press the OK button. Use the UP/DOWN buttons to
INCREASE/DECREASE the window size. Use the LEFT/RIGHT buttons to LOWER/RAISE the level of the
test pattern.
NOTE: Size can be adjusted from 0-100. Level can be adjusted from 0-255 (black to white) in incre-
ments of one. To adjust in increments of more than one press and hold either UP/DOWN/LEFT/RIGHT
depending on whether you are changing size or level.
21
RGB Triplet:
Use this menu to create a custom window test pattern. Here you can control the size and color of not
only the window but also the background of the test pattern. This can be used for SDR and Dolby Vision/
HDR. RGB Triplets are the numerical values used for making over 16,000 colors. Combining the RGB val-
ues will generate a specic color. For example the RGB triplet value for white is R=255, G=255, B=255.
Once in this menu you can change the RGB Values for both the even and odd lines that make up the win-
dow, the even and odd lines of the background, the size of the window, and whether the window moves
or is stationary.
To change values you will use the UP/DOWN arrow buttons to INCREASE/DECREASE the value of R,G,B.
Use the OK button to advance through the menu.
To change the size of the window press the OK button until SIZE is highlighted. Use the UP/DOWN
arrow buttons to change the size. The size can be adjusted from 0% to 100%. Setting the size to 100%
will result in the window pattern filling up the entire screen of the display you are testing.
To select whether the window moves or is stationary press the OK button until MOVE is highlighted.
There are two options:
D (Disable) or E (Enable). Use D for a stationary window. Use E for a moving window. If using E the
window will scroll right to left across the display you are testing.
To toggle the output between SDR and Dolby Vision/HDR press the OK button until MODE is highlighted.
To choose SDR use the NORMAL setting. To choose HDR/Dolby Vision use the DV HDR setting.
NOTE: Although you can use this tool using the front panel controls we HIGHLY recommend you use the
free PC Control Software.....Show screenshot W/Mouse of this menu in the software.

22
CEC Test:
The CEC (Consumer Electronics Control) test is a simple pass/fail test to conrm CEC is functioning on the
device that is connected to the SIX-G-8K. This can be either a source, repeater, or sink (display). To run
the CEC test connect an HDMI Cable from the SIX-G-8K to the device you are testing. Navigate to the
CEC TEST menu and press the OK button. The test results will be either:
1. PASS
2. FAIL
1. PASS 2. FAIL
NOTE: This test will fail 100% of the time if CEC is not ENABLED on the device you are testing. For
specic instructions on how to enable CEC on the device you are testing, see the owner’s manual of that
device.
23
Sync & Latency Test:
This test is designed to measure (in microseconds “us”) the sync and latency between the source and
sink. This could be something as simple as an HDMI cable or as complex as a distributed AV system.
The results of this test will give you the data needed to adjust any audio or video delay adjustments in
the AV system.
This test requires the use of both the SIX-G-8K and the SIX-A-8K. In this example we will test the
laten-cy between the SIX-G-8K and SIX-A-8K (Generator/Analyzer) when the signal is ran through a
repeater device.
1. Connect the SIX-G-8K to an INPUT of the repeater (AVR) with an HDMI cable
2. Connect the SIX-A-8K to the OUTPUT of the repeater (AVR) with an HDMI cable
3. Using a 3.5mm analog stereo cable, connect the SIX-G-8K to the SIX-A-8K using the SYNC port on both devices
4. Navigate to the SYNC & LATENCY TEST Menu
5. Press the OK Button
6. Read results
NOTE: If the test shows as FAILURE check that the 3.5mm cable is fully inserted into the SYNC port on
both devices.

24
Auto Power O:
You can set your SIX-G-8K to power o automatically when not in use. This will help save battery life.
This menu contains the following options:
·DISABLE - The SIX-G-8K will remain powered on until you power if o manually.
·ENABLE - The SIX-G-8K will automatically power down after 10 minutes of inactivity.
NOTE: This setting is enabled by default.
Output Standby:
You can set your SIX-G-8K to go into sleep mode. If no HPD (Hot Plug Detect) is detected after 10 min-
utes, the SIX-G-8K will go to sleep. If the SIX-G-8K is sleeping press any button to wake it up.
This menu contains the following options:
·STANDBY OFF - The SIX-G-8K will never go to sleep
·STANDBY ON - The SIX-G-8K will go to sleep after 10 minutes of inactivity
25
Save EDID:
You can save up to 6 EDIDs from any device that has an EDID. Reading the EDID of the device that you
are testing will help you understand the capabilities of the device. To save and EDID:
1. Connect an HDMI Cable between the SIX-G-8K and the device you would like to read the EDID from
2. Navigate to the SAVE EDID menu
3. Use the UP/DOWN arrow buttons to choose a slot/memory (1-6)
4. Press the OK button
If the SIX-G-8K succesfully reads the EDID of the device you are testing you will see SUCCESS next to
the slot/memory.
If the SIX-G-8K was not able to read the EDID of the device you are testing you will see FAILURE next
to the slot/memory. If this happens be sure the HDMI cable is fully inserted into the HDMI ports on
both devices.

26
Sink EDID Info:
This menu will give you the basic EDID information of the device that is connected to the SIX-G-8K. This
information includes the device’s manufacturer, preered timing, and more.
NOTE: To see detailed information about the EDID use the SIX-G-8K PC Control Software.
27
Battery Stats:
This menu will show you the current status of the SIX-G-8K’s internal battery.
NOTE: If the SIX-G-8K’s battery is low you can operate it while plugged into power. This will also charge
the battery while the SIX-G-8K is in use.

28 29
Test Patterns: Usage and explaination List of supported resolutions

Warranty and Getting Help
AVPro Global Holdings (DBA MURIDEO) oers a 2 year international limited warranty for its Murideo prod-
ucts. Any product rst sold to you is guaranteed to be free from defects in both components and work-
manship under regular uses. The warranty period commences on the date the item ships. Attention: Your
invoice with the date of purchase, model number and serial number of the product is your proof of the
date of purchase. The International Limited Warranty is applicable and shall be honored in every country
where MURIDEO or its Authorized Service Providers oer warranty service subject to the terms and condi-
tions provided in this International Limited Warranty Statement. Products included in this warranty:
· Murideo SEVEN Generator
· Murideo SIX G Generator
·Murideo SIX A Analyzer
· Murideo Fox & Hound Testing and Troubleshooting Kit`
· Murideo 4K HDMI Test Monitor
During the warranty period, the defective hardware of Murideo products will be either repaired or re-
placed, with new or like new products, at the discretion of Murideo. This International Limited Warranty
covers the costs of service parts and labor required to restore your product to fully functional condition.
MURIDEO will, at its discretion, repair or replace any defective products or parts thereof covered by this
International Limited warranty with refurbished parts of the product that are equivalent to new or like new
products in both functionality and performance. A product or part that is repaired or replaced under this
International Limited Warranty shall be covered for the remainder of the original warranty period applying
to the product or part, or for 90-days, whichever expires last. All exchanged parts and products under this
International Limited Warranty will become the property of MURIDEO.
30
Obtaining the Warranty Service
Warranty service or Returned Merchandise Authorization (RMA) under this International Limited Warranty
will be honored only if claims are made within the warranty period. For notications to MURIDEO or prod-
ucts outside the warranty period, the process will be the same, but charges may apply. Contact details
may be obtained on MURIDEO website https://www.murideo.com/
Customers are requested to perform the following actions before claiming MURIDEO product as defective:
(a) Owner must notify MURIDEO, during the warranty period, in writing of alleged defect, and allow MU-
RIDEO a reasonable opportunity to inspect the allegedly defective product;
(b) No Product may be returned without MURIDEO’s consent, The MURIDEO RMA# must accompany
all returns, and all returns must be delivered to MURIDEO within the warranty period;
(c) Owner may, then at its own expense, return the allegedly defective Product, freight pre-paid and in
the original packaging, accompanied by a brief statement explaining the alleged defect to MURIDEO;
(d) If MURIDEO determines that any returned Product is not defective, or if MURIDEO determines that
the defect is not covered by the warranty, MURIDEO will return the Product to the Owner at Owner’s ex-
pense, freight collect, and Owner agrees to pay MURIDEO’s reasonable cost of handling and testing;
(e) Upon determining that a returned product is defective, to receive warranty service Owner will
need to present the invoice showing the original purchase transaction. If shipping the product, Owner will
need to package it carefully and send it, transportation prepaid by a traceable, insured method, to the
MURIDEO Service Center. Package the product using adequate padding material to prevent damage in
transit. The original container is ideal for this purpose. Include the RMA #, your name, return shipping ad-
dress, email address and telephone number where you may be reached during business hours, inside the
shipping package with the unit. Any replacement unit will be warranted under these Terms and Conditions
for the remainder of the original warranty period or ninety (90) days whichever is longer.
Refer to user manual available for download on our website http://www.murideo.com/ for important tips
on how to operate and troubleshoot the product.
31

·Damage caused by act of nature, such as re, ood, wind, earthquake, lightning, etc.
· Damage or incompatibility caused by failure to perform a proper installation or to provide an appropriate operational
environment for the product, including but not limited to unstable wired/wireless network connection and phone lines,
bad grounding, external electro-magnetic elds, direct sunlight, high humidity and vibration.
·Damage caused by impact with other objects, dropping, falls, spilled liquids, or submersion in liquids.
·Damage caused by unauthorized repair or disassembling of the product.
· Damage caused by any other abuse, misuse, mishandling, or misapplication.
·Damage caused by third party peripherals (including but not limited to visible damages on motherboard or other elec-
tronic parts of the product such as burn spots after electric discharge, melting, fusing, splitting, etc.)
·Any unauthorized software or modication of built-in software not approved by MURIDEO.
·The serial number of the product (or serial number stickers of its parts) has been modied, removed, blurred or dam-
aged.
· Defects caused by transportation, handling or customer abuse.
Disclaimer of Warranty
THIS WARRANTY IS EXPRESSED IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, IN-
CLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, THE IMPLIED WARRANTY OF FITNESS FOR
APARTICULAR PURPOSE AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON MURIDEO’S PART, AND
ITNEITHER ASSUMES NOR AUTHORIZES ANY OTHER PARTY TO ASSUME FOR MURIDEO ANY OTH-
ERLIABILITIES. THE FOREGOING CONSTITUTES THE BUYER’S SOLE AND EXCLUSIVE REMEDY FOR
THEFURNISHING OF DEFECTIVE OR NONCONFORMING PRODUCTS AND MURIDEO WILL NOT IN ANY
EVENT BELIABLE FOR COST OF SUBSTITUTE OR REPLACEMENT, COST OF FACILITIES OR SERVICE,
DOWNTIMECOSTS, LOSS OF PROFITS, REVENUES OR GOODWILL, RELIANCE DAMAGES, LOSS OF DATA,
LOSS OFUSE IF OR DAMAGE TO ANY ASSOCIATED EQUIPMENT, OR ANY OTHER INDIRECT, INCIDENTAL,
SPECIAL,OR CONSEQUENTIAL DAMAGES BY REASON OF THE FACT THAT SUCH PRODUCTS WILL HAVE
BEENDETERMINED TO BE DEFECTIVE OR NONCONFORMING. THE RIGHTS AND OBLIGATIONS OF THE
PARTIES UNDER THIS AGREEMENT SHALL NOT BE GOVERENED BY THE PROVISIONSOF THE 1980 U.S.
CONVENTION ON CONTRACTS FOR THE INTERNATIONAL SALE OF GOODS OR THE UNITED NATION-
SCONVENTION ON THE LIMITATION PERIOD IN THE INTERNATIONAL SALE OF GOODS, AS AMENDED
(COLLECTIVELY, THE“CONVENTIONS”); RATHER, THE RIGHTS AND OBLIGATIONS OF THE PARTIES
SHALL BE GOVERNED BY THE LAWS OF THE STATE of SOUTH DAKOTA, INCLUDING ITS PROVISIONS OF
THE UNIFORM COMMERCIAL CODE, AS APPLICABLE. FOR THE AVOIDANCE OF DOUBT, THE CONVEN-
TIONS ARE HEREBY EXCLUDED.
This Limited Warranty gives you specic legal rights. You may also have other rights that may vary from
state to state or from country to country. You are advised to consult applicable state or country laws for
full determination of your rights. Some jurisdictions do not allow the exclusion or limitation of special, inci-
dental or consequential damages, or limitations on how longa warranty lasts, so the above exclusion and
limitations may not apply to everyone.
32
Getting Help
For service and support, contact your local dealer.
To nd your dealer or to contact MURIDEO support, go to: https://support.murideo.com/
Or call
[phone] for worldwide technical support
Legal notices
MURIDEO® Logos are trademarks or registered trademarks of AVPro Global Holdings, Inc. in the United
States or other countries. ISF® and the ISF logo are trademarks or registered trademarks of, and are
used under license from, Imaging Science Foundation, LLC. in the United States or other countries.
All other trademarks and registered trademarks are the property of their respective owners in the United
States or other countries. The absence of a trademark symbol does not constitute a waiver of Silicon Im-
age’s trademarks or other intellectual property rights with regard to a product name, logo or slogan.
33
