PowerView®
ModelPV485
InstallationManual

In order to consistently bring you the highest quality, full-featured products, we reserve the right to change our
specifications and designs at any time. The latest version of this manual can be found at
www.murphybyenovationcontrols.com.
BEFORE BEGINNING INSTALLATION OF THIS MURPHY
PRODUCT:
Read and follow all installation instructions.
Please contact Enovation Controls immediately if you have
any questions.
A visual inspection of this product for damage during
shipping is recommended before installation.
It is your responsibility to ensure that qualified mechanical
and electrical technicians install this product.
Contact Enovation Controls’ Technical Service if you have any
questions or concerns at: [phone].

Table of Contents
Hardware Installation.................................................................................................................1
Inspecting Package Contents.......................................................................................1
Tools needed. ..............................................................................................................1
Dash-Mounted Installation............................................................................................1
Rear-Mounted Installation (Optional) ...........................................................................2
Wiring Instructions 4
PIN Specifications for AMPSEAL Style Connection.....................................................4
Accessories..................................................................................................................4
Configuration Information ........................................................................................................5
Specifications.............................................................................................................................6
Technical......................................................................................................................6
Environmental..............................................................................................................6
Mechanical...................................................................................................................6
Mounting Templates..................................................................................................................7
Dash-Mount Template..................................................................................................7
Rear-Mount Bracket Template.....................................................................................9
PV485 Connection with Power...............................................................................................11

(THIS PAGE INTENTIONALLY LEFT BLANK)

Section 78 00-02-1018
2017-05-23 - 1-
Hardware Installation
The following instructions will guide you through installing the PV485 display.
Inspecting Package Contents
Before attempting to install the product, it is recommended that you ensure all parts are
accounted for and inspect each item for damage (which sometimes occurs during shipping).
The items included in the box are:
Installation kit –P/N 78-00-0783 includes:
4 (8-32) mounting studs
4 (8-32) Keps Nuts
1 small bag
Tools needed.
Drill with 3/16” size bit
Jig Saw
Wrench or socket for (8-32) Keps nuts
Dash-Mounted Installation
Preparing the Dash
Determine the location of the PowerView 485 in the dash. Use the Installation Template
(included at the end of the manual) as a guideline to cut a hole in the dash to the specified
dimensions. Drill holes where indicated on the template for the mounting screws.
NOTE: When using the paper template from the manual, please be aware that if
you downloaded this document from the Murphy by Enovation Controls website,
the pdf file may not automatically print to scale. When submitting the file for print,
you will need to select “None” for Page Scaling. Check the accuracy of the
printed template by verifying the measurements labeled on the template are
correct.
If this manual was supplied with your product, the template will be correct.

Section 78 00-02-1018
2017-05-23 - 2-
Installing the Display
Place the back side of the display through the opening in the dash.
1. Use the 4 screws to line up the unit with the drilled holes.
2. Push the unit through the opening and screws through the
drilled holes until the back of the case is flush.
3. Use the Keps nuts provided to tighten unit to the dash. Use the
appropriate wrench or socket to tighten. Torque lock nuts to 8-
10 inch pounds.
Rear-Mounted Installation (Optional)
Attach the Rear-mount bracket (P/N 78-00-0815) to the backside of the
unit.
1. Use the 4 screws to line up the rear-mount bracket with the
drilled holes.
2. Push the unit through the opening and screws through the drilled
holes until the back of the case is flush.
3. Use the Keps nuts provided to tighten unit to the dash. Use the
appropriate wrench or socket to tighten. Torque lock nuts to 8-10
inch pounds.
Mounting Options
Screws
1. Use the Installation Template (included at the end of the manual)
as a guideline to cut a hole in the mounting plate to the specified
dimensions and drill holes where indicated on the template for
the mounting screws.
2. Place the display behind dash and line up the four mounting holes on the rear-mount
bracket with the holes in dash.
3. Install four 8-32 screws (not provided) and torque lock nuts to 8-10 inch pounds.

Section 78 00-02-1018
2017-05-23 - 3-
Studs
1. Use the Installation Template (included at the end of the manual) as a guideline to cut a
hole in the mounting plate to the specified dimensions and weld 8-32 studs where
indicated on the template for mounting.
NOTE: Weld Studs and nuts are not provided. 8-32 Keps Nuts, Lock Nuts, or Nuts with
lock washers would need to be used.
2. Place the display behind dash and line up the four 8-32 welded studs with the holes in
rear-mount bracket.
3. Torque lock nuts to 8-10 inch pounds.
Dimensions for Installation

Section 78 00-02-1018
2017-05-23 - 4-
Wiring Instructions
PIN Specifications for AMPSEAL Style Connection
Accessories
P/N 78-00-0824 –Wiring Harness, Loose leads, 24 inches
P/N 78-09-0077 –Programming Harness

Section 78 00-02-1018
2017-05-23 - 5-
Configuration Information
Follow these steps to download a custom configuration to the PV485 display:
Step
Action
1
Ensure that PowerVision is open on your computer.
2
Connect the PV485 to the computer with the programming harness.
NOTE: If PowerVision does not detect the display, go to the Adapter
Properties. Select IPV4 properties, then change the IP address to
192.168.0.1 and the Subnet mask to 255.255.255.0.
3
Create your custom configuration file within PowerVision.
4
Deploy the configuration file to the PV485.
Follow these steps to download a custom configuration using a USB drive:
Step
Action
1
Create your custom configuration file within PowerVision.
2
Save the file to a USB drive.
3
Connect the USB drive to the USB port on the connector provided with the
programming kit.
4
Turn off the PV485, and turn it back on while holding down display key 5 (the
button on the far right). Continue to hold the button a few more seconds, then
release. This will put the display into the bootloader.
5
Use the corresponding keys to the up/down arrows to find the desired file. Use the
corresponding right arrow key to select and continue. The right arrow turns green;
press again to confirm.
6
When the installation is complete, a check mark is displayed in the middle of the
screen. The PV485 will power cycle and boot to the new configuration.

Section 78 00-02-1018
2017-05-23 - 6-
Specifications
Technical
Display: Bonded 4.3” color transmissive TFT LCD
Resolution: WQVGA, 480 x 272 pixels, 16-bit color
Aspect Ratio: 16:9
Orientation: Landscape
Backlighting: LED, 900-1000 cd / m2 (30,000 hr lifetime)
Microprocessor: Freescale iMX35 32bit, 532Mhz
Operating System: QNX Real-Time Operating System
Flash Memory: 256 MB (expandable to 8GB)
RAM: 128 Mbytes DDR2 SDRAM
Operating Voltage: 6-32 VDC, protected against reverse polarity and load-dump
Power Consumption: 10W max
CAN: (1) CAN 2.0B
Serial: (1) RS485 (Modbus Master/Slave)
Protocols: J1939; FreeForm Can support
Connection: (1) 35-pin AMP seal connector (AMP776231-4)
Keyboard: 5 tactile buttons
USB: (1) USB 2.0 host (full speed)
Digital Inputs: (3) digital inputs
Digital Outputs: (4) low side open-drain, capable of sinking 500 mA
Analog Inputs: (6) total, (4) software configurable (0-5V, 4-20mA, Resistive) + Battery Voltage +
2nd Battery Voltage
Analog Outputs: (1) 0-5V
Frequency Inputs: (1) Alternator and Magnetic Pickup
Real-time Clock: with battery backup
Environmental
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +85°C
Protection: IP 67, front and back.
Emissions/Immunity: SAE J1113 or customer-specified; (CE) - EN61000-6-2, EN12895, ISO 13766
Vibration: Random vibration, 7.86 Grms (5-2000 Hz), 3 axis
Shock: ± 50G in 3 axis
Mechanical
Case Material: Polycarbonate/ABS

Section 78 00-02-1018
2017-05-23 - 7-
Mounting Templates
Dash-Mount Template
NOTE: These templates are as close as possible to the actual size needed for
unit placement. Always remember to measure twice to ensure correctness
before cutting the dash material.
.

Section 78 00-02-1018
2017-05-23 - 8-

Section 78 00-02-1018
2017-05-23 - 9-

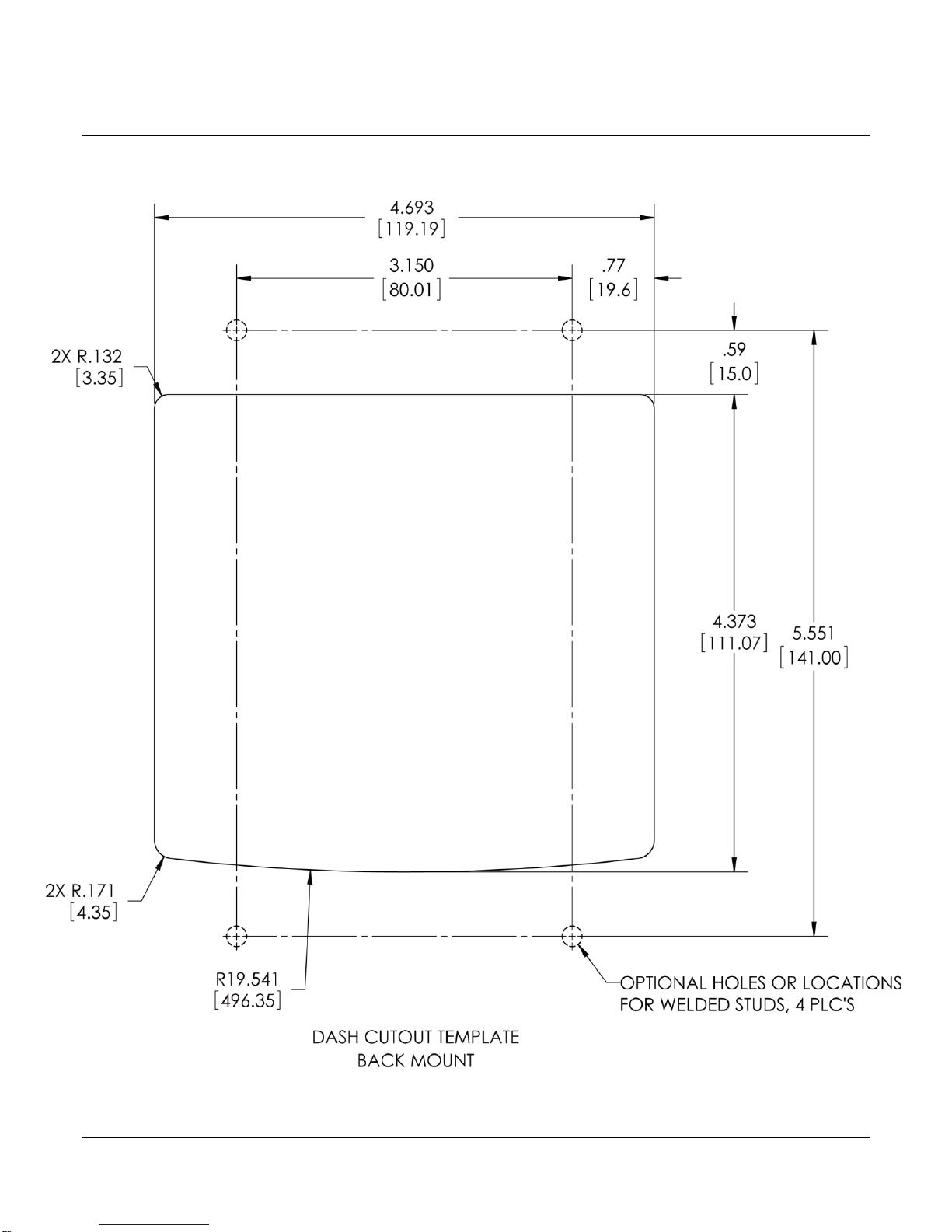

Rear-Mount Bracket Template

Section 78 00-02-1018
2017-05-23 - 11 -
PV485 Connection with Power
