Musical Fidelity M8xtt User manual

INSTRUCTIONS FOR USE
M8xtt

© Musical Fidelity · M8xtt · Revision 2023.09.11
2

© Musical Fidelity · M8xtt · Revision 2023.09.11
3
M8xtt

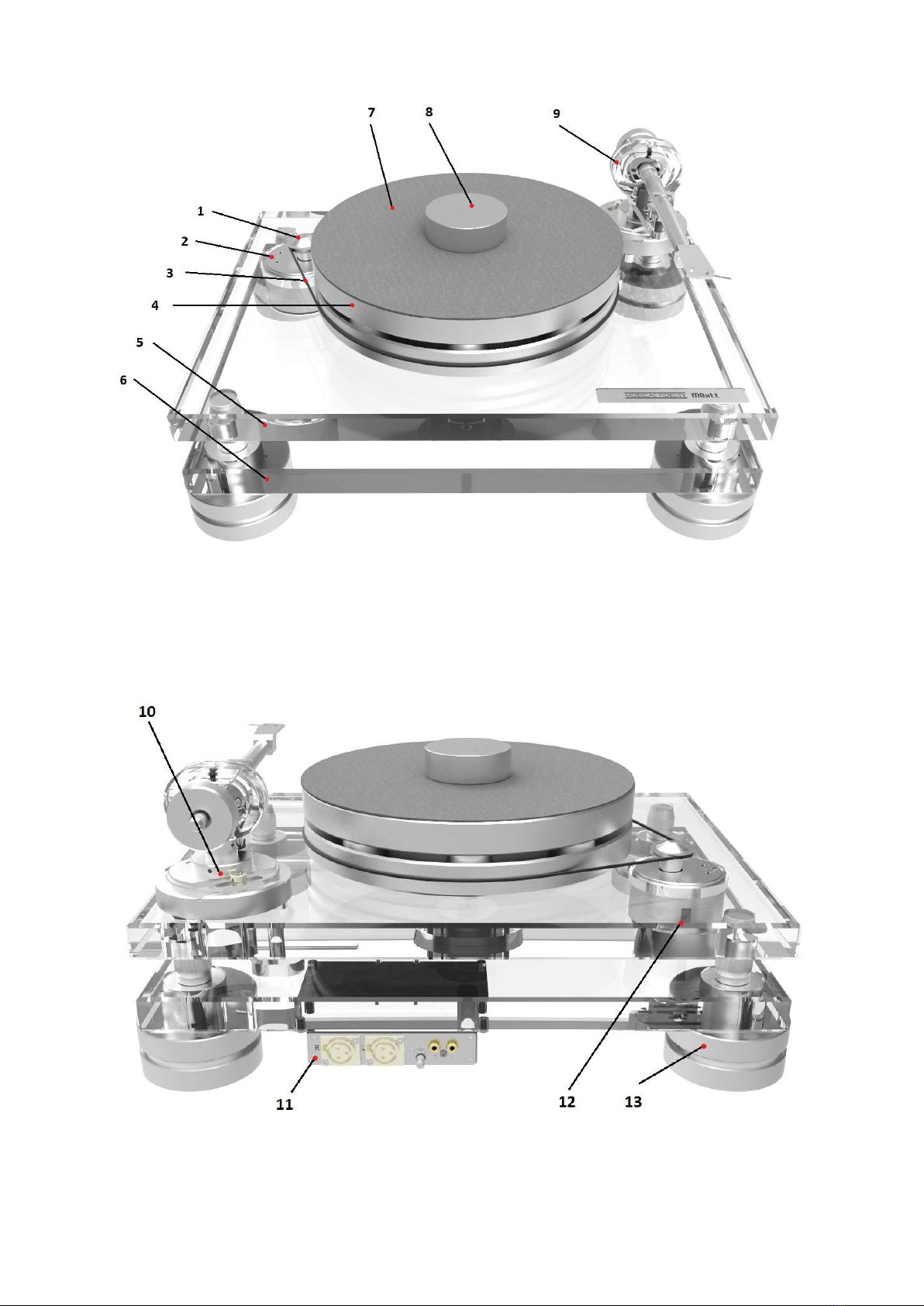

Controls, features and connections
(1) Motor with motor pulley
(2) Electronic speed control
(3) Drive belt
(4) Platter
(5) Top acrylic chassis
(6) Bottom acrylic chassis
(7) Leather mat
(8) Record puck
(9) Musical Fidelity 10’’ tonearm
(10) Universal tonearm abse flange
(11) Output box with XLR and RCA output including earth connection screw and 5-pole DIN
connector for tonearm output connection
(12) Power supply socket
Turntable accessories
(1) Instruction for use
(2) Cartridge alignment protractor
(3) Anti-skating weight
(4) Allen key 1.5mm, 2mm, 3mm
(5) Counterweight no. 14 (6 – 14g) and no. 13 (12 – 20g)
(6) Single adaptor
(7) Connect IT E RCA 1,23m
(8) Power supply
(9) White cotton gloves
(10) Cloth
(11) Record puck
(12) Leather mat
(13) Tonearm flange LINN standard
(14) Tonearm flange SME standard
(15) Grease for inverted platter bearing

© Musical Fidelity · M8xtt · Revision 2023.09.11
4
CONTENTS
TURNTABLE OVERVIEW 2 - 3
ACCESSORIES OVERVIEW 3
SETUP AND INSTALLATION
1. UPACKING 6-7
2. CHASSIS ASSEMBLY 7-8
3. MOTOR ASSEMBLY 8
4. TURNTABLE DRIVE ASSEMBLY 8-9
5. CONNECTION TO THE AMPLIFIER 9-10
6. MAINS POWER CONNECTION 10
7. SWITCHING ON AND OFF / CHANGING REPLAY SPEED 10
8. TONEARM SETTINGS 11
a) CARTRIDGE INSTALLATION 11-12
b) CARTRIDGE DOWNFORCE ADJUSTMENT 12
c) VERTICAL TRACKING ANGLE ADJUSTMENT 12-13
d) AZIMUTH ADJUSTMENT 13
e) ANTI-SKATING FORCE ADJUSTMENT 13-14
TECHNICAL SPECIFICATIONS 14
WARRANTY, SERVICE 15
PACKAGING 16
Dear music lover,

© Musical Fidelity · M8xtt · Revision 2023.09.11
5
Thank you for purchasing a Musical Fidelity record player.
In order to achieve maximum performance and reliability, please study these instructions carefully.
Warning of a hazard for the user, the unit or possible misuse
Important notice
The following instructions for adjusting the cartridge are provided in case the cartridge is replaced by a
different model at a later date.
During assembling and adjustment small parts could be lost if they are not carefully placed in a suitable
receptacle. Before starting assembly make yourself acquainted with the parts listed above which are
correspondingly numbered in the technical drawings above.
Safety instructions
The power supply is used to connect and disconnect the unit from the mains. Make sure that the
plug is easily accessible at all times. Hold the plug when unplugging the power cord. Never handle
the power cord while your hands are wet or damp.
Avoid letting liquids enter the device. Never place any item containing liquid, like a flower vase, on
or near the device. Never spill any liquid on the device. Never place any naked flame sources, like
lighted candles, on or near the device. The product shall not be used in damp or wet locations, next
to a bathtub, sink, swimming pool or any other similar conditions.
Keep plastic bags away from children to prevent any risk of suffocation.
The turntable was shipped partially disassembled in order to avoid damage to sensitive parts.
Please check immediately to make sure that neither the packaging nor the device was damaged
in transit.

© Musical Fidelity · M8xtt · Revision 2023.09.11
6
SETUP AND INSTALLATION
1. UNPACKING
a) Please remove carefully top foam insert which secures the tonearm during the transport (if
mounted) and where accessories find its place including two supplied counterweights.
Before the next steps, please put on the cotton gloves supplied as an accessory.
b) Remove carefully top acrylic part of the chassis from the box and place it on the save place.
c) Remove the other set of white foams that held the top acrylic chassis and set them aside - you
will place the bottom acrylic chassis on top of them which is in the next layer of packaging.
d) Remove the bottom acrylic chassis and place it on top of the foam inserts you just removed.

© Musical Fidelity · M8xtt · Revision 2023.09.11
7
e) Remove another set of white foam inserts to get to the feet and main platter
2. CHASSIS ASSEMBLY
a) Remove the 4 turntable feet from the bottom foam insert and place them in the final location
where you will assemble and use the turntable.
Use the provided A3 template to precisely position the turntable feet so that you can
comfortably fit the lower part of the acrylic chassis over them.

© Musical Fidelity · M8xtt · Revision 2023.09.11
8
b) Take the top acrylic chassis and place it on the turntable feet.
c)
3. MOTOR ASSEMBLY
Remove the motor from bottom foam insert and place it on the foam support in the bottom acrylic chassis
as shown on the pictures below.
Turn the power supply connector to the rear side of the turntable for easy power input
connection.
4. TURNTABLE DRIVE ASSEMBLY
Remove the protective cap from the platter spindle in the top acrylic chassis and protective cap from
the main platter housing.
Carefully place the main platter over the spindle.
Fit the drive belt around the platter and the motor pulley. Avoid getting sweat or grease on the belt as
these will deteriorate the performance and reduce the belt's lifespan. Use absorbent kitchen paper to
remove any oil or grease from the outer edge of the platter and the belt.

© Musical Fidelity · M8xtt · Revision 2023.09.11
9
5. CONNECTION TO THE AMPLIFIER
The record player has two different output possibilities:
1) RCA OUTPUT: with gold plated female RCA phono sockets. Use the Phono input (sometimes
labelled gram, disc or RIAA) on your amplifier. Make sure that the phono input offers correct
matching and amplification for the type of cartridge used. Line inputs (like CD, Tuner, Tape or
Video) are not suitable. Take care about connecting the left and right channel correctly. The
RIGHT CHANNEL is usually marked RED, the LEFT CHANNEL BLACK or WHITE. Check the manual
of your amplifier for relevant information. An earthing wire may be connected to the screw
terminal between the sockets if you encounter humming problems.
If your amplifier does not have an input suitable for phono cartridges, a separate phono amplifier
stage for MM or MC cartridges is required.
2) XLR OUTPUT: to use the XLR output & take full advantage of the true balanced connection your
turntable needs to be equipped with an MC cartridge. „True Balanced Connection“ phono cables
are available separately.
For detailed product information regarding Musical Fidelity phono amplifiers please visit our
website: www.musicalfidelity.com

© Musical Fidelity · M8xtt · Revision 2023.09.11
10
6. MAINS POWER CONNECTION
The turntable is supplied with the universal power supply with 3 exchangeable sockets adapters suitable
for all countries. Select the correct adapter for your country and insert the adapter to the exchangeable
part of the power supply.
Connect the low voltage plug from the power supply to the socket on the rear of the record player
before connecting the power supply to the mains.
7. SWITCHING ON AND OFF / CHANGING REPLAY SPEED
To play records at 33 r.p.m. press the ‘’standby’’ button (STBY). Pressing the ‘’standby’’ button one more
time selects 45 r.p.m. The selected speed is shown respectively by the flashing LED. When the platter has
attained full speed, the LEDs stop flashing. To stop the turntable, hold the STBY button for 3 seconds.

© Musical Fidelity · M8xtt · Revision 2023.09.11
11
8. TONEARM SETTING
a) CARTRIDGE INSTALLATION
All cartridges with half inch mounting holes can be mounted. Leave the needle's protection cover on, fit
the cartridge to the headshell by using the supplied screws by passing one screw through each slot in
the headshell. Do not tighten the nuts yet.
Connect the tonearm wires with the cartridge pins as follows:
white left channel positive (L+)
red right channel positive (R+)
green right channel return (R-)
blue left channel return (L-)
The full sound quality of the record player can only be achieved if the cartridge is adjusted correctly.
Particular tools like the Pro-Ject Audio Systems alignment tools are required to accomplish this job properly.
If you are not well acquainted with the adjustment of cartridges, please call for the willing help of your Pro-
Ject Audio Systems dealer.

© Musical Fidelity · M8xtt · Revision 2023.09.11
12
Please note: adjusting a cartridge and tonearm calls for the greatest care in order to avoid
damaging the cartridge or tonearm bearings. Ask your local dealer for help if you are unsure in
any of the necessary steps and precautions which must be taken.
b) CARTRIDGE DOWNFORCE ADJUSTMENT
Before adjusting the downforce, confirm the exact weight of your cartridge.
Pushing carefully, move the counterweight onto the counterweight support rod with precise thread as
shown in the illustration below. Place the stylus pressure gauge (not supplied) on the platter. To set
the required VTF, lower the tonearm lift lever as indicated in the illustration and place the tip of the
stylus on the pressure gauge.
As viewed from the headshell, moving the counterweight closer toward the tonearm increases the VTF,
moving away from the tonearm reduces the VTF. Move the counterweight appropriately until the VTF
shown on the pressure gauge matches your cartridge’s recommended vertical tracking force
specifications.
Supplied counterweights:
For cartridge weight from 6 – 14g (197g)
For cartridge weight from 12 – 20g (217g)
c) VERTICAL TRACKING ANGLE ADJUSTMENT
Put a record on the platter. When the needle is lowered into the record groove and the tonearm is not
resting on the lift arm, the tube of the tonearm should be parallel to the surface of the record.
If it is not, loosen both hexagon screws in the tonearm base just enough to allow vertical movement of
the arm pillar without force and slide the arm up or down until it is parallel.
Retighten the hexagon screws without applying excessive force (which would deform the arm pillar) –
finger tight is quite sufficient.

© Musical Fidelity · M8xtt · Revision 2023.09.11
13
d) AZIMUTH ADJUSTMENT
The cartridge needle must be vertical in the record groove in order to trace the groove wall modulations
correctly.
A small screw at the bearing end of the arm allows incorrect azimuth to be corrected.
Slacken off the screw just enough to be able to revolve the arm tube without applying force. Note! Do
not remove this screw completely!
e) ANTI-SKATING FORCE ADJUSTMENT
Put the anti-skating thread hook over the anti-skating adjustment scale.
The anti-skating force must be adjusted corresponding to the downforce as follows:
Downforce Groove in the stub (15)
10 - 14mN 1st from bearing rings
15 - 19mN 2nd " " "
20mN and bigger 3rd " " "

© Musical Fidelity · M8xtt · Revision 2023.09.11
14
TECHNICAL SPECIFICATIONS
Musical Fidelity M8xtt/ Musical Fidelity 10’’ tonearm
Nominal speeds 33/45 r.p.m.
Speed variance 33: ±0.11 % 45: ±0.10 %
Wow and flutter 33: ±0.05 % 45: ±0.04 %
Signal to noise -78dB
Effective tonearm mass 17g
Effective tonearm length 10 " (254mm)
Overhang 16mm
Power consumption 5W/ 0.3W standby mode
Outboard power supply 15V/ 0.8 A DC, universal power supply
Dimensions (W x H x D) 533 x 245 x 413mm
Weight 31.5 kg

© Musical Fidelity · M8xtt · Revision 2023.09.11
15
Potential incorrect use and fault conditions
Musical Fidelity turntables are manufactured to the highest standards and undergo strict quality controls
before leaving the factory. Faults that may possibly occur are not necessarily due to material or
production faults but can sometimes be caused by incorrect use or unfortunate circumstances. Therefore
the following list of common fault symptoms is included.
The platter doesn't turn although the unit is switched on:
The unit is not connected to the mains power supply.
No mains at the socket.
Drive belt is not fitted or has slipped off.
No signal through one or other channel or both channels:
No signal contact from the cartridge to the internal tonearm wiring or from that to the arm lead or
from that to the phono box or between that and the amplifier. This could be due to a faulty plug,
broken wire or solder joint or simply loose plug/socket connection.
Phono input not selected at amplifier.
Amplifier is not switched on.
Amplifier or speakers are defective or muted.
No connection to the loudspeakers.
Strong hum on phono input:
No earth connection from cartridge or arm or arm cable to amplifier, or earth loop.
Distorted or inconsistent sound from one or both channels:
Record player is connected to wrong input of amplifier, or MM/MC switch incorrectly set.
Needle or cantilever damaged.
Wrong r.p.m., drive belt overstretched or dirty, platter bearing without oil, dirty or damaged.
Service
Should you encounter a problem which you are not able to alleviate or identify despite the above
information, please contact your dealer for further advice. Only when the problem cannot be resolved
there should the unit be sent to the responsible distributor in your country.
Guarantee repairs will only be affected if the unit is returned correctly packaged. For this reason, we
recommend keeping the original packaging.
Never return a record player without making sure that is it safely disassembled and correctly packaged
in the original packaging according to the diagrams on the last page of this user guide. Please remove these
parts and pack them separately: lid, counterweight, anti-skating weight, platter and belt. Fit the cartridge
protection cap. Insert the transport screws for the sub-chassis, the transport lock for the tonearm prior to
carefully packaging the record player.
Warranty
The manufacturer accepts no responsibility for damage caused by not adhering to these
instructions for use and/or by transportation without the original packaging. Modification or
change to any part of the product by unauthorized persons, release the manufacturer from any
liability over and above the lawful rights of the customer.
Musical Fidelity is a Registered Trademark of
H. Lichtenegger.
This guide was produced by: Musical Fidelity Copyright ©
2023. All rights reserved.
The information was correct at the time of going to press.
The manufacturer reserves the right to make changes to
the technical specification without prior notice as
deemed necessary to uphold the ongoing process of
technical development.

© Musical Fidelity · M8xtt · Revision 2023.09.11
16
