Congratulations on your purchase of the power equipment. We appreciate
your choice!
The intelligent power supply Expert is designed to improve the efficiency
of the work on the tattoo.
Its advantages are reliability, ease of setup, stability and maximum func-
tionality, despite its compact size.
This guide will allow you to fully appreciate the benefits and capabilities of
the power supply. Read the instructions carefully before starting work.
Purpose:
Complete set:
Mount:
Power supply for induction and rotary tattoo
machines.
Stand, power supply, euro socket,
adapter, instruction manual.
Magnetic mount for a secure fit. Ideal for
metal surfaces. Anti-slip and anti-scratch ta-
ble cover thanks to the protective overlay.

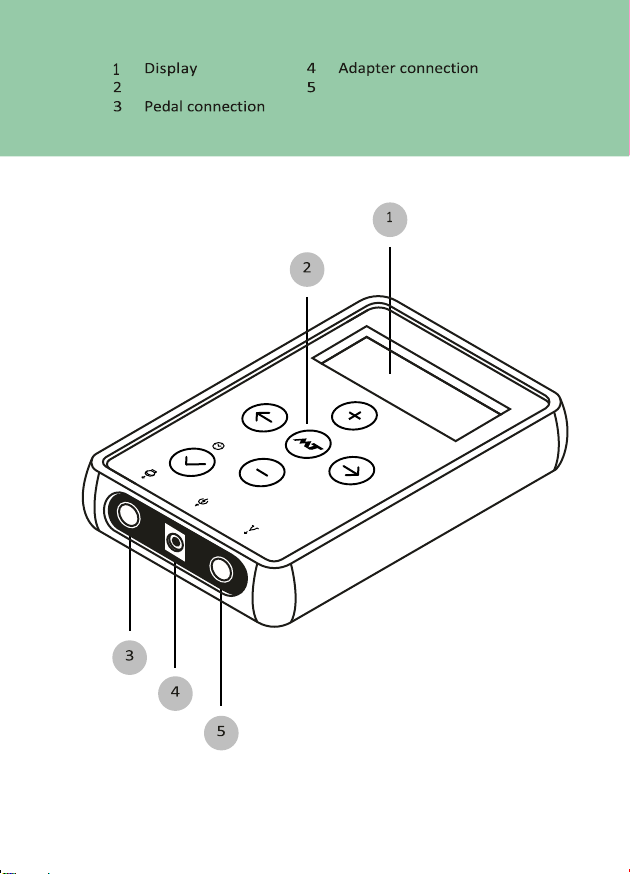

Keyboard
Tattoo machine connection

4
Intelligent power supply with display and interface in 2 languages
(Russian and English).
- Built-in memory for 6 machines
- 4 individual menu skins
- 5 modes of operation with in-
duction and rotary machines
- Function of calculating the time
and cost of the session in rubles /
dollars / euros
- The function of auto-detecting
the type of machine
- 4 speeds of information output
to the display
- Voltage 1.5 - 17 V
And also additional features:
- Ability to control the machine without a pedal.
- Short circuit protection.
- Sleeping mode.
- Module for working with a wireless foot control MT Mustang Tattoo
(up to 128 connection options)
- Sound / key tone and display brightness settings.
- Possibility of flashing in the service center MT Mustang Tattoo.

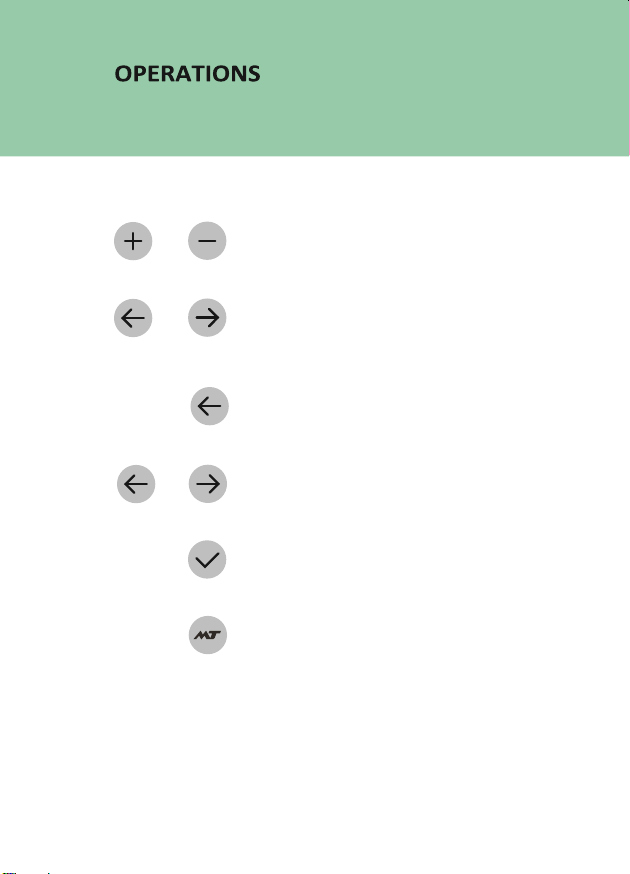

Increase or decrease voltage, move between menu
items.
Setting the hours and minutes, switching modes,
choosing the menu shell, the number of machines,
currency, brightness, key tone, language.
Pressing and holding will put the device into
sleep mode.
Pressing simultaneously - go to the settings menu.
Save settings and exit to the main screen.
Enables / disables pedal sticking.

6

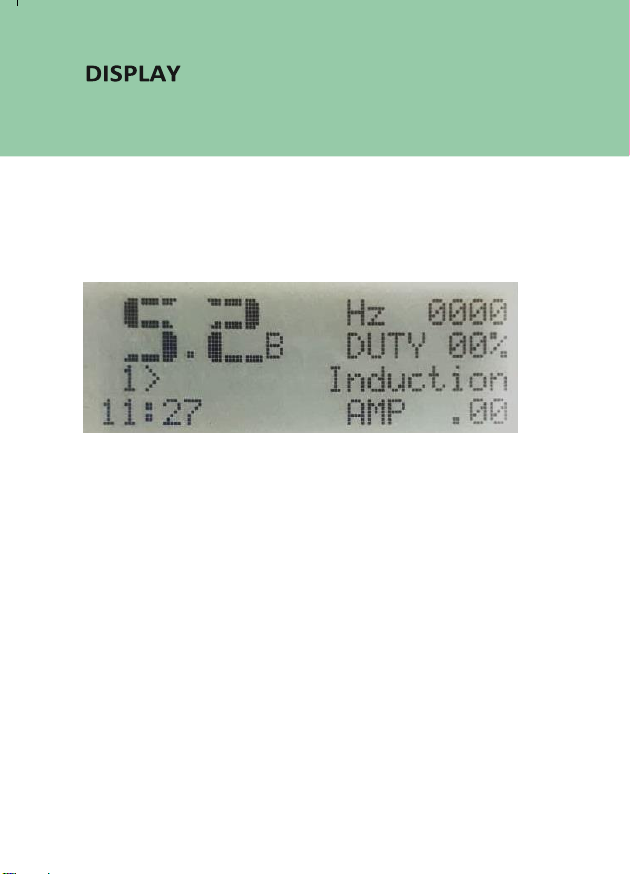

The power supply is equipped with a monochrome display with a blue indi-
cation. The screen always displays the operating voltage and the previously
selected memory cell.
The rest of the parameters depend on the screen shell.

The power supply turns on automatically when plugged in.

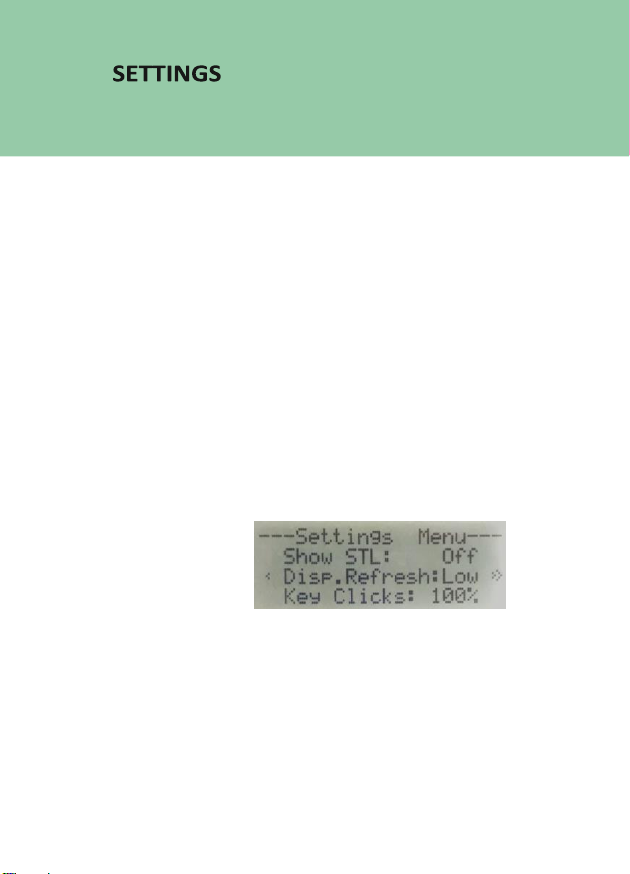

To access the settings menu, simultaneously
press and hold the "left" and "right" keys
To select a specific menu item
To save the settings and exit

8
Mode:
Auto:
Display brightness:
Select the operating mode for the induction /
rotary machine with the "left" and "right" keys
Press "left" or "right" to enable or disable auto
detection
Adjustable with the "left" or "right" buttons
Time - clock:
Time - minutes:
Number of machines:
Select the item and set the clock using the
"LEFT" and "RIGHT" keys
Select an item and adjust the minutes using
the “left”and “right”keys
2, 4, 6

9
Show STL:
Output speed:
Key sound:
To disable / enable the mode, press the
"left" and "right" keys
Switch between speeds - buttons "left" /
"right". There are 4 speeds of information
output: slow, medium, fast and maximum
Press the left or right key to adjust

10
Key tone:
Price:
8 tone levels. Press "left" or "right" to
select ”
The function allows you to calculate the
hourly cost of the session. Decrease /
increase rate - buttons "left" or "right"
Units:
Press "left" or "right" to select currency
Version:
Working hours:
Software version
The total running time of the
power supply unit since the pur-
chase

11

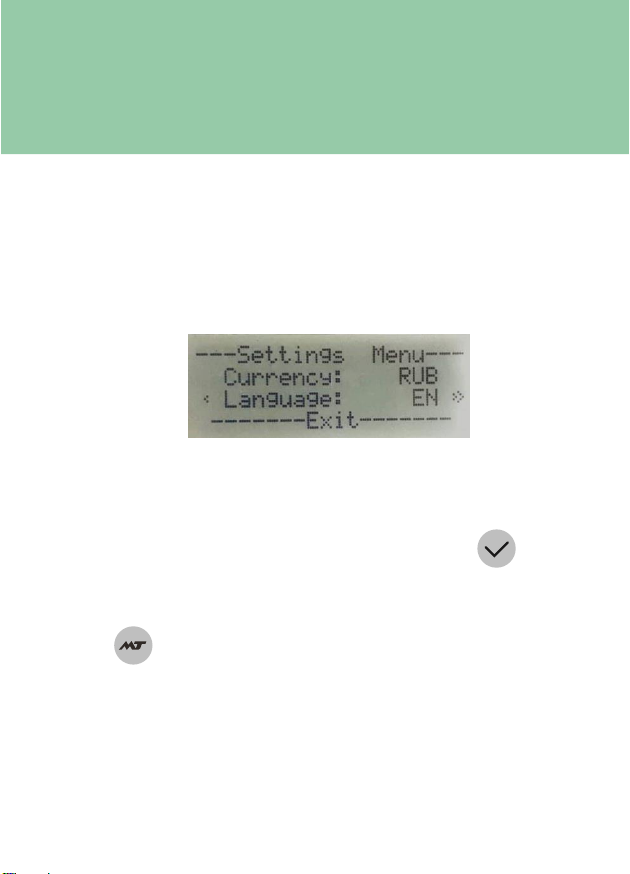

Language: Press "left" or "right" to select the navigation language
Exit: Press to exit to the main screen
Pedal Sticky:
In Home screen mode, press and hold the key to turn
sticky on or off. When the mode is on, an "m" icon is dis-
played on the screen.
SETTINGS

12

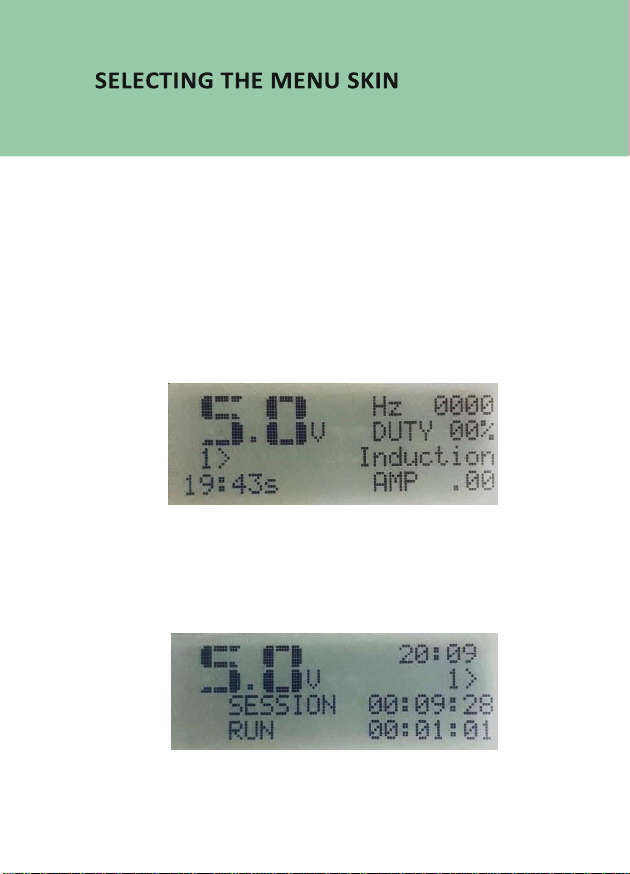

In Home screen mode, press and hold "Right" to select one of the
four screen skins.
1Working voltage, time and memory cell are on the left
side of the screen, on the right - frequency, load, operat-
ing mode of the machine, current value
2The working voltage is displayed in large size, in small
print - the price, the duration of the session, the operat-
ing time of the machine, the clock, the memory cell.

13
3The clock is large in the upper part, under it is the volt-
age, the duration of the session, the operating time of
the machine, the memory cell.
4The screen displays only operating voltage, memory cell.

14
Problem 1:
Solution:
The power supply does not turn on and the screen is dark.
Carefully check all connections: connectors, wires, socket.
Problem 2:
Solution:
Screen flickers while output power ripple.
Contact MT Mustang Tattoo Authorized Service Center.
The power adapter is most likely defective.
Problem 3:
Solution:
Power is on but no signal is being sent to the tattoo
machine.
Click on the button
See if there is a change in the display. It is
possible that the wire or tattoo machine is
faulty. Try using a different wire or tattoo
machine.

15
Problem 4:
Solution:
Problem 5:
Solution:
The power supply unit does not respond to
pressing the pedal.
Press the center button. See if there is
a change on the display? Does the display
change when you press the pedal? It is possi-
ble that the wire or tattoo machine is faulty.
Try using a different wire or tattoo machine.
The machibe continues to operate when the
pedal is depressed, although the pedal stick
mode is enabled on the power supply unit.
Disable the Sticky mode according to the in-
structions.

16
The warranty is 1 year, and 5 years for the corpus of power suplly
unit.
ATTENTION! The official guarantee comes into force
after registration on the website www.mustang-tat-
too.com/guarantee. You must register within 30 days
from the date of purchase.
Warranty exclusions:
—problems after aggressive antiseptic agents
—units with signs of falling, hitting, rust or processing
—units with signs of self-modernization
—misuse of equipment
—connections of third-party adapters (not recom mended for this unit).
—sterilization in an autoclave or dry oven

This warranty covers factory failures, but does not cover wear
and tear on equipment and its parts as a result of proper or
improper use.
Within three months after purchase, the product can be ex-
changed for a similar model. Return is allowed within two
weeks.
Service Center Contacts:
Russia, Moscow, Narodnaya str., 14/1,
tel. [phone]
www.mustang-tattoo.com
