Mustek PL607 User manual

Portable DVD Player
User Guide
Playable Disk Format:
DVD/VCD/CD/CD-R/CD-RW
82-182-00210
English
Español
Français
Português

En 2
FCC and Safety Information.................................................................................. 4
Important Safety Instructions............................................................................... 5
Precautions..................................................................................................... 6
Selecting the type of disc for the type of TV connected................................................ 7
Chapter 1. DVD
1-1 DVD Playback.............................................................................................. 8
Basic Playback........................................................................................................................... 8
Stopping Playback and Returning to The Menu Screen (If a Menu Is Available on The Disc).................................8
Stopping Playback....................................................................................................................... 9
Rapid Advance (Rapid Reverse)....................................................................................................... 9
Skipping Ahead or Back to Chapters................................................................................................. 9
Still Picture(PAUSE)...................................................................................................................... 9
Repeat Viewing.........................................................................................................................10
1-2 Convenient functions..................................................................................10
Displaying Scene Information........................................................................................................ 10
Changing Audio Soundtrack Language..............................................................................................10
Clearing/Displaying Subtitles (A)....................................................................................................11
Changing Subtitle Language (B)..................................................................................................... 11
Viewing From Another Angle................................................................................. .........................11
Mute the DVD Player...................................................................................................................12
Using DVD Menu........................................................................................................................ 12
Using the Menu Function............................................................................................................. 12
Chapter 2. Audio CD
2-1 Audio CD Playback..................................................................................... 13
Basic Playback.......................................................................................................................... 13
Stopping Playback..................................................................................................................... 13
Rapid Advance (Rapid Reverse)...................................................................................................... 13
Skipping Ahead or Back to Tracks................................................................................................... 14
Pause..................................................................................................................................... 14
2-2 Information [Audio CDs]................................................................................14
Displaying Track Information........................................................................................................ 14
Chapter 3. Special Functions
3-1 Playing Kodak Picture CDs........................................................................... 15
Basic Playback.......................................................................................................................... 15
Slide Show................................................................................................................................15
Thumbnail Mode........................................................................................................................ 16
3-2 Playing JPEG picture CDs.............................................................................17
Basic Playback.......................................................................................................................... 17
File Manager............................................................................................................................ 17
Thumbnail Mode........................................................................................................................ 18
Chapter 4. Setup
4-1 Language Setup........................................................................................ 19
On Screen Display (OSD) Language Setting....................................................................................... 19
DVD MENU Language Setting........................................................................................................ 20
AUDIO Soundtrack Language Selection [DVD].................................................................................... 21
SUBTITLE Language Selection [DVD]................................................................................................ 22
4-2 Screen Setup............................................................................................23
TV Type Setting.........................................................................................................................23
TV System Setting......................................................................................................................24
Video Out Setting......................................................................................................................25
Table of Contents

En 3
Table of Contents-continued
4-3 AUDIO Setup............................................................................................ 27
Digital Out Setting.................................................................................................................... 27
Analog Out Setting.....................................................................................................................28
4-4 Custom Setup........................................................................................... 29
Parental Control Setting [DVD]...................................................................................................... 29
Password Setting [DVD].............................................................................................................. 30
Angle Mark Setting [DVD]............................................................................................................ 31
Default Setting......................................................................................................................... 32
4-5 LCD Setup............................................................................................... 33
Panel Setting........................................................................................................................... 33
Color Setting............................................................................................................................33
Bright Setting...........................................................................................................................34
Panel Close Setting.....................................................................................................................34
Chapter 5. For Your Reference
5-1 Troubleshooting....................................................................................... 35
5-2 Disc Handling and Maintenance.................................................................... 36
5-3 Definition of Terms................................................................................... 37
NOTICE:
You may experience distortion on image when using a new battery for the first time or using a
battery that has not been used for a long time. In this case, recharge the battery. This is a
normal characteristic for batteries, which is NOT a defect.

En 4
Since it is usual for DVD movies to be released at different times in different regions of the world, all players have region
codes and disc can have an optional region code. If you load a disc of a different region code to your player, you will see the
region code notice on the screen. The disc will not play, and should be unloaded.
(Possible region codes:)
There are 6 regions (also called “locals”). Each DVD player and disc will be played in one region ONLY.
1: Canada, U.S., U.S. Territories
2: Japan, Europe, South Africa, Middle East (including Egypt)
3: Southeast Asia, East Asia (including Hong Kong)
4: Australia, New Zealand, Pacific Islands, Central America, Mexico, South America, Caribbean
5: Former Soviet Union, Indian Subcontinent, Africa (also North Korea, Mongolia)
6: China
Never make or change connections with the power switched on.
CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID EXPOSURE TO BEAM
(WARNING LOCATION: INSIDE ON LASER COVERSHIELD)
CAUTION:
This unit employs a laser. Due to possible eye injury, only qualified service personnel should remove the
cover or attempt to service this device. Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation exposure.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and
other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
FCC and Safety Information
For DVD Players with 525p, but not 625p, progressive scan output:
‘CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION
TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT
AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE.
IN CASE OF 525 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS
RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO
THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS
REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p
DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE
CENTER.’
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
Confidential Unpublished Works. ©1992-1997 Dolby Laboratories, Inc. All rights reserved.

En 5
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a damp cloth.
7. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized-type plug. A polarized plug has two blades with one wider than the
other. The wide blade is provided for your safety. When the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plug, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lighting storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in
any way; such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.
Outdoor use or wet location applications:
An apparatus that does not comply with the requirements in Appendix A# (Outdoor Use and Wet Location Apparatus) shall be
marked or the instruction manual packed with the word “WARNING” and the following or equivalent: “To reduce the risk of fire
or electric shock, do not expose this apparatus to rain or moisture.
A Class II APPARATUS shall be permanently marked with the words “DOUBLE INSULATION” or “Double insulated” and
“When servicing use only identical replacement parts.”
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall
not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
Important Safety Instructions

En 6
Please read these precautions before operating this unit.


Power cord protection
To avoid any malfunctions of the unit, and to protect against electric shock, fire or personal injury, please observe
the following.
Hold the plug firmly when connecting or disconnecting the AC power cord.
Keep the AC power cord away from heating appliances.
Never put any heavy object on the AC power cord.
Do not attempt to repair or reconstruct the AC power cord in any way.


Placement
Avoid placing the unit in areas of:
direct sunlight or heating radiators, or closed automobiles
high temperature (over 350C) or high humidity (over 90%)
much dust as the internal parts may be seriously damaged.


Non-use periods
When the unit is not being used, turn it off. When left unused for a long period of time, the unit should be unplugged
from the household AC outlet.


No fingers or other objects inside
Touching internal parts of this unit is dangerous, and may cause serious damage to the unit. Do not attempt to
disassemble the unit.
Do not put any foreign object on the disc tray.


Keep away from water/magnet
Keep the unit away from flower vases, tubs, sinks, etc. If liquids are spilled into the unit, serious damage could
occur.
Never bring a magnet or magnetized object near the unit.


Stacking
Place the unit in a horizontal position, and do not place anything heavy on it.


Condensation
Moisture may form on the lens in the following conditions:
immediately after a heater has been turned on
in a steamy or very humid room
when the unit is suddenly moved from a cold environment to a warm one
If moisture forms inside this unit, it may not operate properly. In this case, turn on the power and wait about one
hour for the moisture to evaporate.


If there is noise interference on the TV while a broadcast is being received
Depending on the reception condition of the TV, interference may appear on the TV monitor while you watch a TV
broadcast and the unit is left on. This is not a malfunction of the unit or the TV. To watch a TV broadcast, turn off
the unit.
Precautions

En 7
Selecting the type of disc for the type of TV connected

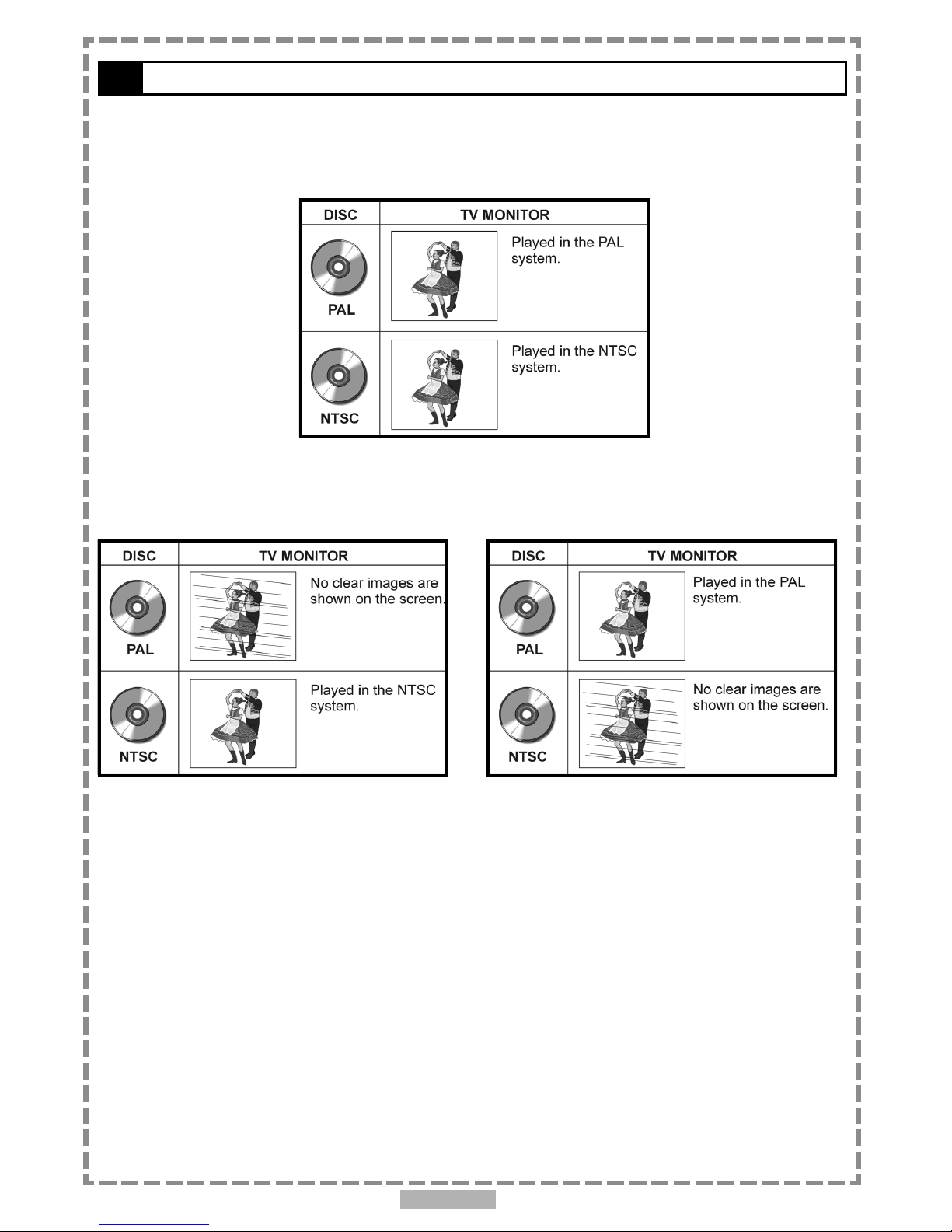

DVDs are recorded in PAL or NTSC formats. Please refer to the table below to find the appropriate format for your
region.
 
 
 Connecting to a multi-system TV
 
 
 Connecting to a NTSC TV 

Connecting to a PAL TV

En 8
1
1-1 DVD Playback
Preparation
Attach the battery or connect the portable DVD player to a wall outlet. If connecting to external equipment,
please perform the following:
 Press on the power button of the TV set, and select “Video” as the TV input.
 Press on the power button of the stereo system if the player has been connected to one.
For your reference:
 When “ ” appears while a button is being operated, it means that the corresponding
operation is prohibited by the player.
Basic Playback
1Press POWER on.
2Press <OPEN> to open the disc cover.
3Hold the edge of the disc to put it in the center with the printed side up.
Hold the disc without touching its surfaces, position it with the printed title side facing up, align it with
the guides, and place it in its proper position.
4Close the disc cover.
Close the disc cover and the portable DVD player starts playback if the disc does not have any
menus recorded on it.
If the disc has one or more titles recorded on it, a menu screen will appear on the screen.
<< NOTE: Proceed with steps 5 and 6 when a menu is available on the disc. >>
5Press < / / / > or the number button(s) to select the preferred title.
<< NOTE: To select a title, input the number, i.e. 1 for chapter 1, 10 for chapter 10, and etc. >>
6Press <PLAY/SEL.> .
The player now starts playing the selected item.
Stopping Playback and Returning to The Menu Screen (If a Menu Screen Is Available on
The Disc)
Press <MENU>.
The portable DVD player stops playback and displays the menu screen.
After operation
When the portable DVD player is not in use, remove the disc and press POWER to turn off the player.
Close the display panel.
<< NOTE >>
The disc continues to rotate while the menu is displayed even after the player has finished playing a
particular disc. When no further selections are to be played, be sure to press the <STOP>
button to clear the menu screen.
If the disc is placed in upside down (and it is a single sided disc), the player’s display will appear “NO
DISC”.
DVD

En 9
Stopping Playback
Press <STOP> once to prestop. Press <STOP> twice to stop.
Rapid Advance (Rapid Reverse)
Press <F.BWD> or <F.FWD> during playback.
Normal playback is resumed when you press <PLAY/SEL.>.
The speed of advance ( x2, x4, x8, x16, x32) or reverse ( x2, x4, x8, x16,
x32) changes with each press of the <F.FWD> or <F.BWD> button.
Skipping Ahead or Back to Chapters
You can skip a specific chapter or track to playback.
Skipping Ahead
Press <NEXT> during playback.
Skips a chapter each time you press the button.
Skipping Back
Press <PREVIOUS> during playback.
When you press the button once midway through a chapter, the portable DVD player returns to the beginning of
the chapter being played back. The player skips a chapter each time you press the button.
Still Picture (PAUSE)
Press <PAUSE> once during playback.
The screen is paused.
*To return to normal playback
Press <PLAY/SEL.>.
1-1 DVD Playback-continued
DVD
1

En 10
1-1 DVD Playback-continued
Repeat Viewing
Press <1/ALL REPEAT> during playback.
Each time you press the button, the disc will repeat a chapter or title.
Press once: CHAPTER (Repeat chapter)
Press twice: TITLE (Repeat title)
Press three times: DISC (Repeat disc)
Press four times: Off (Repeat cancelled)
*To return to normal playback
Press <1/ALL REPEAT> several times until “ Off” appears on the screen.
<< NOTE >>
Repeat playback works only with discs for which the elapsed playing time appears on the
player’s display during playback.
Repeat playback may not work correctly with some DVDs.
1-2 Convenient functions
Displaying Scene Information
Press <INFO.> during playback.
Press <INFO.> a number of times, the title number, chapter number, and other information will show on the
screen.
*To stop displaying scene information
Press <INFO.> a number of times until the information disappears.
Changing Audio Soundtrack Language
You can change the audio language from the one selected at the initial settings to a different language. (This
operation functions only with discs on which multiple audio soundtrack languages are recorded.)
1Press <AUDIO> during playback.
2Press <AUDIO> a number of times until the preferred language is selected.
For your reference:
When the preferred language is not selected even after pressing the button several times, it
may indicate that language is not available on the disc.
When you turn on or remove the disc, the portable DVD player will playback the language which
is selected at the initial setting. If you select a language which is not recorded on the disc, the
portable DVD player will playback a prior language programmed on the disc.
1
DVD
