\Unicorn Information System
Chapter 1: Safety & Precautions
1.1 Do’s and Don’ts
Do’s
ඞVisit mvixusa.com for additional product information & for troubleshooting.
ඞWhen cleaning the Mvix product, disconnect the power and then wipe the unit with a soft piece of dry cloth. Do not use any
chemicals or sprays for cleaning.
ඞDo read all safety information and follow all instructions in this user manual.
ඞWhen connecting or disconnecting AV cables, disconnect the power first.
ඞProtect the power cord from being walked on or pinched, particularly at plugs, or at the point where they exit from the player.
ඞDo not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider tha
n the
other. The wide blade is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
ඞUnplug the player during lightning storms or when unused for long periods of time.
Don’ts
ඞDo not mix batteries (old and new or carbon and alkaline, etc.) in the Mvix Remote Control. Remove batteries when the unit
is not used for a long time.
ඞDo not touch the power plug with wet hands or use defective power cables & electric outlets. Doing so might result in electric
shock or fire. Only use attachments / accessories specified by the manufacturer.
ඞDon’t drop the MVIX unit. This might cause irreversible damage to the unit and the Hard Drive.
ඞDon’t attempt disassembling or remodeling the unit.
ඞDon’t block the vents. Free airflow should be maintained around the unit.
ඞDon’t expose your MVIX unit to water, oil, dust or magnetic materials.
ඞDon’t expose your MVIX unit to heat sources or high temperatures.

]Unicorn Information System
Chapter 1: Safety & Precautions
1.2 Limitations and Usage Precautions
Please read the following Limitations and Usage Precautions before using your Mvix player.
ඞWhile Mvix players support dozens of file formats and codec, they are not intended to work with every codec-variation.
Mvix players provide limited support to standardized versions of codec as stated in the Technical Specifications of this manual.
ඞTurn off your Mvix player when connecting or disconnecting USB devices. Failure to do so may result in malfunction and/or loss of
data on your USB device.
ඞWe strongly recommend backing-up your data or media files stored on the Mvix-HDD. Power surge, HDD-failure, accidental deletions
are common causes of data loss. Place your Mvix player away from magnetic sources.
ඞMvix supports 3.5” Hard Disk Drives only. Kindly ensure that the jumper setting on your Hard-disk Drive (HDD) is set to MASTER or
SINGLE before installing it in the Mvix Player. Some HDDs (depending on the manufacturer) may work with the SLAVE or CABLE
SELECT (CS) jumper combination. If your PC fails to recognize Mvix as an external storage device, try changing the setting to SLAVE
or CS. Do not forget to format and partition your HDD after installing it in the Mvix player. “Primary Partition” is recommended when
creating two or more partitions within a single Hard Disk Drive.
ඞWhen connected to the computer through the USB cable the Mvix player works like an external USB storage device (During this
operation, there is no video/audio playback). To resume playback mode, disconnect the USB cable connected to your PC and turn
on the Mvix player.
ඞThe network capability of the Mvix player is designed to work with Windows-based Operating System (OS) and its Network Sharing
capability. Depending on the OS and Network environment, Network-Sharing may not work reliably. This issue can be caused by a
variety of factors beyond the functionality of the Mvix player.
ඞThe supplied cables and accessories are recommended for customized best performance of the Mvix Media Player. Using any
other (after-market) cables or accessories may not provide best performance
ඞIn order to unplug your Mvix Media Player, press the STOP button before removing cables or turning off the power.
ඞDo NOT open the unit and service or modify the basic assembly. Do NOT modify the firmware of the Mvix unit. Improper or
unauthorized repair will VOID your warranty coverage.

^Unicorn Information System
Chapter 2: Introduction

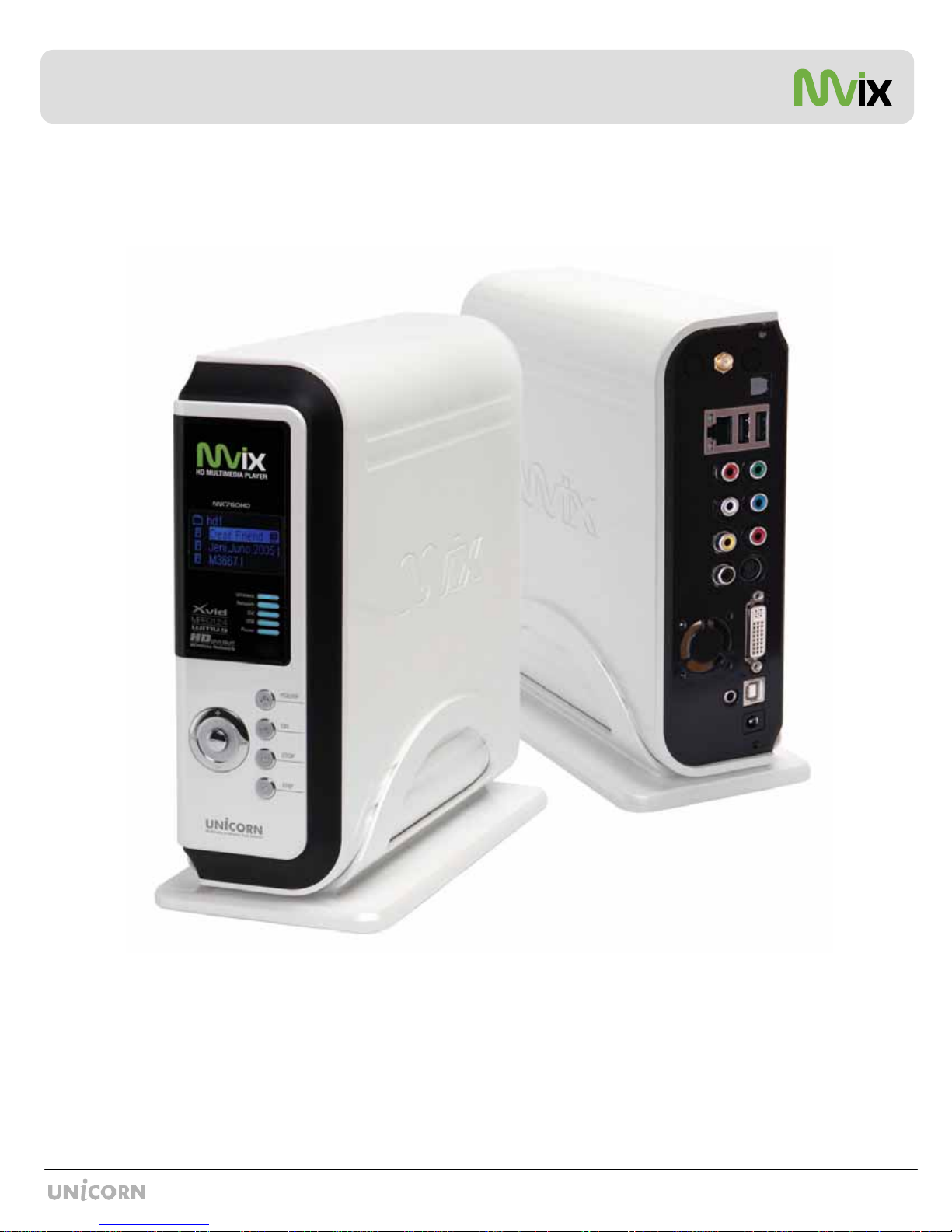

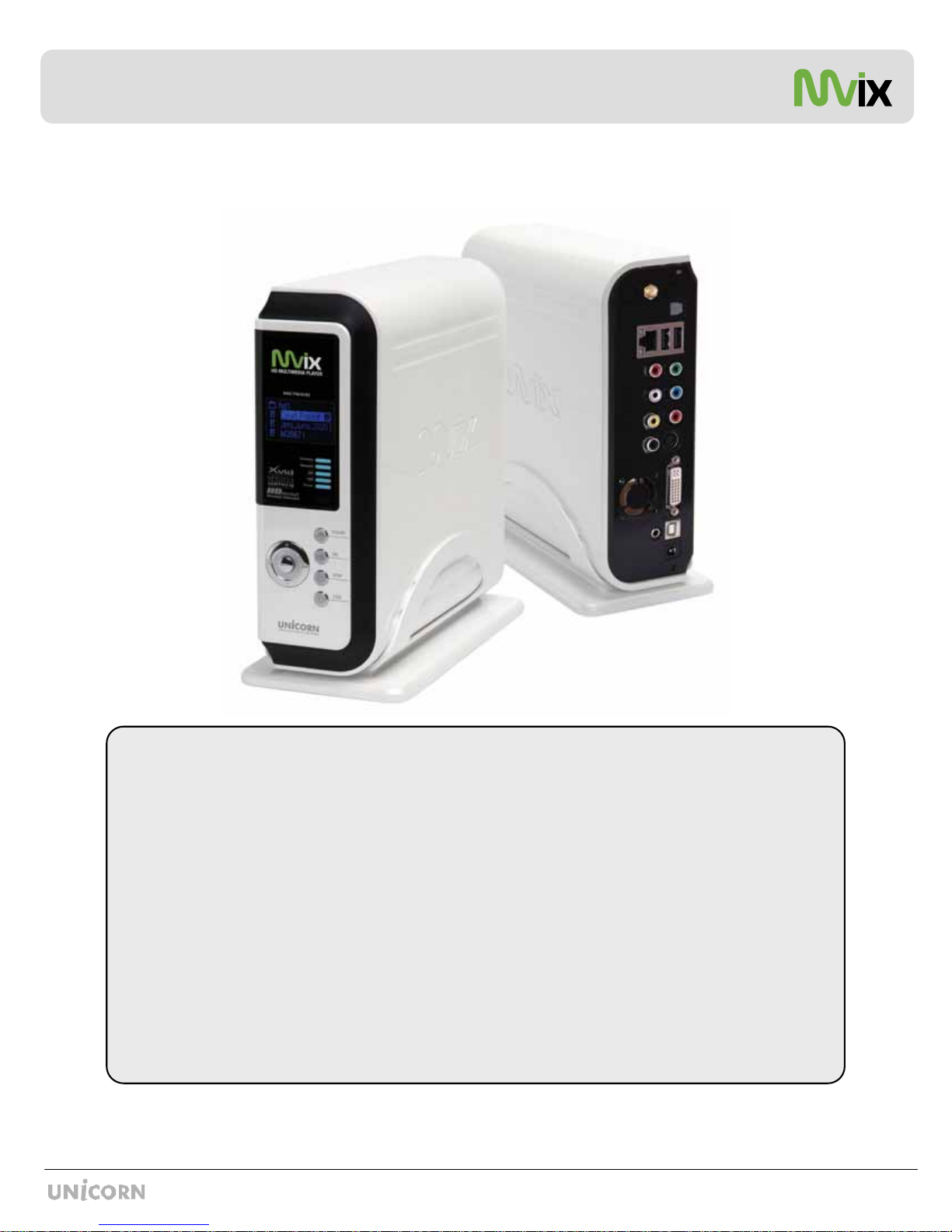

2.1 Introducing the Wireless MVIX Hi-Def Multimedia Player
ඞHD Playback: The Mvix player supports a max resolution of 1920 x 1080 Progressive Scan video output providing
Hi-Definition display of clear and crisp picture quality.
ඞVideo / Movie File Player: Supports various video file formats, including DivX® (3/4/5), Xvid, MPEG, WMV-9,
ASF(WMV9), DAT, DVD(IFO, VOB), ISO as well as HD-level TP, TS, TRP etc. Convenient Automatic Decoding and
Bookmarking of multiple files within a folder.
ඞAudio Jukebox: A perfect music jukebox that supports multiple audio formats: MP3, AC3, WMA, DTS with digital
audio output and down-mixing capability.
ඞDigital Photo Album: Supports multiple image formats. Now your entire family can enjoy the digital photo slide-show
on the big screen TV.
ඞNetwork Capable Decoding: Supports streaming of media files on the network.
ඞHD DVI Interface: Produces digital video signals to enjoy high quality, vivid, Hi-Def video.
ඞUSB-Host: Supports TWO USB2.0 Ports. USB-Host functionality allows easy connection to External Storage
(e.g. Flash Drive or External HDD) or an External DVD-ROM.

_Unicorn Information System
AC-DC Adapter 12V, 2.5APower
USB2.0 host, USB2.0 SlaveUSB Interface
3.5” Internal IDE(PATA)
Hard-Disk Type
Wireless : IEEE802.11b/g, 5dBi antenna (SMA type)
Wire : 10/100Mbps Fast Ethernet (RJ45)
TCP/IP (DHCP client mode, Manual IP mode)
Network Protocol
NTSC, PAL, or AUTO
TV System
HD COMPONENT Y, Pb, Pr (480p, 720p,1080) / HD DVI (480, 720,1080i, 1080p)
Hi-Def Decoding WMV, ASF, AVI and MP4 formats
MPEG-2 MPat HL(720P/1,080I)MPEG-4 ASPat L5 (720p) and WMV9 MPat ML (720p)
MPEG-1 and MPEG-2 Layers I, II and III (MP3), MPEG-2 BC multi-channel layers I, II and III, MPEG-2 and
MPEG-4 AAC-LC,WMA9 and WMA9 Pro decoding
Audio Decoding
Ethernet (10/100) LAN via RJ-45 PortWire
Networking
Wireless LAN : 802.11b/g or Pre-N MIMO(option)
Wireless
Wireless: WEP, and MAC-address Filtering
Network Security
187mm(W) X 193mm(H) X 58mm(D) or 7.4”(W) x 7.6”(H) x 2.3”(D)Dimension
DivX® (3/4/5), AVI, Xvid, MPEG, MPG, VCD(DAT), DVD(VOB, IFO), WMV(WMV-9),
ASF(WMV-9), TP, TS, TRP
Video
Supported Files &
Formats MP3, WMA, AAC, OGG, PCM, AC3, DTS decoding including down-mixing, DTS pass throughAudio
BMP, JPEG/JPG, PNGImage
Digital
Analog
Composite, S-Video, Component, and DVI.
Video Output
Stereo RCA, 5.1 channel RCA
Audio Output
Coaxial, Optical
SEM8621L (By Sigma Designs)
Processor
64MB (RAM), 8MB (Flash)Memory
ucLinux
Operating System
Mvix MX-760HD Wireless Hi-Definition Media PlayerProduct Name
Chapter 2: Introduction
2.2 Technical Specifications
Specifications subject to change without prior notice

`Unicorn Information System
Chapter 2: Introduction

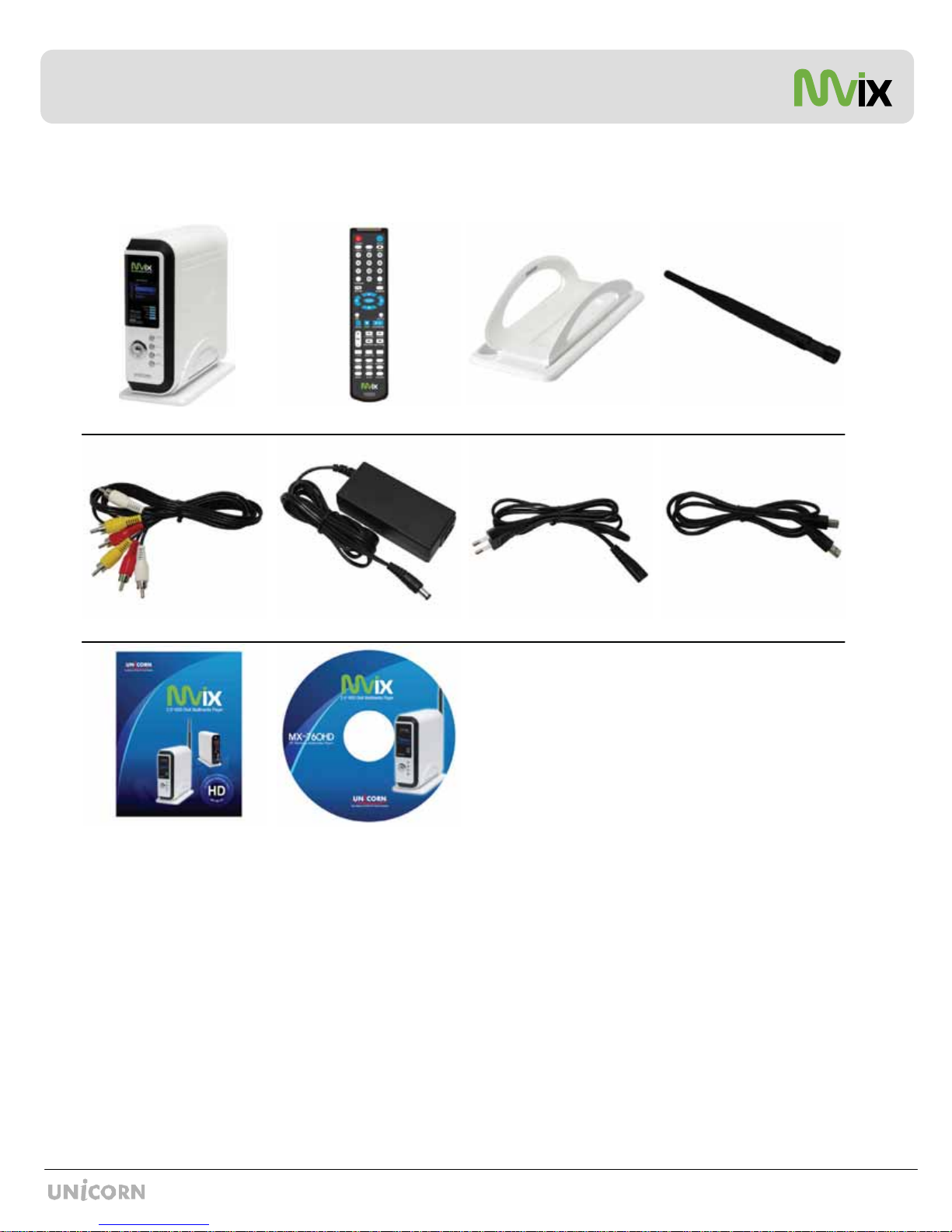

2.3 Package Contents
USB CablePower CablePower AdaptorA/V Cable
Driver CDUser Manual
5dBi AntennaStandRemote ControlMX-760HD

XW Unicorn Information System
Chapter 2: Introduction
2.3 Getting Familiar with your unit

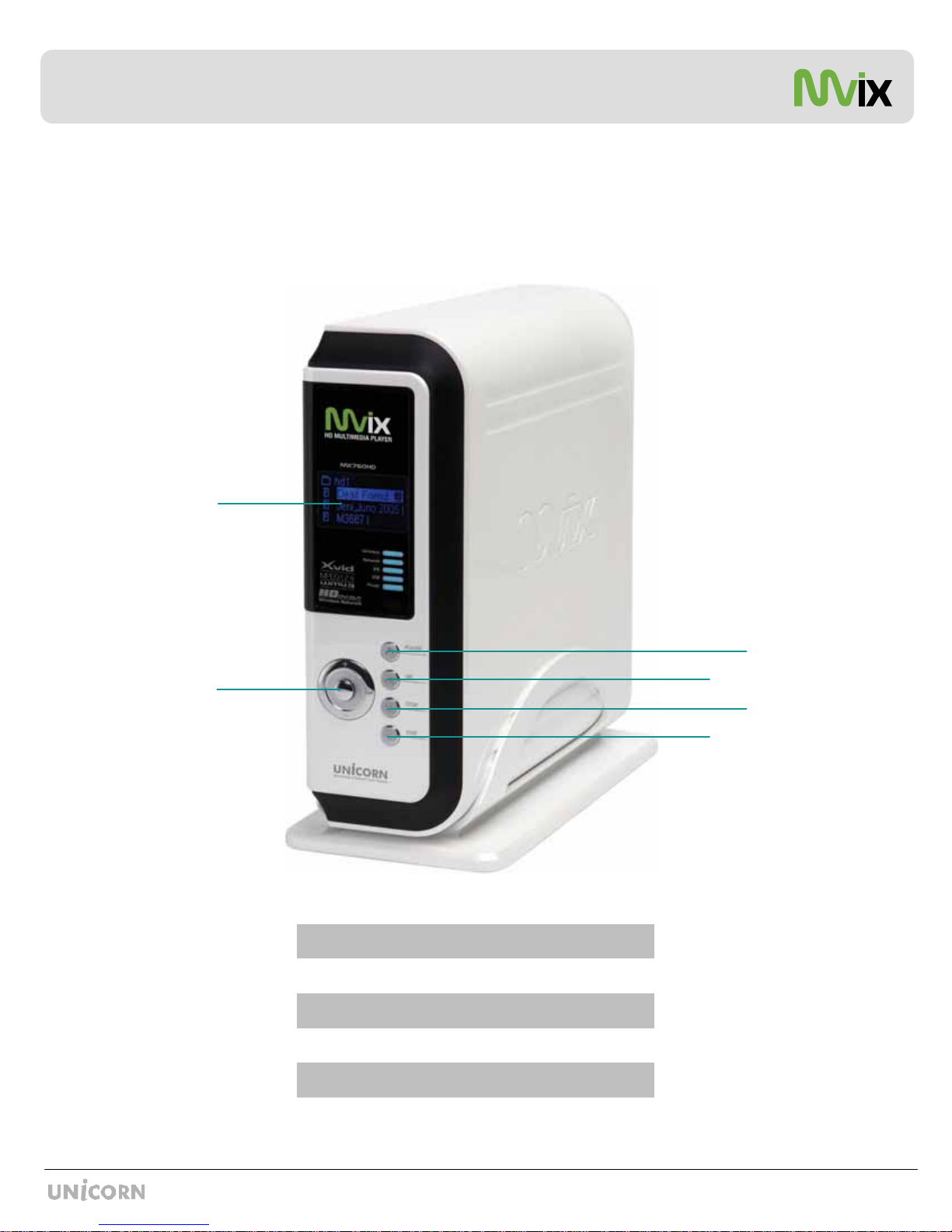

LCD Screen6
Setup Button5
Stop Button4
Select / OK Button3
Power Button2
Navigation / Toggle Switch1
ᐭ
ᐮ
ᐯᐰ
ᐱ
ᐲ
Front View

XX Unicorn Information System
Chapter 2: Introduction
Rear View

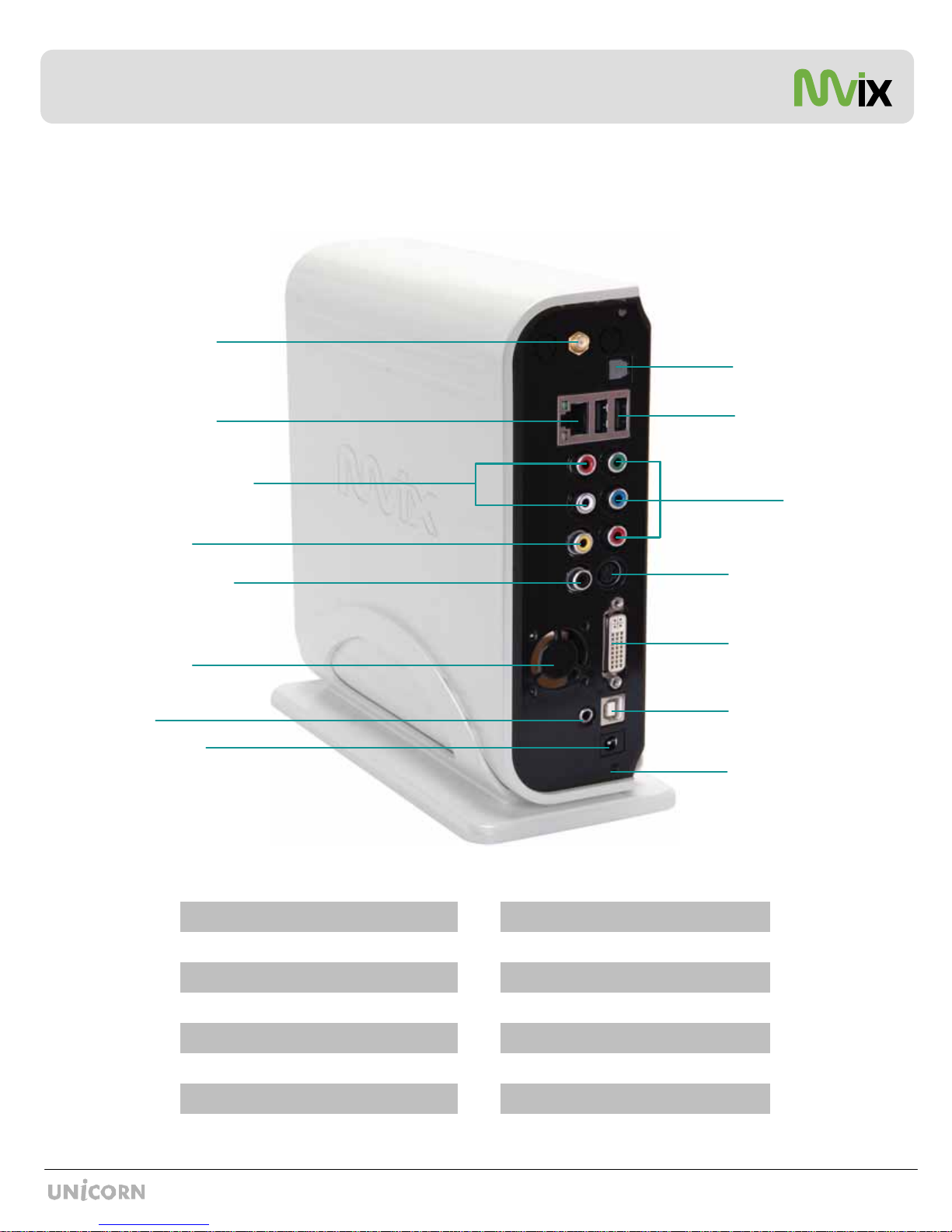

Coaxial Cable Jack8
Case Clamp Screw15Composite Port7
Power14Component Port6
External Infra-Red Jack13Stereo RCA Port5
USB 2.0 Slot12USB 2.0 Host A-Type 24
High Velocity Fan1110/100 Mbps (RJ45) LAN3
DVI Port10Optical (Audio) Port2
S-video Port9Wireless Antennae Jack1
ᐭᐮ
ᐯᐰ
ᐱᐲ
ᐳ
ᐴᐵ
ᐶ
ᐷ
ᐸ
ᐹᐺᐻ

XY Unicorn Information System
Chapter 2: Introduction

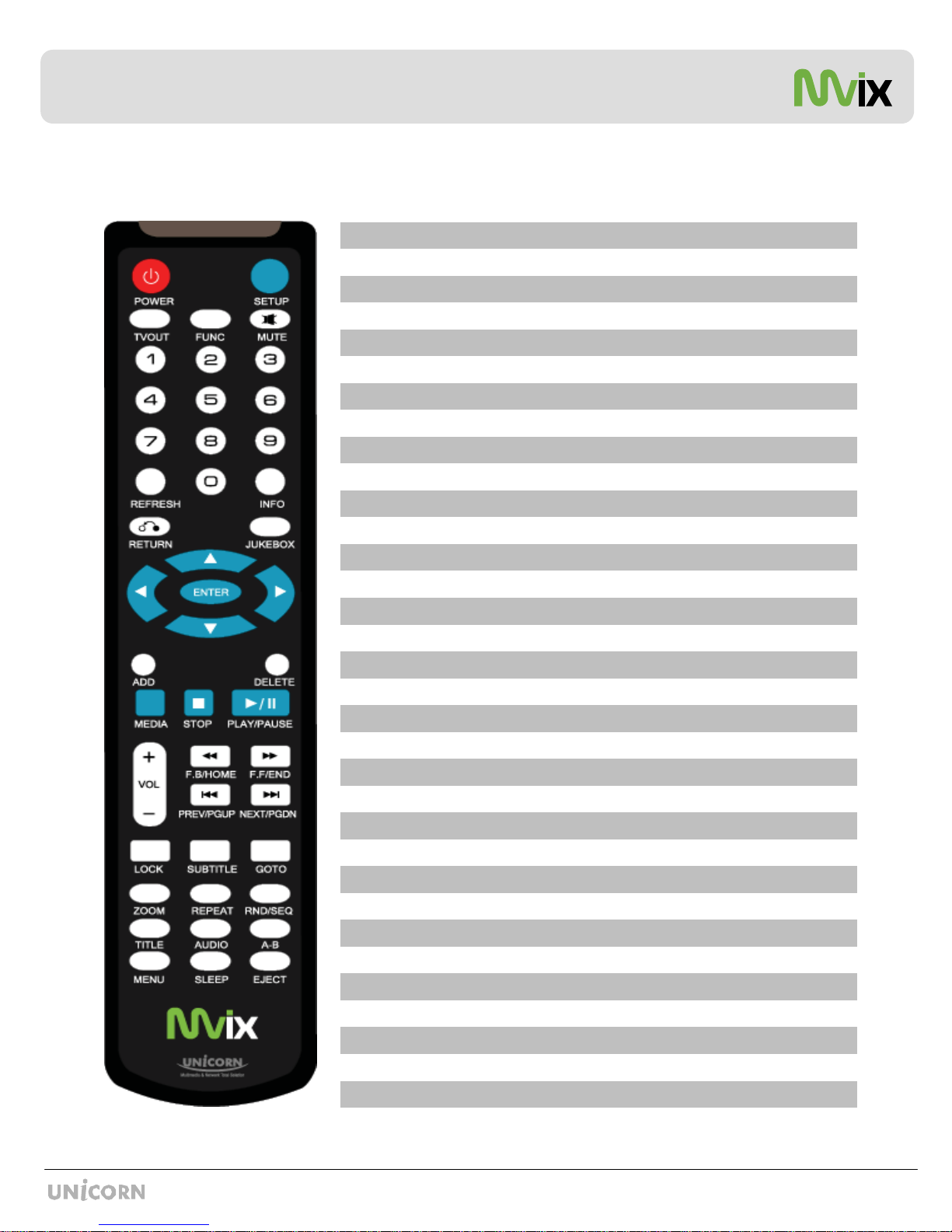

Mvix Remote Control
Eject CD or DVD ROM drive (USB host)EJECT
Set Sleep TimerSLEEP
DVD / VCD Menu Screen (Chapters, Extras etc.)MENU
Repeat one Small Segment of a Media FileA-B
Display a list of AUDIO files & start JUKEBOXAUDIO
Display DVD / VCD Title Screen on Main Menu ScreenTITLE
Switch between Random – Sequential Playback.RND/SEQ
Repeat Media file(s) PlaybackREPEAT
Zoom Video PlaybackZOOM
Time-Stamp based Search and FF/FR.GOTO
Subtitle ON / OFF, Change SettingsSUBTITLE
Set Folder Password (Folder access Control)LOCK
Next Chapter / File / Page Down on ListNEXT / PGDN
Previous Chapter / File / Page Up on ListPREV / PGUP
Fast Backwards / Rewind Playback. Scroll to beginning of File List.FB / Home
Fast Forward Playback. Scroll to end of File List.FF / End
Volume (Increase / Decrease)VOL + / -
Play (Continuous-Sequential Play) / Pause PlaybackPLAY / PAUSE
Stop PlaybackSTOP
Toggle Media List (Video / Audio / Photo / Mixed)MEDIA
Delete file from MY LISTDELETE
Add the file to MY LISTADD
Enter / Play (Individual file) / Select the Highlighted SelectionENTER
Toggle Jukebox Display Options (Audio Only)JUKEBOX
Return to Previous Screen / FolderRETURN
Display Media File InformationINFO
Refresh Shared-Folder / Directory ContentsREFRESH
Cursor Navigation Arrow Buttons(ARROW)
Stop Audio Output from the PlayerMUTE
Display Control Options (Vol, Contrast, Subtitle etc..)FUNC
Toggle Video Output ModesTVOUT
Enter Setup Menu, Apply/Confirm Setup SettingsSETUP
Toggle Unit Power (ON / OFF)POWER

XZ Unicorn Information System
Audio Connection Options
MX-760HD Back Panel
Home TheaterMX760HD
MX-760HD to Home Theater :
Audio Connections
CoaxialCoaxial
OpticalOptical
R/LR/L
DVIDVI
MX-760HD to TV :
Video Connections
R/LR/L
S-VideoS-Video
VideoVideo
Y/Pb/PrY/Pb/Pr
TVMX760HD
Chapter 3: Basic Setup
3.1 Connection
3.11 Audio & Video Connection Setup
Video Connection Options

X[ Unicorn Information System
Chapter 3: Basic Setup
3.2 Installing an Internal Hard Disk Drive
3.21 Inserting the Hard Disk
NOTE: Before Installing, ensure that the jumpers on your HDD are set to MASTER or SINGLE. Hard Disks with
CABLE SELECT jumper settings may not work in Mvix Hi-Def Multimedia Player.

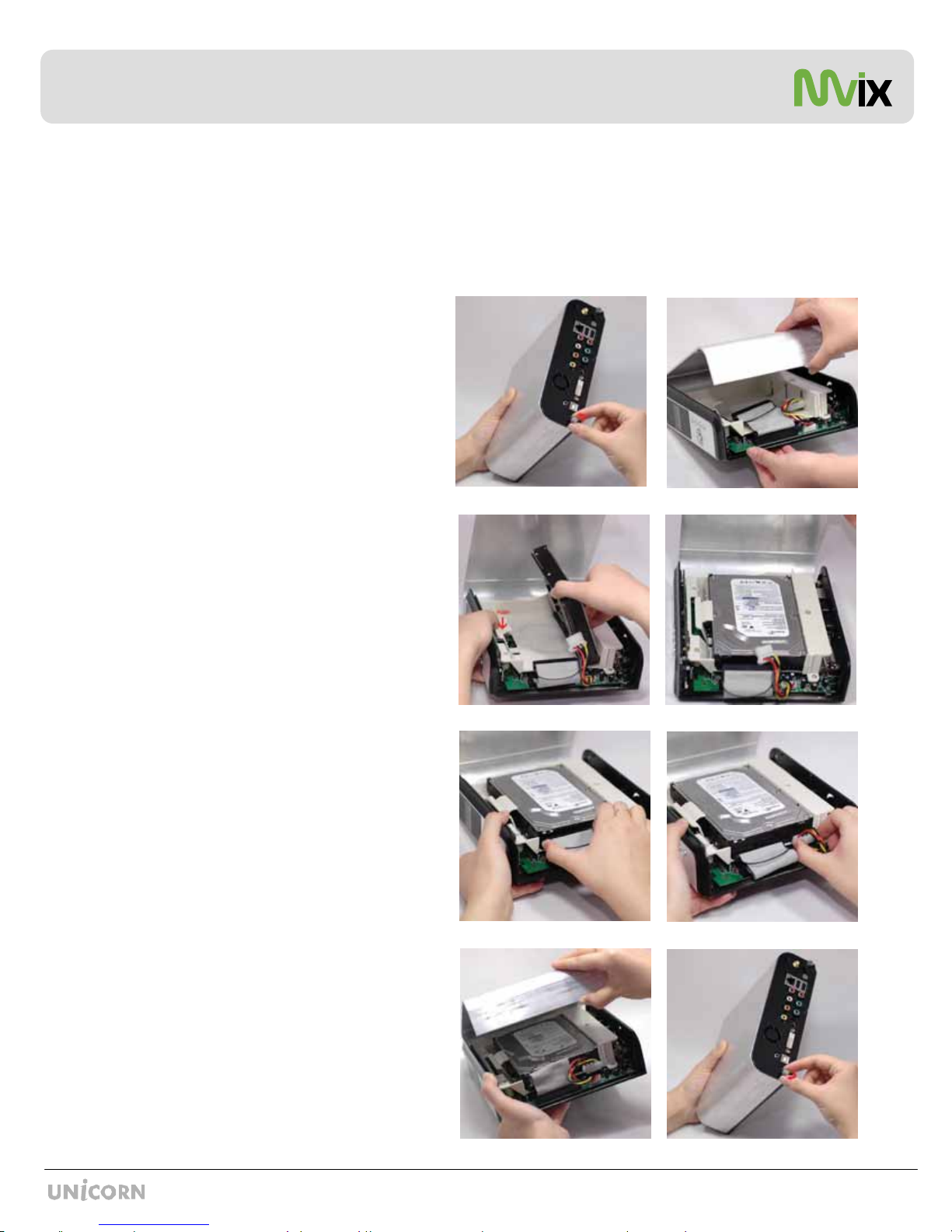

8. Slide the side panel cover back into place and lock the
enclosure using the case screw button at the back.
7. Connect the TWO cables to your HDD. - HDD Data Cable
(Flat Grey Cable) and 4-pin Power Cable.
4. Gently press the enclosure bracket
5. Slide the Hard Drive in the space so as to snugly fit the
HDD in the enclosure brackets.
6. Release the bracket to secure the HDD in position.
1. Locate the casing screw and turn it in clockwise direction.
2. Open the casing cover of the Mvix Player.
3. Gently lift the slide-panel cover as shown

X\ Unicorn Information System
Chapter 3: Basic Setup
3.22 Formatting the Hard Disk
Formatting and Partitioning the HDD using Win 2K/XP
3. The New Partition Wizard opens up. Click Next.
2. The disk list will appear on the right side of the
“Computer Management” windows. Right click the Mvix
HDD (marked as “Unallocated HDD”) from the list and
from the pop up menu choose “New Partition” to make
partitions on the chosen disk.
The drive is initially not visible in Windows Explorer. For the drive t
o been seen in Windows Explorer it needs to be configured via the
disk management Utility. Win-XP will normally recognize the unfor
matted /unpartitioned drive when you open disk management and
start the wizard.

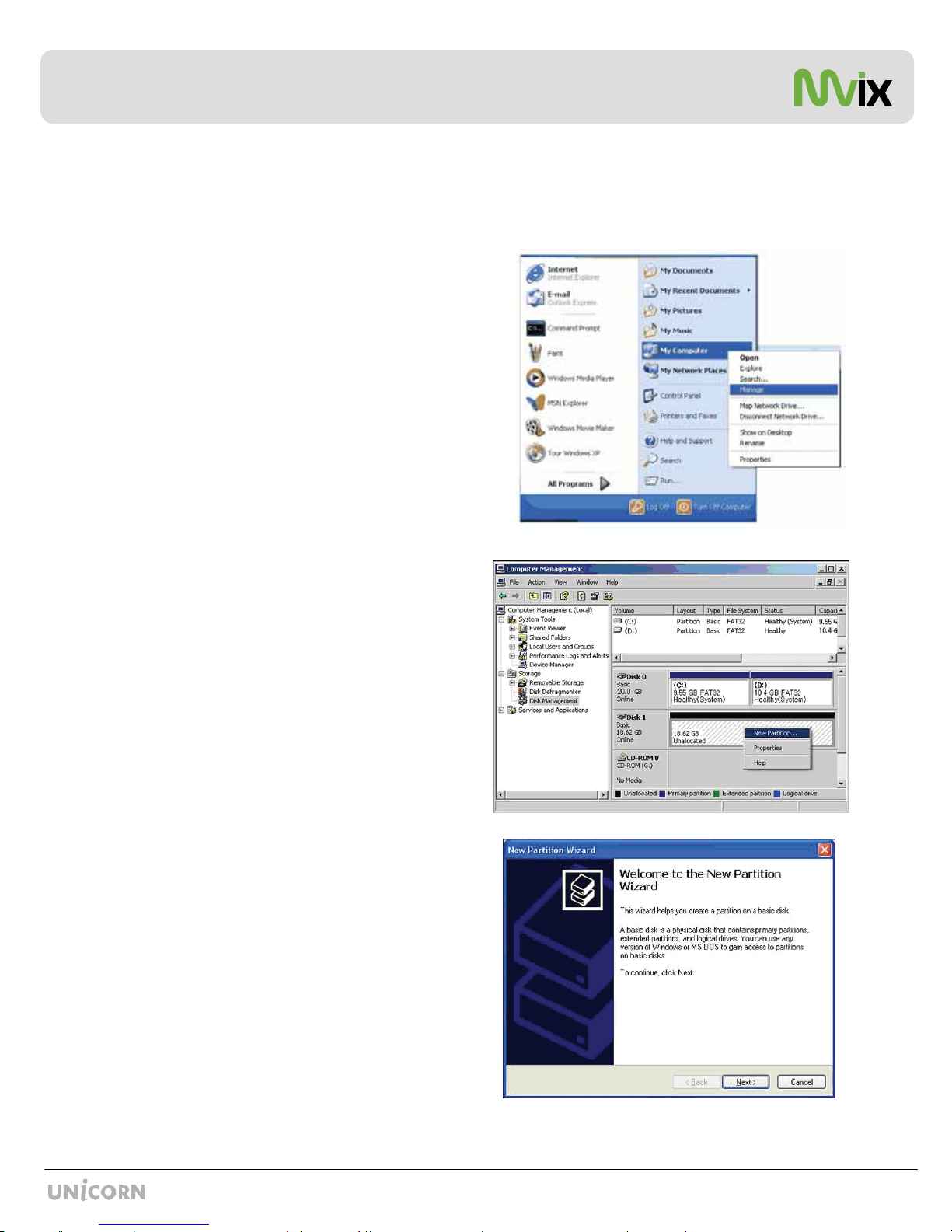

1. Right click on “My Computer”. Choose “Manage” from
the pop up menu and “Computer Management” window
will appear. Under “Storage”, choose the “Disk Management”
folder.

X] Unicorn Information System
Chapter 3: Basic Setup
6. Select the Driver letter. This allows you to select the drive
letter for this partition. This will be the identification label of
your Mvix HDD on your PC. We recommend that you do not
change anything on this screen and simply press “Next”.
5. Select the Partition Size. If you want one partition, simply
click “Next”.
Set the size of the partition (The full drive capacity is the
default). If the full Partition Size is not used, right click on the
remaining free space once the wizard has completed to
partition that space. Repeat the Partition Wizard until the
drive is how you want it.
Remember: For the FAT32 Formatting, Partition Size is
limited to 32GB

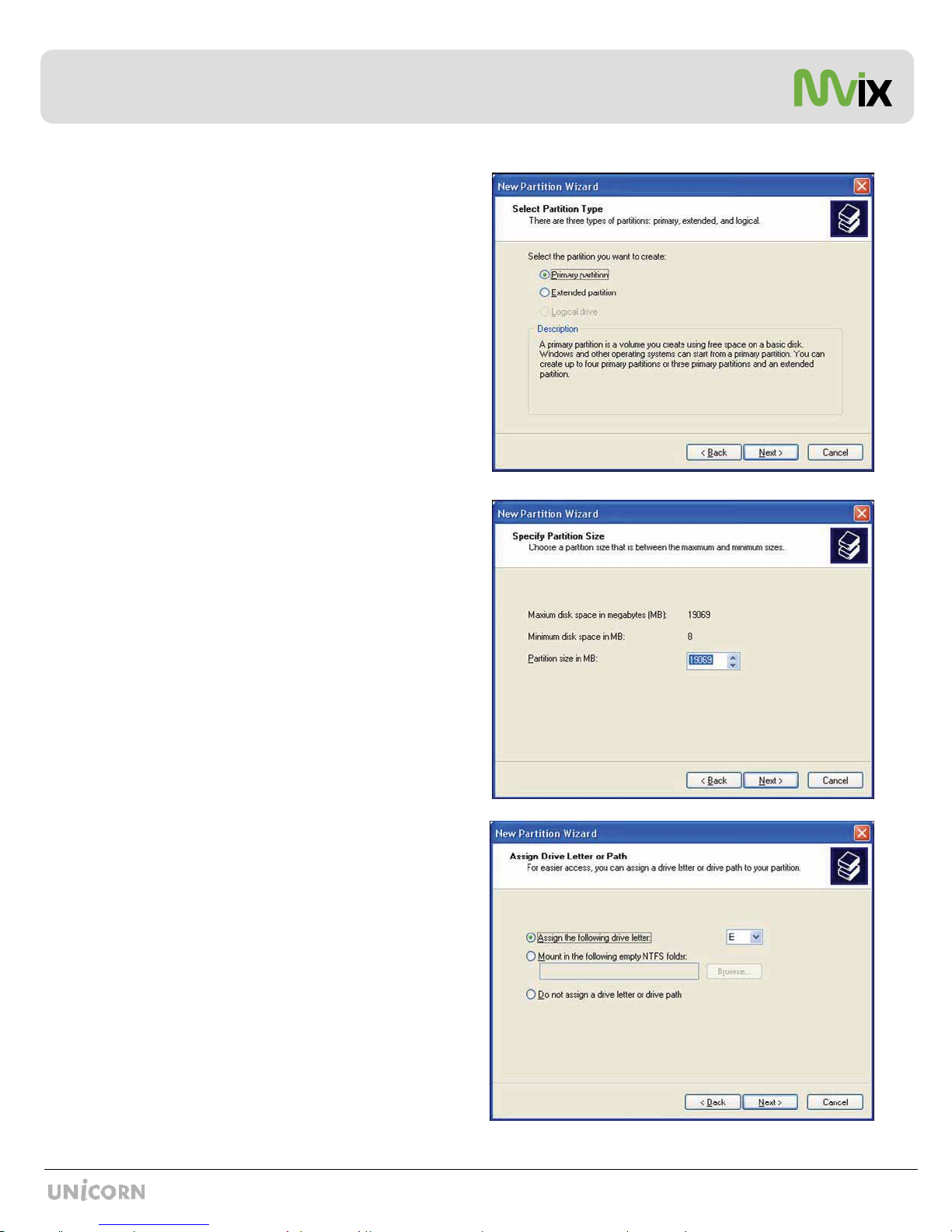

4. Select the appropriate Partition Type. Choose Primary
partition.
Primary –Normal selection for less than 4 partitions.
Extended – Used for 4 or more partitions.

X^ Unicorn Information System
Chapter 3: Basic Setup
9. Once the drive has been initialized, partitioned, and formatted
it will display as a healthy drive with the size and type of partition
below the volume name and drive letter.
ඞThere is no limit on the number of folders / sub-folders that can be created within the Mvix-HDD. The access or seek-time
increases significantly if number of folders > 6400.
ඞThe Mvix player recognizes file and folder names up to 256 characters.
8. When the formatting is completed, detailed information will
appear as shown. Click the “FINISH” button to complete the
work.

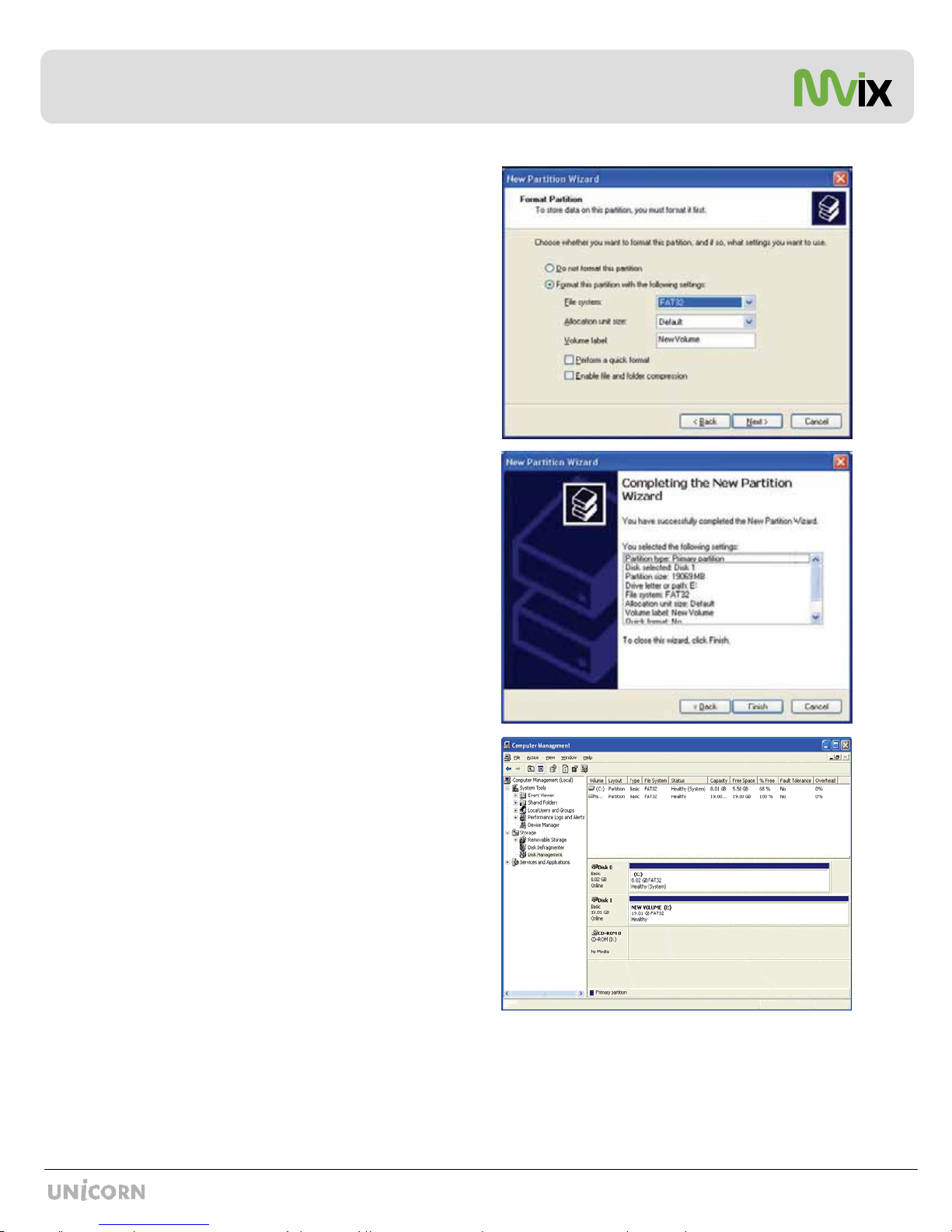

7. Select the Partition Format. NTFS is the default format type
in Windows XP, but FAT32 is popular for users that dual
boot between XP and 9X. There is a limit that Windows XP
cannot create a partition larger than 32 GB using FAT32.If
you want the FAT32, Partition Size is limited to 32GB.

X_ Unicorn Information System
3.23 Transferring files to the Hard Disk through USB
Chapter 3: Basic Setup
When connected to your PC, the Mvix Player works exactly like an
external storage device (e.g. USB Flash drive).
1. Power OFF the Mvix Media Player
2. Connect the USB2.0 Slave Port to the USB Port of your
PC via a USB2.0 A-B Cable.
3. Power ON the Mvix Media Player.
4. Your PC will recognize the new external USB drive**.
5. Simply drag and drop your media files from your PC to the Mvix
Multimedia Player. It works exactly like any other external storage
device.
** If your PC fails to recognize the Mvix Media Player when connected via USB, check the jumper settings on the installed HDD.
Try and test the jumpers in the following order:
ඞMASTER or SINGLE jumper setting
ඞCABLE SELECT (CS) jumper setting
ඞSLAVE jumper setting
ඞComplete Remove all jumpers.
USB Host Functionality: The Mvix player also provides a USB-host port built upon a full speed, USB 2.0 compliant host/function processor.
USB-host (also referred to as USB-OTG or USB-On-the-Go) allows communication between two USB devices. You can connect any external
storage device (e.g. Flash drive) or an external DVD-ROM and play video files residing on these external devices. You can even connect your
Digital Camera to directly transfer digital images/pictures from the camera to the HDD residing inside Mvix player.
ඞTurn off your Mvix player before connecting your external device to the player.
ඞSome 2.5” external-HDD may require additional power to the external HDD to be recognized. Use the AC-adapter included with your
2.5” external HDD to enable its use with the Mvix player.

X` Unicorn Information System
3.3 The SETUP Menu
Chapter 3: Basic Setup
Use the left -arrow button on the Mvix Remote to navigate
back to the left-side column.
From the left-side navigation column, select NETWORK Setup.
Press ENTER / SELECT on the Mvix Remote.
Enable: Wired / Wireless (Choose Wired versus Wireless Network)
Address Setup: Auto vs Manual (Choose manual to enter IP Address,
Netmask and Gateway manually)
IP Address: (IP address is set automatically, if Address Setup is AUTO)
Netmask: Subnet Mask setup
Gateway: (If using Router, use IP address of the router)
MAC Address : Displays MAC address information (Wired / Wireless)
Wire Apply: Displays Wired Network Status: Success vs Fail
Wireless Apply: Apply Displays Wireless Network status: Success vs Fail
(If Wireless Appy is selected, the System automatically moves to next
screen… <see next page>)
( Select Wire Apply or Wireless Apply to apply settings or Press SETUP
on Mvix Remote to Apply these settings.)
Use the navigation button on the Mvix Remote to select the TV
icon/option. This option allows you to configure your video-out
settings.
Use the right-arrow button on the Mvix Remote to navigate to
the main panel and select configuration option. Press ENTER
on each configuration to view available setup options.
SPDIF out: DownMix and Passthrough
Audio Channel: 2 Channels and 5+1 Channels.
Video Out: S-Video, Component, DVI etc.
TV Standard: PAL versus NTSC (USA customers use NTSC)
TV Type: 4:3 versus 16:9 (If using Widescreen Display / TV use 16:9)
Before using the Mvix player, you may need to configure the
Mvix player to work with your Display (TV) and Network Setup.
Press SETUP menu on the Mvix Remote to view the setup
options on the main panel. The main panel displays options to
configure settings for TV, Network, Wireless, Media file
playback settings and some Miscellaneous settings for the
Mvix Player.
To apply SETUP settings, select the option and press SETUP
on the Mvix Remote.
