MYERS M-6217 User manual

Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
SPEAKER SELECTOR
OPERATION MANUAL
PUBLIC ADDRESS SYSTEM
M-6217
POWER
-6217
SPEAKER SELECTOR
ON
OFF 12 3 4 5678910
SPEAKER ZONES
ALL ZONES
M

TABLE OF CONTENTS
2
1. SAFETY PRECAUTIONS .......................................................................................3
2. GENERAL DESCRIPTION ....................................................................................5
3. FEATURES .............................................................................................................. 5
4. NOMENCLATURE AND FUNCTIONS
4.1 Front Panel .............................................................................................................6
4.2 Rear Panel............................................................................................................. 7
5. ........................................................................................ 8
6. APPLICATIONS ...................................................................................................... 9
7.SPECIFICATIONS ................................................................................................. 10
8.DIMENSIONAL DIAGRAM ....................................................................................11
MACHINE OPERATION

Be sure to read the instructions in this section carefully before use.
Make sure to observe the instructions in this manual as the conventions of safety symbols and messages
regarded as very important precautions are included.
We also recommend you keep this instruction manual handy for future reference.
Safety Symbol and Message Conventions
Safety symbols and messages described below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your product, read this manual first and
understand the safety symbols and messages so you are thoroughly aware of the potential safety
Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
When Installing the Unit
Do not expose the unit to rain or an environment
where it may be splashed by water or other liquids,
as doing so may result in fire or electric shock.
Use the unit only with the voltage specified on the
unit. Using a voltage higher than that which is
specified may result in fire or electric shock.
Do not cut, kink, otherwise damage nor modify the
power supply cord. In addition, avoid using the
power cord in close proximity to heaters, and never
place heavy objects -- including the unit itself -- on
the power cord, as doing so may result in fire or
electric shock.
Be sure to replace the unit's terminal cover after
connection completion. Because high voltage is
applied to the speaker terminals, never touch these
terminals to avoid electric shock.
Be sure to ground to the safety ground (earth)
terminal to avoid electric shock. Never ground to a
gas pipe as a catastrophic disaster may result.
Avoid installing or mounting the unit in unstable
locations, such as on a rickety table or a slanted
surface. Doing so may result in the unit falling
down, causing personal injury and/or property
damage.
When the Unit is in Use
Should the following irregularity be found during
use, immediately switch off the power, disconnect
the power supply plug from the AC outlet and
contact your nearest
dealer. Make no further
attempt to operate the unit in this condition as this
may cause fire or electric shock.
If you detect smoke or a strange smell coming
from the unit.
If water or any metallic object gets into the unit
If the unit falls, or the unit case breaks
If the power supply cord is damaged (exposure of
the core, disconnection, etc.)
If it is malfunctioning (no tone sounds.)
To prevent a fire or electric shock, never open nor
remove the unit case as there are high voltage
components inside the unit. Refer all servicing to
your nearest dealer.
Myers
Myers
Do not place cups, bowls, or other containers of
liquid or metallic objects on top of the unit. If they
accidentally spill into the unit, this may cause a fire
or electric shock.
Do not insert nor drop metallic objects or
flammable materials in the ventilation slots of the
unit's cover, as this may result in fire or electric
shock.
3
1. SAFETY PRECAUTIONS

An all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated in
the electrical installation of the building.
When Installing the Unit
Never plug in nor remove the power supply plug
with wet hands, as doing so may cause electric
shock.
When unplugging the power supply cord, be sure
to grasp the power supply plug; never pull on the
cord itself. Operating the unit with a damaged
power supply cord may cause a fire or electric
shock.
When moving the unit, be sure to remove its power
supply cord from the wall outlet. Moving the unit
with the power cord connected to the outlet may
cause damage to the power cord, resulting in fire or
electric shock. When removing the power cord, be
sure to hold its plug to pull.
Do not block the ventilation slots in the unit's cover.
Doing so may cause heat to build up inside the unit
and result in fire.
Avoid installing the unit in humid or dusty locations,
in locations exposed to the direct sunlight, near the
heaters, or in locations generating sooty smoke or
steam as doing otherwise may result in fire or
electric shock.
When the Unit is in Use
Do not place heavy objects on the unit as this may
cause it to fall or break which may result in
personal injury and/or property damage. In
addition, the object itself may fall off and cause
injury and/or damage.
Make sure that the volume control is set to
minimum position before power is switched on.
Loud noise produced at high volume when power is
switched on can impair hearing.
Do not operate the unit for an extended period of
time with the sound distorting. This is an indication
of a malfunction, which in turn can cause heat to
generate and result in a fire.
Contact your
dealer as to the
cleaning. If dust
is allowed to accumulate in the unit over a long
period of time, a fire or damage to the unit may
result.
Myers
If dust accumulates on the power supply plug or in
the wall AC outlet, a fire may result. Clean it
periodically. In addition, insert the plug in the wall
outlet securely.
Switch off the power, and unplug the power supply
plug from the AC outlet for safety purposes when
cleaning or leaving the unit unused for 10 days or
more. Doing otherwise may cause a fire or electric
shock.
SAFETY PRECAUTIONS
4

The T-6217 provides all the features above with the addition of three more amplifier inputs. In this way, the
T-6217 can work like an audio matrix providing different audio source programs to different speaker zones.
1 10 input and 10 output,can select any input and output channel.
2 The indicator can show the working area.
3 Alarm Priority
5
3. FEATURES
2. GENERAL DESCRIPTION

1. POWER
Power indicator
2. POWER SWITCH
On top of the opening Power
Press the end, power shut down
23
3. SPEAKER ZONES(1~10)
Zone activation switches
4. SPEAKER ZONES(1~10)
Speaker zones (1~10) indicators
5. ALL ZONES
All zones button
1

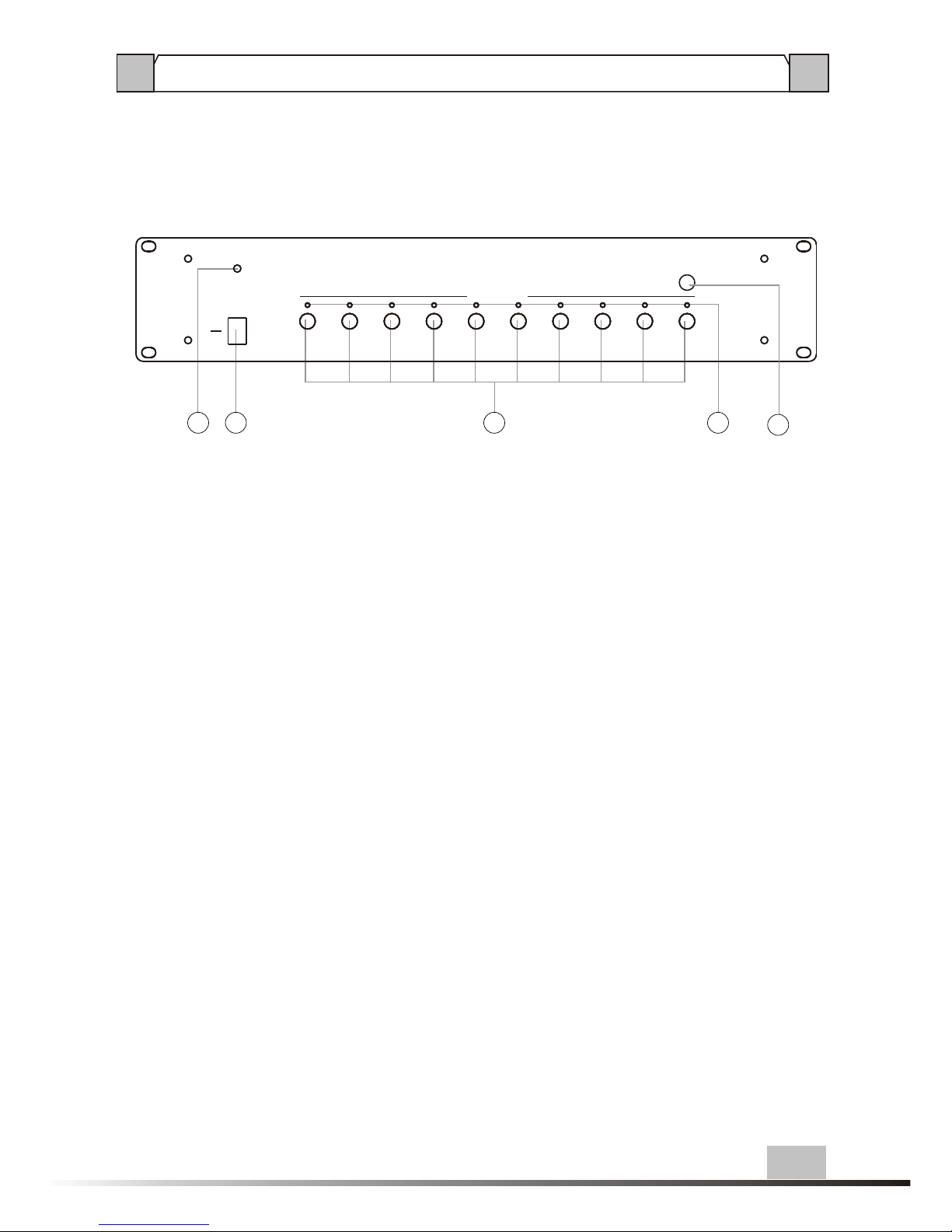

4.1 FRONT PANEL
4
POWER
ON
OFF
12 3 4 5678910
SPEAKER ZONES
ALL ZONES
5
4. NOMENCLATURE AND FUNCTIONS
6

MUSIC IN
(CH1~CH10)
+ -
ALARM IN
+A- +B-
ALARM IN
(CH1~CH10)
+ -
ALARM OUT
+A- +B-
OUT
+ -
CH1~CH5
CH6~CH10
ALARM IN
1 ~ 10
+ -
( (
4.2 REAR PANEL
123
456
1. MUSIC IN (CH1~CH10)
Blackground music input
2 . OUT (CH1~CH10)
Audio out
To speaker
3. AC POWER INPUT
4. ALARM IN (1-10)
Zoning short circuit alarm signal input
5. ALARM IN A/B
Short-circuit alarm signal input
6. ALARM OUT A/B
Short-circuit alarm signal output
7. ALARM IN (CH1~CH10)
Alarm signal
To amplifer
7
NOMENCLATURE AND FUNCTIONS
7

OPERATION
5. MACHINE OPERATION
1 background music signal from the second row left rear panel of the MUSIC IN CH1-CH10
Video input, emergency broadcast signal from the second row left of the ALARM IN
CH1-CH10-Video input. They were right OUT CH1-CH10 output,
One channel CH-one correspondence, emergency signal priority to the background music
signal output.
2 Press the select key is either a partition option pass to the partition.
3 Division alarm input "ALARM In" any one terminal shorted, the corresponding pass
Road speaker is automatically cut to emergency alarm input.
8

MUSIC IN
(CH1~CH10)
+ -
ALARM IN
+A- +B-
ALARM IN
(CH1~CH10)
+ -
ALARM OUT
+A- +B-
OUT
+ -
CH1~CH5
CH6~CH10
ALARM IN
1 ~ 10
+ -
( (
6. APPLICATIONS
REAR PANEL CONNECTIONS
ALARM SIGNAL INPUT(TO AMPLIFIER)
ZONING SHORT CIRCUIT
ALARM SIGNAL INPUT SHORT-CIRCUIT ALARM SIGNAL OUTPUT
SPEAKER
SHORT-CIRCUIT ALARM SIGNAL INPUT
BLACKGROUND MUSIC INPUT
9

7.SPECIFICATIONS
MODEL
SPEAKER SELECTORS
M-6217
CONTROLS
SPEAKER ZONES
INDICATORS
POWER REQUIREMENTS
DIMENSIONS(MM)
CONTROL
PROTECTION
POWER CONSUMPTION
WEIGHT
484X350X88
Iindividual zone selectors
Power switch
MAX POWER
INPUT
~220-240V 50/60Hz
Individual zone selectors
power switch
AC fuse,1A
40W
10
Power LED,channel status LEDs-BGM or Priority
5.3Kg
1500W speaker load
A(BGM), B(priority):100V or 70V,COM
10

100
Over
100
Over
Over
100
8. DIMENSIONAL DIAGRAM
UNIT :mm
6
84
84
25
337
331
88
94
436
484
UNIT :mm
POWER
ON
OFF 12 3 4 5678910
SPEAKER ZONES
ALL ZONES
POWER
ON
OFF 12 3 4 5678 9 10
SPEAKER ZONES
ALL ZONES
MUSIC IN
(CH1~CH10)
+ -
ALARM IN
+A- +B-
ALARM IN
(CH1~CH10)
+ -
ALARM OUT
+A- +B-
OUT
+ -
CH1~CH5
CH6~CH10
ALARM IN
1 ~ 10
+ -
( (
11

PUBLIC ADDRESS SYSTEM
Version V0.1
