MYiR MY-CAM001U User manual

MY-CAM001U
USB Camera Module
MY-CAM001U
USB Camera Module
Version 1.1
2015/3/18

MY-CAM001U
USB Camera Module
Version histroy
Reversion
Description
Date
V1.0
Initial release
2013/11/20
V1.1
Add AM335x,AM437x, Z-trun eval board support
2015/3/18

Page 1/ 14
MY-CAM001U
USB Camera Module
Table of Contents
Table of Contents ..............................................................................................................1
Chapter 1 Overview ...........................................................................................................2
1.1 Introduction ................................................................................................................... 2
1.2 Product Image .............................................................................................................. 2
Chapter 2 Product Features .............................................................................................1
2.1 Parameters.................................................................................................................... 1
2.2 Supported Products..................................................................................................... 2
Chapter 3 Interface Definition ..........................................................................................4
Chapter 4 Test for Linux ...................................................................................................4
4.1 Config the Kernel ......................................................................................................... 1
4.1.1 Atmel SAM9X5 series.......................................................................................... 1
4.1.2 Atmel SAMA5 series............................................................................................. 1
4.1.3 TI AM335X series................................................................................................. 1
4.1.4 TI AM437X series................................................................................................. 1
4.1.5 Z-turn Board........................................................................................................... 2
4.2 Camera Test................................................................................................................. 2
Warranty & Technical Support Services.........................................................................4

Page 2/ 14
MY-CAM001U
USB Camera Module
Chapter 1 Overview
1.1 Product Introduction
MY-CAM001U is a USB camera module for video capture, by MYiR-Tech, The
module uses image sensor OV9665, small size, low power, high performance, can be
easily applied to a variety of products. It can effectively shorten product development
cycle and reduce development costs.
The module supports multiple resolutions, up to 1280x1024, only 80mW power in
general.
1.2 Product Image

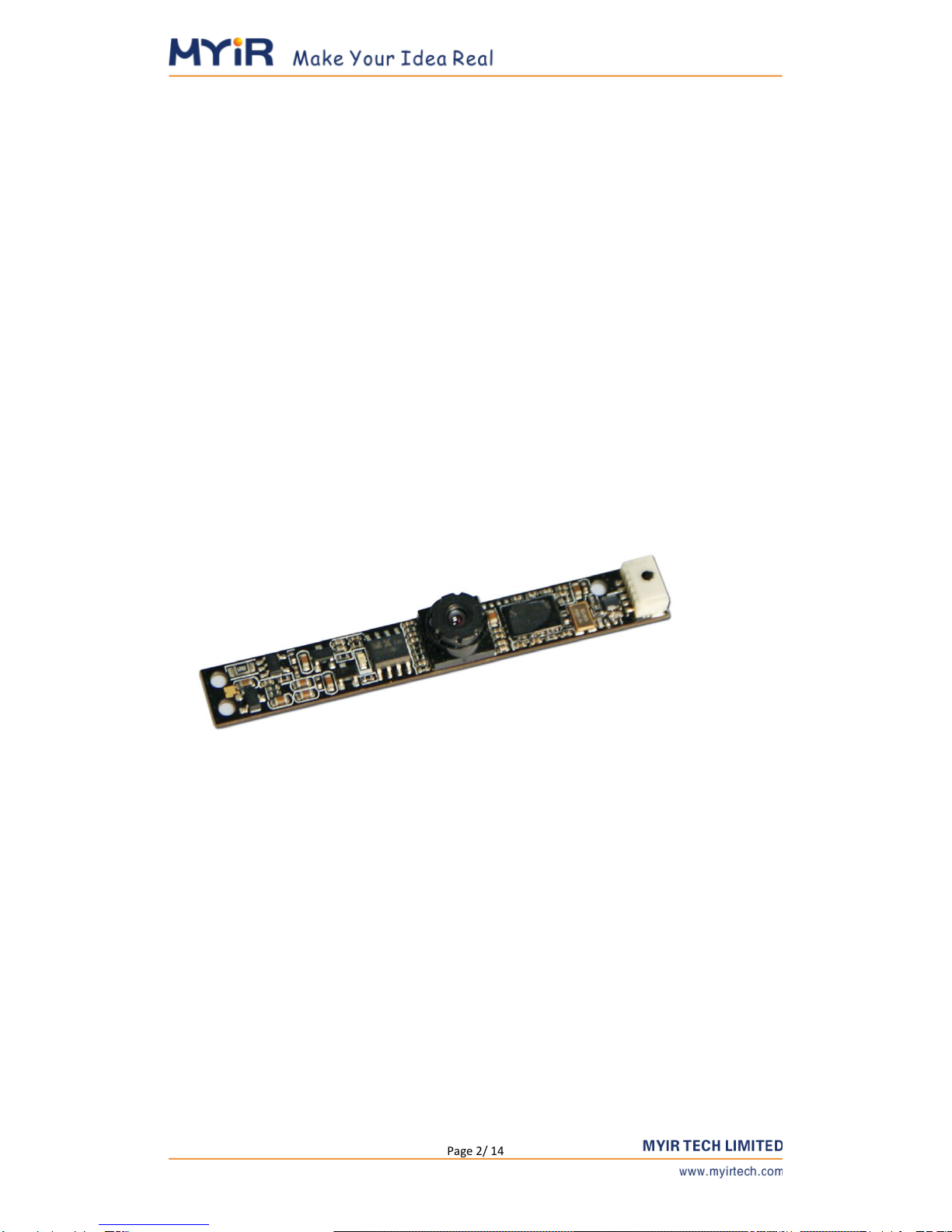

Figure 1-1 MY-CAM001U

Page 3/ 14
MY-CAM001U
USB Camera Module
Figure 1-2 MY-CAM001U

Page 1/ 14
MY-CAM001U
USB Camera Module
Chapter 2 Product Features
2.1 Parameters
Item
Parameters
Active Array Size
1304 x 1036
Power Supply
Core
1.8VDC ±10%
Analog
2.45 to 3.0VDC
I/O
1.71V to 3.0V
Power Requirements
Active
80 mW typical(15fps SXGA YUV
format)
Standby
15 µA typical
Temperature Range
Operation
-30℃to 70℃
Stable Image
0℃to 50℃
Output Formats (8-bit)
•YUV/YCbCr 4:2:2
•RGB565/555/444
•GRB 4:2:2
•Raw RGB Data
Lens size
1/5.5″
Chief RayAngle
25°non-linear
Maximum Image Transfer
Rate
SXGA
15 fps
VGA and down
scaling
30 fps
Sensitivity
450mV/(Lux ·sec)
S/N Ratio
40 dB
Dynamic Range
55 dB
Scan Mode
Progressive
Maximum Exposure Interval
1052 x tROW
Gamma Correction
Programmable
Pixel Size
2.0 µm x 2.0µm
Dark Current
3mV/s at 60℃
Well Capacity
13 Ke
Fixed Pattern Noise
1% of VPEAK-TO-PEAK
Image Area
2608µm x 2072µm
Package Dimensions
4485µm x 4985µm
Table 2-1 MY-CAM001U Parameters
Supported resolutions:
•640 x 480
•352 x 288
•320 x 240

Page 2/ 14
MY-CAM001U
USB Camera Module
•176 x 144
•160 x 120
•1280 x 960
•1280 x 1024

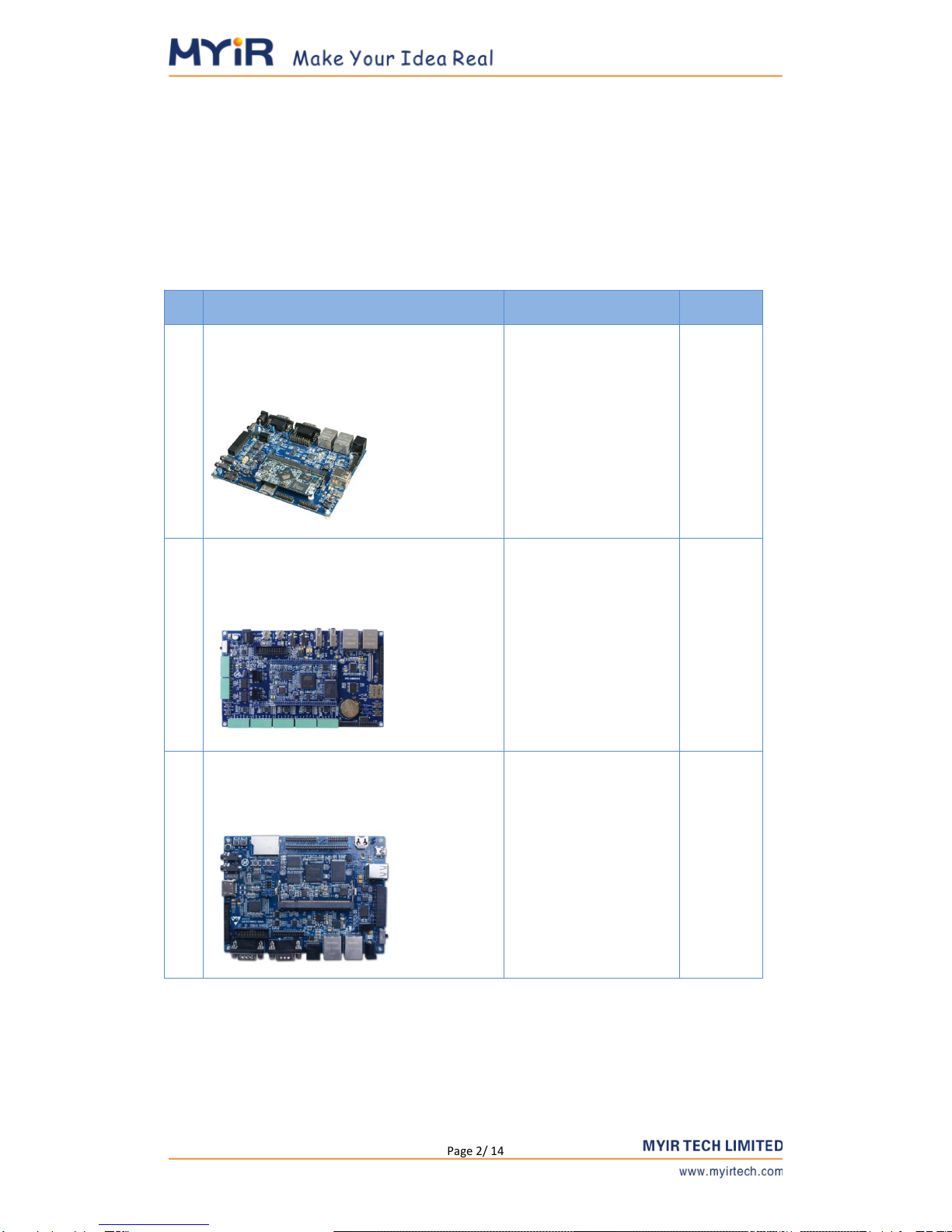

2.2 Products Supporting
NO
Products
Model
OS
1
MYD-SAM9X5 Atmel SAM9X5 series
ARM9 development board
MYD-SAM9G15
MYD-SAM9G25
MYD-SAM9G35
MYD-SAM9X25
MYD-SAM9X35
Linux
2
MYD-SAM9X5-V2 Atmel SAM9X5 series
ARM9 development board
MYD-SAM9G15-V2
MYD-SAM9G25-V2
MYD-SAM9G35-V2
MYD-SAM9X25-V2
MYD-SAM9X35-V2
Linux
3
MYD-SAMA5D3X Atmel SAMA5D3 series
ARM Cortex-A5 development board
MYD-SAMA5D31
MYD-SAMA5D33
MYD-SAMA5D34
MYD-SAMA5D35
MYD-SAMA5D3X-C
Linux

Page 3/ 14
MY-CAM001U
USB Camera Module

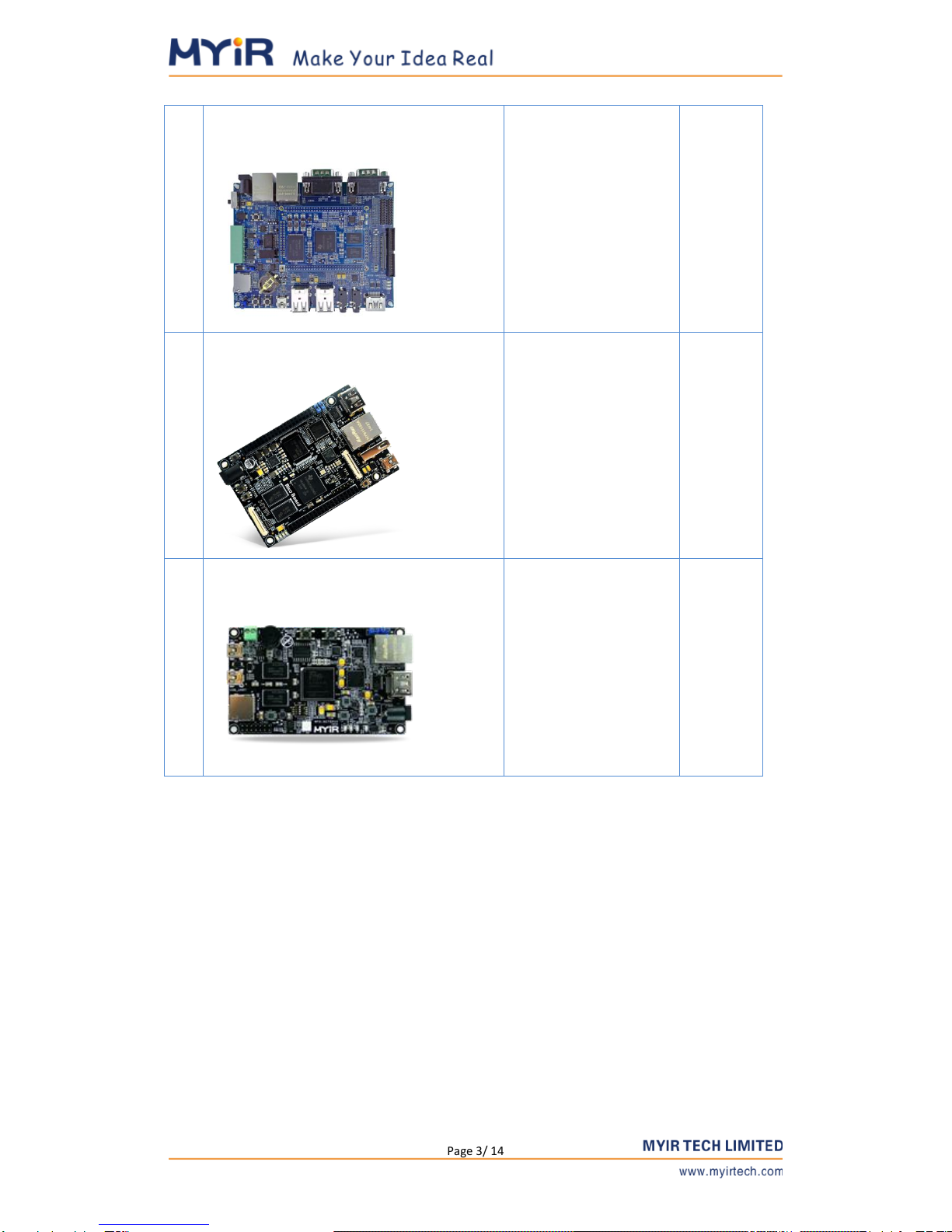

4
TI AM335X series development board
MYD-AM335X
MYD-AM335X-J
MYD-AM335X-Y
Linux
5
TI AM437X series development board
Rico Board
Linux
6
Xilinx z-turn series development board
MYS-XC7Z010
Linux

Page 4/ 14
MY-CAM001U
USB Camera Module
Chapter 3 Interface Definition
The USB2.0 interface definition is as below in table 3-1:
Table 3-1 Interface Definition
Pin
Signal
1
VBUS
2
DN
3
DP
4
GND

Page 1/ 14
MY-CAM001U
USB Camera Module
Chapter 4 Test for Linux
4.1 Config the Kernel
4.1.1 Atmel SAM9X5 series
MYiR SAM9X5 series development board, such as MYD-SAM9X35, MYD-SAM9G15.
Linux Kernel is 2.6.39.
The camera used here is UVC camera, so configure the Kernel and add UVC options
as follow.
$ make ARCH=arm menucofig
And add following configuration options:
Device Drivers --->
<*> Multimedia support --->
[*] Video capture adapters --->
[*] V4L USB devices --->
<*> USB Video Class (UVC)
[*] UVC input events device support
4.1.2 Atmel SAMA5 series
MYiR SAMA5 series development board, such as MYD-SAMA5D3X,
MYD-SAMA5D3X-C, Linux kernel is 3.6.9, Kernel configuration please refer to 4.1.1 Atmel
SAM9X5 series
4.1.3 TI AM335X series
MYiR AM335X series development board, such as MYD-AM335X，MYD-AM335X-J.
Linux Kernel is 3.2.0. Kernel configuration please refer to 4.1.1 Atmel SAM9X5 series
4.1.4 TI AM437X series
MYiR AM437X series development board, such as Rico Board, Linux Kernel is

Page 2/ 14
MY-CAM001U
USB Camera Module
3.12.10. Kernel configuration is as follow.
$ make ARCH=arm menucofig
And add following configuration options:
Device Drivers --->
<*> Multimedia support --->
[*] Media USB Adapters --->
<*> USB Video Class (UVC)
[*] UVC input events device support
4.1.5 Z-turn Board
Z-turn Board, Linux Kernel is 3.15.0. Kernel configuration please refer to 4.1.4 TI
AM437X series.
4.2 Camera Test
⑴After modifying the kernel configuration, recompile it, and downloaded to
development board
⑵Pulg the Module into development board, it will print info as follow:
usb 1-2: new high speed USB device number 2 using atmel-ehci
uvcvideo: Found UVC 1.00 device USB 2.0 Camera (174f:5a35)
input: USB 2.0 Camera as
/devices/platform/atmel-ehci/usb1/1-2/1-2:1.0/input/input2
Corresponding device node under directory /dev has been generated, indicates that
USB camera has been identified.
⑶Run test program
Camera test program and source code are under directory: Product CD\MY-CAM
001U USB Camera Module\Linux\Test
Plug in USB camera and run test program, it will capture an image, and display on
LCD screen.
#./cameratest
Camera test can pass several parameters, default is /dev/video1 devices. It can
match maximum resolution according to current screen automatically. If necessary, use
the following command to start cameratest.
Specify camera device node:

Page 3/ 14
MY-CAM001U
USB Camera Module
#./cameratest /dev/video1
Specifies resolution:
#./cameratest /dev/video1 640 480
