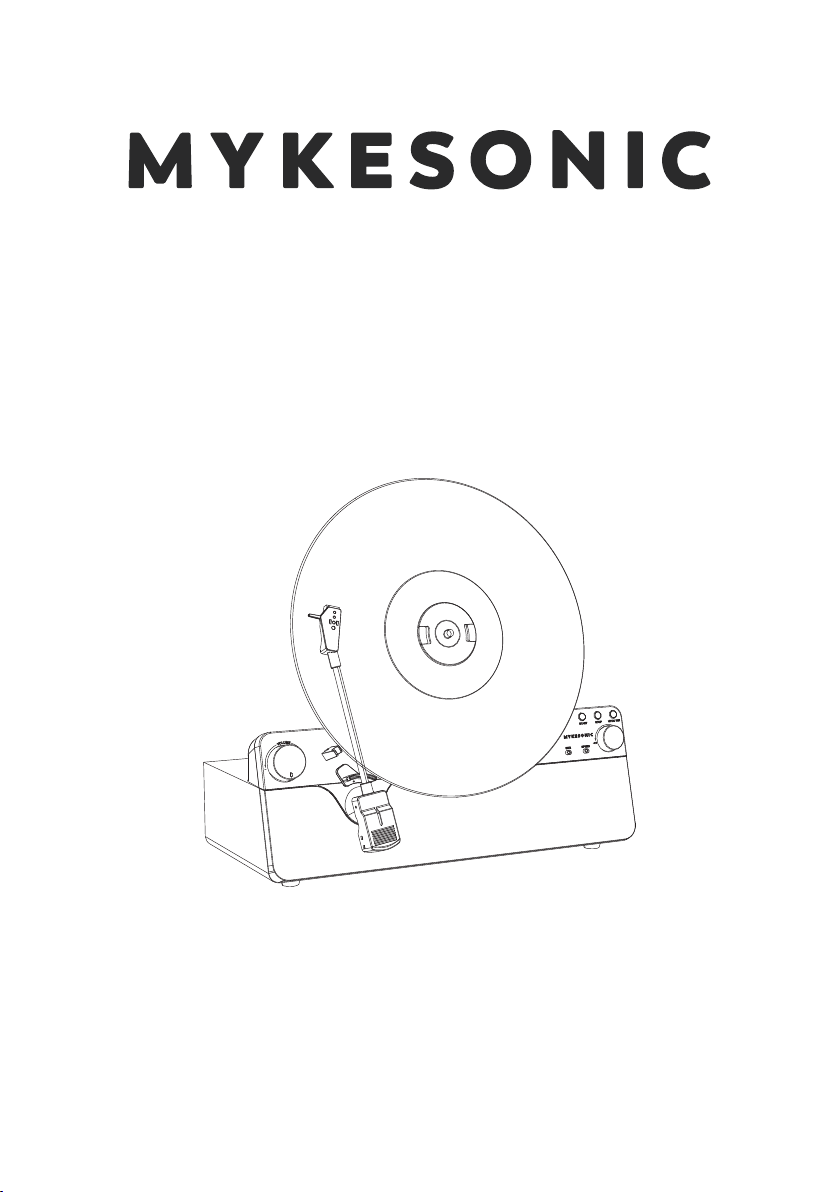

MYKESONIC YY1638 User manual

VERTICAL TURNTABLE
Model: YY1638
Instruction Manual
Please read this instruction manual carefully
before use and keep it for future reference.

CONTENTS
SAFETY INSTRUCTIONS ...................................................................................................................
PRODUCTION OVERVIEW .................................................................................................................
SETUP OPERATION ..............................................................................................................................
BASIC OPERATION .............................................................................................................................
TROUBLE SHOOTING ..........................................................................................................................
SPECIFICATIONS ...................................................................................................................................
FCC / IC STATEMENTS .....................................................................................................................
TABLE OF CONTENTS
3 - 4
5
6
7 - 8
9
10
11 - 12
2

SAFETY INSTRUCTIONS
Please read the following safety instructions and respect the
warnings before the appliance is operated:
1. Always follow basic safety precautions when using this appliance, especially
when children are present.
2. Children should be supervised to ensure that they do not play with the
appliance.
3. Do not damage the power cord, place heavy objects on it, stretch or bend it.
4. Do not attach extension cables. Damage to the power cord may cause fire or
electric shock.
5. If the supply cord is damaged, it must be replaced by the manufacturer, a
service agent or similarly qualied persons in order to avoid a hazard.
6. Ensure that the unit is plugged into an AC 100-240V 50/60Hz power outlet.
Using higher voltage may cause the unit to malfunction or catch fire.
7. If the power plug does not fit into the socket, do not force it.
8. Turn off the unit before unplugging it from power source to completely switch
it off.
9. Do not disconnect or connect the power cord with wet hands. This may cause
an electric shock.
10. If the unit is not going to be used for a long period time, disconnect the power
supply.
11. Ensure that the mains plug is always easily accessible.
12. This product does not contain any parts that are serviceable by the user.
In case of a fault, contact the manufacturer or authorised service department.
Exposing the internal parts inside the device may endanger your life.
13. The manufacturers guarantee does not extend to faults caused by repairs
carried out by unauthorized third parties.
14. Do not use this product immediately after unpacking. Wait until it warms up
to room temperature before using it.
15. Ensure this product is used in moderate climates only (not in tropical/
subtropical climates).
16. Place product on a flat, stable surface that is not subject to vibrations.
17. Ensure the product and its parts are not overhanging the edge of the
supporting furniture.
18. To reduce the risk of fire, electric shock or damage to this product,
do not expose it to direct sunlight, dust, rain and moisture.
19. Never expose it to dripping or splashing and do not place objects
filled with liquids on or near the product.
20. Do not place objects filled with liquids, such as vases, on the apparatus.
3

SAFETY INSTRUCTIONS
21. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
22. Do not place the product where the humidity is high and ventilation is poor.
23. Ensure a minimum distance of 5 cm around the apparatus for sufficient
ventilation. Do not block any ventilation openings of this product.
24. Always ensure that the ventilation openings are not covered with items such
as newspapers, table-cloths, curtains, etc.
25. NEVER let anyone, especially children, push anything into holes, slots or any
other openings in the unit’s casing as this could result in a fatal electric shock.
26. Storms are dangerous for all electric appliances. If the mains or aerial wiring is
struck by lightning, the appliance might get damaged, even if it is turned off.
You should disconnect all the cables and connectors of the appliance before a
storm.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
For indoor use only.
Use only power supply listed in the user manual.
4

FRONT VIEW / REAR VIEW
Size selector
PRODUCT OVERVIEW
Up/down (tone arm)
Speed selector
Speakers
Stylus
Turntable
Stop
Backward/ Forward
Start
Power/ Mode/
Volume knob
Earphone jack
Power adaptor jack
Right/Left audio
output jack
Record fixator (Fixator
storage on the back)
Record fixator storage
12
14
13
10
11
5

the unit.
2. Remove the packaging materials from the unit.
3. Connect the power adaptor to the DC input jack on the rear panel.
NOTE: It is strongly recommended that this product should be operated only
from the type of power source indicated on the marking label.
1. Remove the white protective needle cover by gently pulling towards front of
SETUP
SETUP OPERATION

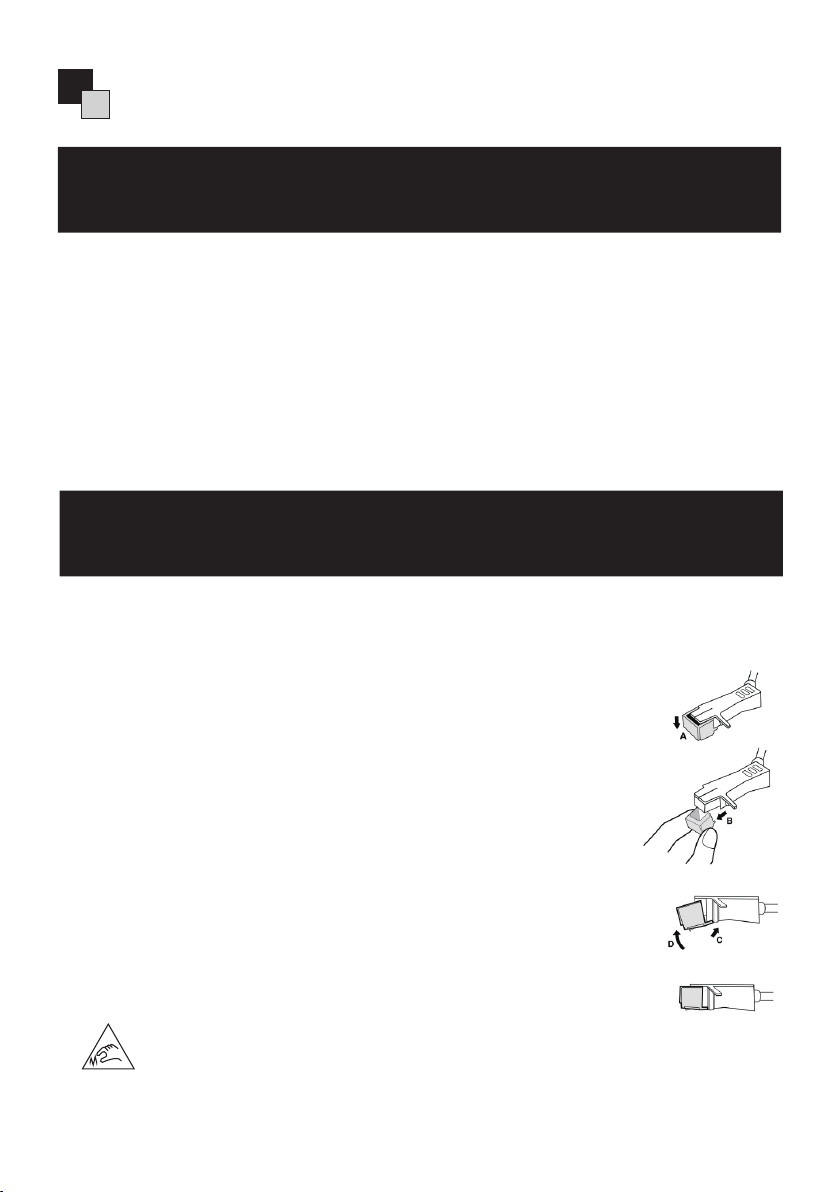

REPLACE THE STYLUS (#AT3600L)
6
The stylus should last about 300 hours under normal use. It is recommended that
the stylus be replaced as soon as you notice a change in sound quality.
REMOVE THE STYLUS FROM THE CARTRIDGE
1. Place your fingers at the tip of the stylus and push down to “A”.
2. Pull the stylus out toward the direction “B”.
NOTE: When applying force to the stylus, to much may damage
or break the cartridge.
INSTALL THE STYLUS
1. Hold the tip of the stylus and insert the other edge by pressing
toward the direction “C”.
2. Push the stylus up toward the direction “D” until it locks at the
tip.
CAUTION:
1. Do not remove or bend the stylus needle.
2. Sharp edges, do not touch the needle to avoid injury to your hand.
3. Turn off the power before you replace the stylus.
4. Keep out of reach of children.

POWER ON
1. Connect the power adaptor into the DC INPUT JACK on the rear panel.
2. Press and hold the POWER/MODE KNOB on the front panel to power on the unit.
SELECT MODE
Slightly press the POWER/MODE KNOB to select the play mode:
VINYL mode, VINYL STREAM mode, BLUETOOTH mode.

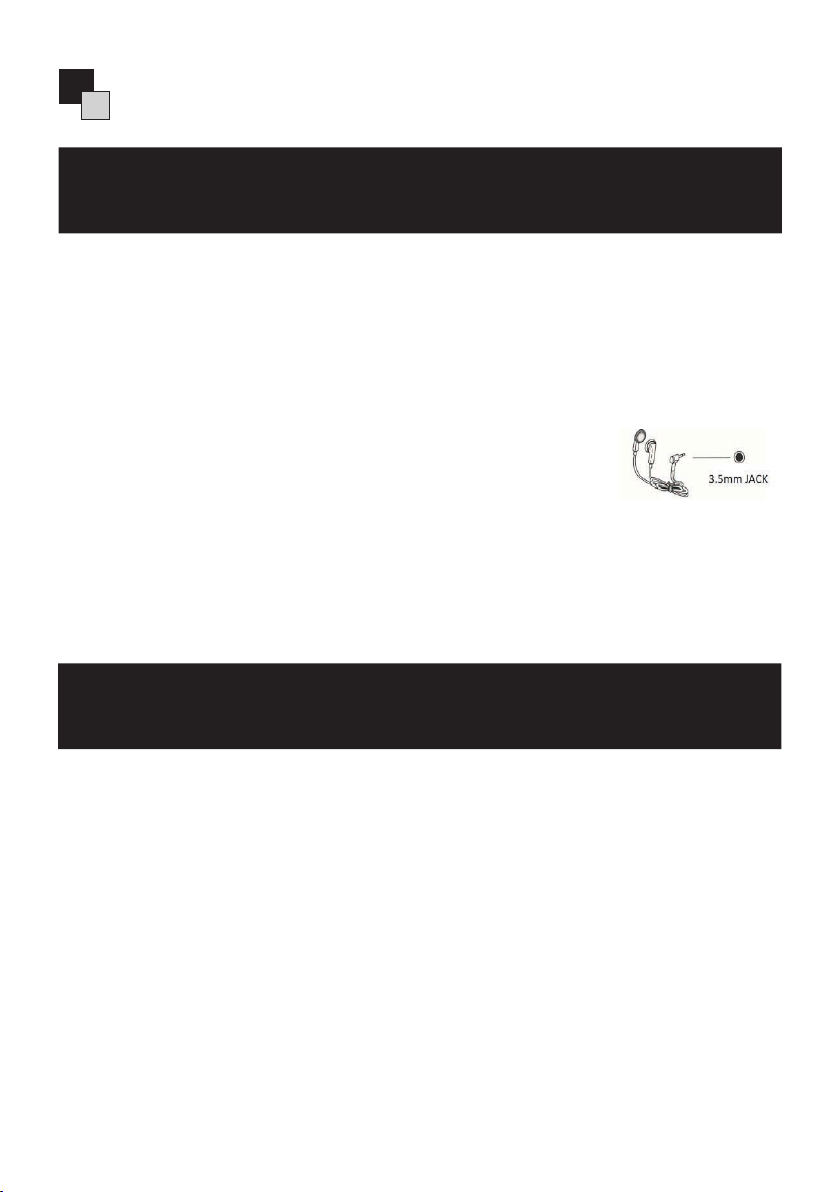

VOLUME CONTROL
1. Rotate the VOLUME KNOB to adjust the volume.
2. For private listening, first reduce the volume level to the minimum. Insert the
earphones’ plug into the EARPHONE JACK on the rear panel, then adjust the
volume up by the volume knob.
NOTE: Avoid listening by the earphone for long time, or it can damage the hearing.
1.
2. Remove the RECORD FIXATOR on the back of turntable by pressing the plastic
tabs together and pulling the FIXATOR out.
3. Gently put the Vinyl record on the turntable, then put the RECORD FIXATOR on
the record until you hear a click sound.
4. Select the record size and record speed.
5. Press the START button to start playing the record.
NOTE: The tone arm will automatically move to the edge of the record, and the
turntable will begin to turn.
6. Press the STOP button to stop playing the record.
NOTE: The tone arm will automatically move back to the tone arm holder, and
the turntable will stop turning.
7. Press the UP/DOWN button to lift or lay down the tone arm temporary.
Press the POWER/MODE KNOB to enter the VINYL MODE.
BUTTON OPERATION
BASIC OPERATION
LISTENING TO THE VINYL RECORD
7

1. While playing the Vinyl record on VINYL mode, press the POWER/MODE KNOB
to enter the VINYL STREAM mode. The indicator light flashes white.
2. Turn on your external Bluetooth device’s Bluetooth setting on.
3. Wait for a few seconds, the Vinyl unit will automatically pairs the external
Bluetooth device.
4. The Vinyl unit will play the music automatically via external Bluetooth device.
1. Press the POWER/MODE KNOB to enter the Bluetooth mode.
2. When the indicator light flashes blue, it is in Bluetooth pairing mode.
3. Turn on the Bluetooth function on the phone, then enter the Bluetooth search
page, and search for the pairing name “YY1638”.
4. Input the password “0000" if required.
5. When they pair successfully, the indicator light stop flashing.
6. Place the Bluetooth devices within 10 meters.
7. The playback operation is controlled by your external device.
VINYL STREAM (BLUETOOTH OUTPUT MODE)
BASIC OPERATION
BLUETOOTH MODE
AUDIO OUT MODE
1. While playing Vinyl record, use the RIGHT/LEFT AUDIO CABLE to connect the
audio output jack on the rear panel of Vinyl unit with other amplifier device
with RCA auxiliary sockets.
2. The playback operation is controlled by the Vinyl unit.
8

TROUBLE SHOOTING
TROUBLE SHOOTING
SYMPTOM
POSSIBLE CAUSE
SOLUTION
Can not power on.
Unit is unplugged.
Connect the DC power
adaptor to the jack.
No sound output
from speakers.
Volume is set too low.
The input selector does not
match the playback source.
Adjust the volume.
Select the correct input
source.
Noise / distortion
in sound output.
The unit is too close to a TV set
or other interfering device.
Turn off the TV or other
appliance, and relocate
the unit.
Fails to respond.
It might result from external
factors such as ESD (Electro-
static discharge).
Disconnect the power
cord and external audio
device.
Re-plug the power cord
after one minute.
PHONO
BLUETOOTH
No sound.
The unit is not switched to the
Bluetooth mode.
Your device’s and/or unit’s
volumes is not turn up.
Your device is toot far from the
unit or there’re some obstacle
between your device and your
unit.
Ensure the unit is
switched toBT mode.
Move your BT device
closer to the unit.
Turn up the volume on
your paired device and/
or the unit.
Turn off your BT device
and unit, then power
on.
Unable to pair with
a Bluetooth device.
Unable to pair with a Bluetooth
device.
Confirm the device is BT
compatible and repair.
Unable to pair with
a Bluetooth device.
The turntable stylus is worn out.
Replace the stylus.
9

SPECIFICATIONS
AC voltage
DC voltage
Class II equipment
In order to prevent fire, always keep candles
open flames and away from this product.
Trademarks:
The Bluetooth word mark and logos are registered
®
This symbol appears on electrical and electronical equipment (or
packaging) Users are requested to use to remind users of this.
return existing facilities for used equipment and batteries.
POWER ADAPTOR
1. To disconnect the unit from the mains supply, unplug the lead from the mains
socket.
2. Only use the supplied mains adaptor as failure to do this may result in a safety
risk and/or damage to the unit.
trademarks owned by Bluetooth SIG,. Inc.
PRODUCT SPECIFICATIONS
Power supply
DC 9V, 1.5A
Power consumption
13.5W
Power output
2x5W
Bluetooth version
Bluetooth V5.1
Operating distance
10 meters (33 feet)
10

FCC/IC STATEMENTS
IMPORTANT INFORMATION
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
WARNING:
- Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
FCC & IC RADIATION EXPOSURE STATEMENT:
This equipment complies with FCC and Canada radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20cm between the radiator and your body. This transmitter must
not be co-loacted or operating in conjunction with any other antenna or transmitter.
11

FCC/IC STATEMENTS
IMPORTANT INFORMATION
CAN ICES(B)/NMB-3(B)
This device contains licence-exempt transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme
aux CNR d’Innovation, Sciences et Développement économique Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :
(1) L’appareil ne doit pas produire de brouillage;
(2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.
12
