QUICK START GUIDE
X2 RACELINK CLUB

X2 RaceLink Club
WHAT’S IN THE BOX?
 Power the X2 RaceLink Club using the car battery with a fuse (12v only).
RF Antenna Whip
GPS Antenna
Antenna Adapter
Cable
RF Antenna
Extension Cable – 1M
M8 Power Cable
(DP use)
2 x Protector
Caps
X2 RaceLink Club
Charge Cable (USB to M8)
X2 RaceLink Club GPS Antenna
Power source
(Power Cable not included)
RF Antenna Optional Sensor
CAN Bus
X2 RaceLink Club
SETUP
IMPORTANT
The USB port (5v) is only capable of charging the X2 RaceLink Club, and not to send/receive data.
To guarantee that the X2 RaceLink Club remains water resistant, ensure that either, both protector
caps are always attached, or that the antennas are properly connected.

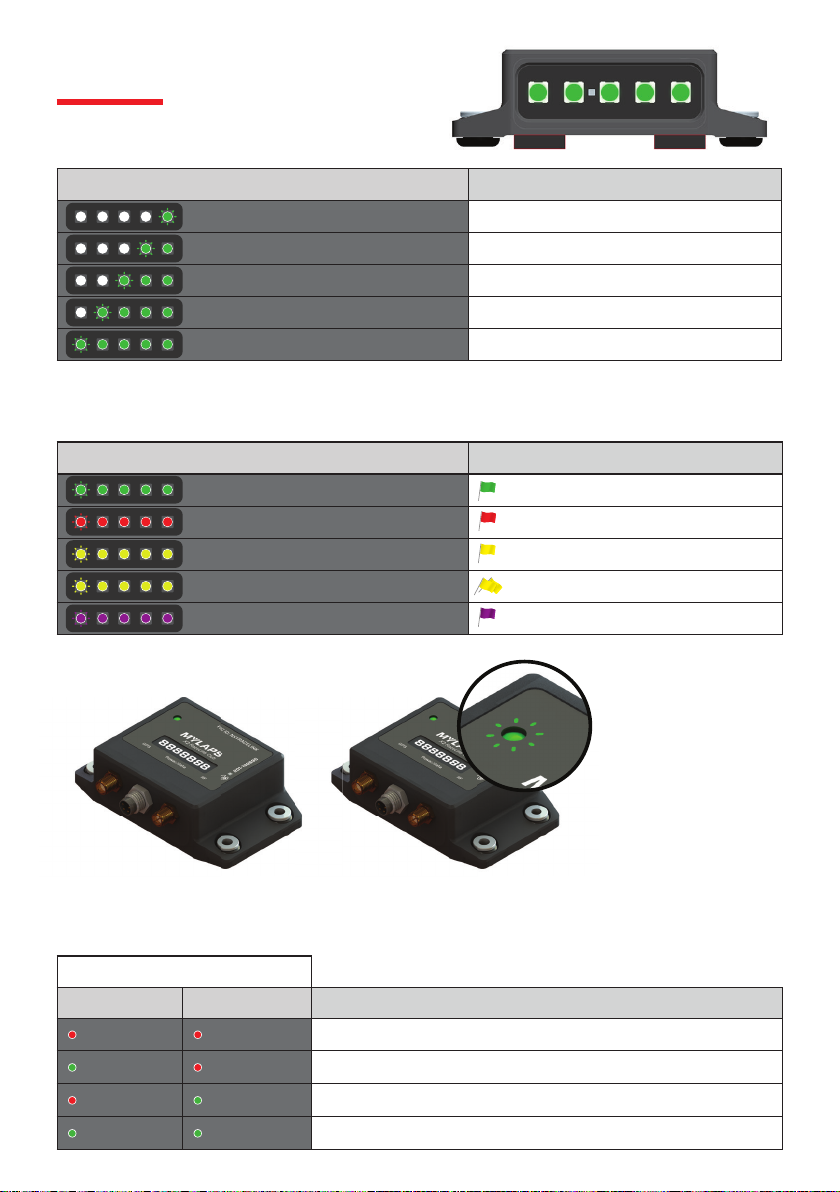

LED INDICATION
WHILE CHARGING
 First blink indicates GPS reception
 Second blink indicates RF reception
If the LED goes solid RED there is less than 10% battery left, when used as a rechargeable
WHILE USED ON THE TRACK
TOP LED BLINKS TWICE
LED INDICATION CHARGING STATE
FIRST LED BLINK GREEN CHARGING STATE 0-20%
SECOND LED BLINK GREEN CHARGING STATE 20-40%
THIRD LED BLINK GREEN CHARGING STATE 40-60%
FOURTH LED BLINK GREEN CHARGING STATE 60-80%
FIFTH LED BLINK GREEN CHARGING STATE 80-100%
DUAL BLINK
1. GPS 2. RF CHARGING STATE
RED RED NO GPS POSITION KNOWN, NO LINK TO THE SYSTEM
GREEN RED GPS POSITION KNOWN, NO LINK TO THE SYSTEM
RED GREEN NO GPS POSITION KNOWN, LINKED TO THE SYSTEM
GREEN GREEN GPS POSITION KNOWN, LINKED TO THE SYSTEM
LED INDICATION MEANING
GREEN BLINK -> OFF GREEN FLAG, TRACK CLEAR
RED BLINK -> RED ON RED FLAG
YELLOW BLINK -> YELLOW ON YELLOW FLAG
YELLOW TOGGLE DOUBLE YELLOW FLAG
PURPLE BLINK -> PURPLE ON PURPLE FLAG
BLINKS X2

DASHBOARD INSTALLATION
SPECIFICATIONS X2 RACELINK CLUB
CAR
BIKE
KART
MX
2
1
DIMENSIONS 83 x 59.5 x 24 mm / 3.3 x 2.4 x 1 cm
WEIGHT 120 g / 0.26 lbs
OPERATING
VOLTAGE RANGE
7 to 18VDC typical 12V
POWER
CONSUMPTION
1.3W, 110mA@12V
(BACK UP)
BATTERY LIFETIME
Up to 16 hours
BATTERY
CHARGING
appr 1:4 ratio, 5 hours for full charge
OPERATING
TEMPERATURE
RANGE
-20 to 50 °C / -4 to 122F
HUMIDITY RANGE 10% to 90% relative: IP65
POSITIONING 3 concurrent GNSS reception
SENSITIVITY -167 dBm, 72 channels
UPDATE RATE 5Hz
GNSS ANTENNA
CONNECTION
SMA(F), 3.0V active antenna
RF ANTENNA
CONNECTION
RP-SMA(F)
RF OUTPUT +20 dBm @ 2.4 GHz ISM
CHARGING 300 mA @ 5VDC Bluetooth mode
first 3 minutes
 Make sure the top sticker of the RaceLink Club has a
clear view to the sky and around the vehicle.
 Install both the GPS and RF antenna as high as
possible with a clear view to the sky.
 Do not place the RaceLink Club next to other RF
antennas. Keep at least 1m distance.
 Find a place on your dashboard
where you can clearly see the lights
of the X2 RaceLink Club.
 Keep out of direct sunlight as much
as possible.
