Mylaps RC4 PRO User manual

QUICK START GUIDE
FOR FURTHER INFORMATION VISIT MYLAPS.COM
Figure 2
FCC ID: NXYRC3
All your practice and event results available in free MYLAPS Speedhive App
Optimized lightweight design
Short cable for perfect fit
Pitch-black design
Figure 1
RC4 PRO
TRANSPONDER

EN EN
MOUNTING
Mount the transponder horizontally (see figure 1). All other
orientations will result in a weaker signal
Mount the transponder no higher than 15 cm (6 inch) from the track
Avoid metal or carbon fibre between car and track
Feed from free receiver channel (ch3 or up), use Y Splitter if this
channel is not available
You can use tape to fix your transponder
POLARITY
Make sure the polarity of the servo connector is respected by the
receiver. When wires are shortened, check figure 2 for polarity
FLASHING LED
 The transponder LED always blinks red while it is
powered
Frequency of 1 Hz (1x per second): Voltage is higher
than 3.3 VDC and lower than 12 VDC - normal operation
Frequency of 5 Hz (5x per second): Voltage is lower or
higher than recommended - the transponder will not
work properly

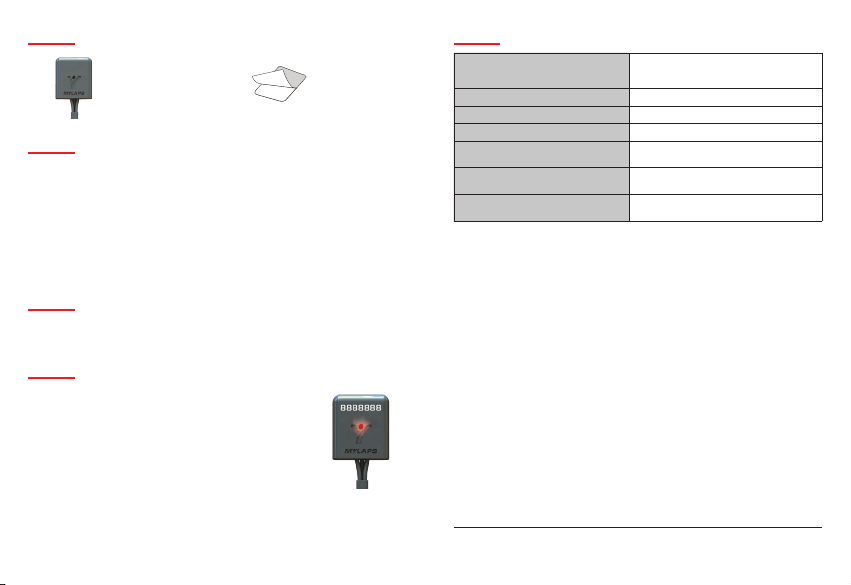

WHAT’S IN THE BOX?
1. RC4 Pro Transponder
2. Double-sided tape
Dimensions (WxLxH):
15.7 x 18.0 x 4.5 mm
0.62 x 0.71 x 0.18 in
Weight: 3 g
Cable length: 80 mm / 3.1 in Humidity: Max. 90% relative
Max. Speed: 120 km/h / 75 mph Temperature range: 0-50 °C / 32-122 °F
Signal transfer: Magnetic induction Code resolution: 1.5 ms
Transponder position: Max. Height
15 cm / 6 in
Power: Feed from free receiver channel
(ch3 or up)
Connection Plug: Connect using a
standard Servo plug
Power consumption: 19mA @ 6 VDC
Operating voltage: 2.8 <–-> 16 VDC
(recommended: 3.5 <--> 12 VDC)
Wire insulation: Aerospace/MIL-spec
high-temp PTFE (Gasoline/Nitro resistant)
SPECIFICATIONS
COMPLIANCE STATEMENT (PART 15.19)
 This device complies with part 15 of the FCC Rules.
Operation is subject to the following 2 conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation
WARNING (PART 15.21)
 Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
RF EXPOSURE
 To comply with FCC RF exposure requirements for mobile transmitting devices, this
transmitter should only be used or installed at locations where there is at least 20cm
separation distance between the antenna and all persons.
IN CASE YOU ENCOUNTER ANY ISSUES, PLEASE CONTACT OUR SUPPORT TEAM
WWW.MYLAPS.COM
