Mysphera BNCBW20301 User manual

MYSPHERA • Ronda Auguste y Louis Lumiere 23, Nave 13 • 4 980 Parque
Tecnológico de Valencia • Paterna, Valencia • Spain
Telf.: [phone] • [e-mail] • www.mysphera.com
Pág. 1
User Manual
BNCBW20301
Gateway Wireless
Mysphera S.L.
Parque Tecnológico de Valencia
Ronda Auguste y Louis Lumiere, 23 – ave 13,
46980 Paterna (Valencia)
[email protected]
www.mysphera.com
Telf.: [phone] / Ext. 112
Fax [phone]

MYSPHERA • Ronda Auguste y Louis Lumiere 23, Nave 13 • 4 980 Parque
Tecnológico de Valencia • Paterna, Valencia • Spain
Telf.: [phone] • [e-mail] • www.mysphera.com
Pág. 2
Modified December 2019
© 2019 Mysphera S.L. ("MYSPHERA") all rights reserved.
Any type of exploitation and, in particular, the reproduction, distribution, public
communication and / or transformation, in whole or in part, by any means, of this document
without the prior express written consent of MYSPHERA is prohibited.
The warranty and repair services linked to the product will not apply if the product has
been repaired, modified or altered, except that such repair, modification or alteration
has been authorized in writing by MYSPHERA; or it is not possible to determine the
product serial number.
MYSPHERA PROVIDES THIS "AS IS" MA UAL, WITHOUT WARRA TIES OF A Y
KI D, OR EXPRESS OR IMPLIED, I CLUDED, BETWEE OTHER, THE IMPLIED
WARRA TIES OR CO DITIO S OF MERCHA TABILITY OR FITI G A PARTICULAR
PURPOSE.
EITHER MYSPHERA, OR ITS PERSO EL OR AGE TS, WILL BE LIABLE FOR
A Y I DIRECT, SPECIAL, ACCIDE TAL OR CO SEQUE TIAL DAMAGES
(I CLUDI G THOSE DERIVED FROM LOSS OF BE EFITS, LOSS OF COMMERCIAL
OPPORTU ITIES, IMPOSSIBILITY OF USI G THE COMMITTEE OF THE
COMMITTEE, THE BUSI ESS U IT A D OTHER DAMAGES OF A SIMILAR ATURE),
EVE WHE MYSPHERA HAS BEE I FORMED OF THE POSSIBILITY THAT SUCH
DAMAGES HAVE TO PLACE AS A RESULT OF A Y DEFECTS OR ERRORS I THIS
MA UAL OR I THE PRODUCT.
THE SPECIFICATIO S A D I FORMATIO RELATI G TO THE PRODUCTS
CO TAI ED I THIS MA UAL ARE MADE AVAILABLE TO THE OW ER FOR
EXCLUSIVELY I FORMATIO AL PURPOSES; BOTH ARE SUBJECT TO CHA GE AT
A Y TIME WITHOUT PRIOR OTICE A D A COMMITME T U DERTAKE BY
MYSPHERA SHOULD OT BE CO SIDERED.
MYSPHERA DOES OT ASSUME A Y RESPO SIBILITY OR OBLIGATIO I
RELATIO TO THOSE ERRORS OR IMPRECISIO S THAT THIS MA UAL MAY
CO TAI , I CLUDI G THE PRODUCTS A D THE SOFTWARE THAT ARE
DESCRIBED I IT.
Trademarks and permits:
The names of products and companies that appear in this manual may or may not be
registered trademarks or be linked to copyright held by their respective owners; its use
is carried out exclusively for identification and explanation purposes and for the benefit
of the product owner, without any intention of infringing the indicated rights.
Changes History
Product name Gateway Wireless
Product ID BCNBW20301 Date version: 19
Nº Total pages 10
Version Changes Date of change
0.1 Initial version 07/09/2018
1.0 1st version 13/05/2019
1.1 English version 09/12/2019

MYSPHERA • Ronda Auguste y Louis Lumiere 23, Nave 13 • 4 980 Parque
Tecnológico de Valencia • Paterna, Valencia • Spain
Telf.: [phone] • [e-mail] • www.mysphera.com
Pág. 3
Used simbols in this guide:
Simbol Description
USB.
Electric risk.
Warnings:
• The product label is located on the bottom of the product.
• To reduce the risk of fire or electric shock, do not expose the product to rain or
moisture.
• Do not place open flame sources, such as burning candles on the product, or in
its vicinity.
• Do not expose this product to dripping or splashing.
• This product must be used indoors. It is not designed or tested for outdoor use.
• Operating temperature range: -5ºC to 45ºC
Precautions:
• Do not make unauthorized alterations to this product; doing so may compromise
security, compliance with standards, system performance and may void the
warranty.
Important Instructions:
• Read these instructions.
• Keep these instructions.
• Observe the warnings.
• Follow all instructions.
• Do not use this appliance near water.
• Perform the installation according to the manufacturer's instructions.
• Do not place it near any heat source, such as radiators, heating grilles, stoves or
other appliances (including amplifiers) that produce heat.
• Use only accessories specified by the manufacturer.

MYSPHERA • Ronda Auguste y Louis Lumiere 23, Nave 13 • 4 980 Parque
Tecnológico de Valencia • Paterna, Valencia • Spain
Telf.: [phone] • [e-mail] • www.mysphera.com
Pág. 4
Con en s
Contents ........................................................................................................................... 4
1. Introduction ............................................................................................................ 5
1.1. Package contents ............................................................................................... 5
1.2. Usage requirements ........................................................................................... 5
2. Product description ................................................................................................ 5
2.1. Version ............................................................................................................... 5
2.2. Identification ....................................................................................................... 5
3. Instalation ............................................................................................................... 6
4. Intended use .......................................................................................................... 7
5. Maintenance and cleaning...................................................................................... 7
6. Storage and devices removal ................................................................................. 7
6.1. Storage ............................................................................................................... 7
6.2. 6.2. Wireless Gateway removal .......................................................................... 7
7. Incidents solution ................................................................................................... 8
7.1. Usual incidents ................................................................................................... 8
8. Safety information .................................................................................................. 8
8.1. Electric safety ..................................................................................................... 8
8.2. Other safety considerations ................................................................................ 8
8.3. Information about radiofrecuency ........................................................................ 8
8.3.1. Radiolectric devices manufacturing ............................................................. 8
8.3.2. Radio Frecuency exposure (RF) .................................................................. 9
9. Declaration of conformity ........................................................................................ 9
9.1. CE Mark ............................................................................................................. 9
9.2. FCC Mark ........................................................................................................... 9
9.3. Updating device .................................................................................................. 9
10. Recycling ..............................................................................................................10
11. Authorized distributors ...........................................................................................10

MYSPHERA • Ronda Auguste y Louis Lumiere 23, Nave 13 • 4 980 Parque
Tecnológico de Valencia • Paterna, Valencia • Spain
Telf.: [phone] • [e-mail] • www.mysphera.com
Pág. 5
1. In roduc ion
1.1. Package contents
• Gateway Wireless.
• Cable USB 1.8m-2m.
1.2. Usage requirements
• USB 2.0 port. Limitated power to 15 W
• S.O. Up Windows XP.
• S.O. Up Linux kernel version 2.4.
2. Produc descrip ion
The Wireless Gateway is a device used to extend the location area and identify MYSPHERA
wristbands.
The Wireless Gateway can be added to the location system developed by MYSPHERA in
order to process the location information it collects along with the rest of the devices that
make up the system.
2.1. Version
Product: BC BW20301
Case : 2.1.1 Cover, base, separators and plugs
Hardware: 3.1.0 Hardware based on SoLA31B BLE with double chip
Firmware: 1.0.0 Firmware dual CC2540+CC2541
2.2. Identification
Label on bottom of the device and in the package.

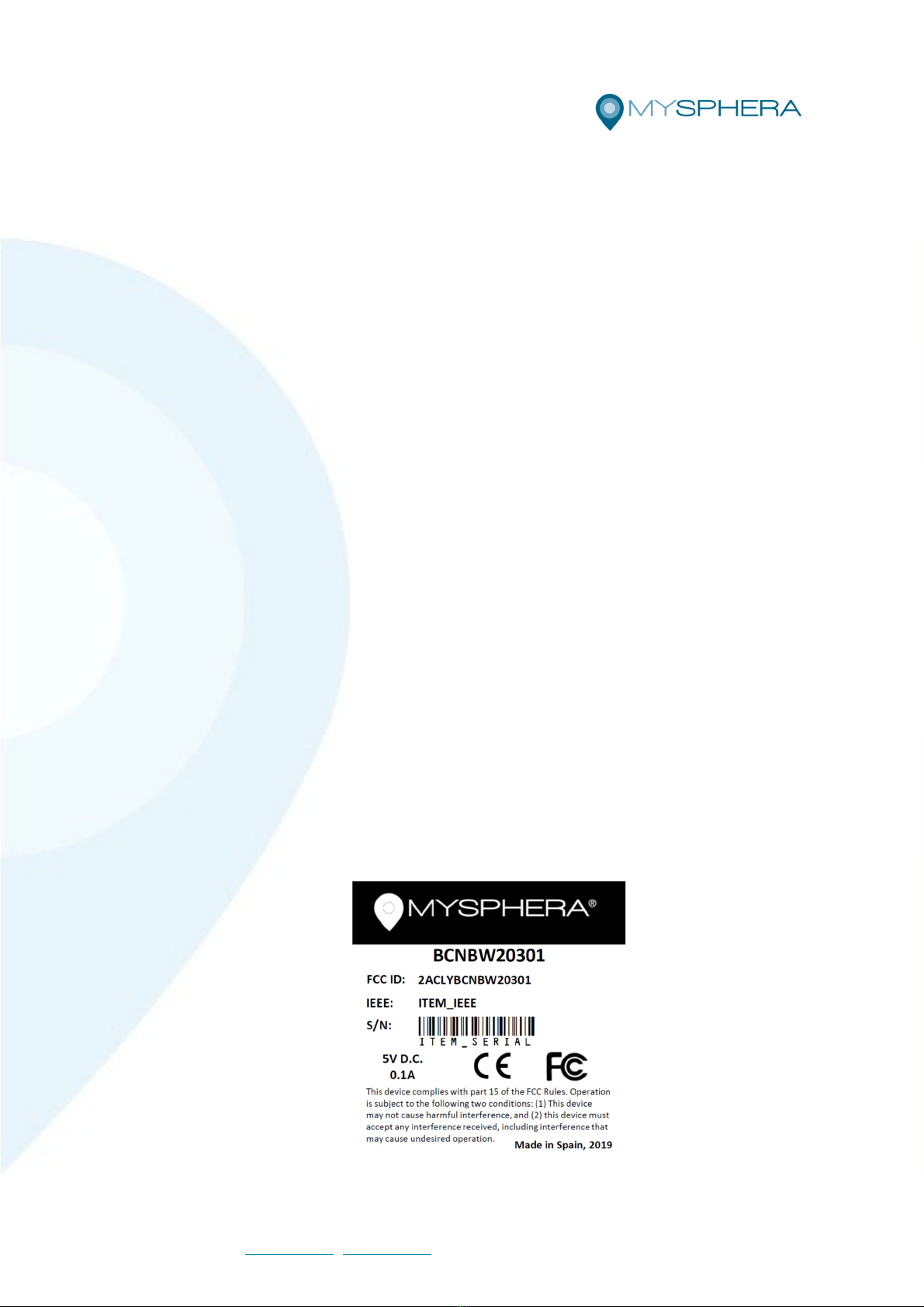

Ilus ra ion 1 – Iden ifica ion Ga eway wireless

MYSPHERA • Ronda Auguste y Louis Lumiere 23, Nave 13 • 4 980 Parque
Tecnológico de Valencia • Paterna, Valencia • Spain
Telf.: [phone] • [e-mail] • www.mysphera.com
Pág. 6
- Product identifier code:
o Start with 3 letters indicating type / family of the product.
o Followed by 2 letters indicating the type of interface and / or communication
of the product.
o Followed by 1 digit indicating version of the enclosures / enclosures /
mechanical encapsulation.
o Followed by 2 digits indicating the hardware version.
o Finishing with 2 digits that indicate the firmware version.
- IEEE adress: 12-digit alphanumeric MAC identification, unique for each device /
product manufactured.
- S / : Serial number of the hardware used in that product.
o Internal product accounting code.
o Hardware manufacturing number.
- Electrical characteristics of use.
- Certification and marking symbols: CE and FCC
- Place and year of manufacture.
3. Ins ala ion
The Wireless Gateway is a device with USB power. You will need the USB cable type A-B
provided in the same box to connect it to the computer.
To start using your Wireless Gateway, connect the USB cable to the bottom of the
Gateway, as shown in the figure, letting the cable exit through the side hole. Connect the
other end of the cable to any port of a USB HUB. The device will be detected by your
operating system and will be installed automatically, being ready for use. The blue
indicator light indicates that the device has been correctly installed.

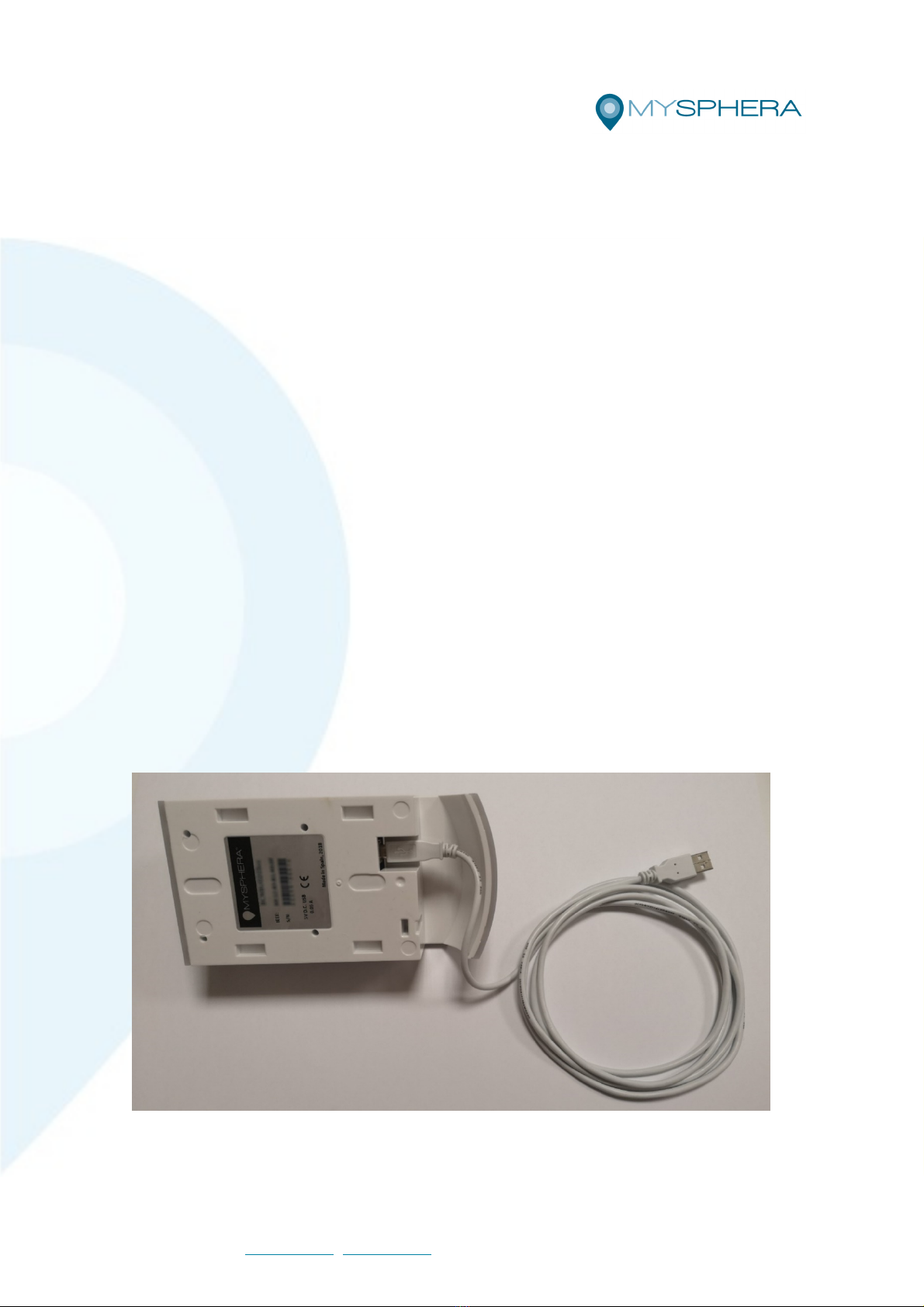

Ilus ra ion 2 – Wire USB connec ion
To disconnect the Wireless Gateway simply disconnect the USB cable.

MYSPHERA • Ronda Auguste y Louis Lumiere 23, Nave 13 • 4 980 Parque
Tecnológico de Valencia • Paterna, Valencia • Spain
Telf.: [phone] • [e-mail] • www.mysphera.com
Pág. 7
4. In ended use
Once the device is already installed, it works autonomously by relaying the information of
the MYSPHERA tags to the equipment where it is connected (next step detection).
5. Main enance and cleaning
o special cleaning products are needed for cleaning this device. Dampen a cloth with
water and run it across the surface.
Do not clean the equipment when it is turned on.
Do not use solvents.
This device does not require special maintenance.
6. S orage and devices removal
6.1. Storage
• When the wireless gateway is not used, it should be stored in a clean and dry area.
Otherwise it can become a source of pollution.
• Store the wireless gateway under the following conditions:
• • Temperature: -10 ° C to 50C ° (14 ° F to 122 ° F)
• • Relative humidity: 20% to 80% (no condensation)
6.2. 6.2. Wireless Gateway removal
DO OT OPE A Y GATEWAY WIRELESS
In case of failure or at the end of the use of the wireless gateway, it must be returned to the
manufacturer for replacement and / or repair or removal from the market.
Contact MYSPHERA before disposing of the wireless gateway. This product should not be
treated as household waste.
By ensuring that this product is disposed of correctly, it will help avoid possible negative
consequences for the environment and human health, which could otherwise be caused by
improper handling of the waste from this product.

MYSPHERA • Ronda Auguste y Louis Lumiere 23, Nave 13 • 4 980 Parque
Tecnológico de Valencia • Paterna, Valencia • Spain
Telf.: [phone] • [e-mail] • www.mysphera.com
Pág. 8
7. Inciden s solu ion
7.1. Usual incidents
PROBLEM
No LED ligh s up.
SOLUTIO
The device isn’t powered. Verify that the device is connected to the computer. If it still doesn’t
work, please contact support.
PROBLEM
The device is locked.
SOLUTIO
ormally the device should be unlocked in a maximum time of 10 seconds from its previous
performance. Once this limit is exceeded, if the device is still blocked, you must disconnect it and
reconnect it.
8. Safe y informa ion
8.1. Electric safety
Product protected against short circuits.
It does not emit electric shocks.
8.2. Other safety considerations
Product not designed or intended for uses other than its installation in stable places and
with the ability to detect movement.
It does not carry an implicit risk for people, animals or objects.
The company is not responsible for improper use of it and the possible consequences that
the product itself or the parts that form it may have.
8.3. Information about radiofrecuency
8.3.1. Radiolectric devices manufacturing
Cuadro acional Atribución Frecuencias (Spain, Orden ETU/416/2018, 26th April, 2018)
https://www.boe.es/diario_boe/txt.php?id=BOE-A-2018-5704
European Frequency Information System ( 2402 MHz - 2480 MHz )
https://www.efis.dk/views2/search-general.jsp
MYSPHERA declares that the radio equipment is manufactured so that it can operate in at
least one Member State without violating the requirements applicable to the use of the radio
spectrum in accordance with Article 10.2 of Directive 2014/53 / EU.

MYSPHERA • Ronda Auguste y Louis Lumiere 23, Nave 13 • 4 980 Parque
Tecnológico de Valencia • Paterna, Valencia • Spain
Telf.: [phone] • [e-mail] • www.mysphera.com
Pág. 9
This device can be put into service and used without restrictions in several European Union
countries (BE / DE / ES / FR / GR / IT / L / O / UK)
8.3.2. Radio Frecuency exposure (RF)
The product works at a very low frequency and the exposure of people to it is not harmful.
This device has been designed and meets the safety requirements for RF exposure of
portable devices (< 5 mm) in accordance with FCC rule part §2.1093 and KDB 447498 D01.
9. Declara ion of conformi y
http://www.mysphera.com/declaration-of-conformity
9.1. CE Mark
MySPHERA declares that this device complies with the requirements and
specifications set out in Directive 2014/53 / EU (RED).
9.2. FCC Mark
This device complies with the Part 15 C specification of the FCC Rules.
Your operation is subject to the following two conditions:
(1) This device must not cause harmful interference, and
(2) This device must accept any interference received, including interference from
improper use.
Changes or modifications not expressly approved by the party responsible for
compliance may void the user's authorization to operate the device.
9.3. Updating device
The programming and functionality of the hardware and firmware are carried out at the
factory complying with the essential requirements of the product.
The end user cannot make any modification of the FW / SW or functionality or have any
button, connector or element that allows changing any parameter that affects the correct
functioning of the product or the fulfillment of its essential requirements.
If any update, change or special modification of FW is required, the product must return to
Mysphera. You cannot vary operating parameters automatically or remotely.

MYSPHERA • Ronda Auguste y Louis Lumiere 23, Nave 13 • 4 980 Parque
Tecnológico de Valencia • Paterna, Valencia • Spain
Telf.: [phone] • [e-mail] • www.mysphera.com
Pág. 10
10. Recycling
The product must not be disposed of as waste and must be delivered to MYSPHERA for
proper recycling. Proper disposal and recycling help protect natural resources, people's
health and the environment. For more information on the disposal and recycling of this
product, contact your municipality, the waste management service or the store where you
purchased this product.
11. Au horized dis ribu ors
MYSPHERA S.L.
Parque Tecnológico de Valencia
Ronda Auguste y Louis Lumiere, 23 – ave 13,
E-46980 Paterna (Valencia)
[email protected]m
https://www.mysphera.com
Telf.: [phone]
Fax [phone]
