Mytee ESCAPE ETM-LX-115 User manual

ESCAPE Model: ETM-LX-115
Electric Truckmount
User Manual
REV. 5/30/18

2
INTRODUCTION
Dear Customer:
Congratulations on the purchase of your new Escape™ Electric Truckmount.
As technology continues to develop you can work condently knowing that
both Mytee Products and its employees are equally dedicated to developing
with the industry and its advances.
Like any other piece of machinery or technology, the ETM also requires the
proper maintenance and care to keep the product working over extended use.
Neglecting your machine, abusing it or not operating it properly can void its
warranty and prevent the machine from performing to the quality and standard
you’d expect out of the Mytee Products line.
If you have any warranty concerns or questions, please review this manual
thoroughly or do not hesitate to contact your distributor. If there are questions
regarding maintenance, replacement, or ordering parts please contact an
authorized Mytee Products Service Center. To see an updated list please visit
our website at http://www.mytee.com/support/service-centers.
Before using your Mytee product, please read this manual thoroughly.
Sincerely,
Mytee Customer Care Dept.

3
TABLE OF CONTENTS
1
2
3
4
5
IMPORTANT SAFETY INFORMATION 4
AT A GLANCE 6
1.1 - Technical Specications 6
1.2 - Included with the Escape™ 6
1.3 - Escape™ Front View 7
1.4 - Escape™ Rear View 8
1.5 - Switch Plate 9
MACHINE OPERATION 10
2.1 - Powering the Escape™ 10
2.2 - Connecting Hoses & Cleaning Tools 11
2.3 - Using the Auto Fill & Auto Pump-Out Features 11
2.4 - Emptying the Solution & Recovery Tanks 11
2.5 - Preparing the Escape™ for Cold Weather 12

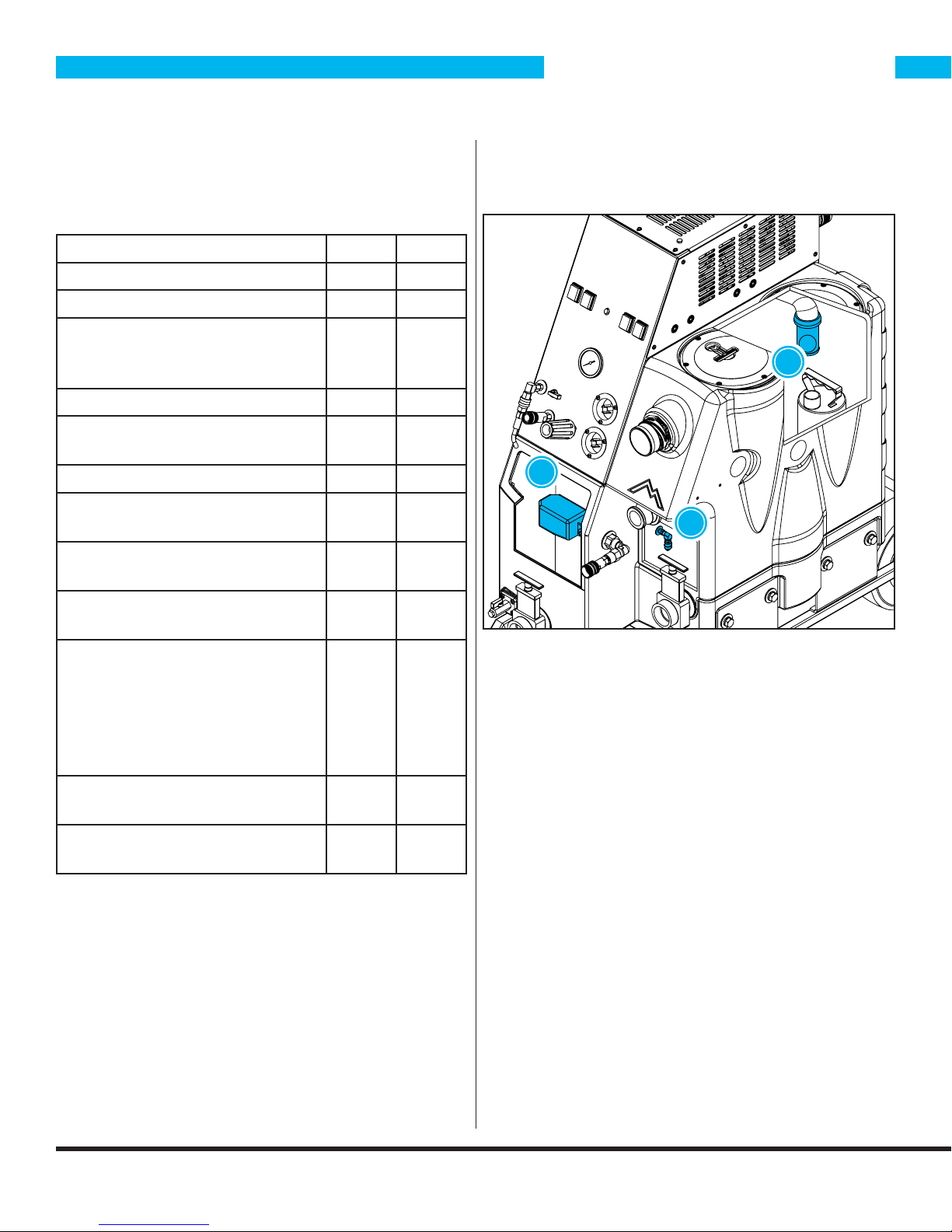

MACHINE MAINTENANCE 13
3.1 - Filter Maintenance 13
3.2 - Float Maintenance 13
3.3 - System Maintainer 13

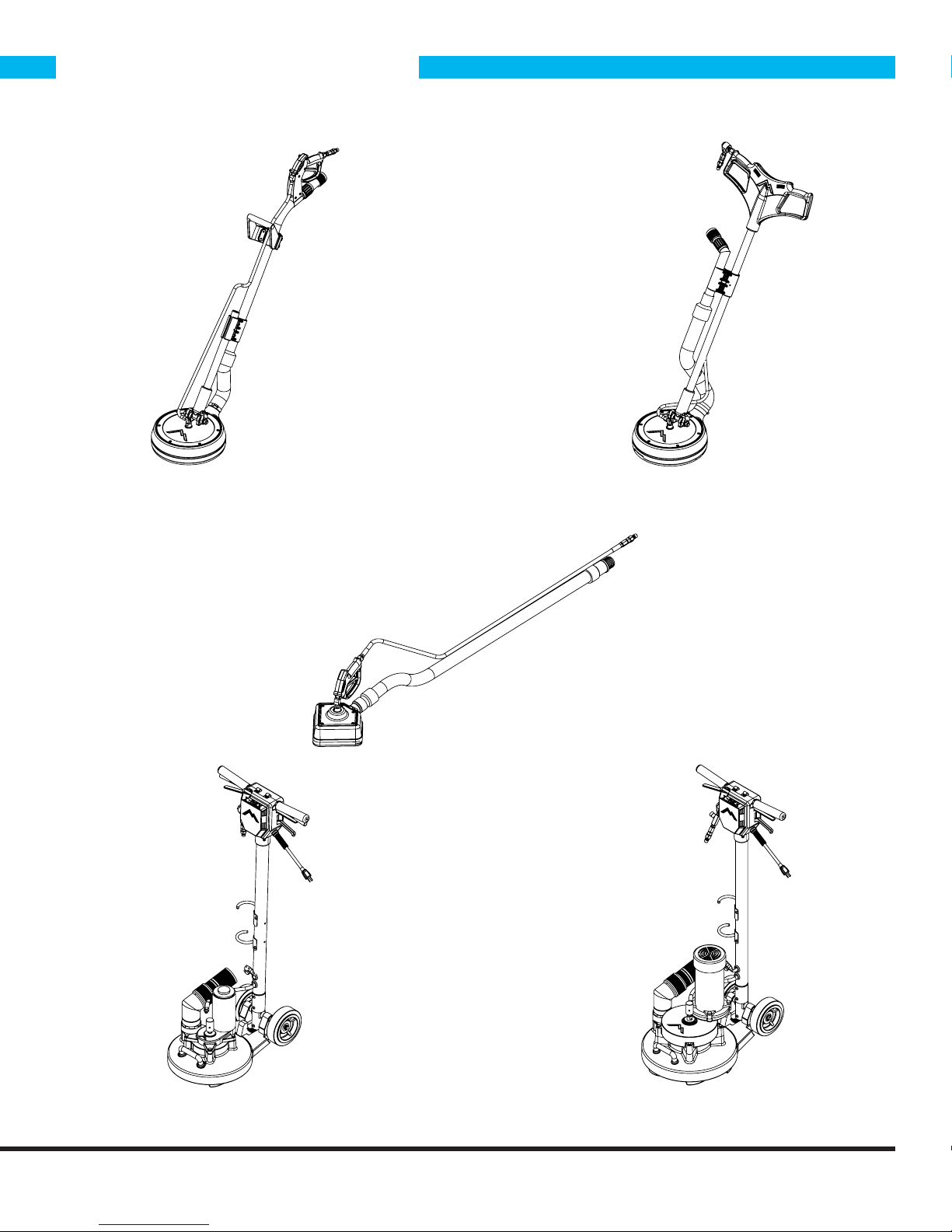

ACCESSORIES FOR YOUR ESCAPE™ 15
TROUBLESHOOTING 17

4
IMPORTANT SAFETY INFORMATION
Grounding Instructions
This machine must be grounded. If it should malfunction
or breakdown, grounding provides a path of least resis-
tance for electrical shock. This machine is equipped with
a cord having an equipment-grounding conductor and
grounding plug. The plug must be plugged into an appro-
priate outlet that is properly installed in accordance with
all local code and ordinances. Do not remove ground pin;
if missing, replace plug before use.
Improper installation of the equipment-grounding conduc-
tor can result in a risk of electric shock. Be sure to check
with a qualied electrician or service person if you are in
doubt as to whether the outlet is properly grounded. If
the plug will not t in the outlet do not modify either the
plug nor the machine’s cord, instead have a proper outlet
installed by a qualied technician.
This machine is for use on a nominal 120-volt circuit and
with a grounding plug similar to the one in Figure 1 below.
If a proper outlet is not available, follow the illustrations of
Figure 2 & 3 to install a temporary-grounding plug. This
temporary work-around should be used only until a proper
outlet (Figure 1) can be installed by a qualied electrician.
When and if this type of adapter is employed, screw the
adapter’s extended tab into place with a metal screw.
However, grounding adapters are not approved for use in
Canada.
Again, be sure to check the grounding pin for damages
and replace if necessary.
The Green, or Green-Yellow, wire in the cord is the
grounding wire. When replacing a plug, this wire must be
attached to only the grounding pin.
DO NOT use extension cords.
Please Note for America use only.
Parts and Service
Please contact a Mytee service personnel or Mytee
authorized Service Center using Mytee original replace-
ment parts and accessories for repairs are needing to be
performed. When and if calling Mytee for support, please
have your Model and Serial Number available for faster
assistance.
Name Plate
The Model and Serial Number are located on the lower
half of the back of the machine near the power plugs and
will be required for ordering replacement parts. You can
use the space provided on the front of this manual to note
down both for future referencing.
Unpacking the Machine
When your new machine is delivered, please carefully in-
spect both the shipping carton and the machine for dam-
ages. If damage is evident, save both the shipping carton
and machine so that the delivering carrier can inspect it.
Contact the carrier immediately to le a freight claim if
there has been any damage.
Caution and Warnings
Symbols
Mytee uses the symbols below to signal potentially dan-
gerous conditions. Always read this information carefully
and take the necessary steps to protect personnel and
property.
Is used to warn of immediate hazards that will cause se-
vere personal injury or death.
Is used to call attention to a situation that could cause
severe personal injury.
Is used to call attention to a situation that could cause
minor personal injury or damage to the machine or other
property. When using an electrical appliance, basic pre-
cautions should always be followed, including the follow-
ing: Read all instructions before using this machine. This
Figure 1
Grounding Pin
Grounded Outlet
Grounded Outlet Box
Adapter
Tab for Grounding
Screw
Metal
Screw
Figure 2 Figure 3

5
IMPORTANT SAFETY INFORMATION
product is intended for commercial use only.
To reduce the risk of re, electrical shock, or injury:
1. Read all instructions before using equipment.
2. Use only as described in this manual. Use only manu-
facturer’s recommended attachments.
3. Always unplug power cord from electrical outlet before
attempting any adjustments or repairs.
4. Do not unplug by pulling on cord. To unplug, grasp the
plug, not the cord.
5. Do not pull or carry by cord. Do not close a door on
cord or pull cord around sharp edges or corners.
6. Do not run appliance over cord. Keep cord away from
heated surfaces.
7. Do not use with damaged cord or plug. If cord is dam-
aged, repair immediately.
8. Do not use outdoors or on wet surfaces and or stand-
ing water.
9. Always unplug or disconnect the appliance from power
supply when not in use.
10. Do not allow to be used as a toy. Close attention is
necessary when used by or near children.
11. Do not use in areas where ammable or combustible
material may be present.
12. Do not leave the unit exposed to harsh weather ele-
ments. Temperatures below freezing may damage compo-
nents and void warranty.
13. Use only the appropriate handles to move and lift unit.
Do not use any other parts of this machine for this pur-
pose.
14. Keep hair, loose clothing, ngers, and all parts of the
body away from all openings and moving parts.
15. Use extra care when using on stairs.
16. To reduce the risk of re or electric shock, do not use
this machine with a solid-state speed control device.
17. The voltage and frequency indicated on the name
plate must correspond to the wall receptacle supply volt-
age.
18. When cleaning and servicing the machine, local or
national regulations may apply to the safe disposal of
liquids which may contain: chemicals, grease, oil, acid,
alkalines, or other dangerous liquids.
19. Do not leave operating unattended.

6
1 - AT A GLANCE

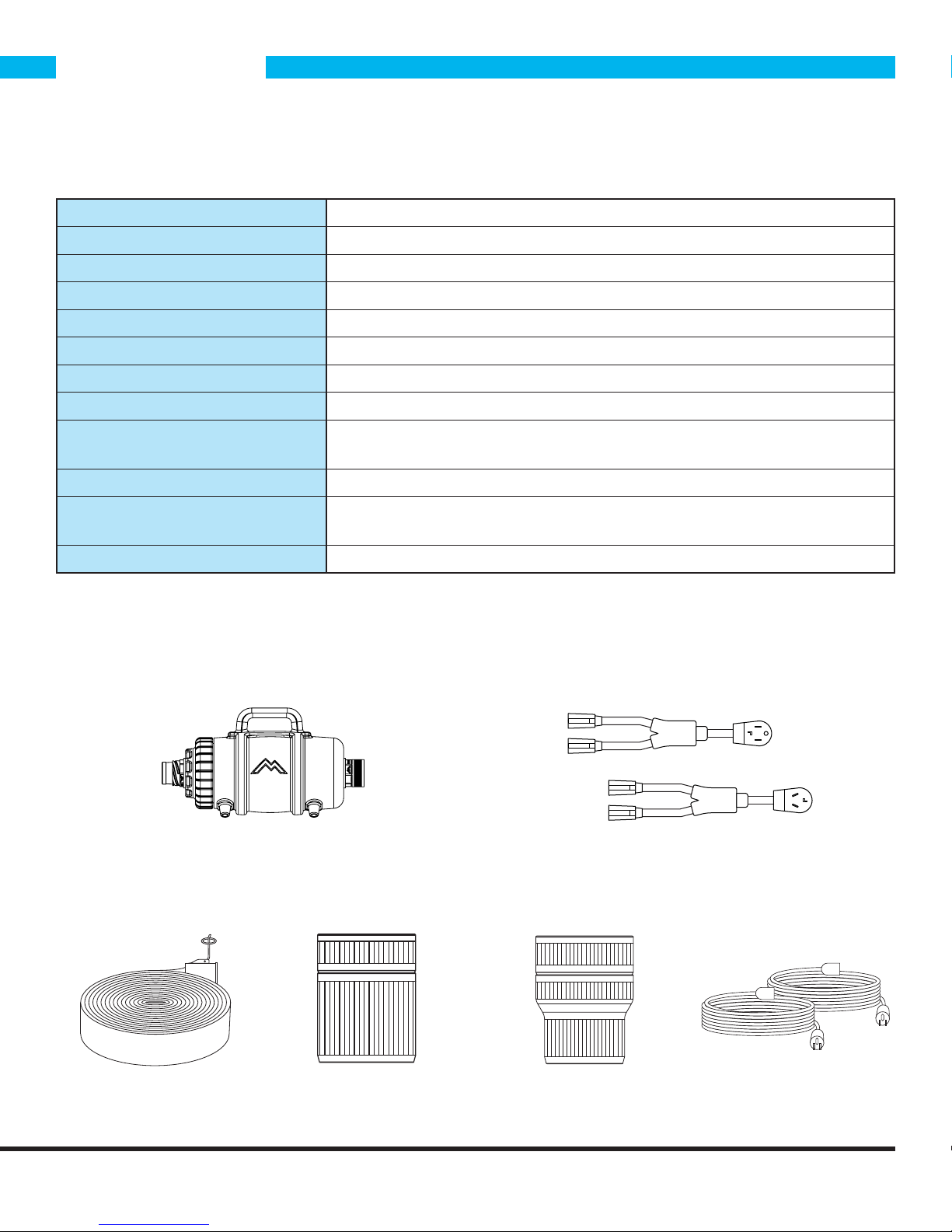

1.1 - Technical Specications
1.2 - Included with the Escape™
Solution Tank 12 Gallons
Recovery Tank 12 Gallons
Vacuum Dual Mytee® Hybrid Ametek vacuum motors
CFM 225
Water Lift 182”
Pump PSI 500
Pump GPM 1.5
Pump-Out GPM 35
Power Consumption Cord one: 19 amps @ 115V 60Hz
Cord two: 18 amps @ 115V 60Hz
Machine Weight 200 lbs.
Machine Dimensions Without cart: 32” x 21.25” x 36”
With cart: 43” x 21.25” x 44.25”
Power Cord Dual twist-lock 50’ 12/3
5003 3-Prong Dryer Adapter &
5004 4-Prong Dryer Adapter
H107 2.5” Swivel Cu-
Lynx™
F200 Lint Hog™ In-Line Filter
H106 2.5” x 2” Swivel Cu-
Lynx™ Reducer
AH121 50’ Layat Pump-
Out Hose
Two 50’ Twist-Lock Power
Cords

7
1 - AT A GLANCE
1. Switch Plate
2. Dual Circuit Indicator Light
3. Electrical Power Ports
4. Solution Tank Opening for Bucket Fill
5. 12 Gallon Solution Tank
6. Winterizing Pump Drain
7. Solution Tank Drain Valve
8. Auto Fill
9. Recovery Tank Drain Valve
10. Pump-Out Cam-Lock Hose Connection
11. 2” Male Cu-Lynx™ Vacuum Hose Connection
12. 12 Gallon Recovery Tank
13. Recovery Tank Lids
1.3 - Escape™ Front View
1
2
3
4
5
7
6
8 9
10
11
12
13

8
1 - AT A GLANCE
1. Rear Vacuum Exhaust
2. 10” Foan-Filled Wheels
3. Transport Cart
4. 4” Locking Front Casters
1.4 - Escape™ Rear View
1
2 3 4

9
1 - AT A GLANCE

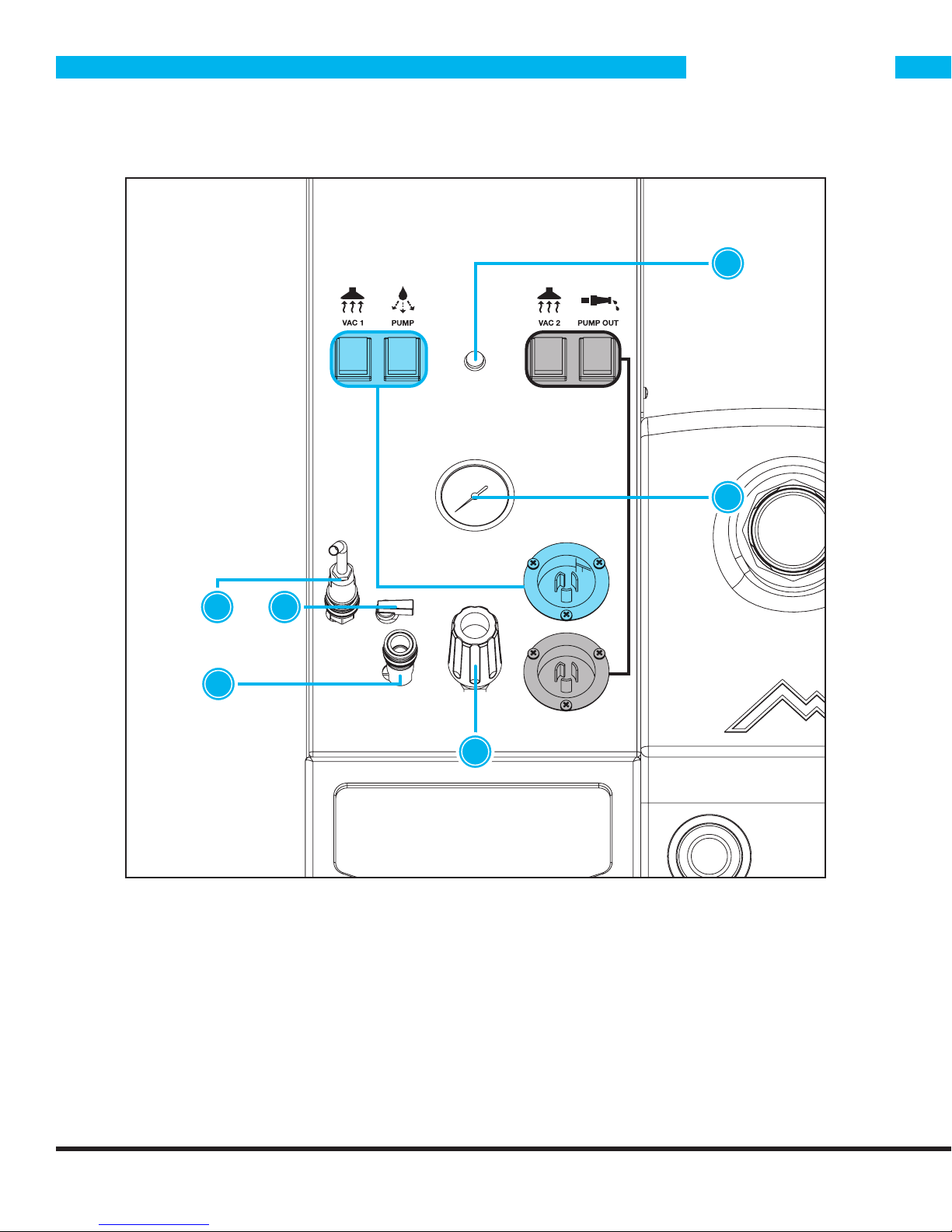

1.5 - Switch Plate
1. Wash Out Hose
Use to wash out the recovery tank after use.
2. RUN/PRIME Valve
Set to the PRIME position to prime the pump and use the wash out
hose. Set to the RUN position when ready to clean.
3. Solution Hose Connection
Connect the solution line from the cleaning tool here.
4. Pressure Regulator
Regulates the pressure (PSI) of solution output.
5. Pressure Gauge
Displays the current pressure the solution pump is set to. Measured in
PSI.
6. Dual Circuit Indicator Light
Lights up when power cords are plugged into two separate 115V,
20 amp circuits.
1 2
3
4
5
6

10
2 - MACHINE OPERATION

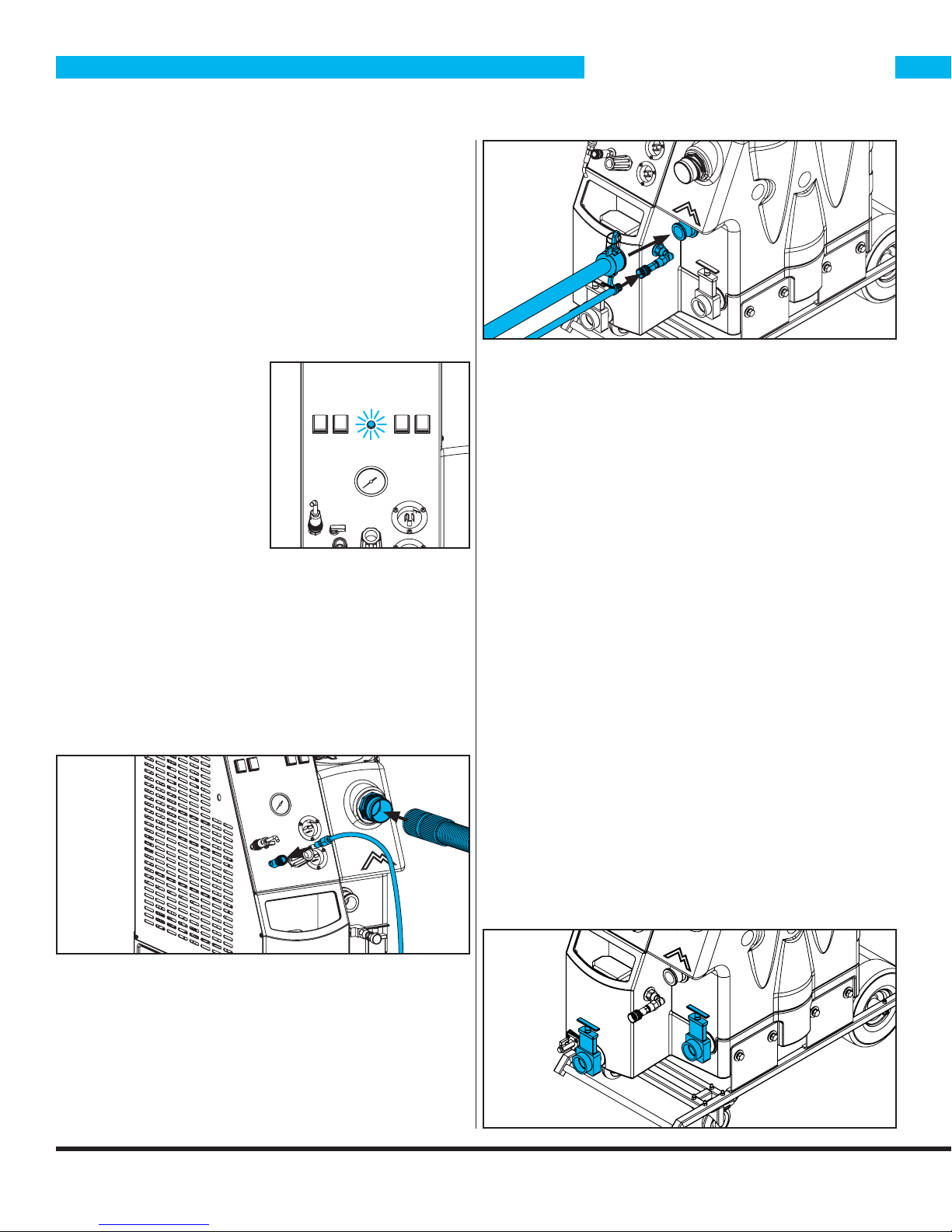

2.1 - Powering the Escape™
The Escape™ Truckmount can be powered by a few dier-
ent methods whether in a van or in a home or oce.
Method 1 - Two 115V 20 amp circuits.
The Escape™ can be powered o of two separate 115V 20
amp circuits.
Method 2 - 3-prong or 4-prong dryer outlet.
All Escape™ features can be powered using one of either
the 5003 3-prong or 5004 4-prong adapters plugged into a
230V dryer outlet.
Method 3 - Powering in a van with a generator.
When using the Escape™ in a van or truck, you will need a
generator to power it. You can use either a generator that
runs o your van or truck’s engine or one that has its own
motor and fuel tank.
Mytee recommends the use of a 10,000 watt generator
with this unit. This will supply ample power for the ETM.
Two separate
115V 20 amp
circuits.
Tone will sound and indi-
cator light will illuminate
when plugged into two
separate circuits.

11
2 - MACHINE OPERATION
2.3 - Using the Auto-Fill & Auto Pump-Out
Features
To use the Escape’s™ auto-ll feature, connect any stan-
dard garden hose from a spout to the auto-ll tting on the
front of the unit (see section 2.2). Turn on the hose and the
Escape’s™ tank will begin to ll up. Once full, the oat in
the tank will cut o the ow of water into the tank.
To use the pump-out, connect the included pump-out
hose to the pump-out connection on the front of the
machine using the cam-lock tting (see section 2.2). Turn
on the PUMP OUT switch on the switch plate (see sec-
tion 1.3). Dirty recovered water will be pumped out of the
recovery tank through the pump-out hose. Please follow
any local regulations regarding the disposal of dirty
water. ♦

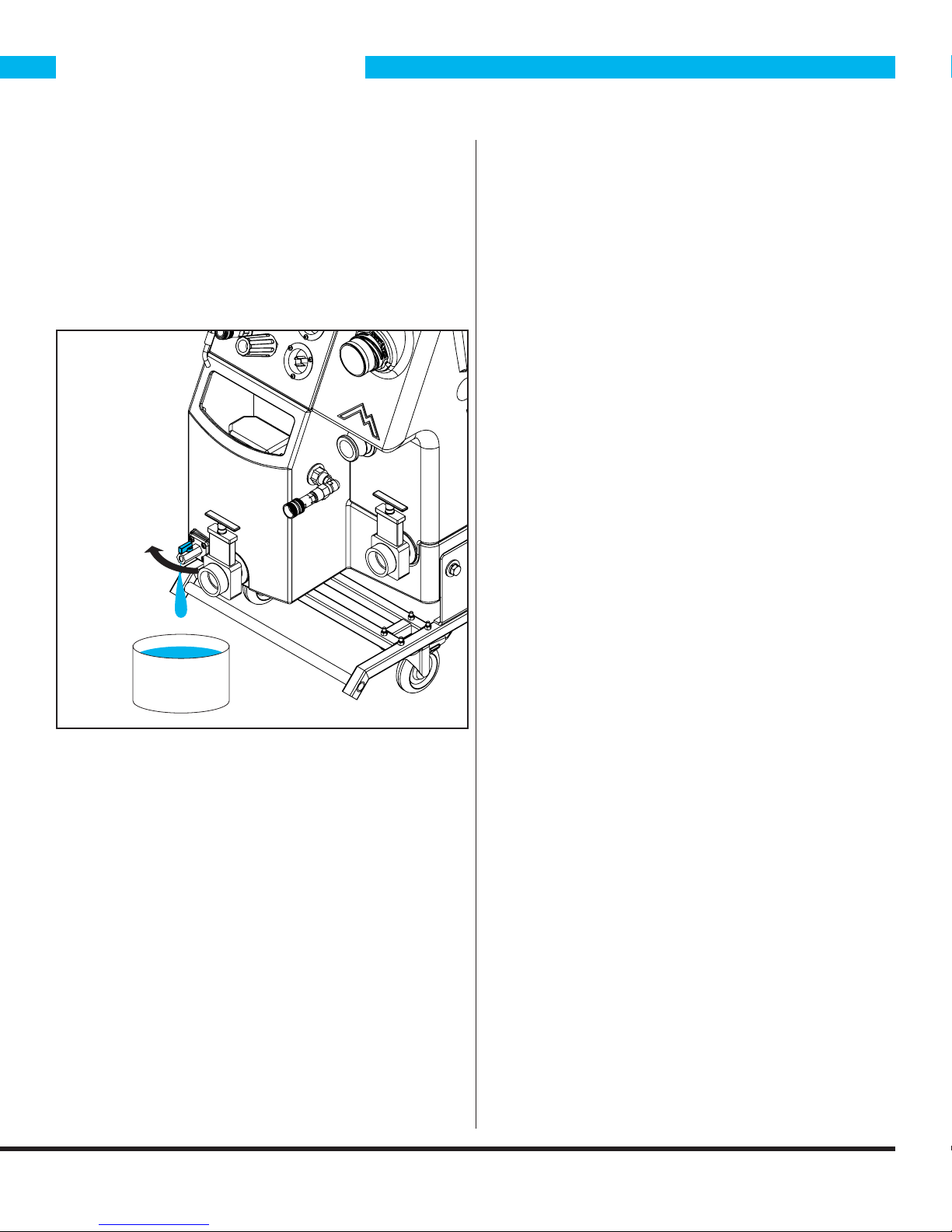

2.4 - Emptying the Solution & Recovery Tanks
The solution and recovery tanks feature tank drain valves
(shown below) so that you can easily empty them into a
bucket. Simply lift up on the handle to drain the tanks. ♦
However, the Escape™ can be run on some 6,000 watt
generators, depending on the manufacturer. Generators
are rated dierently, so if using 6,000 watt generator the
rating must represent continuous running watts, not peak
watts.
In any case, check with the generator manufacturer to
ensure the unit can provide 40 amps at 115 volts continu-
ously.
Dual Circuit Indicator Light & Tone
The ETM-LX-115 is
equipped with a Dual Circuit
Indicator Light & Tone which
activates when the unit is
plugged into two separate
115V, 20 amp circuits. When
the light and tone activate,
the unit is properly powered
and can be switched on. ♦
2.2 - Connecting Hoses & Cleaning Tools
Vacuum & Solution Hoses
The Escape™ features a 2.5” Cu-Lynx™ vacuum hose
connection as well as a standard 1/4” quick disconnect
tting for solution hoses.
Auto-Fill & Auto Pump-Out Hoses
The Escape™ comes packaged with a 50’ lay-at pump-
out hose that connects via a cam-lock tting. To use the
auto-ll feature, simply connect a standard garden hose to
the tting on the front of the unit. For more information on
the pump-out and auto-ll features, see section 2.4. ♦

12
2 - MACHINE OPERATION
2.5 - Preparing the Escape™ for Cold Weather
Freezing temperatures can cause any water in the solution
pump to freeze, causing damage to the pump. The ETM-
LX-115 Escape™ features a drain valve which can be used
to drain remaining water or solution from the pump before
storing.
Turn the valve lever a quarter-turn clockwise to let out
excess water/solution from the pump. ♦

13
3 - MACHINE MAINTENANCE
In order to keep the Escape™ running smoothly and re-
duce the risk of damage to the machine and subsequent
downtime, Mytee recommends following the maintenance
schedule below:
Maintenance Item Daily Weekly
Clean and inspect tanks. X
Clean and inspect hoses. X
Check and clean internal lters by
twisting o, rinsing with clean water
and replacing.
X
Check power supply cable. X
Clean machine with all-purpose
cleaner and cloth. X
Check spray nozzles. X
Flush solution system with Mytee
System Maintainer. X
Remove oat shut-o screen from
tank and clean. X
Inspect vacuum hoses for holes and
loose cus. X
Inspect spray pattern for clogging.
If clogged, remove spray tips and
soak them in a recommended liquid
neutralizer for up to six hours. To re-
move spray tip, twist spray tip body
counter-clockwise.
X
Lubricate wheels with water resis-
tant oil. X
Inspect machine for water leaks and
loose hardware. X
3.1 - Filter Maintenance
The Escape™ has a small mesh screen lter on the end
of the solution intake hose in the solution tank. This lter
should be checked and cleaned after each use. ♦
3.2 - Float Maintenance
1. Recovery Tank Ball Float
This oat prevents recovered dirty water from rising too
high and damaging the vacuum motors. Check regularly to
make sure the mesh screen is free of debris.
2. Auto Pump-Out Float Switch
This electronic oat switch activates the auto pump-out
when the water level in the tank reaches it. It is important
to remove any debris that might prevent the oat switch
from activating.
3. Auto-Fill Shut-O Float
Prevents the auto-ll from over-lling the solution tank. ♦
3.3 - System Maintainer
Weekly ushing of the solution system with Mytee®
System Maintainer helps keep lines clean and prevents
chemical build-up, improving pump life, performance and
pressure.
2
3
1

14
3 - MACHINE MAINTENANCE
How to use System Maintainer:
1. Mix 1-quart 3601 System Maintainer with 1-quart of
warm water.
2. After thoroughly mixing, pour this solution into the solu-
tion tank.
3. Turn the pump on FIRST, and run solution through your
cleaning tool. NOTE: The jet should be removed from the
cleaning tool in order to prevent clogging due to loosening
of deposits in line.
4. Next, with the pump on, begin running the solution
through the machine. This allows the solution to break
down any build up in the lines.
5. After running all of the solution through the machine, ll
the tank with clean, warm water. Run the water through the
machine to clear the solution completely out of the tank &
lines. ♦

15

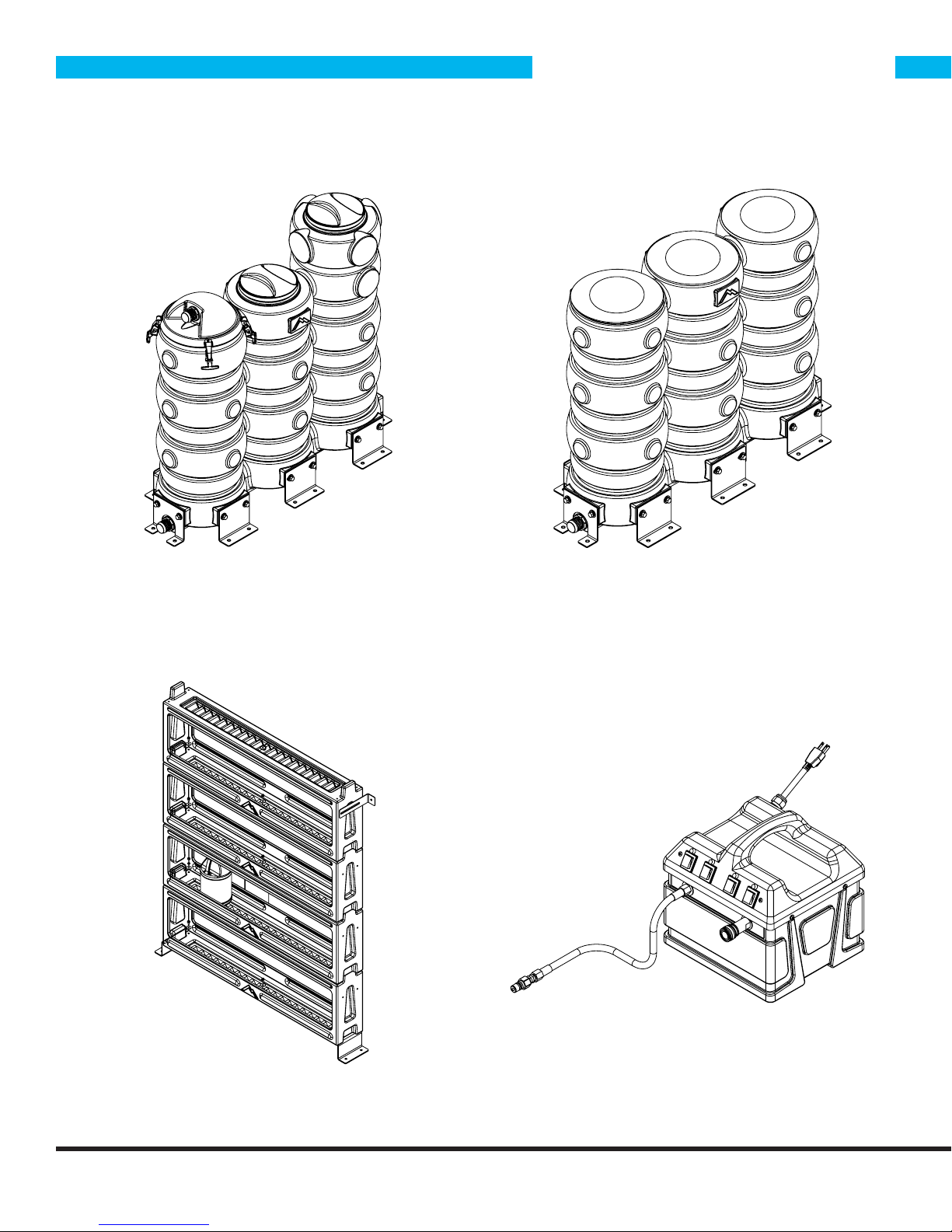

4 - AVAILABLE ACCESSORIES
T-80R - Recovery Tank T-80S - Recovery Tank
A500 - Stackable Van Shelving System Set 240-120 - Mytee® Hot Turbo In-Line Heater

16
4 - AVAILABLE ACCESSORIES
8903 - Wand Style Spinner® 8904 - T-Handle Spinner®
8908 - Counter Spinner®
T-REX Jr. 12” Total Rotary Extractor T-REX 15” Total Rotary Extractor

17
5 - TROUBLESHOOTING
5.1 - Vacuum Troubleshooting
Vacuum is not turning on.
Possible Cause Solution
Vacuum may not be getting
power.
Check the electrical con-
nections and the switch.
Look for loose or damaged
wires.
To check the switch:
Unbolt the switch plate.
Take a picture of the layout
of the wires or tagging the
wires for future reference.
Switch the wires from the
vacuum switch with the
wires from either the pump
or heater switch. Turn on
the pump or heater switch
(whichever one you ex-
changed wires with). If the
vacuum turns on, then you
know the vacuum switch is
bad.
Vacuum is not producing suction.
Possible Causes Solutions
Recovery tank is full. Empty the recovery tank.
Vacuum hose blockage
(if there is no suction or
exhaust).
Check for blockage in the
hose, starting from the
cleaning tool to the ma-
chine.
Clogged lter in vacuum
tank.
Clean out lter regularly.
Drain valve/cap is loose
and is causing air leakage.
Tighten the drain valve/cap.
Hose cus are loose and
causing air leakage.
Tighten all hose cus reg-
ularly as may loosen over
time. Use a glue to prevet
cus from coming loose
(optional).
Lid on tank is loose and is
causing air leakage.
Make sure the lid is tight.
Vacuum blows water out the exhaust.
Possible Causes Solutions
Foam building up in the
recovery tank.
Use Mytee’s Auto Defoam-
er Kit (Part # A688).
There is a loud grinding noise coming from the
vacuum.
Possible Cause Solution
Debris has been sucked
into the vacuum motor
chamber. Usually results
from dry vacuuming.
Replace the vacuum motor.
To avoid repeat problem,
DO NOT dry vacuum with
your extractor.
5.2 - Pump Troubleshooting
No water ow.
Possible Causes Solutions
Tank is empty. Fill tank.
Filter is clogged. Clean the lter.
Pump valves are clogged
or damaged.
Rebuild pump.
Low pressure.
Possible Causes Solutions
Worn nozzle. Replace nozzle with a new
one of the same size.
Leak in high pressure hose
or connections.
Check the hose and con-
nections.
Filter is clogged. Clean the lter.
Pump valves are clogged
or damaged.
Rebuild pump.

18
5 - TROUBLESHOOTING
Pump pulsates when spraying.
Possible Causes Solutions
Filter is clogged. Clean the lter.
Pump valves are clogged
or damaged.
Rebuild pump.
Leaks seen under pump.
Possible Causes Solutions
Worn pump seals. Rebuild pump.
Abrasives in solution have
damaged pump seals.
Mix chemical thoroughly
and make sure lter is not
damaged.

NOTES
