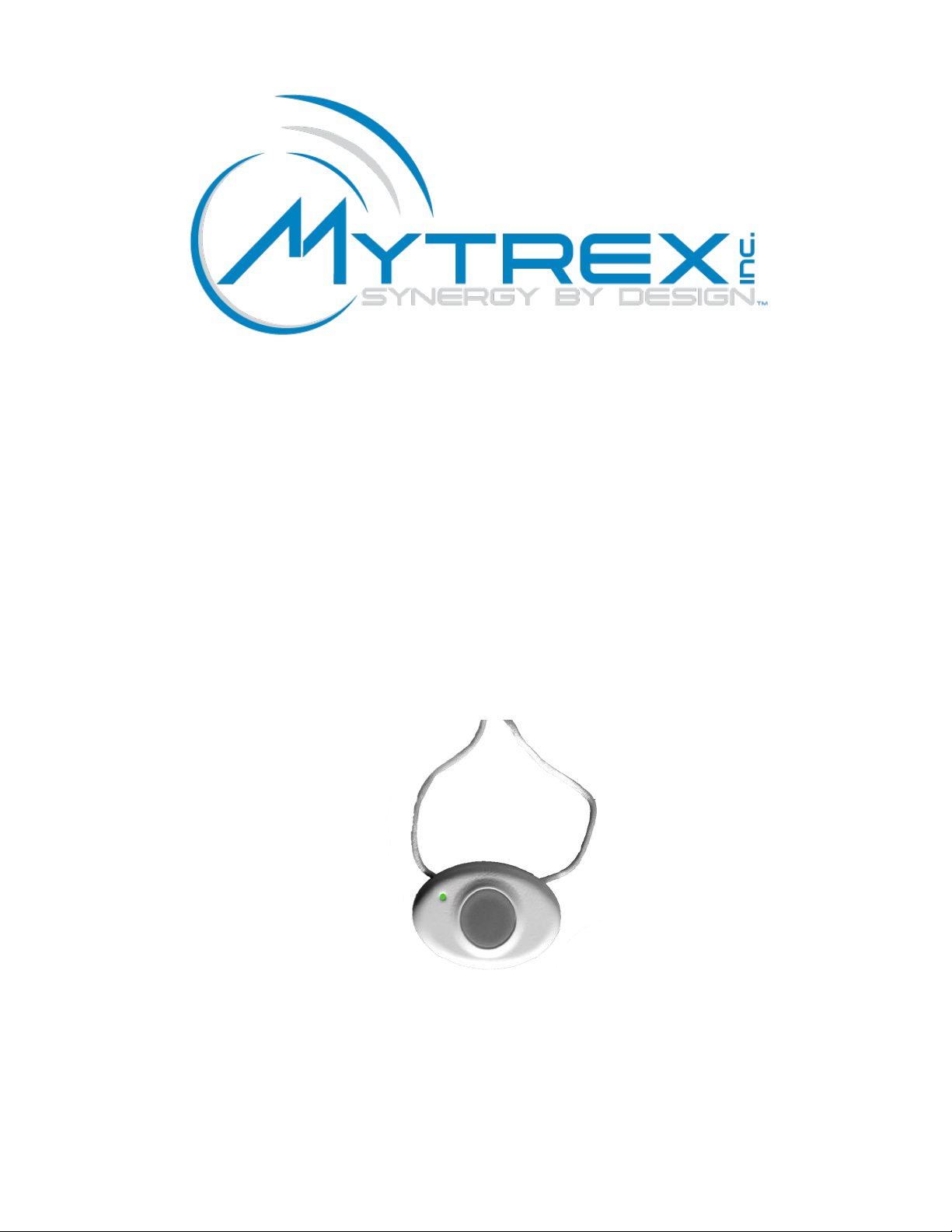

Mytrex myActive Alert User manual

myActive Alert
User Instructions
Version 1.0d
June 4, 2015
Mytrex, Inc.
10321 Beckstead Lane
South Jordan, UT 84095

2 | P a g e
Introduction
The myActive Alert is a personal emergency response pendant manufactured by
Mytrex, Inc. that features patented and clinically validated automatic fall detection
algorithms developed by BioSensics LLC. Additional key features and benefits of the
BioSensics technology include patented algorithms designed to reduce false alarms,
monitoring the number of steps taken, and notifying providers when the pendant is not
worn by the subscriber. The myActive Alert also incorporates a water resistant HELP
button to request help at the press of a button.
The myActive Alert may be operated in one of two modes: Basic and Enhanced. In
either mode the device may be programmed to transmit a periodic supervisory or
heartbeat signal to the Mytrex personal emergency response system (PERS); such as
an MXD or MXD3G. This transmission enables the base unit to monitor the radio link,
battery condition and activity level of the user.
Detecting a Fall
When the algorithms determine a fall may have occurred, the LED begins to flash
slowly. A few seconds later the LED will flash quicker. Within a few seconds the LED
will turn on steady and a FALL ALERT signal is transmitted to the PERS. A red LED
indicates low battery and green indicates a good battery. During the FALL ALERT
signal transmission, the LED will always illuminate steady for approximately two
seconds. Note: Due to the many types of falls that can occur, the user should
always press the HELP button whenever help is needed and not rely solely upon
the determination of the fall detection algorithms. See “Other Notices”.
Sending a HELP ALERT Signal
To send a HELP ALERT signal to the PERS, press and release the HELP button on the
face of the myActive Alert. The signal for help is transmitted as soon as the button is
pressed and will continue to transmit for an additional two seconds after releasing the
HELP button. The LED will illuminate for the entire duration of the signal transmission
according to Table 1.
Clearing the FALL ALERT
When the algorithms determine a fall may have occurred, the LED begins to flash
slowly. While the LED is flashing, the algorithms continue to monitor movement.
Transmission of the FALL ALERT signal is prohibited and the LED is turned off if the
algorithms determine the user has taken three steps. Once the LED turns on steady,
the FALL ALERT signal cannot be cancelled.
Battery Monitoring
The myActive Alert periodically monitors the internal battery voltage. If the voltage is
below a certain threshold, a LOW BATTERY signal is transmitted to the PERS. Once a
low battery is reported, the myActive Alert should be replaced within two weeks.

3 | P a g e
Button Only Mode
The myActive Alert is shipped in the Button Only Mode. Movements are not monitored
(fall detection disabled) in this mode which greatly extends the battery life. However,
pressing the HELP button on the face of the myActive Alert will cause a HELP ALERT
signal to be transmitted. The signal is transmitted for approximately two seconds after
the button is released and the LED flashes slowly. Green indicates a good battery and
red indicates a low battery.
Basic Mode
This mode of operation includes the functionality of the HELP button, automatic fall
detection, battery monitoring, and if desired, supervisory or heartbeat transmissions. To
enable the Basic Mode of operation, the HELP button must be pressed 7 times within a
3-second period. Once the Basic mode is enabled, the LED will illuminate steadily
when the HELP button is pressed as indicated in Table 1. NOTE: If supervisory
(heartbeat) transmissions are enabled, it is important that your dealer activates the
supervisory mode in the PERS as well.
Enhanced Mode
This mode includes all of the same functionalities of the basic mode. In addition, the
activity of the subscriber (number of steps taken) and non-compliance alert signals
(subscriber not wearing the myActive Alert) may be transmitted to the PERS. To enable
the Enhanced Mode of operation, the HELP button must be pressed 5 times within a 3-
second period. Once the Enhanced mode is enabled, the LED will flash quickly when
the HELP button is pressed as indicated in Table 1. NOTE: If supervisory (heartbeat)
transmissions are enabled, it is important that your dealer activates the supervisory
mode in the PERS as well.
LEDs
The myActive Alert has a red and a green LED to indicate various modes of operation
as shown in Table 1. The indicated LED status is applicable to both the Basic and
Enhanced modes of operation.
Table 1: LED Status definitions
Green
Battery Good
Steady
Basic Mode
Flash Quickly
Enhanced Mode
Red
Battery Low
Steady
Basic Mode
Flash Quickly
Enhanced Mode
Battery Life Expectancy
The battery of the myActive Alert is not replaceable. The life expectancy is variable and
is dependent upon which features are enabled and the operating parameters chosen.
In addition, the higher the activity level of the subscriber, the lower the battery life
expectancy.

4 | P a g e
Specifications
Dimension: 2.165” x 1.468” x 0.603”
RF Transmission Frequency: 418 MHz
Operating Temperature: -10ºC to 60ºC
Battery Type: CR2450 Lithium
Battery Life: 1 year or more (2 years in Basic non-supervised mode)
Battery Voltage: 3.0V
FCC ID: NY5MAA01
IC: 9663A-MAA01
FCC and Industry Canada Notice
This device complies with part 15 of the FCC Rules and Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1)
l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, meme si le brouillage est susceptible d’en
compromettre le fonctionnement.
IMPORTANT! Tous les changements ou modifications pas expressément approuvés par la partie
responsable de la conformité ont pu vider l’autorité de l’utilisateur pour actioner cet équipment.
This equipment has also been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada

5 | P a g e
Important: Changes or modifications to this unit not expressly approved by the responsible
party for compliance may void the user’s authority to operate the equipment.
Infrequently used radio links should be tested regularly to protect against undetected
interference or fault. The Manufacturer suggests testing at least weekly.
A general knowledge of radio and its vagaries should be gained prior to acting as a
wholesale distributor, dealer, or installer and these facts should be communicated to the
ultimate user.
Other Notices
This product incorporates BioSensics ActivePERS technology, Protected by
US Patents #8,206,325, #9,005,141 and other patents pending
(www.biosensices.com/patents).
ActivePERS technology does not detect falls with perfect accuracy or
precision. If you need help, you must always push the help button on
your wearable device or base unit.
Battery Warning
This product contains a lithium battery. Lithium batteries can explode, leak, catch fire or
cause burns if not handled appropriately. Do not disassemble, puncture or crush
battery. Avoid exposure to water, fire or high temperatures. Properly dispose of the
myActive Alert.

6 | P a g e
GETTING STARTED
1. Press the HELP button on the face of the myActive Alert 7 times
within three seconds.
2. Learn the myActive Alert into the desired Personal Help Button
bank of the MXD or MXD3G (PERS).
3. Place the MXD or MXD3G into Range Test mode and press the
HELP button on the face of the myActive Alert. Listen for a steady
tone being emitted from the PERS as the coverage range is tested.
4. Press the RESET button on the rear of the PERS to place it into
normal standby mode.
