1. Functions & Summary...............................................................
2. Quick Start - Keys & Functions.................................................
3. Quick Start - Wearing the Belt.................................................
4. Belt Pairing..........................................................................
5. Time - Set Time....................................................................
6. Heart Rate Monitor - HRM Operation.....................................
7. Stopwatch - Operation..............................................................
8. Countdown - Setup..................................................................
9. Countdown - Operation..........................................................
10. Interval Timer - 3 Memory Positions Setup........................
11. Interval Timer - Operation....................................................
12. Alarm - Set Alarm...................................................................
13. Personal Info - Setup.............................................................
14. Personal Info - Personal Info Screens.................................
15. Battery Replacement.............................................................
1
2
3
4 & 5
6 & 7
8
9
10
11
12
13
14
15
16
17
TABLE OF CONTENTS

FUNCTIONS & SUMMARY
Time
Heart Rate
Monitor
Alarm Stopwatch
Countdown
12/24 Hour
Format
• Set Time
• Set Year
• Set Date
• Set Beep on/off
• Pairing
• Timer
• Calorie
• DOB • Gender
• Weight • Height
• Max HR • Resting HR
• Alarm on/off
• Set Countdown Time
• Set Alarm time
• Max Heart
Rate%
• Heart
Rate
• MEPs
2 Zone
Interval
User
Info
--------------------------------------------------------------------------
--------------------------------------------------------------------------
--------------------------------------------------------------------------
1 |

QUICK START
1
2
3
Keys & Functions
1. ADJUST
•Escape from current screen
to last ‘Function Screen’.
•Increases variable in setting
sequence.
2. LIGHT
• Activates back light.
• Press and hold to lock/unlock
display.
3. MODE
• Advance through the functions
• Advances to next digit in setting
sequence.
• Enters the setting sequence for
2 |

QUICK START Wearing the Belt
Below is a step by step guide to using your Myzone Physical
Activity Belt effectively;
1. Adjust your Myzone Physical Activity Belt so that it fits
comfortably across the center of your chest, with the Myzone
logo facing away from your chest. You can adjust the strap size
using the plastic adjuster. The Myzone Belt should be firm or
tight around your body, ensure it is comfortable.
2. Just prior to concerted physical
exercise, wet the 2 heart rate pick
up pads on the inside of the strap,
then connect the plastic module
to the fabric strap.
3. Open your app and migrate to
the workout screen to ensure that
your belt is transmitting a signal.
3 |

Put on your belt. Open your app and migrate to the
workout screen to ensure that your
belt is transmitting a signal.
Open settings by taping on the red
Myzone logo and then tap on the cog in
the top left corner. Once in settings,
scroll down to pair MZ-60 Watch.
4 |
BELT PAIRING
1. 2.
Workout
3.

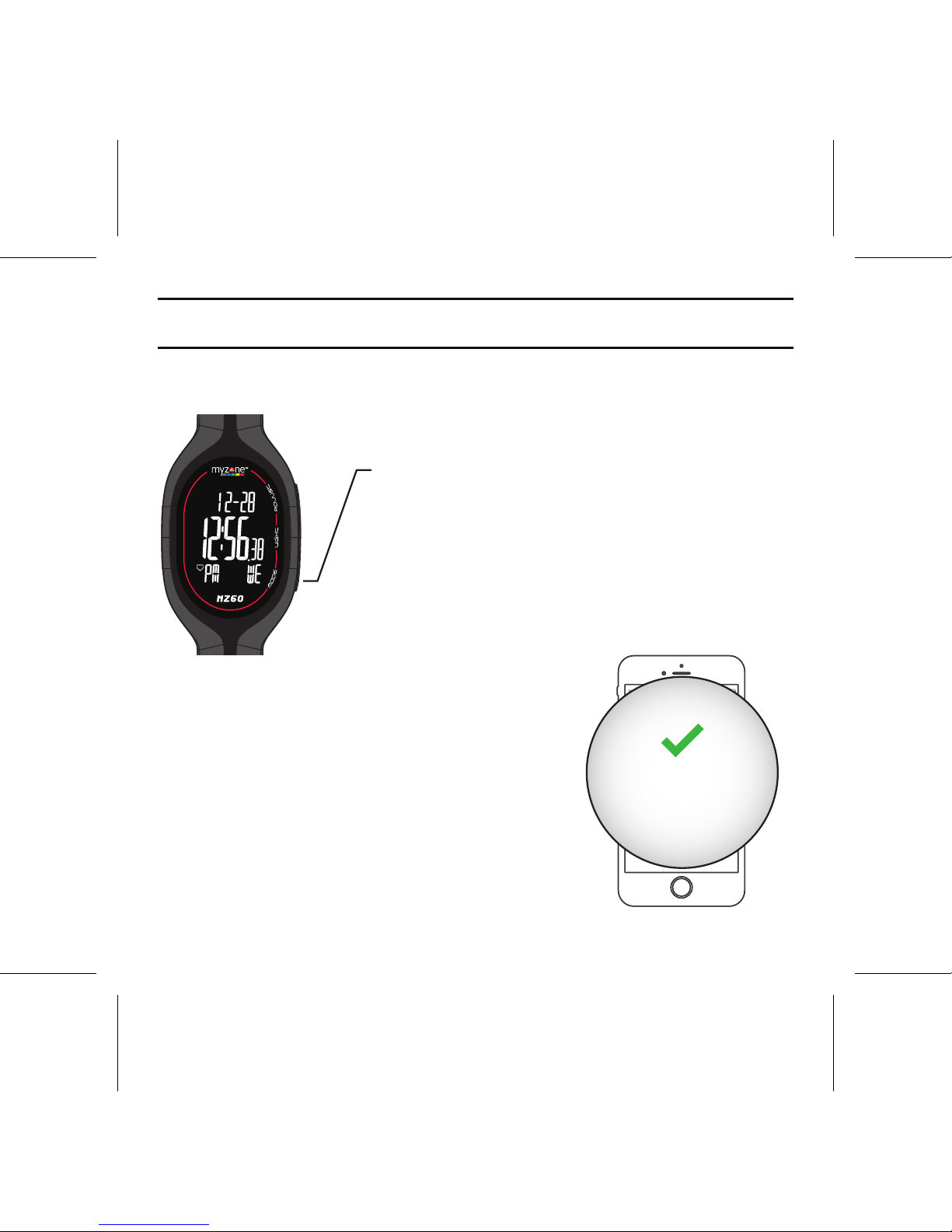

Press your MZ-60 ‘mode’ button until
you are in the HRM screen. Press and
hold the ‘mode’ button.
When you see the ‘PAIR’ flashing, click
the Pair button on the app.
5 |
BELT PAIRING
4.
5.
PAIR

6 |
Follow steps 1. through 4. to set the time and date.
TIME Set Time
124
3
1. Scroll to ‘TIME’ mode.
2. Press and hold Mode for 2 Sec.
To enter time set up mode.
3. Press Adjust to change digit up.
Press and hold Adjust to move digit
faster.
4. Press Mode to confirm setting
and move to next digit.
Set Year Set Month Set Day Set Sound on/off

7 |
TIME Set Time
Locking the Display
1
1 2
In time mode
1. Press Adjust to Switch between
12 hour and 24 hour.
1. To lock the display in the current
screen, press and hold the light
button.
2. To unlock the display from the
current screen and allow screen
scrolling, press and hold the light
button.
12 Hour Clock 24 Hour Clock

Max Heart
Rate Heart Rate BPM MEPs
In HRM mode, you can change Main Display once your belt is
paired.
In HRM mode, stopwatch, countdown timer
or interval time can be displayed at the top of
the screen. These function are started within
their individual menu screens.

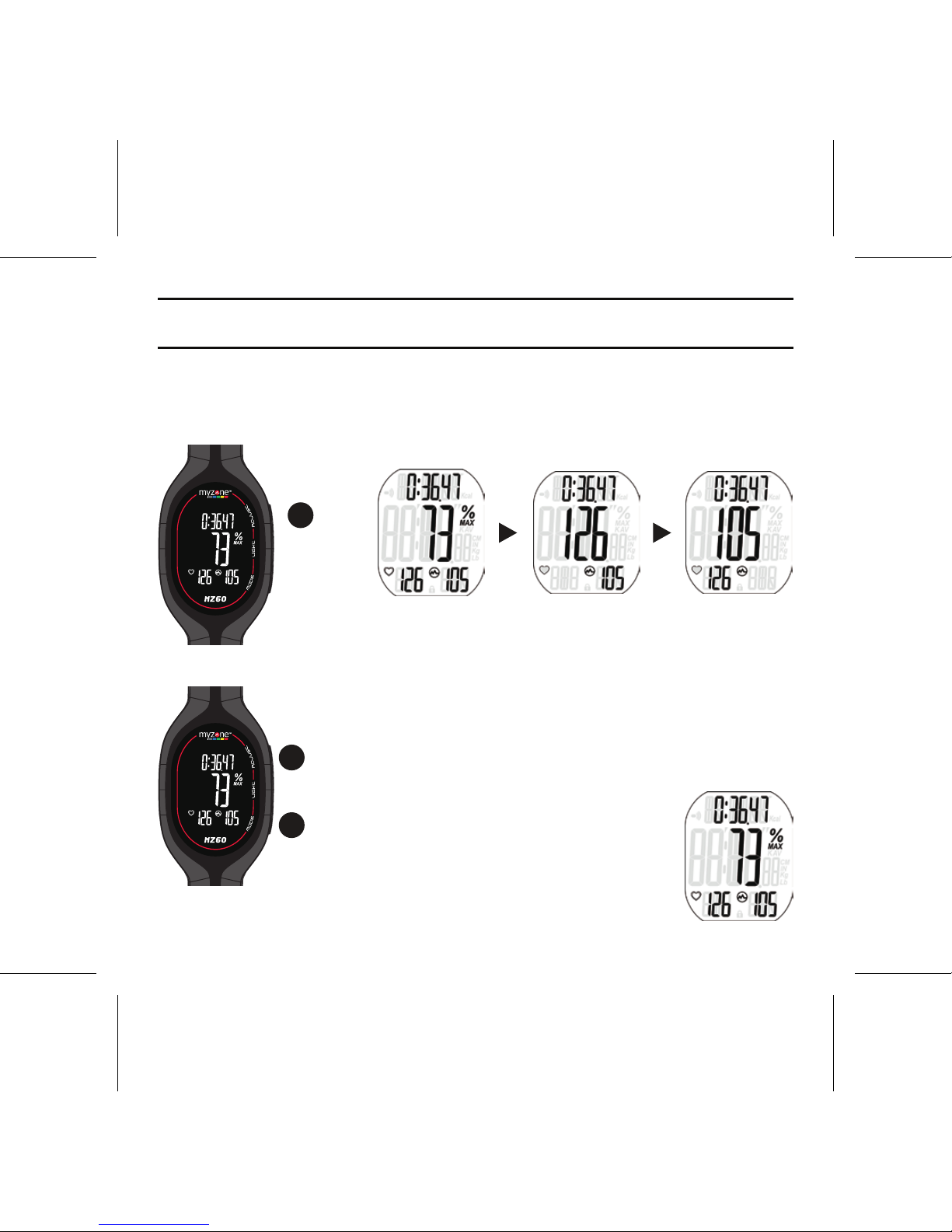

HEART RATE MONITOR HRM Operation
1
1
2
1. Press and hold Adjust to scroll to next
display %HR, BPM, MEPs and Kcal.
1. Press Adjust to start/stop
stopwatch.
2. When the stopwatch is
stopped, press and hold Mode
for 2 sec to clear.
8 |

STOPWATCH Operation
2 3
1 4
1. Scroll to STW screen using
Mode.
2. Press Adjust to start/stop
stopwatch.
3. When the stopwatch is in the
stopped position, press ‘ADJUST’
and hold 2 sec to clear.
4. Press Mode to exit.
Start Stop
9 |

COUNTDOWN Setup
124
3
1. Scroll to COUNTDOWN screen
using Mode.
2. Press and hold Mode for 2 sec
to set up.
3. Press Adjust to change digit up.
Press and hold Adjust to move
digit faster.
4. Press Mode to confirm digit and
move to next.
Set Hour Set Minute Set Seconds
10 |

START
* Audible beeps will sound for each of the last three seconds.
STOP

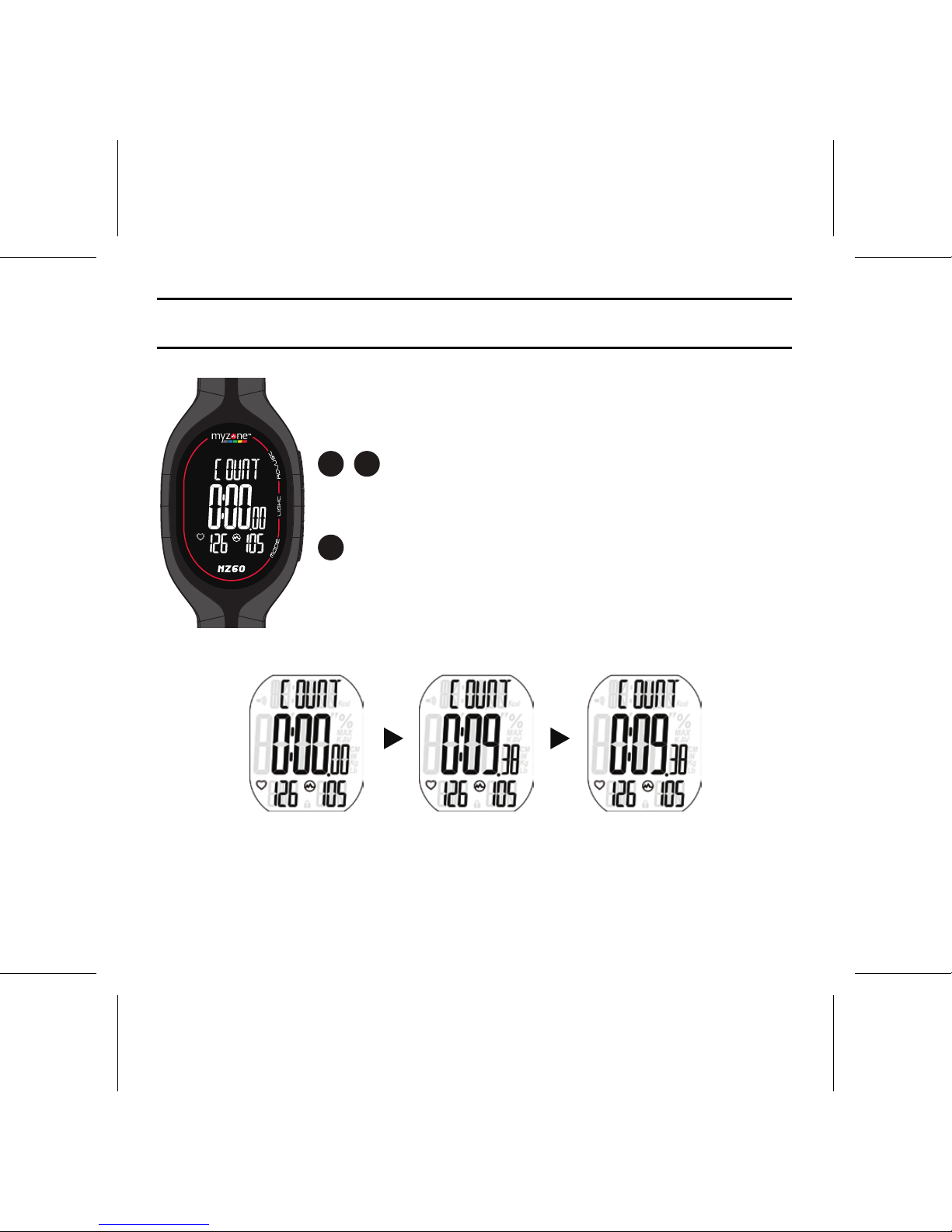

COUNTDOWN Operation
3
12
In COUNTDOWN mode,
1. Press Adjust to Start.
2. Press Adjust to Stop.
3. Press Mode to Exit.
11 |

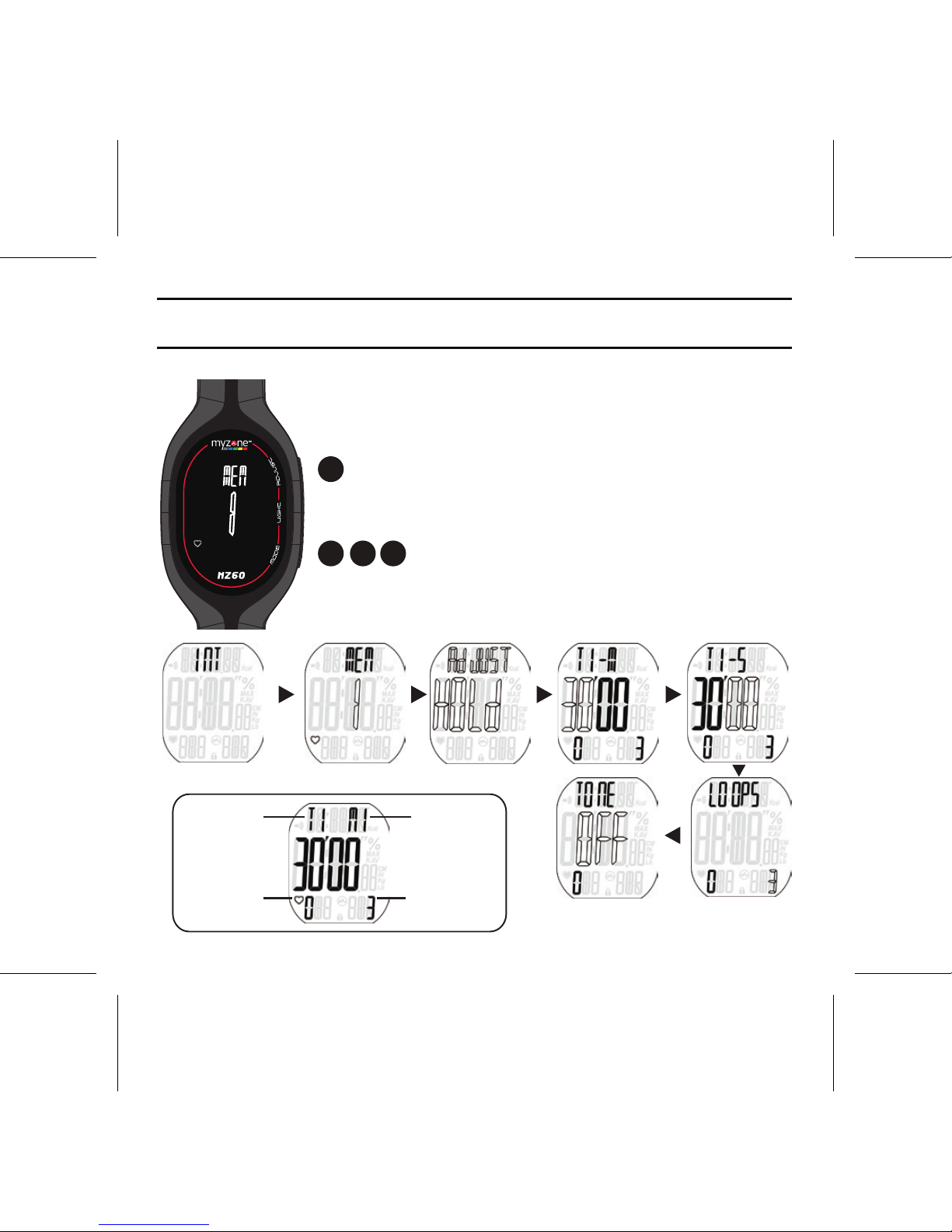

INTERVAL TIMER 3 Memory Positions Setup
3
1 2 4
1. Scroll to INTERVAL TIMER mode.
2. Press and hold Mode for 2 sec
to set up.
3. Press Adjust to change digit up.
Press and hold Adjust to move
digit faster.
4. Press Mode to confirm digit and
move to next.
Setup Screen
Time
Zone 1
Loops
Completed
Minutes
Loops
Set Set number
of Reps
*Mem position
empty if flashing
12 |

INTERVAL TIMER Operation
1
4
2 3
1. Press Adjust to choose Memory
Position.
2. Press and hold Adjust for 2 sec.
to enter chosen memory position.
3. Press Adjust to to start/stop.
4. Press Mode to Exit and leave
Interval timer.
Memory Position Interval Timer
* If an interval is over 10 seconds long, beeps will sound
for the last 5 seconds of the interval.
13 |

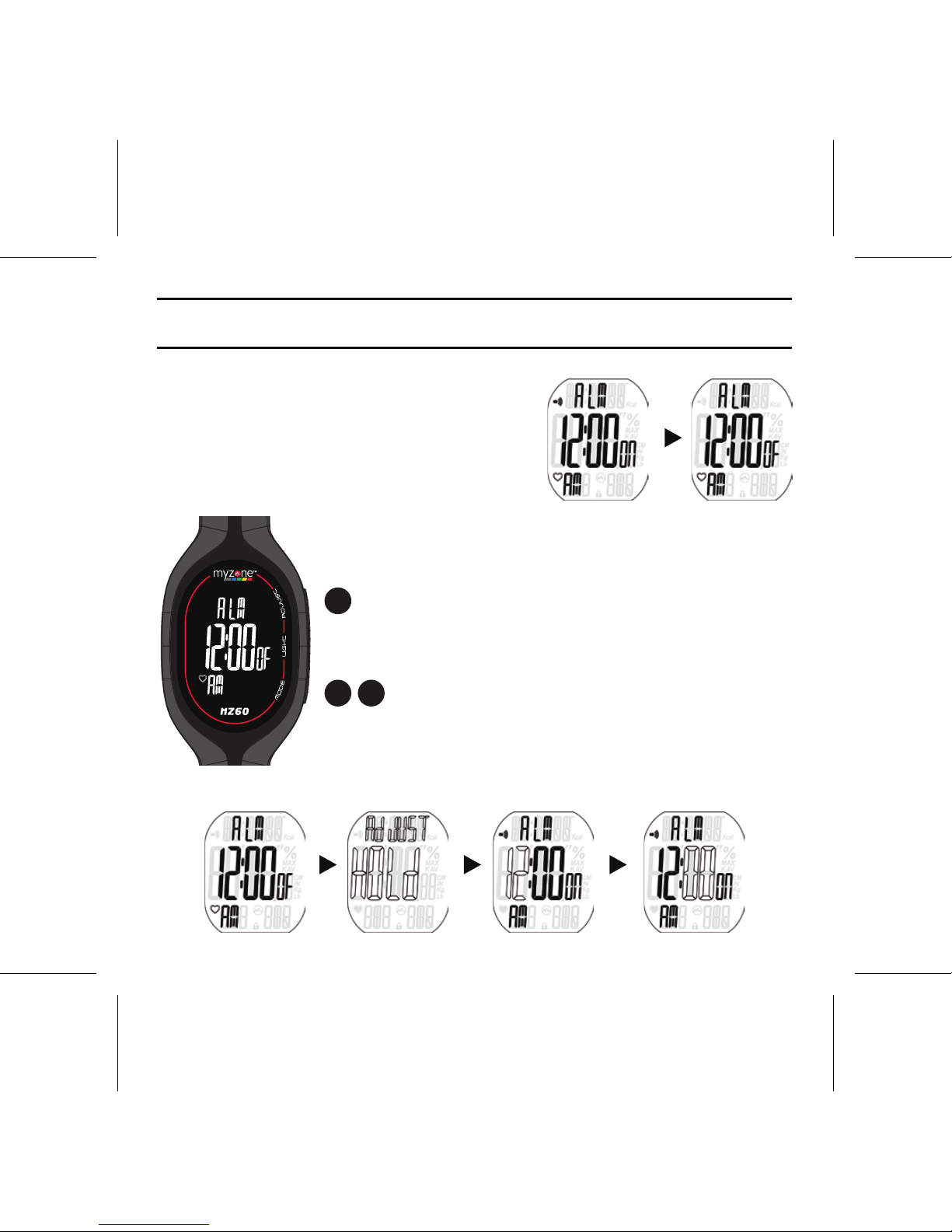

ALARM Set Alarm
In alarm mode, press ADJUST
key to turn on/off the
alarm.
To set alarm,
1. Scroll to ALM screen using Mode.
Press and hold Mode for 2 sec to
enter alarm set up mode.
2. Press Adjust to change digit up.
Press and hold Adjust to scroll digit
faster.
3. Press Mode to confirm digit and
move to next.
1
2
3
Set Hour Set Minute
14 |

PERSONAL INFO Setup
DoB, Gender, Unit, Weight, Height, Max HR, Resting HR,
%MAX / %KAV.
1
3
2 4
1. Scroll to Personal Info Set-up
mode.
2. Press and hold Mode for 2 sec.
to set up.
3. Press Adjust to change digit up.
Press and hold Adjust to move
digit faster.
4. Press to confirm digit and move
to next.
Time Mode
15 |

PERSONAL INFO Personal Info Screens
16 |

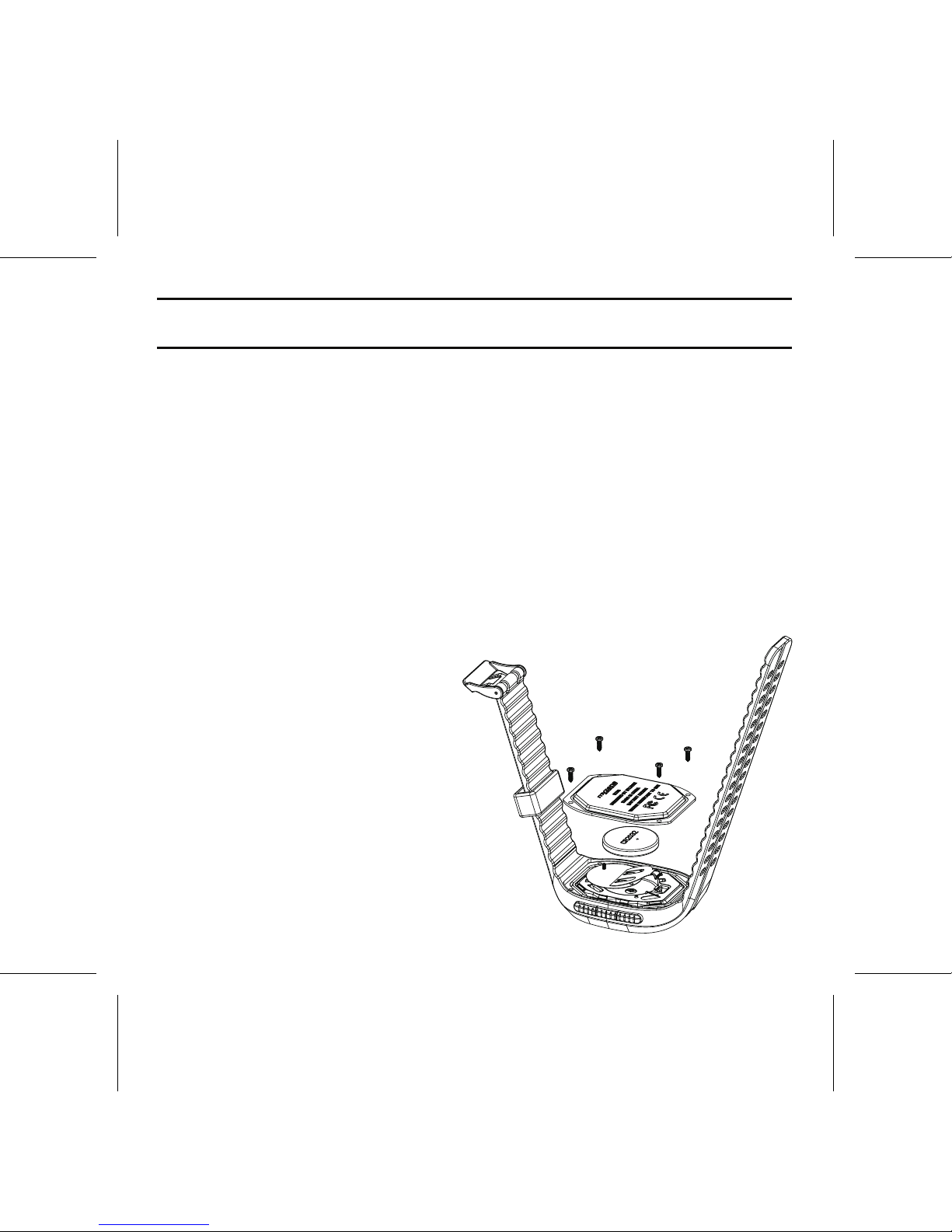

BATTERY REPLACEMENT
WE STRONGLY RECOMMEND TAKING YOUR WATCH TO A
LOCAL JEWELER TO HAVE BATTERY REPLACED TO AVOID
POSSIBILITY OF PERMANENTLY DAMAGING OF THE WATCH.
- Unscrew the battery compartment cover on the backside of
the unit using a small screwdriver and remove the cover.
- Remove the exhausted battery from the unit, and insert a new
battery (be sure to place the positive (+) side of the battery is
visible, facing toward the battery compartment cover).
- Replace the battery
compartment cover on the
battery compartment and
fasten the screw.
Caution: Do not over tighten.
Lock feature: Press and hold
LIGHT to lock or unlock the certain
display.
17 |
