Multi-Channel Amplifier CI 980
®
Owner’s Manual
CI980
Multi-Channel Amplier

SAVE THESE INSTRUCTIONS FOR LATER USE.
FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE
AUDIO EQUIPMENT.
1 Read instructions - All the safety and operating instructions should be
read before the product is operated.
2 Retain instructions - The safety and operating instructions should be
retained for future reference.
3 Heed Warnings - All warnings on the product and in the operating
instructions should be adhered to.
4 Follow Instructions - All operating and use instructions should be
followed.
5 Cleaning - Unplug this product from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
6 Attachments - Do not use attachments not recommended by the
product manufacturer as they may cause hazards.
7 Water and Moisture - Do not use this product near water-for example,
near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet
basement; or near a swimming pool; and the like.
8 Accessories - Do not place this product on an unstable cart, stand,
tripod, bracket, or table. The product may fall, causing serious injury to
a child or adult, and serious damage to the product. Use only with a
cart, stand, tripod, bracket, or table recommended by the manufacturer,
or sold with the product. Any mounting of the product should follow
the manufacturer’s instructions, and should use a mounting accessory
recommended by the manufacturer.
9 A product and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause
the product and cart combination to overturn.
10 Ventilation - Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the product and to
protect it from overheating, and these openings must not be blocked
or covered. The openings should never be blocked by placing the
product on a bed, sofa, rug, or other similar surface. This product should
not be placed in a built-in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s instructions have
been adhered to.
11 Power Sources - This product should be operated only from the type
of power source indicated on the marking label. If you are not sure of
the type of power supply to your home, consult your product dealer or
local power company.
The primary method of isolating the amplier from the mains supply
is to disconnect the mains plug. Ensure that the mains plug remains
accessible at all times. Unplug the AC power cord from the AC outlet if
the unit will not be used for several months or more.
12 Grounding or Polarization - This product may be equipped with a
polarized alternating-current line plug (a plug having one blade wider
than the other). This plug will t into the power outlet only one way.
This is a safety feature. If you are unable to insert the plug fully into the
outlet, try reversing the plug. If the plug should still fail to t, contact
your electrician to replace your obsolete outlet. Do not defeat the safety
purpose of the polarized plug.
13 Power - Cord Protection - Power-supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the product.
14 Outdoor Antenna Grounding - If an outside antenna or cable system
is connected to the product, be sure the antenna or cable system is
grounded so as to provide some protection against voltage surges
and built-up static charges. Article 810 of the National Electrical Code,
ANSI/NFPA 70, provides information with regard to proper grounding
of the mast and supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding conductors, location
of antenna discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
NOTE TO CATV SYSTEM INSTALLER
This reminder is provided to call the CATV system installer’s attention to Section
820-40 of the NEC which provides guidelines for proper grounding and, in
particular, species that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
15 Lightning - For added protection for this product during a lightning
storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the antenna or
cable system. This will prevent damage to the product due to lightning
and power-line surges.
16 Power Lines - An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or power circuits,
or where it can fall into such power lines or circuits. When installing an
outside antenna system, extreme care should be taken to keep from
touching such power lines or circuits as contact with them might be
fatal.
17 Overloading - Do not overload wall outlets, extension cords, or
integral convenience receptacles as this can result in a risk of re or
electric shock.
18 Object and Liquid Entry - Never push objects of any kind into this
product through openings as they may touch dangerous voltage points
or short-out parts that could result in a re or electric shock. Never spill
liquid of any kind on the product.
WARNING: THE APPARATUS SHOULD NOT BE EXPOSED TO
DRIPPING OR SPLASHING, AND OBJECTS FILLED WITH LIQUIDS,
SUCH AS VASES, SHOULD NOT BE PLACED ON THE APPARATUS.
AS WITH ANY ELECTRONIC PRODUCTS, USE CARE NOT TO SPILL
LIQUIDS INTO ANY PART OF THE SYSTEM. LIQUIDS CAN CAUSE A
FAILURE AND/OR A FIRE HAZARD.
IMPORTANT SAFETY INSTRUCTIONS
2
ENGLISH FRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ

19 Damage Requiring Service - Unplug this product from the wall outlet
and refer servicing to qualied service personnel under the following
conditions:
a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the
operating instructions as an improper adjustment of other controls
may result in damage and will often require extensive work by a
qualied technician to restore the product to its normal operation.
e) If the product has been dropped or damaged in any way.
f) when the product exhibits a distinct change in performance-this
indicates a need for service.
20 Replacement Parts - When replacement parts are required, be
sure the service technician has used replacement parts specified
by the manufacturer or have the same characteristics as the
original part. Unauthorized substitutions may result in fire, electric
shock, or other hazards.
21 Safety Check - Upon completion of any service or repairs to this
product, ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
22 Wall or Ceiling Mounting - The product should be mounted to a wall
or ceiling only as recommended by the manufacturer.
23 Heat - The product should be situated away from heat sources such as
radiators, heat registers, stoves or other products (including ampliers)
that produce heat.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
CAUTION
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN
AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER
TO THE PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE”
WITHIN THE PRODUCT’S ENCLOSURE THAT MAYBE OF SUFFICIENT
MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO
PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS
INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT
OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN
THE LITERATURE ACCOMPANYING THE APPLIANCE.
The equipment draws its nominal non-operational power from the AC outlet
with its POWER switch at the ON position.
The socket-outlet shall be installed near the apparatus and shall be easily
accessible.
CAUTION
Changes or modications to this equipment not expressly approved by NAD
Electronics for compliance could void the user’s authority to operate this
equipment.
CAUTION REGARDING PLACEMENT
To maintain proper ventilation, be sure to leave a space around the unit (from
the largest outer dimensions including projections) that is equal to or greater
than shown below.
Left and Right Panels: 10 cm
Rear Panel: 10 cm
Top Panel: 10 cm
IMPORTANT SAFETY INSTRUCTIONS
3
ENGLISHFRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ

NOTES ON ENVIRONMENTAL PROTECTION
At the end of its useful life, this product must not be disposed
of with regular household waste but must be returned to a
collection point for the recycling of electrical and electronic
equipment. The symbol on the product, user’s manual and
packaging, point this out.
The materials can be reused in accordance with their markings. Through re-use,
recycling of raw materials or other forms of recycling of old products, you are
making an important contribution to the protection of our environment. Your
local administrative oce can advise you of the responsible waste disposal
point.
INFORMATION ABOUT COLLECTION AND DISPOSAL OF
WASTE BATTERIES DIRECTIVE 2006/66/EC OF THE EUROPEAN
PARLIAMENT AND THE COUNCIL OF EUROPEAN UNION FOR
EUROPEAN CUSTOMERS ONLY
Batteries bearing any of these symbols indicate
that they should be treated as“separate collection”
and not as municipal waste. It is encouraged that
necessary measures are implemented to maximize
the separate collection of waste batteries and to
minimize the disposal of batteries as mixed municipal
waste.
End-users are exhorted not to dispose waste batteries
as unsorted municipal waste. In order to achieve a high level of recycling waste
batteries, discard waste batteries separately and properly through an accessible
collection point in your vicinity. For more information about collection and
recycling of waste batteries, please contact your local municipality, your waste
disposal service or the point of sale where you purchased the items.
By ensuring compliance and conformance to proper disposal of waste
batteries, potential hazardous eects on human health is prevented and
the negative impact of batteries and waste batteries on the environment
is minimized, thus contributing to the protection, preservation and quality
improvement of the environment.
RECORD YOUR MODEL NUMBER NOW, WHILE YOU CAN SEE IT
The model and serial number of your new CI 980 are located on the back of
the cabinet. For your future convenience, we suggest that you record these
numbers here:
Model no: ......................................
Serial no.: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
IMPORTANT SAFETY INSTRUCTIONS
NAD is a trademark of NAD Electronics International, a division of Lenbrook Industries Limited
Copyright 2015, NAD Electronics International, a division of Lenbrook Industries Limited
4
ENGLISH FRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ

INTRODUCTION
GETTING STARTED
QUICK START
Refer to the supplied CI 980 Quick Setup Guide for basic instructions in
setting up your new NAD CI 980. The following important notes must also
be observed when setting up your CI 980.
IMPORTANT SETUP NOTES
• Before setting up or making connections, ensure that the CI 980 and
other devices to be connected to CI 980 are unplugged or powered
down.
• Connect the speaker cables to the supplied speaker connectors by
following the corresponding ZONE (ZONE 1- 4) speaker terminal
connections (R +/-, L +/-) as reected in the CI 980 rear panel.
• Bare wire or loose strands from the speaker cables must not touch the
rear panel or other speaker terminals.
• After installing the speaker cables to the supplied speaker connectors,
plug in the speaker connector to corresponding ZONE (ZONE 1- 4)
speaker terminal of CI 980.
• Connect corresponding end of the mains power cord to the AC mains
input of CI 980 and the plug connected to a mains power source.
• Set the POWER switch at the rear panel to “ON”setting (TRIGGER OFF/
ON/AUTO switch set to OFF position). The Standby LED indicator will
illuminate amber. Press the STANDBY button to turn ON the CI 980. The
Standby LED indicator will turn from amber to blue.
SAVE THE PACKAGING
Please save the box and all of the packaging in which your CI 980 arrived.
Should you move or otherwise need to transport your CI 980, this is by
far the safest container in which to do so. We’ve seen too many otherwise
perfect components damaged in transit for lack of a proper shipping
carton, so please: Save that box!
NOTES ON INSTALLATION
• Place your NAD CI 980 on a rm, level surface.
• Avoid placing the unit in direct sunlight or near sources of heat and
damp.
• Do not place the unit on a soft surface like a carpet.
• Do not place the CI 980 in an enclosed position such a bookcase or
cabinet that may impede the air-ow through the ventilation slots.
Allow adequate ventilation.
• Make sure the unit is switched o before making any connections.
• The RCA sockets on your NAD CI 980 are color coded for convenience.
Red and white are Right and Left audio respectively. Use high quality
leads and sockets for optimum performance and reliability.
• Ensure that leads and sockets are not damaged in any way and all
sockets are rmly pushed home.
• Should water get into your NAD CI 980, shut o the power to the unit
and remove the plug from the AC socket. Have the unit inspected by a
qualied service technician before attempting to use it again.
• Use a dry soft cloth to clean the unit. If necessary, lightly dampen the
cloth with soapy water. Do not use solutions containing benzol or other
volatile agents.
DO NOT REMOVE THE COVER; THERE ARE NO USERSERVICEABLE
PARTS INSIDE.
5
ENGLISHFRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ

1 STANDBY BUTTON
• Press this button to switch ON the CI 980. The Standby LED indicator
will turn from amber to blue.
• Pressing the Standby button again turns the unit back to standby
mode.
IMPORTANT NOTICE
The rear panel POWER switch must be in the ON position for the Standby
button to activate.
2 STANDBY LED
• This indicator will light up amber when the CI 980 is in standby
mode. When the CI 980 is powered up from standby mode, this
indicator will illuminate blue.
• At auto sense mode, this indicator will stay blue for about 10
minutes after any active input signal is shut down and then
eventually turns amber at standby mode.
3 ZONE 1 – 4 LED INDICATORS
• Particular Zone indicators will light up blue whenever there is an
active input signal or source connected at corresponding input
terminals.
• Particular Zone indicators will extinguish (no light) in the absence
of active input signal or source connected at corresponding input
terminals.
IMPORTANT NOTICE
If the selected source is GLOBAL and there is an active source at GLOBAL’s
INPUT terminals, all four (ZONE 1-4) will illuminate at the same time.

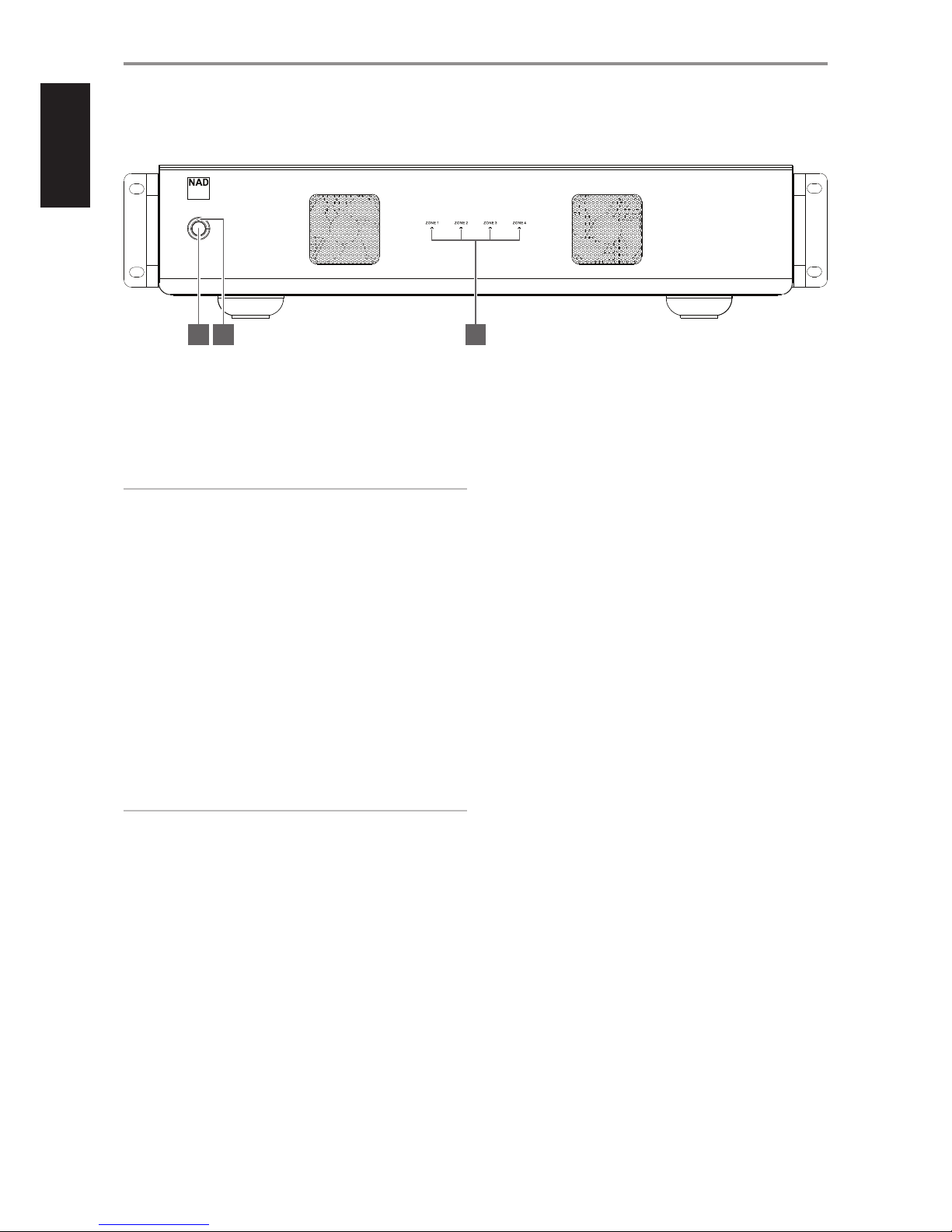

IDENTIFICATION OF CONTROLS
FRONT PANEL
© NAD CI980
Multi-Channel Amplifier CI 980
1 2 3
6
ENGLISH FRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ

1 GLOBAL INPUT/OUTPUT
• Always turn OFF the CI 980 and other components in the system
before connecting or disconnecting anything to GLOBAL’s INPUT/
OUTPUT terminals.
• Connect the output from a pre-amplier or processor, such as a
surround-sound decoder, to the INPUT terminals. Use a twin RCA-
to-RCA lead to connect the left and right “Audio Output” of the
preamplier or processor to these INPUT terminals.
• The OUTPUT terminal is a line level “loop through”output. The
same level of input signal at the INPUT terminals is available at the
OUTPUT terminals thereby allowing the same signal to be shared or
passed on to another amplier.
• These INPUT/OUTPUT terminals are dedicated only to GLOBAL
settings.
• If the LOCAL/GLOBAL mode selector switch of a particular ZONE is
set to GLOBAL, the source connected to GLOBAL’s INPUT terminals
will become the active input for the particular ZONE.
2 GLOBAL GAIN CONTROL
• Before switching ON the CI 980 from standby mode for the rst
time, make sure all GAIN controls are set to minimum (MIN) level
position.
• This GAIN control is dedicated only to GLOBAL settings. Rotate
clockwise or counterclockwise to adjust the level of the input signal
being fed to GLOBAL’s INPUT terminal.
• Refer also to item about GAIN CONTROL (ZONE 1- 4).
3 STEREO/BRIDGE MODE SELECTOR SWITCH (ZONE 1- 4)
• Depending upon the corresponding speaker setup connection,
slide the particular Zone’s selector switch to either STEREO or
BRIDGE mode.
LOCAL/GLOBAL MODE SELECTOR SWITCH
• Slide particular Zone’s selector switch to either LOCAL or GLOBAL
depending upon the selected input. If GLOBAL is selected, the source
connected to GLOBAL’s INPUT terminals will become the active input
for the particular ZONE. On the other hand, if LOCAL is selected, the
active source at corresponding Zone’s INPUT terminals will be applied.
To illustrate, if LOCAL/GLOBAL mode selector switch of ZONE 4 is set
to GLOBAL, the input from GLOBAL’s INPUT terminals will be the active
input for ZONE 4. On the other hand, if LOCAL/GLOBAL mode selector
switch of ZONE 4 is set to LOCAL, input from ZONE 4 INPUT terminals
will be the active input for ZONE 4.
4 SPEAKER OUT (ZONE 1 - 4)
• Connect the speaker cables to the supplied speaker connector with
reference to the particular Zone’s SPEAKER OUT terminal markings in
the rear panel.
• At STEREO mode, ensure that particular Zone’s “R+” is connected
to the “+”terminal of your right speaker and “R-” connected to the
speaker’s “-”terminal. Connect the particular Zone’s SPEAKER OUT
terminals marked “L+” and “L-” to the left speaker in the same way.
STEREO MODE
SPEAKER CONNECTION
ZONE 2 “R”
TERMINAL
ZONE 2 “L”
TERMINAL
R+ R- L+ L-
Left speaker terminals + -
Right speaker terminals + -
• At Bridge Mode, connect the single speaker to the particular Zone’s
SPEAKER OUT terminals marked “R +” and “L+”ensuring that“L+”is
connected to the speaker’s “+” terminal and “R+” connected to the
speaker’s “-” terminal.
BRIDGE MODE
SPEAKER CONNECTION
ZONE 2 “R”
TERMINAL
ZONE 2 “L”
TERMINAL
R+ R- L+ L-
Speaker terminals - +
BRIDGE MODE
A particular ZONE can be congured to be MONO (Bridge mode), more
than doubling its output power. This way, a particular ZONE can be used
as part of a high power stereo or home-theatre system by connecting
additional power ampliers. In this mode, the amplier section will
react as though the speaker impedance has been halved.
At Bridged mode, ZONE 2 will produce approximately 100W into an
8 ohm loudspeaker. Low impedance speakers (under 8 ohms) are
not recommended when using Bridge mode as these may cause the
amplier’s thermal cut-out to operate if played at high levels.
IDENTIFICATION OF CONTROLS
REAR PANEL
© NAD CI980
INPUT
OUT
PUT
INPUT
OUTPUT INPUT OUTPUT INPUT OUTPUT INPUT OUTPUT
ATTENTION!
Please make sure that the CI 980 is powered OFF or unplugged before making any connections. It is also advisable to power-down or unplug all associated
components while making or breaking any signal or AC power connections.
1 2 3 4
5 6 7 8 9 10 11
7
ENGLISHFRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ

5 INPUT/OUTPUT (ZONE 1 - 4)
• These INPUT/OUTPUT terminals are dedicated to their respective
ZONE SPEAKERS.
• Always turn OFF the CI 980 and other components in the system before
connecting or disconnecting anything to the INPUT/OUTPUT terminals.
• Connect the output from a pre-amplier or processor, such as a
surround-sound decoder, to corresponding Zone’s INPUT terminals.
Use a twin RCA-to-RCA lead to connect the left and right “Audio
Output” of the preamplier or processor to these INPUT terminals.
• A Zone’s OUTPUT terminal is a line level “loop through”output. The
same level of input signal at the INPUT terminals of a particular
Zone is available at the corresponding OUTPUT terminals thereby
allowing the same signal to be shared or passed on to another
amplier.
6 GAIN CONTROL (ZONE 1-4)
• The CI 980 is equipped with separate GAIN controls for each Zone.
• Before switching ON the CI 980 from standby mode for the rst time,
make sure all GAIN controls are set to minimum (MIN) level position.
• Rotate clockwise or counterclockwise a Zone’s GAIN control to
adjust the level of the input signal being fed to the corresponding
INPUT terminal.
Level Matching
In a surround sound or system with more than one set of speakers,
dierences in levels can occur due to varying ineciencies among the
speakers. In case your preamplier or processor also has individual trims
for each channel, set these to neutral or mid position (usually marked as
0dB). Adjust the GAIN control so that the speakers driven by the CI 980
have the correct level compared to the other speakers, judging from
your listening position.
Extended Volume Control Range
Many systems have so much voltage gain that the speakers (or your
ears) are overdriven at any volume control setting higher than 11 or 12
o’clock. As a result you are conned to using only the lower half of the
volume control’s range, where adjustments are imprecise and where
channel balance errors tend to be greater.
If the input level is reduced, you can turn up the volume control of
your processor or preamplier, making more eective use of its range.
(Suggestion: adjust the GAIN controls so that your preferred maximum
sound levels usually occur at about 2 or 3 o’clock on the volume
control.) As an added benet, this procedure suppresses any noise
produced by the preamplier’s high level circuitry (e.g. any residual hum
or hiss that does not go away when the Volume is turned down).
7 AC MAINS INPUT
• The CI 980 comes supplied with a separate AC Mains cable.
• Before connecting the plug to the mains power source, ensure that
it is rmly connected to the CI 980’s AC Mains input socket rst.
• Always disconnect the mains power plug from the mains power
source rst, before disconnecting the cable from the CI 980’s AC
Mains input socket.
8 FUSE HOLDER
• In the unlikely event a fuse may need to be replaced, unplug the AC
cord from the wall. Then, remove all connections from the amplier.
Use a athead screw or similar to open the fuse holder via the slot
located on the top edge of the fuse holder. With the screw driver in
place, push it outward to unlatch and open the fuse holder. Only
replace the fuse with the same type, size, and specication.
• Only replace the fuse with the same type, size, and specication -
T6.3AL 250V.
IMPORTANT NOTICE
Do not use any substitute fuses of dierent types or with dierent ratings
or values. Failure to observe this precaution may cause damage to the
amplier circuits and may create a re hazard and/or defeat the safety
built into the amplier and may void the warranty.
9 +12V TRIGGER IN/OUT
• The +12V TRIGGER IN allows the CI 980 to be remotely switched
from standby mode to operating mode and vice-versa by ancillary
equipment such as a preamplier, AV processor, etc. The controlling
device must be equipped with a 12V trigger output to use this
feature.
• The +12V TRIGGER OUT is used for controlling external equipment
that is equipped with a +12V trigger input. With TRIGGER - OFF/
ON/AUTO set to OFF, this output will be 12V when the CI 980 is at
operating mode and 0V when it is at standby mode or powered
OFF.
• Refer also to the item about“TRIGGER IN/INPUT SENSE - OFF/ON/
A U TO ”.
10 TRIGGER - OFF/ON/AUTO
• This switch has three settings - OFF, ON or AUTO.
• At OFF setting, +12V TRIGGER OUT will output 12V when CI 980 is
at operating mode and 0V when it is at standby mode or powered
OFF.
• At ON setting and with the +12V TRIGGER IN of the CI 980
connected to the DC output jack of a compatible auxiliary
component, the CI 980 can be switched remotely from standby
mode to operating mode and vice-versa. Use a 3.5mm mini-jack to
pass +12V from the auxiliary equipment into the CI 980.
• At AUTO setting, the CI 980 will instantaneously turn to
operating mode from standby mode if it senses any input signal
(approximately above 20mV RMS input) applied through any of the
GLOBAL or ZONE INPUT sockets.
• Slide the OFF/ON/AUTO switch to OFF setting for the CI 980 to be
normally switched ON (or back to standby mode) using the front
panel STANDBY button.
NOTES
• With the rear panel POWER switch at ON position and the OFF/ON/
AUTO switch at AUTO setting, the CI 980 cannot be switched ON using
the front panel STANDBY button. Slide the OFF/ON/AUTO switch to OFF
setting for the CI 980 to be normally switched ON (or back to standby
mode) using the front panel STANDBY button.
• It will take about 10 minutes for the CI 980 to go to standby mode when
the input signal source is turned OFF.
11 POWER SWITCH
• The POWER switch supplies the master AC mains power for the CI
980.
• When the POWER switch is set to ON position and with TRIGGER
OFF/ON/AUTO set to OFF, the CI 980 goes to standby mode as
indicated by the amber status of the Standby LED. Press the front
panel Standby button to switch ON the CI 980 from standby mode.
• If you intend not to use the CI 980 for long periods of time (such as
when on vacation), switch o the POWER switch.
IDENTIFICATION OF CONTROLS
REAR PANEL
8
ENGLISH FRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ

REFERENCE
TROUBLESHOOTING
CONDITION POSSIBLE CAUSES POSSIBLE SOLUTIONS
No power. • The power cord is disconnected. • Plug the power cord into the wall outlet
securely.
• CI 980 at standby mode. • Press front panel STANDBY button to switch
ON the CI 980 (TRIGGER OFF/ON/AUTO
switch set to OFF position).
• Rear panel POWER switch not at ON setting. • Set the rear panel POWER switch to ON
setting.
CI 980 always at standby mode; cannot
be switched ON using the front panel
STANDBY button.
• TRIGGER OFF/ON/AUTO switch set to“AUTO”
position.
• Slide the TRIGGER OFF/ON/AUTO switch to
“OFF” position.
• The CI 980 is not powered OFF using the front
panel STANDBY button.
• Power ON the CI 980 in the same manner it
was deactivated.
No sound. • Power AC lead unplugged or power not
switched ON.
• Check if AC lead is plugged-in and POWER
switched ON.
• No input signal applied through the rear panel
INPUT terminals.
• Check that there is active input signal
applied through the rear panel INPUT
terminals.
No sound one channel. • Speaker not properly connected or damaged. • Check connections and speakers.
• Input lead disconnected or damaged. • Check leads and connections.
Weak bass/diused stereo image. • Speakers wired out of phase. • Check connections to all speakers in the
system.
9
ENGLISHFRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ

OVERALL SPECIFICATIONS
Continuous output power into 8 Ω and 4 Ω (both channels driven) >50 W (ref. rated THD, 20 Hz – 20 kHz)
Continuous output power into 8 Ω (Mono, Bridge mode) >100 W (ref. 20 Hz - 20 kHz, <0.02 % THD)
RatedTHD (250 mW to rated power, CCIF IMD, DIM 100) <0.03 % (ref. 20 Hz - 20 kHz)
Clipping power >155W (ref. 1 kHz, 8 ohms, 0.1%THD
Damping factor >150 (ref. 8 ohms, 50 Hz and 1 kHz)
Input sensitivity 1.1V (ref. rated power)
Voltage gain 33 dB
Frequency response ±1 dB (ref. 20 Hz - 20 kHz)
Signal-to-noise ratio, A-weighted >80 dB (ref. 1W)
>100 dB (ref. 50W)
Minimum input signal to trigger auto sense mode >20 mV
Time to go to standby mode at no input signal (auto sense mode) 10 minutes
Rated power 600 W
Standby power <0.5 W
DIMENSION AND WEIGHT
Unit dimension (W x H x D) 483 x 105 x 323 mm
19 / x 4 / x 12 / inches
Shipping weight 7.1 kg (15.7 lbs)
