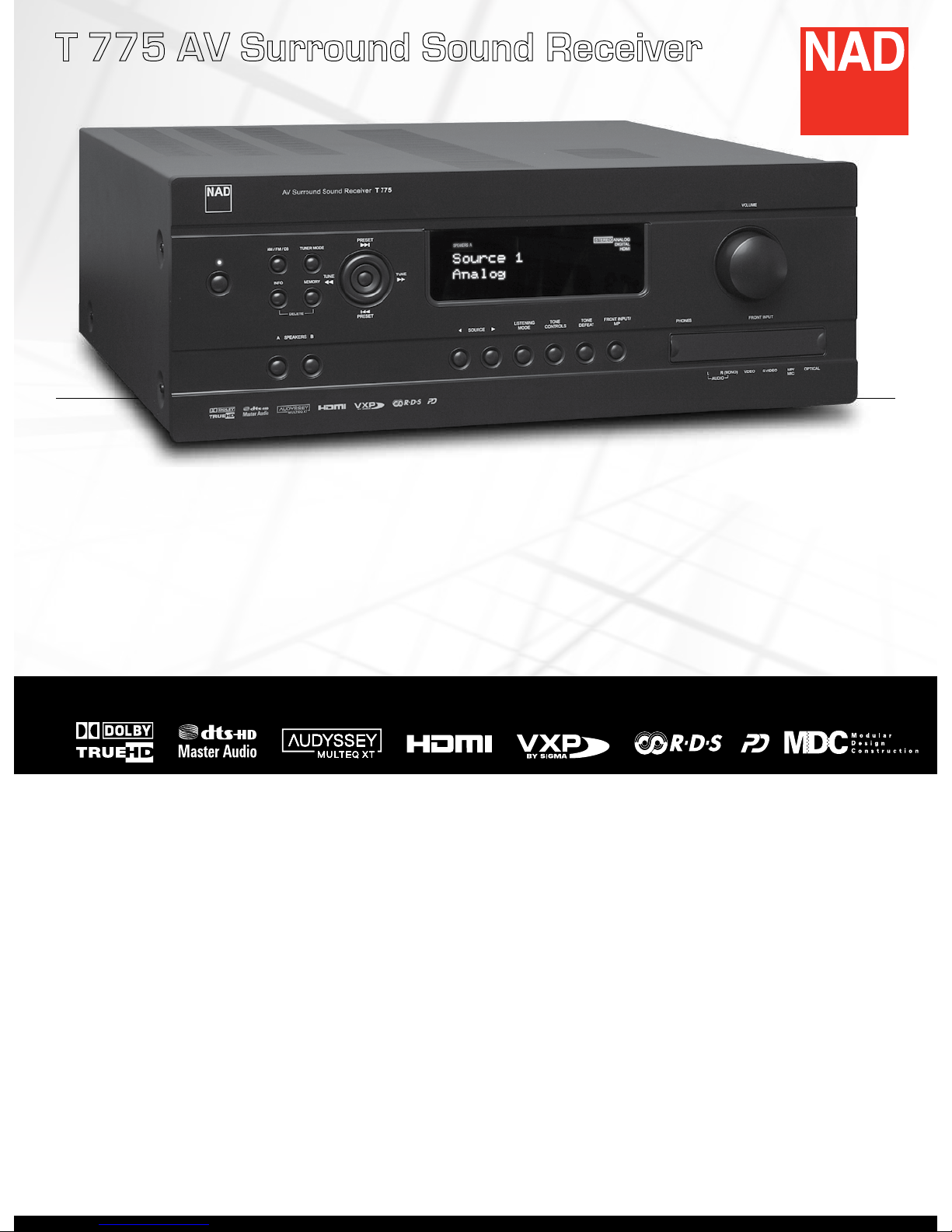

T 775 AV Surround Sound Receiver
• 180Wx7(FTC)Power
• 7x100WMinimumContinuous
Powerinto4/8ohms,allchannels
drivensimultaneously,20Hz-20kHzat
0.05%THD(NADFullDisclosurePower)
• PowerDriveTMamplifiertechnology
• MDC(ModularDesignConstruction)allows
futureupgrades,includesAM200Dual
DSPAudiomoduleandVM100Video
Module
• Losslessdecoding:DolbyTrueHDandDTS-
HDMasterAudio
• DolbyDigital,DolbyDigitalPlus,ProLogicII,
ProLogicIIx,DTS,DTSES,DTS96/24,
DTSNEO:6,EARSandEnhancedStereo
SurroundModes
• AudysseyAutoCalibrationofallspeaker
settingsusingsuppliedmicrophone
• AudysseyMultEQXTRoomCorrectionwith
customNADdevelopedtargetresponse
curves
• AudysseyDynamicVolumeandDynamicEQ
• Toroidalpowersupply
• 5A/VCustomPresetsstoreunique
speakerlevelandtonecontrolsettings
• Directaccessspeakerleveladjustment
forsurround,centreandsubwoofer
• NADSoftClippingTM
• 7AnalogueStereoAudioInputsincluding1
AudioFrontInputinthefrontpanel
• MediaPlayerMPfrontpanelinput
• 6AnalogueVideoInputsincluding1S-Video
and1CompositeFrontVideoinputinthe
frontpanel
• 3ComponentVideoInputs
• 7DigitalAudioInputs-3Coaxialand4
OpticalincludingOpticalFrontinputinthe
frontpanel
• 4HDMIDigitalVideoInputsand1Output,
freelyassignable
• CrossConversionofallanalogue
videoformats
• AnaloguevideotoHDMIConversion
• 3AnalogueAudiooutputsincludingZone2
AudioOutandwiththe2otherAudio
outputsassignablealsoasZone3and
Zone4AudioOut
• BackSurroundAmplifierChannelscanbe
reassignedasZone2,3,4orMainFront
(Bi-Amp)
• 4VideoMonitorOutputs-HDMI,
Component,S-Videoand
Compositeformats
• AnalogueVideooutputs-
2VideoCompositeandS-Video
and1Zone(Composite)
• 7.2AnaloguePre-Out(2subwoofers)
• 2DigitalOutputs-1Coaxialand
1Optical(TOSLINK)
> FEATURES
> POSITIONING
The NAD T 775 is heir to many generations of award-winning NAD designs. This exceptional pedigree is evident in both the look and the feel
of the T 775, and it is unmistakable the moment you listen. The NAD T 775 now comes with full High Definition decoding thanks to NAD’s
innovative approach to upgrading your AV tuner preamplifier – Modular Design Construction (MDC). It is NAD’s insistence on creating products
with remarkable sound quality at sensible prices that has made NAD the first choice among the most knowledgeable listeners from around the
world. NAD’s ‘Music First’ philosophy dictates that we endow our Audio Video products with the same warm, involving sound quality that makes
music listening so rewarding with our stereo components. This stands in stark contrast to our competitors who view Audio Video components
primarily from a ‘content’ point-of-view, with sound quality far down the list of priorities. Yet the T 775 is second to none in terms of flexibility
and up-to-the-minute digital technology.
> FEATURES
• SpeakerA+Bswitching(SpeakersBstereoonly)
• Zone2A/VlinelevelOutputwithindependentsource
andvolumeselection
• DigitalInputsavailableas2-channelanalogue
downmixonZone2Output
• Zone3andZone4AudioOutputwithindependent
sourceandvolumeselection
• ZR4secondZoneremoteincludedwith
discretecodesforindependentzone
• IRinput
• 3xIRoutputs
• RS-232portinterfaceforadvancedcontrolsystems
• 3x12Voutputtriggers,1x12Vinput
• RDSFMandAMTuner
• 40directaccesspresetsthatcanbeamixofyourfavouriteAM,
FMandXM(orDAB)stations
• iPodReady–justaddNADIPD2DockforiPod
(iPodMenuonOSDandFrontPanelDisplay)
• XMReady–justaddoutboardXMmodule
(NorthAmericanversion)
• DABReady–justaddoutboardNADDB1module
(EuropeandAsia)
• HTR3IlluminatedLearningRemoteControl
> FEATURES CONTINUED
> DETAILS
Modular Design Construction
NAD has developed a unique new architecture that keeps pace with the fast
changing world of digital formats by allowing connectivity and feature upgrades
as new technology becomes available. This prevents premature obsolescence by
keeping pace with the latest developments in high performance audio and video
formats. Dealer installed hardware and software can add new connectivity and
features at a future date, allowing your T 775 to grow as your needs and tastes
develop. Most AV receivers require complete replacement with a new model to get
the latest features. With NAD you only replace the module you want to upgrade
– not the entire AV receiver!
Audio Performance
Today’s advanced Surround Sound receivers require quality in the digital decoding
stages, the video processing section, and in the power amplifier design for the best
overall performance. The T 775 is an excellent example of the NAD Design Team’s
expertise in all three areas. Not only that, but we have made many ergonomic
refinements to simplify operation and make it more enjoyable to get all the
performance from this magnificently capable receiver.
Using the latest Dual Core Floating Point DSP technology, NAD was able to include
the newest surround formats from Dolby and DTS, as well as NAD’s own highly
regarded music surround mode - EARS. The EARS circuit (Enhanced Ambient
Recovery System) is now optimized for 7-channel surround. Unlike the typical
artificially enhanced DSP modes like ‘Club’, ‘Stadium’, and ‘Church’, EARS uses
DSP technology to extract the natural ambience of the recording. This is redirected
to the surround channels to create natural surround sound from any 2-channel
source. This induces a warm natural reverberant effect without the hollow ‘BOING’
of artificial reverb.
The surround mode of the source material is automatically detected via
the digital inputs of the T 775, and the most advanced form of decoding
is switched in. Conversion of the encoded digital bitstream is performed with
high resolution and extremely linear D/A Converters carefully selected for their
performance capabilities.
NAD’s reputation for producing power amplifiers that are both potent and
musical is upheld in fine manner with the T 775. Boasting a minimum of 100
watts continuous power per channel, the T 775 can fill even large rooms to lifelike
sound levels. NAD’s exclusive PowerDriveTM amplifier technology automatically
adjusts the power supply settings of the amplifier to the needs of the loudspeaker.
This ensures remarkably dynamic and distortion-free performance with any type
of loudspeaker, even demanding 4 ohm designs. Many less advanced receivers
prohibit the use of 4 ohm speakers. With PowerDriveTM, the performance is always
optimized for the actual operating condition and as a result, the amplifier exhibits
very low distortion and good current drive in the real world. Explosive musical
dynamics are effortlessly handled without added distortion.
Credit for the sound of NAD’s components rests squarely with our unique design
approach and our experienced and very talented design team. Most companies
design their products to a technical specification and a price point. While this
sounds logical enough, it does not address the way the product will actually be
used by the eventual owner. You don’t listen to specifications, you listen to music
and sound. While NAD products exhibit excellent technical measurements, we
have relied on our own ears and listening experience to determine the final design
of our products. Because of our unique design approach, NAD’s sound is simply
more real sounding, adding enjoyment and excitement to your favourite films and
music recordings.
T 775 AV Surround Sound Receiver
Video Performance
Employing the very latest generation of advanced HDMI Receiver and Transmitter
chips in the VM 100 video module ensures compatibility with the broad range
of HD digital video sources and displays available today. NAD engineers have
utilized a powerful FPGA with our own custom software to process the video
signal, enabling the conversion of analogue video to digital video and allowing a
single cable connection to your TV for all sources while maintaining the source’s
native resolution. Interlaced video is converted to progressive scan over HDMI
allowing for complete compatibility with the latest HD TVs. NAD’s clear and simple
On Screen Display is available on all Video Monitor outputs. All audio formats,
including High Bit Rate audio from Blu-ray players, are supported by the VM 100.
Flexibility
The T 775 has all the flexibility required to serve as the command centre for even
the most sophisticated Home Theatre and multi-room systems. A full suite of video
switching caters to all the popular video formats (HDMI, Component Video, S-Video,
and Composite Video). Digital inputs (including a handy front panel input) and outputs
are available in both coaxial and optical formats to make it easy to attach all your digital
sources for playback and recording. Digital Inputs are converted to analogue for use
in Zone 2 and you can choose to convert unused audio/video outputs for Zone 3 and
Zone 4 use with independent source selection and volume control.
With the T 775, NAD has made it easy to add more speakers for listening to music
in additional rooms or ‘zones’. A second pair of speakers can simply be added to
the front channel amplifiers and switched on or off from the remote control or front
panel switch. More elaborate systems can also be created using the Zone 2, 3 and
4 outputs to add amplifiers and speakers with the benefit of independent source
selection and volume control. Furthermore, the Back Surround Amplifiers can be
assigned to any of these zones, allowing for a simultaneous 5.1 Home Theatre and a
powered second zone. A separate second zone remote is included.
There are also 12 volt triggers to automatically switch remote zone amplifiers on
and off, and even an RS-232 data port for connection to highly advanced automated
control systems. Thoughtful features like discrete On and Off codes, direct access to
inputs and FM station presets facilitates the integration of the T 775 into elaborate
remote control systems.
An analogue 7.1 input is also provided for attaching a DVD-Audio player or any other
yet to be developed surround decoder, ensuring that the T 775 does not become
obsolete anytime soon. Preamp outputs allow the addition of more powerful
amplifier channels.
Luxurious Simplicity
All the capability and flexibility in the world is quite useless if the receiver becomes
too complicated to be operated by every member of the family. NAD has taken
special measures to make operation of the T 775 as logical and straightforward as
possible.
Initial system setup is best accomplished using your television monitor and the clear
and simple On Screen Display (OSD), which can be configured to also give status
updates as settings are changed in everyday use. Once the T 775 is informed of
your specific system setup, all settings are stored in a non-volatile memory making
this a one time task. The informative front panel display indicates complete
information about the source being listened to or watched including selected
surround mode and volume setting. The front panel display can be easily customized
by renaming inputs and even determining what information you prefer to be
displayed and when to display it.
Audyssey Auto Calibration is available using the supplied calibrated microphone.
Simply place the microphone in the listening position and select Audyssey auto-
calibration and the system automatically detects which speaker is connected,
chooses the ideal crossover point to the subwoofer, checks speaker phasing, and
adjusts the levels and delays. These adjustments are made to a level of accuracy that
it would be difficult to duplicate by ear alone.
Audyssey MultEQ XT is the latest in digital sophistication, allowing for improved
frequency response in a large ‘family-sized’ sweet spot. Using the calibration
microphone to ‘hear’ your room, a series of test tones measure the speakers’
response and the room’s distorting echoes independently, and then calculates an
ideal response that minimizes the effects of the room’s echoes. While this sounds
simple, the digital technology that is required for this level of performance would
have cost many thousands of dollars just a few short years ago. But the electronic
technology is only half the story, since an advanced knowledge of acoustics is also
required to get good results from such a system. Working closely with Audyssey,
NAD’s acoustic engineers developed the final response curves that reflect our own
performance values.
Audyssey Dynamic Volume and Dynamic EQ work together to address the problem
of large jumps in volume when switching between different TV channels or when
advertisements are inserted into the program. There is also an effect caused by our
ears’ different sensation of low and high frequencies at different listening levels: as
the volume is reduced our sensation of bass frequencies is reduced more than the
midrange frequencies.
The T 775 tuner section can store a mix of your 40 favourite AM, FM and XM (or
DAB) stations for immediate recall.These presets can be custom named. And if your
selected FM station supports the Radio Data System (RDS), it will automatically
stream information about the station and music being played. We also include a
‘Digital Broadcast Ready’ socket on the rear panel for adding outboard DAB or XM
modules. All the control software for these formats is included, just plug in the
module and start enjoying the clear sound and expansive content selection available
with Digital Radio Broadcast.
Five independent ‘Audio Video Presets’ can store speaker level and tone control
settings for instant recall, making it easy to custom tailor your system for different
types of program material. Encoded surround modes like Dolby Digital and DTS are
automatically selected if the program is so encoded. The T 775 also remembers your
last used settings when switched in and out of Standby mode.
The included HTR 3 remote handset is in itself an engineering tour de force. Able to
control up to eight different components, the device key illuminates to clearly show
what device is being controlled. It has illuminated buttons for easy operation in a
low light environment, and the length of time the buttons are illuminated can be
easily adjusted. Remote commands for products not already included in the HTR 3’s
POWER AMPLIFIER SECTION
Minimum continuous Power (FTC) 180W
Power output, Stereo Mode 150W (ref. 4/8Ω, both channels driven
at rated distortion)
Simultaneous Full Disclosure Power 7 x 100W (ref. 4/8Ω, all channels driven
at rated distortion)
IHF dynamic power, 8Ω 210W
IHF dynamic power, 4Ω 340W
IHF dynamic power, 2Ω 490W
Rated THD <0.08% (ref. 20Hz – 20kHz)
IM distortion, rated power <0.08%
Damping factor, 8Ω >60
Input sensitivity and impedance 1.1V / 50kΩ
Frequency response ±0.8dB (ref. 20Hz – 20kHz)
Signal/Noise ratio >92dB (ref. rated power, 8Ω, A-weighted)
>82dB (ref. 1W, 8Ω, A-weighted)
PREAMPLIFIER SECTION
Input sensitivity and impedance 350mV / 50kΩ
Frequency response ±0.5dB (ref. 20Hz – 20kHz)
Signal/Noise ratio >88dB (ref. 2V, A-weighted)
AM BAND
Frequency range 530kHz - 1710kHz (120V version only,
10kHz steps)
531kHz - 1602kHz (230V version only,
9 kHz steps)
Usable sensitivity 30dBu
Signal/Noise ratio >38dB
Total Harmonic Distortion <3%
Loop sensitivity 20dB S/N 66dBu
FM BAND
Usable sensitivity, Mono <16.1dBf
Signal/Noise ratio, Mono 60dB
Signal/Noise ratio, Stereo 55dB
Total Harmonic Distortion, Mono 0.25%
Total Harmonic Distortion, Stereo 0.5%
Channel Separation, 1kHz 40dB
Frequency response ±1.5dB (ref. 30Hz – 15kHz)
RDS decode sensitivity 28dBu
DIMENSIONS AND WEIGHT
Dimensions (W x H x D) 435 x 170 x 431mm (Gross)
Net Weight 20.8kg
Shipping Weight 25.7kg
* Gross dimensions include feet, extended buttons and rear panel terminals.
Note: Installers should allow a minimum clearance of 55mm for
wire/cable management.
> SPECIFICATIONS
memory can be easily ‘taught’ to the HTR 3. And the HTR 3’s Macro function allows
up to 64 individual commands to be triggered by pressing just two keys. With this
feature, all of the commands required for watching a DVD, for example, are executed
automatically by the HTR 3’s Macro function.
Summary
The T 775 offers remarkable performance and flexibility in a compact and simple to
operate package. This multi-channel powerhouse will bring your favourite music
and movies to life in your home entertainment room with an absolute minimum of
fuss and a maximum of pure enjoyment.
T 775 AV Surround Sound Receiver
NAD Electronics International reserves the right to change specications or features without notice. NAD is a registered trademark of NAD Electronics
International. All rights reserved. No part of this publication may be reproduced, stored, or transmitted in any form whatsoever without the written
permission of NAD Electronics International. © 06/09 NAD Electronics International.
www.NADelectronics.com
> REAR LINE DRAWING
Other manuals for T775
3
Table of contents
Other NAD Receiver manuals
