Nadamoo Bur3069 User manual

Bur3069 Wireless Barcode

Scanner User Manual

V53.01

In order to correctly use the barcode scanner, please carefully read the

instruction and keep properly to look up.

If you have any question about the scanner,please contact us at

[email protected]

Ⅰ. Packing List

Barcode scanner

Cradle (As charging base and barcode receiver)

USB cable

User manual

Ⅱ. Parameters

Source Type: Visible laser diode, wavelength 650nm

Scan Mode: Manual trigger / Flicker scanning /Continuous scanning

Scan speed: 100 ± 2 times

Resolution: ≥ 4mil

Print Contrast: 30% minimum reflectance difference.

BER: 1/5000000

Charging input voltage: DC 5VDC ± 0.25 V

Power: 100 mW (work): 400 mW (maximum instantaneous)

Current: 20 mA (work): 100 mA (maximum instantaneous)

Standby current: <20uA

Depth of field: 5mm-630mm

Scanning angle: ± 60 ° ± 65 ° ± 42 ° (left and right, front and rear, turn)

Decoding capability: UPC / EAN / JAN, UPC / EAN with Supplementals, UCC /

EAN 128, Code 39, MSI, Code11, Code 39 Full ASCII, Code 39 TriOptic, Code

128,Code 128Full ASCII, Codabar, Code93, Discrete2of5, IATA, RSSvariants,

Codabar, Chinese2of5, Inteleaved2 / 5, Interleaved2of5, the postal code and

other countries,Interpersonal GM - dimensional bar code

Lift method: Buzzer, LED indicator.

Scanner: L * W * H: 158mm * 68mm * 96mm

Weight: 200g

hell Material: ABS + PC

Temperature: 0 ℃to 50 ℃(work): -40 ℃to 60 ℃(storage)

EMC EMC: EN55022, EN55024

Electrical Safety: EN60950-1

Enclosure class: IP54

Seismic capacity: multiple drops from a height of 2 m to concrete still work

Ⅲ. Quick guide:

(The scanner has been paired with the cradle, and set up already. )

Step 1: Plug one end of the cable into the computer usb port, plug another

end into the Cradle. The blue indicator light on the cradle will turn on, after 5

second it will start flashing. Lift up the antenna.

Step 2: Start the scanner by pressing the key (The blue light on scanner

will flash and the buzzer will let out sounds. If the scanner has no response,

please put the scanner to cradle to charge at least for 30 mins, the light on

scanner will turn red when charging, when the scanner is full charged, the

light will turn blue)

Step 3: Run a notepad, or Microsoft Word on your PC ,put the cursor in the

field, scan any barcode to see if the barcode is enter into the place where the

cursor is in.

If the barcode can be uploaded to notepad, it means that the scanner works.

If the barcode does not appear in the location of cursor. Please follow these

steps to set up the scanner.

Set up steps：

Step 1.Scan the code "enter into settings" "restore factory setting" "exit

setting" orderly to restore the scanner

Step 2. Unplug the receiver , scan code "one to one" , the scanner will go

to pairing mode and beep continuously, then plug the receiver to USB port, if

the scanner has one "beep"sound in 3s , that means the pairing is succeed

Step 3. Scan code "normal mode" to set it to instantly upload barcode

Ⅳ.Customer Q&A

Q: If i scan a product barcode, will it include the name of the product in the

file automatically?

A: The computer sees the scanner like a keyboard. The scanner does not

interpret what the barcode is, it just "types" out a string of alphabet numeric

characters that the barcode represents.

it's up to the database software you are using to interpret what that string of

characters means.

Once you acquire the barcodes, you have to correlate them to something

more meaningful by either purchasing a software service that will interpret

the barcode and relate it to a product, or you can use your own internal

inventory system to assign the barcodes to specific products.

After that,when you enter the barcode into the software by the scanner,your

software will look up the barcode and then output the related information of

your product.

Q: Why can the scanner not read the barcodes?

A: There are some reason for that.

Maybe the scanner failed to match the receiver. Maybe the scanner was set

to storage mode (In storage mode, the data will store in the built in storage

of scanner).

Please follow the reset steps on page 3 to set up the scanner

The other possible reason is that the setting is off by default, for some

barcode types are not commonly used. You need to activate a specific

barcode type to get it to work .

Or maybe this is a bar code with extra check digit.

Please send us a clear picture of the barcode , our customer service will help

you to solve the problem.

Q: Why does scanner not read the barcode exactly.

E.g. When I use the scanner to read a UPCE barcode “08960007” , the data

the computer received is 8960007.

A: The scanner was set to not read the leading digit of UPCE barcode by

default.

If you want to set the scanner to read the leading digits of UPCE ,

Please scan following code (on page 23-24)

"enter into settings">" transmit leading digit of UPCE">"exit settings"

If that is not your case, please send us a clear picture of the barcode and the

result you get, our customer service will help you to solve the problem.

Ⅴ. General settings

1.Charging

Please ensure that the scanner has enough power before start using it.

If the scanner has no laser,please put the scanner to cradle to charge.

Please use our equipped charging cable to charge the scanner.

When the indicator light on the scanner is red, it indicates that the battery is

being charged .When the red light turn to blue ,it indicates the battery is fully

charged.

2.Power on

Press the button,the scanner will rang a long beep and the blue indicator on

scanner will flash. Power is on successfully.

3.Pair operation

The scanner has three Paring Mode:

1).One scanner to one recevier: One barode scanner send

barcode to one receiver

Pairing operation:

Scan the "One to One" barcode,the scanner will go into pairing mode and

beeps continuously,

Then insert the receiver to USB port, if the scanner has one "beep" in 3s that

means the pairing is succeed.

If the pairing fails, you need to pull off the usb receiver and re-set as the

previous steps.(After the blue indicator of the receiver is flicking, the receiver

can not pair with the scanner, please pull off the receiver and reset it)

2). One scanner to more receiver: One barcode scanner

send barcode to a number of receiver

Pairing operation：

Scan the "One to More" barcode,the scanner will go into pairing mode and

beeps continuously. Then insert the receiver into USB port, if the scanner has

one "beep"in 3s that means the pairing is succeed,meanwhile the light of

receiver will flicker.

Then plug the second receiver into USB port to connect it to the scanner.

....

One scanner can be connected to maximum 8 rereiver.

if you have added to the required number of receiver,press the trigger to end

the adding.

Note:The more receiver you add, the longer time it takes to upload the

barcode

3).More scanner to one receiver: A number of barcode

scanner send barcode to one receiver

Pairing operation:

Scan the "More to One" barcode,the scanner will go into pairing mode and

beeps continuously,

Then insert the receiver to USB port, if the scanner has one "beep" in 3s that

means the pairing is succeed,meanwhile the light of receiver will flicker.

The other scanner can connect to the receiver in the same way.

Note:The more scanner you add, the longer it takes to wait for the bar code

to be uploaded.

4. Upload mode setting

1).Normal mode:

Scanning barcode and real-time upload the barcode.If the barcode is upload

successfully, the blue LED light will flicker once, at the same time buzzer will

rang "beep"

Scan the code "Normal Mode" to set the scanner to normal mode

Under the normal mode,the transmission distance is over 400m where there

are no obstacles. If it exceeds the transmission distance or the data upload

failed, the scanner will let out 3 short prompt.

2).Non-losing Mode:

The barcode will be uploaded to the receiver in real-time when the scanner is

in wireless tranmission range. When the scanner is out of the wireless

tranmission range, the data will be stored in scanner’s own memory .

After scanner is reaching the wireless transmission range,the lost data which

are stored will be uploaded to the computer automatically.

Scan the code " Non-losing Mode" to set the scanner to Non-losing Mode

Scan the code "Clear Non-losing Mode Stored Data" to clear all the

Non-losing Mode stored data

Note: "Non-losing mode" is not suitable for using in the the "Fliker Scanning

mode" and " Continuous mode"

3).Check mode

The data will be stored in scanner’s own memory. And then you could upload

the data to your conputer when you need them.

Scan the code " Check mode" to set the scanner to check mode,

Scan the code " Total checking number " to show the quantity of stored

barcode

Scan the code " Upload checking data" to upload all the stored data

Scan the code "Clear checking data" to clear all the checking mode stored

data

5.Scanning mode setting

1).Manual Trigger mode (default) : Press the trigger to read the bar code,

please read the following codes orderly to set the scanner to Manual trigger

mode .

"enter into setting">"Manual trigger "> "exit settings"

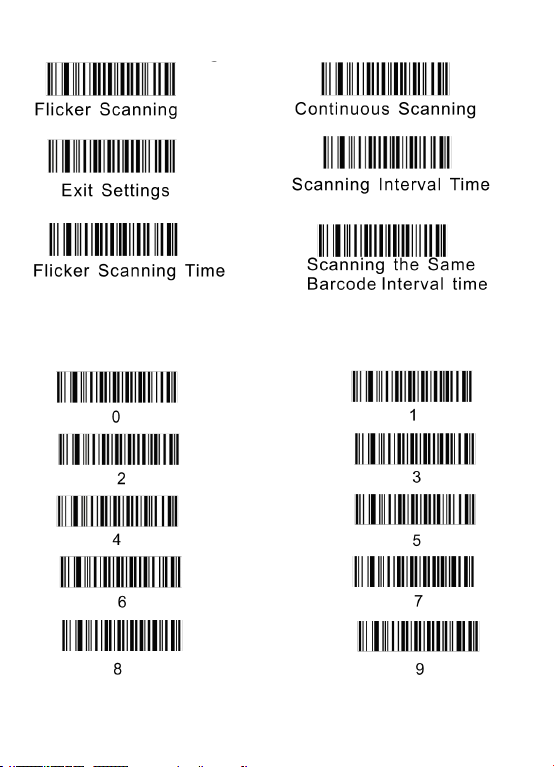

2).Flicker scanning mode: read the bar code at a certain frequency

please read the following codes orderly to set the scanner to Flicker scanning

mode.

"enter into setting">"Flicker scanning"> "exit settings"

Attention

：

The flicker scanning time interval can be set through reading the "Parameter

barcode" in 0-9

Flicker time unit is 500ms and can set to 01-15 grade.

For example,if you want to set the flicker time interval out to be 1000ms,

please read the following codes orderly :

"enter into setting">"Flicker Scanning Time"> Paremeter code "0""2">"exit

settings"

3).Continuous scanning mode：The laser is always on, the scanner read code

without pressing the trigger.

please read the following codes orderly to set the scanner to continuous

scanning mode:

"enter into setting">"continuous scanning"> "exit settings"

Attention 1

：

The continuous scanning time interval can be set through reading the

Parameter barcode in 0-9.

Reading interval time unit is 500ms ,and can set to 01-15grade.

For example,if you want to set the reading time interval out to be

1000ms,please read the following codes orderly:

"Enter into setting">"Scanning interval Time"> Paremeter code "0""2">"exit

settings"

Attention 2

：

In continuous scanning mode, it is allow to continuously read the same

barcode via setting the time interval of reading same barcode.

The time interval unit of reading same barcode is 0.1s,the time interval can

be set between 0-12 second.

If the time interval is set to 12.7 second,it means that it is not allow to read

the same barcode.

The numberical must have three numbers, if it has less three numbers

please fill "0" in first digit.

For example, if you want to set the the time interval of reading same barcode

out be 2s,please scan

the following code orderly:

"Enter into setting">"Scanning the same barcode interval Time"> Paremeter

code "0""2" "0">"exit settings"

Paremeter code：

6.Add the function key terminator

To add terminator TAB , scan following codes orderly:

"enter into settings">"TAB">"exit settings"

To cancel terminator TAB , scan following codes orderly to restore the

scanner to default setting.

"enter into settings" >"restore factory setting" >"exit setting"

The scanner add “ Enter ” key by default.

To cancel terminator Enter, scan following codes orderly

"enter into settings" >"cancel enter" >"exit setting"

7.Add character

To add prefix

For example：Add prefix XY

Please scan the following code orderly:

"enter into settings">"Add prefix">parameter

code"5""8""5""9">"save">"exit settings"

>"enter into settings">"Reveal prefix">"exit settings"

To hide prefix

Scan the following code orderly：

"enter into settings">"Not Reveal prefix">"exit settings"

To add suffix

For example：Add suffix XY

Please scan the following code orderly:

"enter into settings">"Add suffix">parameter

code"5""8""5""9">"save">"exit settings"

>"enter into settings">"Reveal suffix">"exit settings"

To hide suffix

Scan the following code orderly：

"enter into settings">"Not Reveal suffix">"exit settings"

Paremeter code

Attention: If error happens after reading the parameter，please read “ reset

parameter”code to reset the needed parameter.

Parameter barcode and corresponding representing characters table

8.Deleting character

To delete Prefix character

E.g. for code 123456789, if you want to set the scanner to delete the

number 1,

Please scan the following code orderly:

"enter into settings">"delete prefix character">"exit settings"

Then the data received by the computer is 23456789.

E.g. for code 123456789, if you want to set the scanner to delete the

number 123,

Please scan the following codes orderly

"enter into settings">"delete prefix character">”Sets the number of prefix

digits deleted”>parameter code"3"">"exit settings"

Then the data received by the computer is 456789.

To undelete prefix character

Please scan the codes orderly

"enter into settings">"undelete prefix charactor>"exit settings"

To delete suffix charactor

E.g. for code 123456789, if you set the scanner to delete the number 9,

Please scan the following code orderly:

"enter into settings">"delete suffix charactor ">"exit settings"

Then the data received by the computer is 12345678.

E.g. for code 123456789, if you set the scanner to delete the number 789,

Other manuals for Bur3069

Table of contents

NADAMOO Bur3069 User manual

Popular Barcode Reader manuals by other brands
