NAIM i-SUPPLY User manual

WORLD CLASS HI FI
OWNERS MANUAL
Accessories: NAPSC, i-Supply, Headline, Stageline

IMPORTANT
In order to comply with current European
safety regulations it is essential that the
Naim loudspeaker connectors supplied
with amplifiers and loudspeakers are used.
Do not under any circumstances allow
anyone to modify your Naim equipment
without first checking with the factory, your
dealer, or your distributor. Unauthorised
modifications will invalidate your
guarantee.
For your own safety do not under any
circumstances open Naim equipment
without first disconnecting it from the
mains.
Warning: an apparatus with CLASS I
construction shall be connected to a mains
socket outlet with a protective earthing
connection.
Where the mains plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable. To disconnect the equipment
from the mains remove the mains plug
from the mains outlet.
The following label is attached to all mains
powered equipment:
WARNING
THIS APPARATUS
MUST BE EARTHED
Contents
Page
Section
1
1
Equipment Installation
2
Connections
3
Mains Power Connection
2
4
General Installation
4
5
Product Introduction
6
NAPSC
5
7
i-Supply
8
Headline
6
9
Stageline
8
10
Declaration of Conformity
NOTE
This equipment has been tested and found
to comply with the relevant EMC and Safety
Standards, and, where applicable, also
complies with the limits for a class B digital
device, pursuant to Part 15 of the FCC
Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and
can radiate radio frequency and, if not
installed and used in accordance with
the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning off and on, the user is encouraged
to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and the receiver.
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult your Naim dealer or an
experienced radio/TV technician for help.

1
Naim Audio products are conceived
with performance as the top priority.
Careful installation will help ensure
that their full potential is achieved.
This manual covers the NAPSC and
i-Supply power supplies, Headline
headphone amplifier and Stageline
phono amplifier. It begins with general
installation notes and statutory safety
warnings. Product specific information
begins in Section 5.
1 Equipment Installation
Normally your Naim Audio equipment
will have been installed by the dealer
who sold it to you - even if you live
outside their immediate vicinity. In
any event however your dealer is
responsible for making sure that
the system performs as it should.
Information given here is not intended
to reduce this responsibility in any way.
2 Connections
It is important for both safety and
performance that the standard cables
supplied are not modified.
2.1 Interconnect Cables
If options are available with your equipment
and installation, DIN interconnect sockets
should be used in preference to RCA Phono
sockets. One end of each Naim interconnect
cable is marked with a band to establish its
correct orientation. The band denotes the
end that connects to the signal source.
Interconnect plugs and sockets should be
kept clean and free from corrosion. The
easiest way to clean them is to switch off
the equipment, pull the plugs out of their
sockets, and push them back in again.
Contact cleaners and “enhancers” should
not be used as the film they tend to deposit
may degrade the sound.
3 Mains Power Connection
Where fused plugs are used 13 amp
fuses should be fitted. Fuses of a lower
rating will fail after a period of use. Do
not wire voltage dependent resistors
or noise suppressors into mains plugs.
They degrade the mains supply and the
sound.
3.1 Mains Plug Wiring
In some territories a mains plug may
need to be fitted to the supplied mains
lead. As the colours of the wires in
the mains lead may not correspond
with the coloured markings identifying
the terminals in the plug proceed as
follows:
The wire which is coloured
GREEN-AND-
YELLOW
must be connected to the terminal
in the plug which is marked by the letter
E
or by the safety earth symbol or coloured
GREEN
or
GREEN
and
YELLOW
.
The wire which is coloured
BLUE
must be
connected to the terminal in the plug which
is marked with the letter
N
or coloured
BLACK
.
The wire which is coloured
BROWN
must be
connected to the terminal in the plug which
is marked with the letter
L
or coloured
RED
.
3.2 Non-rewirable Mains Plugs
If a non-rewirable plug is cut from a mains
lead (for whatever purpose) the plug
MUST
be disposed of in a way to render it totally
useless. Considerable shock hazard exists
if the cut-off plug is inserted into a mains
outlet.
Introduction

2
Introduction
3.3 Mains Circuits and Cables
A hi-fi system usually shares a mains circuit
with other household equipment some of
which can cause distortion of the mains
waveform. This distortion can in turn lead
to a mechanical hum from power amplifier
and power supply transformers. Naim
transformers are large in size with heavy
gauge windings, making them relatively
sensitive to such distortion, and it may be
necessary to take account of transformer
hum when siting your equipment.
Transformer hum is not transmitted through
the speakers and has no effect on the
performance of the system; however, a
separate mains circuit may reduce it. Such
a circuit (ideally with a 30 or 45 Amp rating)
will also improve system performance. Advice
on the installation of a separate mains circuit
should be sought from a qualified electrician.
Do not substitute alternative mains leads and
plugs to those supplied. They are selected to
offer the best possible performance.
4 General Installation
Naim equipment is designed to offer the
finest performance possible avoiding
compromise wherever practical. This
can lead to circumstances that may
be unfamiliar. The notes that follow
contain advice specifically related to
Naim equipment as well as more general
warnings about the use of domestic
audio products. Please read them
carefully.
4.1 Siting The Equipment
In order to reduce the risk of hum audible
from the loudspeakers, power supplies
and power amplifiers should be located
a reasonable distance away from other
equipment. The maximum separation
distance for connected equipment is that
allowed by the standard interconnect lead.
Some Naim equipment is extremely heavy.
Ensure that your equipment rack or table can
easily support the weight and is stable.
4.2 Switching On
Source components and power supplies
should be switched on before the power
amplifiers. Always switch amplifiers off
and wait a minute before connecting or
disconnecting any leads. Always use the
power switch on the product rather than a
mains outlet switch.
A “thump” may be heard from the
loudspeakers as power amplifiers are
switched on. This is normal, will not cause
any loudspeaker damage and does not point
to any fault or problem. A mild “pop” may
also be heard shortly after power amplifiers
are switched off.
4.3 Running In
Naim equipment takes a considerable time
to run in before it performs at its best. The
duration varies, but under some conditions
the sound may continue to improve for
over a month. Better and more consistent
performance will be achieved if the system is
left switched on for long periods. It is worth
remembering however that equipment left
connected to the mains can be damaged by
lightning.
4.4 Radio Interference
In some circumstances, depending on where
you live and the earthing arrangements
in your home, you may experience radio
frequency interference. Controls on
broadcasting in some territories allow very
high levels of radio frequency radiation
and both the choice and exact siting of
equipment may be critical. Susceptibility to
radio frequency interference is related to
the wide internal bandwidth necessary for
high sound quality. Systems incorporating
moving coil phono preamplifiers and active
crossovers are more likely to suffer. A radio
frequency filter kit is available for some

3
Introduction
Naim equipment but sound quality will be
progressively compromised as more elements
of the kit are fitted. In situations of extreme
radio interference Naim equipment may be
unsuitable.
4.5 Non-standard Cables
Use of non-standard speaker cables or
interconnects may invalidate your guarantee.
4.6 Lightning Precautions
Your Naim hi-fi system can be damaged by
lightning. Power amplifiers are particularly
at risk and should be turned off and
disconnected from the mains when there
is risk of lightning strike. For complete
protection all mains plugs and any aerial
cables should be disconnected when not in
use.
4.7 Liquid Precautions
Equipment must not be exposed to dripping
or splashing and no objects filled with liquid,
such as vases, should be placed on the
equipment.
4.8 Equipment Fuses
Mains powered Naim Audio equipment is
fitted with a mains input fuse on the rear
panel adjacent to the mains input socket.
Replace it if necessary only with the spare
fuse supplied or with identical fuses.
Repeated failure of this fuse points to an
equipment or system fault that should be
investigated by your dealer or at the factory
by Naim itself.
4.9 Problems?
Consumer protection varies from country to
country. In most territories a dealer must
be prepared to take back any equipment
he has sold if it cannot be made to work
satisfactorily. A problem may be due to a
fault in the system or its installation so it is
essential to make full use of your dealer’s
diagnostic skills. Please contact your local
distributor, or Naim Audio directly, if any
difficulties cannot be resolved.
Some Naim equipment is made in special
versions for different territories and
this makes it impracticable to arrange
international guarantees. Please establish
the local guarantee arrangements with your
dealer. Contact Naim Audio directly for help
and advice if necessary.
4.10 Repairs and Updates
It is essential that repairs and updates are
only carried out by an authorised Naim
dealer or at the factory by Naim itself. Many
components are custom made, tested or
matched and appropriate replacements are
often unobtainable from other sources.
Direct contact to Naim for service or update
information should be made initially through
the Service Department:
Tel:
[phone]
Email:
ser[email protected]
Please quote the product serial
number (found on its rear panel) in all
correspondence.

4
Introduction
5 Product Introduction
This manual covers installation and
operation of the NAPSC and i-Supply
power supplies, Headline headphone
amplifier and Stageline phono amplifier.
All these products are fundamentally
straightforward in use, however a little
time spent reading will help ensure
problem-free installation and use.
Equipment should be installed in its
final location before connecting cables
or switching on. Ensure that power
amplifiers are switched off and the
preamplifier volume is turned down
before power supplies are switched on.
power output
Connect to appropriate
accessory power input socket.
NAPSC
6 Introduction
The NAPSC is a high quality power
supply designed to power one Naim
accessory product or the control circuits
of a preamplifier. NAPSC is fitted with
a captive lead terminated by a custom
2-pin plug.
mains input

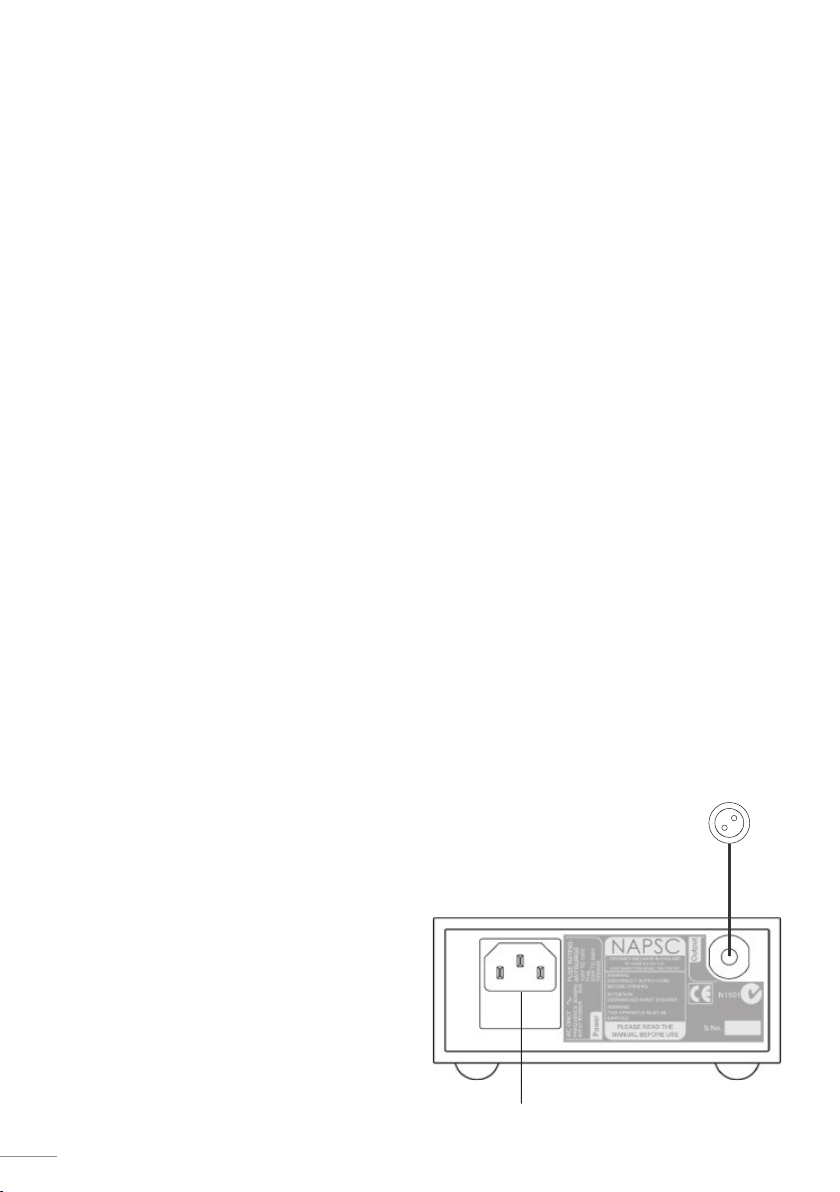

6.1 NAPSC Rear Panel

5
signal input.
Connect to any available preamplifier or
integrated amplifier signal output socket.
Headline
8 Introduction
Headline is a high quality headphone
amplifier compatible with the majority of
high-quality headphones. It requires an
external power supply to operate. The
i-Supply, NAPSC, Flatcap 2, Hi-Cap and
Supercap are compatible. Front panel
features include a stereo headphone
socket, a power indicator and a volume
control.
power supply input
Connect to:
i-Supply
via captive lead and adaptor.
i-Supply via captive lead and adaptor.i-Supply
NAPSC
via captive lead.
Flatcap 2
via SLIC lead to Power Out Socket B.
Hi-Cap
via SLIC lead to Socket 4.
Supercap
via SLIC lead to Socket 2.

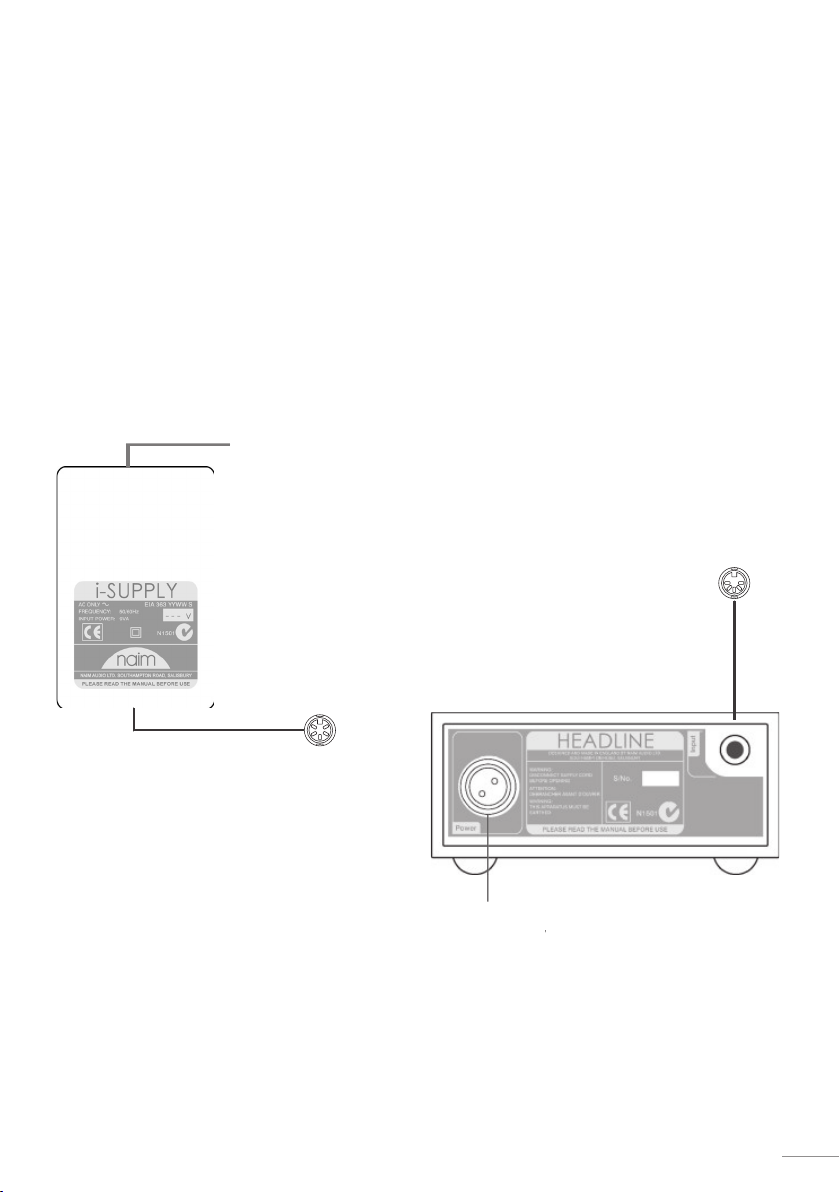

8.1 Headline Rear Panel
i-Supply
7 Introduction
The i-Supply is a simple power supply
designed to power one Naim accessory
product. i-Supply is fitted with a captive
cable terminated by a 240° 5-pin DIN
plug suitable for connection to a
Stageline. An adaptor lead is required
for use with a Headline. With a further
adaptor lead the i-Supply can also be
used to power and charge an Apple
iPod*.
captive DIN cable
captive mains cable
7.1 i-Supply Connections
Note:
To avoid ground loop problems, a Hi-Cap
or Supercap used to power a Headline should
not simultaneously power any other item.
* iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries

6
input
right
Stageline
9 Introduction
Stageline is a separate phono stage,
factory configurable for either a moving
magnet or moving coil cartridge. It
requires an external power supply to
operate. The i-Supply, NAPSC, Flatcap
2, Hi-Cap and Supercap are compatible.
Stageline can also be powered via the
power supply output on NAC 552, NAC
52, NAC 252, NAC 282, NAC 202 and NAC
112x preamplifiers.

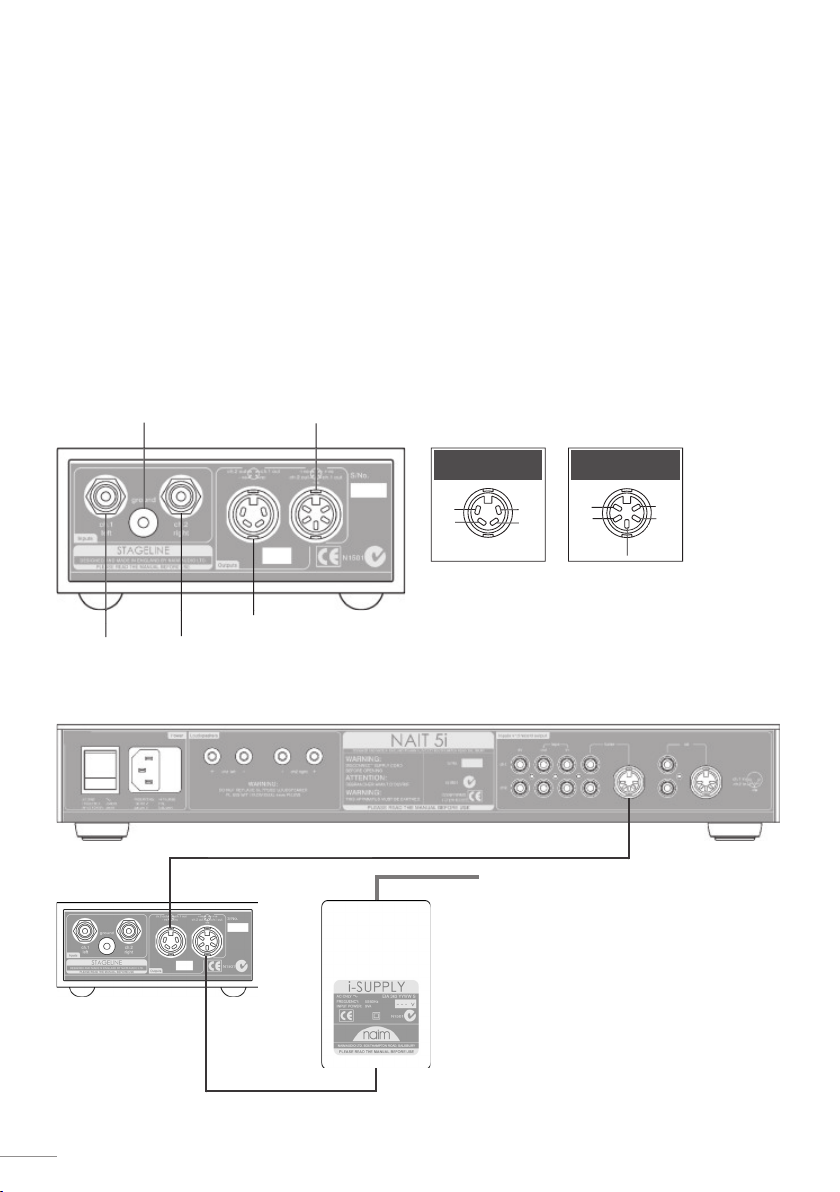

9.1 Stageline Rear Panel
input
left
signal ground
output
socket 1
output
socket 2
ch2
ch1
nc
-ve
Socket 1
+ve
-ve
+ve
ch1
+ve
ch2
Socket 2
9.2 Stageline connected to NAIT 5i and i-Supply.
4-pin to 5-pin DIN cable
i-Supply captive DIN cable
i-Supply captive mains cable

7
4-pin to 5-pin DIN cable
9.4 Stageline connected to NAC 112x and Flatcap 2.
cable
direction
marker
240° 5 to 5 pin DIN
Interconnect Cables
Stageline
9.3 Stageline connected to NAC 112x.
cable
direction
marker
240° 5 to 5 pin DIN
Interconnect Cables

8
10 Declaration of conformity to appropriate standards
Manufacturer
Naim Audio Limited, Southampton Road, Salisbury, England, SP1 2LN
Products
NAPSC, i-Supply, Headline, Stageline
Safety
EN 60065
EMC
Emissions Tested to: EN 55013 - Sound and television broadcast receivers and associated
equipment
BS EN 61000-3-2: 2001 - Limits for harmonic current emission
(equipment input currents up to and including 16 A per phase)
Immunity Tested to: EN55020 - Electromagnetic immunity of broadcast receivers and
associated equipment
In accordance with: CISPR 16-1 - Radio disturbance and immunity measuring apparatus
CISPR 16-2 Methods of measurement of disturbances and immunity
IEC 801-2 8kV (air gap) 4kV (contact) (performance criterion B)
IEC 801-3 3V/m 20dB (performance criterion A)
IEC 801-4 1kV (AC lines) 0.5kV (signal lines) (performance criterion B)

N
aim Audio Limited, Southampton Road, Salisbury, England SP1 2LN
Telephone: [phone] Fax: [phone] www.naim-audio.com
Part No. 12-001-0047
Drawing No. NA906001-401/1
