NAMCO OZ-1400 User manual

Namco Ozone Machine
OZ-1400
USER MANUAL
CAUTION:
Read manual carefully for proper installation and operation.

2
CONTENTS
Getting Started
1.Specifications...................................................................................................3
2.Product Features..............................................................................................3
3.Introduction ......................................................................................................4
4.Applications......................................................................................................5
How To Use
5.Quick Start Guide.............................................................................................6
6.Operating .........................................................................................................6
Care And Troubleshooting
7.Replacing the ozone plate ...............................................................................6
8.Replacing the Fuse..........................................................................................7
9.Troubleshooting ...............................................................................................8
Warranty Terms
10.Service and Warranty.....................................................................................8
11.Warranty Card ................................................................................................9

3
1. SPECIFICATIONS
Model:
OZ-1400
Rated Voltage:
USA market: AC 100~110V/60Hz;
Power Consumption:
180W
Air Volume:
Max 106 CFM(3 m3/min)
Ozone Plates
90X110mm, 2pcs ceramic ozone plate
Active Oxygen(on):
14,000mg/H
Sound Level (DB):
45DB
Product Size (mm):
D 285 x W 166 x H 280 mm
Gross Weight:
5.3KG
Application Area:
Room of 2000 square feet (200 ㎡)
2. PRODUCT FEATURES
Powerful, low noise level, portable, light and easy maintenance.
High-powered oxidation in a compact, rugged, and simple design.
Heat sink to reduce the heat on the ozone plate, longer lifespan.
Utilizing controlled corona discharge ozone technology developed.
Stainless steel Pre-filter to remove large particle.
Protect plastic box for timer and switch, more reliable.
To reduce the risk of electric shock, this equipment has a grounding
type plug that has a third (grounding) pin. This plug will only fit into a
grounding type power outlet. If the plug does not fit into the outlet,
contact qualified personnel to install the proper outlet. Do not alter the
plug in any way.
WARNING! - TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT
REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVCE PERSONNEL.
This “bolt of lightning” indicates that non-insulated material within your
unit may cause an electrical shock. For the safety of everyone, do not
remove product covering.

4
3. INTRODUCTION
The Commercial Air Purifier is designed to remove odors in unoccupied
spaces. The unit has a timer that will enable it to run for a maximum duration of
3 hours. The timer will then shut the commercial air purifier off. You should
allow 40 minutes before returning to the treated area.

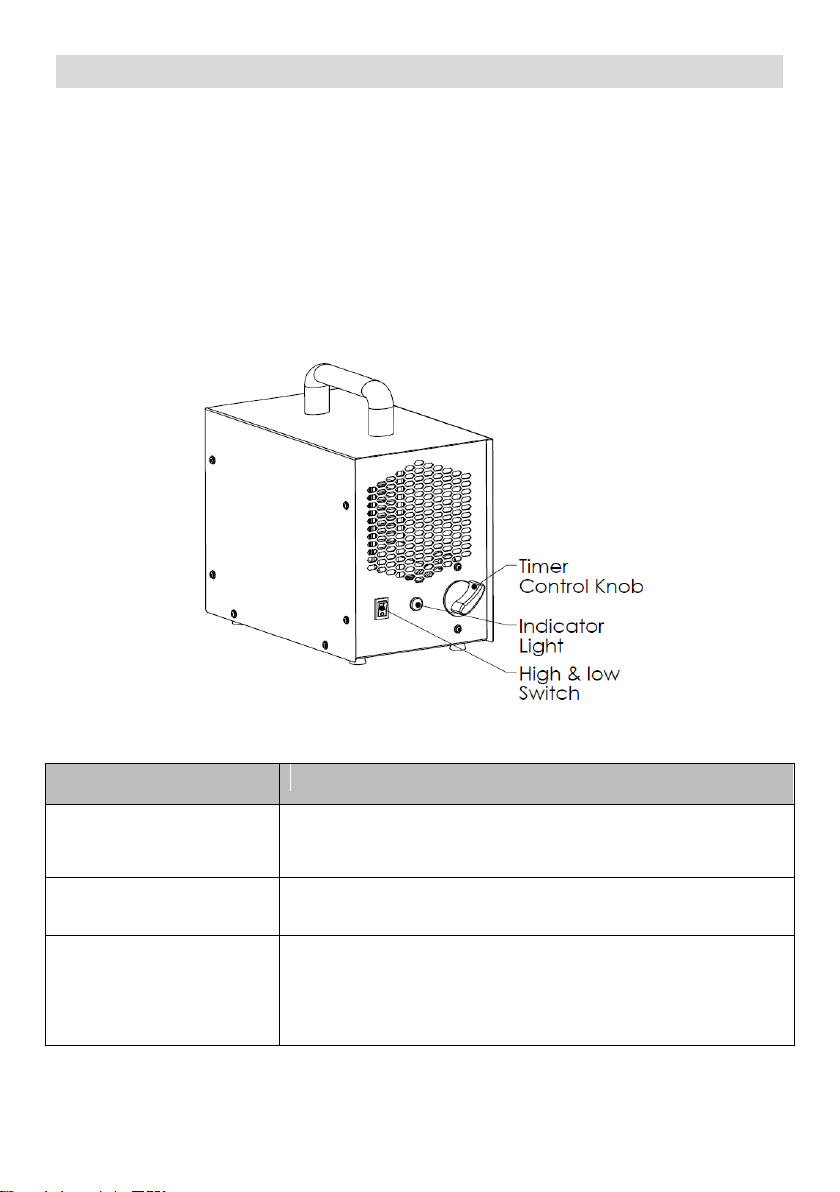

(Front View)
Part Name
Function
Timer Control Knob
Turn clockwise to set the timer for timed operation
up to 3 hours.
Indicator Light
Illuminates when unit is in operation.
High-Low switch
Ozone HIGH and LOW change-over switch.
HIGH for 14G ozone output,
LOW for 7G ozone output.

5
(Back View)
Part Name
Function
Fuse Holder
Houses removable fuse.
(Spare fuse included, 2 Amp, 0.79 inch in length)
Power Cord
110~120V or 220~240V grounded cord(unless otherwise)
4. APPLICATIONS
For home use: Air sterilizer, living room. Kitchen. Bathroom, pet room
For Restaurant air sterilizer, Hotel room purifier, KTV smell remover, store
sterilizer, office building, Fishing shop. garage, Etc...
For vehicle and boat etc.
For removing Formaldehyde( new house, hotel, office...), Refrigerator
keep fresh equipment.
Sterilize for kids clothes and toy, Sterilize for daily necessities.

6
5. QUICK START GUIDE
When placing the device, set it on top of something solid to give it a steady
base and prevent it from tipping over.
Make sure no humans, animals, pets are present in the area before starting
the treatment
Seal the treatment area to avoid ozone leakage to nearby areas occupied by
plants, animals or humans.
Turn off air purifier when cleaning.
6. OPERATING
To operate the Commercial Air Purifier:
Close off the desired area to be treated.
Remove all occupants and pets.
Position the unit as close as possible to the odor source.
In such environments as motels that have individual heating and cooling
systems, turn the fan on and set on re-circulate.
Set timer to desired time and leave the room.
Allow 40 minutes before re-entering the treated space.
Return to space & ventilation area.
7. REPLACING THE OZONE PLATE
When the air purifier no longer produces enough ozone to be effective, the
ozone plate should be replaced.(Usually it should be replaced after
working 6000 hours)

7

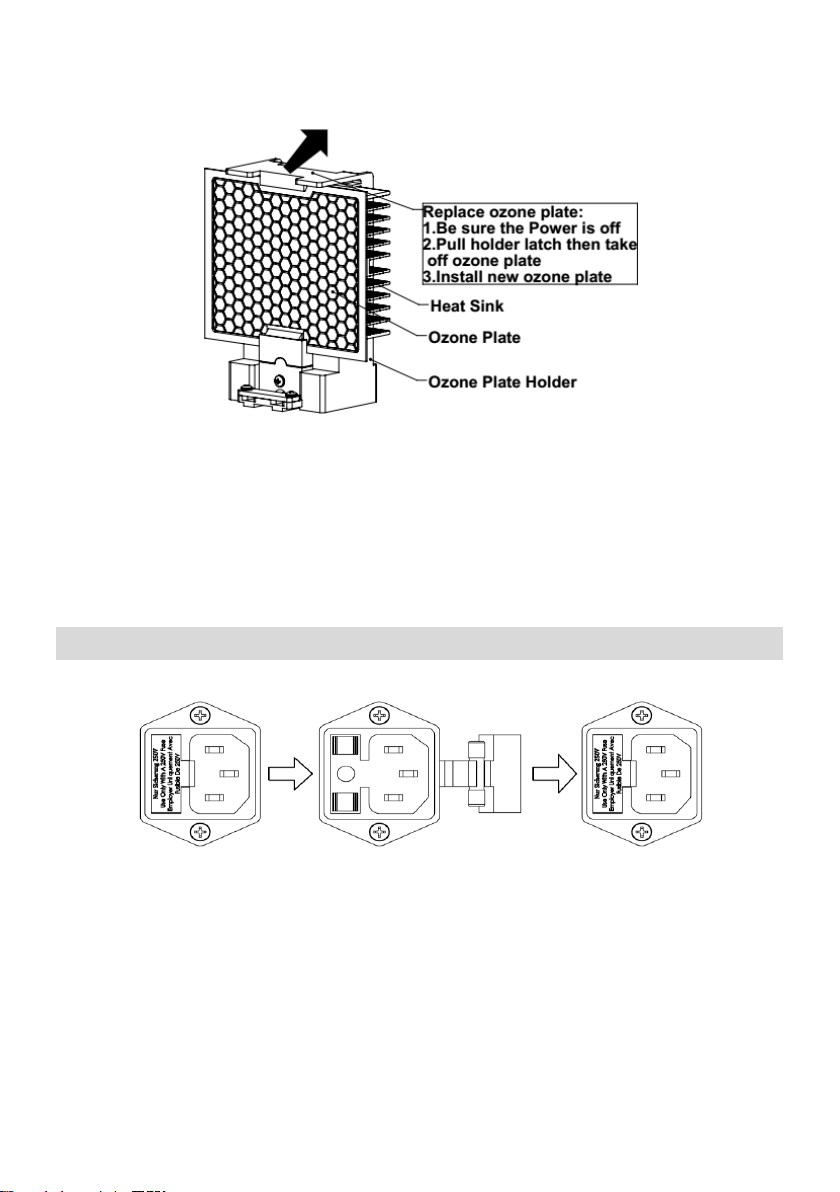

How to replace a plate:
Turn the unit off and unplug from outlet.
Use a screw driver to unfasten cover screw and remove cover.
Pull ceramic plate out of ozone generator module.
Install ceramic plate as shown in above figure (be careful not to drop the
plate).
8. REPLACING THE FUSE
Fuse holder (located on the back of the unit next to the power cord)
How to replace the fuse:
To replace fuse, pull out the plastic fuse holder
Remove old fuse and insert new fuse.
Replacement fuse must be 2 amp (0.79 inch).

8
9. TROUBLE SHOOTING
Unit fails to turn on or doesn’t produce ozone??
If you suspect a problem with your unit check the following:
Unit is plugged in properly.
It’s important that the Commercial Air purifier be properly grounded to
avoid potential shock.
Fuse is installed properly and in good condition.
If these solutions don’t fix your problem, please contact your authorized
distributor for a repair or replacement.
10. SERVICE AND WARRANTY
The commercial air purifier comes with 1 Year Limited Warranty.
Namco Manufacturing, Inc
9034 Long Point Rd. Bldg B, Houston,TX 77055
Tel: [phone] Fax: [phone]
TOLL FREE: 1-800-634-5816

9
11. WARRANTY CARD
To activate warranty you must return this card within 30 days of purchase.
-------------------------------------------------------------------------------------------------------------
FOR YOUR RECORDS
Please record the model and serial number below, for easy reference, in case of
loss or theft. These numbers are located on the back panel of your air purification
unit. Space is also provided for other relevant information.
Name:_______________________ Phone:____________________
Address:________________________________________________
Model Number:___________________________________________
Serial Number: ___________________________________________
Date of Purchase: _____________Distributor Name:_____________
