Nanning Auto Service ADM-300A User manual

ADM-300A
Instruction
Version（V1.0）
February 27th, 2010
www.obd2express.co.uk

Content
ⅠProduct Introduction
··
··················································
·1
1 Features
··
·
··
························································
·1
2
ADM-300A Device
···
························································1
ⅡSoftware Installation
··
··················································2
ⅢActivation
···
·······························································3
Pa
ymentⅣ
··
···································································4
UpgradeⅤ
···
···································································5
ExamplesⅥ
··
····································································7
1 Programmer ··
···························································7
2 Audio Decoding
··
······························································10
3 Meter System ··
······················································14
4 IMMO ··
·······················································20
5 Airbag Resetting ··
·························································23
6 Auto Computer Control Unit ··
················································27
7 Data Operation ··
······················································29
7.1 Fill data ··
···································································29
7.2 Transfer to the target address ····································· 29
ⅦAppendix
··
·································································30
Appendix Ⅰ：The ways of identifying the pin order ··
·····················30
Appendix Ⅱ：Chip Disassembling & Soldering ··
··························30
Appendix Ⅲ：Instruction of using SMDS to adjust Lexus odometer 300,400 ···· 31
Appendix Ⅳ：Wiring diagram illustration ··
·····························32
Appendix Ⅴ：Table of replacement for acoustic memory chip and odometer·· 33
Important Statement:
This instruction is only available for reference for users. Nanning Auto Service Co., Ltd.
reserves the right to change the product or product instruction without notice, reserves the
right not to update this document to inform these changes.
www.obd2express.co.uk

ProductⅠIntroduction
1. Features
SMDSIII is applicable to Audio Decoding, Reading IMMO code, Airbag resetting, Odometer
Adjusting, ECU Programming, Data programming and so on.
（1）Web-base guide :Give direction to operation. Easy operation and support full
range vehicle type.
（2）Memory rewriting: Modify the data of software; the data of chip will be modified
accordingly without any programming.
（3）Universal Socket: Solder different types chip to the same socket can read and
program immediately. One socket is used for all the devices.
（4）USB interface: Plug and play is ten times of the speed parallel port.
（5）Remote real-time control: All the operation can be remote operated by factory to
carry out easy distance training (need to contact with the factory before operation)
（6）Hardware and software can be upgraded on internet.
（7）Authorization way:
Permanent authorization: is a one-time buyout of existing model authorization
Renewal fee authorization: is a tokens deduction authorization. When original tokens in
the device will be used up, user can pay for the tokens to recharge flexibly.
2. ADM-300A Device
- 1 -
www.obd2express.co.uk

Software InstallationⅡ

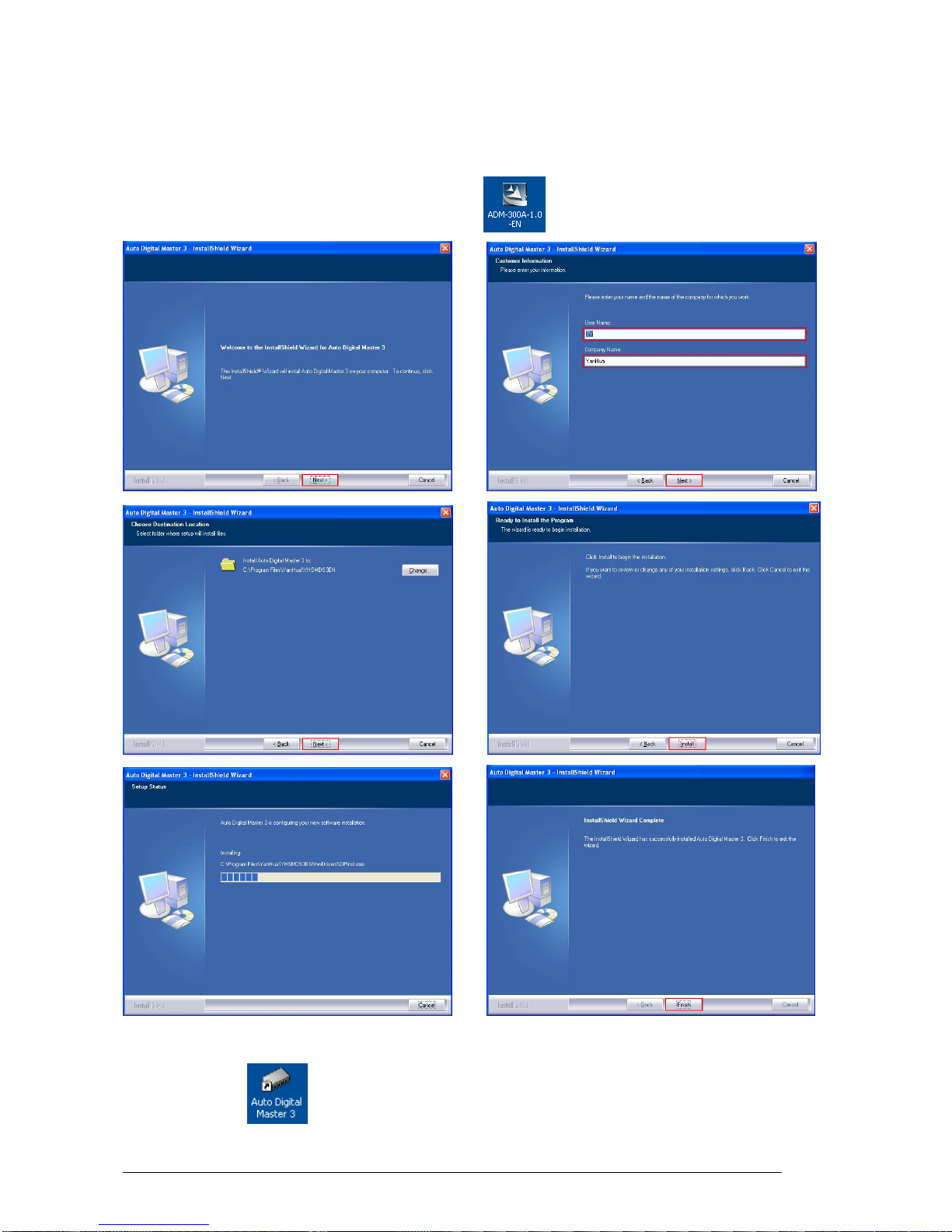

Operation steps:
Double click to install “ADM-300A-1.0-EN.exe” .
You have completed the software installation , and the computer desktop displays
the icon. .
- 2 -
www.obd2express.co.uk

ActivationⅢ
Note: Make sure the computer has been online before doing product activation
operation.
After finished the software installation, SMDS Ⅲis on power and connect with computer by USB
line. Double click icon on the computer desktop; software will search for device running program
automatically. Operate as the following figure.
- 3 -
www.obd2express.co.uk

PaymentⅣ
Note: Make sure the computer has been online before doing product payment
operation.
- 4 -
www.obd2express.co.uk

UpgradeⅤ
Note: Make sure the computer has been online before doing product upgrade
operation.
- 5 -
www.obd2express.co.uk

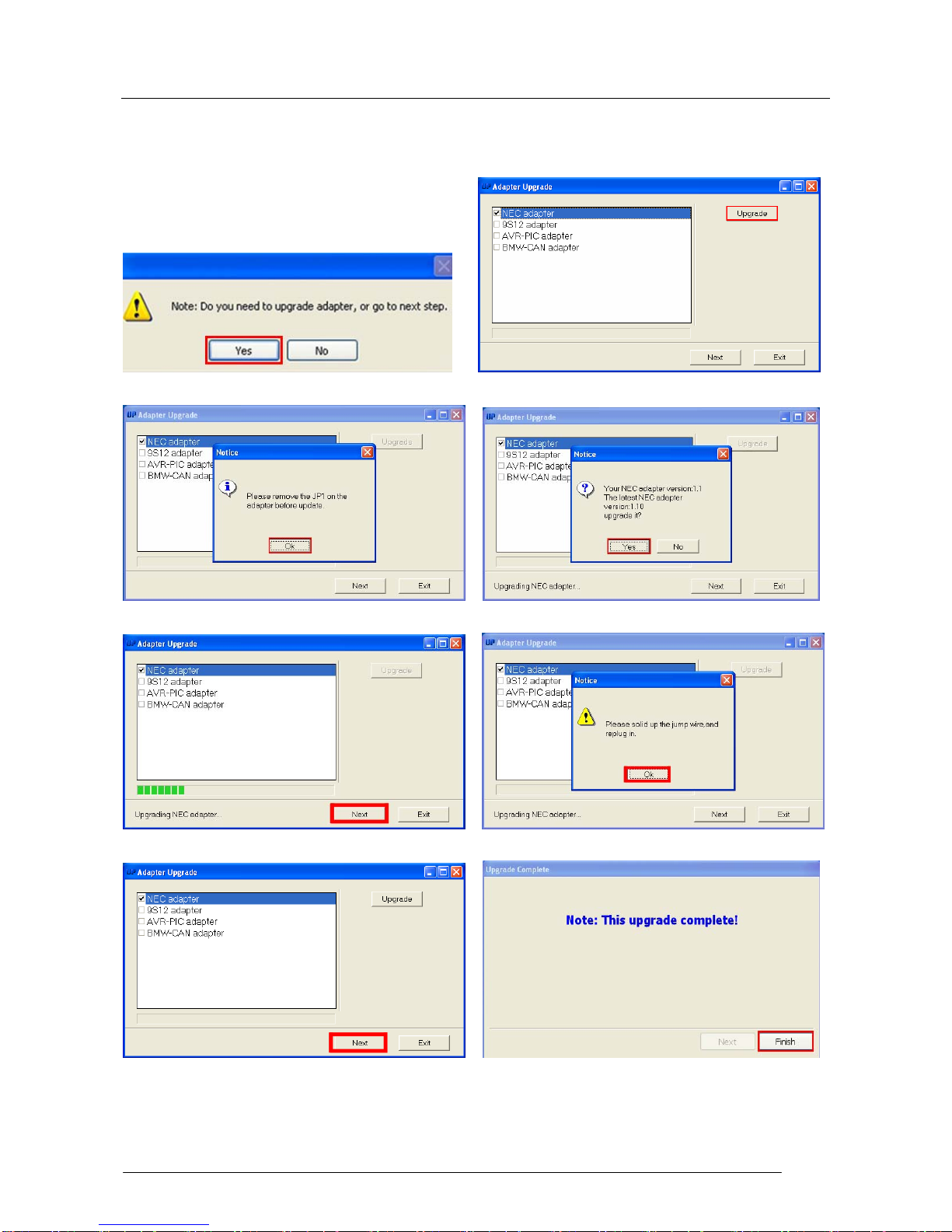

After the firmware upgrade completed there will pop up a dialog box and prompt
whether you need to upgrade adapter, if yes, click "Yes" to upgrade adapter; If not, click
"No" to cancel adapter upgrade.
- 6 -
www.obd2express.co.uk

ExamplesⅥ
1 . Programmer
Programmer is specializing in reading, displaying, saving and programming memory
device. It can be used in common data adjusting, problems and troubleshooting of auto
meter, engine ECU, airbag ECU, and compute program matching, audio decoding, SRS
and so on. Different from other OEM tools that can only use in specific car models, the
programmer can use in all kinds of cars when the area of memory data is found.
Accompanied by more relevant function modules, such as audio decoding module,
odometer adjusting module, IMMO code reader module, it will solve the technical problem
quickly and accurately during car repairing process.

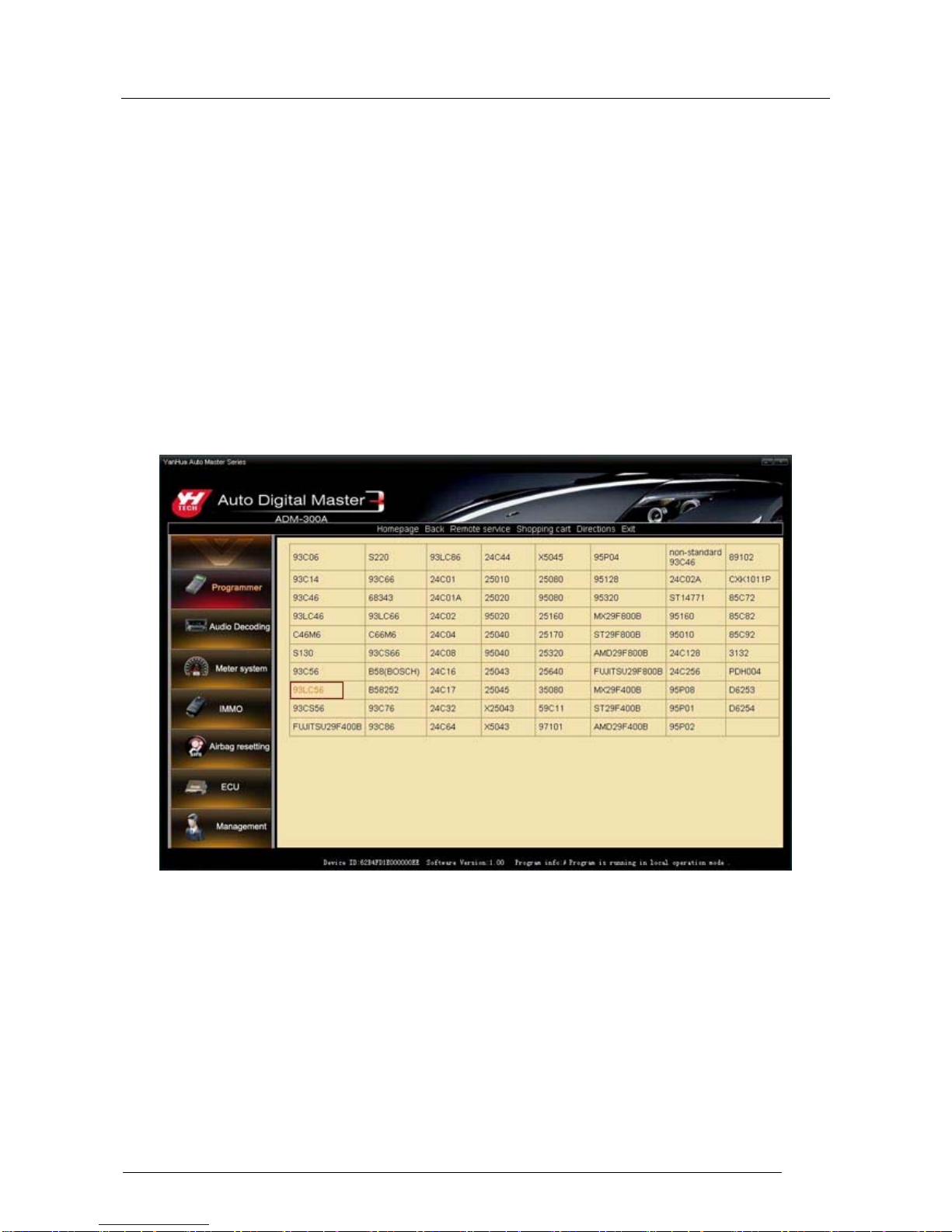

（1） In the homepage, click "Programmer", you will see "IC Program" and "CPU Program". Take "IC
Program" for example, please see the following picture.
Button features Instruction:
"Home": go back to the first page of the system and reselect the function modules.
"Back": back to previous page.

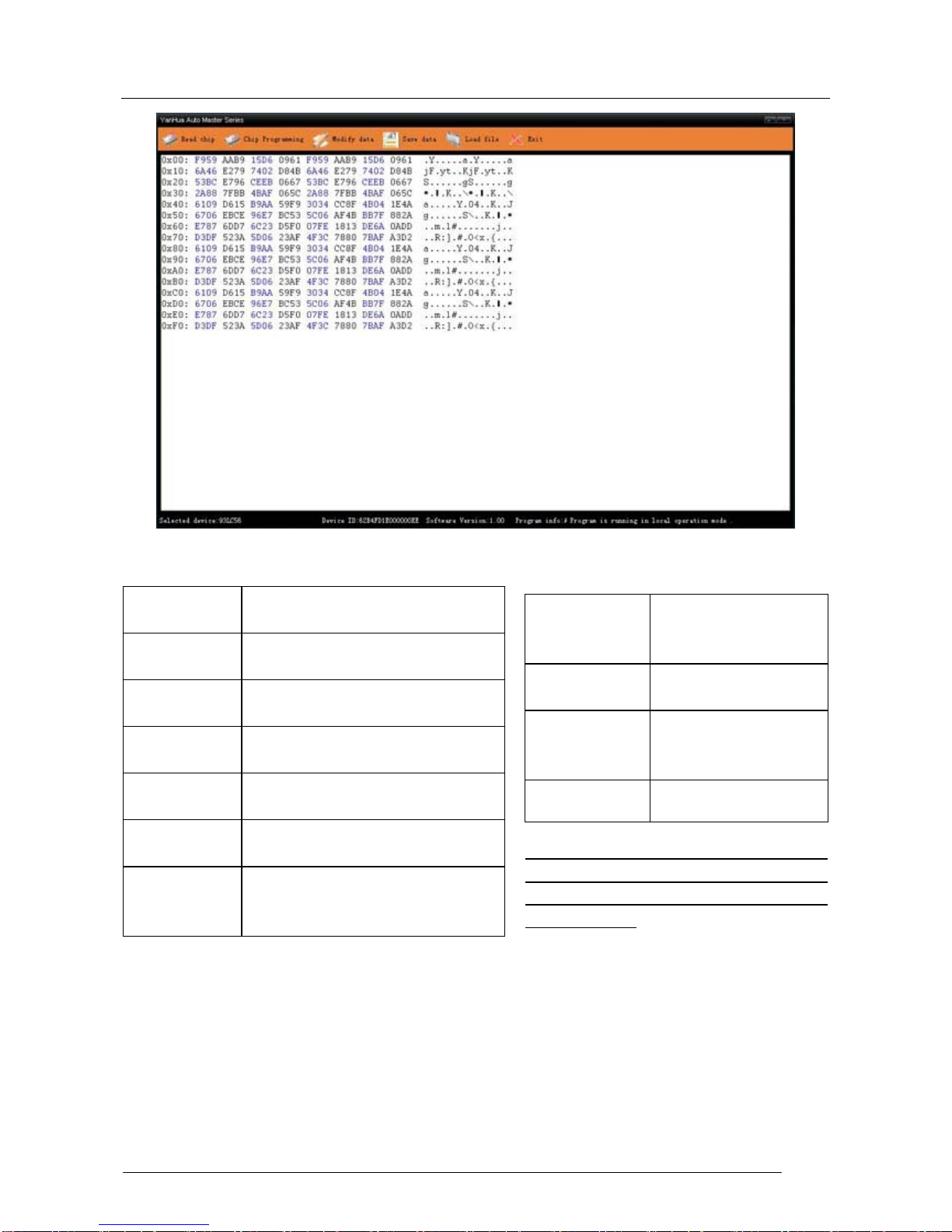

（2）Select 93LC56 , click it will start reading data. When complete reading, you will see
window as follows.
- 7 -
www.obd2express.co.uk

Button Instruction
Read chip Read the device data and display
them in the memory data area.
Modify data Memory data area turns into
modifiable status.
Save data Save the current data of the
memory data area.
Load file Open an initial data file and write
the initial data into device.
Chip
programming You could write programmed data
into the device.
Exit Close memory data area and
back to previous page to reselect
device and others.
"Memory Data
Manipulation"
Menu command Instruction
Select all Select all the data in
memory data area.
Go
(Address)
Place the cursor jump
to the specified
address.
Note: Click on the top of this form o
f
"memory data manipulation" menu will
pop-up sub-menus, menu commands
listed above。
- 8 -
www.obd2express.co.uk

（3）Modify data
Click "Modify Data", memory data area turn into modifiable status, shown as picture.
Once a data is modified, it will write into the device immediately. It realize program when
modifying.
Button Instruction
Eraser
chip Eraser the data of the chip. Use this operation must be careful, or some special chip will be damaged.
Verify
chip Read data of the chip and compare with the data of memory data area.
Undo Cancel one or more (at most 20) done operation. If cannot do the undo
function or no operation can be undone, this button cannot be used.
Exit
modify
Memory data area turns into unmodified status. Such operation reset undo
function which makes done operation cannot be undone. So, please consider
the changes whether to restore to the original state when you exit.
Copy
data
Drag the mouse to select the data you want to copy, and then click this button.
Now your copied data will save in the computer temporarily. The operation of
Paste Data can call out and put the data into the specific location.
Paste
Data
First, you should operate "Copy Data", then move the cursor to where the data
should be in, at last click this button to put the copied data in the place of the
cursor.
Fill data Fill some regular data into the specific location of the device.
- 9 -
www.obd2express.co.uk

2.Audio Decoding
Main functions: get the audio code. The audio will activate IMMO system automatically
when power off cause by battery damage or other reasons. You should input the code when
power on again.
Steps are as follows:
（1） Click "Audio Decoding" on the homepage, select the car model. For instance, picture
as follow, click "VW".
- 10
-
www.obd2express.co.uk

Button features Instruction:
"Home": go back to the first page of the system and reselect the function modules.
"Back": back to previous page.
（2）When you get into the module of audio decoding and selected VW, select the audio
model. For instance, click "Shanghai Passat B5VWZ6Z3Y1614621"
（3）Chip Disassembling & Soldering
①It will display the detail information of the audio when you select the model number,
such as chip type, the code can be modified or not and so on.
②Find out the relevant chip (for example 24C16) on the circuit board, remember its
location before disassembling, and then solder it to the adapter.
③Connect the adapter with the device by 25pin socket. Click “Local Operation” to
read the device data.
- 11
-
www.obd2express.co.uk

（4）Acquire passwords
①If the audio code cannot be read and modified, first save the data, then prompt to
select the file needed transfer. That is to write the known code into the chip, and the code is
fixed. When program successfully, put the chip back to the audio. At last, unlock the audio
with the code. For instance, write the code transfer file "Shanghai Passat
B5VWZ6Z3Y1614621" into the chip, then get a code 1821; and if "-" within filename, it
means you don't need code to unlock the audio when program.
- 12
-
www.obd2express.co.uk

②If the audio can be read and modified, the soft will prompt you to save the initial
data when you click "Local Operation". ("Save" will automatically save to the default path:
C:\Program Files\SMDS3\user data directory.), the software will read the code of such type
audio automatically, and use this code to unlock the audio when put the chip back.
（5）Modify data
The audio unlock when you get the code. And if you don't want to modify the chip data
you can skip this step when finishing audio decoding.
The memory data area will appear when finishing reading device data as follows
pictures.
- 13
-
www.obd2express.co.uk

Button Instruction
Modify data The area of memory data can be modify when click this button.
Save data Click this button and input the path and filename to save the current data in
the memory data area.
Send data to
factory Save the data as a file and send to factory by email.
Read audio
code Read and display the audio code (only for audio that its code can be modified).
Modify audio
code Modify audio code (only for audio that its code can be modified)
Transfer audio
code Open the initial data file of the known audio code and write it into the device.
Exit memory
data area Click it means close the memory data area and back to the selected info
browser window, then you can select other device or function.
3 . Meter System

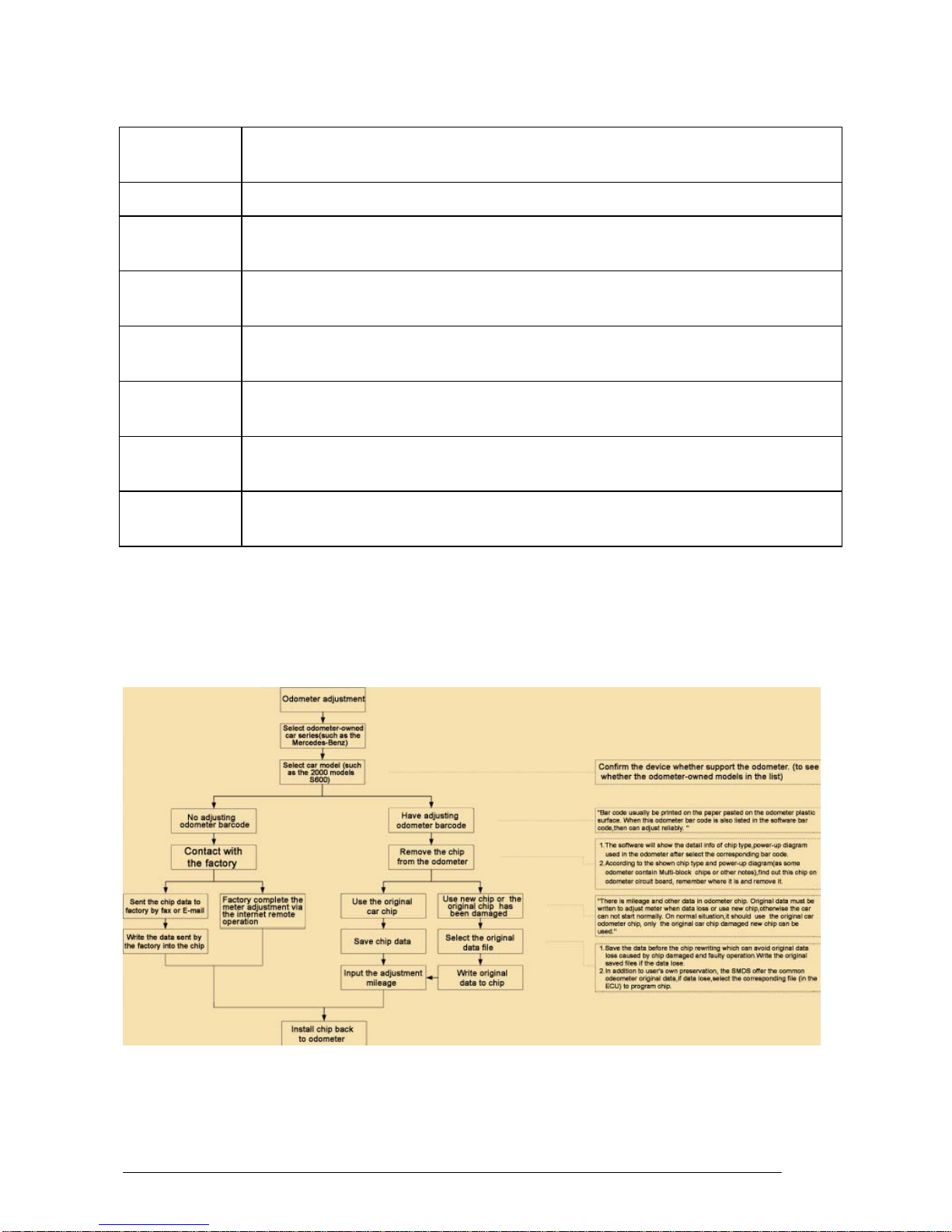

Main functions: Used for odometer adjustment
Adjustment steps as follows:
- 14
-
www.obd2express.co.uk

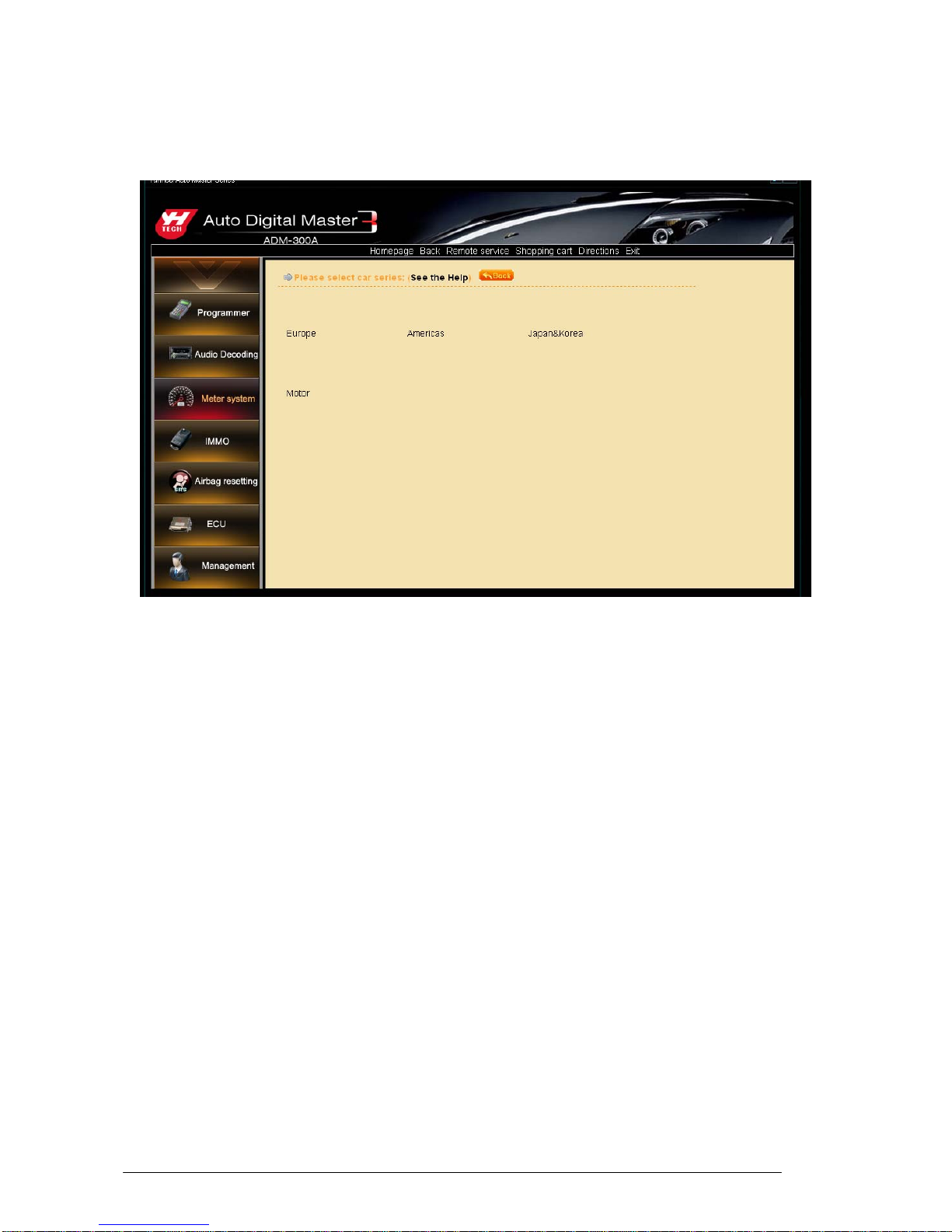

（1）Click the "Meter system" button on the home page, choose the odometer- owned
cars, as: American cars.
Button features Instruction:
"Home": go back to the first page of the system and reselect the function modules.
"Back": back to previous page.
（2）This page is the odometer-owned cars, as: Click Chrysler to enter the
corresponding model: Grand Cherokee. 300C. 300M. Now take an example to 300MK.
- 15
-
www.obd2express.co.uk

（3）Remove chip or welding cable
①It will shows the detail information after choose the corresponding model, as the
chip model, power-map.
②A. Based on the chip model and power-map (Because some odometer chip
- 16
-
www.obd2express.co.uk

contains a multi-block, or there are other considerations) to find the chip on the odometer
PCB, remember that direction then removed it, installed on universal adapter, If the original
chips have been damaged or adjusted by the new chips please use the same model;
B. This is the Split-free chip, Please connect the cable refer to the wiring diagram
from software, and then plug the ICP to the 25 pin socket of the SMDSIII.
③Click "Local operation" on the upper right corner of the dialog box as the upper
picture, the meter will read the device data immediately.

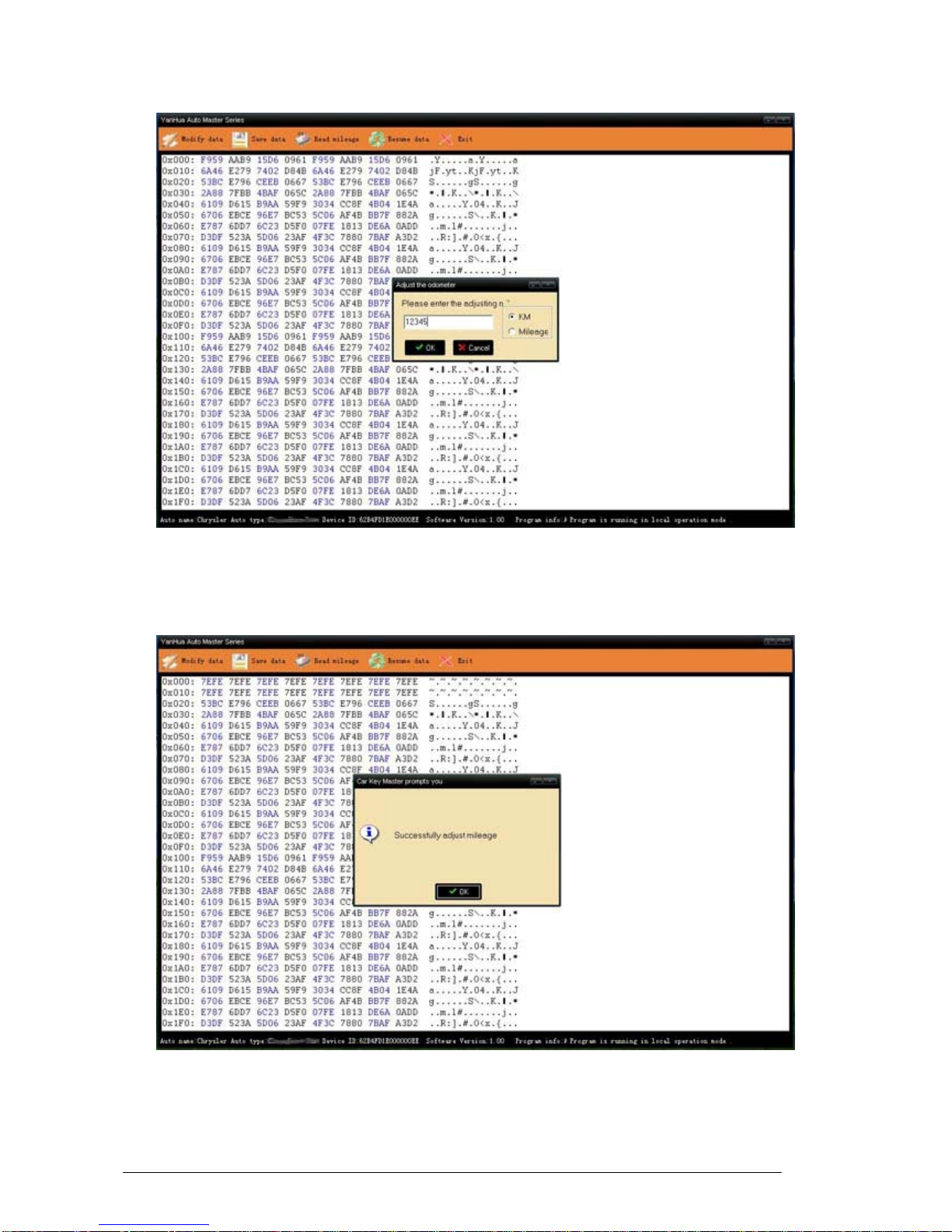

（4）Input mileage
①Click “yes" the device will save the data of chip automatically, and will point its
name and location (The detail please looks at Page 12, 1.(3) Modify data).
②The follow window means the original data of the chip have saved.
A. Input the mileage you want on the white box then click "yes".
B. For there are not only mileage data on the odometer chip, so please write the
original data on the new chip before adjust, then write the mileage.
a. Click the "cancel" as the follow picture, then click "restore the original data", choose
the original data to write the chip, the device supply the most of cars original data, if
there is not, please collecting, take out the chip in the odometer, read the data then
saveit.
b. Click the "Adjust mileage", input the mileage you wanted to adjust on the white box,
then click “yes”.
- 17
-
www.obd2express.co.uk

③Quit after successful adjustment prompt, removed the welding line and then clean
the circuit board. Load odometer back to car.
- 18
-
www.obd2express.co.uk
