NARGESA MT150 User manual

INSTRUCTIONS BOOK
PRADA NARGESA, S.L
Ctra. de Garrigàs a Sant Miquel s/n
17476 PALAU DE STA. EULALIA (GIRONA) SPAIN
Tel. [phone] - Fax [phone]
www.nargesa.com - [email protected]
TWISTING MACHINE
MT150 A

Thank you for choosing our machines
www.nargesa.com

TWISTING MACHINE MT150 A INSTRUCTIONS BOOK 2
THERE IS A DVD INCLUDED
AS AN ESSENTIAL PART OF
THIS BOOK.
IT’S GOT THE STEP-BY-STEP
PERFORMANCE OF THE
MACHINE AND SOME
EXAMPLES OF WORKS
THAT CAN BE CARRIED OUT
WITH IT.
THERE IS A HANDLING BOOK
FOR THE FREQUENCY INVERTER
INSIDE THE MACHINE

TWISTING MACHINE MT150 A INSTRUCTIONS BOOK 3
ÍNDEX
1. MACHINE INFORMATION ......................................................................................................
1.1. Machine identification ..................................................................................................
1.2. Normal use of the machine .........................................................................................
1.3. Contraindications for the use of it ................................................................................
1.4. Noise caused by the machine .....................................................................................
1.5. Vibrations ....................................................................................................................
1.6. Natural working place of the user ................................................................................
1.7. Description of the machine ..........................................................................................
1.8. Description of accessories ..........................................................................................
1.9. Descriptions of safety devices .....................................................................................
1.10. Basic characteristics of tooling ..................................................................................
1.11. Information related to the electrical equipment .........................................................
2. TRANSPORT AND MAINTENANCE .......................................................................................
2.1. Transportation ............................................................................................................
2.2. Dimensions .................................................................................................................
2.3. Storage conditions .....................................................................................................
3. INSTALMENT AND STARTING UP ........................................................................................
3.1. Instructions to fix it ......................................................................................................
3.2. Assembly to reduce noise and vibrations ....................................................................
3.3. Admissible outer conditions ....................................................................................
3.4. Instructions for connecting to electric supply ..............................................................
3.5. Safety systems for the user .........................................................................................
4. INSTRUCTIONS FOR THE USAGE ........................................................................................
4.1. Instructions for the adjustment ....................................................................................
4.2. Waste hazards ............................................................................................................
4.3. Information about forbidden usage methods ...............................................................
4.4. Instructions to locate breakdowns and to rearm the machine .....................................
4.5. Instructions for learning how to work with it ................................................................
5. MAINTENANCE INSTRUCTIONS ...........................................................................................
5.1. Regularity of revisions .................................................................................................
6. EXPLANATION OF ITS PERFORMANCE ..............................................................................
6.1. Introduction .................................................................................................................
6.2. Definition of the module for Control and Commands ..................................................
6.3. Equipment performance ..............................................................................................
6.3.1. Manual mode .................................................................................................
6.3.2. Automatic mode .............................................................................................
5
5
5
5
5
5
5
5
6
6
6
6
8
8
8
8
9
9
9
9
9
9
10
10
10
10
10
10
11
11
12
12
12
13
13
13

TWISTING MACHINE MT150 A INSTRUCTIONS BOOK 4
6.4. Using the equipment ...................................................................................................
6.4.1. Activation of the machine ...............................................................................
6.4.2. Starting up the machine .................................................................................
6.4.3. Machine in StandBy .......................................................................................
6.4.4. Left turn direction ...........................................................................................
6.4.5. Machine in StandBy .......................................................................................
6.4.6. Right turn direction .........................................................................................
6.4.7. Machine in StandBy .......................................................................................
6.4.8. Programming the torsion of a piece ...............................................................
6.4.8.1. Finding the starting point ..................................................................
6.4.8.2. Confirming the torsion starting point . ...............................................
6.4.8.3. Definition of the kind of torsion .........................................................
6.4.8.4. Performance of the torsion ................................................................
6.4.8.4.1. Square torsion .....................................................................
6.4.8.4.2. Round torsion ......................................................................
6.4.8.5. End of the torsion ..............................................................................
6.4.8.6. Taking off ..........................................................................................
6.4.9. Machine in StandBy .......................................................................................
6.4.10. Repetition of an existing torsion ...................................................................
6.4.10.1. Selection of the memory to be repeated .........................................
6.4.10.2. Performance of the selected memory .............................................
6.4.11. Machine in StandBy .....................................................................................
6.4.12. Counting of manufactured pieces ................................................................
6.4.12.1. Selection of the memory to be displayed ........................................
6.4.12.2. Deleting the counter of manufactured pieces .................................
6.4.12.3. Do not delete the counter of manufactured pieces .........................
6.5. Solution of problems and emergency situations .........................................................
6.5.1. Emergency stop .............................................................................................
6.5.2. Interruption of electrical supply ......................................................................
6.5.2.1. When there was no torsion in process ..............................................
6.5.2.2. When there was a torsion in process ................................................
6.5.3. Loss of reference ...........................................................................................
6.6. Selection of language and model ................................................................................
7. STANDARD TOOLING ............................................................................................................
8. OPTIONAL TOOLING .............................................................................................................
9. MAIN STEPS TO FOLLOW FOR A FAST PROGRAMMING OF THE MACHINE .................
9.1. Starting Screen ...........................................................................................................
9.2. Mass production of pieces ..........................................................................................
10. PARTS ...................................................................................................................................
11. SKETCHES ...........................................................................................................................
11.1. Power scheme ..........................................................................................................
11.2. Operating scheme .....................................................................................................
16
16
16
16
17
17
17
17
18
18
18
19
19
19
19
20
20
20
20
20
21
22
22
22
23
23
23
23
24
24
25
25
26
28
31
39
39
40
41
42
42
43

TWISTING MACHINE MT150 A INSTRUCTIONS BOOK 5
1. MACHINE INFORMATION
1.1. Machine identification
Trademark : NARGESA
Type: Twisting machine
Model: MT150A
2.2. Normal use of the machine
The twisting machine is used to shape cold forge materials. It scrolls bars, it makes spirals out of flat bars,
etc. All drawings that can be made by using a rotary head and a stand point will be able to be carried out
with this machine. It’s only shortcoming is the physical space it occupies and the power of the engine.
A set of standard tooling are provided with the machine, by means of which most of the basic shapes will
be makeable. However the manufacturer may supply the head adjustment bases, for you to make your own
drawings.
1.3. Contraindications for the use of it
Every use out of the ones directed to the cold forge work.
1.4. Noise caused by the machine
In case of this machine noise is almost non existent under a normal working condition.
1.5 Vibrations
Like noise, vibrations could be considered non-existent since it is a fixed machine and the head rotation
speed is low.
1.6 Natural working place of the user
The twisting machine could be used by one opeartive at the time who will be located at a side of it.
1.7. Description of the machine
The machine is equipped with an engine of 0,37 Kw / 0,5 HP and a reducer that transmits rotation to the
head through a Crown and the body. This is the stand where all the different stand points are located.
The twisting machine has got a box to keep all tooling and the stand table made of steel plate welded and
folded.
If an accident occurs by negligence of the operative, for not following the safety rules exposed
on this manual, PRADA NARGESA S.L will not accept any responsibility.

TWISTING MACHINE MT150 A INSTRUCTIONS BOOK 6
1.8. Description of accessories
The basic accessories the machine has, are the coupling for the head of the different shapes.It is provided
with different stand parts, stand point and clamping of materials. In the last part of the manual there is a
series of operations which are explained step by step by means of pictures.
1.9. Description of safety devices
Gear and moveable parts are covered with the exception of the rotary head.
1.10. Basic characteristics of the tooling that can be adjusted to the machine
In case of getting accessories fitted to the machine it is necessary to bear in mind that they need to have
the same clamping so that they can not loose or be sent off.
1.11. Information related to the electrical equipment
The MT150A twisting machine, is equipped with a three-phased motor 230V / 400V 0,37Kw, and an electric
set to be able to be connected to a single phased 230V.
The machine can be connected to two different power:
1. A single-phase 230V connection is 230V phase + neutral
2. A two-phase 230V connection is two phases ie 115V
Conversion will not be possible to connect the machine to a three-phase network as long as the installation
of the machine is not replaced by a three-phase network installation.
IMPORTANT
This must be connected to a power supply with ground wire.
Engine Power 0,37 KW / 0,5 HP
2 phased tension 230 V Single phased
Rotary speed Adjustable 0 to 9 r.p.m.
Twisting máximum capacity 20 mm or 3/4”
Bending máximum capacity 16 mm or 5/8”
Max. Scrolling and bending in flat bar 35x10 mm o 1 1/4”x3/8”
Máx. continued scrolling length 960 mm
Dimensions 2260x630x1120 mm
Weight 260 Kg

TWISTING MACHINE MT150 A INSTRUCTIONS BOOK 7
Triangle shape
For tension 230V
The configuration of the plates located inside the terminal box will always be specified as follows:
We provide the machine with a frequency inverter instructions book, it will be useful in case of failure to
identify it and to report it to technical assistance.
The drive is located inside the cabinet.
Internal parameters of the inverter should not be modified, they must be set at the factory. May only ope-
rate the unit under the supervision and advice of NARGESA’s Technical Assistance.
Changing these parameters by unauthorized personnel other but NARGESA’s, could cause a total sus-
pension of the established warranty.

TWISTING MACHINE MT150 A INSTRUCTIONS BOOK 8
2. TRANSPORT AND STORAGE
2.1. Transportation
Transport will be carried out by using a transpalet or lifting truck, as indicated in the following picture. The
machine will be transported completetly assembled. It is only necessary to turn the tool box.
2.2. Dimensions
Weight: 260Kg
2.3. Storage conditions
The machine should be kept in places that follow the requirements described below:
- Humidity between 30% and 95% without water condensation.
- Temperature from –25ºC to +55ºC or +75ºC without exceeding 24 h.
- It is advisable not to pile up machine or heavy stuff on them.
- Do not dismantle the machine to store it.

TWISTING MACHINE MT150 A INSTRUCTIONS BOOK 9
3. INSTALMENT AND STARTING UP
3.1.Instructions to fix it
While the machine is left down by the crane, it will be necessary to leave it properly so it hasn’t got to be
moved once it’s on the floor. In case this wasn’t possible, then it will be necessary to put it on a moveable
base and transport it to its proper place.
The machine will be fixed on the floor for its own weight, so it must be placed in a well levelled and flat sur-
facec.
3.2 Assembling to reduce noise and vibrations
This machine does not produce noise or vibrations due to its low speed.
3.3. Admissible outer conditions
Environment temperature: Between +5ºC and +40ºC without exceeding +35ºC as average temperature
Humididty:Between 30% and 90% without water condensation.
3.4. Instructions for connection to elecric supply
3.5. Safety systems for the user
Never for no reason touch the material while the machine is performing.
The machine location should be chosen counting on the space required for the material bar during its
distortion.
It mus be uniquely connected to the net with the indicated power (220v AC). If the line tensión is not the
correct one it could cause irreversible damage to the machine.
It is very important to properly connect the machine to the grounding plug.

TWISTING MACHINE MT150 A INSTRUCTIONS BOOK 10
4.INSTRUCTIONS FOR THE USAGE
4.1 Instructions for the adjustment
This machine hasn’t got any adjustable element, with the exception to any kind of repair.
4.2 Waste hazards (That cannot be eliminated). Hazard caused by fitted elements
Always bear in mind to keep hands off the moveable parts of the head to prevent any hazard of arms or
finger shearing.
4.3 Information about forbidden usage methods
Do not use any tooling that hasn’t been supplied by the manufacturer, in order to avoid the breakdown of
any element that could hurt the operative.
4.4 Instructions to locate breakdowns and to rearm the machine
The machine does not tend to breakdowns because of ite machanism. The only possible breakdown would
be the change of th operation fuse, in the electric part. This fuse is located inside the command panel or
electric box. It is necessary to get the machine unplugged from the electric power supply and then unscrew
the cover of the command panel.. In the electronic card you will find the operation fuses. In case they have
to be replaced, find ones with the same electrical features of the ones changed.
Other possible causes of the fault could be an error message produced by the frequency inverter. Please
checkup the inverter handling book on section for Faults and Errors.
4.5. Instructions for learning how to work with it
In order to learn how to operate with this machine, place the basic tooling and notice how to position the
stand points, see the pictures sequence in the last section. There are also different thick parts and tops in
order to adjust the proper height for fastening.

TWISTING MACHINE MT150 A INSTRUCTIONS BOOK 11
5. MAINTENANCE INSTRUCTIONS
5.1 Regularity of revisions
Revise the pinion and head lubrication every 2000 hours performance.

TWISTING MACHINE MT150 A INSTRUCTIONS BOOK 12
6. EXPLANATION OF ITS PERFORMANCE
6.1. Introduction
The electronic control module has been specifically designed in such way that is rules, either one or the
other machine: MT150A or MT150R.
What is stated above could be easily understandable since these two machines have similar characteris-
tics, and so from now on when referring to either one or the other we will use a generic term, such as
“twisting machine”.

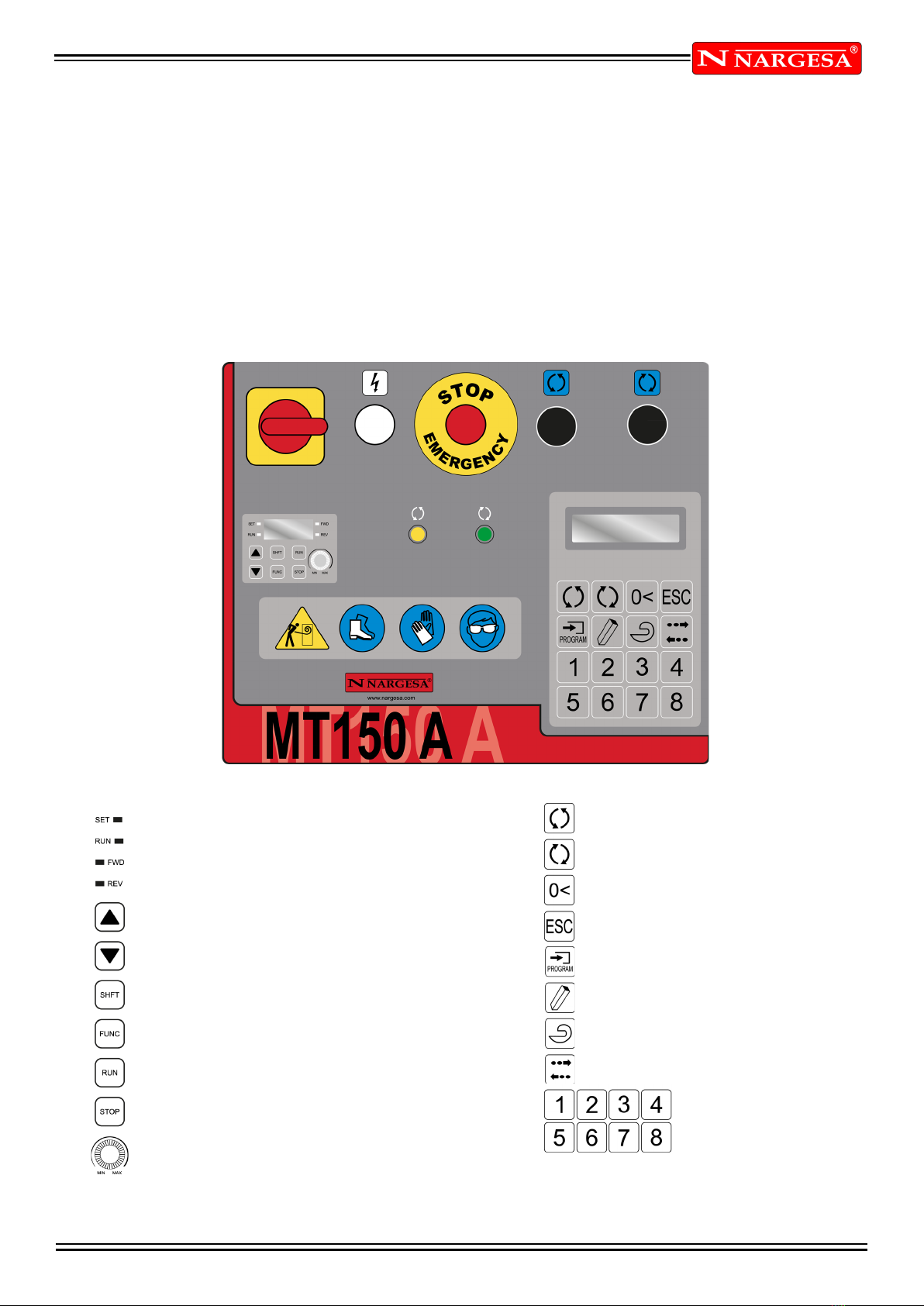

6.2. Definition of the module for Control and Commands.
Head turn to the right
Head turn to the left
Control of manufactured parts o CNT
Escape
Programming
Definition of square torsion
Definition of circular torsion
Pull out
Memory for pieces
* ON during parameters configuration
* ON dduring the invertir performance
* ON during forwarding
* ON during rewinding
It allows moving on through the codes or increase
the value of one parameter
It allows to move on through the codes or reduce the
value of one parameter
It allows to move among groups / numbers of figures
inserted on parameters
It allows to edit parameters or keep the inserted
values
It commands to start up
It allows to stop while it’s running
RST: Resets faults
It allows to change the speed reference frequency

TWISTING MACHINE MT150 A INSTRUCTIONS BOOK 13
6.3. Equipment performance
The system described offers the chance to work in two different modes: manual mode and automatic mode.
6.3.1. Manual mode
The machine works this mode on default, however it is to be remarked that working on the automatic mode is
better, whenever there is a considerable mass production on the same memory.
In manual mode, the user may turn right or left by using the two buttons previously mentioned, so the torsion
can be carried out on his will and desire.
Performance is as simple as when pressing one of the buttons , the machine turns until the the user stops
pressing it.
Once the user thinks he’s got a good point start the torsion of a piece; he inserts it in the mould of the machi-
ne and makes the torsion of that piece, to one direction or the other, depending on the selected button. In
order to finish the torsion just stop pressing the button that was being pressed.
Now that we have twisted the piece, it is necessary to press the button "Left turning"or "Right turning" in order
to pull out the piece since it happens that it is difficult sometimes to get the pieces out once the operation has
been finished.
(Always bear in mind all restictions concerning the kind of torsion and that the pulling out will always be made
the opposite direction of the torsion, and it will make the machine go back a few degrees to enable the co-
ming out of the piece.
7.3.2. Automatic mode
The performance principle of this machine is the same of that one at the Manual mode, the difference lies in
the fact that this mode is used for the mass production of differen pieces,which makes a bit unuseful the use
of the machine in the manual mode.
First, once the user has inserted the mould in the machine, he should specify the starting point of the torsion
to be made. It is necessary to press the "Programming"key then (it will read in the display a label saying
“Define starting point of the torsion").Then he should specify the point the machine requires to define the tor-
sion by using the the buttons for "Left turning"and "Right turning". So when he finds the proper point to insert
the piece in the mould, it is required to stop pressing the turning button to either direction, and to press again
the "programming" button (There appears a label on the display similar to that of "Define kind of torsion").
Once we have reached this point, the user should select whether he want to make a round or square torsion,
since he has alrady put the piece in the machine.in order to do that he has to make it by using the button, no
matter if it is the aforementioned one "Round torsion", or the "Square torsion"one (It will appear a label on the
display similar to "Define kind of torsion", NºP:00 Reference: 0000". It is important to point out that when ma-
king the circle torsion it is only permitted to do it in left direction, for safety reasons, it doesn’t happen the
same when it comes to square torsions since they can be made to both directions. However once the torsion
has been started to one side, it is not possible to go back or change its direction until it has been completely
finished.

TWISTING MACHINE MT150 A INSTRUCTIONS BOOK 14
Now the user should be pressing the “Turn left” button or the “Turn right” button in order to make the torsion
of the piece (Keep in mind the shortcomings according to the kind of torsion). Once the user thinks the pie-
ce is finished he should press the button according to the 8 memories at his disposal (Memory buttons), so
the piece made could be registered then a label will show up on the display: “Registering torsion, Referen-
ce:nnnn”)
Afterwards, another label will show up reading: "Make unlock". It is required now to use the buttons for
"turning left" and "Turning right", it is necessary to specify the point required for the further extraction of the
piece.
The user might be pressing the "Turning left" or "Make unlock" button at this point (keep in mind the short-
comings regarding the kinds of torsion, the pulling out will be carried out always the opposite direction of
the torsion. When the user sees that the piece has been released he should activate the button according
to ("Pulling out" button) in order to register the pulling out operationthet has been carried out, however it is
to be remarked the fact that in case this pulling out does not allow the user to get the piece out easily, it will
be necessary to repeat the whole process again.
In order to make diferent pieces, just follow the steps that have been previously described and end up the
operation registering these torsions in the different memories.
Once you have used all 8 memories it is not necessary to delete any of them to make a new torsion since it
is automatically erased once you program a new torsion on an already existing memory .
In case an already registered torsion has to be repeated, just press the memory button that defines the tor-
sion to be done and follow the indications described in the LCD display.
Moreover, the user has the possibility to control the number of pieces made with each memory tha machine
has. For that, a message will show up on screen reading "Nargesa MT150A, in StandBy" or "Nargesa
MT500A, in StandBy" (Depending on the machine that is performing at the moment the user should press
the button for "Control of manufactured pieces" (a label will show up on the display reading: "Select Me-
mory"). Once this has been done the user ought to select the memory to be displayed so a message will
come out on screen reading "Memory: 01, CNT to delete". In case the user decides to delete this memory,
now that the number of manufactured pieces has been checked, just press the control button again (CNT).
There is also the "Escape" key that allows to go back to the screen, on default ("Nargesa MT150A, in
StandBy"), it can be used whenever there is no torsion in process, if it is so , it is necessary to finish it befo-
re going back to StandBy.
This system has also got a safety system that makes the machine locate the starting point when activated
after being stopped for a time, this starting point is the one from where all references are taken. Like this,
and even if the torsion was made again, the one to be made will be found in the memory that had been se-
lected.
The machine also has an automatic control system that alerts in case the machine has lost refrence for any
reason. It does not happen a lot however, just in case, the user must follow the stepsthat are clearly detai-
led in the LCD display.

TWISTING MACHINE MT150 A INSTRUCTIONS BOOK 15
Last but not least, it is necessary to point out that the system developed is according to the safety regula-
tions and that in case of any emergency stop situation, the machine won’t be able to work again until it rea-
ches its normal way of performance; it is then when the user has to find a new starting point in order to ma-
ke sure that references are still reliable (always if the user agrees with the new situation and following the
indications given in the display, press “ESC” key).

TWISTING MACHINE MT150 A INSTRUCTIONS BOOK 16
6.4. Using the equipment
A graphic way is shown below detailing the steps to follow for reaching a correct performance of the machi-
ne, it comes to be like a part of the previous section. The different screens appearing at each momentwith
the aim of making it easier for the user to understand the functioning of MT150A and MT500A.
6.4.1. Activation of the machine
Picture 1. Screen for starting up the machine.
6.4.2. InicializStarting up the machine
The user presses the “Esc” button
Picture 2. Screen for Initializing.
In this moment the machine makes one turn, then it stops to locate its starting point. Then it will take the
references according to thgis point.
6.4.3. Machine in StandBy
Picture 3. Screen for StandBy on default.
ESC FOR
INITIALIZING
NARGESA MT150A
INITIALIZING
NARGESA MT150A
IN STANDBY

TWISTING MACHINE MT150 A INSTRUCTIONS BOOK 17
6.4.4. Left turning direction
The user presses the button for “Left Turning”
Picture 4. Screen for left turning.
6.4.5. Machine in StandBy
Picture 5. Screen for StandBy on default
When the user is not pressing any of the buttons, the machines enters into a StandBy mode.
6.4.6. Right turning direction
The user presses the button for “Right turning””.
Picture 6. Screen for right turning
6.4.7. Machine in StandBy
Picture 7. Screen for StandBy on default
When the user is not pressing any of the buttons, the machine enters a StandBy.
TURNING DIRECTION
LEFT
NARGESA MT150A
IN STANDBY
RIGHT TURNING
DIRECTION
NARGESA MT150A
IN STANDBY

TWISTING MACHINE MT150 A INSTRUCTIONS BOOK 18
6.4.8. Programing the torsion of one piece
The user presses the button for “Programming”.
Picture 8. starting screen to define onetorsion
6.4.8.1. Finding the starting point
The user I can either press te button for “Left Turning”
Picture 9. Screen for left turning
Or press the button for “Right turning”
Picture 10. Screen for right turning
Until it reaches the point he thinks is the proper one to start twisteing the piece.
Picture 11. Starting screen for defining one torsion
6.4.8.2. Confirm the starting point of the torsion
The user presses the button for “Programming”
Picture 12. Screen to define the kind of torsion
DEFINE STARTING
POINT OF THE TORSION
RIGHT TURNING
DIRECTION
RIGHT TURNING
DIRECTION
DEFINE STARTING
POINT OF THE TORSION
DEFINE TORSION
POINT

TWISTING MACHINE MT150 A INSTRUCTIONS BOOK 19
6.4.8.3. Definition of the kind of torsion
The user can either press the button for “Square torsion”, or press the button for “Circle torsion”.
Picture 13. Screen to define the torsion
6.4.8.4. Performing the torsion
6.4.8.4.1. Square torsion
The user ither press the button for “Turning left”, or the one for “Turning right”
Picture 14. The reference shows the current situation of the torsion
Picture 15. Until the piece has reached the desired torsion
6.4.8.4.2. Circle torsion
The user can only press the button for “Turning left”
Piscture 16. The reference shows the current situation of the torsion
Picture 17. The reference shows the current situation of the torsion
Until the piece has reached the desired torsion
DEFINE TYPE
OF TORSION
DDEFINE TORSION
REFERENCE: 0001
DEFINE TORSION
REFERENCE: 0543
DEFINE TORSION
REFERNCE: 0001
DEFINE TORSION
REFERENCE: 0076
