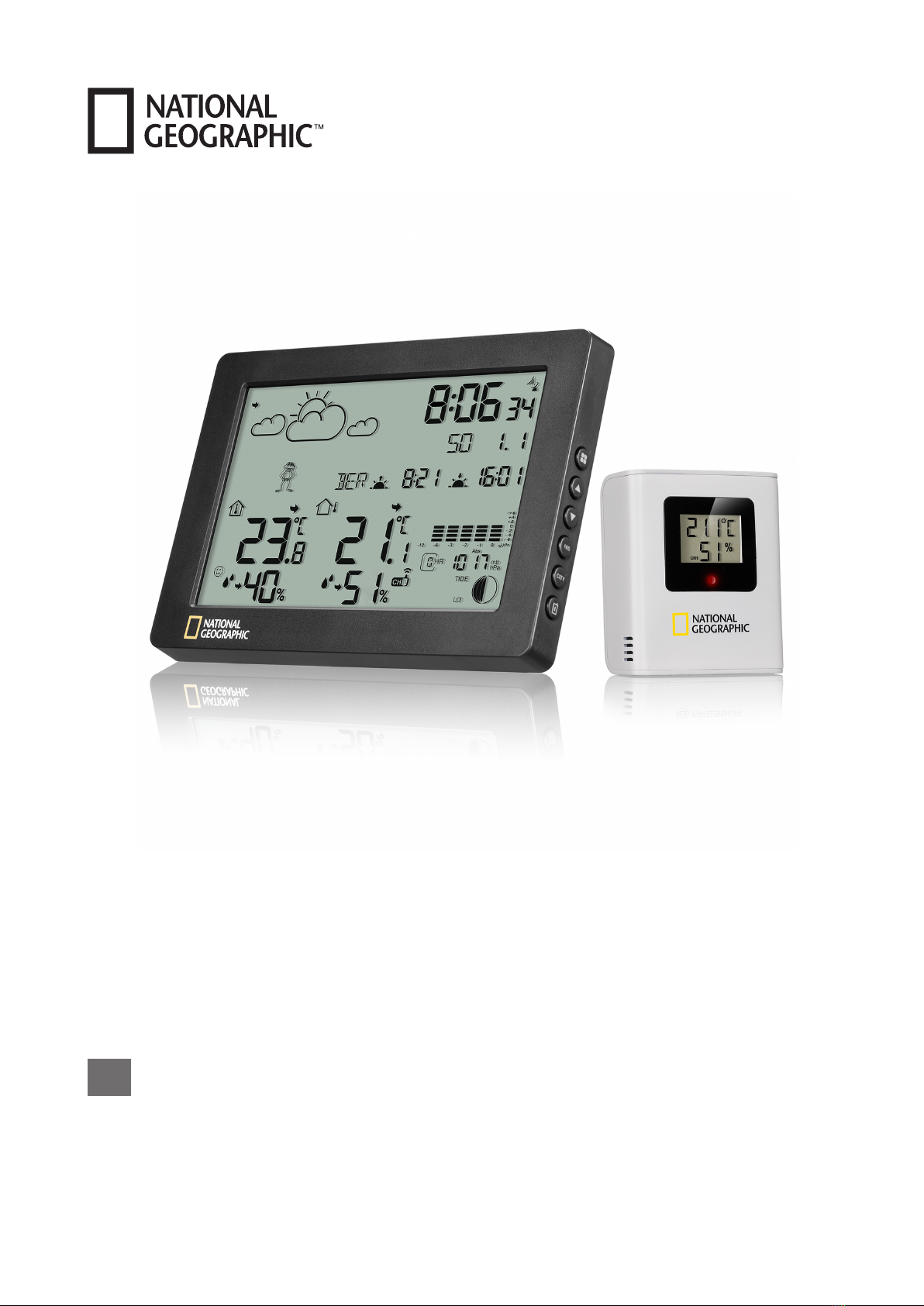

National Geographic BaroTemp HZ User manual

Weather Station ·
BaroTemp HZ
EN Instruction manual

DE
Besuchen Sie unsere Website über den folgenden QR Code oder Weblink um weitere
Informationen zu diesem Produkt oder die verfügbaren Übersetzungen dieser Anleitung zu
finden.
EN
Visit our website via the following QR Code or web link to find further information on this
product or the available translations of these instructions.
FR
Si vous souhaitez obtenir plus d’informations concernant ce produit ou rechercher ce mode
d’emploi en d’autres langues, rendez-vous sur notre site Internet en utilisant le code QR ou le
lien correspondant.
NL
Bezoek onze internetpagina via de volgende QR-code of weblink, voor meer informatie over dit
product of de beschikbare vertalingen van deze gebruiksaanwijzing.
ES
¿Desearía recibir unas instrucciones de uso completas sobre este producto en un idioma
determinado? Entonces visite nuestra página web utilizando el siguiente enlace (código QR)
para ver las versiones disponibles.
IT
Desidera ricevere informazioni esaustive su questo prodotto in una lingua specifica? Venga
a visitare il nostro sito Web al seguente link (codice QR Code) per conoscere le versioni
disponibili.
www.bresser.de/warranty_terms
GARANTIE · WARRANTY · GARANTÍA · GARANZIA
www.bresser.de/P9070110
RECYCLAGE (TRIMAN/FRANCE)

3
Table of contents
1 Imprint ............................................................................................................................................................. 4
2 Validity note .................................................................................................................................................... 4
3 Features .......................................................................................................................................................... 4
4 About this Instruction Manual....................................................................................................................... 5
5 Parts overview and scope of delivery .......................................................................................................... 5
6 Screen display ................................................................................................................................................ 6
7 Setting the city................................................................................................................................................ 7
8 Before commissioning................................................................................................................................... 7
9 Setting up power supply................................................................................................................................ 8
10 Battery level indicator.................................................................................................................................... 8
11 Automatic time setting................................................................................................................................... 8
12 Manual time setting........................................................................................................................................ 8
13 Alarm setting ..................................................................................................................................................9
14 Snooze function .............................................................................................................................................9
15 Switching on temperature alert and/or ice alert .......................................................................................... 9

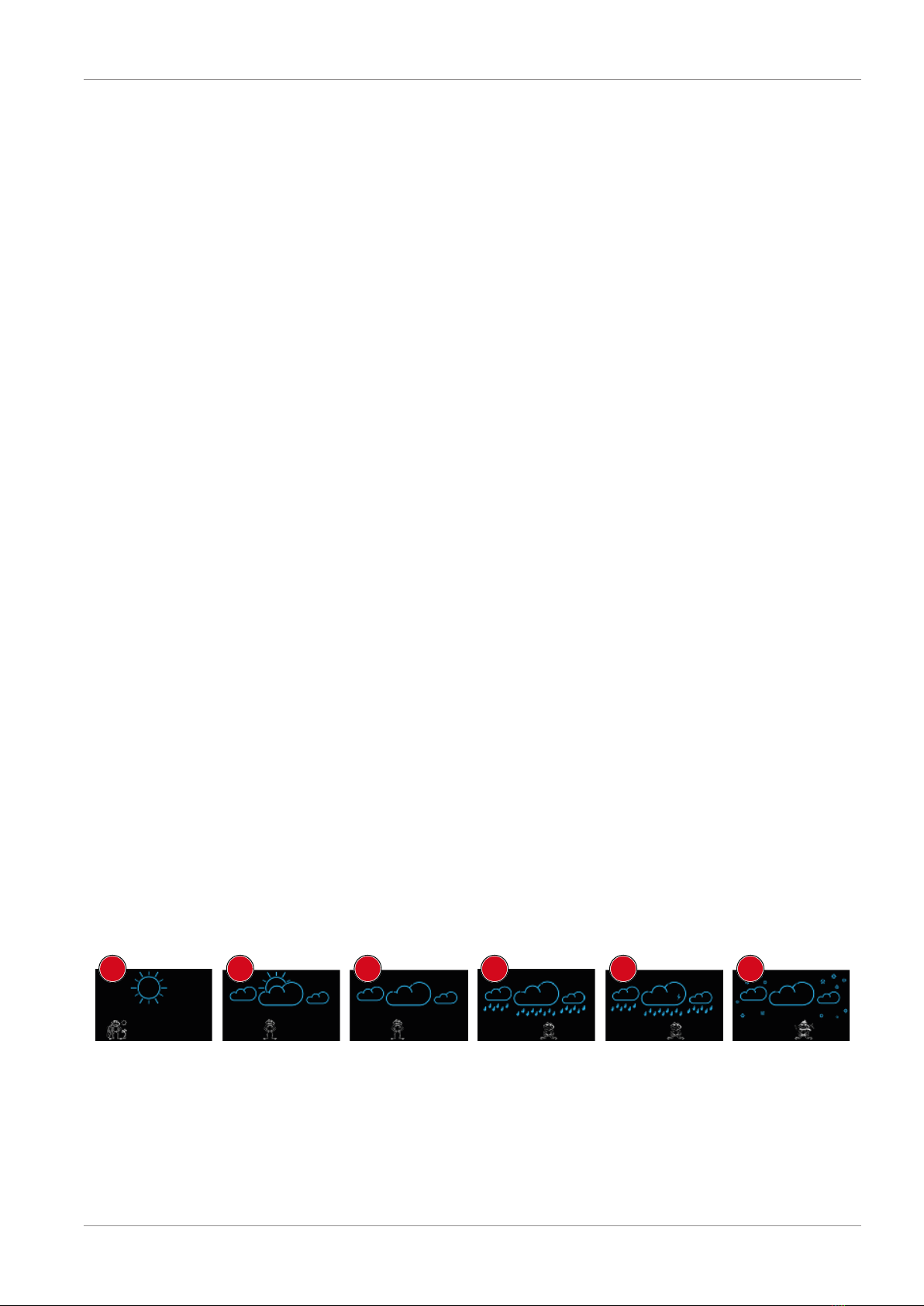

16 Weather trend ................................................................................................................................................. 9
17 Barometric / Atmospheric pressure ........................................................................................................... 10
18 Connecting remote sensors........................................................................................................................ 10
19 Ice pre-alert ................................................................................................................................................... 11
20 MAX/MIN temperature values...................................................................................................................... 11
21 Backlight/Display dimming .........................................................................................................................11
22 Disposal ........................................................................................................................................................ 11
23 Technical data ..............................................................................................................................................11
24 Warranty........................................................................................................................................................ 12
25 EC declaration of conformity ...................................................................................................................... 12
26 UKCA declaration of conformity................................................................................................................. 12

4 / 16
1 Imprint
Bresser GmbH
Gutenbergstr. 2
46414 Rhede
Germany
www.bresser.de
For any warranty claims or service inquiries, please refer to the information on "Warranty" and "Ser-
vice" in this documentation. We ask for your understanding that unsolicited returns cannot be pro-
cessed.
Errors and technical changes excepted.
© 2023 Bresser GmbH
All rights reserved.
The reproduction of this documentation - even in extracts - in any form (e.g. photocopy, print, etc.) as
well as the use and distribution by means of electronic systems (e.g. image file, website, etc.) without
the prior written permission of the manufacturer is prohibited.
The designations and brand names of the respective companies used in this documentation are gen-
erally protected by trade, trademark and/or patent law in Germany, the European Union and/or other
countries.
© National Geographic Partners LLC. All rights reserved.
NATIONAL GEOGRAPHIC and Yellow Border Design are trademarks of National Geographic Society,
used under license.
Visit our website: www.nationalgeographic.com
2 Validity note
This documentation is valid for the products with the following article numbers:
9070110
Manual version: v072023a
Manual designation:
Manual_9070110_BaroTemp-HZ_UK-Version_en_NATGEO_v072023a
Always provide information when requesting service.
3 Features
• Radio-controlled with MSF signal reception
• Six types of weather forecasts
• Barometric recording over 12 hours
• 5 languages of the weekday display
• 12/24H
• °C/°F
• Indoor/outdoor temperature
• Humidity indoor/outdoor
• Recording of the maximum and minimum temperature and humidity
• Low battery indicator
• Temperature and humidity trend
• Outdoor temperature alert

5 / 16
• Weather trend display
• Dual alarm clock with snooze function
• Sunrise and sunset time
• 3-level backlight
4 About this Instruction Manual
NOTICE
These operating instructions are to be considered a component of the device.
Read the safety instructions and the instruction manual carefully before using this device.
Keep these instruction manual in a safe place for future reference. If the device is sold or passed on,
the instruction manual must be passed on to any subsequent owner/user of the product.
5 Parts overview and scope of delivery
HIS
▼
▼
CITY
zZ Z
DST
2
A
10
9
1
14
15
16
17
19
18
13
B
7
5
3
4
6
8
11
12
Illustration1: All parts of the base station and sensor
1 Display 2 SNOOZE/LIGHT button (set snooze function /
adjust display brightness)

6 / 16
3 MODE button (display alarm 1, alarm 2) 4 UP button (increase value)
5 DOWN button (decrease value) 6 HIS button (barometer reading of the last 12
hours)
7 CITY button (for moon phases, tides, sunset
and sunrise)
8 CHANNEL button (channel selection, CH1,
CH2, CH3, channel cycle)
9 Wall mount hole 10 Stand
11 Battery compartment 12 Battery compartment cover
13 Display (wireless sensor) 14 Indicator light
15 Wall mount hole 16 Slide switch for channel selection
17 °C/°F button (change between °C and °F) 18 Battery compartment (wireless sensor)
19 Battery compartment cover (wireless sensor)
Scope of delivery:
Weather station (A), thermo / hygro sensor (B)
Also required (not included):
Station: 3 pcs. Micro batteries (1.5V, type AAA)
Sensor: 2 pcs. Micro batteries (1.5V, type AAA)
6 Screen display
DST
1
13 30
7
235
98
10
11
19
12
15
16 18 23 25 26
29
27
28
20
22
14 21
17 24
6
4
Illustration2: Screen display of the base station
1 Trend arrow weather forecast 2 Graphical weather trend display for the next
12 hours
3 Current time 4 Alarm active

7 / 16
5 Icon for the radio signal 6 Icon for active daylight saving time (DST)
7 Weekday, day, month 8 Time of sunset
9 Time of sunrise 10 City selection (for moon phases, tides, sunset
and sunrise)
11 Icon weather frog 12 Icon indoor temperature
13 Indoor temperature 14 Trend arrow indoor temperature
15 Comfort indicator (climate) 16 Icon humidity
17 Trend arrow humidity (indoor) 18 Humidity (indoor)
19 Icon outdoor temperature 20 Outdoor temperature
21 Trend arrow outdoor temperature 22 Icon humidity (outdoor)
23 Ice alert (frost warning) 24 Trend arrow humidity (outdoor)
25 Humidity (outdoor) 26 Selected channel of the wireless sensor
27 Hour display for barometer reading 28 Moon phases / tides
29 Barometer (air pressure) 30 Histogram
7 Setting the city
Manually set the city near you as follows to ensure that the moon phases, tides, sunset and sunrise
are displayed correctly.
1. press the CITY button.
2. Press the UP or DOWN button to set the desired city.
3. Press the CITY button again.
Setting your own city:
In normal mode, press and hold the CITY button for about 3 seconds to call up your own city, the di-
gits to be set flash, press the UP or DOWN button to change the value, and press the CITY button to
move to the next setting. The order of setting is The first letter for the city name (A-Z) > The second
letter for the city name (A-Z) > The third letter for the city name (A-Z) > GMT time > Longitude > Latit-
ude
Finally, press the CITY button to save the settings and exit the CITY setting mode.
City code
You can find a list of cities as a PDF file at: www.bresser.de/download/City_Codes
8 Before commissioning
NOTICE
Avoid connection faults!
In order to avoid connection problems between the devices, the following points must be observed
during commissioning.
1. Place the base unit (receiver) and sensor (transmitter) as close together as possible.
2. Connect the power supply to the base unit and wait until the indoor temperature is displayed.
3. Establish power supply for the sensor.
4. Set up/operate the base unit and sensor within the effective transmission range.
5. Make sure that the base unit and the radio sensor are set to the same channel.

8 / 16
When changing the batteries, always remove the batteries from both the base unit and the sensor and
reinsert them in the correct order so that the radio link can be re-established. If one of the two devices
is operated via a mains power connection, the power connection must also be briefly disconnected for
this device when the batteries are changed. If, for example, only the batteries in the sensor are re-
placed, the signal may subsequently not be received at all or not be received correctly.
Note that the actual range depends on the respective construction materials used for the buildings as
well as the respective position of the base unit and the outdoor sensor. External influences (various ra-
dio transmitters and other sources of interference) can greatly reduce the possible range. In such
cases, we recommend finding other locations for both the base unit and the outdoor sensor. Some-
times moving the sensor by just a few centimeters is enough!
9 Setting up power supply
Base station
1. Remove the battery compartment cover.
2. Insert the batteries into the battery compartment. Ensure that the battery polarity (+/-) is correct.
3. Replace the battery compartment cover.
4. Wait until the indoor temperature is displayed on the base station.
Remote sensor
5. Remove the battery compartment cover.
6. Insert the batteries into the battery compartment. Ensure that the battery polarity (+/-) is correct.
7. Push the CH button to set the desired transmission channel (setting CH1, CH2, CH3 or channel
cycle) (on screen display).
8. Push the °C/°F button to set the desired temperature format (setting °C or °F on screen display).
9. Replace the battery compartment cover.
10 Battery level indicator
1. When the level of the batteries in the base station or in the wireless sensor reaches a critical level,
the battery level symbol appears in the appropriate area on the display.
2. When replacing one set of batteries, always remove the batteries from the other part of the unit
and reinsert them in the correct order (see chapter "Setting up power supply"). Replace the batter-
ies to be changed in the corresponding part of the device with a completely new set with full capa-
city. This ensures that the connection between the devices will be reestablished again correctly.
11 Automatic time setting
After the power has been restored, the unit automatically searches for the radio signal. It takes ap-
proximately 3-8 minutes for this process to be completed.
If the radio signal is received correctly, the date and time are set automatically and the reception sym-
bol is displayed.
If no radio signal has been received, proceed as follows:
1. Press the UP button for approx. 2 seconds to initiate the reception of the radio signal again.
2. Press the UP button for approx. 2 seconds to initiate the reception of the radio signal again.
3. If still no radio signal is received, the time must be set manually.
12 Manual time setting
1. Press and hold the MODE button for about 3 seconds to enter the time setting mode.
2. Digits to be set are flashing.

9 / 16
3. Press the UP or DOWN button to change the value.
4. Press the SET button to confirm and proceed to the next setting.
5. Sequence of settings:
6. Format 12/24H > Temperature unit >Barometer unit > Hour > Minute>Year > Month>Date
>Language of weekday
7. Finally, press the MODE button to save the settings and exit the settings mode.
8. In normal mode, press the MODE button to check the alarm time.
13 Alarm setting
1. In normal mode, press the MODE button to check the alarm time.
2. When you have checked the alarm time, press the UP button to turn the alarm on or off.
3. When you enter the alarm mode, press and hold the MODE button for about 3 seconds to enter
the alarm setting mode. The digits to be set will flash. Press the UP or DOWN button to change
the value. Press the MODE button to confirm and proceed to the next setting. Sequence of set-
tings: Hour> Minute. Press the MODE button to save the settings and exit the alarm setting mode.
14 Snooze function
1. When the alarm sounds, press SNZ button to activate the snooze function. The alarm will sound
again in 5 minutes.
2. Press any other button when the alarm sounds to interrupt the alarm until the alarm time will be
reached again.
15 Switching on temperature alert and/or ice
alert
1. In normal display mode, press the DOWN button to activate or deactivate the temperature alert,
the ice alert or both in succession.
2. In normal mode, press and hold DOWN button for about 3 seconds to enter the outdoor temperat-
ure alert setting mode, the digits to be set will flash, press UP or DOWN button to change the
value, press MODE button to move to the next setting. The sequence of settings is outdoor HI
temperature > outdoor LO temperature.
16 Weather trend
A weather trend for the next 12-24 hours is calculated from the measured values and graphically dis-
played as follows:
1 2 3 4 5 6
Illustration3: The weather trend indicators on the base station display
Meaning of the icons (from left to right):
sunny / partly cloudy / cloudy / rain / thunderstorm / snow
Weather frog

10 / 16
1 2 3 4
Illustration4: The weather frog icon as weather trend indicator on the base station display
Meaning of the icons (from left to right):
summer temperatures, heat / comfortable temperatures / uncomfortable temperatures / winter temper-
atures, cold
17 Barometric / Atmospheric pressure
Atmospheric pressure (hereinafter referred to as "air pressure") is the pressure at any place on earth
caused by the weight of the layer of air above it. Air pressure is proportional to average pressure and
decreases gradually with altitude. Meteorologists use barometers to measure air pressure. Because
the weather is highly dependent on changes in air pressure, it is possible to make a weather forecast
from the measured changes in air pressure.
To obtain a generally valid air pressure, this is converted to sea level. This calculated value is then the
generally known barometric air pressure.
Find out the value of the air pressure above sea level (also corresponds to the relative air pressure of
your location) from the local weather service, the internet or other sources.
• In the normal display mode, press the HISTORY button to check the barometer reading for the last
12 hours.
• In normal mode, press and hold the HISTORY button to select the type of air pressure and press
the UP or DOWN buttons to select between absolute pressure and relative pressure.
• When entering the relative pressure mode, press the HISTORY button once to change the baro-
meter value. Press the UP or DOWN button to change the value.
NOTE
• The built-in barometer registers changes in absolute air pressure caused by the environment.
Based on the collected data, a forecast for the weather conditions in the next 12 hours can be
made. The weather indicators change according to the determined absolute air pressure after only
one hour of operation.
• High air pressure is always associated with nice weather, while low air pressure indicates rainy
weather.
18 Connecting remote sensors
The weather station can display the readings from up to 3 wireless sensors* of the same type. Each
radio sensor must be set to a separate channel. Proceed as follows to set the channel:
1. Remove the battery compartment cover of the wireless sensor.
2. Set the channel selection switch to the desired channel (1, 2 or 3).
3. Re-attach the battery compartment cover.
4. Press the CHANNEL button on the base station several times to display the measured values for
the individual channels or alternate between them. The selected channel is shown in the display
each time.
5. Press the CHANNEL button for approx. 3 seconds to initiate the search for a sensor.
NOTICE!Each connected wireless sensor must be set to a different channel. If only one wireless
sensor is connected, it should be set to channel 1.

11 / 16
*one wireless sensor included, others optionally available
19 Ice pre-alert
If the ice alert is activated, an alarm will sound for approx. 3 seconds and the icon will flash as long as
the outside temperature is between -1.0 and +3.0 °C.
20 MAX/MIN temperature values
The maximum and minimum readings for indoor and outdoor temperature as well as for the humidity
are stored by the base station over a period of 24 hours:
1. In normal mode, press the UP button to check the record of maximum and minimum temperature
and humidity.
2. When checking the Max/Min record, press and hold the UP button to delete the record.
21 Backlight/Display dimming
1. In battery mode, press the SNZ/LIGHT button to enable the backlight for about 5 seconds.
2. In mains operation, press the SNZ/LIGHT button several times if necessary to dim the backlight in
three steps (weak/middle/strong) or to disable the backlight.
22 Disposal
Dispose of the packaging materials according to its type. Information on proper disposal can
be obtained from the municipal waste disposal service provider or environmental agency.
Do not dispose of electronic devices in the household garbage!
According to the European Directive 2012/19/EU on Waste Electrical and Electronic Equip-
ment and its transposition into national law, used electrical equipment must be collected sep-
arately and recycled in an environmentally sound manner.
Batteries and rechargeable batteries must not be disposed of with household waste. You are
legally obliged to return used batteries and accumulators and can return them after use either
at our sales outlet or in the immediate vicinity (e.g. in the trade or in municipal collection
points) free of charge.
Batteries and accumulators are marked with a crossed-out dustbin and the chemical symbol of
the pollutant, "Cd" stands for cadmium, "Hg" stands for mercury and "Pb" stands for lead.
23 Technical data
Base station
Batteries
Radio controlled signal
Maximum number of sensors
Temperature unit
Temperature measuring range
Humidity measuring range
3x AAA, 1.5 V
MSF
3
°C / °F
-0°C – 50°C
20% to 90% RH

12 / 16
Humidity resolution 1% HR
Barometer measuring range 800 hPa to 1100 hPa (23.62 inHg to 32.49 inHg
Time display HH:MM
Time format 12 or 24 hours
Dimensions 159 x 112 x 26 mm (W x H x D)
Weight 268 g (without batteries) 336 g (with batteries)
Remote sensor
Batteries 2x AAA, 1.5V
Transmission frequency 433 MHz
Transmission measuring range 30 m
Maximum radio-frequency power under 10mW
Temperature unit °C / °F
Temperature measuring range -40°C – 70°C
Humidity measuring range 20% to 90% RH
Humidity resolution 1% HR
Dimensions 65 x 71 x 23 mm (W x H x D)
Weight 50 g (without batteries) 73g (with batteries)
24 Warranty
The regular warranty period is 2 years and starts on the day of purchase. To benefit from an extended
voluntary warranty period as indicated on the gift box, registration on our website is required.
You can consult the full guarantee terms as well as information on extending the guarantee period and
details of our services at www.bresser.de/warranty_terms.
25 EC declaration of conformity
Bresser GmbH hereby declares that the radio equipment type with item number 9070110
is in compliance with Directive 2014/53/EU. The full text of the EC Declaration of Conform-
ity is available at the following web address: www.bresser.de/download/9070110/
CE/9070110_CE.pdf
26 UKCA declaration of conformity
A "Declaration of Conformity" in accordance with the applicable directives and relevant
standards has been issued by Bresser GmbH The full text of the UKCA Declaration of
Conformity is available at the following web address: www.bresser.de/download/9070110/
UKCA/9070110_UKCA.pdf
Bresser UK Ltd. • Suite 3G, Eden House, Enterprise Way, Edenbridge, Kent TN8 6HF,
Great Britain

Service
DE AT CH BE
Bei Fragen zum Produkt und eventuellen
Reklamationen nehmen Sie bitte zunächst mit
dem Service-Center Kontakt auf, vorzugsweise
per E-Mail.
E-Mail: [e-mail]
Telefon*: [phone]
BRESSER GmbH
Kundenservice
Gutenbergstr. 2
46414 Rhede
Deutschland
*Lokale Rufnummer in Deutschland (Die Höhe der Gebühren je
Telefonat ist abhängig vom Tarif Ihres Telefonanbieters); Anrufe aus
dem Ausland sind mit höheren Kosten verbunden.
GB IE
Please contact the service centre first for any
questions regarding the product or claims,
preferably by e-mail.
e-mail: ser[email protected]
Telephone*: [phone]
BRESSER UK Ltd
Customer Support
Suite 3G, Eden House
Enterprise Way
Edenbridge, Kent TN8 6HF
United Kingdom
*Number charged at local rates in the UK (the amount you will be
charged per phone call will depend on the tariff of your phone
provider); calls from abroad will involve higher costs.
FR BE
Si vous avez des questions concernant ce
produit ou en cas de réclamations, veuillez
prendre contact avec notre centre de services
(de préférence via e-mail).
e-mail: [e-mail]
Téléphone**: 00 800 6343 7000
BRESSER France SARL
Service après-vente
Pôle d‘Activités de Nicopolis
314 Avenue des Chênes Verts
83170 Brignoles
France
**Prix d'un appel local depuis la France ou Belgique
NL BE
Als u met betrekking tot het product vragen
of eventuele klachten heeft kunt u contact
opnemen met het service centrum (bij voorkeur
per e-mail).
e-mail: [e-mail]
Teléfono*: [phone]
BRESSER Benelux
Klantenservice
Smirnoffstraat 8
7903 AX Hoogeveen
Nederland
*Het telefoonnummer wordt in het Nederland tegen lokaal tarief
in rekening gebracht. Het bedrag dat u per gesprek in rekening
gebracht zal worden, is afhankelijk van het tarief van uw telefoon
provider; gesprekken vanuit het buitenland zullen hogere kosten
met zich meebrengen.
ES PT
Si desea formular alguna pregunta sobre el
producto o alguna eventual reclamación, le
rogamos que se ponga en contacto con el
centro de servicio técnico (de preferencia por
e-mail).
e-mail: [e-mail]
Teléfono*: [phone]
BRESSER Iberia SLU
Servicio al Cliente
c/Valdemorillo,1 Nave B
P.I. Ventorro del cano
28925 Alcorcón Madrid
España
*Número local de España (el importe de cada llamada telefónica
dependen de las tarifas de los distribuidores); Las llamadas des del
extranjero están ligadas a costes suplementarios.

Bresser GmbH
Gutenbergstraße 2
46414 Rhede · Germany
www.bresser.de
@BresserEurope
