GETTING STARTED GUIDE
IVN-8561
100BASE-T1 Media Converter
POWER
5V
2.8W MAX
#6-32
PORT 4
MASTER
POWER
P1
P3
LINK/ACT
IVN-8561
100BASE-T1 Media Converter
This document describes how to begin using the IVN-8561 100BASE-T1 Media Converter.
The IVN-8561 is a two-channel, four-port media converter that converts data between
100BASE-TX Ethernet and 100BASE-T1 Automotive Ethernet with minimal latency.
Safety Guidelines
Operate the IVN-8561 only as described in this document.
Caution This icon denotes a caution advising you to take precautions to avoid
injury.
Caution Do not operate the IVN-8561 in a manner not specified in this document.
Product misuse can result in a hazard. You can compromise the safety protection
built into the product if the product is damaged in any way. If the product is
damaged, return it to NI for repair.

Electromagnetic Compatibility Guidelines
This product was tested and complies with the regulatory requirements and limits for
electromagnetic compatibility (EMC) stated in the product specifications. These requirements
and limits provide reasonable protection against harmful interference when the product is
operated in the intended operational electromagnetic environment.
This product is intended for use in industrial locations. However, harmful interference may
occur in some installations, when the product is connected to a peripheral device or test object,
or if the product is used in residential or commercial areas. To minimize interference with
radio and television reception and prevent unacceptable performance degradation, install and
use this product in strict accordance with the instructions in the product documentation.
Furthermore, any changes or modifications to the product not expressly approved by National
Instruments could void your authority to operate it under your local regulatory rules.
Electromagnetic Compatibility
This product meets the requirements of the following EMC standards for electrical equipment
for measurement, control, and laboratory use:
• EN 61326-1 (IEC 61326-1): Class A emissions; Industrial immunity
• EN 55011 (CISPR 11): Group 1, Class A emissions
• EN 55022 (CISPR 22): Class A emissions
• EN 55024 (CISPR 24): Immunity
• AS/NZS CISPR 11: Group 1, Class A emissions
• AS/NZS CISPR 22: Class A emissions
• FCC 47 CFR Part 15B: Class A emissions
• ICES-001: Class A emissions
Note In the United States (per FCC 47 CFR), Class A equipment is intended for
use in commercial, light-industrial, and heavy-industrial locations. In Europe,
Canada, Australia and New Zealand (per CISPR 11) Class A equipment is intended
for use only in heavy-industrial locations.
Note Group 1 equipment (per CISPR 11) is any industrial, scientific, or medical
equipment that does not intentionally generate radio frequency energy for the
treatment of material or inspection/analysis purposes.
Note For EMC declarations and certifications, and additional information, refer to
the Online Product Certification section.
2| ni.com | IVN-8561 Getting Started Guide

CE Compliance
This product meets the essential requirements of applicable European Directives, as follows:
• 2014/35/EU; Low-Voltage Directive (safety)
• 2014/30/EU; Electromagnetic Compatibility Directive (EMC)
Online Product Certification
Refer to the product Declaration of Conformity (DoC) for additional regulatory compliance
information. To obtain product certifications and the DoC for this product, visit ni.com/
certification, search by model number or product line, and click the appropriate link in the
Certification column.
Unpacking the Kit
Caution To prevent electrostatic discharge (ESD) from damaging the device,
ground yourself using a grounding strap or by holding a grounded object, such as
your computer chassis.
1. Touch the antistatic package to a metal part of the computer chassis.
2. Remove the device from the package and inspect the device for loose components or any
other sign of damage.
Caution Never touch the exposed pins of connectors.
Note Do not install a device if it appears damaged in any way.
3. Unpack any other items and documentation from the kit.
Store the device in the antistatic package when the device is not in use.
Verifying the Kit Contents
Verify the following components are in your kit.
• IVN-8561, 100BASE-T1 Media Converter
• USB cable assembly, Type-C (male) to Type-A (female), 1 m
• Connector plug (QTY 2)
• Screwdriver, 2 mm, flathead
• Documentation
IVN-8561 Getting Started Guide | © National Instruments | 3

Power Requirements
Input voltage range 5 VDC nominal; USB 3.0 Type C
Max power consumption 2.8 W
Preparing the Environment
Ensure that the environment in which you are using the IVN-8561 meets the following
specifications.
Ambient temperature range -20 °C to 55 °C (Tested in accordance with
IEC 60068-2-1 and IEC 60068-2-2.)
Relative humidity range 10% to 90%, noncondensing (Tested in
accordance with IEC 60068-2-56.)
Maximum Altitude 2,000 m (800 mbar)
Pollution Degree 2
Indoor use only.
Note Refer to the device specifications on http://www.ni.com/manuals for complete
specifications.
Hardware Overview
The IVN-8561 has a total of four communication ports, and one USB port for power.
Ports 1 and 3 are 100BASE-T1 ports for Automotive Ethernet connections using two-position
terminal blocks. Ports 2 and 4 are 100BASE-TX ports for Ethernet connections using 8-pin,
modular RJ-45 connectors.
The 100BASE-T1 interfaces use an NXP TJA1100 100 Mbit/s BroadR-Reach-compliant PHY.
Weidmuller OMNIMATE SL-SMT 3.50/02/90LF terminal block headers are used to connect
to these ports. Compatible plugs are included with the IVN-8561.
Each 100BASE-T1 port can be configured as master or slave, using switches on the front
panel.
The power connector is USB Type-C. Use the USB cable (Type-C to Type-A) included with
the IVN-8561 to power the device from a standard USB 3.0 port on your computer or
industrial controller. The IVN-8561 can be powered from the USB port of any NI PXI,
CompactRIO, or industrial controller.
4| ni.com | IVN-8561 Getting Started Guide

Cabling Requirements
Cabling for port 1 and port 3 connections must be 100BASE-T1 compliant, shielded or
unshielded twisted pair cable, with a maximum length of 15 m and cable impedance of 100 Ω
±10%. Cabling for port 2 and port 4 connections must be Cat 5e or higher Ethernet cable.
LEDs
LEDs on the left side of the front panel indicate Link and Activity on the 100BASE-T1
Automotive Ethernet ports. LEDs on the RJ45 connectors indicate Link, Activity, and
100 Mbit speed on the 100BASE-TX Ethernet ports.
Table 1. LED Indicators
LED LED State Behavior
POWER On Power on
Off Power off
P1 LINK/ACT Steady Link established on port 1, no activity
Blinking Link established on port 1, activity present
Off No link established on port 1
P3 LINK/ACT Steady Link established on port 3, no activity
Blinking Link established on port 3, activity present
Off No link established on port 3
Port 2 LINK/ACT Steady Link established on port 2, no activity
Blinking Link established on port 2, activity present
Off No link established on port 2
Port 2 100 Steady1100 Mbit link speed selected on port 2
Off210 Mbit speed selected on port 2
Port 4 LINK/ACT Steady Link established on port 4, no activity
Blinking Link established on port 4, activity present
Off No link established on port 4
1100 Mbit link speed is the defauilt setting. This LED will be on steady even when no cable is
attached.
210 Mbit link speed is not supported. If this LED is off, packets will not pass through.
IVN-8561 Getting Started Guide | © National Instruments | 5

Table 1. LED Indicators (Continued)
LED LED State Behavior
Port 4 100 Steady1100 Mbit link speed selected on port 4
Off210 Mbit speed selected on port 4
Master/Slave Switches
Switches on the left side of the front panel control master/slave selection for the 100BASE-T1
Automotive Ethernet ports.
Switch Description Position
P1 MASTER/SLAVE 100BASE-T1 port 1 master/slave
selection
Up: Master mode selected
Down: Slave mode selected
P3 MASTER/SLAVE 100BASE-T1 port 3 master/slave
selection
To establish a link between two 100BASE-T1 ports, one port must be configured as master
and the other as slave. The IVN-8561 allows you to establish a link with a port in any
configuration by selecting the appropriate mode with the front panel switch.
When you change the MASTER/SLAVE switch selection, the IVN-8561 immediately changes
the configuration and resets the corresponding 100BASE-T1 and 100BASE-TX ports for that
channel. The master/slave configuration of one channel can be changed without affecting the
other.
DIN Rail Mounting
The NI 9913 DIN rail mounting kit (part number 781740-01) contains one clip for mounting
the IVN-8561 on a standard 35 mm DIN rail. The four holes on the bottom of the IVN-8561
allow the device to be mounted in multiple orientations.
Fasten the DIN rail clip to the IVN-8561 using two FLH #6-32 x 5/16" screws (included in the
kit) with a #2 Phillips screwdriver, as shown in the following figure.
6| ni.com | IVN-8561 Getting Started Guide

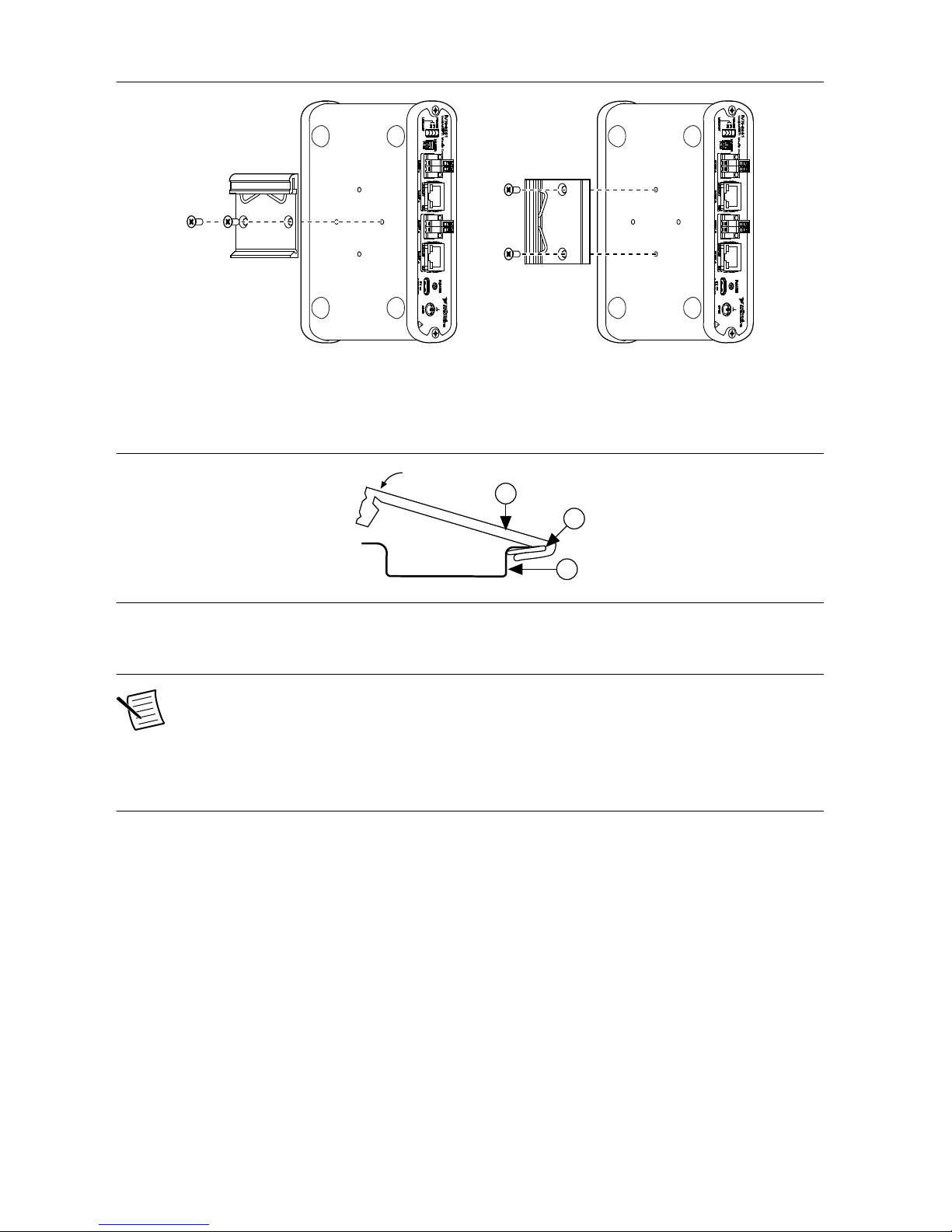

Figure 1. DIN Rail Clip Installation
Clip the chassis onto the DIN rail with the larger lip of the DIN rail clip positioned up, as
shown in the following figure.
Figure 2. DIN Rail Clip Parts Locator Diagram
1
2
3
1. DIN Rail Clip
2. DIN Rail Spring
3. DIN Rail
Note Use only the screws provided in the DIN rail kit. Using longer screws may
damage the IVN-8561.
Wiring the IVN-8561
Terminal block headers are used to connect to the 100BASE-T1 ports. Compatible plugs are
included with the IVN-8561. Attach these plugs to twisted pair cabling to connect a
100BASE-T1 network to ports 1 or 3 of the IVN-8561.
Pin Assignments
Refer to the following tables for descriptions of the terminal block (100BASE-T1) and RJ45
(100BASE-TX) pin assignments.
IVN-8561 Getting Started Guide | © National Instruments | 7

Table 2. 100BASE-T1 Terminal Block Pin Assignments
Connector Pin Signal
12
1 100BASE-T1 Positive (+)
2 100BASE-T1 Negative (-)
Table 3. 100BASE-TX RJ45 Pin Assignments
Connector Pin Signal
1
2
3
4
5
6
7
8
1 Transmit+
2 Transmit-
3 Receive+
4 No Connection (NC)
5 NC
6 Receive-
7 NC
8 NC
Connecting the IVN-8561
Connect the IVN-8561.
1. Use twisted pair cable and the provided terminal blocks to connect your 100BASE-T1
network to ports 1 or 3 of the IVN-8561.
2. Use a Cat 5e Ethernet cable to connect 100BASE-TX network to ports 2 or 4 of the
IVN-8561.
Note 100 Mbit link speed must be selected for ports 2 and 4, indicated by the
LED next to the port.
3. Connect one end of the USB power cable to the IVN-8561, and connect the other end to a
standard USB 3.0 port.
4. Optionally, use the ground screw on the IVN-8561 to attach a ground cable.
8| ni.com | IVN-8561 Getting Started Guide

Functional Diagram
100BASE-T1 is the standard for 100 Mbit/s Automotive Ethernet. The physical connection
consists of an unshielded twisted pair cable over which two connected nodes transmit and
receive simultaneously in point-to-point full-duplex operation.
The IVN-8561 provides two channels to convert data between 100BASE-TX Ethernet and
100BASE-T1 Automotive Ethernet. Each channel consists of one port for 100BASE-T1
communication and one port for 100BASE-TX communication. The IVN-8561 uses a two-
position terminal block to connect a 100BASE-T1 Automotive Ethernet system to the device.

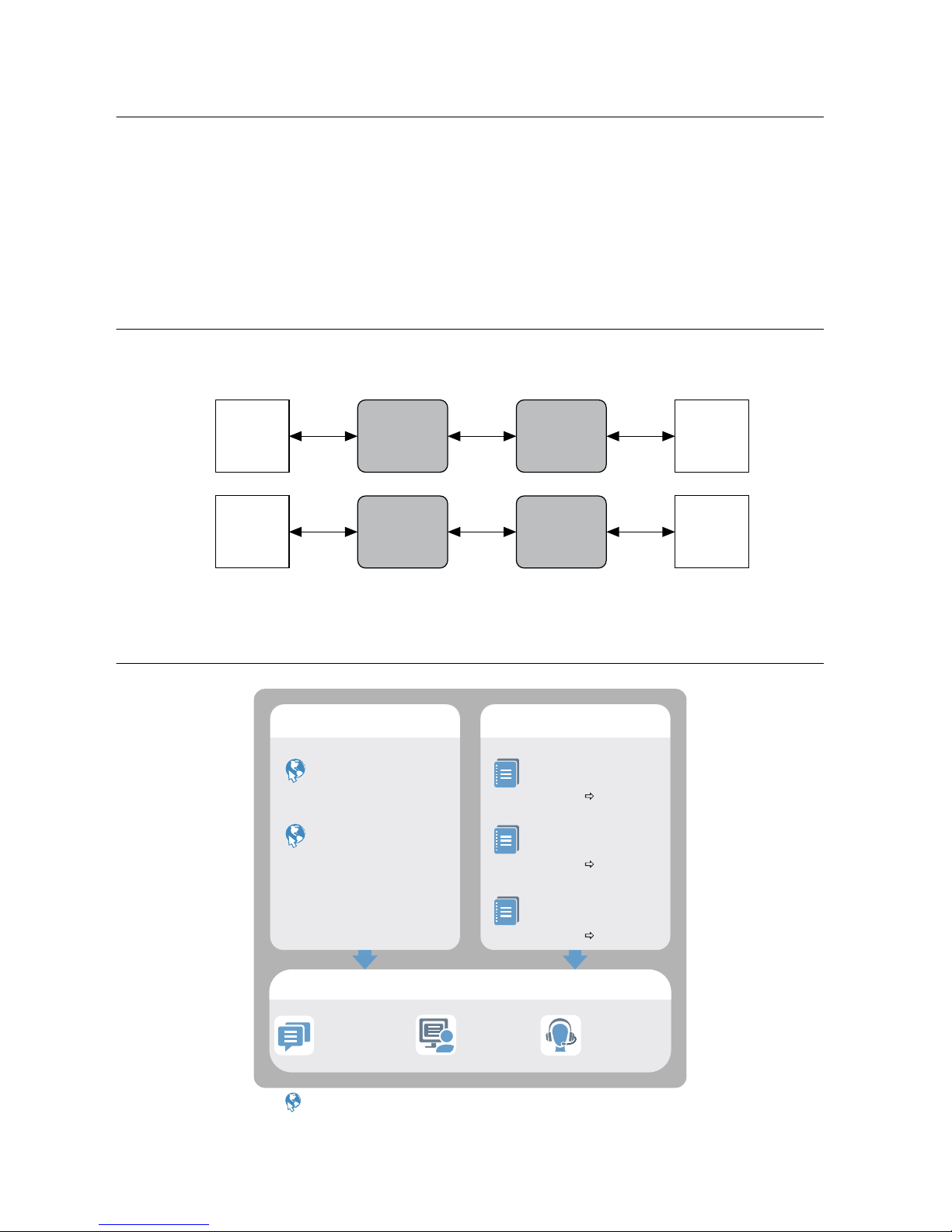

Figure 3. IVN-8561 Connected to 100BASE-T1 and 100BASE-TX Networks
100BASE-T1
PHY
Terminal
Block
Port 1
100BASE-T1
PHY
100BASE-TX
PHY
100BASE-TX
PHY
Terminal
Block
Port 3
RJ-45
Connector
Port 2
RJ-45
Connector
Port 4
100 BASE-T1
Automotive Ethernet
100 BASE-TX
Ethernet
Where to Go Next
Hardware
SupportSupport
Services
ni.com/services
Located at ni.com/manuals
IVN-8561 Specifications
IVN-8561 Getting
Started Guide
Getting Started with
Automotive Ethernet
ni.com/info aegs
Automotive Ethernet
Software
ni.com/info aesw
Support
ni.com/support
NI Community
ni.com/community
Automotive Ethernet
LabVIEW Automotive
Ethernet Community
ni.com/info lvae
IVN-8561 Getting Started Guide | © National Instruments | 9

Worldwide Support and Services
The NI website is your complete resource for technical support. At ni.com/support, you have
access to everything from troubleshooting and application development self-help resources to
email and phone assistance from NI Application Engineers.
Visit ni.com/services for NI Factory Installation Services, repairs, extended warranty, and
other services.
Visit ni.com/register to register your NI product. Product registration facilitates technical
support and ensures that you receive important information updates from NI.
A Declaration of Conformity (DoC) is our claim of compliance with the Council of the
European Communities using the manufacturer’s declaration of conformity. This system
affords the user protection for electromagnetic compatibility (EMC) and product safety. You
can obtain the DoC for your product by visiting ni.com/certification. If your product supports
calibration, you can obtain the calibration certificate for your product at ni.com/calibration.
NI corporate headquarters is located at 11500 North Mopac Expressway, Austin, Texas,
78759-3504. NI also has offices located around the world. For telephone support in the United
States, create your service request at ni.com/support or dial 1 866 ASK MYNI (275 6964). For
telephone support outside the United States, visit the Worldwide Offices section of ni.com/
niglobal to access the branch office websites, which provide up-to-date contact information,
support phone numbers, email addresses, and current events.
Information is subject to change without notice. Refer to the NI Trademarks and Logo Guidelines at ni.com/trademarks for
information on NI trademarks. Other product and company names mentioned herein are trademarks or trade names of their
respective companies. For patents covering NI products/technology, refer to the appropriate location: Help»Patents in your
software, the patents.txt file on your media, or the National Instruments Patent Notice at ni.com/patents. You can find
information about end-user license agreements (EULAs) and third-party legal notices in the readme file for your NI product. Refer
to the Export Compliance Information at ni.com/legal/export-compliance for the NI global trade compliance policy and how
to obtain relevant HTS codes, ECCNs, and other import/export data. NI MAKES NO EXPRESS OR IMPLIED WARRANTIES AS
TO THE ACCURACY OF THE INFORMATION CONTAINED HEREIN AND SHALL NOT BE LIABLE FOR ANY ERRORS. U.S.
Government Customers: The data contained in this manual was developed at private expense and is subject to the applicable
limited rights and restricted data rights as set forth in FAR 52.227-14, DFAR 252.227-7014, and DFAR 252.227-7015.
© 2017 National Instruments. All rights reserved.
376833A-01 November 30, 2017
