NI PCI-8254R Quick Start Guide
The NI PCI-8254R is an IEEE 1394a interface device for PCI with
reconfigurable I/O (RIO). The following sections describe how to install
and configure the NI 8254R.
What You Need to Get Started
You need the following items to set up and use the NI 8254R:
❑NI Vision Acquisition Software 8.0 or later
❑NI Vision Acquisition Software Release Notes
❑Computer running Windows 2000/XP with at least one PCI slot
❑IEEE 1394 camera
❑IEEE 1394a cable
❑Cable for digital I/O
❑External power supply to support powering isolated outputs
❑Optional software packages and documentation:
– NI Vision for LabVIEW, LabWindows™/CVI™, or Measurement
Studio (Visual Basic)
– Vision Builder for Automated Inspection
–LabVIEW
– LabVIEW FPGA Module
– LabWindows/CVI
– Measurement Studio

NI PCI-8254R Quick Start Guide 2 ni.com
Optional Equipment
National Instruments offers a variety of products for use with the
NI 8254R, including the following:
• Digital I/O cable and horizontal DIN rail terminal block
(part number 778790-01)1
• Digital I/O cable and vertical DIN rail terminal block
(part number 778791-01) 1
• 24 V, 50 W power supply (part number 778794-01)
• NI Vision I/O Terminal Block and Prototyping Accessory
(part number 779166-01)
• Sony IEEE 1394 high resolution monochrome camera
(part number 778849-01)
• Basler IEEE 1394 standard resolution monochrome camera
(part number 778785-01)
• LED ringlight and constant current source (part number 778787-01)
• 12 mm fixed focal length lens (part number 778789-01)
For specific information about these products, refer to the
National Instruments catalog, visit ni.com, or contact the National
Instruments office nearest you.
Safety Information
Caution The following paragraphs contain important safety information you must follow
when installing and operating the device.
Do not operate the device in a manner not specified in the documentation.
Misuse of the device may result in a hazard and may compromise the safety
protection built into the device. If the device is damaged, turn it off and do
not use it until service-trained personnel can check its safety. If necessary,
return the device to National Instruments for repair.
Keep away from live circuits. Do not remove equipment covers or shields
unless you are trained to do so. If signal wires are connected to the device,
hazardous voltages can exist even when the equipment is turned off. To
avoid a shock hazard, do not perform procedures involving cover or shield
removal unless you are qualified to do so. Disconnect all field power prior
to removing covers or shields.
1 When using this accessory with the NI 8254R, three of the digital I/O signals on the device are not accessible. Refer to the
Connectors topic in the NI 8254R Help for more information.

©National Instruments Corporation 3 NI PCI-8254R Quick Start Guide
If the device is rated for use with hazardous voltages (>30 Vrms, 42.4 Vpk,
or 60 Vdc), it may require a safety earth-ground connection wire. Refer to
the device specifications for maximum voltage ratings.
Because of the danger of introducing additional hazards, do not install
unauthorized parts or modify the device. Use the device only with the
chassis, modules, accessories, and cables specified in the installation
instructions. All covers and filler panels must be installed while operating
the device.
Do not operate the device in an explosive atmosphere or where flammable
gases or fumes may be present. Operate the device only at or below the
pollution degree stated in the specifications. Pollution consists of any
foreign matter—solid, liquid, or gas—that may reduce dielectric strength
or surface resistivity. The following is a description of pollution degrees.
• Pollution Degree 1—No pollution or only dry, nonconductive
pollution occurs. The pollution has no effect.
• Pollution Degree 2—Normally only nonconductive pollution occurs.
Occasionally,nonconductivepollutionbecomes conductivebecauseof
condensation.
• Pollution Degree 3—Conductive pollution or dry, nonconductive
pollution occurs. Nonconductive pollution becomes conductive
because of condensation.
Clean the device and accessories by brushing off light dust with a soft,
nonmetallic brush. Remove other contaminants with a stiff, nonmetallic
brush. The unit must be completely dry and free from contaminants before
returning it to service.
You must insulate signal connections for the maximum voltage for which
the device is rated. Do not exceed the maximum ratings for the device.
Remove power from signal lines before connection to or disconnection
from the device.
Caution National Instruments measurement products may be classified as either
Measurement Category I or II. Operate products at or below the Measurement Category
level specified in the hardware specifications.
Measurement Category1: Measurement circuits are subjected to working
voltages2and transient stresses (overvoltage) from the circuit to which they
are connected during measurement or test. Measurement Category
establishes standardized impulse withstand voltage levels that commonly
1 Measurement Categories as defined in electrical safety standard IEC 61010-1.
2 Working voltage is the highest rms value of an AC or DC voltage that can occur across any particular insulation.

NI PCI-8254R Quick Start Guide 4 ni.com
occur in electrical distribution systems. The following is a description of
Measurement (Installation1) Categories:
• Measurement Category I is for measurements performed on circuits
not directly connected to the electrical distribution system referred to
as MAINS2voltage. This category is for measurements of voltages
from specially protected secondary circuits. Such voltage
measurementsincludesignallevels, special equipment,limited-energy
parts of equipment, circuits powered by regulated low-voltage sources,
and electronics.
• Measurement Category II is for measurements performed on circuits
directly connected to the electrical distribution system. This category
refers to local-level electrical distribution, such as that provided by a
standard wall outlet (e.g., 115 V for U.S. or 230 V for Europe).
Examples of Measurement Category II are measurements performed
on household appliances, portable tools, and similar products.
• Measurement Category III is for measurements performed in the
building installation at the distribution level. This category refers to
measurements on hard-wired equipment such as equipment in fixed
installations, distribution boards, and circuit breakers. Other examples
are wiring, including cables, bus-bars, junction boxes, switches,
socket-outlets in the fixed installation, and stationary motors with
permanent connections to fixed installations.
• Measurement Category IV is for measurements performed at the
primary electrical supply installation (<1,000 V). Examples include
electricity meters and measurements on primary overcurrent
protection devices and on ripple control units.
Unpacking
The NI 8254R ships in an antistatic package to prevent electrostatic
discharge from damaging device components. To avoid such damage in
handling the device, take the following precautions:
• Ground yourself using a grounding strap or by holding a grounded
object, such as the computer chassis.
• Touch the antistatic package to a metal part of the computer chassis
before removing the device from the package.
Caution Never touch the exposed pins of connectors.
1 Measurement Category is also referred to as Installation Category.
2 MAINS is defined as the (hazardous live) electrical supply system to which equipment is designed to be connected for the
purpose of powering the equipment. Suitably rated measuring circuits may be connected to the MAINS for measuring
purposes.

©National Instruments Corporation 5 NI PCI-8254R Quick Start Guide
Remove the device from the package and inspect it for loose components
or any other signs of damage. Notify National Instruments if the device
appears damaged in any way. Do not install a damaged device in the
computer.
Store the NI 8254R in the antistatic package when not in use.
Installation
The following instructions are for general installation. Refer to the
documentation provided by your computer manufacturer for specific
instructions and warnings about installing hardware in the computer. Refer
to the Specifications section for a list of the typical power requirements for
the NI 8254R.
1. Install NI Vision Acquisition Software before installing the NI 8254R
device. Refer to the NI Vision Acquisition Software Release Notes for
installation and configuration instructions.
2. Power off and unplug the computer.
Caution To protect yourself and the computer from electrical hazards, the computer must
remain unplugged until the installation is complete.
3. Remove the computer cover to expose the expansion slots.
4. Choose an unused PCI slot, and remove the corresponding expansion
slot cover on the back panel of the computer.
5. Touch a metal part on the computer case to discharge any static
electricity on your clothes or body before handling the NI 8254R.
Static electricity can damage the device.
6. Remove the NI 8254R from the antistatic package and gently rock the
NI 8254R into the slot. The connection may be tight, but do not force
the device into place.
Note Check that the bracket of the NI 8254R lines up with the hole in the back panel rail
of the computer chassis.
7. Unless yourcomputer secures expansiondevicesin a differentmanner,
screw the mounting bracket of the device to the back panel rail of the
computer.
8. To provide power to your camera, connect an unused power connector
from the ATX power supply on your computer to the camera power
ATX connector on your NI 8254R.
9. Replace the computer cover.

NI PCI-8254R Quick Start Guide 6 ni.com
10. Connect the IEEE 1394a cable to your camera. Refer to your camera
manufacturer documentation for specific instructions about how to
connect the IEEE 1394a cable to your camera.
11. Connect the IEEE 1394a cable to an IEEE 1394a connector on the
NI 8254R front panel. Refer to Figure 1 for the location of the
IEEE 1394a connectors on the NI 8254R.
12. Plug in and power on the computer.
The NI 8254R is now installed and your camera is connected.
Refer to Figure 1 for information about placement of the connectors on the
NI 8254R.

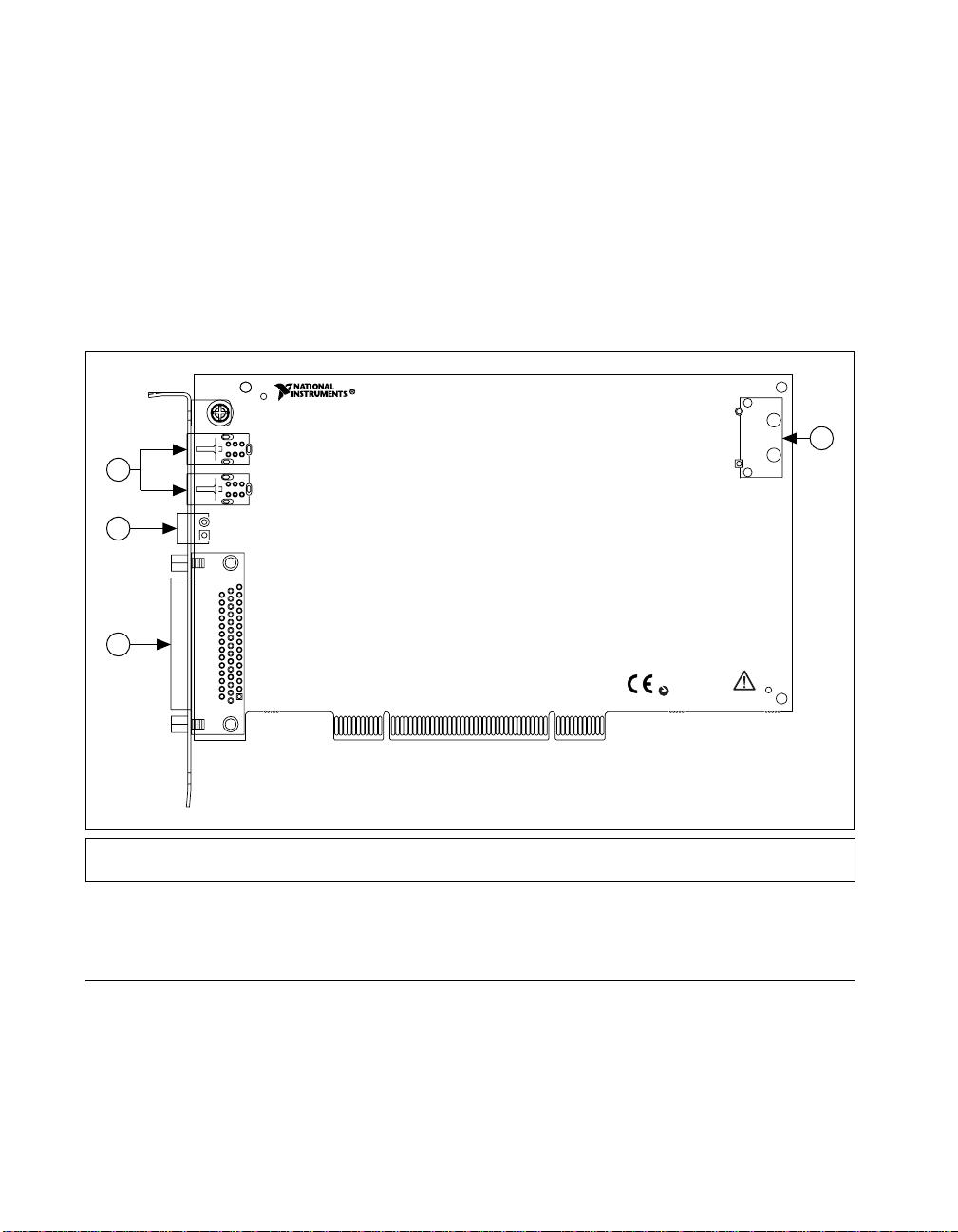

Figure 1. NI 8254R Connectors
Wiring Isolated Output Power to the NI 8254R
This section describes how to connect the NI desktop power supply for the
isolatedoutputs (part number778794-01) to theNI8254R. For instructions
on how to connect a separate main supply, refer to the Connecting to the
Isolated Outputs Power Supply section.
1 IEEE 1394a Connectors
2 2-Position Isolated Outputs Power Connector 3 44-Pin D-SUB Connector 4 Camera Power ATX Connector
2
1
3
4
N114

©National Instruments Corporation 7 NI PCI-8254R Quick Start Guide
Caution Do not connect the NI 8254R isolated power to a source less than 5 VDC or
greater than 30 VDC. Doing so could damage the NI 8254R device.

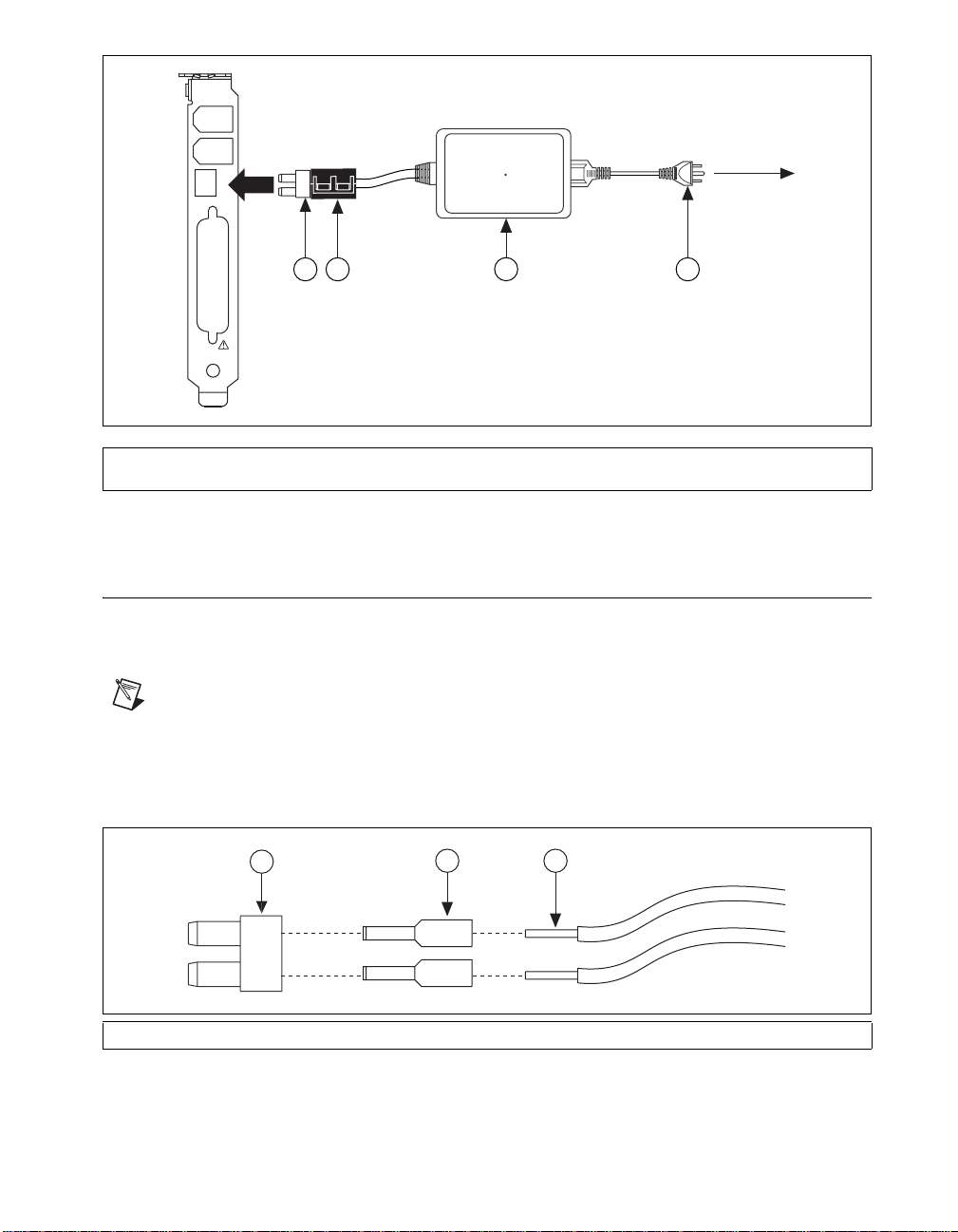

To connect power for the isolated outputs to the NI 8254R, refer to
Figures 2 through 6 while completing the following steps:

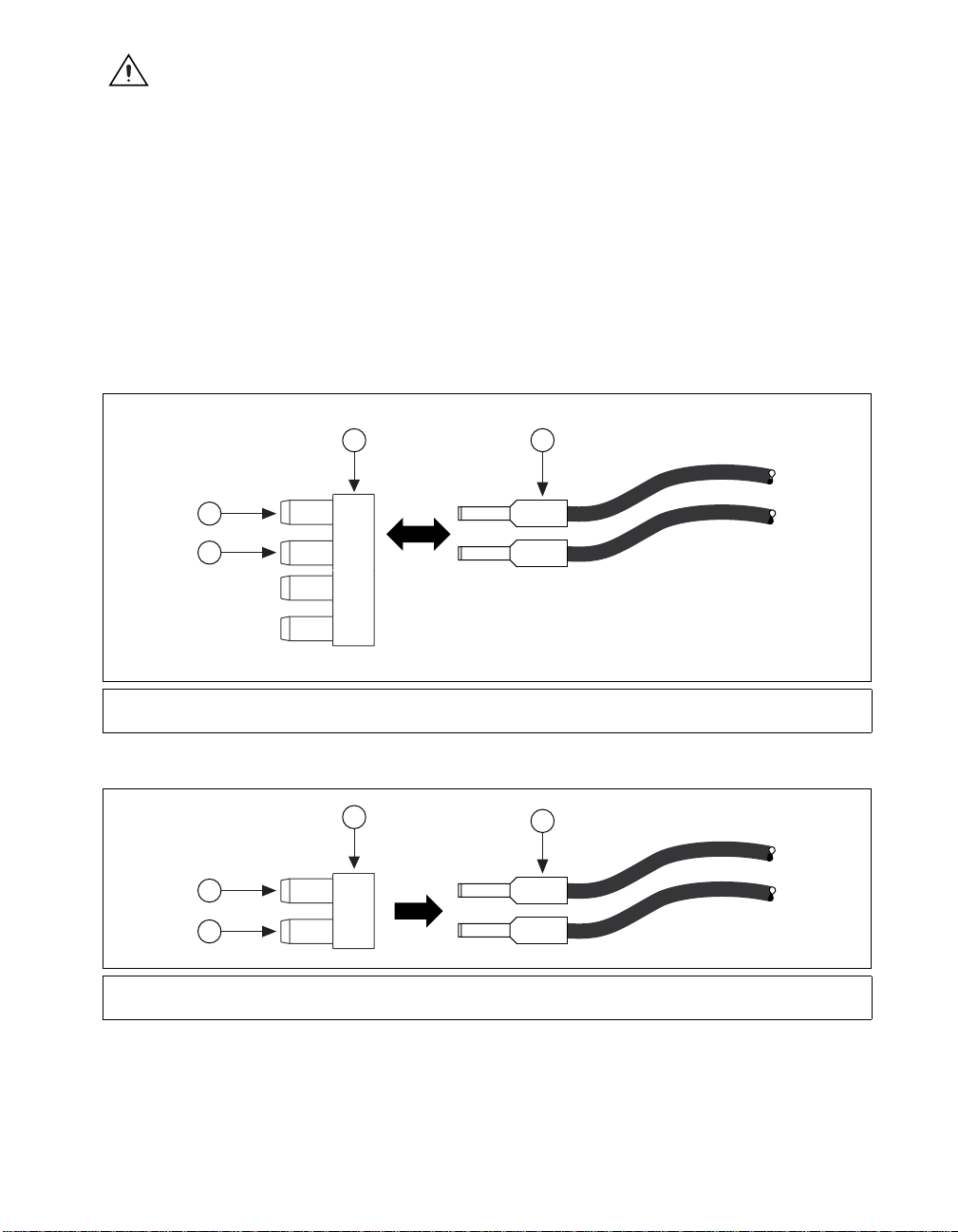

1. If you are using the NI desktop power supply, remove the 4-position
power connector connected to the power supply, shown in Figure 2.
a. Reconnect the wire that was connected to the V position on the
4-position power connector to the V position on the 2-position
isolated outputs power connector, shown in Figure 3.
b. Reconnect the wire that was connected to the C position on the
4-position power connector to the C position on the 2-position
isolated outputs power connector, shown in Figure 3.
Figure 2. Removing the 4-Position Power Connector from the Power Supply
Figure 3. Connecting the 2-Position Power Connector to the Power Supply
2. Plug the 2-position isolated outputs power connector from the power
supply into the power receptacle on the NI 8254R.
1 4-Position Power Connector
2 V Position 3 C Position 4 Power Supply Wire and Optional Ferrule
1 2-Position Isolated Outputs Power Connector
2 C Position 3VPosition 4 Power Supply Wire and Optional Ferrule
2
3
4
1
2
3
4
1

NI PCI-8254R Quick Start Guide 8 ni.com
3. (Optional)Tosuppresselectromagnetic interference,installaferriteon
the power supply cable as close to the connection to the NI 8254R as
possible. Wrap the power supply cable around the ferrite two times, as
shown in Figures 4 and 5.
Figure 4. Installing a Ferrite Connector on the Power Supply Cable
Figure 5. Closed Ferrite on the Power Supply Cable
4. Plug the power supply cable into the power supply.
5. Plug the power supply cord into an outlet.
1 Power Supply Output Cable
2Ferrite 3 2-Position Power Connector
1 Power Supply Output Cable
2Ferrite 3 2-Position Power Connector
1
2
3
1
2
3

©National Instruments Corporation 9 NI PCI-8254R Quick Start Guide
Figure 6. Wiring Power to the NI 8254R
Connecting to the Isolated Outputs Power Supply
If you use a power supply other than the NI desktop power supply, follow
the instructions in this section to connect power to the NI 8254R.
Note If you are not using the NI desktop power supply, you can optionally use 0.75 mm2,
18 AWG ferrules according to the manufacturer specifications to terminate the wires
leading to the 2-position power connector, shown in Figure 7. Ferrules are available from
Phoenix Contact (part number 3200519).
Figure 7. Wiring a Third-Party Power Supply to the 2-Position Power Connector
1 2-Position Isolated Outputs Power Connector
2 Ferrite (Optional) 3 NI Desktop Power Supply 4 Power Supply Cord (to Outlet)
1 2-Position Power Connector 2 Optional Ferrule 3 Power Supply Wires
4
To Outlet
1 2 3
23
1

NI PCI-8254R Quick Start Guide 10 ni.com
Caution Do not connect the NI 8254R isolated power to a source less than 5 VDC or
greater than 30 VDC. Doing so could damage the NI 8254R.
The NI 8254R ships with a 2-position power connector that plugs directly
into the isolated outputs power input connector on the NI 8254R. To wire
power to the 2-position connector, complete the following steps:
1. Wire the voltage output of the isolated power supply to the isolated
outputs power input, labeled V, on the 2-position connector.
2. Wire the common-mode signal (ground) output of the power supply
to the isolated outputs common-mode signal input, labeled C, on the
2-position connector.
Configuring the NI 8254R
After you have installed the NI 8254R and powered on your computer,
Windows will recognize the device and assign resources to it. Use
Measurement & Automation Explorer (MAX), the National Instruments
configuration utility, to configure the IEEE 1394 camera connected to the
NI 8254R for acquisition.
Note You must install NI Vision Acquisition Software 8.0 or later before configuring your
camera in MAX. Refer to the NI Vision Acquisition Release Notes for information about
configuring your camera.
Related Documentation
The following documents contain additional information about the
NI 8254R:
•NI Vision Acquisition Software Release Notes—This document
contains information about how to install the driver software.
•LabVIEW Help—This document contains reference information for
the NI-IMAQ I/O shutdown states VIs, terminal references for the
configurable I/O module on the NI-IMAQ I/O device, and parameter
references for the parameters you can set for the NI-IMAQ I/O device
in the Read/Write control. To locate the information, search for
NI-IMAQ I/O in the LabVIEW Help.

©National Instruments Corporation 11 NI PCI-8254R Quick Start Guide
Specifications
These specifications are typical at 25 °C, unless otherwise stated.
Power Requirements
IEEE 1394 bus power1...........................18 W, maximum
(sharedbybothports)
Isolated supply2......................................5 to 30 VDC
Camera interface .................................... IEEE 1394a
TTL Inputs and Outputs
Digital logic levels
TTL Inputs
Number of channels ...............................2
Maximum pulse rate...............................2 MHz
Minimum pulse detected........................500 ns
Power-on state........................................Input (high-impedance)
61.9 kΩpull-up to 5V
TTL Outputs
Number of channels ...............................10
Output voltage range.............................. 0 V to 5 V
1 The bus power specification assumes that power is provided to the NI 8254R device from the host computer power supply via
the ATX power connector. If power isnot supplied through this connector, camera power is supplied by the PCI bus and should
be limited to 5 W, shared by both ports.
2 Do not draw more than 500 mA combined from the Viso pins on the 44-pin D-SUB connector. Do not draw more than 100 mA
from 30 V isolated outputs. Do not draw more than 50 mA from 5 V isolated outputs.
Level Minimum Maximum
Input low voltage (VIL)0 V 0.5 V
Input high voltage (VIH)2.2 V 5 V
Output low voltage (VOL), at 5 mA —0.4 V
Output high voltage (VOH), at 5 mA 2.4 V —

NI PCI-8254R Quick Start Guide 12 ni.com
Maximum pulse rate...............................2 MHz
Optically Isolated Inputs and Outputs
Isolated (Current Sinking) Inputs
Number of channels................................13
Input voltage range.................................0 V to 30 V
Input ON voltage.............................3.5 V to 30 V
Input OFF voltage............................0 V to 2 V
Turn-on current.......................................7.1 mA, typical
14 mA, maximum
Maximum pulse rate...............................100 kHz
Minimum pulse detected ........................10 μs
Reverse polarity protection.....................Yes, –30 V
Isolated (Current Sourcing) Outputs
Number of channels................................4
On-state voltage range............................5 V to 30 V, maximum
Maximum on-state voltage
drop from V.....................................1.2 V at 100 mA
Output current
5 V isopower....................................50 mA, maximum
24 V isopower..................................100 mA, maximum
30 V isopower..................................100 mA, maximum
Maximum pulse rate...............................10 kHz (maximum load
resistance 100 kΩ)
Minimum pulse generated ......................100 μs
Reverse polarity protection.....................Yes
IEEE 1394 Number of ports......................................2
Speed ......................................................100, 200, or 400 Mbps

©National Instruments Corporation 13 NI PCI-8254R Quick Start Guide
Physical Characteristics
Dimensions.............................................10.7 cm ×17.5 cm
(4.2 in. ×6.9 in.)
Weight....................................................114 g (4.0 oz)
Environment The NI 8254R device is intended for indoor use only.
Operating temperature............................0 °C to 55 °C
Storage temperature ...............................–20 °C to 70 °C
Relative humidity...................................5% to 90%, noncondensing
Pollution Degree ....................................2
Caution Do not use the NI 8254R for connection to signals within Measurement
Categories II, III, or IV.
Measurement Category..........................I
Approved at altitudes up to 2,000 m.
Safety The NI 8254R is designed to meet the requirements of the following
standards of safety for electrical equipment for measurement, control, and
laboratory use:
• IEC 61010-1, EN 61010-1
• UL 61010-1, CSA 61010-1
Note For UL and other safety considerations, refer to the product label, or visit
ni.com/certification, search by model number or product line, and click the
appropriate link in the Certification column.

NI PCI-8254R Quick Start Guide 14 ni.com
Electromagnetic Compatibility
The NI 8254R is designed to meet the requirements of the following
standards of EMC for electrical equipment for measurement, control, and
laboratory use:
• EN 61326 EMC requirements; Minimum Immunity
• EN 55011 Emissions; Group 1, Class A
• CE, C-Tick, ICES, and FCC Part 15 Emissions; Class A
Note For EMC compliance, operate this device with shielded cabling.
CE Compliance The NI 8254R meets the essential requirements of applicable European
Directives, as amended for CE marking, as follows:
• 73/23/EEC; Low-Voltage Directive (safety)
• 89/336/EEC; Electromagnetic Compatibility Directive (EMC)
Note Refer to the Declaration of Conformity (DoC) for this product for any additional
regulatory compliance information. To obtain the DoC for this product, visit ni.com/
certification, search by model number or product line, and click the appropriate link
in the Certification column.
Note The NI 8254R may experience temporary data interruption if exposed to
electrostatic discharge (ESD).
Waste Electrical and Electronic Equipment (WEEE)
EU Customers At the end of their life cycle, all products must be sent to a WEEE recycling
center. For more information about WEEE recycling centers and National Instruments
WEEE initiatives, visit ni.com/environment/weee.htm.

©National Instruments Corporation 15 NI PCI-8254R Quick Start Guide
Where to Go for Support
The National Instruments Web site is your complete resource for technical
support. At ni.com/support you have access to everything from
troubleshooting and application development self-help resources to email
and phone assistance from NI Application Engineers.
A Declaration of Conformity (DoC) is our claim of compliance with the
Council of the European Communities using the manufacturer’s
declaration of conformity. This system affords the user protection for
electroniccompatibility (EMC) andproduct safety.Youcanobtain theDoC
for your product by visiting ni.com/certification. If your product
supports calibration, you can obtain the calibration certificate for your
product at ni.com/calibration.
National Instruments corporate headquarters is located at
11500 North Mopac Expressway, Austin, Texas, 78759-3504.
National Instruments also has offices located around the world to help
address your support needs. For telephone support in the United States,
create your service request at ni.com/support and follow the calling
instructions or dial 512 795 8248. For telephone support outside the United
States, contact your local branch office:
Australia 1800 300 800, Austria 43 0 662 45 79 90 0,
Belgium32027570020,Brazil551132623599,
Canada 800 433 3488, China 86 21 6555 7838,
Czech Republic 420 224 235 774, Denmark 45 45 76 26 00,
Finland3850972572511,France330148142424,
Germany 49 0 89 741 31 30, India 91 80 41190000,
Israel 972 0 3 6393737, Italy 39 02 413091, Japan 81 3 5472 2970,
Korea820234513400,Lebanon96101332828,
Malaysia 1800 887710, Mexico 01 800 010 0793,
Netherlands 31 0 348 433 466, New Zealand 0800 553 322,
Norway 47 0 66 90 76 60, Poland 48 22 3390150,
Portugal 351 210 311 210, Russia 7 095 783 68 51,
Singapore 1800 226 5886, Slovenia 386 3 425 4200,
South Africa 27 0 11 805 8197, Spain 34 91 640 0085,
Sweden460858789500,Switzerland41562005151,
Taiwan 886 02 2377 2222, Thailand 662 278 6777,
United Kingdom 44 0 1635 523545

National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation.
Refer to the Terms of Use section on ni.com/legal for more information about National
Instrumentstrademarks.Otherproductand company namesmentionedherein aretrademarksortrade
names of their respective companies. For patents covering National Instruments products, refer to the
appropriate location: Help»Patents in your software, the patents.txt file on your CD, or
ni.com/patents.
© 2005–2006 National Instruments Corporation. All rights reserved. 374129B-01 Sep06
