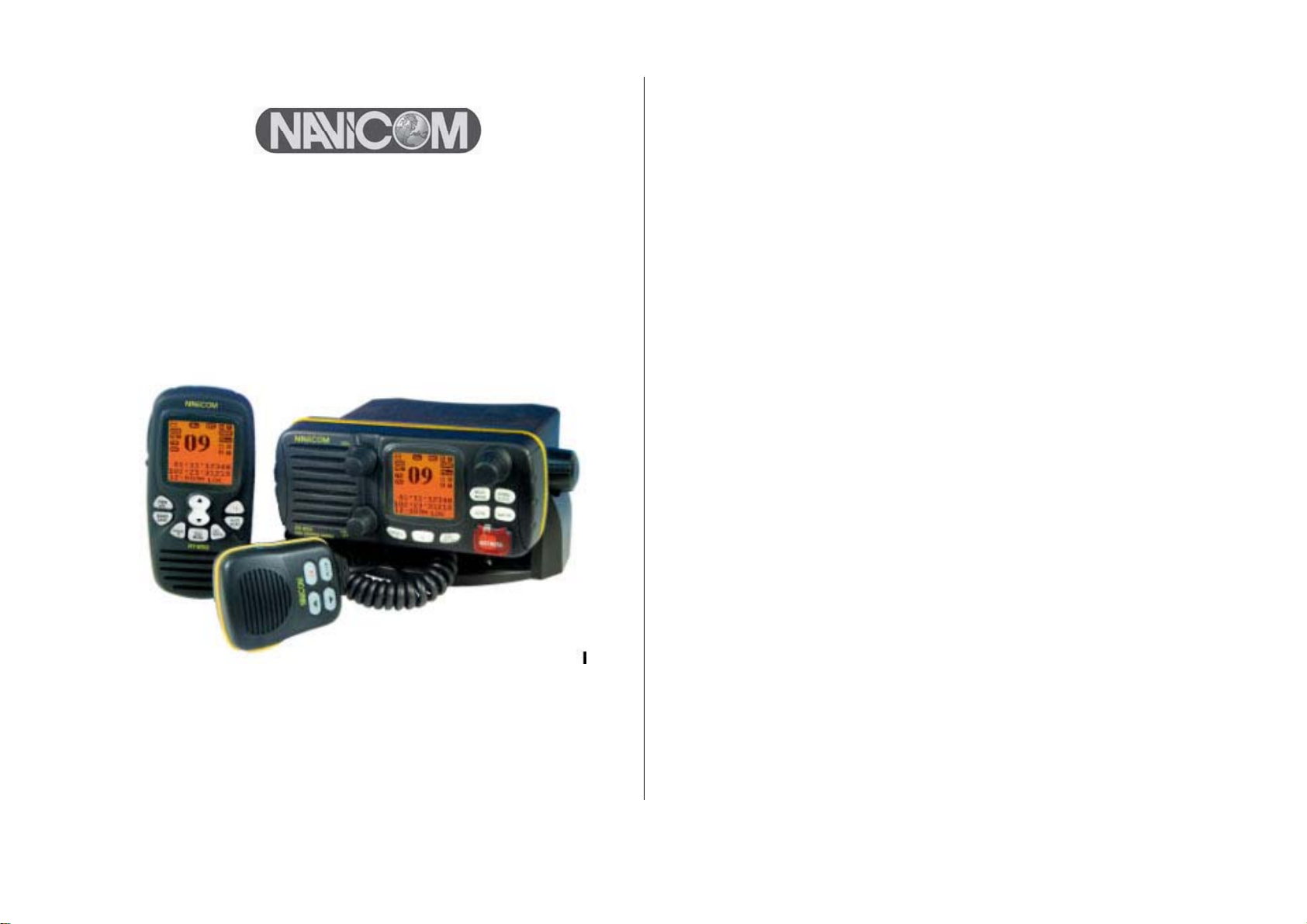

NAVICOM RT-650 User manual

1 2
RT-650 VHF Marine Radio
With Wireless Accessory Microphone
With Integrated AIS Receiver
Owner’s Manual
OPERATOR WARNING
Navicom requires the radio operator to meet the requirements for Radio
Frequency Exposure. Unauthorized changes or modifications to this
equipment may void compliance with ETSI Rule. Any changes or
modifications must be approved in writing by Navicom.
This equipment has been tested and licensed to comply with the limits for Class D
Digital Marine Devices. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment can generate
or radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications and human
body. Never transmit before you make sure the antenna is properly installed.
This device is only an aid to navigation. Its performance can be affected by many
factors including equipment failure or defects, environmental condition and improper
handling or use. It is the user's responsibility to exercise common prudence and
navigational judgment, and this device should not be relied upon as a substitute for
such prudence and judgment. Your Navicom VHF radio generates and radiates radio
frequency (RF) electromagnetic energy (EME). This equipment must be installed and
operated in accordance with the instructions contained in this handbook. Failure to do
so can result in personal injury and/or product malfunction.

3 4
TABLE OF CONTENTS
1. EQUIPMENT DESCRIPTION ……………………………………………………….7
1.1 INTRODUCTION ……………………………………………………………...7
1.2 ETSI INFORMATION …………………………………………………………7
2. CONTROLS AND LCD DISPLAY..…….…………….……………….…………….8
2.1 BASE STATION PANEL ……………………………………………………..8

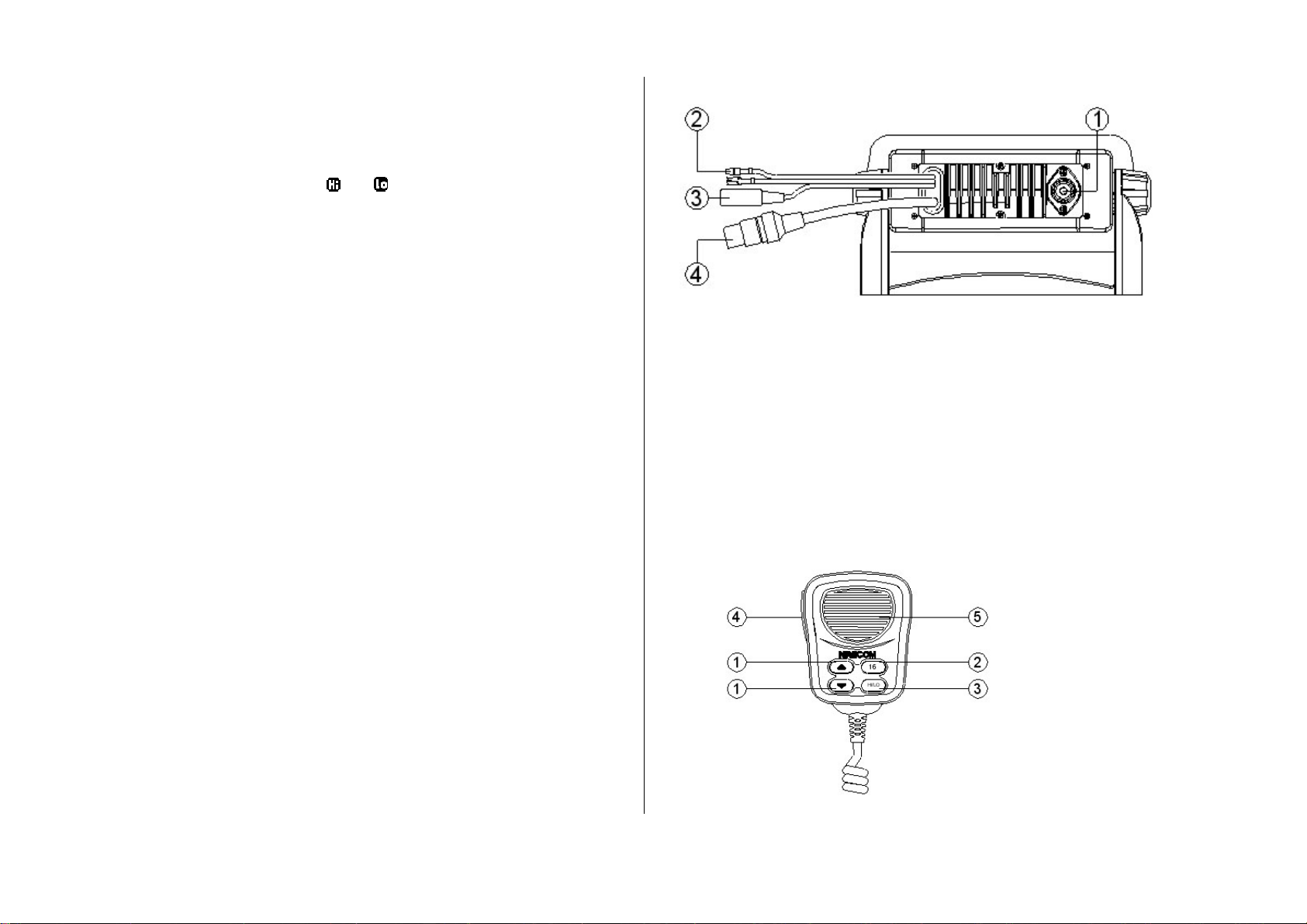

2. 2 BASE STATION PANEL (REAR) ………………………………………....10
2. 3WIRED HANDSET …………………………………………………………..10

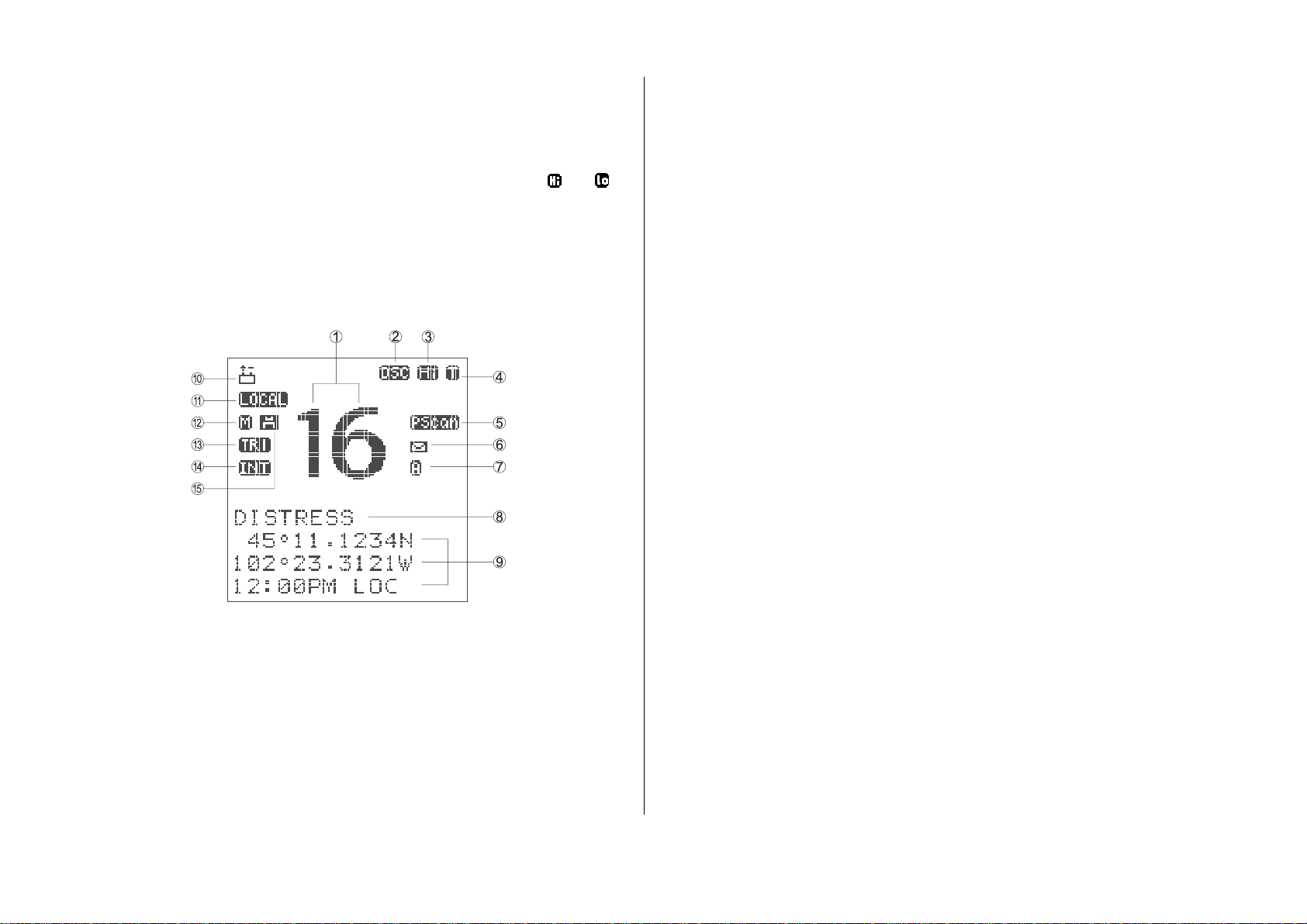

2. 4 LCD DISPLAY OF BASE STATION ………………………………………11
3. INSTALLATION …………………………………………………....………….....…13
3.1 SUPPLIED ACCESSORIES ....………...……………………..……………13
3.2 LOCATION …………………………………………………………………...13
3.3 CONNECTIONS ……………………………………………………………..14
3.4 MOUNTING THE RADIO …………………………………………...………15
3.5 ANTENNA MOUTING/THE EME EXPOSURE ………………...…..…….17
3.6 MOUNTING THE HANDSET ………………………………….......….……17
4. BASIC OPERATION ………………………………………....………………....….18
4.1 TRANSMISSION AND RECEPTION ……………………………...………18
4.2 BAND SWITCH …………………………………………...……….………...18
4.2.1 USA AND INT MODE …………………………………...…....………18
4.2.2 MEMO (FAV) MODE …………………………………………...….....19
4.3 SAVE MEMORY (FAV) CHANNELS …………………………...…………19
4.4 TRANSMIT TIME-OUT-TIMER (TOT) ……………...……...………....…..19
4.5 SCAN ……………………………………………………………………...….19
4.6 WATCH …………………………………………………………………........20
4.6.1 DUAL WATCH ……………………………………………………...…20
4.6.2 TRI WATCH ……………………………………………………...……20
4.7 POSITION INDICATION ……………………………………………...…....20
4.8 INTERCOM ……………………………………………………………...…...20
5. DIGITAL SELECTIVE CALLING ……………………………………………….…21
5.1 GENERAL ………………………………………………....……………...….21
5.1.1 MARITIME MOBILE SEVICE IDENTITY …………………….……..21
5.1.2 HOW CAN I OBTAIN A MMSI ASSIGNMENT ...…....……….…….21
5.2. DSC CALL TYPES ………………………………………………….………22
5.2.1 SEND A DISTRESS CALL ………………………………….…..…...23
5.2.2 SEND AN ALL SHIPS CALL ……………………………….……..…23
5.2.3 SEND A GROUP CALL ………………………………………...…….24
5.2.4 MAKE A ROUTING CALL (INDIVIDUAL) ……………………..……25
5.2.4.1 MANUALLY SENDING AN INDIVIDUAL CAL …...…...…….25
5.2.4.2 SENDING AN INDIVIDUAL CALL) …………...…...…………26
5.2.4.3 ACK OF AN INDIVIDUAL INCOMING CALL ...…...………...26
5.2.5 LAST CALL ……………………………...…...……………...……26
5.2.6 SEND AN IND. CALL USING THE CALL LOG ………..………26
5.2.7 SEND AN IND. CALL USING THE DISTRESS LOG ………....27
5.2.8 POS REQUEST AND POP REPLY ………………...…………..…27
5.2.8.1 POS REQUEST…………………………………………………27
5.2.8.2 POS REPLY …………………………………………………….28
5.3 RECEIVING DSC CALL ……………………………………...…………….….28
5.3.1 DISTRSS CALL ……………………………………....………….28
5.3.2 DISTRSS ACK FROM A COAST STATION …………………..29
5.3.3 DISTRESS RELAY CALL ………………………………...……..29
5.3.4 ALL SHIPS CALL ……………………………………...…………29
5.3.5 GROUP CALL …………………………………………………….30
5.3.6 INDIVIDUALCALL ………………………………………...……...30
5.3.7 “POSITION RELAY” CALL …………………...………...……….30
5.3.8 GEOGRAPHIC AREA CALL ……………………......…………..30
6. SET UP MENU …………………………………………………………………………31
6.1 MENU FUNCTION DESCRIPTION ………………………………..…………31
6.2 SET-UP MENU NAVIGATION ………………………………………..………32
6.3 BUDDY LIST ………………………………………………………..…………..32
6.3.1 ADDING AN ENTRY …………………………………….………………32
6.3.2 EDIT EXISTING ENTRY …………………………….………………….32
6.3.3 DELETE AN ENTRY …………………………………….………………33
6.4 BACKLIGHT ADJUSTMENT ………………………………….………………33
6.5 CONTRAST ADJUSTMENT …………………………………….…………….33
6.6 LOCAL/DISTANT ………………………………………....…….……...………33
6.7 GPS/TIME ……………………………………………………………….………34
6.7.1 MANUAL ENTRY GPS DATE ………………………...………..………34
6.7.2 SETTING ……………………………………………….…………………34
6.7.2.1 POSITION DISPLAY ON/OFF ……………...…….……………35
6.7.2.2 TIME DISPLAY ON/OFF …………………....…….………...….35
6.7.2.3 LOCAL TIME (TIME OFFSET) …………………...……..……..35
6.7.2.4 TIME FORMAT OPTIONS (TIME FORMAT) ...…………..…..35
6.7.2.5 COURSE/SPEED DISPLAY OPTIONS (COG/SOG) ......…...36
6.7.2.6 GPS ALERT …………………………………………………..….36
6.8 RADIO SETUP …………………………………………………………….……36
6.8.1 LANGUAGE SELECTION…………………………………………36
6.8.2 CHANNEL NAME ………………………………………………….36
6.8.2.1 CHANNEL NAME DISPLAY ………………………...….….36
6.8.2.2 CHANNEL NAME EDITING …………………………….….37
6.8.3 RING VOLUME ADJUSTMEN ……………………………….…..37
6.8.4 KEY VOLUME ADJUSTMENT ……………………………….…..37
6.8.5 INT SPEAKER ON/OFF………………………………….………..37
6.9 DSC SETUP …………………………………………………………….………38
6.9.1 ENTER YOUR USER MMSI (USER MMSID) ……………....….…….38
6.9.2 MAINTAIN GROUPS ……………………………………………..……..39
6.9.2.1 ENTER YOUR GROUPS ……………………………...…...…..39
6.9.2.2 EDIT USER GROUPS ……………………………....……..…...39
6.9.2.3 DELETE A GROUP ………………………………......…………39
6.9.3 ATIS MMSI ………………………………………………………..……...40
6.9.4 ATIS ENABLE ……………………………………………………..……..40

5 6
6.9.5 DSC ENABLE ……………………………………………………………40
6.9.6 POS REPLY ………………………………………………....…………..41
6.10 AIS SETUP ………………………………………………...………....………41
6.11 HS SETTING……………………………………………….......……………..41
6.12 RESET …………………………………………….......……….......…………41
7.0 AUTOMATIC LDENTIFICATION SYSTEM (AIS) RECEIVER ……...…...…….42
7.1 WHAT IS AIS ………………………………………………...………......……42
7.2 CLASSES OF AIS …………………………………………….....……………42
7.3 STATIC AND DYNAMIC INFORMATION …………………….....…………43
7.4 AIS INFORMATION AND DISPLAY ………………………...……..……….44
7.4.1 AIS DATA OUTPUT …………………………………...……......………44
7.4.2 AIS DATA DISPLAY …………………………………...…………..……45
7.4.2.1 AIS DATA DISPLAY FORMAT ……………….....………………46
7.4.2.2 AIS DATA DISPLAY MODE ……………………….....………….46
8.0 RT-650-M WIRELESS MICROPHONE ……………………………….....……….48
8.1 LOOK AT THE MICROPHONE ……………………………...……......……48
8.2 LOOK AT THE DISPLAY OF HANDSET ……………………….....………50
8.3 SETTING UP MICROPHONE ……………………………………..………..51
8.3.1 INSTALLING THE BATTERY PACK ……………………..……….51
8.3.2 CHARGING THE BATTERY………………………………..………51
8.3.3 INSTALLING THE BELT-CLIP……………………………..………52
8.3.4 MOUNTING THE CRADLE CHARGER …………………..……...52
8.4 BASIC OPERATION ……………………………………………………..….52
8.4.1 LINK THE WIRELESS MICROPHONE TO THE RADIO …..…..52
8.4.2 TRANSMISSION AND RECEPTION ………………………..……53
8.4.3 BAND SWITCH ……………………………………...………...……54
8.4.3.1 USA AND INT MODE …………………...………......………54
8.4.3.2 SAVE MEMORY (FAV) CHANNELS …………………..…..54
8.4.4 SCAN …………………………………………………………..…….55
8.4.5 WATCH ………………………………………………………..…….55
8.4.5.1 DUAL WATCH …………………………………………..…55
8.4.5.2 TRI WATCH ……………………………………………..…55
8.4.6 POSITION INDICATION ………………………………...………...55
8.4.7 INTERCOM …………………………………………...……….……55
8.5 SETTING MENU ………………………………………………………….…56
8.6 DSC CALL MENU AND SENDING AND RECEIVING DSC CALLS .....57
9.0 MAINTENANCE ……………………………………………………………………57
10.0 SPECIFICATION …………………………………………………………………59
11.0 CHANNEL LIST ………………………………………………...……....…….….60

7 8
1 EQUIPMENT DESCRIPTION
1.1 INTRODUCTION
Congratulations on your purchase of Navicom marine band radio. RT-650 is a VHF
DSC Base Station Radio with output power of 25/1 watt. It should be powered by a
13.8VDC power supply.
The radio can support DSC (Digital Selective Calling) operation with specially
designed DSC unit. When being connected with GPS, it will display the position
(longitude and latitude) of the vessel. Compact fist microphone makes for convenient
operation of the equipment
The radio have built-in Automatic Identification System (AIS) receiver, to fulfill a need
for vessels to know the position, details and navigational intentions of other vessels
within VHF range for improved safety and collision avoidance.
The radio is equipped with the new generation 2.4GHz Remote-control wireless
Handset microphone (RT-650-M), Convenient operation on board free from wire limit
Other features of the radio include:
 Access to all available International channels (currently allocated).
 Allows memory all channels for quick recall and memory scan.
 Provides as many as 20 user programmable names with MMSI, and 20 individual
calls for DSC communications.
 Rotary volume control with power on/off, rotary channel selector and rotary
squelch adjustable knob give you more convenient operation of the radio.
 Outstanding performance of waterproof complying with Japanese Industry
Standard level 7.
 25 watts high output power allows you make contact with others in a long
distance of marine communication; and 1 watt low power for short distance.
 Separate 16 button, for quick selection of the emergency call on CH16.
 Adjustable brightness of backlit for good visibility of the large LCD in various
circumstance.
 External interface easy to connect to GPS and external speaker.
 Mounting gimbals for firm and reliable location of your base station in difference
condition.
1.2 ETSI INFORMATION
ETSI (European Telecommunications Standard Institute) has stipulated the specific
requirements (EN 301 025-1/2/3) on marine radio with class D DSC feature, For use
on non-SOLAS vessels.
2 CONTROLS AND LCD DISPLAY
2.1 BASE STATION (PANEL)
①VOLUME and POWER 0-270°rotary control Knob. Turn clockwise to power on.
Continue to turn until a comfortable audio level
②SQL Use this knob to set the squelch threshold, which cuts off
the receiver when the signal is too week for reception of
anything but noise.
③CH/ENTER Rotary encoder (no stop) with momentary push
Rotate this knob to change the current number and
change values in menu mode or during programming.
Press the knob to enter values
④BAND/SAVE Select band (USA. Or INT), Press and hold down to set
memory channels
⑤CANCEL/IC The button to Cancel last selection or change without
saving. It allows step back one level on menu mode. It
cancels DSC Distress calls & auto-retransmission of
DISTRESS calls. Hold the button to select Intercom
mode

9 10
⑥DSC / Menu Use this knob to enter DSC Call Menu or Setup Menu
Press to enter DSC Menu, and Hold down to enter the
Radio Setup Menu
⑦HI/LO / MEMO Press button to toggle between 25 watt and 1 watt
output. “ ” or “ ” icon appears on LCD display to
indicate setting
Hold the button to select memory channels mode.
⑧SCAN Start and stop normal or priority scan and memory
channels or priority channels scan.
⑨WATCH Start or Stop dual watch or tri-watch,
⑩16 Press button to access channel 16 quickly
Press button to quit all other modes and to into the
priority channel
11 DISTRESS This button is used to send a signal of distress in case of
emergency. See DSC Operation for details of sending
the call. This button is cover by a spring cover.
NOTE: The Distress Function or any other transmitted
DSC function does not work unless a user’s MMSI has
been entered.
12 LCD Large LCD (39mmx39mm) with viewable area of graph dot
matrix makes it easy to be read.
13 Built-in Speaker Guarantee a clear ring and voice communication
2.2 BASE STATION (REAR)
①Antenna Socket Connect a suitable antenna to your marine VHF radio
to get a satisfying communication.
②Power Source Connect the radio to a 13.8 VDC power source.
③External Speaker
Jack
If need be, you can also use this cable to connect an
external speaker.
④External Connector Connect the radio to a GPS receiver, and output AIS
data to PC or plotter
2.3 Wired HANDSET

11 12
①Channel Up/
Down Press and release to change channel.
②16 Press and release 16 button to select channel 16 first;
Press 16 button to quit all other modes and to into the
priority channel.
③Hi/Low Press and release HI/LO button to toggle between 25
watt power output and 1 watt output. The “ ” or “ ”
icon appears on LCD display to indicate the setting.
④PTT Push to enable VHF communication through the 25/1-
Watt transmitter.
⑤Internal
Microphone Well receive your voice information and ensure a
reliable communication.
2.4 LCD Display of Base Station
①CHANNEL NUMBER READOUT
Indicates the selected operating channel number, "A" appears when
a simplex channel is selected. "b" appears when a receive only
channel for a Canadian channel group is selected.
In set mode, indicated the selected condition.
"IC"appears during intercom mode
②DSC INDICATOR
"DSC"appears if DSC function Enable.
③Hi/Low POWER INDICATOR
Hi appears while power set to 25W, Lo appears while power
set to LO.
④BUSY/TRANSMIT INDICATOR
Appears when receiving a signal or when the squelch opens.
Appears while transmitting.
⑤SCAN INDICATOR
"SCAN"appears during normal scan.
"P SCAN" appears during priority scan.
⑥MESSAGE UNREAD INDICATOR
The Envelop icon appears if there is received DSC call you had not
read yet.
⑦DUPLEX INDICATOR
Appears when a duplex channel is selected.
⑧CHANNEL NAME INDICATOR
Channel comment appears (and scrolls) if programmed.
In set mode, indicates or scrolls the selected set mode item.
⑨LL AND TIME INFORMATION
Latitude and Longitude of the vessel, and the local time.
⑩LOW BATTERY INDICATOR
Appears when Battery voltage is low.
11 ATTENUATOR INDICATOR
Appears "Local" when the RF attenuator is in use.
12 MEMORY MODE INDICATOR
The M icon appears if you select the Memory mode.
13 DUAL/TRI WATCH INDICATOR
"DUAL"appears during dual-watch; "TRI" during tri-watch.
14 CHANNELGROUP INDICATOR
IndicatesWhether an international (INT), or U.S.A (USA)
channel is selected.
15 FAV CHANNEL INDICATOR
The Disk icon appears while the specified channel had been stored
as FAVOUR channel.

13 14
3 INSTALLATION
3.1 SUPPLIED ACCESSORIES
Manufacturer supplies you the following accessories as soon as you purchase this RT-
650 marine radio:
1) Mounting Gimbal (1 pc)
2) Power Supply Cable and External Speaker Connection Cable (1 set)
3) Mounting Knob (2 pcs)
4) Wall Hanger (1 pc)
5) External Connection Cable (1 set)
6) Self-tapping Screw for Fixing Mounting Gimbal (4 pcs)
7) Flat Screw for Fixing Mounting Gimbal (4 pcs)
8) Plain Washer (4 pcs)
9) Spring Washer (4 pcs)
10) Nut (4 pcs)
11) Self-tapping Screw for Fixing Wall Hanger (2 pcs)
12) Flat Screw for Fixing Wall Hanger (2 pcs)
13) Plain Washer (2 pcs)
14) Spring Washer (2 pcs)
15) Nut (2 pcs)
3.2 LOCATION
To more conveniently and efficiently use your marine radio, find a mounting location
that:
 Is far enough from any devices like devices to avoid any interference
caused by the speaker magnet in your radio during their operation;
 Provides accessibility to the front panel controls;
 Allows connection to a power supply and an antenna;
 Has free space nearby for installation of a handset hanger;
 Where the antenna can be mounted at least 3 feet from radio.
3.3 CONNECTIONS
POWER SUPPLY
You radio should be powered by a 13.8VDC power supply. Red cable is for positive
pole and the thicker black one is for negative pole.
EXTERNAL SPEAKER
If needed, you can connect your radio to an external speaker with the supplied
connection cable. White cable is for positive pole and the thinner black one is for
negative pole.
GPS EQUIPMENT and Plotter;
When yours marine radio RT-650 is connected to GPS equipment, it can obtain the
information of both its current location (longitude and latitude) and the local GMT.
Your marine radio also can output the AIS data to external plotter connected.
CABLE details:
NMEA IN (+)，from GPS navigation receiver, pin5. Yellow.
NMEA IN (-) ，from GPS navigation receiver, pin4. Green.
NMEA OUT(+) ，Pin2. Orange
NMEA OUT(-)，Pin6. Black
NMEA OUT(+)，Pin7 Blue 38.4K Baud for AIS data output Blue
NMEA OUT (-)，Pin8 Grey 38.4 K baud for AIS data output Grey
NEMA 0183 Version (1.5 to 3.0) input Sentences:
The sentences GLL, GGA, RMS, GNS shall be recognized.
Note: Never short wires. This may lead to malfunctions.
Connect round plug to radio and wires yellow and green to GPS navigation receiver.
blue and grey wires to Multi-function Display or Plotter for AIS application.
1
2
4
5
3
6
7
8
9
10
11
12
13 14 15

15 16
ANTENNA
A very important part for the performance of any communication system is a suitable
antenna. Consult your dealer about antennas and ask them to help to mount your
radio.
3.4 MOUNTING THE RADIO
Mount the radio on your vessel:
1. Find a appropriate location defined in section 3.2;
2. Place the mounting bracket on the location surface, use a pencil to mark
the location of four holes where the fixing screws are to go into;
Caution: Be careful not to drill through the mounting surface.
3. Remove the bracket, drill four holes smaller than the screw diameter, then
re-place the mounting bracket on the surface aligning the drilled holes;
4. Insert the four fixing screws and secure the bracket to mounting surface
using the supplied bolts, spring washers, plain washers and nuts;
Caution: if you can not reach behind the mounting surface to attach the nut
on the bolts, use the supplied self-tapping screws to fasten the bracket.
7. Insert the four fixing screws and fasten them with a Philip screw driver
with attention not to screw too tightly;
8. Mount the base station onto the bracket with notice of the matching of
the protuberances on the both inner side of the bracket and the pits on
the two sides of the base station (the selectable pits on the sides of the
radio allow you adjust the direction of the radio face to satisfy your easy-
to-read-and-use, 150for each rotation and totally 450tolerance);
9. Attach the supplied mounting knobs from the two sides of the bracket to
fixing the base station securely.
10. Caution: Keep the radio and handset at least 1 meter away from any
magnetic devices such as compass on your vessel.
BARE WIRE(GND)3(WHITE)
5(YELLOW)
7(BLUE)
2(ORANGE)
8(GREY)
4(GREEN)
6(BLACK)
RED
FUSE
BLACK
EXTERNAL SPEAKER
GPS NAVIGATION RECEIVER
WATER PROOF
DECK OUTLET

17 18
The supplied universal mounting bracket allows you to mount your base
station from overhead or on dashboard with a big scope of angle as many
as 450.
Change the angle after installation:
11. Loosen the mounting knob at the sides of gimbal first.
12. Then adjust the base station to an appropriate direction with matching of
the protuberances on the inner sides of gimbal and pits on the outer sides
of base station.
13. Tighten the knob to secure.
3.5 ANTENNA MOUNTING/THE EME EXPOSURE
For optimal radio performance and minimal human exposure to radio frequency
electromagnetic energy, make sure the antenna is:
 Connected to the radio before transmitting;
 Properly mounted;
 Locate where it will be away from people:
 Locate at least three feet (91 cm) from the Base Station transceiver and
Handsets;
 Use standard type of PL259 connector
3.6 MOUNTING THE HANDSET
Find a mounting location near the base station to mount the wall hanger for handset.
The distance between the base station and the wall hanger should be less than the
length of the handset cable.
4. BASIC OPERATION
4.1 TRANSMISSION AND RECEPTION
CAUTION: Transmitting without an antenna may damage the radio.
1) After the radio has been installed, make sure of the power supply and
antenna being properly connected.
2) To rotate the VOLUME/POWER knob clockwise turn on the radio and select
a comfortable volume level.
3) To turn the SQUELCH knob clockwise until the background noise
disappears.
4) Rotate CH knob to select channel
5) Press Hi/Lo button to select high power or lower power.
6) Press the PTT (Push-To-Talk) button on the handset to make the radio into
transmission mode. the indicator on LCD is displayed.
7) Speak clearly in a normal voice into the microphone.
8) Once the transmission is finished, release the PTT button. The radio is at
receive mode, icon appear on screen.
4.2. BAND SWITCH
4.2.1 USA AND INT MODE
1) Press the BAND/SAVE button, to switch the operational channel band (USA
& INT).
2) The icon will be displayed on the LCD for USA mode, the icon will
be displayed on the LCD for INTL mode, Briefly press the button to toggles
between USA and INT band.

19 20
4.2.2 MEMO (FAV) MODE
Press and hold the HI/ LO/MEMO button while in normal operation mode to
enter Mem mode, icon indicators appear on LCD. ( Entering in Memo
mode before at least one favorite channel must be stored firstly)
On the Mem Mode rotate the CH knob displays only the channels that you
have saved to memory, which enables you to easily use your favorite
channels while bypassing unwanted or seldom- used channels during a scan.
While in Mem Mode:
Press and release the SCAN button to start Memory scan mode.
Press and release the SCAN button again to stop Memory scan mode.
4.3 SAVE MEMORY (FAV) CHANNELS
You can store all band channels as favorite channel.
Program the FAV channel and store Process as follow:
1) At normal mode, tune to the desired channel and then press and hold the
BAND/SAVE button to save it as Favorite channel. The icon will be
turned on for indication that channel be saved in FAV list.
2) Then tune to next desired channel and repeat the button operation till all
desired channels be programmed / saved.
3) Delete the channel from the FAV list at Normal mode. Select the specified
channel with icon ON. Press and hold the BAND/SAVE button till the
icon turn OFF. The specified channel will then be deleted out from the
FAV list. Repeat the button operation for those unwanted channels.
4) If no channel has been programmed, an error beep occurs with indicate
error message.
4.4 TRANSMIT TIME-OUT TIMER (TOT)
When the PTT button on the microphone is held down, transmit time is
limited to 5 minutes. This will avoid unintentional transmissions. About 10
seconds before automatic transmitter shutdown, a warning beep will be
heard from the speaker(s). The transceiver will automatically go to receive
mode. Before transmitting again, the PTT button must be released and
then pressed again.
4.5 SCAN
Scanning is an efficient way to locate signals quickly over a wide
frequency range.
The transceiver has 4 Scan modes available: All scan, FAV CH scan,
Priority scan, and Priority FAV CH scan.
1) Briefly press the SCAN button to default all scan (1.2.3.4…).
2) Press and hold SCAN Button over 3sec, the Priority scan icon (1, 16, 2, 16,
3, 16…) will be selected. “Pscan” will be appeared on LCD. Press SCAN
again, to turn it back to normal scan,
3) During the SCAN modes:
Press SCAN button again will terminate the scan operation and stop at
the last used channel.
Press CANCEL button will also terminate the scan. It also can be to
cancel by 16 or PTT.
4) FAV CH SCAN: If there are favorite channels stored, the scan (including all
SCAN and PSCAN will be scanned only between these favorite channels)
4.6 WATCH
4.6.1 DUAL WATCH
Press Watch button to activate the DUAL WATCH mode. Monitor the
current channel and Ch 16 in cycle. Icon will appear on the LCD.
Weather Alert is also activated automatically.
4.6.2 TRI-WATCH
Press and hold Watch button to activate the TRI WATCH mode.
Monitor the current channel, CH 16 and CH 9 in cycle. Icon will
be turn ON
To quit the mode, press WATCH, 16, CANCEL button,
Press PTT button to TX mode of current channel
4.7 POSITION INDICATION
Your transceiver can display the position of the vessel’s (longitude and latitude)
as well as time information, if connected to a GPS receiver. If no GPS equipment
to be connected, an alert tone of 10 sec duration witch can be cancelled by any
button will sound at 4 hour intervals to encourage manual input of positional data .
Once no manual GPS input is made for 23.5 hours, “No GPS Information” will
disappear from the screen. The position data transmitted goes to 9’s and all the
time data goes to 8’s.
4.8 INTERCOM (Internal Communication)
The intercom feature lets you call and communicate with wireless handset subscribed
to the radio
4.8.1 Start Intercom
Both base station and wireless handset can start Intercom:
DISTRESS
23º20.1234 N
100º15.1002 E
08:10PM LOC
