NavLinkz CI-RL-UCON-D1 User manual

Version 20.02.2024 HW: BOTT (V43)/(V73) CI-RL-UCON-D1
Video converter
CI-RL-UCON-D1
Compatible with
Fiat vehicles with
7inch all-in-one radio or

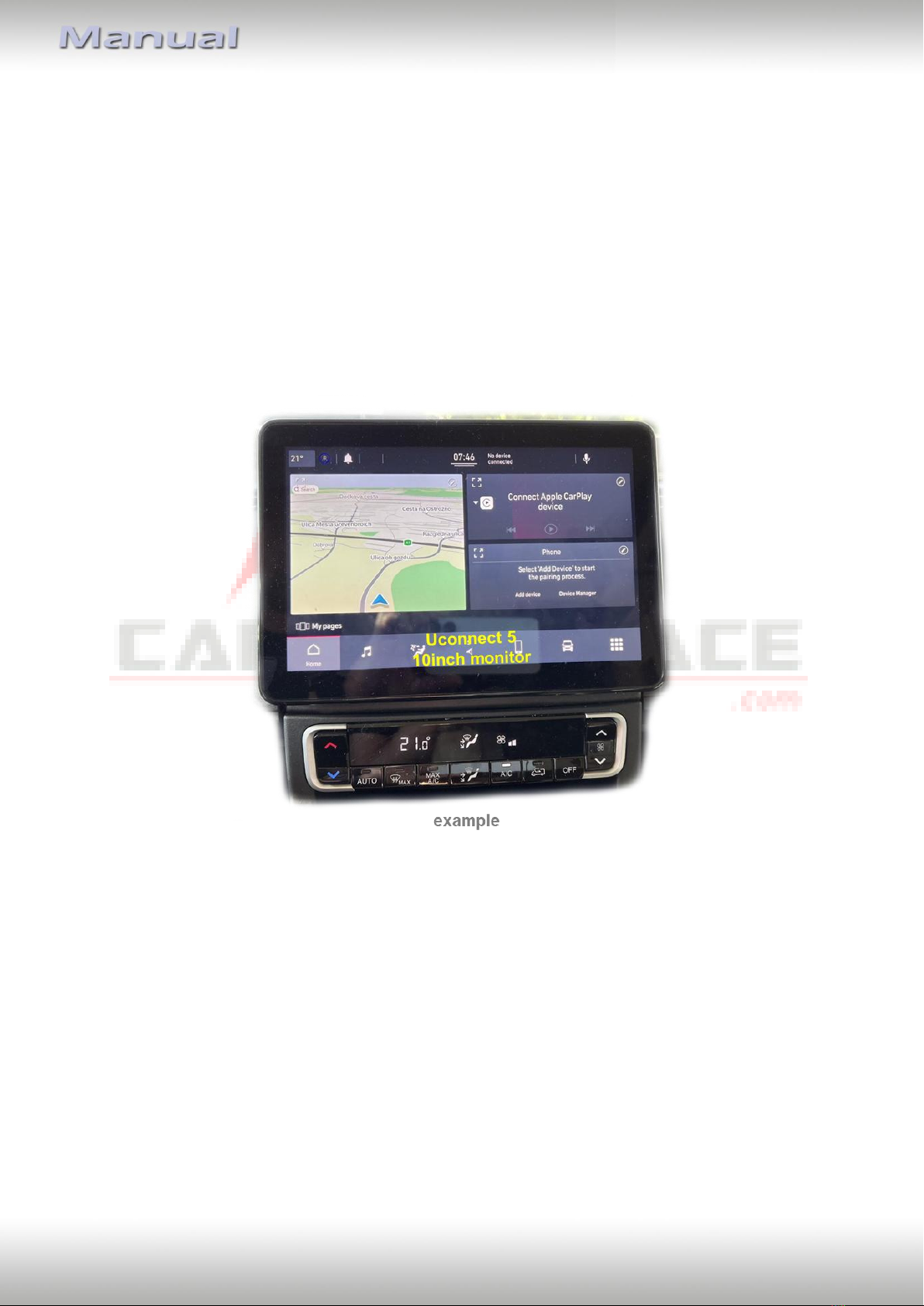

Uconnect 5 infotainment with 10inch monitor
Video converter for digital rear-view camera input
Product features
Video converter for digital rear-view camera systems
1 video input for AHD 720p PAL rear-view camera (RCA)
Automatic conversion of an AHD camera signal at the reversing camera input when
reverse gear is engaged

Version 20.02.2024 HW: BOTT (V43)/(V73) RL-UCON-D1
Seite2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the compatibility of vehicle and accessories
1.3. Boxes and connectors –video interface
1.4. Settings - 8 Dip switches (black)
2. Installation
2.1. Place of installation
2.2. Connection schema
2.3. Connection –power and picture signal cable
2.4. Connection –AHD Kamera
3. Specifications

Version 20.02.2024 HW: BOTT (V43)/(V73) RL-UCON-D1
Seite3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. Apart from using this
product in an unmoved vehicle, it should only be used to display fixed menus or rear-view-
camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).
Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to
one year after purchase we offer free software-updates for our interfaces. To receive a free
update, the interface has to be sent in at own cost. Wages for de-and reinstallation and
other expenditures involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
video interface’s place of installation must be free of moisture and away from heat sources.
Before the final installation in the vehicle of the video sources, we recommend a test-run
to ensure the compatibility of vehicle and interface. Due to changes in the production of
the vehicle manufacturer there’s always a possibility of incompatibility.
1.1. Delivery contents
Take down the serial number of the interface and store this manual for support
purposes: ____________________

Version 20.02.2024 HW: BOTT (V43)/(V73) RL-UCON-D1
Seite4
Requirements
Brand
Compatible vehicles
Compatible systems
Fiat
Ducato3 (series 8) since model year 2021
R1LOW Mitsubishi 7inch all-in-one radio
Uconnect5 R1 EXT with 10inch tablet
monitor with separate head-unit
Limitations:
Coding*Vehicle must already be coded for rear view camera by the factory.
Video input signal Compatible only with 720p AHD camera with PAL signal.
After-market Rear-view camera The connected AHD camera must be continuously current stable to
avoid damage due to overload.
1.2. Checking the compatibility of vehicle and accessories
*A prerequisite for the converter function is a factory precoding which can be recognised by
the blue screen on the display when reverse gear is engaged (see picture).

Version 20.02.2024 HW: BOTT (V43)/(V73) RL-UCON-D1
Seite5

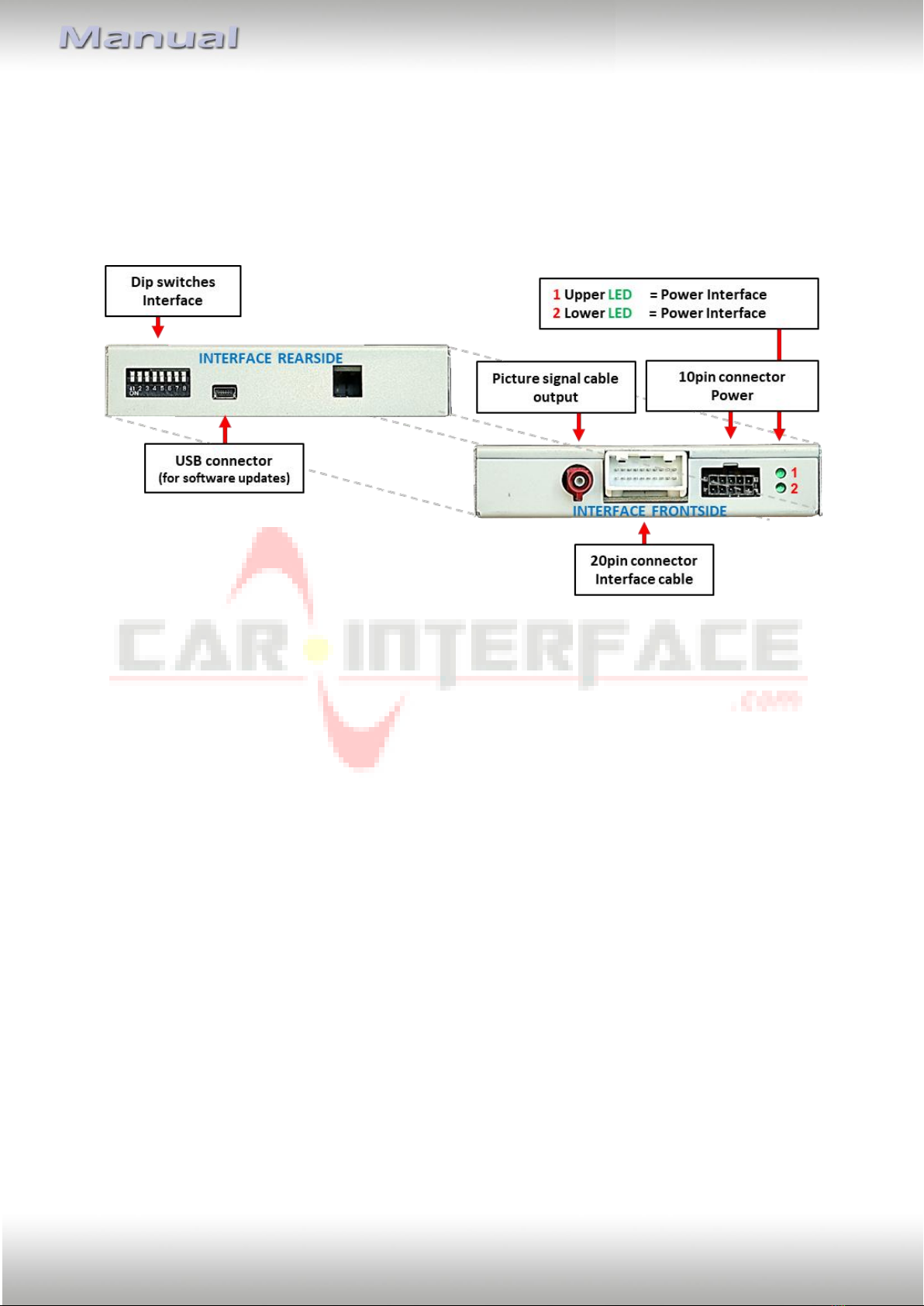

1.3. Boxes and connectors –video interface
The video-interface converts the video signals of connected after-market sources in a factory
monitor compatible picture signal which is inserted in the factory monitor, by using separate
trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and
converts them for the video interface.

Version 20.02.2024 HW: BOTT (V43)/(V73) RL-UCON-D1
Seite6
1.4. Settings - 8 Dip switches (black)
Some settings have to be selected by the dip-switches on the
video interface. Dip position down is ON and position up is OFF.
Set all dip switches to OFF
After each Dip-switch-change a power-reset of the Video interface has to be performed!
2. Installation
To install the interface, first switch off the ignition and disconnect the vehicle’s battery.
Please read the owner`s manual of the car, regarding the battery`s disconnection! If
required, enable the car`s Sleep-mode (hibernation mode)
In case the sleep-mode does not succeed, the disconnection of the battery can be done
with a resistor lead.
As with any installation of retrofit equipment, a stand-by test is neccessary after the
installation of the video interface, to ensure that the unit also switches off after reaching
the vehicle‘s sleep mode.
Before the final installation, we recommend a test-run of the interface. Due to changes in
the production of the vehicle manufacturer, there’s always the possibility of
incompatibility.
2.1. Place of connection
The video interface has to be connected at a suitable location behind the vehicle`s head-unit.
Dip 1
Dip 2
Dip 3
Dip 4
Dip 5
Dip 6
Dip 7
Dip 8
OFF↑
OFF↑
OFF↑
OFF↑
OFF↑
OFF↑
OFF↑
OFF↑

Version 20.02.2024 HW: BOTT (V43)/(V73) RL-UCON-D1
Seite7
2.2. Connection schema

Version 20.02.2024 HW: BOTT (V43)/(V73) RL-UCON-D1
Seite8
2.3. Connection –power and picture signal cable
Remove the head unit
Connect the female bordeaux-coloured Fakra connector of the enclosed picture signal cable
to the male bordeaux-coloured Fakra connector of the factory head unit.
Connect the opposite female bordeaux-coloured Fakra connector of the enclosed picture
signal cable to the male bordeaux-coloured Fakra connector of the video interface.
Connect the female10pin connector of the 10pin power cable to the male 10pin connector
of the video interface.
Connect the yellow wire of the 10pin power cable to +12V ACC (terminal 15).
Connect the black wire of the 10-pin power cable to negative ground.

Version 20.02.2024 HW: BOTT (V43)/(V73) RL-UCON-D1
Seite9
2.4. Connection –AHD Kamera
Note: Only compatible with 720p AHD camera with PAL signal!
Before a final installation of the video sources, we recommend a test-run to ensure the
compatibility of vehicle and interface. Due to changes in the production of the vehicle
manufacturer there’s always a possibility of incompatibility.
Connect the 20pin interface cable’s female 20pin connector to the male 20pin connector of
the video-interface.
Connect the video RCA of the AHD camera to the 20pin interface cable’s female
RCA connector „720P Camera-IN“.
Connect the power cable of the AHD camera to +12V ACC as previously done with the yellow
wire of the 10pin power cable.
Note: Due to the ACC power supply, the camera must be continuously current stable to
avoid damage due to overload.

Version 20.02.2024 HW: BOTT (V43)/(V73) RL-UCON-D1
Seite10
3. Specifications
BATT/ACC range 7V - 25V
Current consumption 98mA @12V
Video input 0.7V - 1V
Video input formats PAL
Temperature range -40°C to +85°C
Dimensions video-box 107 x 95 x 24 mm (W x H x D)
4. Technical support
Please note that direct technical support is only available for products purchased directly
from Navlinkz GmbH. For products bought from other sources, contact your vendor for
technical support.
10R-05 16886
Made in China
