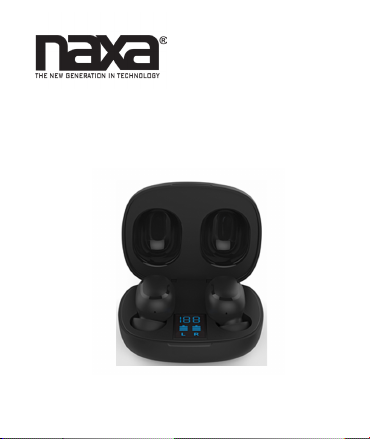

Naxa NE-980 User manual

True Wireless Earbuds with
Touch Control & Charging Case
NE-980
Instruction Manual
Please read before operating product

2
Table of Contents
Introduction..............................................3
Package Contents...................................3
Safety Instructions...................................4
Product Breakdown.................................6
How to Use..............................................7
Specications.........................................12
Support..................................................14

2 3
Congratulations, and thank you for choosing Naxa’s
True Wireless Bluetooth® Earbuds & Charging Case.
This manual will help you operate your new device, but
rst you should familiarize yourself with the Bluetooth
functionality of your mobile phone or other external de-
vices before using the Naxa True Wireless Bluetooth®
Earbuds & Charging Case.
Introduction
Package Contents
• NE-980
• USB Charging Cable
• Instruction Manual

4
Safety Instructions
Before using the device, read the operating instructions
very carefully. Keep this operation manual for later
reference.
1. Do not use an appliance for any purpose other than
its intended use.
2. Warning: Do not expose the appliance to extreme
temperatures, to strong temperature uctuations, direct
sunlight or humidity.
3. To prevent any potential auditory damage, do not
listen to music at high volumes for long periods.
4. No naked ame sources, such as lit candles, should
be placed on the appliance.
5. This appliance should be used in temperate climate
only.
6. Electric and electronic equipment should be disposed
of separately. Do not discard used electric and electron-
ic equipment with unsorted municipal waste but have
them collected separately.
7. Attention should be drawn to the environmental
aspects of battery disposal.
8. The appliance contains a battery or batteries that are
non-replaceable.

4 5
9. Batteries (battery pack or batteries installed) shall not
be exposed to excessive heat such as sunshine, re
or the like.
10. The battery must be removed from the appliance
before it being disposed of properly.
11. Only remove the rechargeable battery when you
intend to dispose of the appliance. Have the recharge-
able battery removed by trained professionals.
12. CAUTION! Risk of explosion if battery is replaced
by an incorrect type of battery.
13. Dispose of used batteries according to the instruc-
tions

6
Product Breakdown

6 7
How to Use

8
Basic Operation
1. Power on: remove the earbuds from the charging
case. In one second, earbuds will automatically
power on and blue light will illuminate.
2. Power o󰀨: Place earbuds into charging case, they
will automatically shutdown and a voice will broad-
cast to notify the earbuds are in charging mode;
press and hold multi-funtion button for 10 seconds
and the earbuds will automatically power o󰀨.
3. After startup, hold the earbuds near each other to
allow for a connection between the two to establish
automatically.
Bluetooth® Operation
To use your Bluetooth ® headset, you must rst pair
the TWS with a mobile phone. Once your Bluetooth®
headset is paired with a mobile phone, they will remain
paired and automatically recognize each other whenev-
er they are within range.
1. Turn on your phone and ensure the Bluetooth func-
tion is activated.

9
signify discovery mode, and initiate a device search
on your phone via the Bluetooth settings menu.
3. Search the Bluetooth® devices on your phone by
following the phone’s instructions. Refer to your
phone’s user manual for more information.
4. After a few seconds the phone will list the “NAXA NE-
980” as a discovered device. Select it and follow your
phone’s instructions to establish a connecton.
Playback
1. To play/pause a song through your bluetooth earbuds
from your mobile phone, briefly press the MF button.
To skip to the previous song, double click MF button.
on L/C. To skip to the next song, double click MF button
on R/C.
2. To operate earbuds via Siri, press the multi-function
button three times of L/C or R/C.

10
Answering Calls
multi-function button.
again.
3. To reject an incoming call, press and hold the
multi-function button for 2 seconds.
Earbud Settings
1. In order to restore the earbuds back to factory set-
tings, rapidly press the multi-function button 6 times
when earbuds taken out of the charging case and not
connect to bluetooth device.
Charging Earbuds
1. Place earbuds into charging case, indicator light will
turn bright red to signify that they are charging.
2. Charging status will display on the LED screen of the
charging case for the L and R earbuds.

10 11
Charging Case
1. Insert the Micro USB end of the included charging
cable into the input of the charging case.
2. Insert the other end of the charging cable into an
external power source.
3. Charging case will illuminate and power percentage
will be displayed on LCD screen and begin ashing.
4. Once completed, 100% charged will be displayed on
the LCD display.

12
Specications
Bluetooth® Version: 5.0
Charging Interface: Type-C
Power Input: DC/5V
Earbuds Battery Capacity: 40mAh/3.7V
Support: A2DP/AVCTP/AVDTP/AVRCP/HFP
Music Time: About 3.5 Hours (80% Volume)
Talk Time: 2.5 Hours (90% Volume)
Rechargeable Battery: 300 mAh/3.7V
FCC Notice
This device complles with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1)this device may not cause harmful interference,and
(2)this device must accept any interference received,
including interference that may cause undesired
operation.
Note:This equipment has been tested and found to com-
ply with the limits for a class B digital device,pursuant
to part 15 of the FCC Rules.These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment

12 13
generates,uses and can radiate radiate radio
frequency energy and,if not installed and used in
accordance with the instructions,may cause harmful
interference to radio communications.However, there is
on guarantee that interference, will not occur in a par-
ticular installation.if this equipment does cause harmful
interference to radio or television reception recep-
tion,which can be-termined by turning the equipment
o󰀨 and on,the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
di󰀨erent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV tech-
nician for help.
CAUTION ON MODIFICATIONS
Any changes or modications not expressly approved
by the grantee of this device may void the authority
granted by the FCC to operate the equipment.

14
Support
If you have problems with your device, please consult
the instructions in this manual. Please also visit us
on the web at www.naxa.com to get up to the minute
news, alerts, and documentation for your device. For
additional assistance, please contact Naxa Technical
Support.
NAXA Technical Support
2320 East 49th St.
Vernon, CA 90058
http://www.naxa.com/naxa_support/
MADE IN CHINA
