Naxa NPD-1003 User manual

NPD-1003

1
Contents
Important Safety Instructions........................................................................
Location of Controls.....................................................................................
Remote Control Button Introduction.........................................................
Battery Installation........................................................................................
Battery precautions......................................................................................
Handling Discs.............................................................................................
Basic Connection........................................................................................
Basic Operation............................................................................................
For DVD Program........................................................................................
About Discs..................................................................................................
Settings Menu..............................................................................................
Ordinary Problem & Troubleshooting...........................................................
Technology Parameter.................................................................................
Annex table..................................................................................................
2-3
4
5
6
6
6
7
8
9
9
10-11
11
12
12

The lighting flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated "dangerous voltage" within
the product's enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing) instructions
in the literature accompanying the appliance.
CAUTION
This digital video disc player employs a laser
system. to ensure proper use of the product, please
read this user manual carefully and retain for future
reference. should the unit require maintenance,
contact customer service (details on the last
page of this manual). if passing on the product
to someone else, please pass on this instruction
manual.
Use of the control, adjustments or the performance
of procedures other than those specified in
this manual may result in hazardous radiation
exposure.
To prevent direct exposure to laser beams do not
open the enclosure. visible laser radiation may be
present when the enclosure is opened. do not look
into the beam.
warning:
WRUHGXFHWKHULVNRI¿UHRUHOHFWULFVKRFNDQGRWKHU
interferences, use manufacturer recommended
accessories only.
DANGER
INVISIBLE LASER RADIATION WHEN
OPEN AND INTERLOCK FAILED OR
DEFEATED. AVOID DIRECT EXPOSURE
TO LASER BEAM.
LASER SAFETY
This unit employs an optical laser beam system
in the DVD mechanism, designed with built-in
safeguards. Do not attempt to disassemble, refer
to qualified service personnel. Exposure to this
invisible laser light beam may be harmful to the
human eye.
THIS IS A CLASS-1 LASER PRODUCT. USE OF
CONTROLS, OR ADJUSTMENTS OR PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN, MAY RESULT
IN HAZARDOUS LASER L IGHT BEAM EXPOSURE
WARNING:
To prevent fire or shock hazards, do not expose
this item to any liquid, water, rain or moisture,
dripping or splashing of any kind. To avoid
DFFLGHQWDOKD]DUGVNHHSDZD\IURPREMHFWV¿OOHG
with liquids such as vases, sinks or baths.
Do not block any air inlets or ventilation openings.
Do not impede ventilation openings with
newspaper, tablecloths, curtains or other like
material
Keep away from sources of direct heat such as
direct sunlight, radiators, ovens or other apparatus
(including amplifiers) that produce heat. Do not
place on hot surfaces.
Keep away from high levels of humidity.
Keep away from sharp objects.
Read all instructions before use and save these
instructions in a safe place. If passing on this
appliance to someone else, please pass on these
instructions with it. Remove the disc before moving
the unit. If the player is moved with the disc loaded,
the disc may be damaged.
For you own safety, read the following instructions
carefully before attempting to connect this DVD
Player to the mains.
This unit is designed to operate on:
( DC Output 12V )
5HFKDUJHDEOH/LLRQ%DWWHU\EDWWHU\LQFOXGHG
This battery is non-replaceable.
&DU$GDSWRULQFOXGHG±SOXJVLQWRWKHFLJDUHWWH
lighter of your car
Important Safety instructions
AC 110~240V 50/60Hz AC/DC adaptor
2

NOTES ON HANDLING
:KHQVKLSSLQJWKLV'9'VSOD\HUDOZD\VXVHWKH
original shipping carton and packing materials. For
maximum protection, re-pack the unit as it was
originally packed at the factory.
'RQRWXVHYRODWLOHOLTXLGVVXFKDVLQVHFWVSUD\V
near this item. Do not let rubber or plastic products
come into contact with this item for long periods of
time as they will leave
marks on the item.
7KH'9'3OD\HUPD\EHFRPHZDUPDIWHU
extended periods of use, this is normal and not a
malfunction.
:KHQWKH'9'3OD\HULVQRWLVXVHUHPRYHWKH
disc and turn off the power.
7RHQVXUH\RXU'9'3OD\HULVLQJRRGZRUNLQJ
order, its advisable to use it from time to time rather
than leaving it unused for long periods of time.
CLEANING AND CARE:
8VHDVRIWGU\FORWKIRUFOHDQLQJ
'RQRWXVHDQ\OLTXLGVRUVROYHQWVWRFOHDQWKLV
may damage the unit
:LSHDQ\PRLVWXUHRIIZLWKDVRIWGU\FORWKDQG
be sure discs are fully dry before using.
'RQRWVWRUHGLVFVLQKLJKWHPSHUDWXUHRUKLJK
humidity locations. The discs may become warped
and get corrupt.
:LSHDQ\PRLVWXUHRIIZLWKDVRIWGU\FORWKDQG
be sure discs are fully dry before using.
+DQGOHGLVFVFDUHIXOO\VRWKDWILQJHUSULQWVDQG
dust do not get onto the surface of the disc.
To clean off, use a soft cloth.
Do not use a hard cloth since these will mark the
disc.
TO OBTAIN A CLEAR PICTURE:
The DVD Player is a high technology, precision
driven device. If the optical pick-up lens and disc
drive parts are dirty or worn down, the picture
quality becomes poor. To obtain a clear picture, we
recommend regular inspection and maintenance.
NOTES ON MOISTURE CONDENSATION:
Moisture condensation could damage your DVD
player. Moisture condensation occurs for example
when you pour a cold drink into a glass on a warm
day. Drops of water form on the outside of the
glass. In the same way, moisture may condense on
the optical pick-up lens inside the unit, one of the
most crucial parts of the DVD Player.
Moisture condensation occurs in the
following cases:
:KHQ\RXEULQJWKH'9'3OD\HUGLUHFWO\IURPD
cold place to a warm place.
:KHQ\RXXVHWKH'9'3OD\HULQDURRPZKHUH
you just turned on the heater, or a place where the
cold wind from an air conditioner directly hits the
unit.
,QVXPPHUZKHQ\RXXVHWKH'9'3OD\HULQDKRW
and humid place just after you moved the unit from
an air conditioned place.
:KHQ\RXXVHWKH'9'3OD\HULQDKXPLGSODFH
Do not use the DVD Player when moisture
condensation may occur.
If you use the unit in such a situation, it may
damage discs and internal parts. Remove the disc,
connect the mains power cord of the DVD Player
adaptor to the mains power outlet and leave it ON
for 2 to 3 hours so it will warm up and cause any
moisture to evaporate. This DVD Player is set up to
play Region 0 DVDs
Important Safety instructions
3

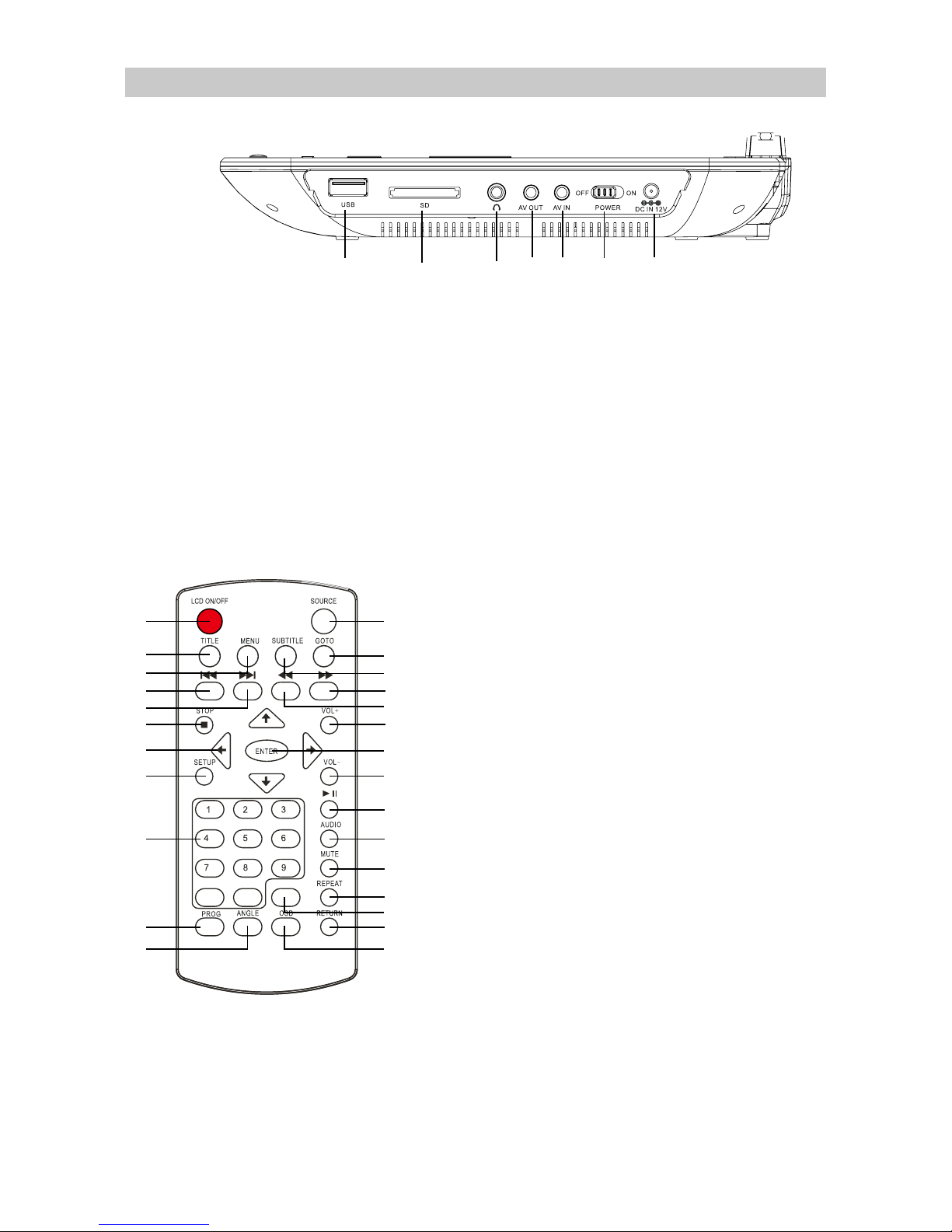

Location of controls
13. SETUP: Press once to enter DVD system setup menu and press again to exit.
1. LCD ON/OFF: Turn on or off the display.
4. MENU: To return to the disc's menu interface
3. PREV Button (
,ŻŻ ) : 7RVNLSWRWKHSUHYLRXVWLWOHFKDSWHUWUDFN
5. F.FWD Button (
ŹŹ ) To perform fast forward playback.
10. PLAY/PAUSE:
7. NEXT Button (
ŹŹ, ): 7RVNLSWRWKHQH[WWLWOHFKDSWHUWUDFN
8. VOL+ : Press to increase volume by degree.
6723Ŷ Press once to prestop. Press twice to stop completely..
9. VOL- : Press to decrease volume by degree.
)5:'%XWWRQŻŻ To perform fast reverse playback.
14.
15. OPEN:
1
2
3
4
5
6
7
8
9
10
11
12
13
2. USB/CARD:
12. SOURCE:
15 14
In DVD mode, press to switch modes between DVD/USB/Card.
During playback, press to switch between playback and pause.
Press to switch between AV in and DVD mode.
Move left to open the DVD door.
Charge indicator/ Power indicator/remote sensor
Press to confrim the selection during menu navigation.
4

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Remote Control Button Introduction
16. USB : USB port
17. CARD:
18. EARPHONE: earphone jack
19. AV OUT: $XGLRYLGHRRXWSXW
20.AV IN:
21. POWER:
22. DC IN: DC input jack.
1. LCD ON/ OFF:
2. TITLE : To access the disc title menu.
3. MENU : To access disc menu.
4. PREV : 7RVNLSWRWKHSUHYLRXVWLWOHFKDSWHUWUDFN
5. NEXT : 7RVNLSWRWKHQH[WWLWOHFKDSWHUWUDFN
6. STOP : To stop the playback.
7. Direction Keys: To move up, down, left and right in
Setup Menu.
8. SETUP : To access or exit the SETUP menu.
9. Number keys: 0,1,2…9,10 : Number entry.
10. Program : To play the contents of disc in the order
you want by programming the track to be played.
11. ANGLE : To access the camera angle function for
DVD disc.
12. SOURCE:
13. GOTO: To search for a desired title,chapter,Time or
Track.
14. SUBTITLE : To change the subtitle language.
15. F.FWD Button : To perform fast forward playback.
16. F.RWD Button : To perform fast reverse playback.
17. VOL+ Button : To increase volume.
18. ENTER: 7RFRQ¿UPWKHVHOHFWLRQGXULQJPHQX
navigation
19. VOL- Button : To decrease volume.
20. Play/Pause : To start or pause the playback.
21. AUDIO : To change the audio setting.
22. MUTE : To mute or restore sound.
23. REPEAT : To repeat playback.
24. USB/CARD Button :
25. RETURN : To return to the previous menu.
26. OSD : To show disc information on the screen.
Location of controls
16 17 18 19 20 21 22
86%&$5'


Press to select source as DVD or AV in.
In DVD mode, press to select
source as USB or card/DVD.
SD card slot Audio/video input
Power On/Off switch
7RWXUQRQRIIthe LCD display of the Player.
5

BATTERY PRECAUTIONS
Follow these precautions when using batteries in this device:
8VHRQO\WKHVL]HDQGW\SHRIEDWWHULHVVSHFL¿HG
2. Be sure to follow the correct polarity when installing the batteries as indicated next to the battery
compartment. Reversed batteries may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline, Rechargeable and Carbonzinc) or old
batteries with fresh ones.
4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury
from possible battery leakage.
5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow
battery manufacturer`s directions.)
'RQRWGLVSRVHRIEDWWHULHVLQ¿UHEDWWHULHVPD\H[SORGHRUOHDN5HPDUN%DWWHULHVEDWWHU\SDFNRU
EDWWHULHVLQVWDOOHGVKDOOQRWEHH[SRVHGWRH[FHVVLYHKHDWVXFKDVVXQVKLQH¿UHRUWKHOLNH
Loading batteries to the remote control
Ɓ5HPRYHWKHEDWWHU\FRPSDUWPHQWFRYHU
Ɓ/RDGWZR$$$EDWWHULHVLQWRWKHEDWWHU\
compartment.
Ɓ0DNHVXUHWKDWWKHEDWWHULHVKDYHEHHQLQVHUWHG
in the correct polarities matching to the symbols
+, - marked in the battery compartment. Close the
battery compartment cover.
Ɓ:KHQUHSODFLQJEDWWHULHVUHSODFHERWKEDWWHULHV
Do not mix new and used batteries operating
together, otherwise, the operation lifetime will be
much shorter than normal.
Ɓ5HPRYHWKHEDWWHULHVLIWKHXQLWZLOOQRWEHXVHG
for a long period of time.
+-
Handling Discs
'RQRWWRXFKWKHSOD\EDFNVLGHRIWKHGLVF
'RQRWDWWDFKSDSHURUWDSHWRWKHGLVF
Cleaning Discs
)LQJHUSULQWVDQGGXVWRQWKHGLVFFDXVHSLFWXUHDQGVRXQGGHWHULRUDWLRQ:LSHWKHGLVFIURPWKHFHQWUH
outwards with a soft cloth. Always keep the disc clean.
,I\RXFDQQRWZLSHRIIWKHGXVWZLWKDVRIWFORWKZLSHWKHGLVFOLJKWO\ZLWKDVOLJKWO\PRLVWHQHGVRIWFORWKDQG
¿QLVKZLWKDGU\FORWK
'RQRWXVHDQ\W\SHRIVROYHQWVXFKDVWKLQQHUEHQ]LQHFRPPHUFLDOO\DYDLODEOHFOHDQHUVRUDQWLVWDWLFVSUD\
They may damage the disc.
Storing Discs
'RQRWVWRUHGLVFVLQSODFHVVXEMHFWHGWRGLUHFWVXQOLJKWRUQHDUKHDWVRXUFHV
'RQRWVWRUHGLVFVLQSODFHVVXEMHFWHGWRPRLVWXUHDQGGXVWVXFKDVDEDWKURRPRUQHDUDKXPLGL¿HU
6WRULQJGLVFVYHUWLFDOO\LQDFDVHVWDFNLQJGLVFVRUSODFLQJREMHFWVRQGLVFVRXWVLGHRIWKHLUFDVHVPD\FDXVH
warping.
Remote control
6

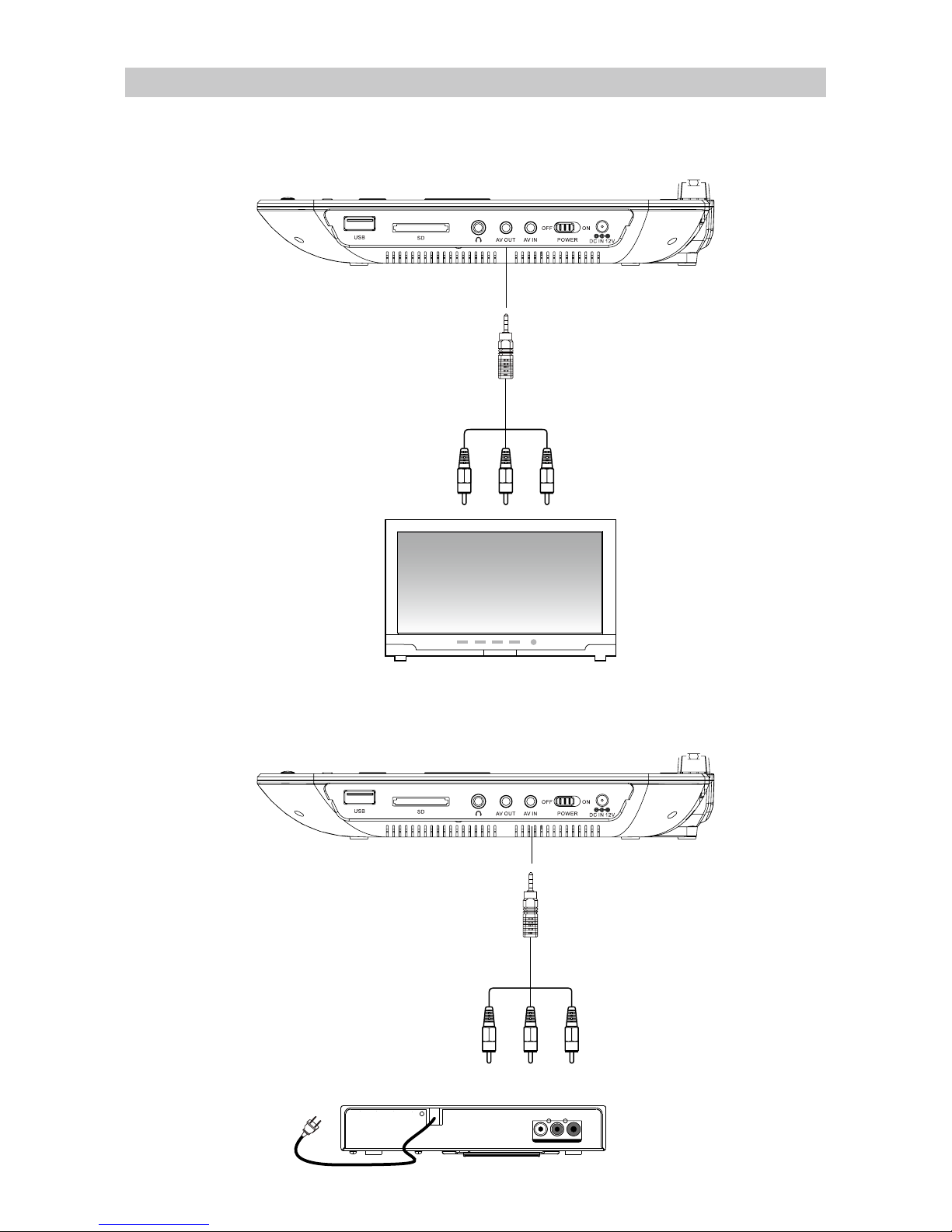

Connection to TV through AV out Jacks:
Video input jack ( yellow )
Audio left channel input jack ( white )
Audio right channel input jack ( red )
Basic connection
Connected to the DVD Player
AUDIO OUT
LR
120V ~ 60Hz
VIDEO OUT
VIDEO
DVD Player
DIGI TAL
Watch Video Files in External DVD Player Trough AV IN Jack
7

POWER
INDICATOR will light up in red. The Player will
power on the unit. The POWER INDICATOR
will turn to GREEN showing that the unit is in
working mode.
MUTE
When a disc is playing, press this key to turn off
the volume completely. Press the key again to turn
on the volume.
NUMBER KEYS ON THE REMOTE CONTROL
UNIT
SET UP
Refer to the “Features Set Up section” of this
manual
MENU
When playing DVDs, press this key to show the
Root menu of the DVD disc.
TITLE
Use this key to select the desired title to be played.
Note: This feature can only be used on DVDs that
are set up with title or chapters.
FF (FAST FORWARD)
Press to fast forward at the speed of 2x, 4x, 8x, 16x,
3UHVV3/$<3$86(WRUHVXPHQRUPDOSOD\EDFN
FB (REWIND)
PREV
During playing, press the PREV button to go back
to the start of the previous chapter. Each press of
this button will skip a chapter until the start of the
disc.
NEXT
Each press of the NEXT button during playing will
skip the current chapter and play the next one.
REPEAT
3UHVVWRUHSHDWDVSHFL¿HGWLWOHFKDSWHUWUDFNRUWR
repeat the entire disc.
AUDIO (LANGUAGE / CHANNEL)
When playing DVD discs, press AUDIO to switch
languages.
When playing CD discs, press AUDIO to switch
EHWZHHQ6WHUHR5LJKW&KDQQHO/HIW&KDQQHO0L[HG
Channels
PROGRAM
This function only works on CD or DVD.
1.Press PROGRAM button to go to the programing
interface.Using numeric buttons to enter the tracks/
ANGLE
During playback mode, use this key to switch
between different angles of the same image.
Note: This feature works only on discs that have
multi-angle encoding.
SUBTITLE
Use this key to select subtitle displayed on a DVD.
OSD
Press this key to display the disc information.
such as disc type, elapsed time, remaining play
time etc.
GOTO
SOURCE
Basic operation
Slide the Power On/Off switch to ON position to
3OXJLQWKH$&'&$'$3725WKHCHARGE
1.
2.
For example, if you want to enter 25, press
10+ button twice and then press 5 button to
complete the selection.
32x.
Press to fast reverse at the speed of 2x, 4x, 8x, 16x,
3UHVV3/$<3$86(WRUHVXPHQRUPDOSOD\EDFN
32x.
chapters you want to play.
2.Use navigation buttons to highlight "Start" to begin
playback.
3. Press STOP button twice to cancel the previous
programing.
8VHWKLVNH\WRJRWRDVSHFL¿FWLWOHFKDSWHUor a specific
part of a track/chapter.
Press to select source as DVD or AV In.
start charging.When the battery is fully charged
the charging indicator will turn green.
8

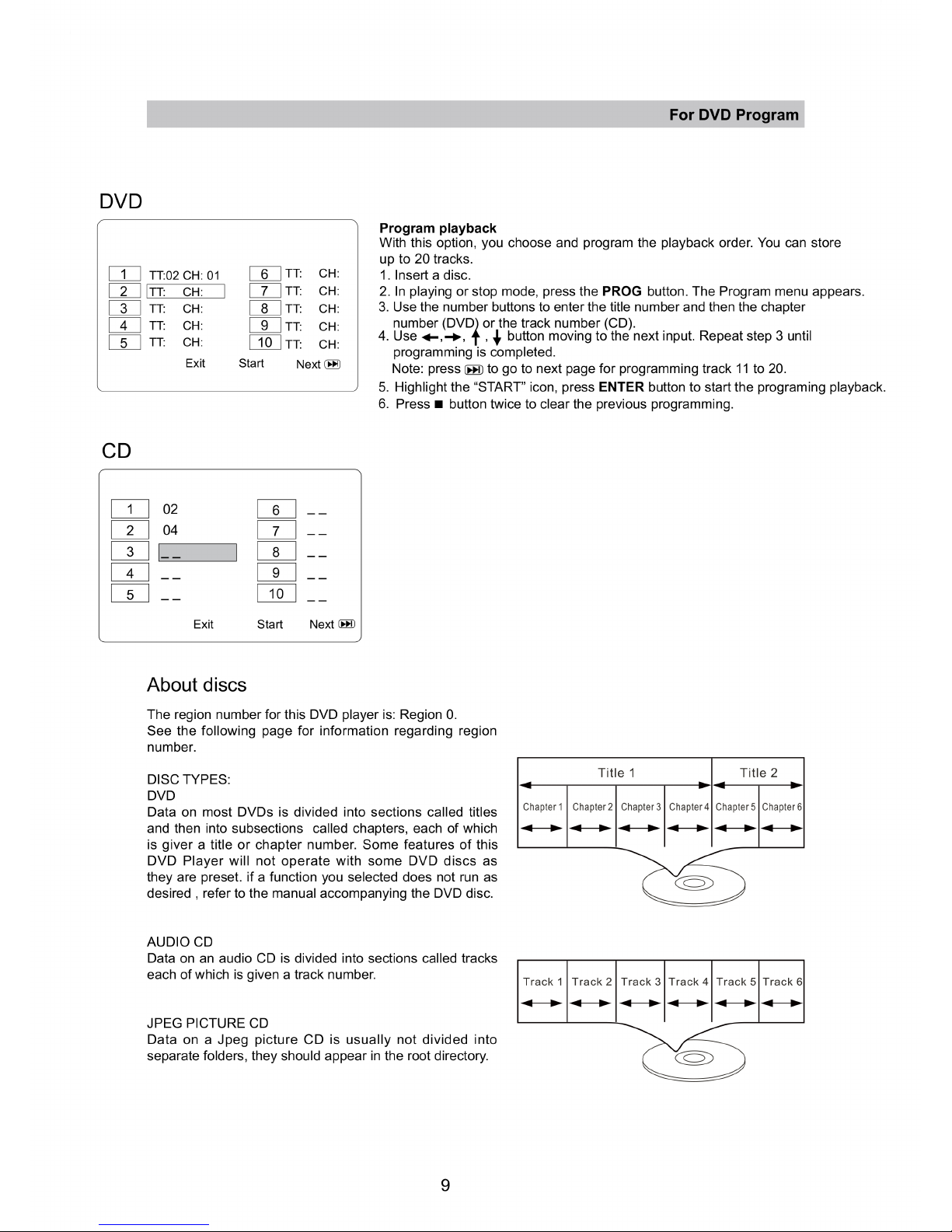

Press the STOP button twice.
SETUP
Then press
Direction and
ENTER buttons to set or reset
General Setup Page
ƔTV Shape: To set the aspect ratio of the
screen to match the current movie.
ƔAngle Mark: To turn ON/OFF the angle
mark. When turn on, if multi-angle is available
in the current disc. The angle mark will appear
on the screen.
ƔOsd Lang: To set the language of on screen
display.
ƔScreen Saver: To turn ON/OFF the screen
saver. If set to on, when the disc stop playback
a couple of minutes, the screen saver will
appear on the screen.
ƔLast Memory: To turn ON/OFF the last
memory. When set to on, if playback then
it will start playback from the point where the
Speaker Setup Page
ƔDownmix
Set the rear audio channels to stereo (hearing
the rear-left channel in Dolby 5.1 disc in left
speaker; rear-right channel in right channel)
or Lt/Rt mode (hearing rear-right and rear-left
channel in both right and left speakers).
Dolby Digital Step
ƔDual Mono:
Select and set the audio channels to play.
ƔDynamic:
Set the dynamic level or turn it off.
Video Setup Page:
ƔPicture: Set the picture quality of the Player.
ƔVideo Out: Set the picture quality of the
Video output signal through AV Out jack.
Tv Shape ps
Angle Mark On
Osd Lang Eng
Screen Saver On
Last Memory On
- - General Setup Page - -
egaPputeSlareneGoToG
rtSximnwoD
--egaPputeSrekaepS--
egaPputeSrekaepSoToG
Dual Mono
Dynamic
--puteSlatigiDybloD--
Go To dolby digital setup
Video Out
- - Video Setup Page - -
Go To Video Setup Page
Captions Off
Settings Menu
Player is stopped.
button on the Remote Control, the
setting menu will appear on the screen.
Using the Numeric and
the selected
functions.
10

Preference Page
ƔTV Type:Set the color system to NTSC/ PAL
or AUTO. (The color system in US/ Canada
and Mexico is NTSC).
ƔAudio: Select and set the priority of the
available languages.
ƔSubtitle: Select and set the priority of the
available subtitle languages .
ƔDisc Menu:
Select and set the priority of the available
languages of the disc menu.
ƔDefault: To resume all the setting to factory
default settings.
Tv Type Ntsc
Audio Eng
Subtitle Eng
Disc Menu Eng
Default
--egaPecnereferP--
Go To Preference Page
Settings Menu
Ordinary problem &troubleshooting
1 .Can not play discs
(1). Check whether the disk is placed correctly or
clamped well
(2). Place the disc with the printed side facing upward.
,IWKHUHLVGLUWRQWKHGLVFVSOHDVHFOHDQLW¿UVW
(4). Check disc whether have deformation or
rupture or serious scratch.
5). Disc format is whether supported type by the
player.
2. Remote control does not work
(1). Move the block away between the remote
control and the player
(2). Aim the remote control at the IR window of the
DVD player.
(3). Check whether the battery of the remote
3. Can not Open drive
(1). The player is not powered on.
(2). Whether caused by low battery power,
automatic shutdown protection testing machine.
(Refer to the basic functions operation part of
"discharge")
4. Rolling or color images (with the TV
connection)
(1). AV output cable connections are correct, as
well as the contact plug in place;
(2). The local color by setting the standard TV
format with the same, please choose your color TV
standard.
5. mosaic, lock play and stop, no response to
key
(1). Check whether the disc exist scratches, dirt or
deformation ;
(2). Whether caused by low battery power;
(3). Please reboot and operate on the normal way.
is nearly exhausted.
11

AC/DC adapter Input 120V~ 60Hz Output DC 12V/1A.
Power consumption: 12W
Video Standard: PAL/NTSC/AUTO
VLGHR2XWSXW933,PSHGDQFHȍ
Audio Power AMP: 1.0 W(RMS) X 2
Use temperature: 0- 40°C
Play time(Lithium battery inside): About 120 min
Technology Parameter
Annex table:
Manual:
Remote control:
AC/DC adapter:
Car adapter:
A/V Cable:
1PCS
1PCS
1PCS
1PCS
1PCS
Battery: 2PCS
Disc Compatibility: DVD+R/WDVD-R/W. DVD CD-R. CD-RW. PHOTO-CD. JPEG, MP3.
MP4.AVI.WMA
Audio Output: 0.5V(RMS) Impedance 10K
ȍ
12
