Naxa NAS-5003 User manual

Bluetooth & Wi-Fi Speaker
PLEASE READ CAREFULLY BEFORE OPERATING THIS EQUIPMENT
KEEP IT IN A SAFE PLACE FOR FUTURE REFERENCE
MODEL:NAS-5003

2
DANGEROUS VOLTAGE:The lighting flash with arrowhead symbol within
an equilateral triangle is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of electric shock to persons.
ATTENTION:The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
WARNING:TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE
THIS UNIT TO RAIN OR MOISTURE.
WARNING: USE UNDER SUPERVISION OF AN ADULT DUE TO LONG
CORD This unit has a long cord that can be easily tripped on or pulled on,
causing injury. Please make sure it is arranged so that it will not drape over a
tabletop, etc. Where it can be pulled on by children or tripped over accidentally.
FCC STATEMENT:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference
that may cause undesired operation.
CAUTION: TO REDUCE THE ELECTRIC SHOCK, DO NOT REMOVE THE
COVER (OR BACK). NO USER SERVICEABLE PART INSIDE, REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING:
To assure continued operation, follow the attached installation instructions and
use only shield cables when connecting to other devices. Changes or
modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Before using the unit, be sure to read all operating instruction carefully, please
note that these are general precautions and may not pertain to your unit. For
example, this unit may not have the capability to be connected to an outdoor
antenna.
1. Read these instructions
All the safety and operating instructions should be read before the appliance is
operated.
2. Keep these instructions
The safety and operating instructions should be kept for future reference.
3. Heed all warnings
All warnings on the appliance and in the operating instructions should be
adhered to.
4. Follow all instructions
All operation and use instructions should be followed.
FCC NOTICE:
5. Do not use this apparatus near water
The appliance should not be used near water; for example, near a bath tub,
3

4
washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming
pool.
6. Clean only with dry cloth
The appliance should be cleaned only as recommended by the manufacturer.
7. Do not block any ventilation openings.Install in accordance with the
manufacturer’s instructions.
Slots and openings in the cabinet and in the back or bottom are provided for
ventilation, to ensure reliable operation of the product and to protect it from
overheating. These openings must not be blocked or covered. The openings
should never be blocked by placing the product on a bed, sofa, rug, or similar
surface. This product should never be placed near or over a radiator or heat
source. This product should not be placed in a built-in installation, such as a
bookcase or rack unless proper ventilation is provided or the manufacturer’s
instructions have been adhered to.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The
wide or the third prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments / accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury
from tip-over.
An appliance and cart combination should be moved with care. Quick stop,
excessive fore and uneven surfaces may cause the appliance and cart
combination to overturn.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
To protect your product from a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall outlet and disconnect
the antenna or cable system. This will prevent damage to the product due to
lightning and power-line surges.
14. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or

moisture, does not operate normally, or has been dropped.
15. Power source
This product should be operated only from the type of power source indicated
on the marking label. If you are not sure of the type of power supply to your
home, consult your appliance dealer or local power company. For products
intended to operate from battery power, or other source, refer to the operation
instructions.
16. Power lines
An outside antenna system should not be located in the vicinity of overhead
power lines or other electric light or power circuits, or where it can fall into such
power lines or circuits. When installing an outside antenna system, extreme
care should be taken to keep from touching such power lines or circuits as
contact with them might be fatal.
17. Overloading
Do not overload wall outlets and extension cords as this can result in a risk of
fire or electric shock.
18. Object and liquid entry
Never push objects of any kind into the product through openings as they may
touch dangerous voltage points or short out parts that could result in fire or
electric shock. Never spill or spray any type of liquid on the product.

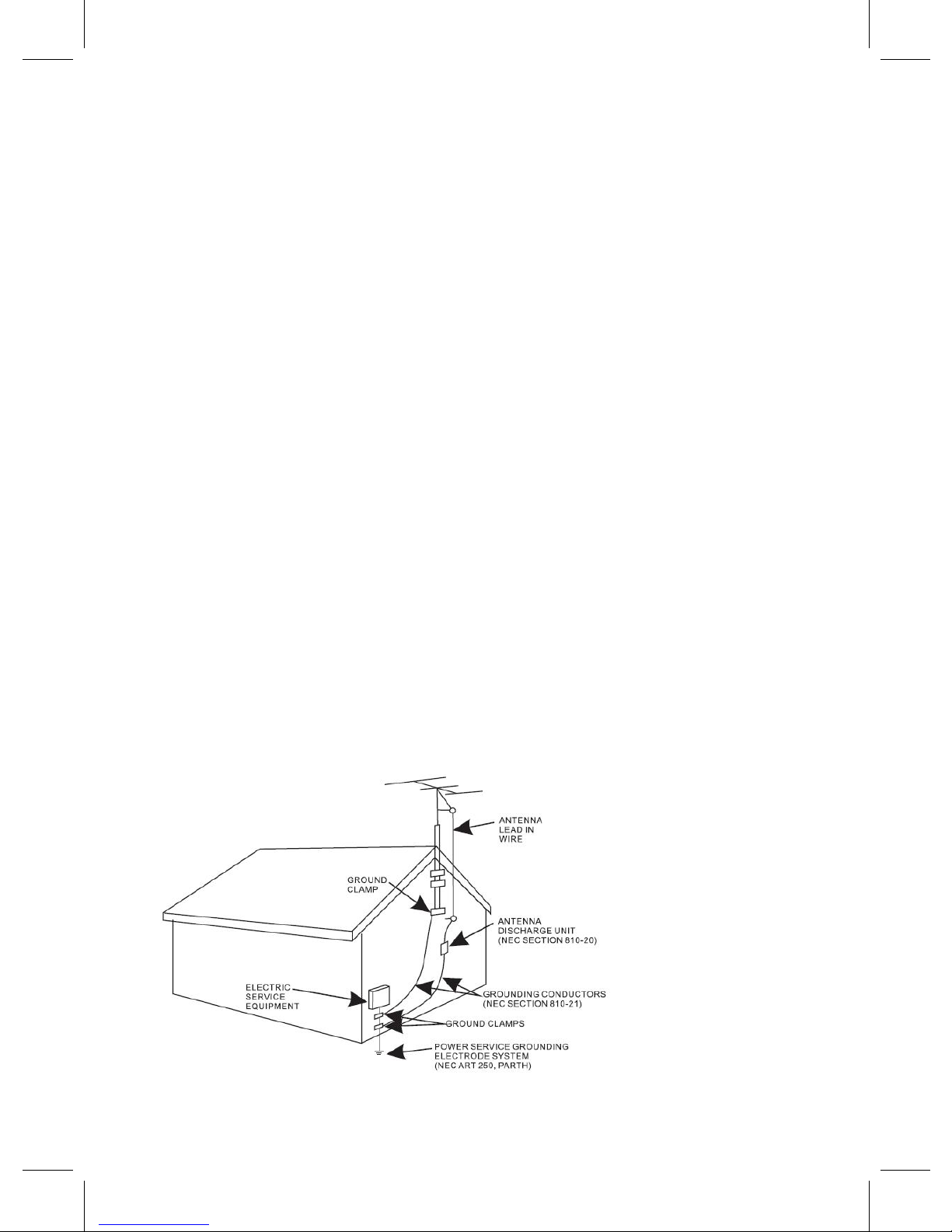

19. Outdoor antenna grounding
If an outside antenna is connected to the product, be sure the antenna system
is grounded so as to provide some protection against voltage surges and built
up static charges. Section 810 of the National Electric Code ANSI/ NFPA 70
provides information with respect to proper grounding of the mast and
supporting structure, grounding of the lead- in wire to an antenna discharge
product, size of grounding conductors, location of antenna- discharge product,
connection to grounding electrodes and requirements for the grounding
electrodes.
5

20. Service
Do not attempt to service this product yourself as opening or removing covers
may expose you to dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
b)If liquid has been spilled or objects have fallen into the product.
c)If the product has been exposed to rain or water.
d)If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the operating
instructions, as an adjustment of other controls may result in damage and will
require extensive work by a qualified technician to restore the product to its
normal operation.
e)If the product has been dropped or the cabinet has been damaged.
f)When the product exhibits a distinct change in performance- this indicates a
need for service.
25. Note to CATV system installer
This reminder is provided to call the CATV system installer' s attention to
Article 820- 40 of the NEC that provides guidelines for proper grounding and,
in particular, specifies that the cable ground shall be connected to the
grounding system of the building, as close to the point of cable entry as
practical.
NOTE: Refer all servicing to qualified service personnel. Servicing is
required when the unit has been damaged in any way such as the
following: the power-supply cord or plug has been damaged, liquid has
been spilled into unit, the unit has been exposed to rain or moisture, the
unit has been dropped or the unit does not operate normally.
21. Replacement parts
When replacement parts are required, be sure the service technician uses
replacement parts specified by the manufacturer or those that have the same
characteristics as the original parts. Unauthorized substitutions may result in
fire or electric shock or other hazards.
22. Safety check
Upon completion of any service or repairs to this product, ask the service
technician to perform safety checks to determine that the product is in proper
operating condition.
23. Wall or ceiling mounting
The product should be mounted to a wall or ceiling only as recommended by
the manufacturer.
24. Damage requiring service
Unplug this product from the wall outlet and refer service to qualified service
personnel under the following conditions.
a)When the power- supply cord or plug is damaged.
6

PROdUCT OvERvIEW
7
AUX IN
DC 5V
TOP VIEW
REAR VIEW
1
2
3
4
5
6
7
8
9
10
11
1. LED Light Ring
4. VOL- Button
2. Power On/Off, MODE Button
3. VOL+ Button
7. Mode Indicator
8. Built-in Microphone
9. Charge Indicator
11. AUX IN Jack
10. DC IN Jack
6. Alexa Control Button
8
5. Microphone On-Off/WPS Button

POWER SOURCE:
There is a built in Li-ion rechargeable battery, recharge it if the battery is low.
1. Connect the Micro USB Plug from the supplied USB Connection Cable to the Micro
USB Port on the rear of unit.
2. Connect the full sized USB Plug from the supplied USB Connection Cable to the
USB Port on the USB Charger (During
When finished, it will turn off).
charging, the charge indicator on the top of
unit will turn RED,
through the microphone on
NOTES:
Your battery will last longer if you're following these simple guidelines for charging
and storing:
A.
Before first time use, charge it approximately
hours until the unit is fully
charged.
B.
Recharge and store the unit within the temperature range of 5°C~35°C
(40°F~95°F).
C.
Do not charge longer than 24 hours. Excessive charging or running the
unit until battery fully drains will damage battery. Battery life will be extended
if you keep the battery fully charged.
D.
Battery life naturally shortens slowly over time.
E.
The rechargeable battery incorporated in this product is not user
replaceable.
4
8
AUX IN:
To listen from an external Audio Player such as a MP3 Player, Discman …etc.
1. Connect one end of the Audio Connection Cable to the AUX Out/Line Out/Phone
Jack on the external Audio Player.
2. Connect the other end of the cable to the AUX IN Jack on the rear of the unit.
3. Play the music on the connected Player as usual.
Press and hold the MODE button to power on the unit, wait the mode indicator
blinks green only, press the MODE button repeatedly until the Mode Indicator
will turn INDIGO.

BLUETOOTH OPERATION:
4. Play a track on your paired audio player or phone as normal.
bluetooth device list, select it and make connection.
3. After successful connection, the unit will send a tone and the indicator stays lit.
device and speaker are activated and
the pairing name
try to search the speaker, "NAXA NAS-5003" will appear on
with the device last
paired when the bluetooth of the
NOTE:
After first time pairing, the unit will be automatically connect
2. Activate the bluetooth menu on the device you wish to connect to the speaker,
During playing:
in range.
9
1. Press and hold the MODE button to power on the unit, wait the mode indicator
blinks green only, press the MODE button repeatedly until the Mode Indicator
will turn BLUE and blinks.
Press the VOL+ or VOL- button to adjust volume.

SETUP
CONNECTION
desired WiFi network (router).
Connect your iOS or Android device to the
2. Turn on the WiFi on your iOS or Android device(smart phone or tablet with WiFi function),
3. Tap the Naxa Resound icon on your iOS or
Read the screen instructions and tap the to continue.
10
The following operation base on iOS system. The operation of Android is similar.
NOTE:
Naxa Resound
The App icon will appear as the figure on right after successful installation.
APP dOWNLOAd ANd INSTALLATION
Download the Naxa Resound from Apple App store for iOS devies.
Or, download from Google Play store for Android devices.
1. Press and hold the MODE button to power on the unit, wait the mode indicator blinks
green only, now it is WiFi mode.
NAXA Wireless
Please make sure your device is powered
up. Your phone is connected to XXXX,
please make sure your device is connected
to the same network.
Android device. The following picture will appear.
Experiencing any problems? Give us your feedback>>

Make sure your phone is
connected to 2.4G Wi-Fi,
not 5G.
YOUR WIRELESS-2.4G
YOUR WIRELESS-5G
Not sure what you're currently
using? Refer to your router's user
guide for more info.
Next
4. Read the instructions on screen and tap
to continue. 5. Tap the column to select the desired
NAS-5000
Please select your device
Next
Next
2
on top of the speaker.
6. Tap the Password column to input the
password to make the speaker to connect
to Wi-Fi network(router), tap
to continue. Next Tap Next to continue.
Press and hold the WPS key on
device to put the device into
network setup mode.
Then click the "Next" button to
continue.
7.
11
Press and hold the WPS
button
CONNECT SPEAKER
device NAS-5003. Then tap the
CONNECT SPEAKER to continue.
WIFI INFO
1Please enter Wi-Fi password:
<
Next
Password: Please enter Wi-Fi password
Wi-Fi: XXXX
<
PRESS TO ENTER SETUP M...

during the connecting process.
PLEASE WAIT
3Wait for device to be connected
<
Cancel
to Wi-Fi...
Don't operate device during Wi-Fi
setup. Please wait for compltion of
setup patiently. It's usually finished in
60 seconds.
If you hear voice prompt for erro message.
please go back and retry
CONNECTED
Device is connected to XXXX
successfully
Current Wi-Fi strength of device:100%
Next
8. There will be voice instructing 9. When the speaker is connected to the Wi-Fi
successfully, and the Mode Indicator on top
of the speaker will stay lit.
12
Note:
WI-FI SETUP TIMEOUT
UH OH!
Unable to connect your NAXA s...
Alternate Way to Setup
Cancel
the "Cancel" Button
If the connection fails, the following page will appear.
Then tap to reconnect as the on screen instructions.

13
<
AMAZON LOGIN
Sign in to NAS-5003 using your Amazon
account
Email (phone for mobile accounts)
Amazon password
Show password
Keep me signed in. Details
Sign in
New to Amazon?
Create a new Amazon account
Sign in
Forgot password?
<
AMAZON LOGIN
Create Account
Name
Your email address
Create a password
Show password
Create your Amazon account
By create an account, you agree to Amazon's
Conditions of Use and Privacy Notice.
Already have an account?
Sign in now
13. If you do not have an Amazon
on screen instructions.
account, then
tap "Create a new Amazon account" to start
registration and create a new Amazon
account as the
"Sign in" Button on the screen to log on.
12. The following page will appear, input the
account and password and tap the
<
Custom...
NAXA NAS-5003_xxxx
Bathroom
Bed Room
10.
Dining Room
Den
Family Room
Foyer
Garage
After connected, the following screen
will appear, tap Custom...to set a new
desired location name, or tap one in
the name list as the selected location.
NAME DEVICE
Garden
Next
11. The following page will appear.
If you
already have an account, then tap
"Sign in with Amazon" Button on the
following screen.
Sign in with Amazon
Cancel
Your device includes acess to Alexa.
Connect your Amazon account to
access personalized features.
Alexa allows you to use your voice to play music
and get news, sports scores, weather and more-
all hands-free.
All you have to do is ask Alexa.
NAXA NAS-5003_xxxx

Please choose your prefered
Deutsch
language for Alexa.
English(United States)
English(United Kingdom)
You can change the language later in "Alexa
Settings".
<
AMAZON LOGIN
We will provide NAS-5003:
Connectivity to Alexa so that you can
interact with it using your voice.
Alexa processes and retains audio and other
information in the cloud to provide and improve
our services, and may exchange information
with third party services to fulfill your requests.
voice using your default payment and shipping
settings. You can require a speakable
confirmation code, turn purchaing off, and see
product and order details in your Alexa App.
cloud to protect your purchases.
You also accept All Amazon terms found here
Learn more. Alexa also allows purchasing by
Learn more. Your music will be saved to the
Cancel I agree
15. After log in, the following page will appear, tap the language to set the desired
language.
14
14. When the following page appears, tap the "I agree" Button to log in Amazon.
NAS-5003
NAXA NAS-5003_XXXX

Here are some of the many things
you can ask Alexa.
Alexa, what's the weather?
Alexa, play my Flash Briefing.
Alexa, what are some top-
rated Indian restaurants?
Alexa, set a timer for 20 minis.
Next
Alexa is ready
16. The following page will appear, tap the "Next" Button on the screen.
Next
We value your privacy, so you can
disable your microphone as shown in
the image above.
To learn more and acess additional
features, download the Alexa App.
17. The following page will appear. Then you can mute the microphone function following
15
the on screen instructions or tap the "Next" button to continue.
NAXA NAS-5003_XXXX
NAXA NAS-5003_XXXX

16

Tap the " " to add more units
to the network, repeat the procedure above
and make connection as the on screen instructions.

Tap the " " to rename the unit,
check the unit info or reset to the factory
setting, check the preset content, and set or reset the Alexa settings.

Tap the " " to change the audio
mode to L (left channel), R (right channel)
LR
and LR (stereo).
<
DEVICE LIST
LR
LR
...............................................
How to switch between solo and multi mode?
Bed Room
Pause All
You belong with me.
Bathroom
I got it!
18. Tap "I got it!" to continue. Then the DEVICE LIST will appear.
<
DEVICE LIST
LR
No song
Play All
NAXA NAS-5003_XXXX 50%
On DEVICE LIST:

“ ”
R
You Belong with me
Bedroom
....................................................
R
Bathroom
R
Bathroom
Because of you
....................................................
R
You Belong with me
Bedroom
Multi Mode: Press and hold device icon and
drag towards another device to pair devices.
Solo Mode: Press and hold device icon and
drag down past dotted line.
<
DEVICE LIST
LR
LR
...............................................
How to switch between solo and multi mode?
No song
Play All
Bedroom
19. If more than one unit has been added into the DEVICE LIST, you can tap the
instruction to learn
how to switch solo and multi mode as below:
17
20. When finished, shut off the unit by pressing and holding the /MODE button
on top of the unit.
Notes:
To disconnect the unit from the current Wi-Fi network, press and hold the
previously instructed.
minutes” is heard then power off the unit. Power on the unit again then reconnect to
desired Wi-Fi network as the
/WPS
Button until audible prompt “Connecting to your network, this may take one to three
How to switch between solo and multi mode?
NAXA NAS-5003_XXXX 50%
60%

<
DEVICE LIST
LR
No song
Play All
50%
18
Operation after being added to the Wi-Fi network:
1. Connect your Mobile Device to the 2.4G Wi-Fi Network.
2. Power on the unit by pressing and holding the /MODE Button on the top of the
unit until the Blue and Green Indicators on the top of unit illuminates and blinks.
3. Wait until the Green Indicator illuminates and blinks.
4. Wait a few seconds, the unit will automatically connect to the same Wi-Fi network.
The Green Indicator will stop blinking and audibleprompt "Connected" will be heard.
5. Tap the "Naxa Resound " on your Mobile Device.
The following image will appear on the Mobile Device's screen:
6. Wait a few seconds, the following page will appear:
NAXA NAS-5003_XXXX

19
7. Tap the mobile device's screen and slide to right repeatedly until the following
screen appears. enter to the desired function:
Tap the corresponding button to
Touch to check the version and/or feedback
Touch to search online
songs
Touch to listen the
collected favorite songs
Touch to listen the music
in your connected mobile
Touch to log on
professional online
radio platform
Touch to log on
professional music
platform
Touch to log in/Sign out
Touch to add more
service
Touch to switch to Aux
In mode
Touch to switch to
Bluetooth mode
Amzon Alexa
devices
Search
Favorites
My music
iHeartRadio
Spotify
Amazon Alexa
Add More Services
AUX
Bluetooth Settings
TIDAL
Touch to log on
professional music
platform

1. Tap "Spotify" on the home screen.
2. Input your account and password to log in.
3. Open the Spotify on your phone, tablet or PC, and play any song.
4. Tap the connect icon .
5. Pick your device from the list.
Before use, you have to create an spotify premium account for log in.
Before use, you have to create an iHeartradio account for log in.
Before use, you have to create a TIDAL account for log in.
1. Tap "iHeartradio" on the home screen.
2. Input your account and password to log in.
3. Select the desired song and play.
1. Tap "TIDAL" on the home screen.
2. Input your account and password to log in.
3. Select the desired song and play.
Licenses
The Spotify Software is subject to third party licenses found here:
www.spotify.com/connect/third-party-licenses.
SPOTIFY OPERATION
IHEARTRADIO OPERATION
TIDAL OPERATION
20
