NBB Nano-media User manual

NBB Controls + Components GmbH
Nano-media
Operating instructions

2
Content

3
Content
General information ................................................................................................................................... 4
Transmitter Nano-media ......................................................................................................................... 8
Accessories .................................................................................................................................................. 12
Technical documents .............................................................................................................................. 14

4
Standard scope of delivery
– Transmitter including carrying system
– Receiver with integrated mounting holes
– Integrated connection cable or adapter cable for receiver
The order confirmation and/or delivery note is binding for the actual scope of delivery.
Safety information
Even if you have already operated radio control systems, always read these operating
instructions before commissioning. Only these operating instructions include the latest
information about your NBB radio control system.
Please refer to the enclosed documents for explanations about the operating license.
Always observe the relevant work safety and accident prevention regulations. Only
trained and authorized persons may operate the NBB radio control system. The safety
features installed in the NBB radio control system must be checked regularly.
The NBB radio control system must be shut down immediately in case of failures.
The transmitter must be switched off using the EMERGENCY STOP switch or
STOP button. The connection cable at the receiver must be disconnected from the
connection (terminal) of the controlled system. The radio control system may only
be repaired by NBB or specialists authorized by NBB.
Disregarding these recommendations puts you and others in danger!
NBB refuses any warranty and liability in such cases. The radio control system is used
to control machines and transmit data. In explosive atmospheres or for the control of
machines for the transport of persons it may not be used, unless specifically authorized
by the manufacturer for this application. Any different use is prohibited and releases
NBB from any responsibility.
In the event of faults
Stop work immediately if a fault event occurs with the NBB radio control system!
Please note that even small faults can lead to extensive defects. Always contact your
dealer or NBB in the event of a fault. Do not attempt to repair the NBB radio system.
Nameplates
The nameplates specify transmitter and receiver type, serial number, frequency range
and approval for non-EU countries. Please always advise serial number for queries.
General information
Never expose the radio control
system to strong jet high pressure
cleaning equipment!

5
Maintenance
The NBB radio control system is maintenance-free. Nevertheless observe the following
points:
– Check EMERGENCY STOP and STOP function regularly.
– Remove residues of building material.
– Disconnect receiver from power supply before welding work, to avoid the risk of
damage to the receiver electronics.
– Check regularly for worn parts.
Warranty
NBB grants a functional warranty of 12 months from the date of sale on all NBB radio
control systems (transmitter, receiver, charger). Working hours and material costs are
included in the warranty. Shipping costs shall be at the expense of the buyer. Worn parts,
relays, rechargeable batteries and batteries are excluded from the warranty.
The functional warranty does not cover damage, accidental damage, negligence, improper
use, non-compliance of the operating conditions, non-observance of the operating,
test and service information as well as for repairs or device modifications that are not
authorized by NBB.
NBB is not liable for indirect damage and reserves the right to decide on improvements
or replacements.
Liability exclusion
The manufacturer (NBB Controls+ Components GmbH) assumes no liability for the final
product. The buyer is obliged to check the goods after receipt for possible defects and
to report these to the manufacturer within 14 days. Furthermore, in terms of product
liability, the buyer is obliged to instruct and train the end customer on the proper use
and application of the product. The obligation for complete documentation (placing on
the market, identification) is transferred to the buyer at the time of delivery.

6
General information
US-FCC and CANADA IC
>FCC notes
Part 15.105 Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
Part 15.21 Statement
Changes or modifications made to this equipment not expressly approved by
NBB Controls+ Components GmbH may void the FCC authorization to operate this
equipment.
>IC notes
The installer of this radio equipment must ensure that the antenna is located or
pointed such that it does not emit RF field in excess of Health Canada limits for the
general population; consult Safety Code 6, obtainable from Health Canada’s website
www.hcsc.gc.ca/rpb.
>Part 15.19 / RSS-GEN
This device complies with Part 15 of the FCC Rules and with Industry Canada licence-
exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.

7
Republic of China
>Announcement No. 52, 2019 regulation
It is not allowed to change the scene or conditions of use, expand the range of
transmission frequency, increase the transmission power (including adding additional
RF power amplifiers) or change the transmission antenna without authorization;
It shall not cause harmful interference to other legitimate radio stations or stations,
nor shall it propose protection against harmful interference
It shall withstand interference from industrial, scientific and medical (ISM) application
equipment that radiates radio frequency energy or other legitimate radio (station)
interference;
If harmful interference is caused to other legitimate radio stations (stations), the use
of such stations shall be stopped immediately, and measures shall be taken to eliminate
the interference before they can continue to be used;
The use of micro power equipment in the aircraft and in the electromagnetic
environment protection areas of military and civil radio stations (stations) and airports,
such as radio observatories, weather radar stations, satellite earth stations (including
measurement and control, ranging, receiving and navigation stations) planned in
accordance with laws and regulations, relevant regulations and standards of the
state, shall comply with the provisions of the electromagnetic environment protection
and the competent departments of relevant industries;

8
Transmitter Nano-media
Technical data
Nano-media combines the compact design of the Nano-minor with the technical variance
of the Nano-magna – for the greatest variety of operating and feedback options in the
smallest space.
– Compact, ergonomic design
– Also suitable for complex applications
– Optional: 3-axis joysticks in NBB design
– Optional: 4.3” LCD display with customer-specific design
– Operation with 7.2 V Ni-MH battery
– SMJ technology
– IP65
– Compatible with all NBB receivers
Neckbelt
NBB-No.: 3.320.1011
Transmitter Nano-media
Transmission frequency range See nameplate
Data security Addressing each transmitter using a unique Binary bit code combination
Data repetition rate Approx. 15ms
LF-modulation GFSK
Baud rate 9.600 Baud (bit/sec.)
Operating range 100 m
Operating voltage 7,2V – NBB battery
Current consumption Approx. 150mA depending on the configuration
RF output ≤1 mW, ≤10 mW, ≤25 mW (depending on the configuration)
Protection class IP 65
Operating ambient temperature –20 to +70°C
Weight (without battery) 1.900g
Measurements (L x B x H) 340 x 201 x 151mm
Universal-Charger with 4 adapter plug
NBB-No.: 2.251.1450
Accessories optional (Webshop: https://shop.nbb.de/en-us/)
Waistbelt
NBB-No.: 3.320.1016

9
Commissioning
>Operating voltage 7.2 V
Insert the battery in the battery compartment for commissioning. For removal, press in
the locking pin to unlock and slide out the battery.
If the NBB radio control system won’t be used for a long period of time, it is strongly
recommended remove the battery from transmitter and charge the battery approx.
every 4 weeks. This prevents deep discharge of the battery and enhances its service
life.
>Battery life warnings
The quick blinking of the letter “L” in the display shows the end of the battery capacity.
From this time the operation of the transmitter is approx. 30 minutes possible. During
this time, bring the unit into a safe position, switch off the transmitter and and insert a
new battery. Charge discharged batteries only in the charger.
>Energy saving function
If no buttons are pressed within a specified time*, the transmitter switches off automatically.
The display turns off. A transmitter can also be manufactured without a standby function
for continuous operation as an option.
*The standby time can be set as desired.
Safety equipment
>Safety equipment in the NBB radio control system
– EMERGENCY STOP or STOP function
– Zero position interlock
– Addressing each transmitter using a unique Binary bit code combination
– Rubber sleeves to protect the switch
Please check the sleeves and the housing for breaks and cracks each time before com-
missioning the transmitter. Contact your service team if necessary. Non-observance can
cause malfunctions and water damage.
Please refer to the technical docu-
ments for the exact design.
1. Press in the locking
2. Slide out the
Charge the rechargeable battery
completely before initial use.

10

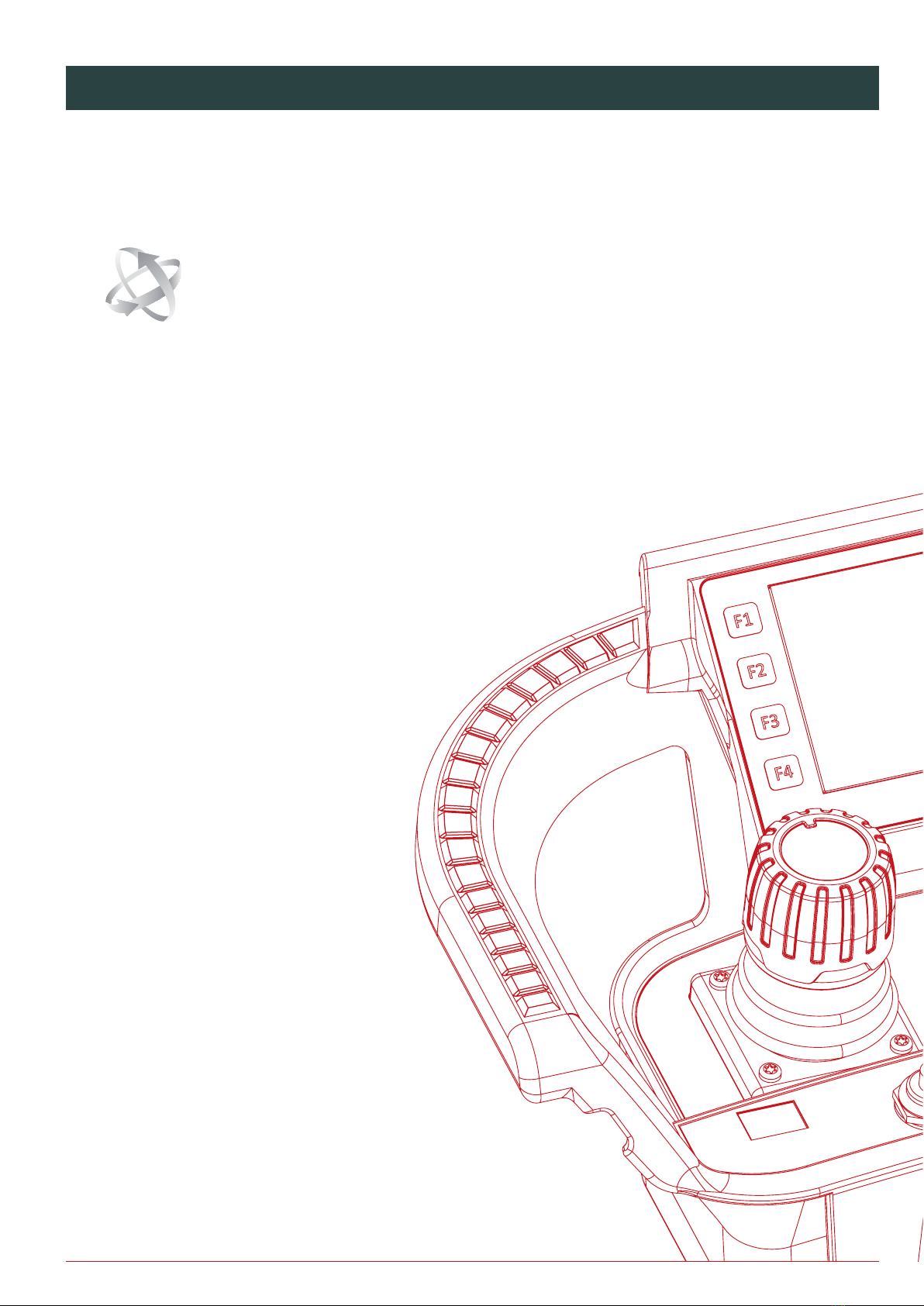

Transmitter Nano-media
Operation of the system

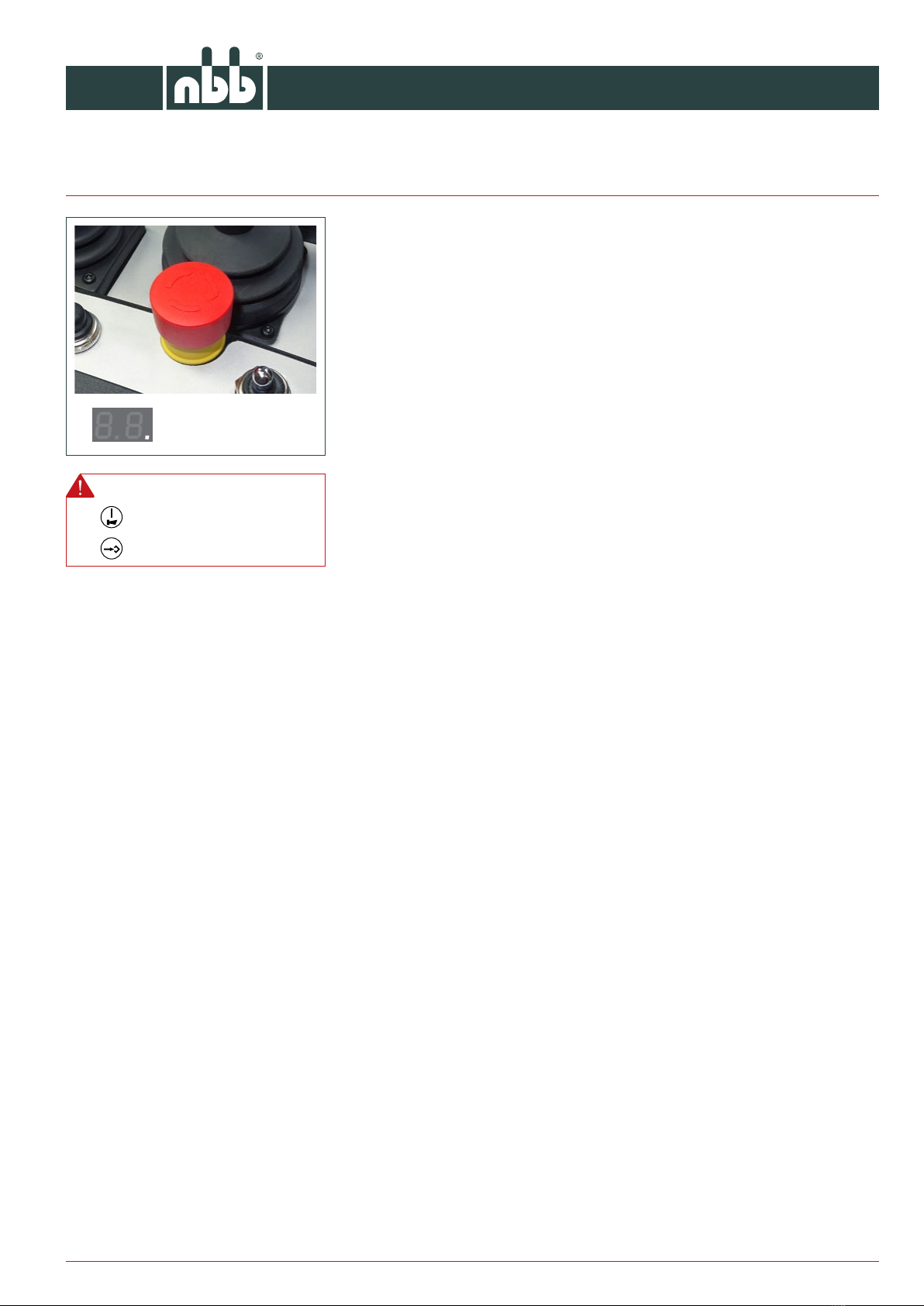

>Switching the transmitter on and off
– Unlock the emergency stop pushbutton by turning clockwise to switch on the transmitter.
– Two acoustic signal sounds.
– A red dot flashes in the LED display.
– Switch off the transmitter by pressing the emergency stop pushbutton once.
After pressing the emergency stop pushbutton, the transmitter sends stop telegrams for
2 seconds to switch off the system. This shut-off time is displayed on the LED display by
the external segments rotating clockwise.
To ensure faultless free operation, please observe the following rules:
The system to be controlled – provided the transmitter is ready for operation – can only
be switched on if no command is activated. To start the system to be controlled and to
activate the functions press the “On/Horn” button, which also triggers a horn signal.
Due to work specifications, the same button is used for triggering repeated horn signals.
>Frequency change
To change the frequency, press and hold the “On/Horn” button. Now press the
“Frequency change” button. Each press advances one channel. If the receiver locks on a
new frequency, a horn signal is triggered and the system is ready for operation. Please
observe the country-specific regulations.
>Channel number
During operation the set channel can be displayed by pressing the “Frequency switching”
key.
Operation:
The red dot flashes.
Information symbols:
Frequency change
On/Horn

11
SMJ Technology – Surface Mounted Joystick
>Surface Mounted Joystick
– Switch off the transmitter and remove the battery.
– Loosen all 4 screws of the Surface Mounted Joystick with a Torx 10 screwdriver and
remove the screws.
– Remove the Surface Mounted Joystick from the top. Insert the new Surface Mounted
Joystick and make sure that the plugs and sockets are above each other when mounting.
Screw down the Surface Mounted Joystick with the 4 screws previously removed and
re-inset the batteries.
Start teach mode after changing the Surface Mounted Joystick (see below).
>Teach mode activation
To activate teach mode, the transmitter must be switched off.
1. Press and hold the “Frequency switching” key.
2. Switch the transmitter on.
3. Version 7-segment functional display (LED): The letters “JT” appear in the display
after 2 seconds.
Version LCD display: “Joy Teach” and graphical display appear after 2 seconds.
4. Release the “Frequency switching” key.
5. Move the joystick in one direction completely and return to the 0-position. Repeat
this for all directions. Repeat point 5 for all other joysticks (also applies to 3-axis
joysticks). It is not necessary to activate the teach mode again.
6. To exit the teach mode press the “On/Horn” key once. All joystick activations are
available to its full extent.
7. Attention! The transmitter is now in working mode!
The Teach mode for setting and saving the max. and min. values of the valves with pro-
portional control is activated by a separate key combination. Please note the instruction
„Teach mode“ which is described separately in the technical documentation.
If “JT” does not appear in the display,
please switch off the transmitter
and start teach mode activation from
the beginning!
3
5
41
2
Frequency change
On/Horn
6

12
Accessories
Technical data
The nickel-metal hydride (Ni-MH) batteries from NBB have a high energy density and self-
cleaning contacts. With an NBB charger, the battery packs are charged at a high charge
current. This rapid charge is thermally controlled to optimise recharging and prevent
overcharging.
Technology Ni-MH
Voltage 7.2V
Capacity 1,500m Ah
Maximum charging current 1.0A (with monitoring)
Operating temperature (discharge) –20C° to +60C°
Operating temperature (charge) +10C° to +35C°
Weight Approx. 200g
Measurements (L x B x H) Approx. 126mmx52mmx 22 mm
Battery 7.2 V
Completely charge the battery before initial use.
The battery only has its maximum capacity after five complete charging and discharging
procedures!
Completely discharge the battery in the control unit before charging again.
The charging time depends on the type of battery. It is normal for the battery to heat up
during charging or over long periods of use. Charge batteries at an ambient temperature
of 10° C to 35° C. To prevent deep discharge, the battery should be recharged once a
month if not used. If the battery temperature is too high or too low, no charging takes
place. Deep discharge and extreme temperatures damage the battery. Heat in particular
reduces performance. To extend the service life of the battery, store the charged battery
in a cool and dry location. We are not liable for subsequent damage due to incorrect use.
Safety information
Do not open, modify or burn the battery. Do not drop it or subject it to strong impact.
Protect the battery from rain, moisture and extreme temperatures. Keep the contacts
clean and make sure the battery does not come into contact with metal objects (e.g.
aluminium foil). Do not short circuit the battery.
Disposal
Do not throw away used batteries in household waste but hand them in to a collection point.
Warranty
Any warranty claims for damage or premature wear due to non-observance of the above
operating and safety information shall become null and void.
Only completely discharged batteries
should be charged. Therefore operate
your controller until the capacity of
the battery is completely depleted.
A charged battery is a concentrated
energy source! Never store the battery
in toolboxes, or similar, where there is
a risk of short circuiting due to metal
parts (short circuit due to keys in
trouser pockets is also possible.).

13

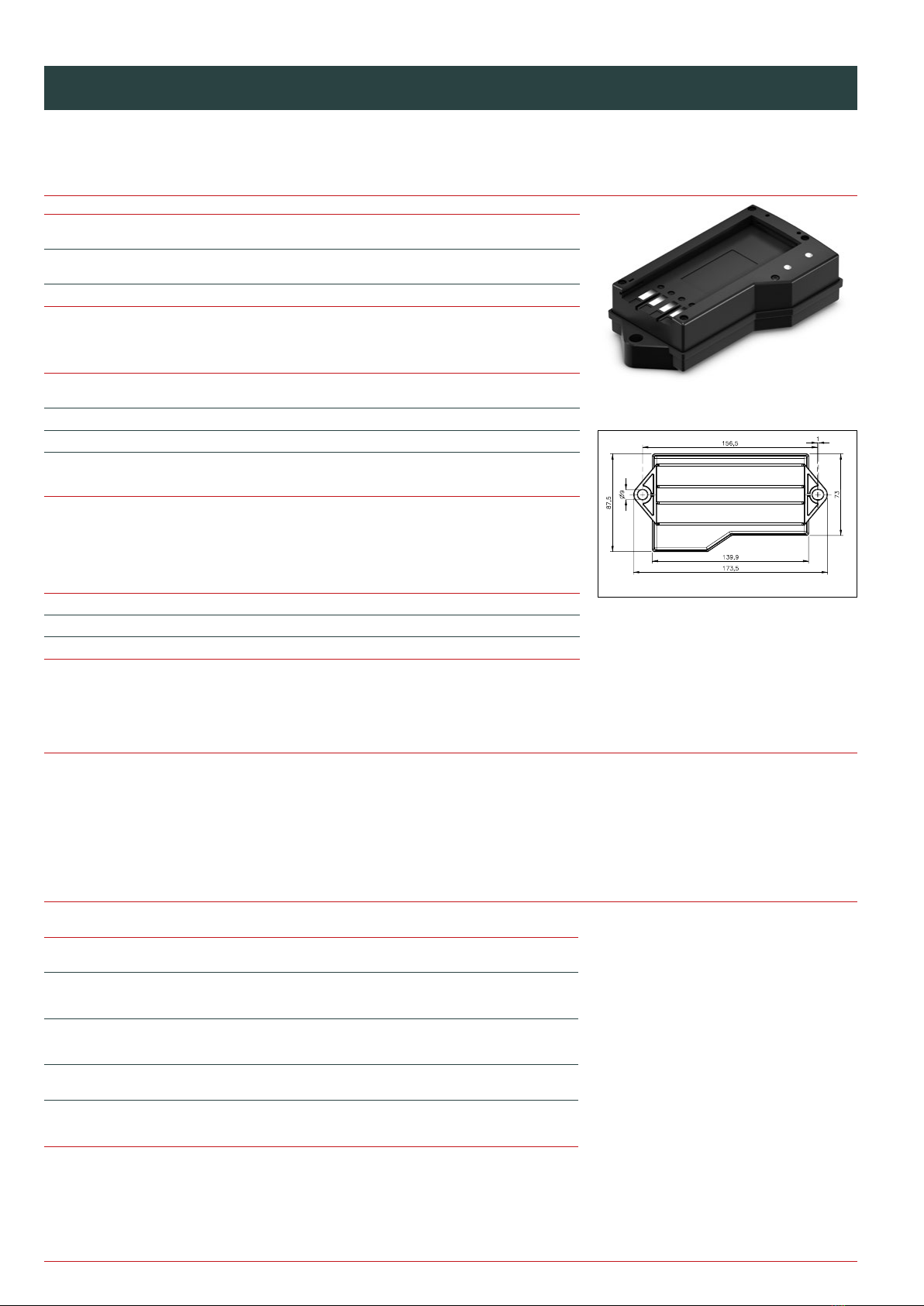

Technical data
Power supply 9V–32V DC (e.g. by 12 V/24 V on-board electrical system)
(Note: the charging procedure is lengthened below 10V)
Supply voltage via coaxial power connector (ø external = 5.5mm,
ø internal = 2.1mm) or via cigarette lighter plug
Measurements (L x W x H) 173,5x73x43,7mm
Configurable specific to battery (Delta Peak, dT/dt, charging current, timeout)
Display of the charging procedure via a DUO-LED
LED – continuously lights up green STANDBY. Charger is ready for operation. Insert the battery in the
battery compartment.
LED – continuously lights up orange CHARGING. The battery is being charged.
LED – rapidly flashing orange Charging complete.
LED – slowly flashing orange
Battery is deeply discharged or ambient temperature for quick charging
is too low. There is a regeneration or warm-up phase with reduced
charging current before changing over to actual quick charging.
Leaving the battery in the charger beyond the charging time is not a hazard. Only use
the charger when it is dry!
Detection and evaluation of the following start states
Undervoltage Pre-charging with reduced charging current
Insufficient temperature Pre-charging with reduced charging current (warm up)
Excessive voltage No start of charging procedure
Shutdown when permitted maximum temperature is reached.
Optional integrated charger (in receiver)
Integrated charger (in receiver) for charging NiCd and NiMH rechargeable batteries (7.2 V).
Alternatively the receiver (DC supply) can be equipped with an integrated charger.
Quick charging (approx. 1h): R16, R-CAN, Compact-M, Compact-V
Normal charging (approx. 3h): PNN-BUS-3
(Webshop: https://shop.nbb.de/en-us/) Universal charger
NBB-No.
2.250.1449 Basic Universal-Charger (12V/24V DC)
(without connecting cable)
2.250.1450
Universal-Charger (2.250.1449) (12V/24VDC)
set with power supply Glob Tek Inc. (3.971.1455) (100/240VAC/12 V DC),
2m cable, euro plug
2.251.1450
Universal-Charger (2.250.1449) (12V/24VDC)
set with power supply Glob Tek Inc. (3.970.1455) (100/240VAC/12 V DC),
2m cable, 4 adapter plug (3.970.1456)
2.250.1452 Universal-Charger (2.250.1449) (12V/24VDC)
set with cigarette lighter plug (3.400.1451), 2m cable, cable connected to charger
2.250.1453
Universal-Charger (2.250.1449) (12V/24VDC)
set with power supply Glob Tek Inc. (3.970.1455) (100/240VAC/12 V DC),
2m cable, 4 adapter plug (3.970.1456), cigarette lighter plug (3.400.1451)
Measurements in mm

14
Technical documents

15

Stand 10/20 · We reserve the right to alter specifications without notice.
Headquarter
NBB Controls + Components GmbH
Otto-Hahn-Straße 3– 5
75248 Ölbronn-Dürrn
GERMANY
Fon: [phone]
Fax: [phone]
[email protected]
www.nbbcontrols.com
NBB Controls, Inc.
5909 School Avenue
Henrico, Virginia (VA) 23228
Fon: 800 706-4489 (only USA)
Fon: [phone]
Fax: [phone]
[email protected]
www.nbbcontrols.com
NBB Controls + Components China co., Ltd
Huaiyun Building
Room 1201, No.180 South of Yunnan Road,
ZIP: 200021, Shanghai. P. R. of China
Fon: [phone]
Fax: [phone]
[email protected]
[email protected]
Easy
Easy
Movement
Movement
