NBF Signature Series TT7130 User manual

Organize your parts and hardware. You will need (2) people, a Phillips head screwdriver and rubber mallet.
800-558-1010
www.NBF.com
71” Single Ped Desk • INSTRUCTIONS
CARTONS: TT7130, LG2830, MP5424, PBBF30
Parts :
TT-B: Desk Top
(71” x 29.5” x 1”)
Quantity: 1
PED-A: Box Box File Pedestal
(15.5” x 29.5” x 25”)
Quantity: 1
MP-D: Modesty
(54” x 25” x 1”)
Quantity: 1
LG-B: Leg Foot Bracket
(29.5”D)
Quantity: 1
LG-C: Leg Top Bracket
(29.5”D)
Quantity: 1
IMPORTANT NOTICE:
Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched.
Check to be sure that you have all parts and hardware.
Remove all wrapping materials, including staples & packing straps before you start to assemble.
Do not tighten all screws/bolts until completely assembled.
Keep all hardware parts out of reach of children.
Any problems or questions call Regency Ofce Furniture at 1-866-816-9822
(15.5” x 29.5” x 25”)
Cam Lock Assembly:
To open Cam, point arrow
toward Cam Pin hole. To
lock Cam, turn clockwise.
Figure 1:
PED-B
PED-A
MP-D
PED-C
LG-B
LG-A
TT-B
LG-A: Leg
(24.5” x 29.5” x 1”)
Quantity: 1
LG-C
PED-B: Ped Foot Bracket
(29.5”D)
Quantity: 1
PED-C: Ped Top Bracket
(29.5”D)
Quantity: 1
71” Single Pedestal Desk
Page 1

Any problems or questions call Regency Ofce Furniture at 1-866-816-9822
800-558-1010
www.NBF.com
Hardware :
I: Corner Bracket
Quantity: 2
J: Allen Key
Quantity: 1
K: Wood Cam Pins
Quantity: 2
L: Fine threaded
Cam Pins
Quantity: 2
M: 3/4” Wood Screws
(19mm)
Quantity: 15
O: 3/4” Short Bolts
(19mm)
Quantity: 12
P: 1.5” Long Bolts
(38mm)
Quantity: 6
S: Glides
Quantity: 4
T: Insert Covers
Quantity: 8
Q: Locking Screws
Quantity: 2
Locking Screws
N: Cam Caps
Quantity: 4
Cam Caps
R: 3” Screw/Washers
(76mm)
Quantity: 5
71” Single Ped Desk • INSTRUCTIONS
CARTONS: TT7130, LG2830, MP5424, PBBF30
U: Set of Keys
Quantity: 1
NOTE : PRODUCT IS REVERSIBLE.
SOME STEPS INCLUDE BOTH RIGHT AND LEFT ORIENTATIONS.
Please examine all parts before assembly. Hardware placement is critical.
V: Handles
Quantity: 3
W: Handle Screws
(25mm)
Quantity: 6
71” Single Pedestal Desk
Page 2

Any problems or questions call Regency Ofce Furniture at 1-866-816-9822
800-558-1010
www.NBF.com

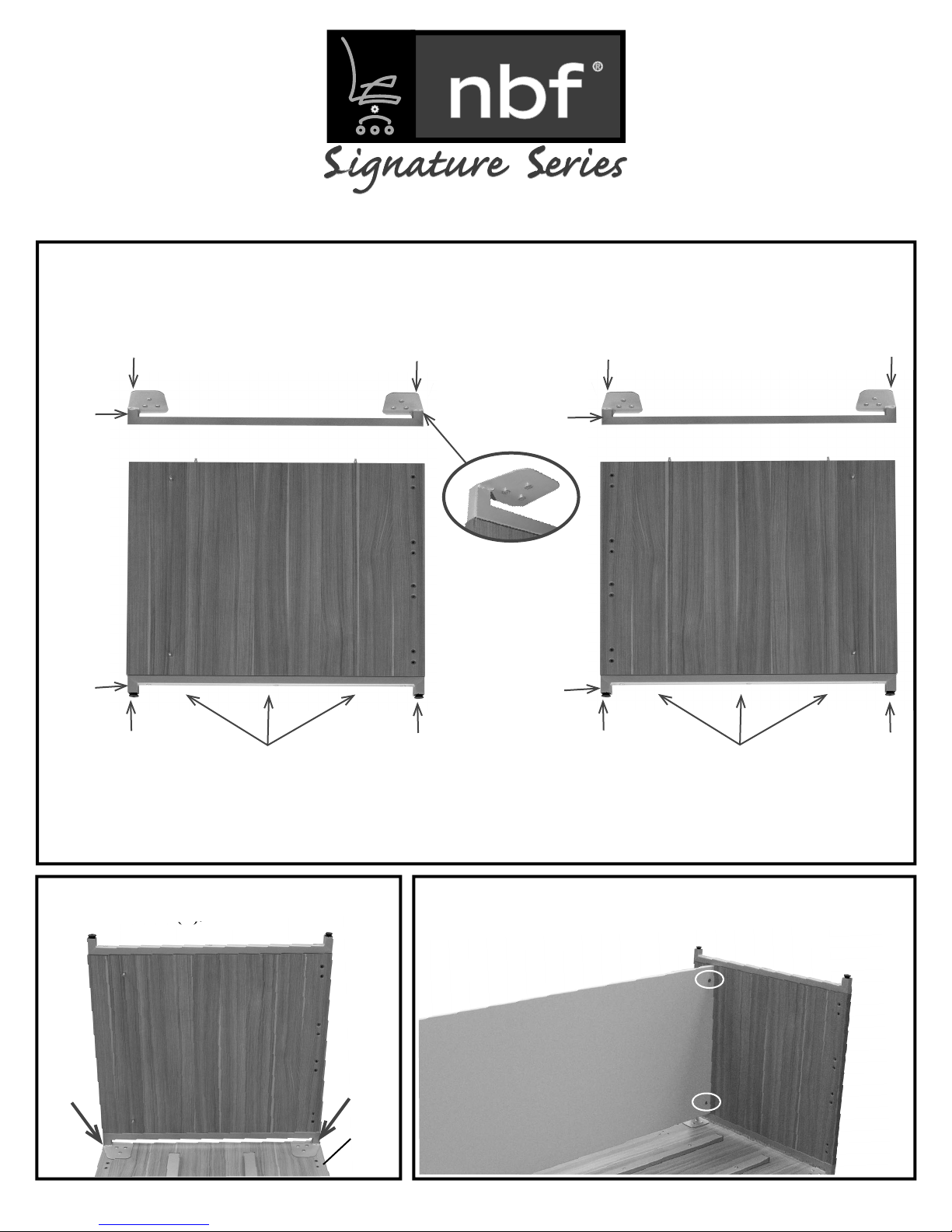

STEP 1 : HARDWARE PLACEMENT ON LEG(LG-A) DEPENDS ON LEFT PEDESTAL & RIGHT PEDESTAL ORIENTATIONS.
PLEASE EXAMINE CAREFULLY.
If you are following the instructions for a LEFT PEDESTAL
DESK, place your hardware as shown below.
If you are following the instructions for a RIGHT PEDESTAL
DESK, place your hardware as shown below.
STEP 1A: Insert 2 Locking Screws(Q) into the top of the Leg(LG-A). Attach Leg Top Bracket(LG-C) to Leg(LG-A) by inserting
the Locking Screws(Q) into the slide locking holes on Leg Top Bracket(LG-C). Slide into place. Insert 2 Screw/Washers(R) to
lock bracket in place. Insert 2 Glides(S) into Leg Foot Bracket(LG-B), then attach Desk Foot Bracket to Leg(LG-A) using 3 Screw/
Washers(R). Finish by inserting 2 Wood Cam Pins(K) into Leg(LG-A).
STEP 2 : Attach Leg(LG-A) to the Desk Top(TT-B)
using 6 Short Bolts(O).
6 Short Bolts(O).
TT-B
LG-A
STEP 3 : Attach Modesty(MP-D) to Leg(LG-A) by inserting and locking
cam pins (Figure 1).
NOTE: Cam Locks face the interior of the Desk. Be sure to support
opposite end of Modesty.
LG-A
MP-D
71” Single Ped Desk • INSTRUCTIONS
CARTONS: TT7130, LG2830, MP5424, PBBF30
SS
LG-B
LG-C
R
R
R
K
K
K
K
R
R
Q Q
SS
R
LG-A
(interior side)
LG-A
(interior side)
NOTE: Supports
face interior side.
LG-B
LG-C
Q Q
O(3)
O(3)
71” Single Pedestal Desk
Page 3

Any problems or questions call Regency Ofce Furniture at 1-866-816-9822
800-558-1010
www.NBF.com
STEP 4 : On the Desk Top(TT-B), opposite of the Leg and Modesty, attach the Ped Top Bracket(PED-C) to Desk Top(TT-B) with 6
Short Bolts(O). Do not tighten bolts until all bolts have been started.
TT-B
PED-C
O
O
O
STEP 6 : Pedestal is Reversible. According to the orientation that you chose, remove 2 Cam Pin Covers from the Box Box File
Pedestal(PED-A) in the location shown below. Then insert a Fine threaded Cam Pin(L) into each of the revealed inserts.
L
L
PED-A PED-A
L
L
(Left
Pedestal
Desk)
(Right
Pedestal
Desk)
STEP 5 : Pull out each drawer on the Box Box File Pedestal(PED-A) and nd the black tabs at the end of the suspension. Lift one
side up and press the other side down and simultaneously pull the drawer out. This will unlock the drawer and release it. Repeat this for
all drawers.
side up and press the other side down and simultaneously pull the drawer out.
all drawers.
71” Single Ped Desk • INSTRUCTIONS
CARTONS: TT7130, LG2830, MP5424, PBBF30
71” Single Pedestal Desk
Page 4

800-558-1010
www.NBF.com
Any problems or questions call Regency Ofce Furniture at 1-866-816-9822
STEP 9 : Attach Box Box File Pedestal(PED-A) to the Ped
Top Bracket(PED-C) using 3 Long Bolts(P).
P
P
P
STEP 8 : Attach the Box Box File Pedestal(PED-A) to the
Modesty(MP-D) by inserting Cam Pins into Cam Locks. Lock
Cams (Figure 1).
STEP 7 : Attach the Ped Foot Bracket(PED-B) to the bottom of the Box Box File Pedestal(PED-A) with 3 Long Bolts(P) and 3
Wood Screws(M). Also, insert 2 Glides(S) into Ped Foot Bracket(PED-B).
NOTE: Flange on Ped Foot Bracket should face toward your Cam Pin location from STEP 6.
P
P
P
M
M
M
PED-B
Flange
S
S
71” Single Ped Desk • INSTRUCTIONS
CARTONS: TT7130, LG2830, MP5424, PBBF30
PED-A
PED-A
PED-B
PED-A
MP-D
PED-A
PED-C
71” Single Pedestal Desk
Page 5

800-558-1010
www.NBF.com
Any problems or questions call Regency Ofce Furniture at 1-866-816-9822
STEP 11A: Flip desk upright with at least 2 people. Replace
Drawers and attach Handles(V) with 2 Handle Screws(W) to
the Box Box File Pedestal(PED-A). Finish by covering all Cam
Locks on the Modesty(MP-D) with Cam Caps(N).
STEP 11B : If the cam pin inserts are not being utilized for a
return connection, cover all cam pin inserts on the Leg(LG-A)
with Insert Covers(T).
STEP 10 : For additional stability, attach Corner Brackets(I)
to Box Box File Pedestal(PED-A) and the Modesty(MP-D)
with 6 Wood Screws(M) per Corner Bracket. Repeat this step
for the Leg(LG-A) and the Modesty(MP-D) connection.
71” Single Ped Desk • INSTRUCTIONS
CARTONS: TT7130, LG2830, MP5424, PBBF30
71” Single Pedestal Desk
Page 6
