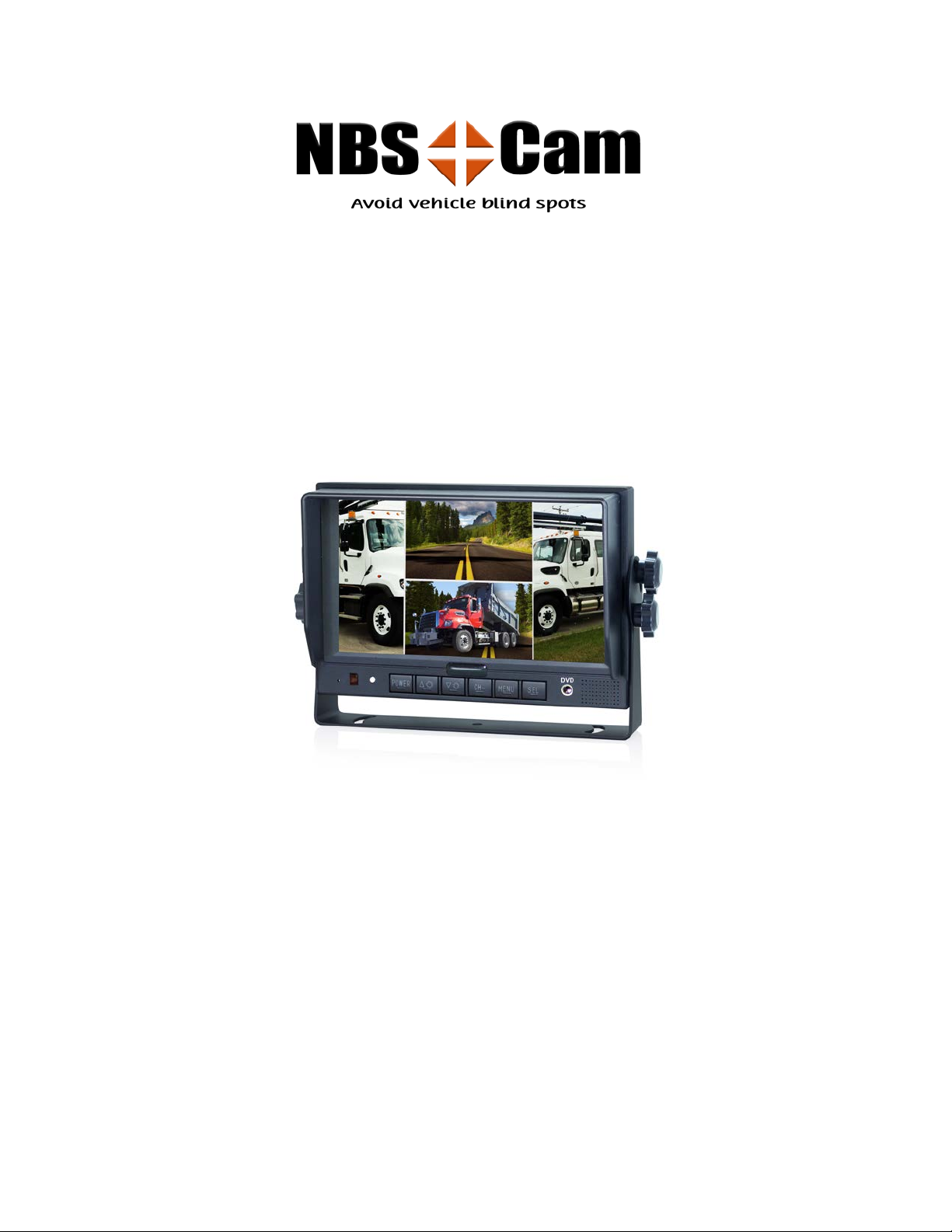

NBS-Cam MC736 User manual

UserGuide
MC736
Digital LCD Color Monitor
Multiple view
（
7”
）
Please read this manual thoroughly before operating the unit,
and keep it for future reference.
V1711.01
1.855.730.5555
www.nbs-cam.com

CONTENT
1. Precautions 3
2. Product 5
3. Monitor installation 6
4. Connections 7
5. Parts identification 8
6. Remote control operations 9
7. Menu operations 11
8. Specifications 13
9. Troubleshooting 14
1.855.730.5555
www.nbs-cam.com

1.PRECAUTIONS
●Storageandkeeping
1. Do not expose the monitor to excessive heat or cold. The storage temperature of this device is -30~+80℃, and the
operating temperature is -20~+70 ℃. The humidity is RH90%
2. Never use this device near a bathtub, wash basin, kitchen, damp basement, swimming pool or similar places.
3. Never use this device in environments with excessive moisture, dust or smoke.
4. Avoid dropping or striking this device.
5. Avoid using this device in enclosed spaces, areas with excessive vibration or subject to severe impacts.
6. Never puncture, scratch or use abrasive cleaning materials on this device.
7. Do not place cables where they may be pinched or stepped on.
8. Leave at least a 2" space between the monitor and walls, cabinets or other objects to allow adequate air circulation
around the device.
9. The monitor is not designed to be waterproof.
●Operatingprecautions
1. The device may be powered by a 12 or 24 volt automotive battery or vehicle electrical system.
2. Make sure all cables are connected properly. Observe polarity. Improper cable connections may damage the
monitor. Remove the power cable connections when you do not intend to use the unit.
3. Operate the unit according to the instruction.
WARNING!
1. High voltage is present within the monitor. The opening of the case should be by professionals.
2. Do not watch the video while driving unless you are monitoring the rear view camera display.
SPECIAL NOTICE
Occasionally, a few highlights or dark spots may occur on the LCD screen. This is a very common phenomenon in active
matrix display technology, and doesn't necessarily indicate any defects or faults. Never try to repair
this device by
yourself. In case of any problems, please turn off the display at once and notify our company or authorized dealer. The
monitor is a complex device. Any disassembly or modification may lead to damage and void the warrantee.
1.855.730.5555
www.nbs-cam.com
-3-

1.PRECAUTIONS
●Maintenance
1. Remove all the cable connections from the monitor before cleaning the device.
2. Use a mild household detergent and clean the unit with a slightly damp, soft cloth.
3. Never use strong solvents such as thinner or benzine, as they might damage the finish of the device.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
.
CAUTION
You are cautioned that any changes or modifications not expressly approved in this manual could void your
warrantee and necessitate expensive repairs.
●Declarationofconformity
This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude to constitute risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
This symbol is intended to alert the user not to dispose of electrical and electronic equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation.
1.855.730.5555
www.nbs-cam.com
-4-

2.PRODUCT
U Support Bracket Optional Center Mount Bracket
AV and Power supply adapter cable
IR remote control
Sun shield
Front panel AV input adaptor
Angle adjustment screws
SPECIAL NOTICE
Accessories may be different for different applications.
1.855.730.5555
www.nbs-cam.com
-5-

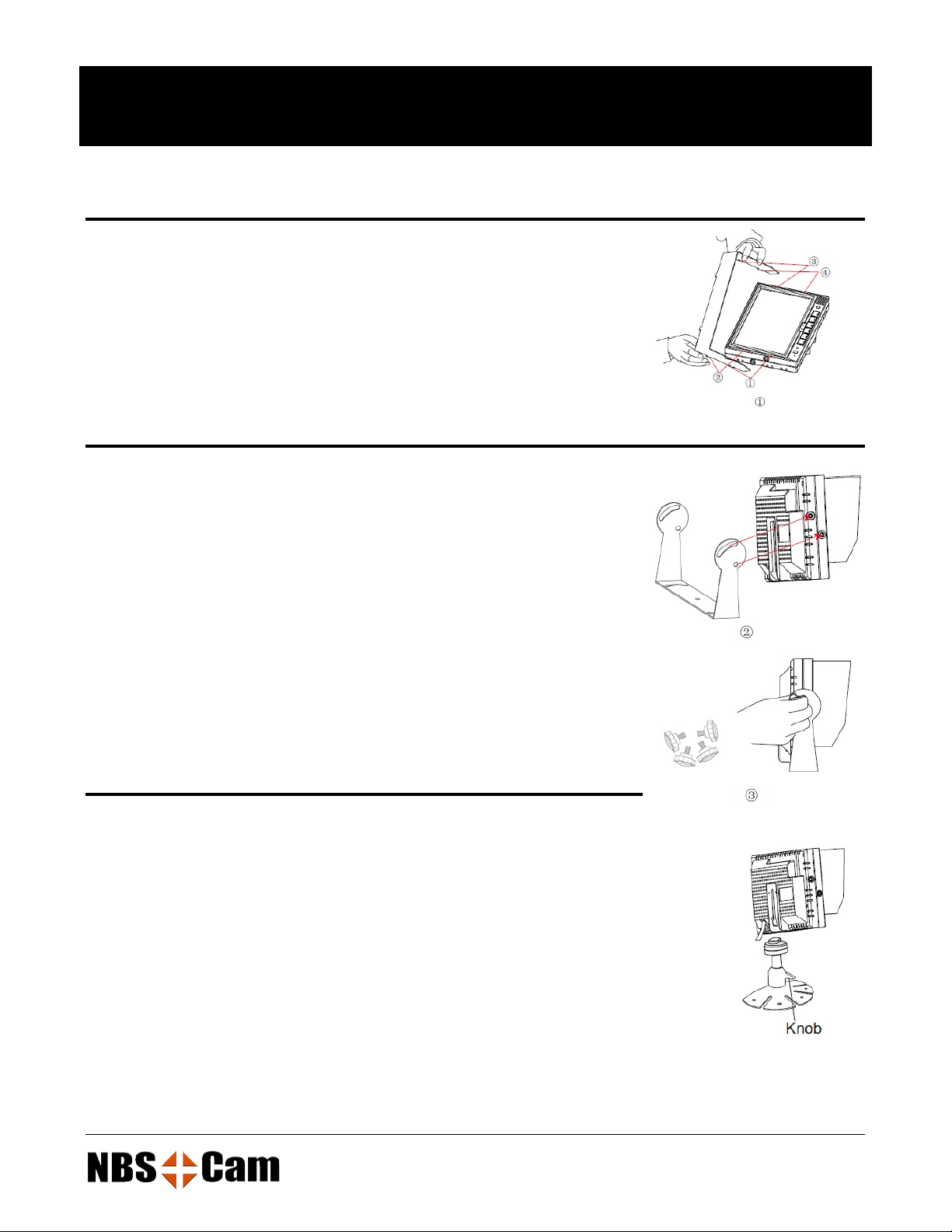

3.MONITORINSTALLATION
●Installationofthesunshield
As illustrated, insert the hooks ①, ②, ③, ④of the sun shield into the monitor.
●InstallationoftheU-supportbracket
①As illustrated in the picture, align the bracket with monitor.
②Adjust the bracket to proper angle and tighten screws.
●Installationofthecentermountbracket
①Loosen the knob on top of the center mounting bracket in picture ④.
②Adjust monitor level by sliding the support to the desired height.
③Adjust the angle of the monitor and tighten the knob on the center mount bracket.
1.855.730.5555
www.nbs-cam.com
-6-

4.CONNECTIONS
Camera 1 Camera 1 Camera 1 Camera 1
①
AUX audio input
②
Green: Rec. V. output
③
Yellow: Live V. output
④
White: Audio output
⑤
White: Trigger 1
⑥
Blue: Trigger 2
⑦
Green: Trigger 3
⑧
Brown: Trigger 4
⑨
Yellow: Split trigger
⑩
Black: Ground
⑪
Red: Power
⑫
DVD video input (yellow RCA)
DVD Audio input (white RCA) NULL (red RCA)
1.855.730.5555
www.nbs-cam.com
-7-

5.PARTSIDENTIFICATION
①
Color LDC Screen
②
LDR
③
Remote signal receiver window
④
Power indicator
The green light / red light is on when monitor is powered / standby:
The light is off when the power is off.
⑤
Power off / on button
⑥
To increase / decrease the volume and switch between values of each sub-menu
⑦
Menu selection and display mode (single, dual, triple, quad-view, PIP image) selection
⑧
Menu control button
⑨
Jump key selector. Fast jump to the display mode specified by SYSTEM SETUP – JUMP KEY
⑩
DVD A/V input
⑪
Loudspeaker
⑫
Installation port for center mount bracket
1.855.730.5555
www.nbs-cam.com
-8-

6.REMOTECONTROLOPERATIONS
NOTICE
1. Please align the remote control with the infrared-receiving window on the monitor to operate.
2. Never disassemble the remote control or allow it to drop, or become wet.
3. Press the control buttons firmly. Allow 2 seconds for the picture to change.
1.855.730.5555
www.nbs-cam.com
-9-

6.REMOTECONTROLOPERATIONS

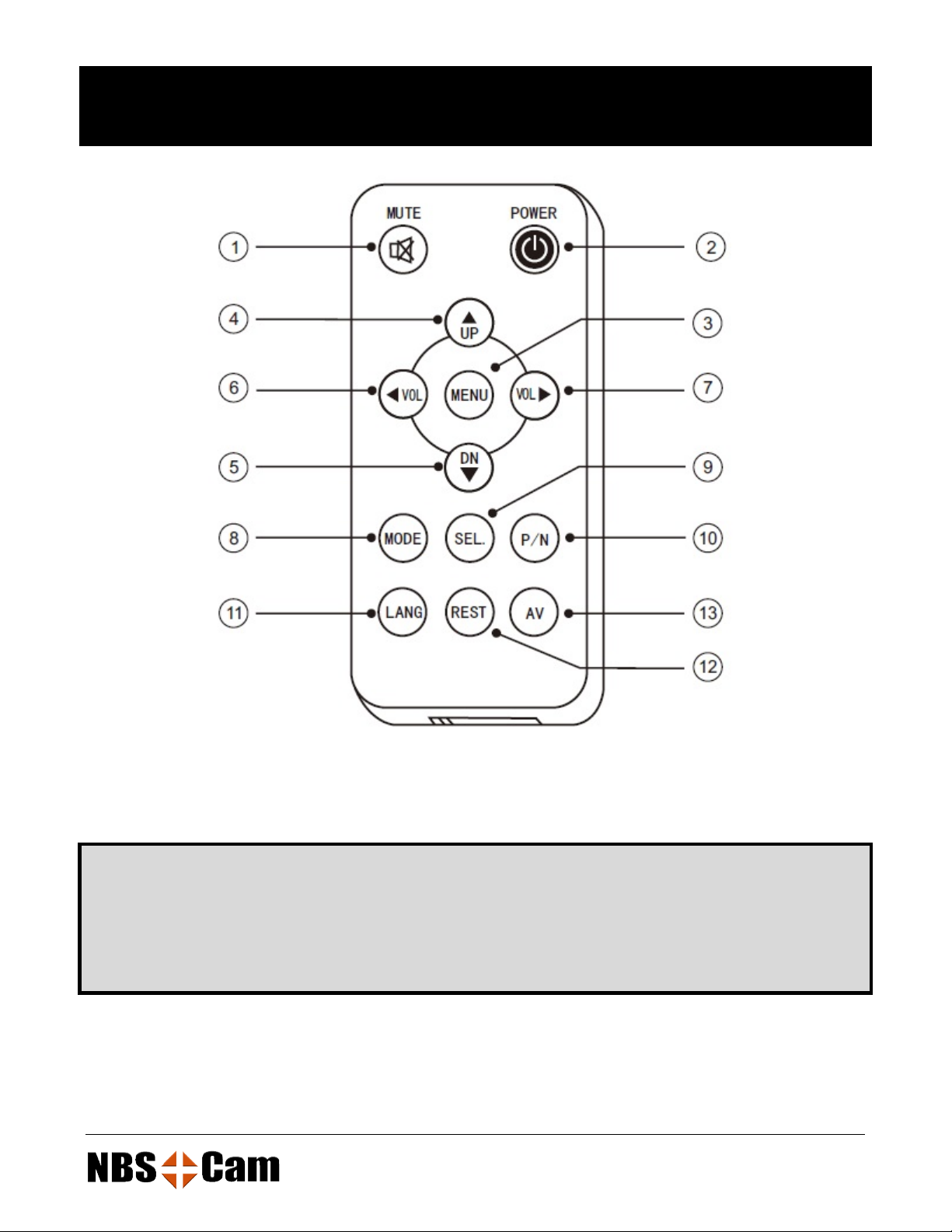

①MUTE:
Press to mute / unmute the volume
②POWER:
Press to turn on/off the monitor.
③MENU:
Press to show menu.
④UP:
Press to select the upper setting.
⑤DN:
Menu selection and display mode (single, dual, triple, quad-view, PIP image) selection.
⑥VOL-
Press to decrease the volume and switch between values of each sub-menu.
⑦VOL+
Press to increase the volume and switch between values of each sub-menu.
⑧MODE (Picture mode):
Menu selection and display mode (single, dual, triple, quad-view, PIP image) selection.
⑨SEL:
Jump key selector. Fast jump to the display mode specified by SYSTEM SETUP – JUMP KEY.
⑩P/N:
PAL / NTSC TV system selector
⑪LANG:
Press to select language of display.
⑫REST:
Press to restore factory settings.
AV:
Press to go to / leave DVD channel.
1.855.730.5555
www.nbs-cam.com
-10-

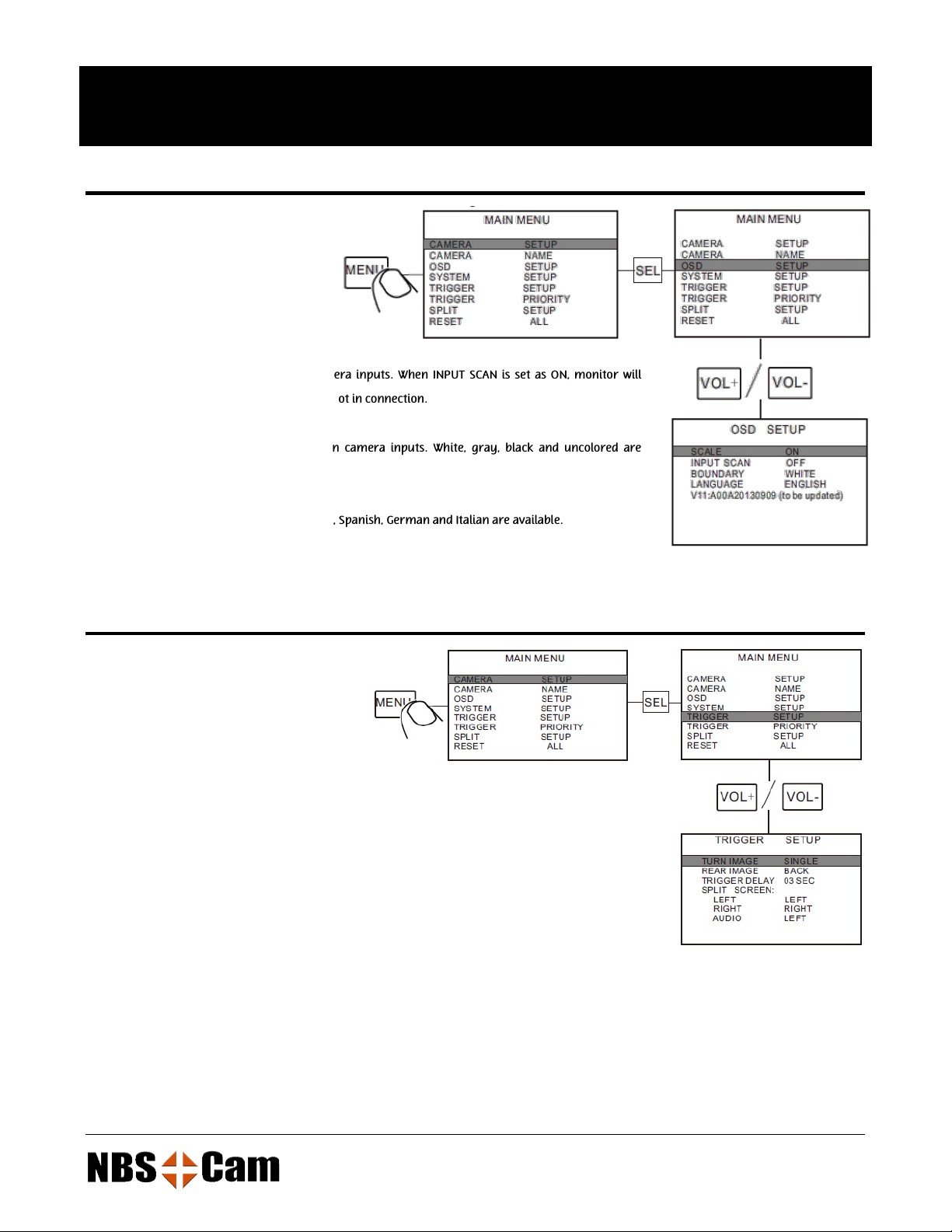

7.MENU
INPUT SCAN:
To turn on / off auto identification of camera inputs. When INPUT SCAN is set as ON, monitor will
display connected cameras and skip inputs not in connection.
BOUNDARY:
To set color of the separation line between camera inputs. White, gray, black and uncolored are
available.
LANGUAGE:
To set OSD language. English, French, Dutch, Spanish, German and Italian are available.
SOFTWARE VERSION:
To be updated at all times.
●OSDSetting
●Triggersetting
●
either camera is activated. When set as SPLIT, split image of left-side and rear view camera will be
displayed when left-side camera is activated; split image of right-side and rear view camera will be
displayed when right-side camera is activated.
REAR IMAGE:
To set the camera input(s) to be displayed when rear view camera is activated. When set as BACK, the
rear view camera will be displayed when activated. When set as TRIPLE, left-side, right-side and rear view
camera will be displayed.
TRIGGER DELAY:
To set the delaying time of video display when trigger signal goes off. Delaying time frame: 0-30
seconds.
SPLIT SCREEN:
To set the camera input(s) to be displayed when “split”trigger wire is activated. LEFT / RIGHT is to set the
camera input to be displayed on the left / right side of monitor screen. AUDIO is to set the audio output
from any of the four cameras.
TURN IMAGE:
To set the camera input(s) to be displayed when
left-side camera (camera 1) / right-side camera
(camera 2) is activated. When set as SINGLE,
correspond camera input will be displayed when
SCALE:
To turn on / off electronic distance label.
When set as ON, electronic distance label
will be displayed when rear view camera
(camera 3) is activated.
1.855.730.5555
www.nbs-cam.com
-11-

7.MENU

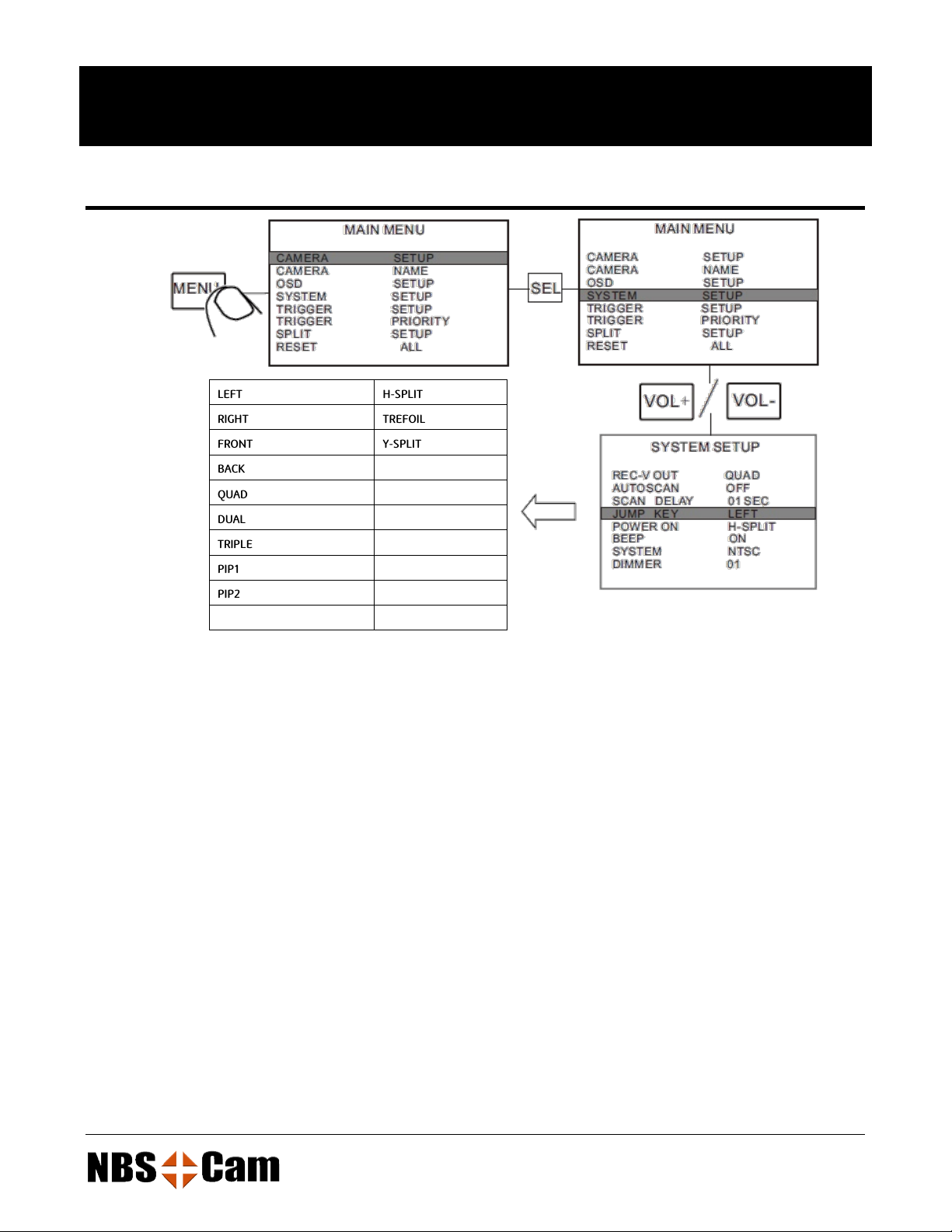

●JumpKeySetting
LEFT H-SPLIT
RIGHT TREFOIL
FRONT Y-SPLIT
BACK
QUAD
DUAL
TRIPLE
PIP1
PIP2
PIP3
REC-V OUT:
To set the camera input(s) to be recorded when connected to DVR via the green RCA wire. Left-side, right-side, front view, rear view camera
and quad view image can be selected.
AUTOSCAN:
To set the auto scanning function. When AUTOSCAN is set as ON, monitor will automatically switch between connected camera inputs and
quad image.
SCAN DELAY:
To set the switching time of AUTOSCAN. Switching time frame: 0-60 seconds.
JUMP KEY:
To set the shortcut display mode from the 13 modes to the left.It can be activated by jump key selector.
P-ON MODE:
To set the default display model from the 13 modes to the left or STANDBY mode.
BEEP:
To turn on / off the warning tone. Default setting is ON and there will be a beeping sound when menu is being operated.
SYSTEM:
To set TV system: PAL / NTSC.
DIMMER:
To set backlighting brightness level of screen. Five levels and AUTO option are available; the higher the level, the brighter. When set as AUTO,
backlighting automatically adjusts in accordance with the outer brightness.
1.855.730.5555
www.nbs-cam.com
-12-

8.SPECIFICATIONS
Dimension 7"
TV System NTSC/PAL
Resolution 800 (W) × 3 (RGB) × 480 (H)
Brightness 400cd/㎡
Contrast 500:1
Viewing Angle U: 50, D: 70, L: 70, R: 70
Aspect Ratio 16:9
Pixel Pitch (mm) 0.0642 (W) x 0.1790 (H)
Operating Temperature - 20
℃
~ + 70
℃
Storage Temperature - 30
℃
~ + 80
℃
Power Consumption Max. 25W
Power Output to Camera Max. 4 × 300mA, 12V
Power Supply 10V~32V
Video Input 4 video inputs for camera - peak value: 1Vp-p, impedance: 75 ohm
1 DVD input - peak value: 1Vp-p, impedance: 75 ohm
Audio Input 4 audio inputs for camera - peak value: 1Vp-p, impedance: 4.7K ohm
1 AUX audio input - peak value: 1Vp-p, impedance: 4.7K ohm
Video Output 1 DVD audio input - peak value: 1Vp-p, impedance: 4.7K ohm
Video Ouput 1 REC Video output - peak value: 1Vp-p, impedance: 75 ohm
Audio Output 1 LIVE Video output - peak value: 1Vp-p, impedance: 75 ohm
Audio Output 1 REC audio output - peak value: 1Vp-p, impedance: 4.7K ohm
1.855.730.5555
www.nbs-cam.com
-13-

9.TROUBLESHOOTING
The symptoms described below do not necessarily mean a failure within the display. Please check the following items before
you initiate request for repair.
PROBLEMS POSSIBLESCAUSES/SOLUTIONS
No picture, no sound Improper connection of automobile adapter. Use of un-authorized
power supply. Power switch is on OFF position.
No picture Check whether AV cable is properly connected.
No sound Check whether audio wire is properly connected or the sound
volume is turned off or set too low.
Dark picture Check whether brightness and contrast are adjusted correctly; Check
whether the environments temperature is too low.
No color Adjust the color settings.
Upside down or lateral inverted picture Use the remote control horizontal /vertical selection switch to set
proper orientation.
No reverse gear activated screen (i.e. Picture) The black wire of the monitor AV cable to the reversing light may be
loose. The red wire from the monitor may be loose.
WARNING
Monitor systems are strictly intended to be installed as a supplement and not intended for use as substitutes for rear-view
mirror devices, or for any other standard motor vehicle equipment required to be installed on vehicles by law. Our products
are no substitute for proper defensive driving techniques, observance of traffic laws and motor vehicle safety regulations.
